The Cell Membrane Studying Membranes The Electron Microscope

The Cell Membrane

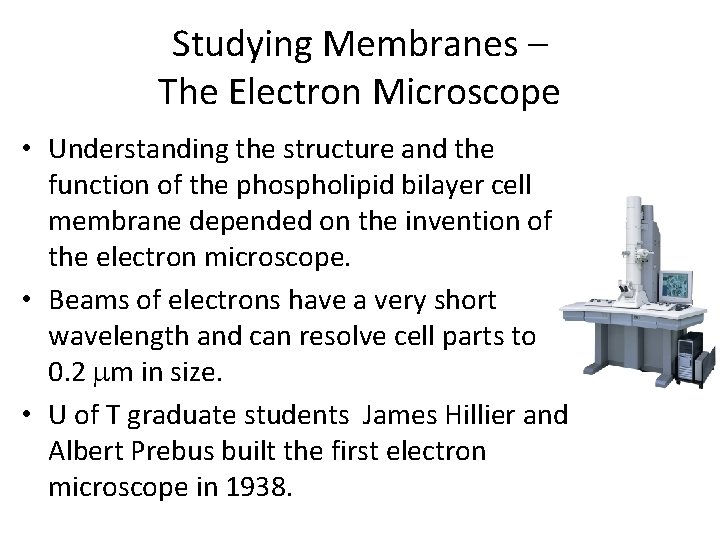

Studying Membranes – The Electron Microscope • Understanding the structure and the function of the phospholipid bilayer cell membrane depended on the invention of the electron microscope. • Beams of electrons have a very short wavelength and can resolve cell parts to 0. 2 m in size. • U of T graduate students James Hillier and Albert Prebus built the first electron microscope in 1938.

EM Photo of a Membrane

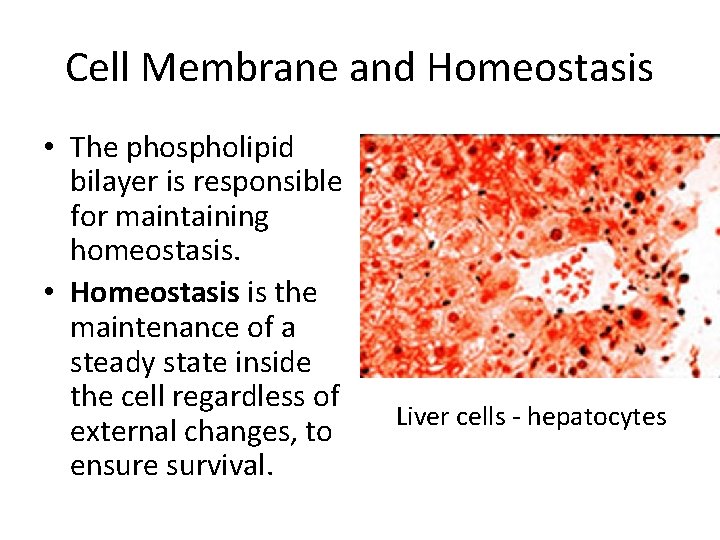

Cell Membrane and Homeostasis • The phospholipid bilayer is responsible for maintaining homeostasis. • Homeostasis is the maintenance of a steady state inside the cell regardless of external changes, to ensure survival. Liver cells - hepatocytes

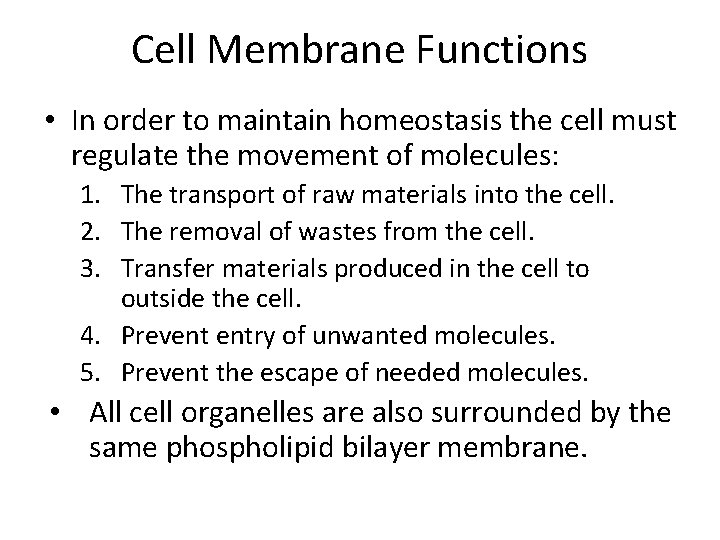

Cell Membrane Functions • In order to maintain homeostasis the cell must regulate the movement of molecules: 1. The transport of raw materials into the cell. 2. The removal of wastes from the cell. 3. Transfer materials produced in the cell to outside the cell. 4. Prevent entry of unwanted molecules. 5. Prevent the escape of needed molecules. • All cell organelles are also surrounded by the same phospholipid bilayer membrane.

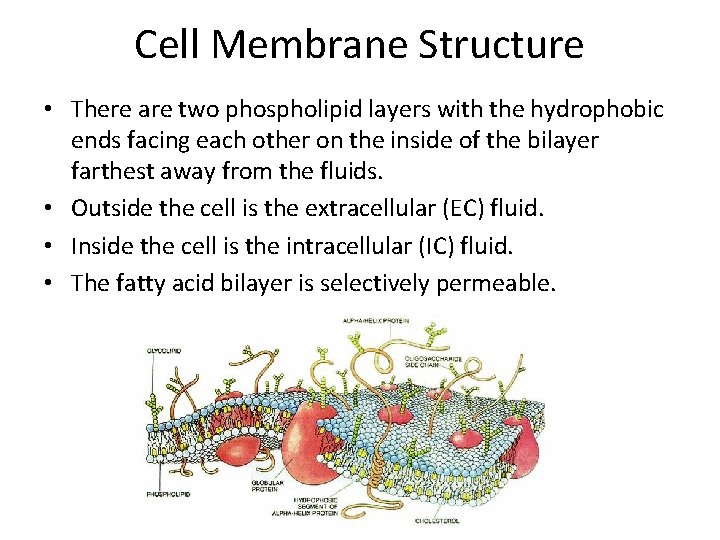

Cell Membrane Structure • There are two phospholipid layers with the hydrophobic ends facing each other on the inside of the bilayer farthest away from the fluids. • Outside the cell is the extracellular (EC) fluid. • Inside the cell is the intracellular (IC) fluid. • The fatty acid bilayer is selectively permeable.

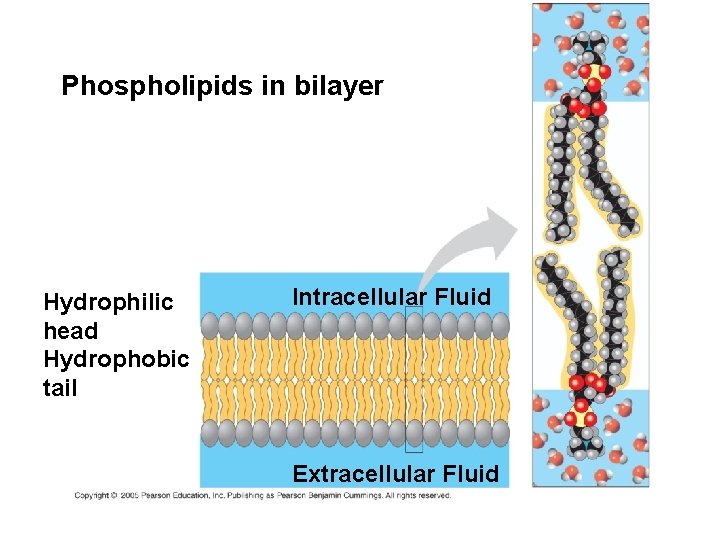

Phospholipids in bilayer Hydrophilic head Hydrophobic tail Intracellular Fluid Extracellular Fluid

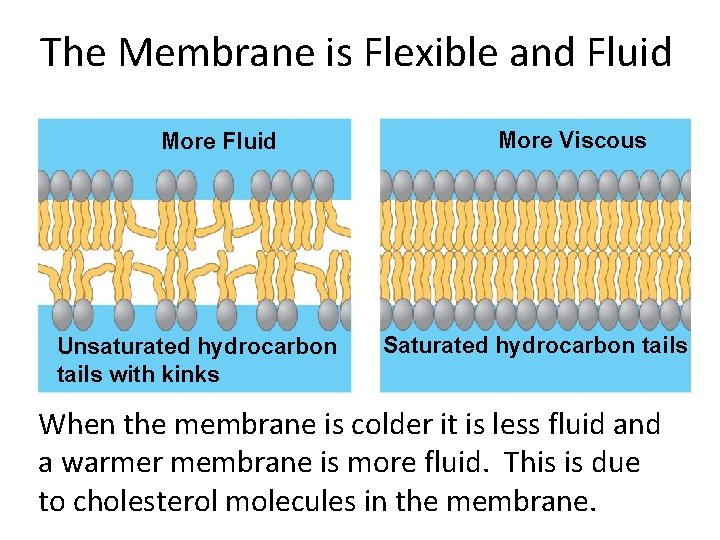

The Membrane is Flexible and Fluid More Fluid Unsaturated hydrocarbon tails with kinks More Viscous Saturated hydrocarbon tails When the membrane is colder it is less fluid and a warmer membrane is more fluid. This is due to cholesterol molecules in the membrane.

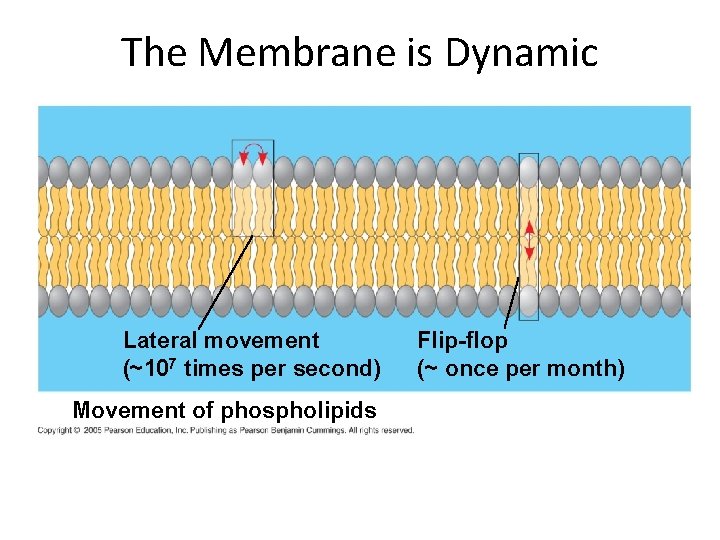

The Membrane is Dynamic Lateral movement (~107 times per second) Movement of phospholipids Flip-flop (~ once per month)

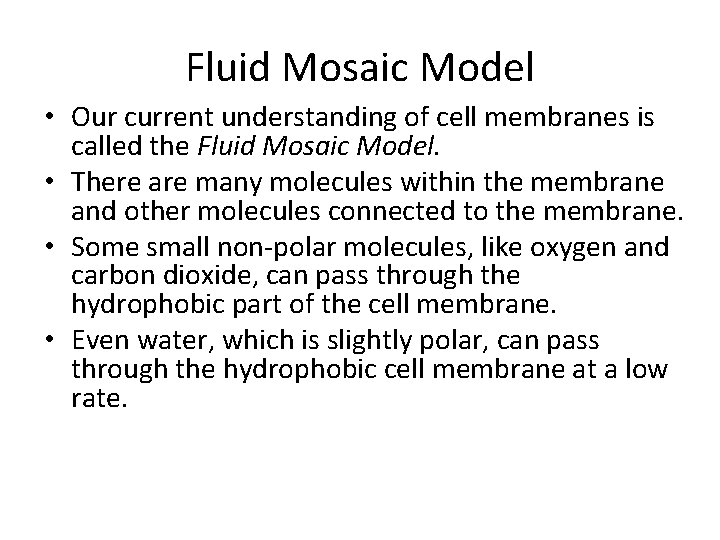

Fluid Mosaic Model • Our current understanding of cell membranes is called the Fluid Mosaic Model. • There are many molecules within the membrane and other molecules connected to the membrane. • Some small non-polar molecules, like oxygen and carbon dioxide, can pass through the hydrophobic part of the cell membrane. • Even water, which is slightly polar, can pass through the hydrophobic cell membrane at a low rate.

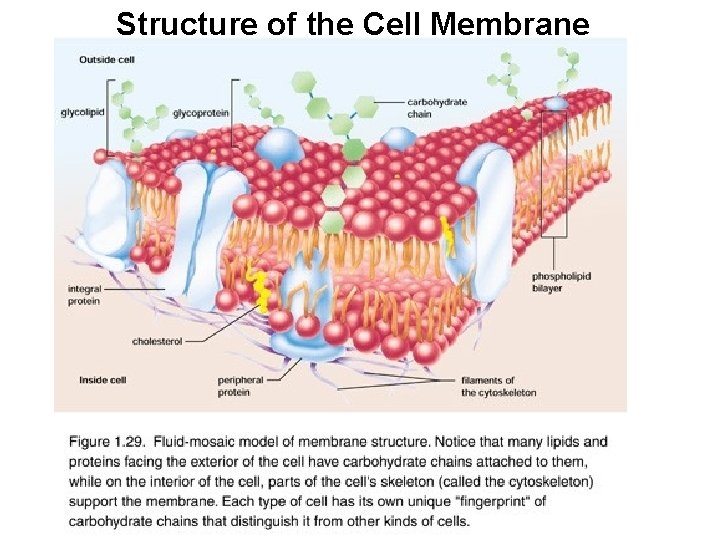

Structure of the Cell Membrane

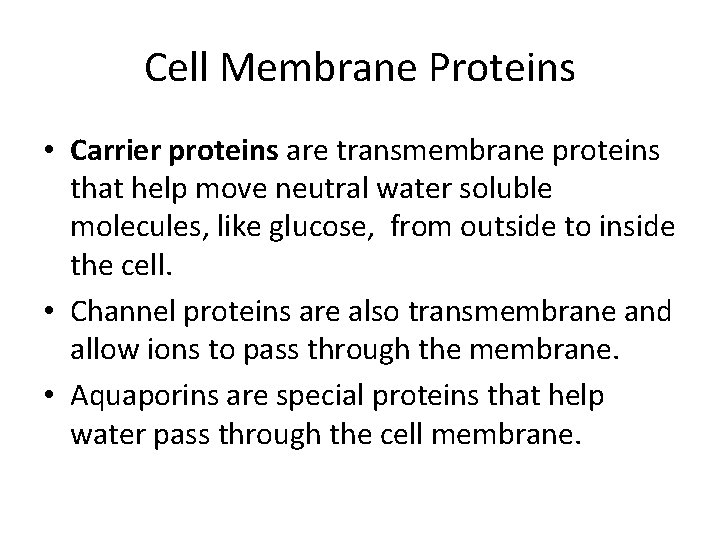

Cell Membrane Proteins • Carrier proteins are transmembrane proteins that help move neutral water soluble molecules, like glucose, from outside to inside the cell. • Channel proteins are also transmembrane and allow ions to pass through the membrane. • Aquaporins are special proteins that help water pass through the cell membrane.

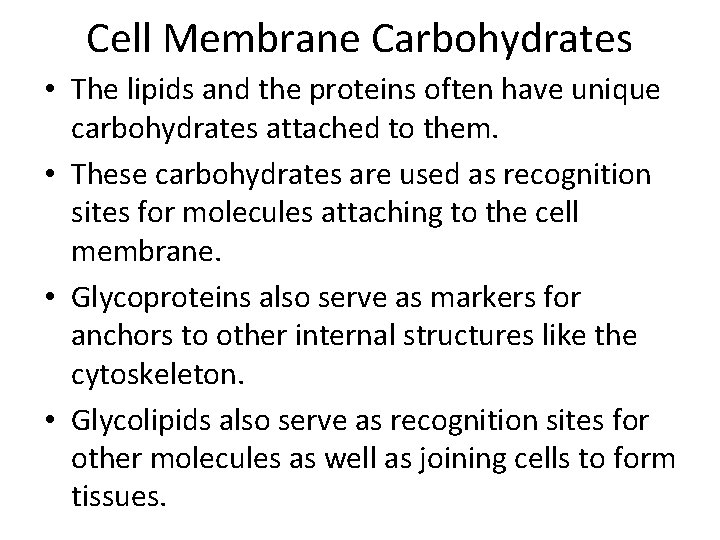

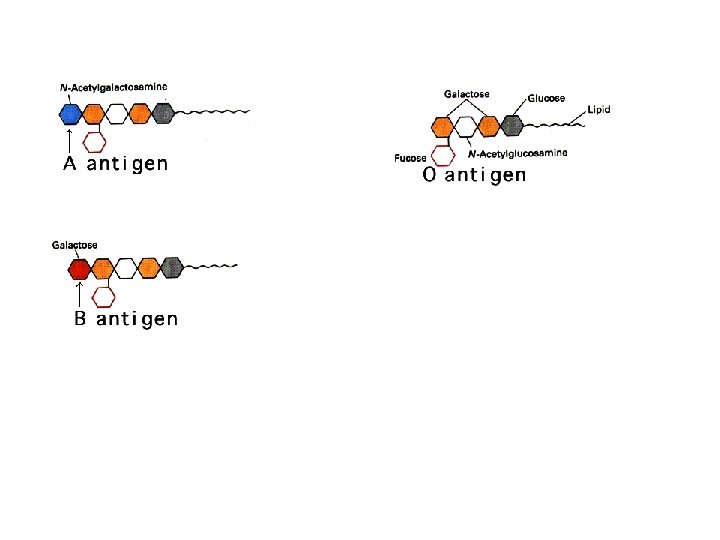

Cell Membrane Carbohydrates • The lipids and the proteins often have unique carbohydrates attached to them. • These carbohydrates are used as recognition sites for molecules attaching to the cell membrane. • Glycoproteins also serve as markers for anchors to other internal structures like the cytoskeleton. • Glycolipids also serve as recognition sites for other molecules as well as joining cells to form tissues.

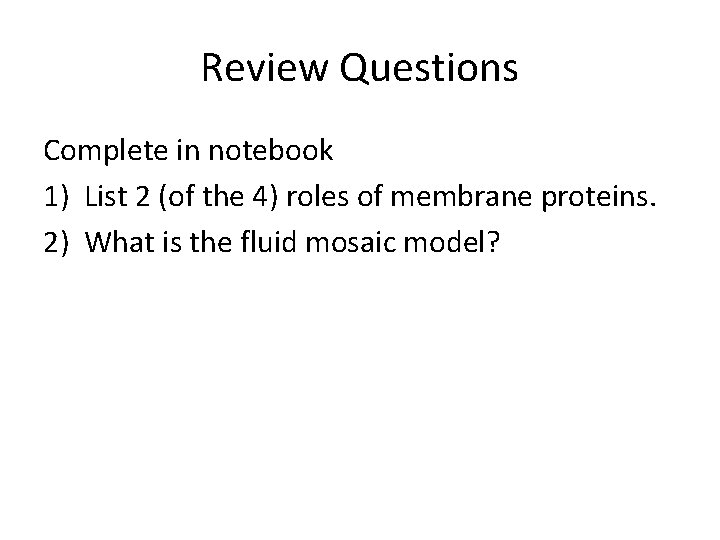

Review Questions Complete in notebook 1) List 2 (of the 4) roles of membrane proteins. 2) What is the fluid mosaic model?

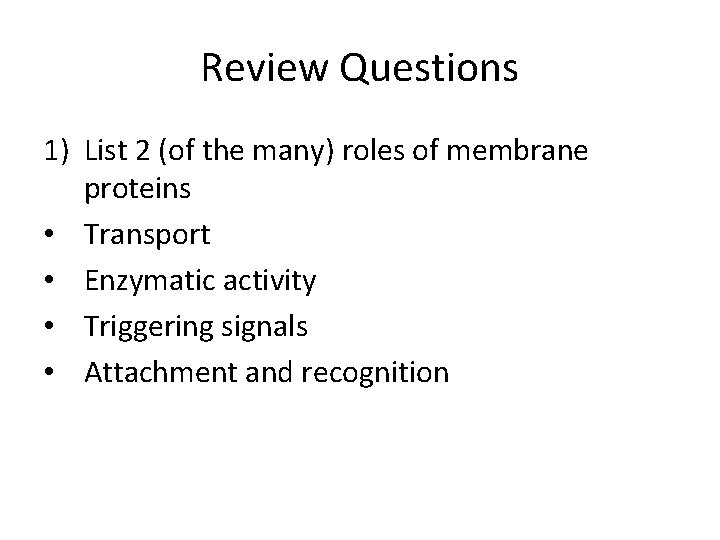

Review Questions 1) List 2 (of the many) roles of membrane proteins • Transport • Enzymatic activity • Triggering signals • Attachment and recognition

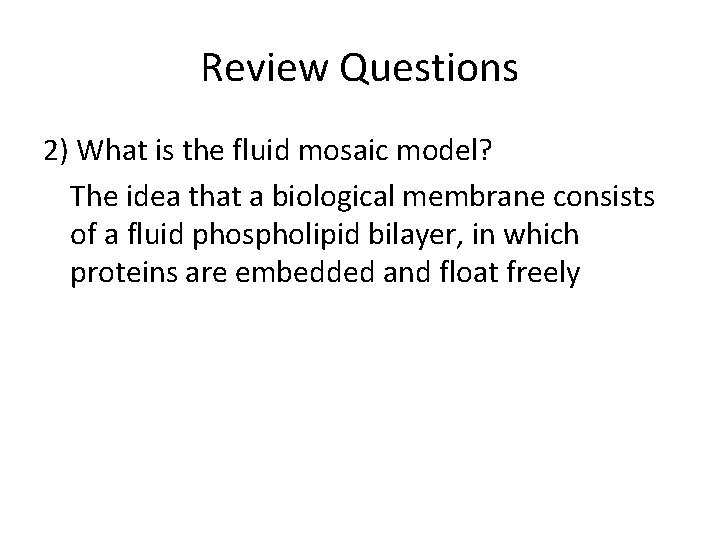

Review Questions 2) What is the fluid mosaic model? The idea that a biological membrane consists of a fluid phospholipid bilayer, in which proteins are embedded and float freely

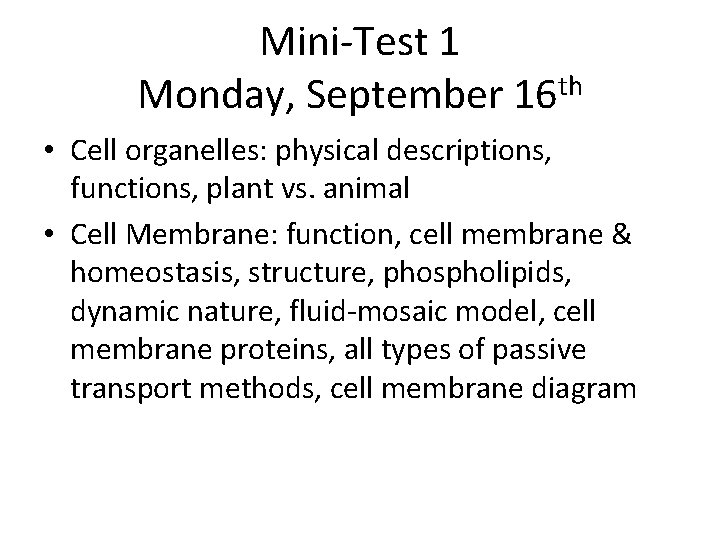

Mini-Test 1 Monday, September 16 th • Cell organelles: physical descriptions, functions, plant vs. animal • Cell Membrane: function, cell membrane & homeostasis, structure, phospholipids, dynamic nature, fluid-mosaic model, cell membrane proteins, all types of passive transport methods, cell membrane diagram

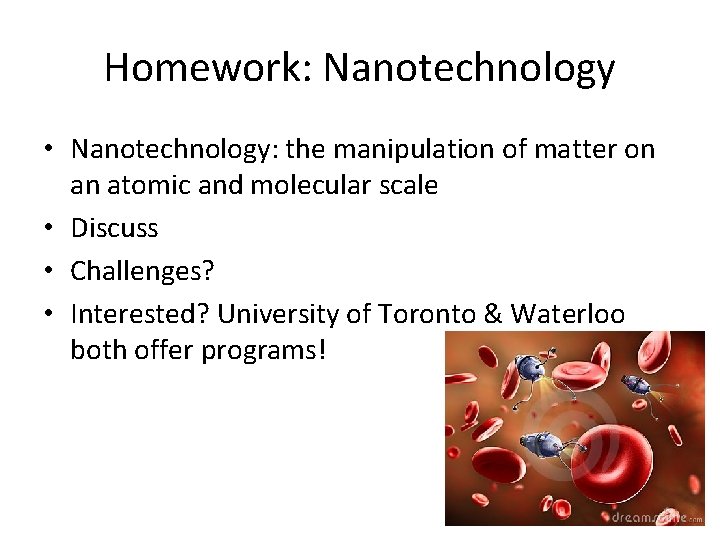

Homework: Nanotechnology • Nanotechnology: the manipulation of matter on an atomic and molecular scale • Discuss • Challenges? • Interested? University of Toronto & Waterloo both offer programs!

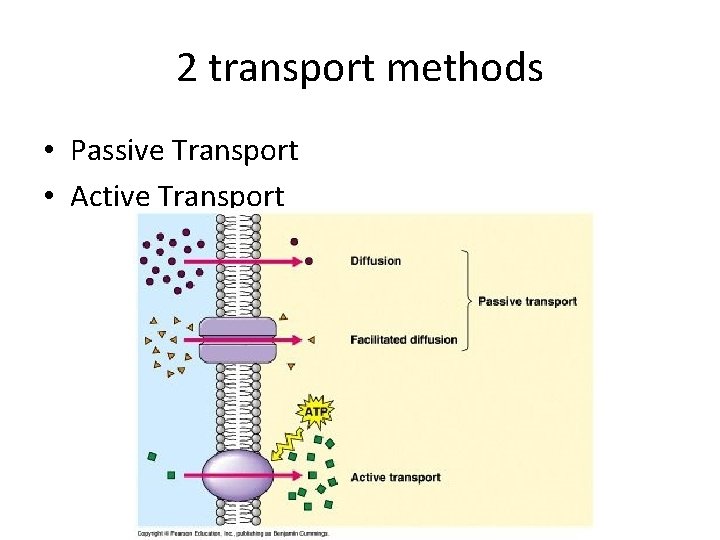

2 transport methods • Passive Transport • Active Transport

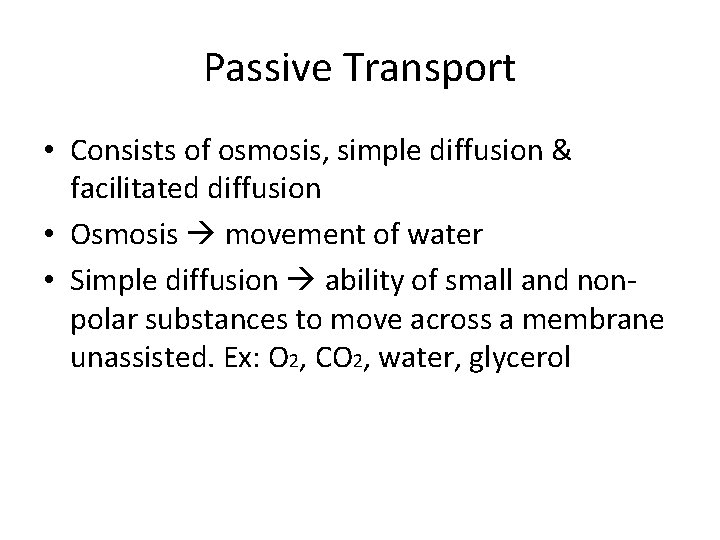

Passive Transport • Consists of osmosis, simple diffusion & facilitated diffusion • Osmosis movement of water • Simple diffusion ability of small and nonpolar substances to move across a membrane unassisted. Ex: O 2, CO 2, water, glycerol

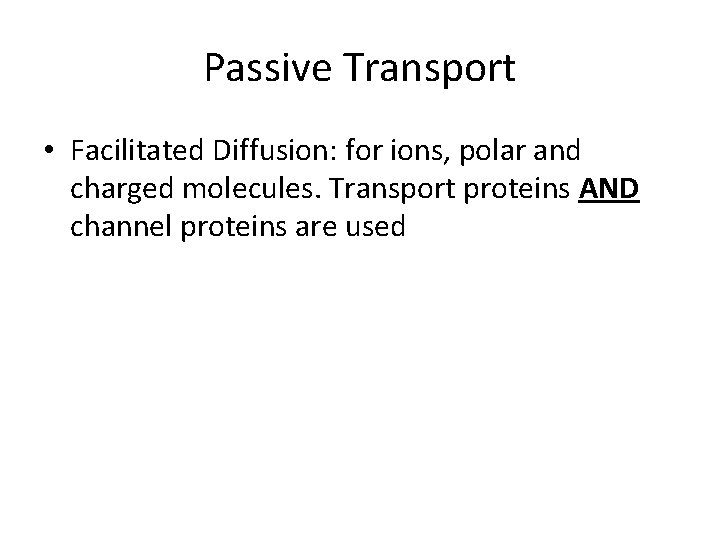

Passive Transport • Facilitated Diffusion: for ions, polar and charged molecules. Transport proteins AND channel proteins are used

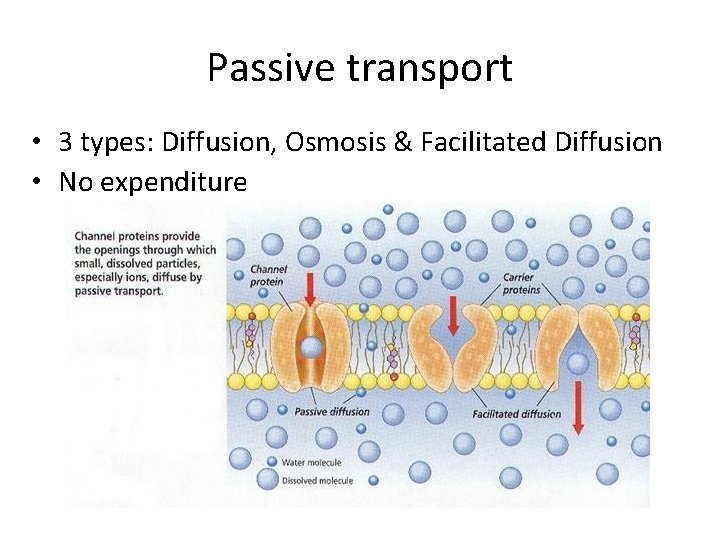

Passive transport • 3 types: Diffusion, Osmosis & Facilitated Diffusion • No expenditure

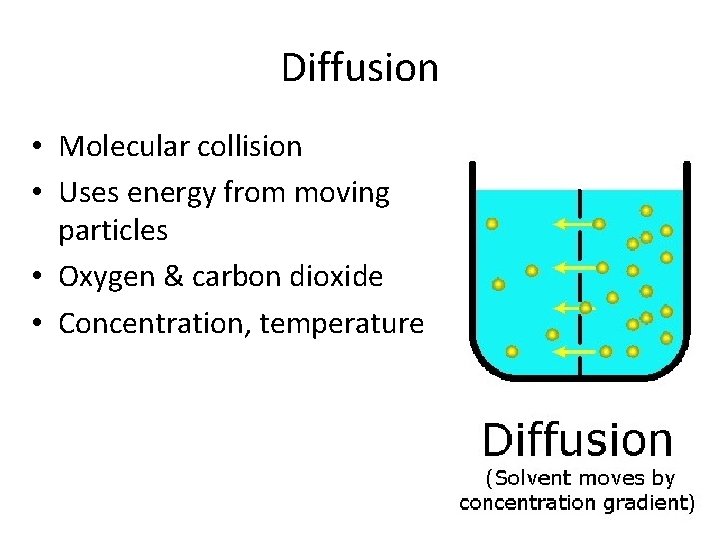

Diffusion • Molecular collision • Uses energy from moving particles • Oxygen & carbon dioxide • Concentration, temperature

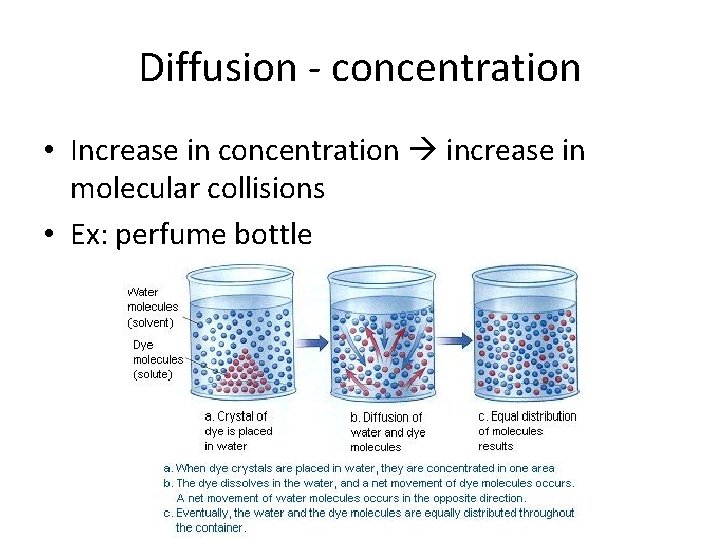

Diffusion - concentration • Increase in concentration increase in molecular collisions • Ex: perfume bottle

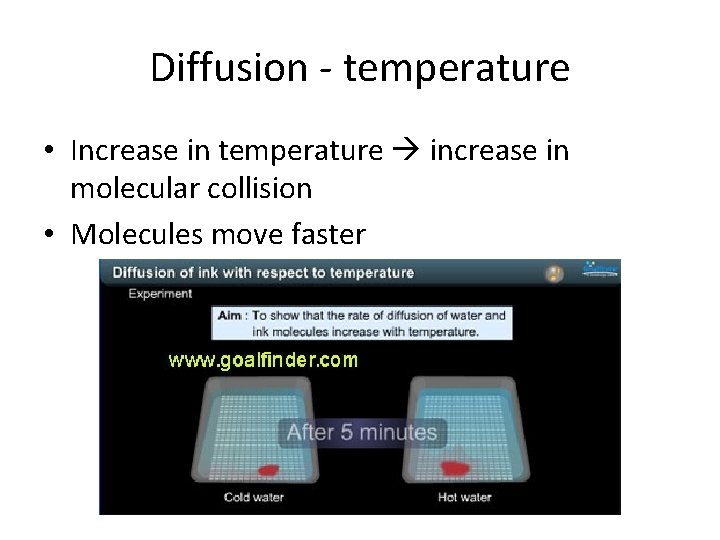

Diffusion - temperature • Increase in temperature increase in molecular collision • Molecules move faster

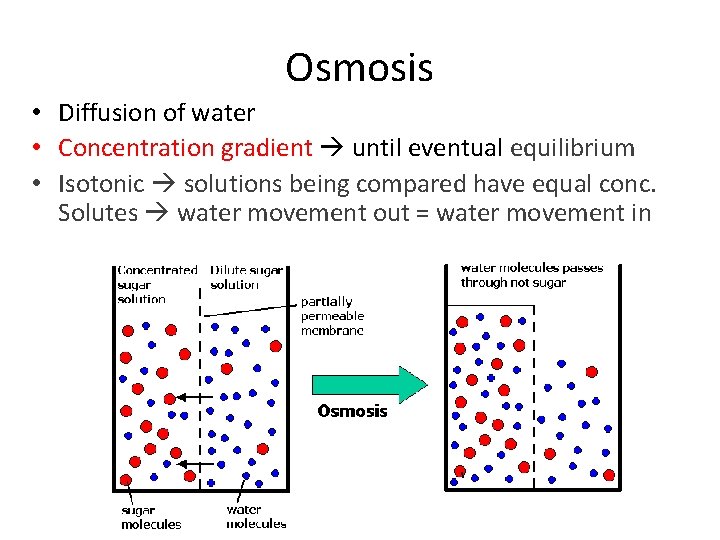

Osmosis • Diffusion of water • Concentration gradient until eventual equilibrium • Isotonic solutions being compared have equal conc. Solutes water movement out = water movement in

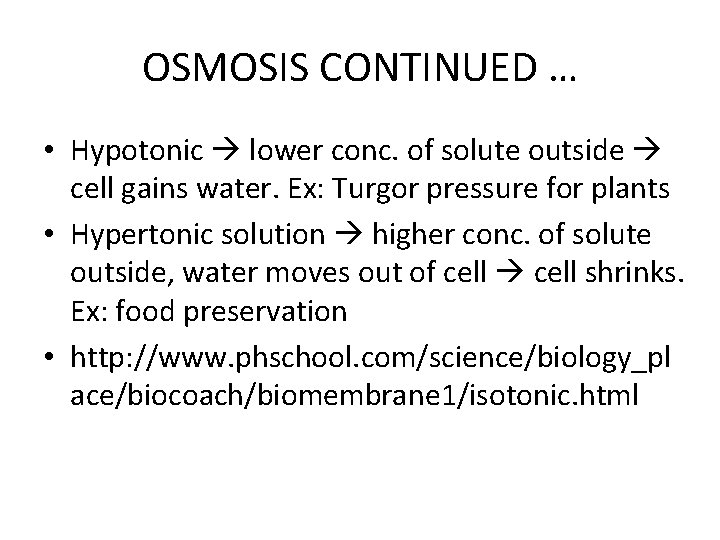

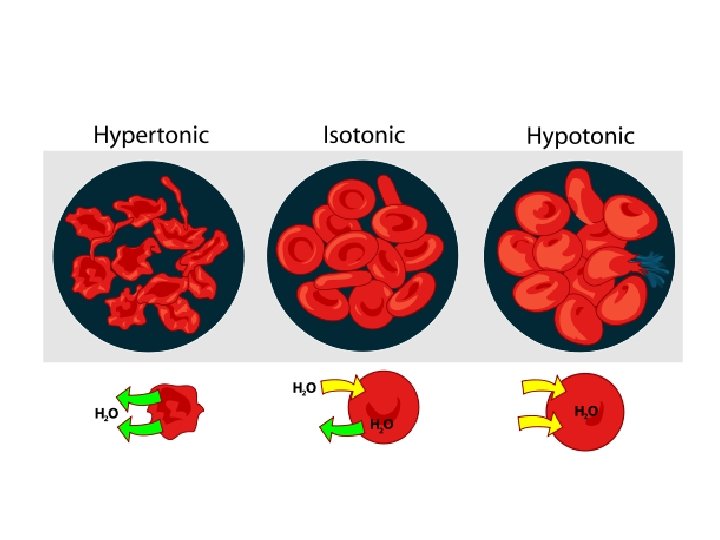

OSMOSIS CONTINUED … • Hypotonic lower conc. of solute outside cell gains water. Ex: Turgor pressure for plants • Hypertonic solution higher conc. of solute outside, water moves out of cell shrinks. Ex: food preservation • http: //www. phschool. com/science/biology_pl ace/biocoach/biomembrane 1/isotonic. html

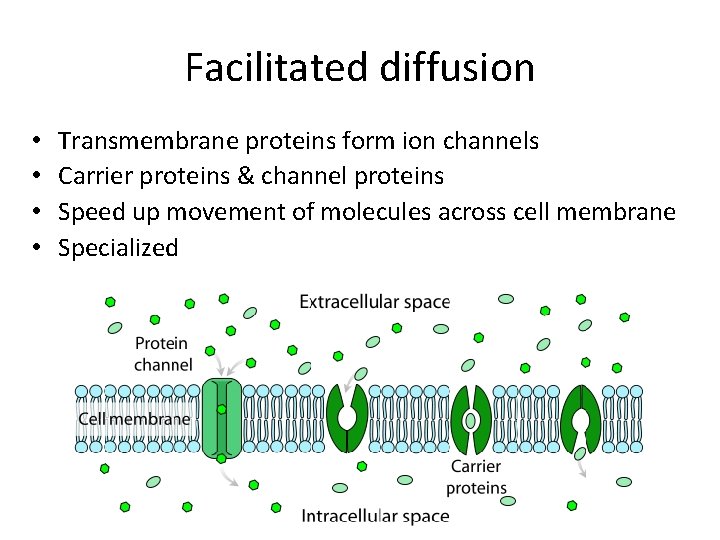

Facilitated diffusion • • Transmembrane proteins form ion channels Carrier proteins & channel proteins Speed up movement of molecules across cell membrane Specialized

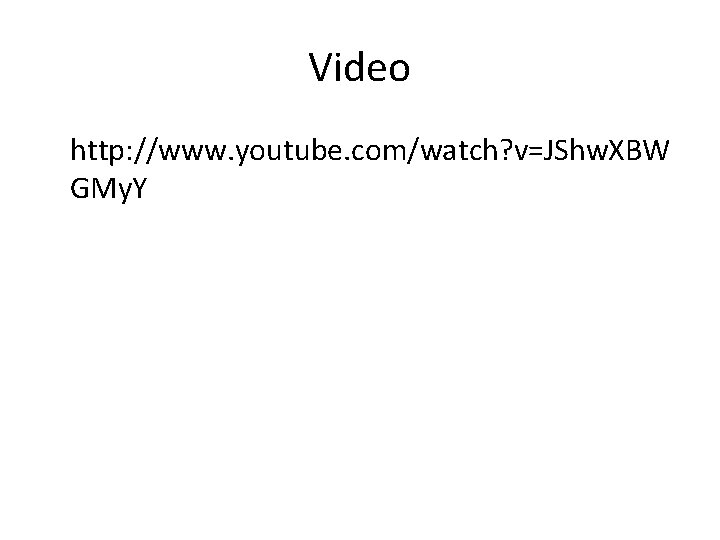

Video http: //www. youtube. com/watch? v=JShw. XBW GMy. Y
