The Boltzmann Transport Equation Matt Krems Physics 211

The Boltzmann Transport Equation Matt Krems Physics 211 A Dec. 10, 2007

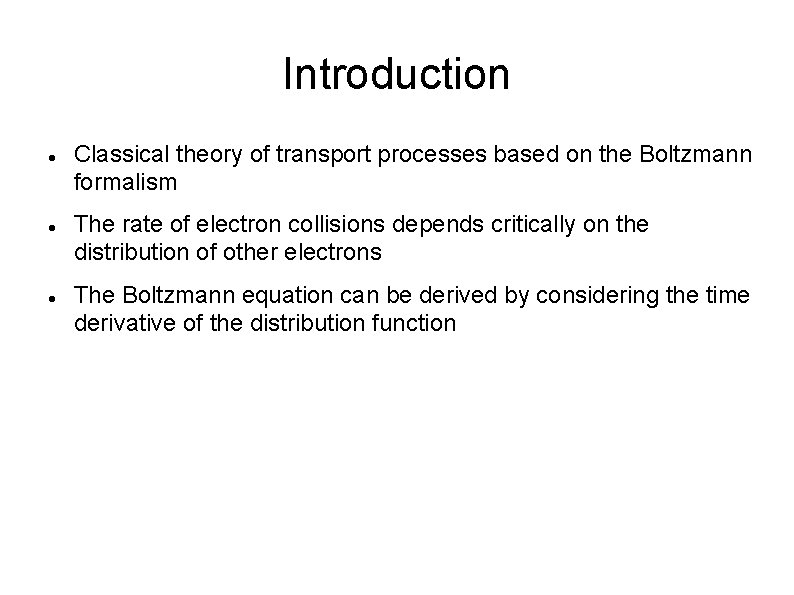

Introduction Classical theory of transport processes based on the Boltzmann formalism The rate of electron collisions depends critically on the distribution of other electrons The Boltzmann equation can be derived by considering the time derivative of the distribution function

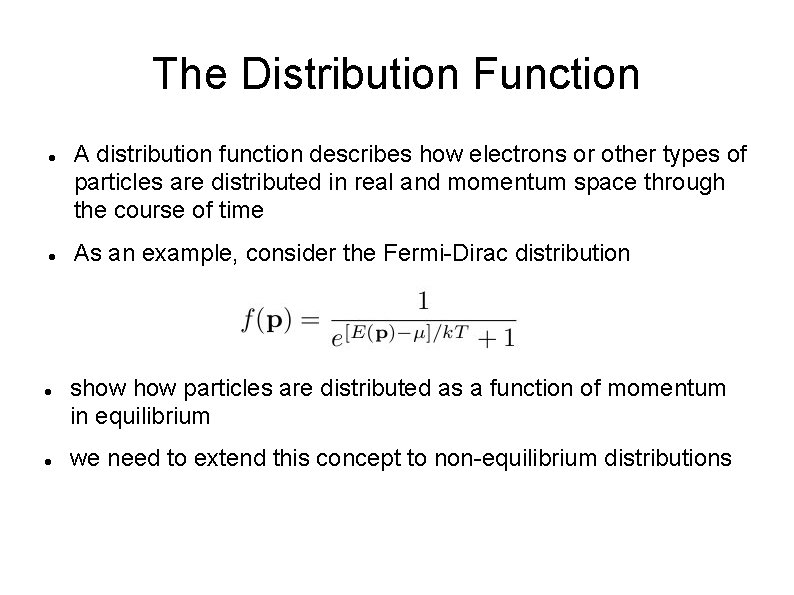

The Distribution Function A distribution function describes how electrons or other types of particles are distributed in real and momentum space through the course of time As an example, consider the Fermi-Dirac distribution show particles are distributed as a function of momentum in equilibrium we need to extend this concept to non-equilibrium distributions

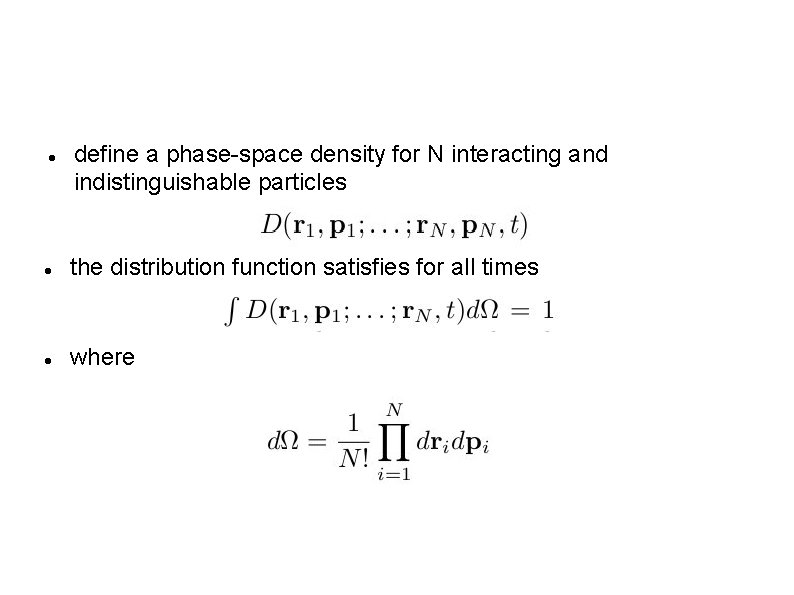

define a phase-space density for N interacting and indistinguishable particles the distribution function satisfies for all times where

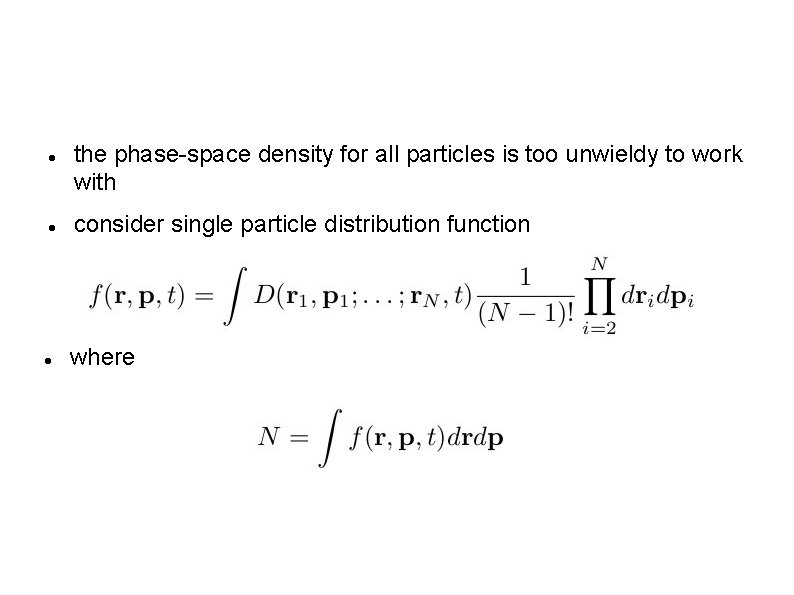

the phase-space density for all particles is too unwieldy to work with consider single particle distribution function where

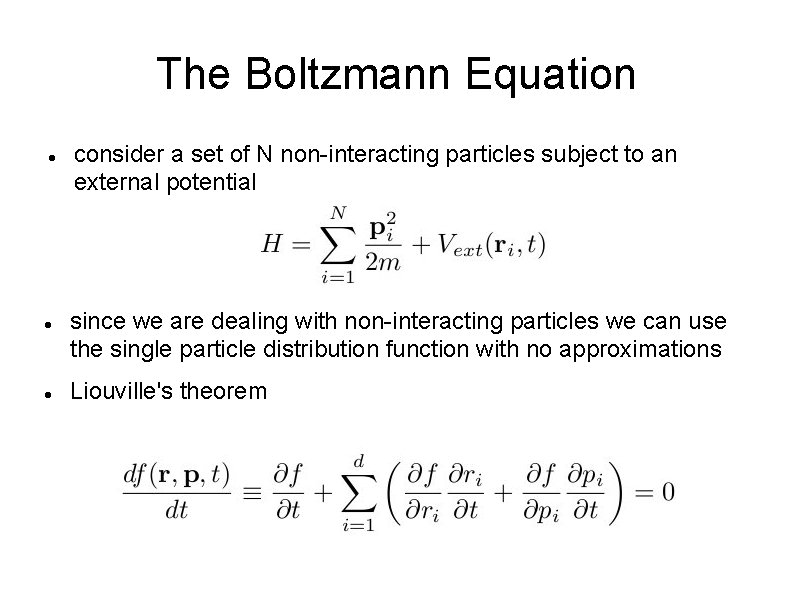

The Boltzmann Equation consider a set of N non-interacting particles subject to an external potential since we are dealing with non-interacting particles we can use the single particle distribution function with no approximations Liouville's theorem

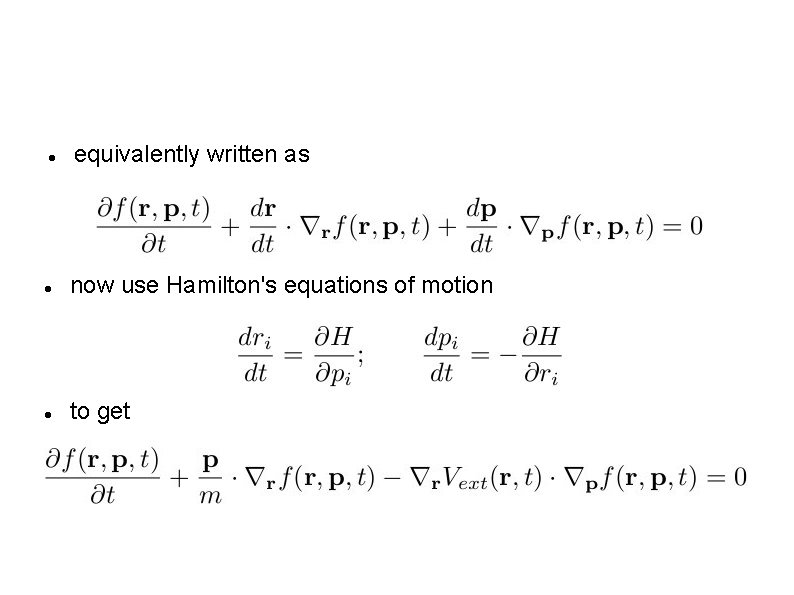

equivalently written as now use Hamilton's equations of motion to get

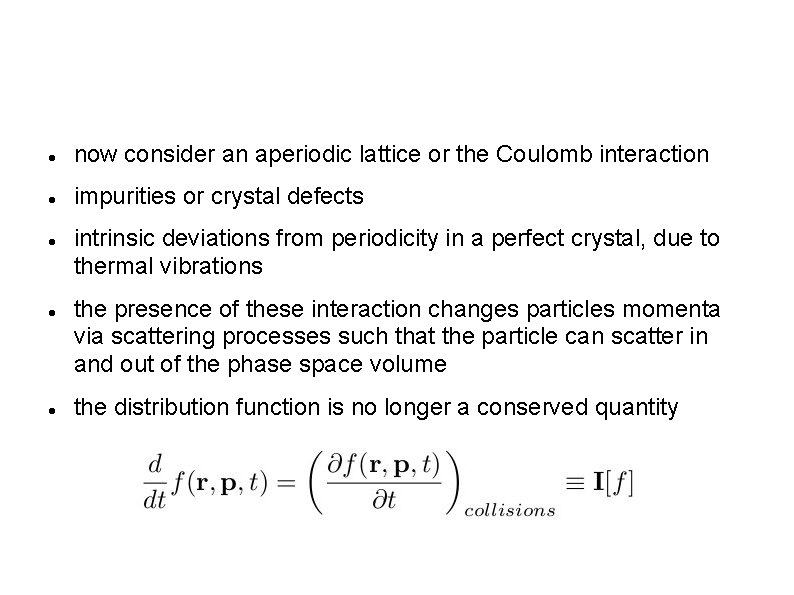

now consider an aperiodic lattice or the Coulomb interaction impurities or crystal defects intrinsic deviations from periodicity in a perfect crystal, due to thermal vibrations the presence of these interaction changes particles momenta via scattering processes such that the particle can scatter in and out of the phase space volume the distribution function is no longer a conserved quantity

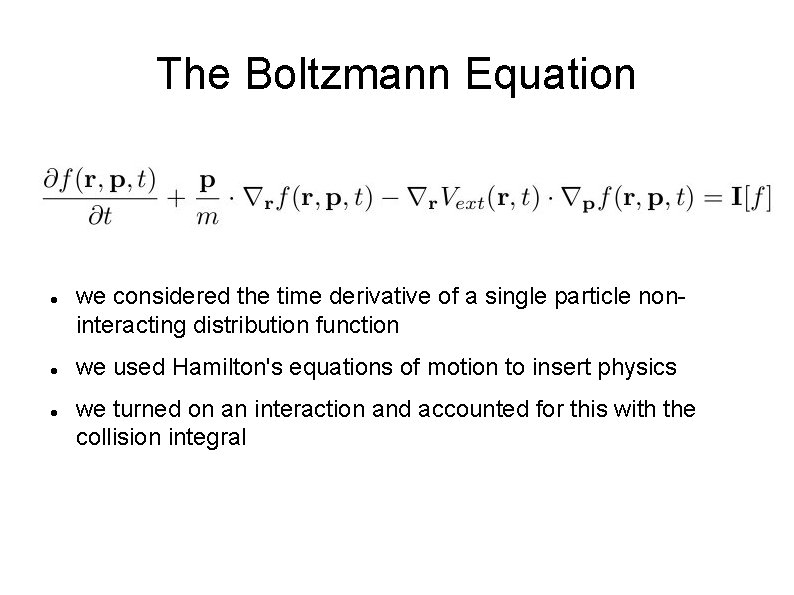

The Boltzmann Equation we considered the time derivative of a single particle noninteracting distribution function we used Hamilton's equations of motion to insert physics we turned on an interaction and accounted for this with the collision integral

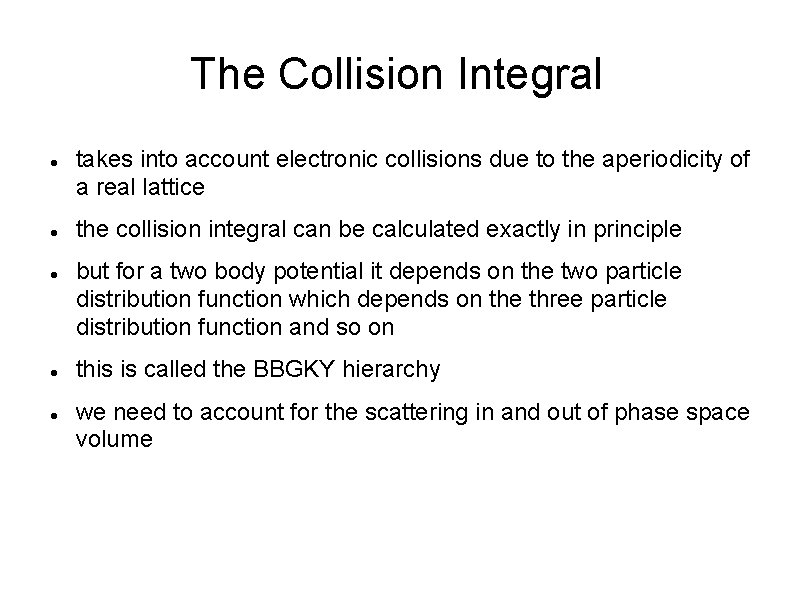

The Collision Integral takes into account electronic collisions due to the aperiodicity of a real lattice the collision integral can be calculated exactly in principle but for a two body potential it depends on the two particle distribution function which depends on the three particle distribution function and so on this is called the BBGKY hierarchy we need to account for the scattering in and out of phase space volume

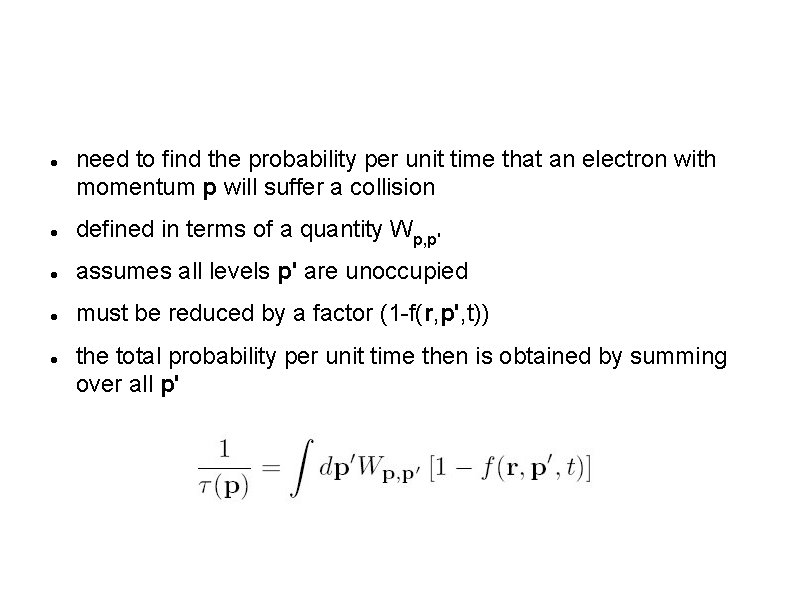

need to find the probability per unit time that an electron with momentum p will suffer a collision defined in terms of a quantity Wp, p' assumes all levels p' are unoccupied must be reduced by a factor (1 -f(r, p', t)) the total probability per unit time then is obtained by summing over all p'

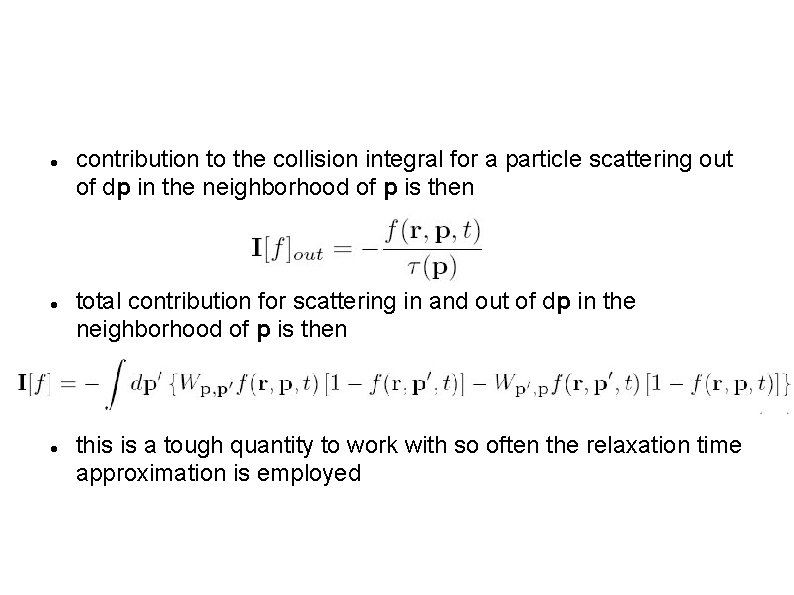

contribution to the collision integral for a particle scattering out of dp in the neighborhood of p is then total contribution for scattering in and out of dp in the neighborhood of p is then this is a tough quantity to work with so often the relaxation time approximation is employed

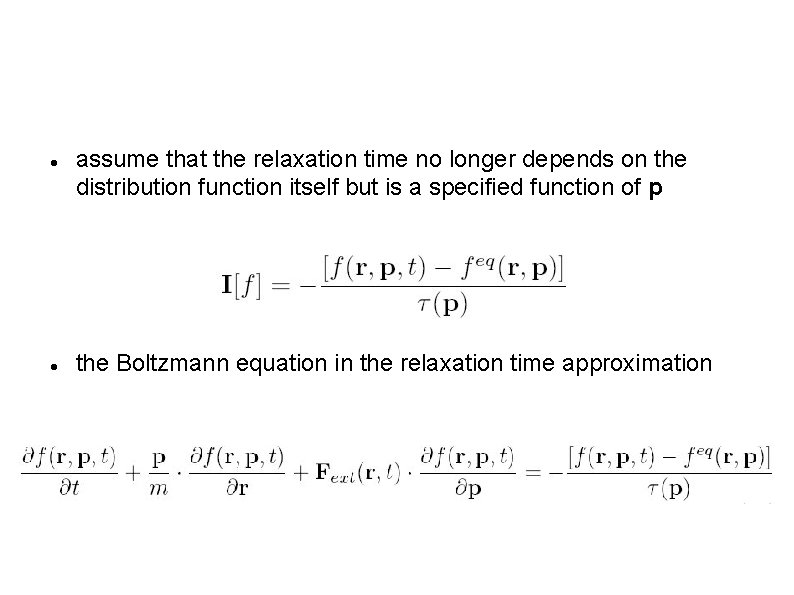

assume that the relaxation time no longer depends on the distribution function itself but is a specified function of p the Boltzmann equation in the relaxation time approximation

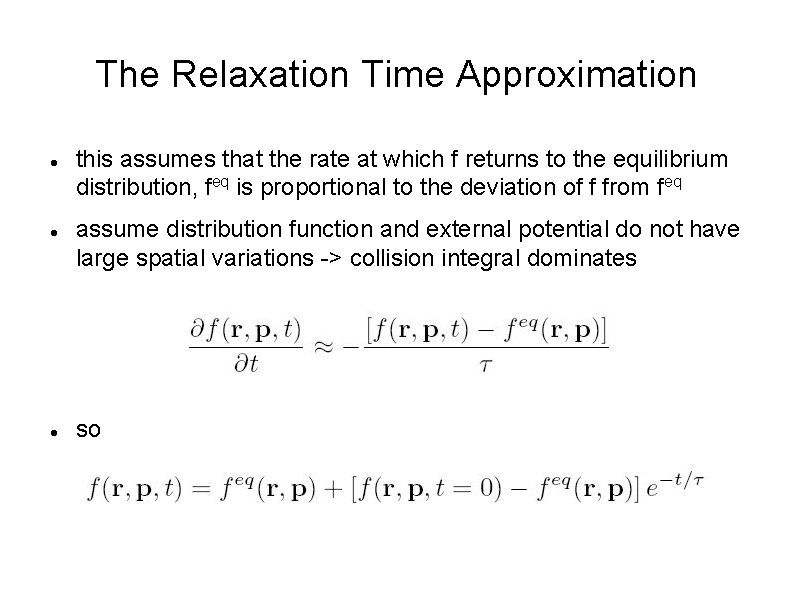

The Relaxation Time Approximation this assumes that the rate at which f returns to the equilibrium distribution, feq is proportional to the deviation of f from feq assume distribution function and external potential do not have large spatial variations -> collision integral dominates so

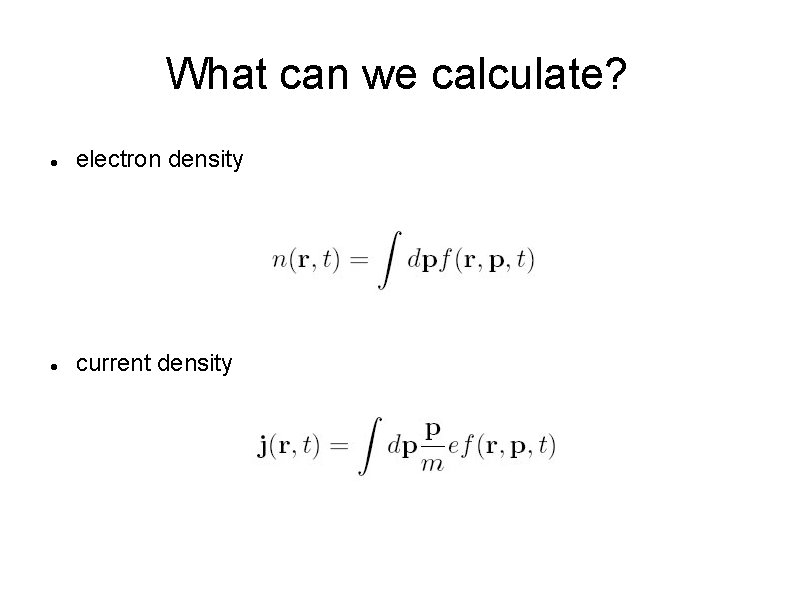

What can we calculate? electron density current density

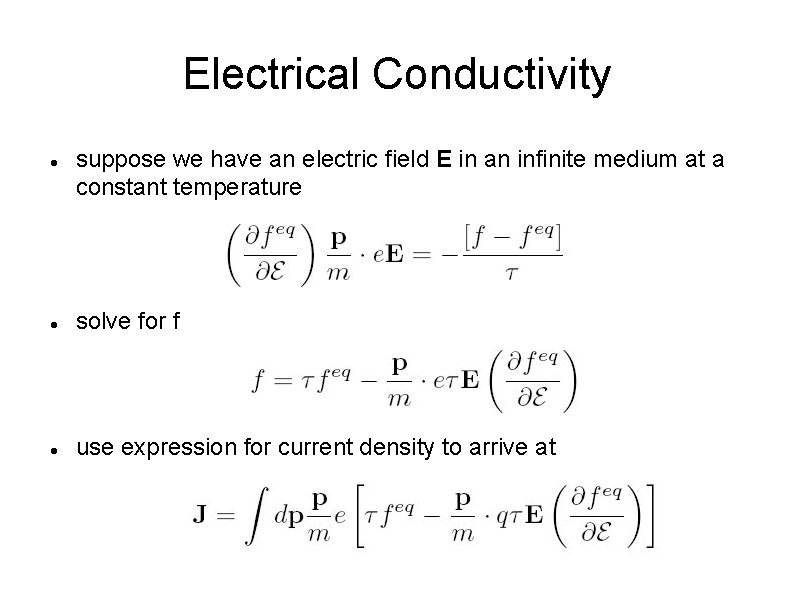

Electrical Conductivity suppose we have an electric field E in an infinite medium at a constant temperature solve for f use expression for current density to arrive at

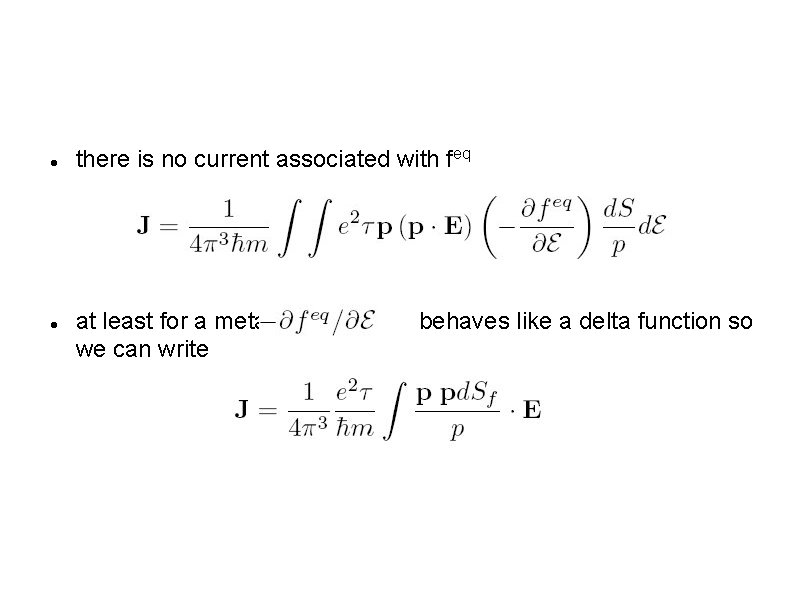

there is no current associated with feq at least for a metal we can write behaves like a delta function so

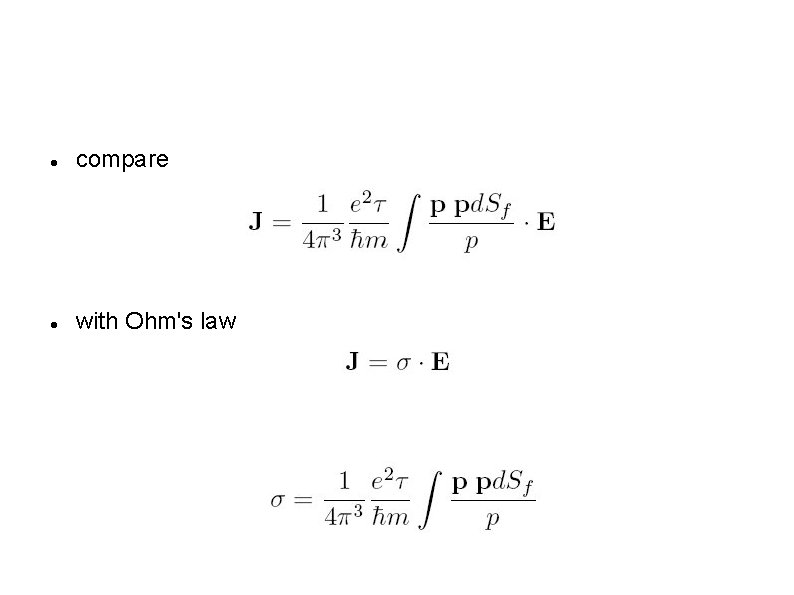

compare with Ohm's law

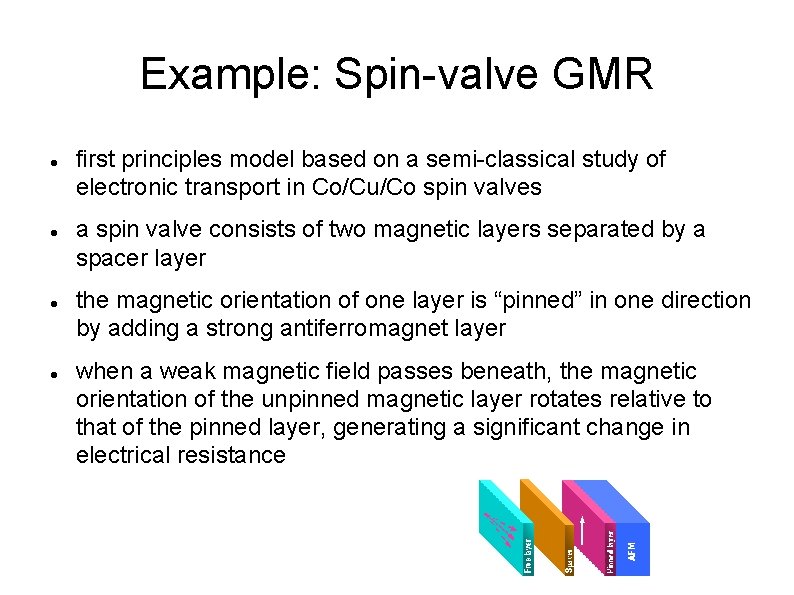

Example: Spin-valve GMR first principles model based on a semi-classical study of electronic transport in Co/Cu/Co spin valves a spin valve consists of two magnetic layers separated by a spacer layer the magnetic orientation of one layer is “pinned” in one direction by adding a strong antiferromagnet layer when a weak magnetic field passes beneath, the magnetic orientation of the unpinned magnetic layer rotates relative to that of the pinned layer, generating a significant change in electrical resistance

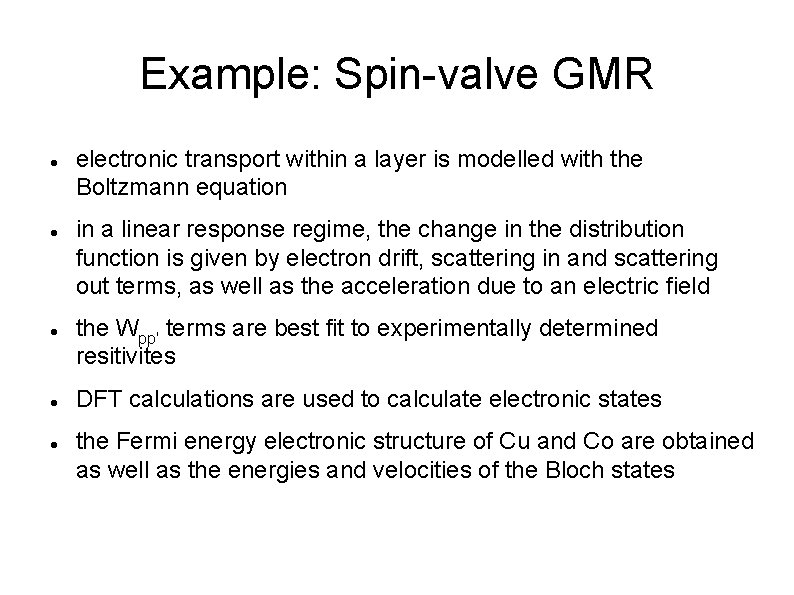

Example: Spin-valve GMR electronic transport within a layer is modelled with the Boltzmann equation in a linear response regime, the change in the distribution function is given by electron drift, scattering in and scattering out terms, as well as the acceleration due to an electric field the Wpp' terms are best fit to experimentally determined resitivites DFT calculations are used to calculate electronic states the Fermi energy electronic structure of Cu and Co are obtained as well as the energies and velocities of the Bloch states

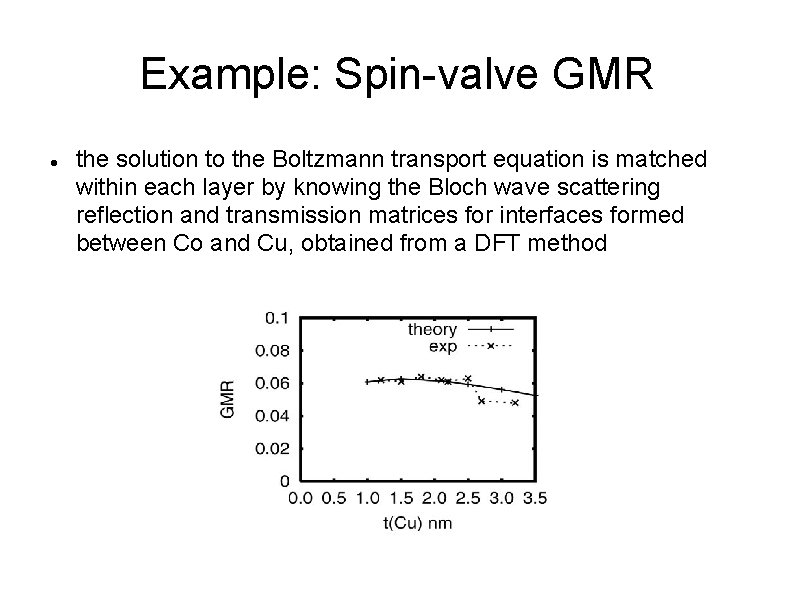

Example: Spin-valve GMR the solution to the Boltzmann transport equation is matched within each layer by knowing the Bloch wave scattering reflection and transmission matrices for interfaces formed between Co and Cu, obtained from a DFT method

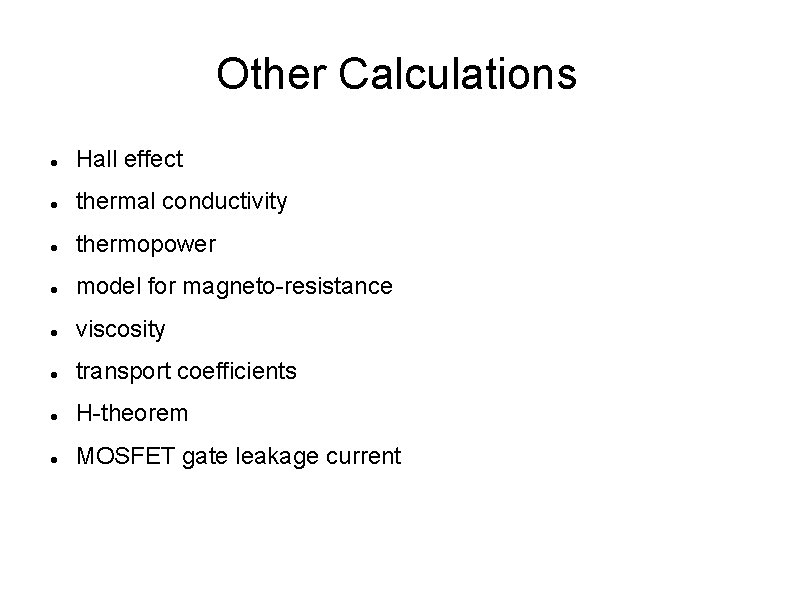

Other Calculations Hall effect thermal conductivity thermopower model for magneto-resistance viscosity transport coefficients H-theorem MOSFET gate leakage current

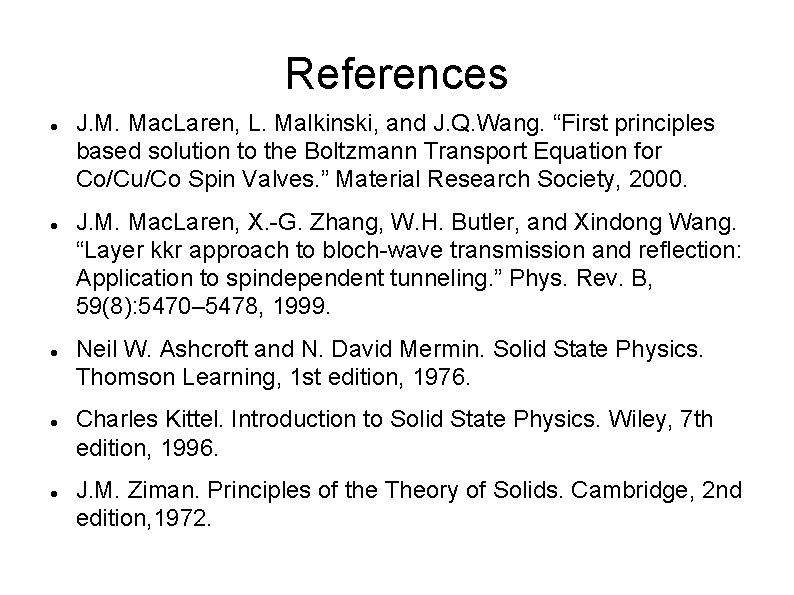

References J. M. Mac. Laren, L. Malkinski, and J. Q. Wang. “First principles based solution to the Boltzmann Transport Equation for Co/Cu/Co Spin Valves. ” Material Research Society, 2000. J. M. Mac. Laren, X. -G. Zhang, W. H. Butler, and Xindong Wang. “Layer kkr approach to bloch-wave transmission and reflection: Application to spindependent tunneling. ” Phys. Rev. B, 59(8): 5470– 5478, 1999. Neil W. Ashcroft and N. David Mermin. Solid State Physics. Thomson Learning, 1 st edition, 1976. Charles Kittel. Introduction to Solid State Physics. Wiley, 7 th edition, 1996. J. M. Ziman. Principles of the Theory of Solids. Cambridge, 2 nd edition, 1972.
