THE BIOMECHANICS OF DUNKING A BASKETBALL THOMAS DISANTO

THE BIOMECHANICS OF DUNKING A BASKETBALL THOMAS DISANTO DR. ROME BIO 438

HISTORY 1891 Dr. James Naismith invents basketball. 1936 Joe Fortenberry becomes the first person to dunk. 1949 The NBA is established.

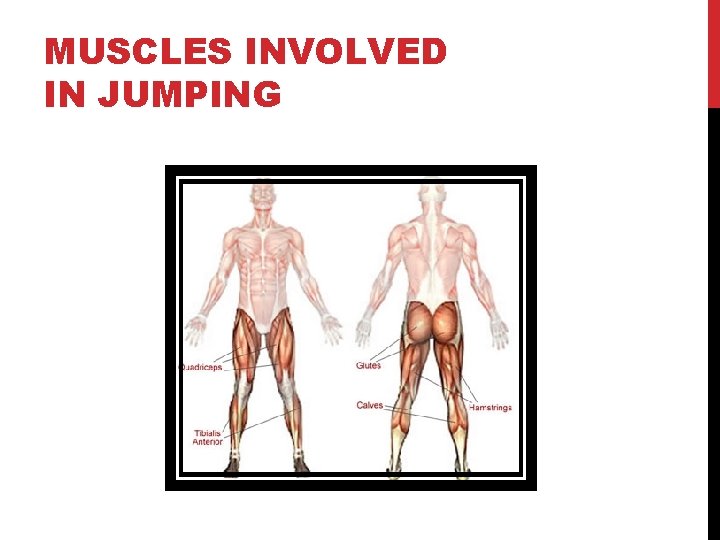

MUSCLES INVOLVED IN JUMPING

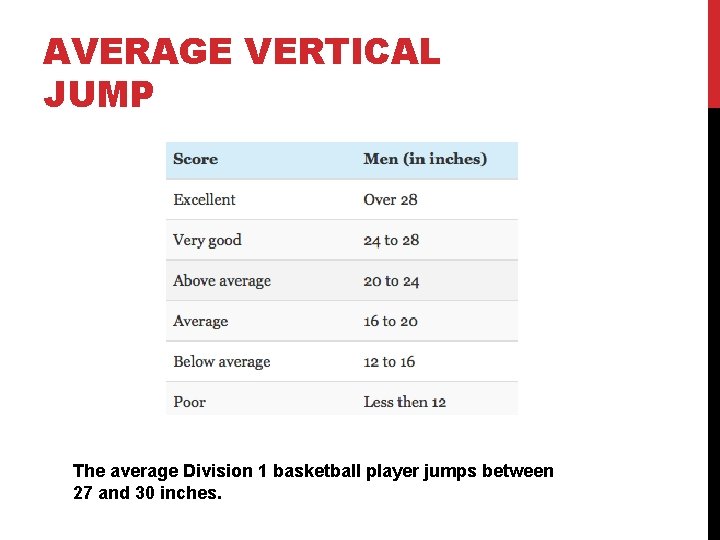

AVERAGE VERTICAL JUMP The average Division 1 basketball player jumps between 27 and 30 inches.

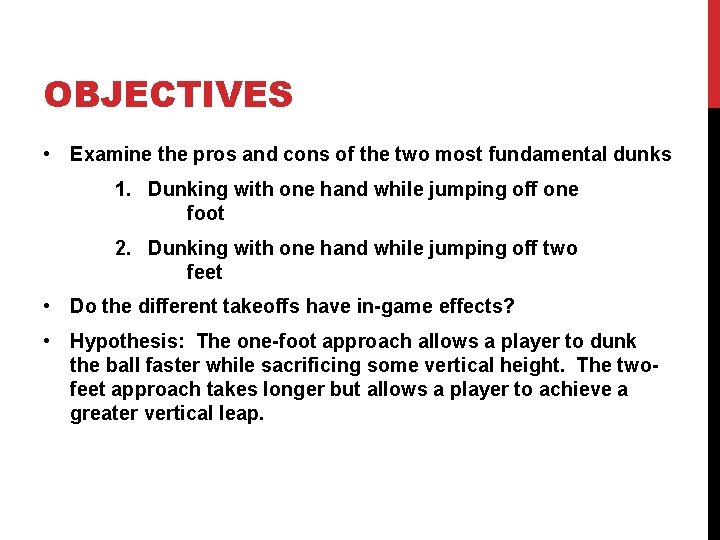

OBJECTIVES • Examine the pros and cons of the two most fundamental dunks 1. Dunking with one hand while jumping off one foot 2. Dunking with one hand while jumping off two feet • Do the different takeoffs have in-game effects? • Hypothesis: The one-foot approach allows a player to dunk the ball faster while sacrificing some vertical height. The twofeet approach takes longer but allows a player to achieve a greater vertical leap.

TERRENCE ROSS

LEBRON JAMES

METHODS • Filmed using the Sony Cybershot RX 10 II at 480 frames/second • Analysis of: 1. Vertical hip displacement from standing hip height of 42. 4 in 2. Total time 3. Leg angle between hip, knee, and ankle 4. Power produced

DUNK OFF ONE FOOT

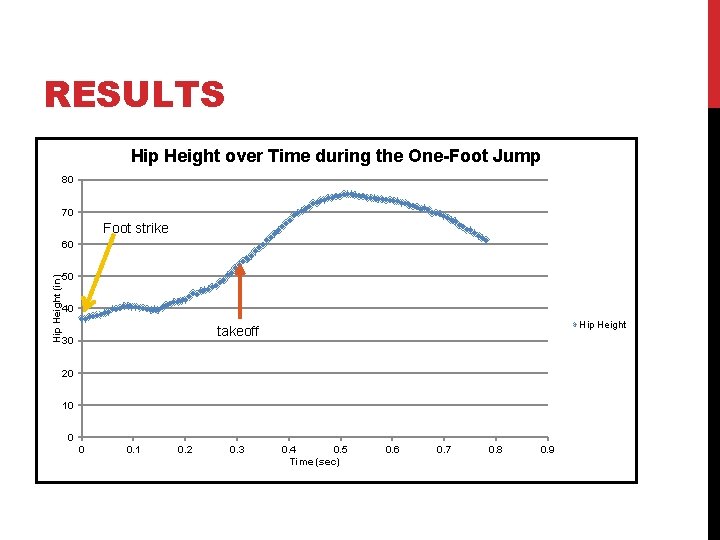

RESULTS Hip Height over Time during the One-Foot Jump 80 70 Foot strike Hip Height (in) 60 50 40 Hip Height takeoff 30 20 10 0 0 0. 1 0. 2 0. 3 0. 4 0. 5 Time (sec) 0. 6 0. 7 0. 8 0. 9

DUNK OFF 2 FEET

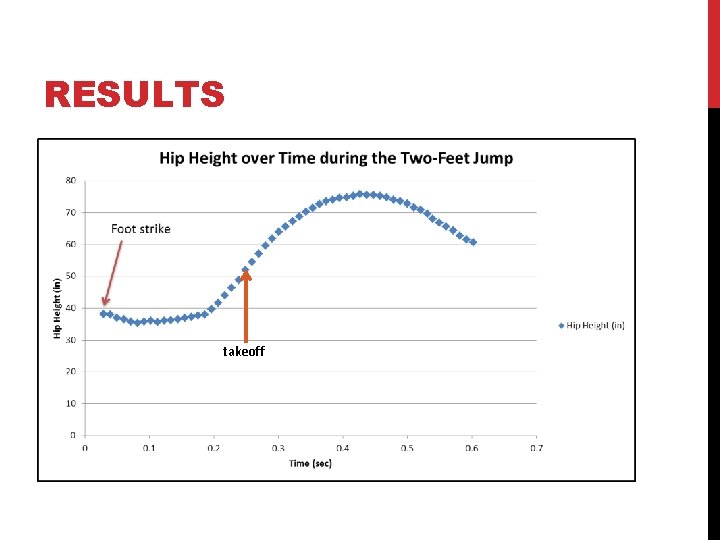

RESULTS takeoff

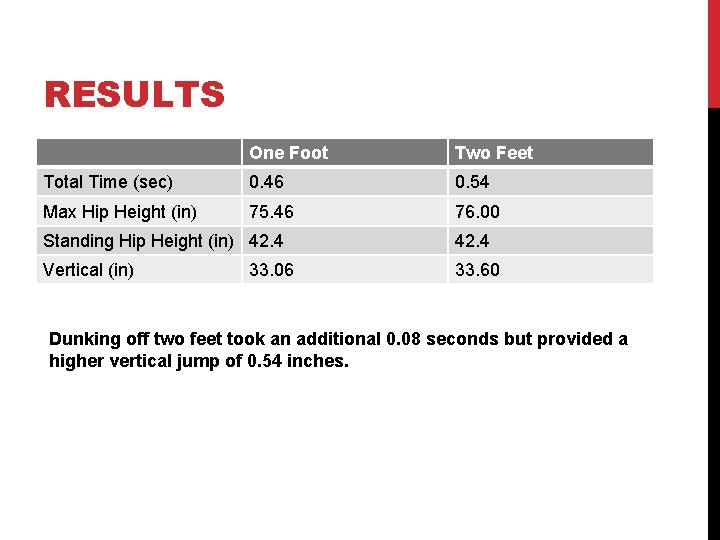

RESULTS One Foot Two Feet Total Time (sec) 0. 46 0. 54 Max Hip Height (in) 75. 46 76. 00 Standing Hip Height (in) 42. 4 Vertical (in) 33. 60 33. 06 Dunking off two feet took an additional 0. 08 seconds but provided a higher vertical jump of 0. 54 inches.

EXPLANATION • A good jump approach involves blocking horizontal momentum and converting it into vertical momentum. • The horizontal momentum generated in the steps prior to takeoff is blocked when the feet are planted. • For an efficient conversion of momentum, the center of gravity (hips) must be kept low, and one’s chest should be lowered toward the knees.

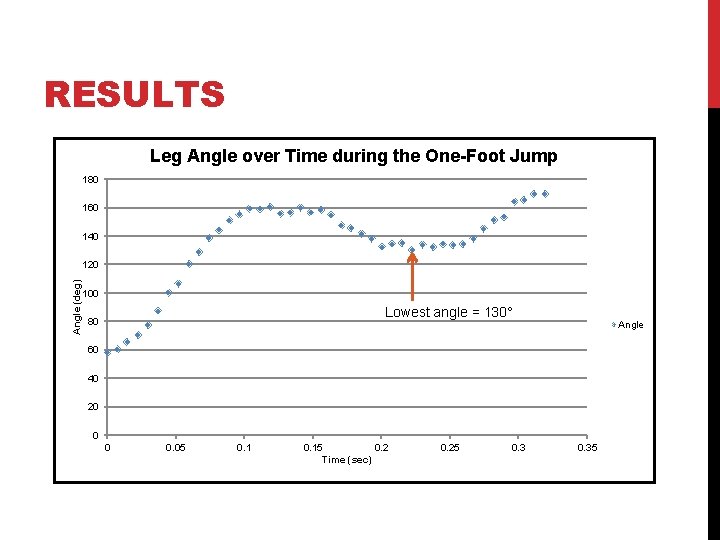

RESULTS Leg Angle over Time during the One-Foot Jump 180 160 140 Angle (deg) 120 100 Lowest angle = 130° 80 Angle 60 40 20 0 0 0. 05 0. 15 0. 2 Time (sec) 0. 25 0. 35

RESULTS Leg Angle over Time during the Two-Feet Jump 180 160 140 Angle (deg) 120 100 80 Angle 60 Lowest angle = 40 20 0 0 0. 05 0. 15 Time (sec) 0. 25 0. 3

EXPLANATION • Hand size • Holding the ball with 2 hands while preparing to jump with 2 feet allows slight use of the arms. • Using your arms during a jump increases the velocity of the center of mass during takeoff. • Energy that is built up in the arms is transferred to other parts of the body.

EXPLANATION Power calculation • Power was calculated by finding the difference in potential energy (= m*g*h) between the highest and lowest points of each jump. • This difference was divided by time to obtain average power in Watts. • Average power off 1 foot = 7, 871 W • Average power off 2 feet = 13, 709 W • Jumping with two feet caused a 74% increase in power, allowing for a higher jump.

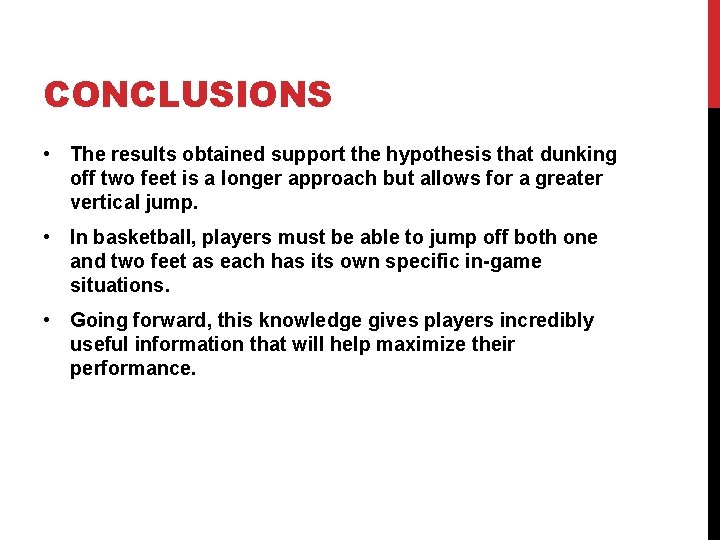

CONCLUSIONS • The results obtained support the hypothesis that dunking off two feet is a longer approach but allows for a greater vertical jump. • In basketball, players must be able to jump off both one and two feet as each has its own specific in-game situations. • Going forward, this knowledge gives players incredibly useful information that will help maximize their performance.

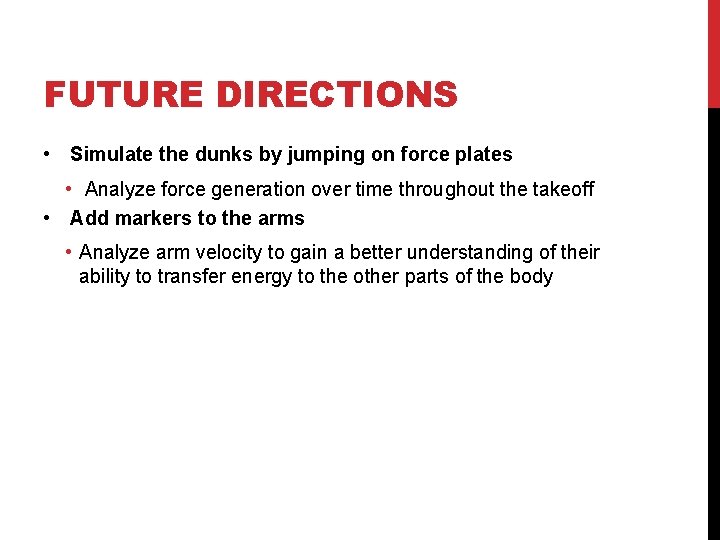

FUTURE DIRECTIONS • Simulate the dunks by jumping on force plates • Analyze force generation over time throughout the takeoff • Add markers to the arms • Analyze arm velocity to gain a better understanding of their ability to transfer energy to the other parts of the body

ACKNOWLEDGEMENTS • Dr. Rome • Dr. Nelson
