The Big Bang Olberss Paradox If the universe
The Big Bang
Olbers’s Paradox If the universe is infinite, then every line of sight should end on a star Why is the sky dark at night?
Finite, and no edge

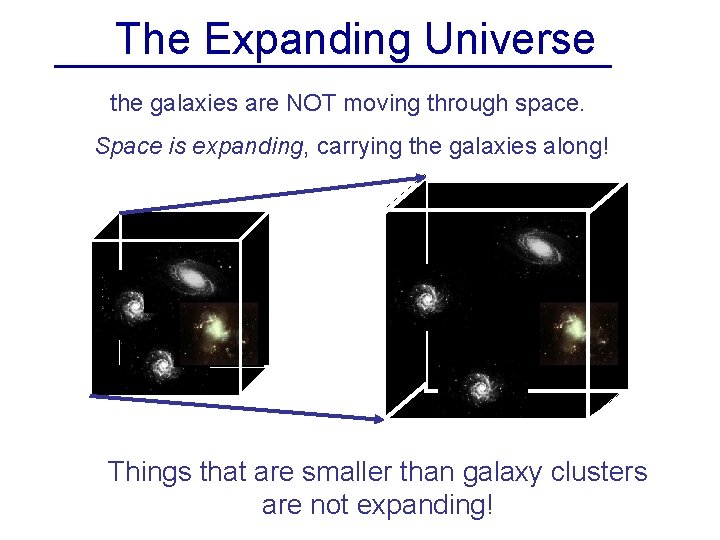

The Expanding Universe the galaxies are NOT moving through space. Space is expanding, carrying the galaxies along! Things that are smaller than galaxy clusters are not expanding!
Hubble’s data (1929) Riess et al (1996)
George Gamow Georges Le. Maitre Ralph Alpher
Predictions of Big Bang Theory • The Universe is homogeneous and isotropic (very smooth) • But not too smooth… • The ratio of H/He (about 75% H, 25% He) • Trace abundances of D, 3 He, Li, Be • The cosmic microwave background radiation

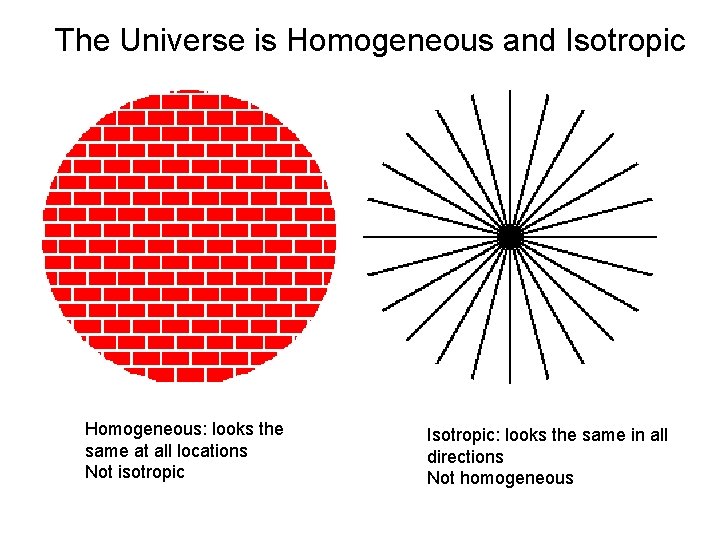

The Universe is Homogeneous and Isotropic Homogeneous: looks the same at all locations Not isotropic Isotropic: looks the same in all directions Not homogeneous
On the largest scales, Univese is homogeneous and isotropic!
Interactions among elementary particles of the Standard Model Matter particles Carriers of forces
The very early Universe: < 10 -43 seconds after Big Bang singularity: The Planck Epoch All for fundamental forces unified into one force realm of GR, string theory, and ? ? ? 10 -43 to 10 -36 seconds: Grand Unification epoch gravitation separates from unified electroweak and strong force 10 -36 to 10 -32 seconds (? ? ? ): Inflationary epoch universe expands faster than speed of light large-scale structure is established 10 -36 to 10 -12 seconds: electroweak epoch Universe cools off to 1028 K strong and electroweak forces separate triggers inflationary epoch (? ) 10 -12 to 10 -6 seconds: quark epoch quark-gluon plasma
10 -6 to 1 second: hadron epoch quark-gluon plasma cools until hadrons (protons, neutrons) form T = 1 Ge. V hadrons and antihadrons annihilate each other (mostly) 1 to 10 seconds: lepton epoch leptons and antileptons annihilate each other T = 1 Me. V 10 seconds to 380, 000 years: the photon epoch Photons and electrons exist, continually recombining Universe still sufficiently hot to ionize H atoms 3 -20 minutes: Nucleosynthesis 380, 000 years: Recombination 380, 000 to 150 million years: Dark ages 150 million years: Reionization
Big Bang Theory The First Day Temperature (K) free 3 q 2 q p, n, π…. bound ↔E ¯ pp q ¯ qq q ↔E e+, e−, photons Photons dominate e+e− ↔ E Matter: 109 + 1 (p) Anti-matter: 109 (p) ¯ pp¯ → 2γ ± ± (e , μ , γ…. ) 10 -6 RADIATION ERA 10 -4 p, n : 1 e±, γ : 109 e+e− → 2γ p: n → 1: 1 7: 1 10 -2 1 Time (s) Expansion & Cooling 2 p 2 n → He 4 H fusion n decay q 108 LEPTON ERA ν decouple q HADRON proton freeze-out QUARK 10 -8 1010 1012 electron freezout 1014 102 p, e− 1: 1 p, He 4 12: 1 (3: 1) p, γ 1: 109 104 1 day
The First Three Minutes: The Nucleus-building Era At t=3 minutes, T=1 billion K: Fusion of protons and the remaining free neutrons: * Formation of 2 H (Deuterium) & 4 He * End up with ~92% 1 H, 8% 4 He * Also end up with traces of 2 H, 3 He, Li, Be, B This is what the oldest stars are observed to be made of! Free neutrons decay into protons + electrons in about 10 minutes => p + e-
379, 000 years old: First light escapes; Universe already has structure (light still arriving today) Early fluctuations become denser condensations of matter First stars form after ~150 million years (“reionization”) Galaxies and galaxy clusters form, according to the floorplan laid out at 379, 000 years The Universe today: lots of stars and galaxies!
Observations of the Universe • 4 He is extremely common: ~25% everywhere • even oldest stars have ~24% He • far too much to come from stars alone It was made in the Big Bang, before stars existed! Expanding, cooling High temp & density lower temp & density Like the core of a star Radiated light like a star
The Universe cooled down to the temperature at which nuclei exist & nuclear fusion occurs!
Up to 1 second, thermal equilibrium: After 1 sec, expansion is faster than reaction: freeze-out of p/n = 6/1 1 -600 seconds: n decay: At about 100 seconds: Neutrons are safe in a nucleus: D formation, p/n = 7/1 3 -20 minutes: nucleosynthesis Net result leaves very little D (part in ~105)
Calculations based on binding energies
10 -6 sec < t < 1 sec Pair-production of e+ + e-, high energies ( k. T) maintain equilibrium: n + e+ p + ~e p + e- n + e As T drops: (Average) photon below 2 me = 1. 02 Me. V @ 1. 1 x 1010 K e+-e- annihilate, too few left to drive n-p conversion n, p can’t be maintained in equilibrium for T 1010 K
Using 1010 K as “characteristic” T when equilibrium ends… Nn / Np = e-1. 3 Me. V / k. T = e-1. 5 0. 22 So: Nn = . 22/(1 +. 22) = 0. 18 and Np = 1/(1 +. 22) = 0. 82 i. e. , 18 n’s for every 82 p’s when p-n ratio “set” (@ t = 1 sec) 1 sec < t < 250 sec Enough high E photons (E > 2. 2 Me. V) to disintegrate deuterons baryons only between t 3 -20 minutes
4 min < t < 10 -20 min n + p 2 H + (“stabilizes” n’s) Then: 2 H + (n, p) 3 H, 3 He 4 He BUT: 4 He wont accept more n, p as n , p = 0 Won’t work anyway: No stable nuclei with A = 5 Can we build on 4 He nuclei with larger nuclei than n, p?
How about … and 2 H + 4 He 6 Li + n 7 Li + 3 H + 4 He 7 Li + ~ but 7 Li + n 8 Li + 8 Be + - + e 8 Be 2 4 He in 10 -15 sec!
Or … 3 He + 4 He 7 Be + but 7 Be + n 8 Be and then 8 Be 2 4 He (in or 7 Be + p 8 B + 8 Be + + + but then or but then 10 -15 sec!) e (in 8 Be 2 4 He (in 0. 5 sec) 10 -15 sec!) 4 He + 4 He 8 Be + 8 Be 2 4 He (in 10 -15 sec!)
BB nucleosynthesis “stops” at 4 He (& tiny amounts of others) Problems: Must somehow “jump over” A = 5 and 8 (Thank you, stars!)
What is the composition of the universe at t = 20 min? Complication: free n’s aren’t stable n p + - + ~e with T½ = 10. 3 min As nucleosynthesis didn’t start until 4 m, some of the n’s “set” at t = 1 sec didn’t survive to be fused into 4 He Nn(at 4 m) = Nn(at 1 s) e- t ln 2 / T½ = 18 e- 4(. 693)/10. 3 = 13. 75 Synthesis starts with 13. 75 n’s for every 82 + 4. 25 = 86. 25 p’s So: 110 n’s & 690 p’s 55 4 He’s + 580 p’s % 4 He by mass = (4 x 55)/(4 x 55 + 1 x 580) =. 275 i. e. , the BB made universe 73% H and 27% He (by mass)
379, 000 years later… • Universe cooled enough to have H atoms = recombination of protons and electrons • Atoms DO NOT absorb photons: light escapes! • Space is expanding: optical wavelength photons redshifted to microwave • Predicted by Gamow and Alpher • Discovered by Penzias and Wilson (1968) • Nobel went to P & W
Looking Back in Time: the Early Universe The more distant the objects we observe, the further back into the past we are looking.
Prediction: The universe once glowed like a star. The early glow of the Universe should still be visible! Big Bang dense hot expansion thin cooling hot glowing fog Photons keep getting absorbed orange light atomic transparent 3000 K 380, 000 yr Ionized, foggy Now we see a glowing wall of bright fog redshift z = 1000 us microwaves

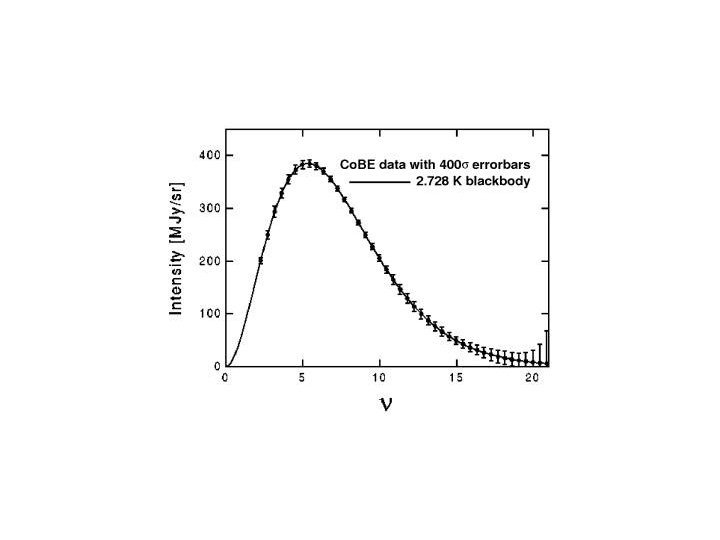

The Cosmic Background Radiation The radiation from the very early phase of the universe is still detectable today R. Wilson & A. Penzias discovered in mid-1960 s Blackbody radiation with a temperature of T = 2. 73 K

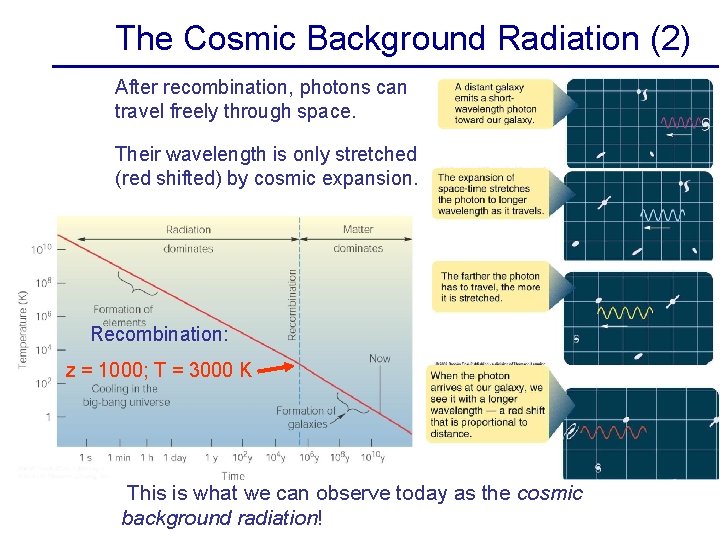

The Cosmic Background Radiation (2) After recombination, photons can travel freely through space. Their wavelength is only stretched (red shifted) by cosmic expansion. Recombination: z = 1000; T = 3000 K This is what we can observe today as the cosmic background radiation!
Extremely uniform!!!
Sloan Digital Sky Survey: Univese is clumpy! 3 b (~2 illion 0% ligh to “ t ye ars the edg e”) Our galaxy is here
1990: Anisotropy discovered
1990 2003
The Universe’s Baby Picture: WMAP (Wilkinson Microwave Anisotropy Probe) Photons that were emitted when Universe was 379, 000 years old. Fluctuations in the temperature (= structure) of the Universe appeared when it was very young
Sound waves : red/blue = high/low gas & light pressure Many waves of different sizes, Directions & phases, all “superposed” Water waves : high/low level of water surface
Temperature and density fluctuations are minimal: BUT IMPORTANT!
Very uniform and smooth: no stars or galaxies yet! (379, 000 years) Smooth to 1/100, 000 Patchiness due to not perfectly smooth distribution of matter (“sound waves”)
Light can escape! P+e=atoms Universe cools down as time passes The History of the Universe expands as time passes
transparent Universe is ionized (still today) but transparent because it is very diffuse
Reionization After less than ~ 1 billion years, the first stars form. Ultraviolet radiation from the first stars reionizes gas in the early universe Formation of the first stars Reionization
Lyman-alpha and cosmology
Quasars all have similar power spectra HI cloud near quasar - safely assume that the light being absorbed is 1216 A Many clouds between us and the quasar leads to a “forest” of Ly-alpha lines
Lyman-alpha Forest But what if there is so much HI that it blocks it completely? Extremely dense HI is only present in very early universe. This can only happen at very high redshift!
Gunn-Peterson Trough • One of the few examples of a real prediction in astrophysics!! (1965, 2001) • Many clouds of HI between us and quasar at z = 6 or so • Ly-alpha absorption causes a “forest” of lines • “trough” predicted for when H is very dense (at very high redshift)
Gunn-Peterson Trough The discovery of the trough in a z = 6. 28 quasar, and the absence of the trough in quasars detected at redshifts just below z = 6 presented strong evidence for the hydrogen in the universe having undergone a transition from neutral to ionized around z = 6.
From SDSS: Quasar spectra. Note the height of the spectral lines on the left side of the spectrum. The bottom image shows the first Gunn-Peterson trough ever discovered. Further away
Why is this cool? • How much HI is out there, and how is it distributed? • Ly-alpha regions trace out dark matter, because the H atoms are concentrated by DM’s gravity
The Cosmological Principle 1) Homogeneous: On the largest scales, the universe should have the same physical properties throughout Every region has the same density, expansion rate, luminous vs. dark matter 2) Isotropic: On the largest scales, the universe looks the same in any direction that one observes. You should see the same largescale structure in any direction. 3) Universality: The laws of physics are the same everywhere in the universe.
