The Best ICC Parts You’ve Never Used

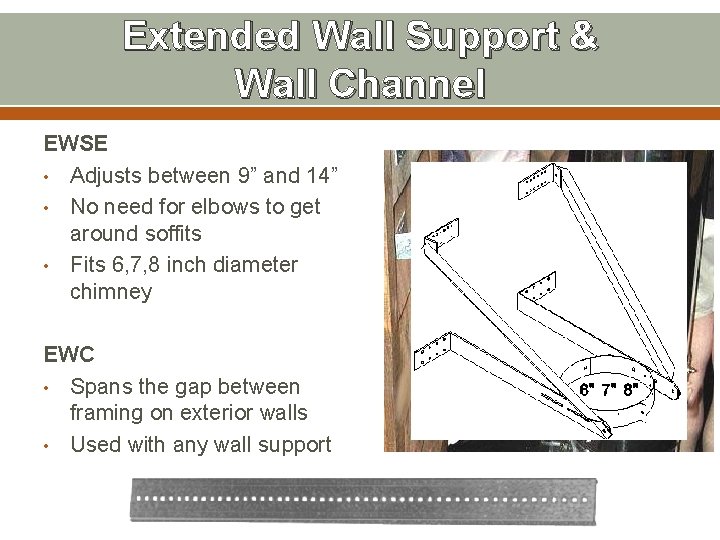

Extended Wall Support & Wall Channel EWSE • Adjusts between 9” and 14” • No need for elbows to get around soffits • Fits 6, 7, 8 inch diameter chimney EWC • Spans the gap between framing on exterior walls • Used with any wall support

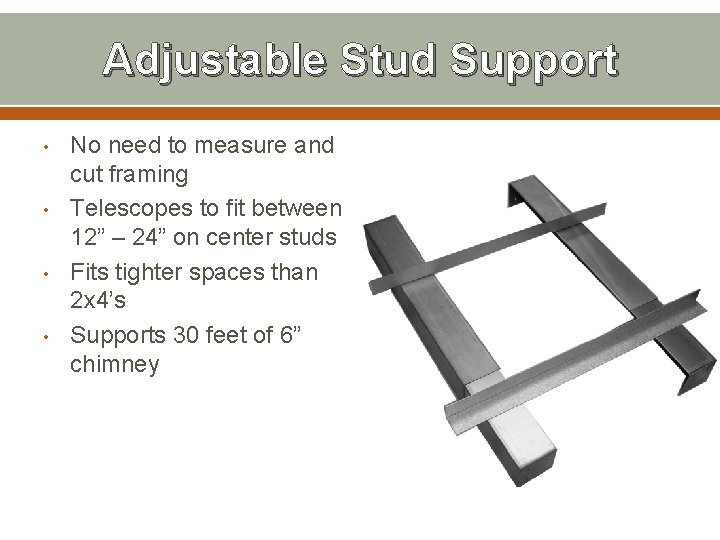

Adjustable Stud Support • • No need to measure and cut framing Telescopes to fit between 12” – 24” on center studs Fits tighter spaces than 2 x 4’s Supports 30 feet of 6” chimney

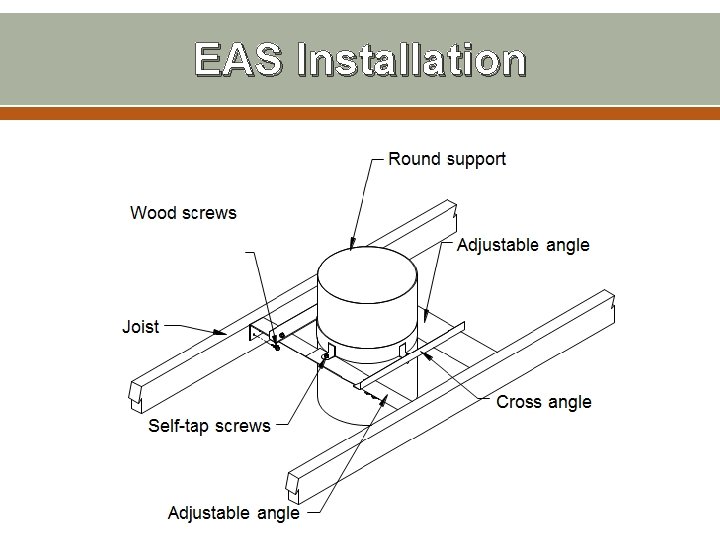

EAS Installation

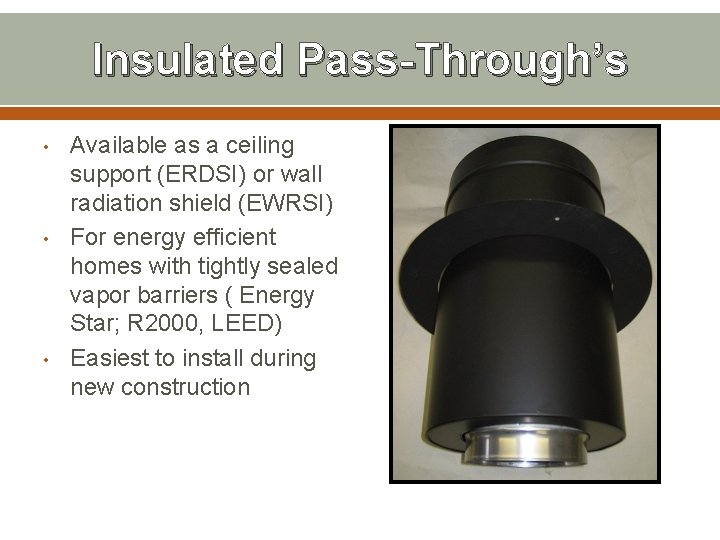

Insulated Pass-Through’s • • • Available as a ceiling support (ERDSI) or wall radiation shield (EWRSI) For energy efficient homes with tightly sealed vapor barriers ( Energy Star; R 2000, LEED) Easiest to install during new construction

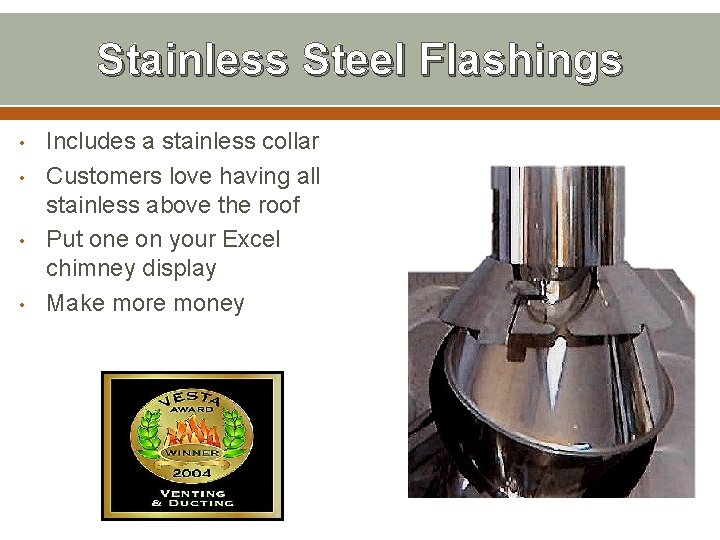

Stainless Steel Flashings • • Includes a stainless collar Customers love having all stainless above the roof Put one on your Excel chimney display Make more money

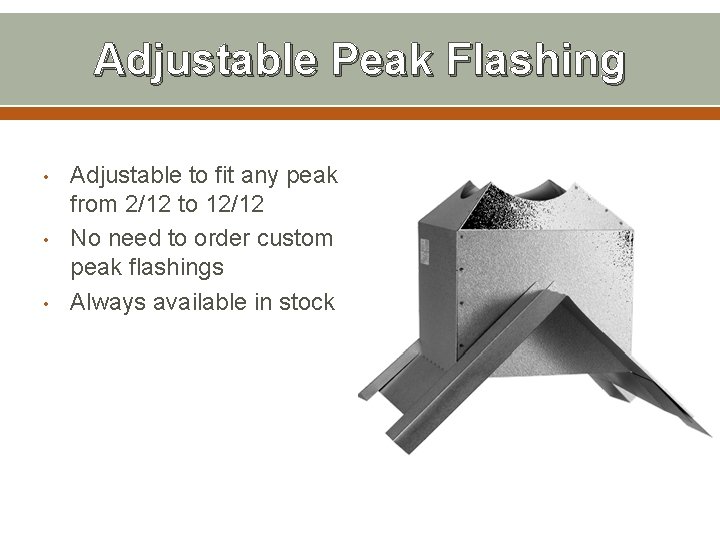

Adjustable Peak Flashing • • • Adjustable to fit any peak from 2/12 to 12/12 No need to order custom peak flashings Always available in stock

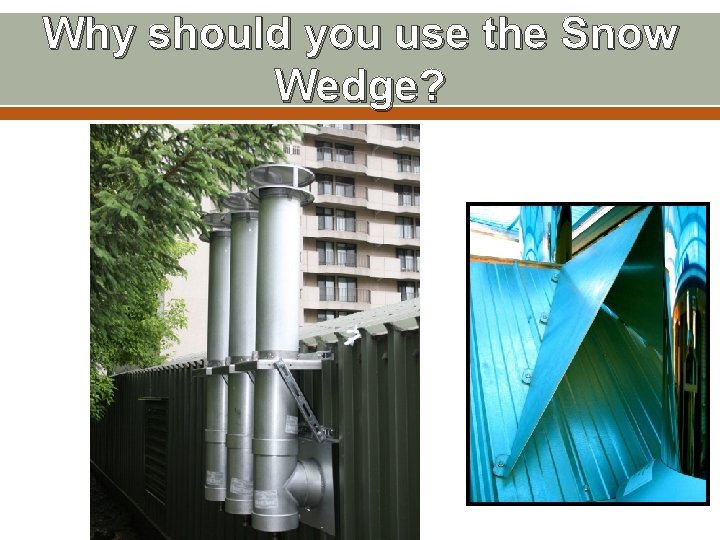

Why should you use the Snow Wedge?

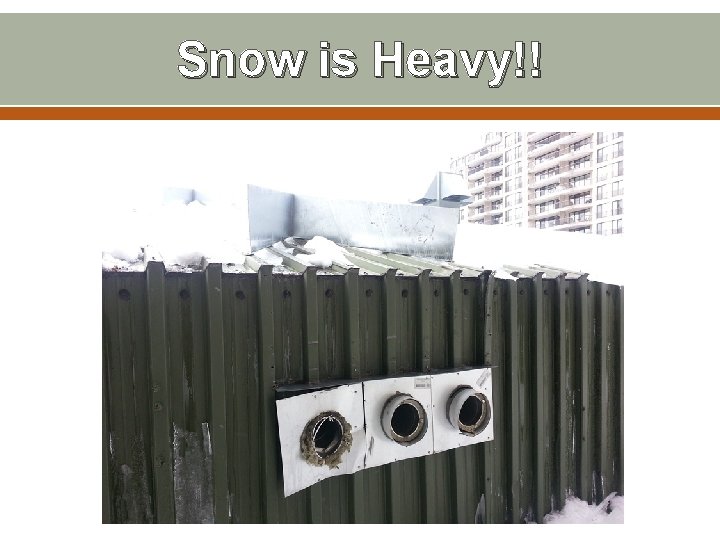

Snow is Heavy!!

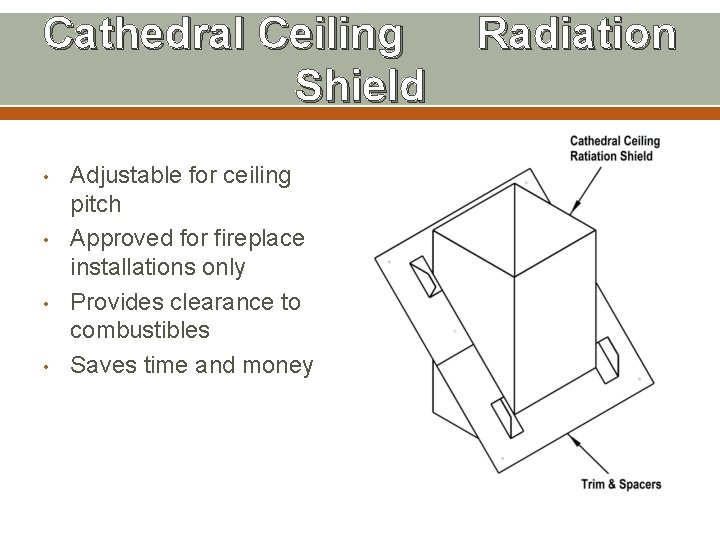

Cathedral Ceiling Shield • • Adjustable for ceiling pitch Approved for fireplace installations only Provides clearance to combustibles Saves time and money Radiation

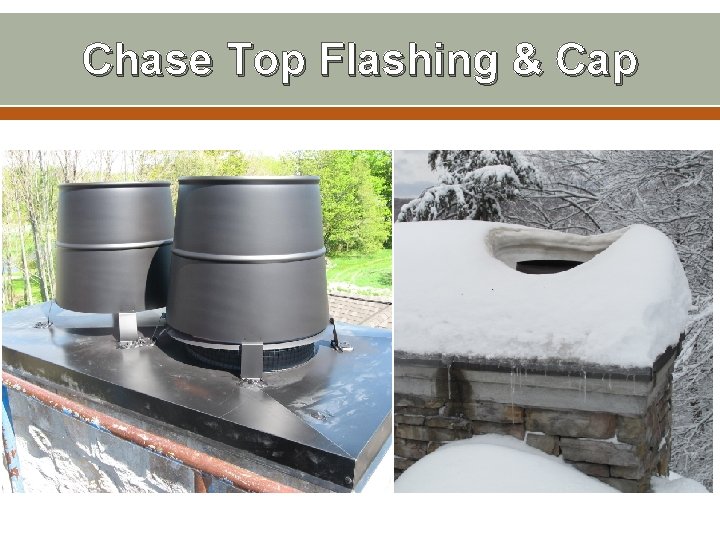

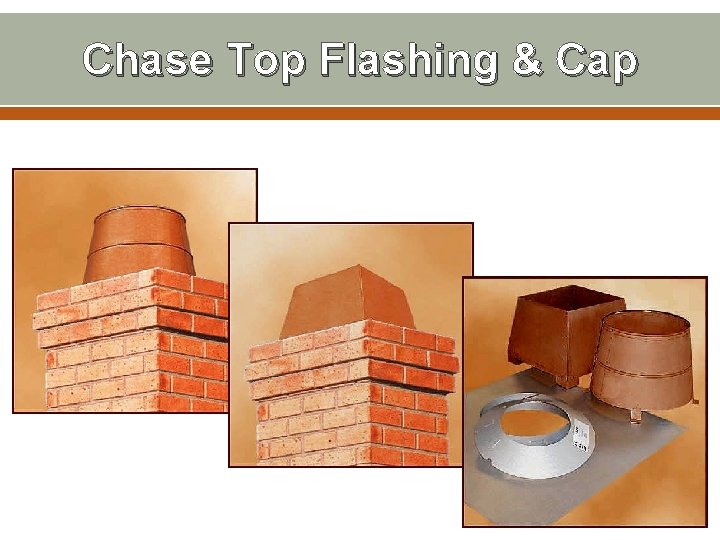

Chase Top Flashing & Cap

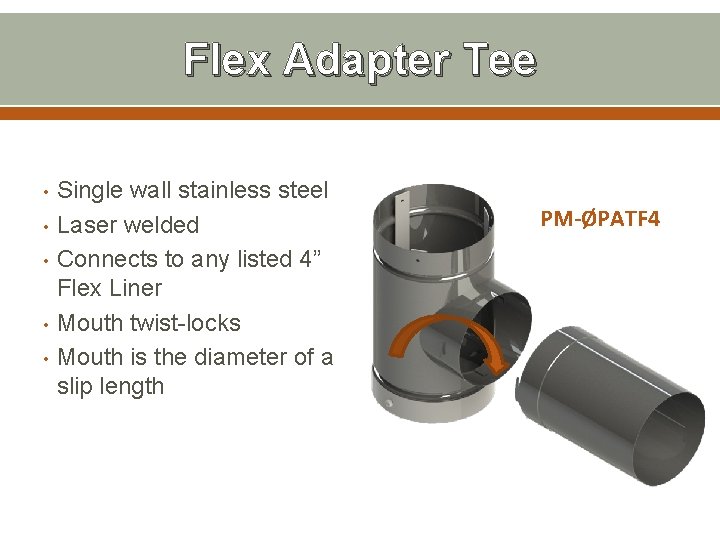

Flex Adapter Tee Single wall stainless steel • Laser welded • Connects to any listed 4” Flex Liner • Mouth twist-locks • Mouth is the diameter of a slip length • PM-ØPATF 4

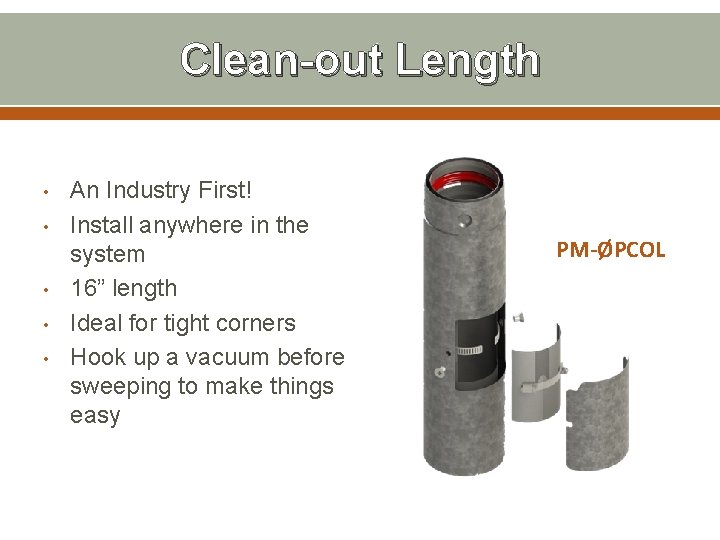

Clean-out Length • • • An Industry First! Install anywhere in the system 16” length Ideal for tight corners Hook up a vacuum before sweeping to make things easy PM-ØPCOL

NEW Parts for 2013

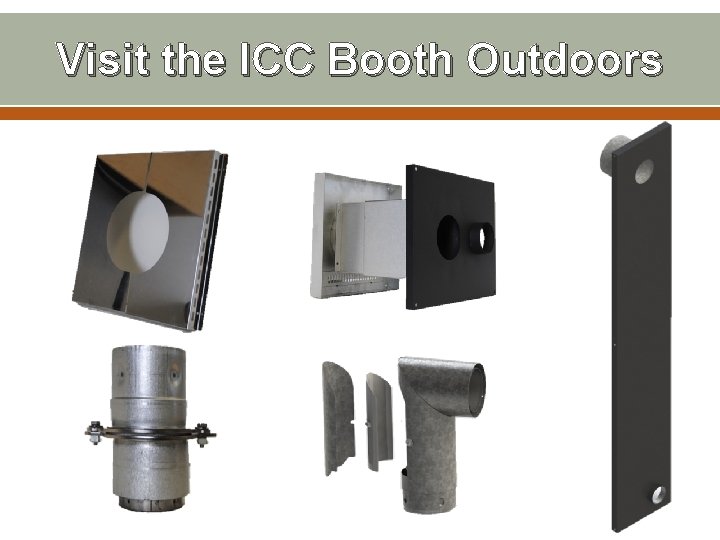

Visit the ICC Booth Outdoors

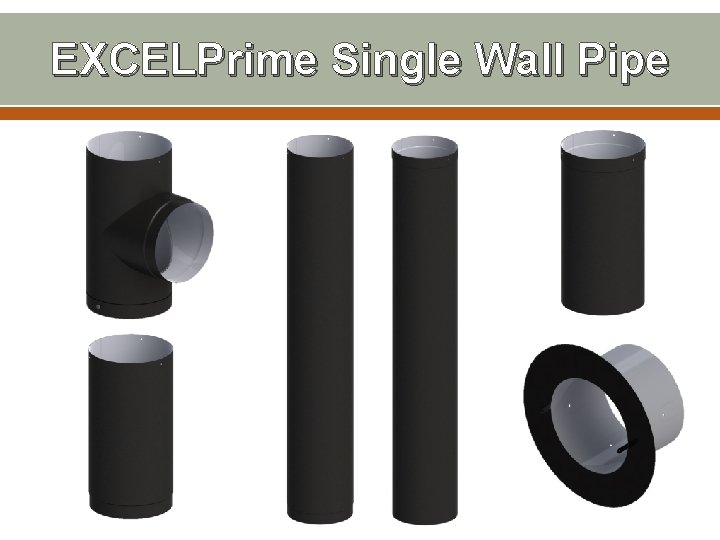

EXCELPrime Single Wall Pipe

Final Questions? Like us on Facebook
