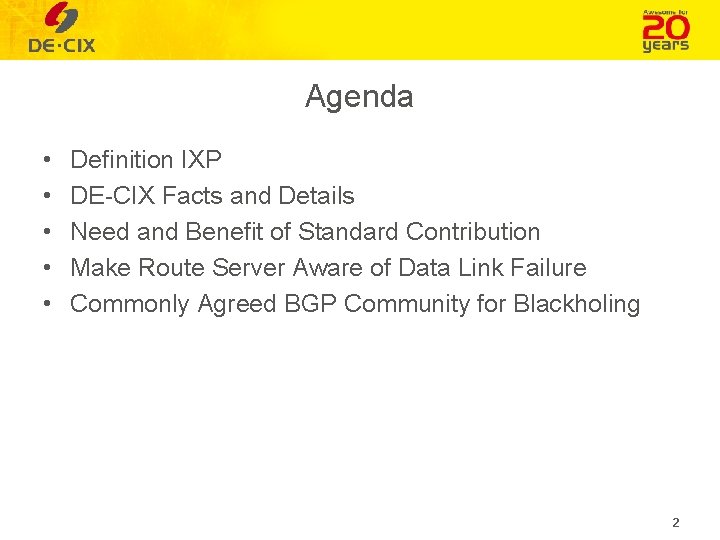

Agenda • • • Definition IXP DE-CIX Facts and Details Need and Benefit of Standard Contribution Make Route Server Aware of Data Link Failure Commonly Agreed BGP Community for Blackholing 2

Definition IXP • A physical network facility operated by a separate legal entity • Interconnection of more than two independent Autonomous Systems (AS) • Interconnection of ASes only • Primarily facilitating the exchange of Internet traffic • Distinct from an Internet access network or a transit network/carrier 3

DE-CIX Facts • Operates Internet exchanges (IXs or IXPs) in – – – Frankfurt Hamburg Munich New York Dubai more to come … • Provides services such as peering: the settlementfree exchange of Internet traffic • Connects almost 700 networks worldwide • Strictly carrier- and data center-neutral 4

DE-CIX Frankfurt • Founded in 1995 (Arnold Nipper co-founder) • World‘s largest Internet exchange (4. 0 Tbps peak, 2. 3 Tbps average) • Serves and connects 600+ networks • Keeps 65, 000+ active peering sessions • Has 1 GE, 10 GE and 100 GE ports connected • Total capacity of 12 Tbps • Available in 18 data center facilities troughout the city of Frankfurt 5

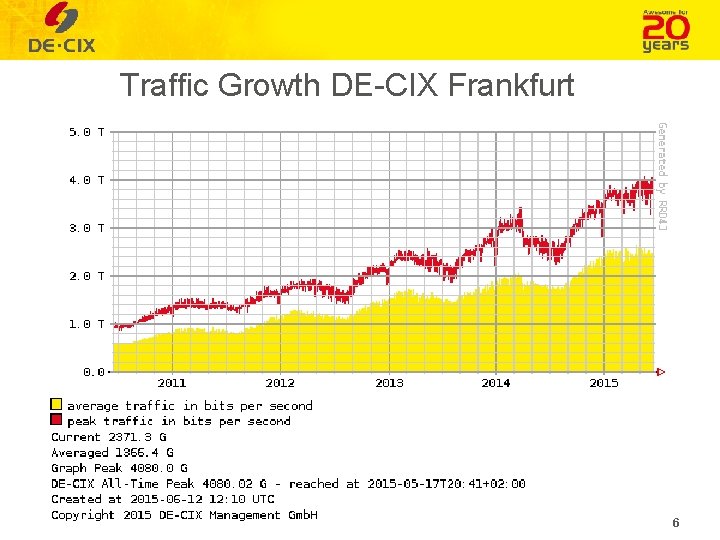

Traffic Growth DE-CIX Frankfurt 6

Need of Standard Contribution • DE-CIX is special in size – #customers, traffic, #router in IXP LAN • IXP business is a niche but especially important • Standard = Compatibility with many vendors • Protocols not optimized for IXP use case 8

Benefit of Standard Contribution • Selected examples: – Making Route Servers aware of data link failures – Commonly agreed BGP community for blackholing 9

Make Route Server Aware of Data Link Failure 10

Typical Scenario: BGP Session BGP Data Peer A Peer B The control plane is able to detect the data plane failure. 11

Challenge: Route Server at IXPs Route Server BGP IXP Data Peer A Peer B 192. 0. 0. 0/8, IP A 193. 0. 0. 0/8, IP B Problem: The control plane is not able to detect data plane failure any more. Data traffic is lost! 12

Solution 1. Client routers must have a means of verifying connectivity amongst themselves Bidirectional Forwarding Detection, RFC 5880 2. Client routers must have a means of communicating the knowledge so gained back to the route server North-Bound Distribution of Link-State and TE Information using BGP, Draft 13

Solution 1. Route Server: Next Hop Information Base (NHIB) updated 2. Client Router: Verify connectivity BFD connections are setup automatically 3. Client Router: NHIB updated 4. Route Server: Route selection All routes with next hop declared unreachable are excluded BGP 193. 0. 0. 0/8 IP B NHIB: • Nodes: B Route Server IXP BGP 192. 0. 0. 0/8 NHIB: • Nodes: B • Links: A->B BFD Peer A Peer B 192. 0. 0. 0/8, IP A 193. 0. 0. 0/8, IP B 14

Data Link Failure 1. Client Router: Data link fail detected 2. Client Router: NHIB updated 3. Route Server: Route selection All routes with next hop declared unreachable are excluded BGP Route Server NHIB: • Nodes: B IXP BGP 192. 0. 0. 0/8 NHIB: • Nodes: B • Links: <Link to B is missing> BFD Peer A Peer B 192. 0. 0. 0/8, IP A 193. 0. 0. 0/8, IP B 16

Commonly Agreed BGP Community for Blackholing 17

The Problem: Massive DDo. S Attack IXP DDo. S IXP Port Congestion If an IXP customer is hit by a massive DDo. S attack its port can get congested and impact legitimate traffic 18

A Solution: Blackholing Preparation IXP: 1. ACL: Block Blackhole MAC 2. Blackhole server for ARP DDo. S ACL ACL IXP Blackhole server: answer ARP requests Blackhole IP = Blackhole MAC BGP: Announce IP prefix under attack: Next Hop = Blackhole IP For the IP prefix for which a blackholing is triggered all traffic is discarded at the IXP. Traffic for other IP prefixes gets through without any congestion. #19 19

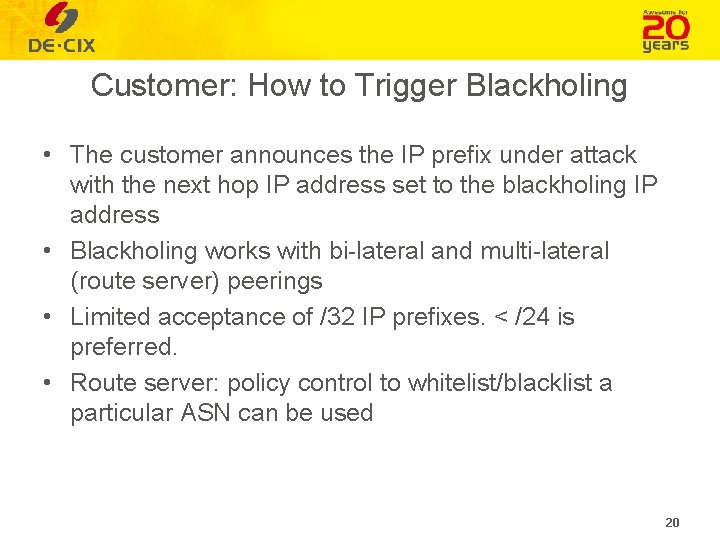

Customer: How to Trigger Blackholing • The customer announces the IP prefix under attack with the next hop IP address set to the blackholing IP address • Blackholing works with bi-lateral and multi-lateral (route server) peerings • Limited acceptance of /32 IP prefixes. < /24 is preferred. • Route server: policy control to whitelist/blacklist a particular ASN can be used 20

Number of Prefixes Blackholed

Well-Known BGP Community for Blackholing Tag: 65535: 666 BGP: Announce Prefix with Next Hop = Black-Hole IP • • • Currently, many IXPs provide the blackholing feature Triggering is implemented differently at various IXPs (e. g. BGP community, next hop IP address (DE-CIX) ) A commonly agreed trigger is preferred: Well-known BGP community for blackholing All IXPs offering the blackholing feature voted on a tech mailing list for: 65535: 666 – 65535 is a reserved ASN – 65535: 666 = 0 x. FFFF 029 A is in the well-known BGP community space but unused – 666 is often used to trigger blackholing on transit networks An Internet Draft is currently coined – support is highly appreciated #2222

Conclusion • Two examples showed need for Standard Contribution – BFD • Standardization for making it possible for Hardware vendors to implement the feature – Commonly Agreed BGP Community for Blackholing • Standardization for easy triggering of the feature • Higher goal: for the good of the Internet 23
