The Basics of Quality Control for Insect Rearing

The Basics of Quality Control for Insect Rearing Norman C. Leppla University of Florida Department of Entomology and Nematology

Leppla’s Career in Insect Rearing • University of Arizona- Insect • • • Rearing Research, 2 years USDA, ARS- Insectary Management, Florida & Texas, 17 years USDA, APHIS- Methods Development, Washington DC & International, 7 years University of Florida- Integrated Pest Management, 10 years

Countries of Workshop Students

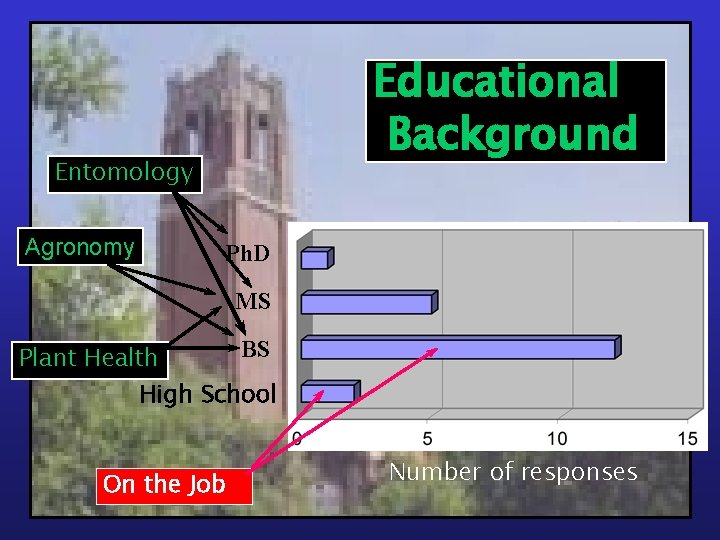

Educational Background Entomology Agronomy Ph. D MS Plant Health BS High School On the Job Number of responses

Maintaining the Quality of Colonized Insects • Collection of appropriate biotypes • Colonization and strain development • Rearing proficiency • Colony management • Optimization • Strain replacement

I. Introduction

II. Colony Establishment and Maintenance II. A. Purposes for Rearing Insects II. B. Types of Insect Rearing Systems II. C. Options for Colonizing Insects II. D. Maintaining the Quality of Colonized Insects

II. A. Purposes for Rearing Insects

II. B. Types of Insect Rearing Systems Painted Lady Monarch Small Scale Rearing: Butterflies

Insect Rearing Facilities Diet Preparation Building General Rearing Building

State-of-the-Art Rearing Rooms

Medium-Scale Rearing: Lepidoptera Cabbage Looper Corn Earworm

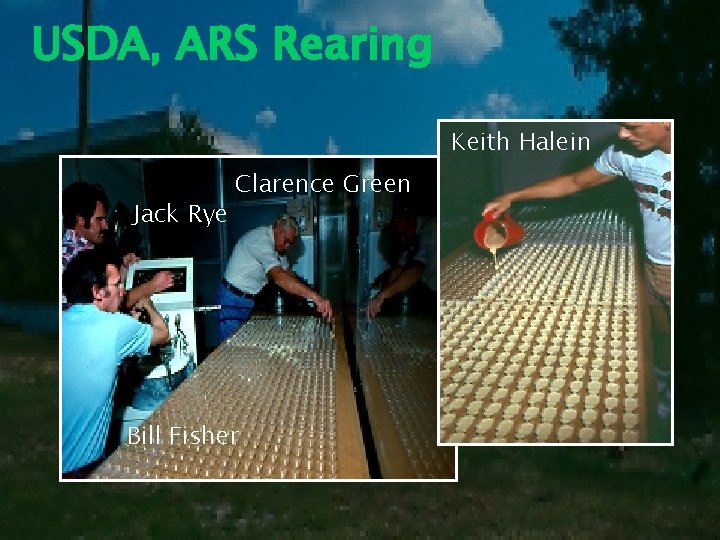

USDA, ARS Rearing Keith Halein Jack Rye Clarence Green Bill Fisher

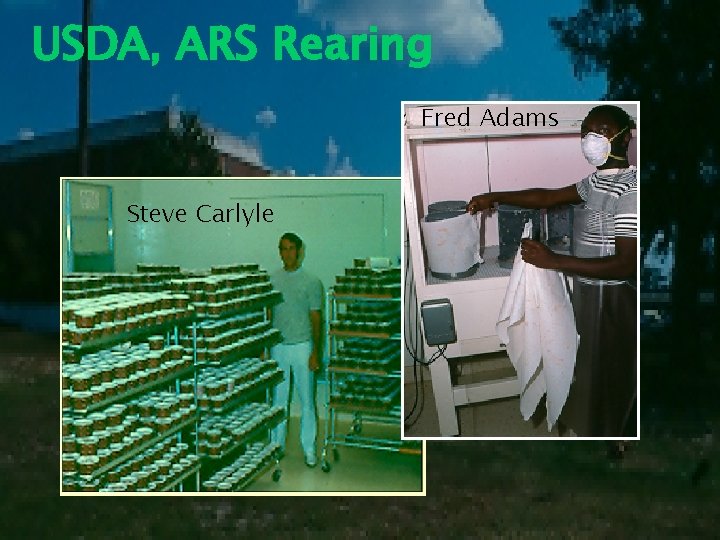

USDA, ARS Rearing Fred Adams Steve Carlyle Fred Adams

Annie Lorie Insect rearing is never a boring task; insects are always doing something interesting and pose new challenges all the time Punky Rogers USDA, ARS Rearing

Mass Rearing: Medfly Waimanalo, Hawaii Metapa, Mexico

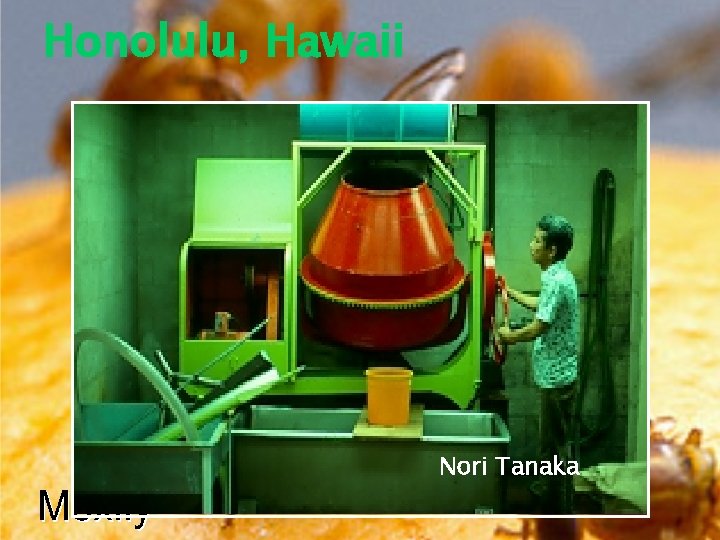

Honolulu, Hawaii Nori Tanaka

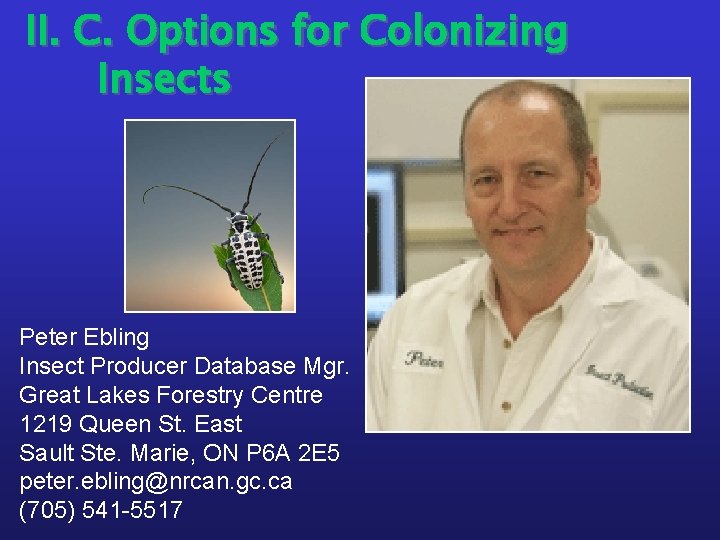

II. C. Options for Colonizing Insects Peter Ebling Insect Producer Database Mgr. Great Lakes Forestry Centre 1219 Queen St. East Sault Ste. Marie, ON P 6 A 2 E 5 peter. ebling@nrcan. gc. ca (705) 541 -5517

• World-wide listing 35 insect & 21 nematode orders • Data submitted by sources • Searchable database • Expand clients • Adopt-a-colony http: //www. insect. glfc. cfs. nrcan. gc. ca

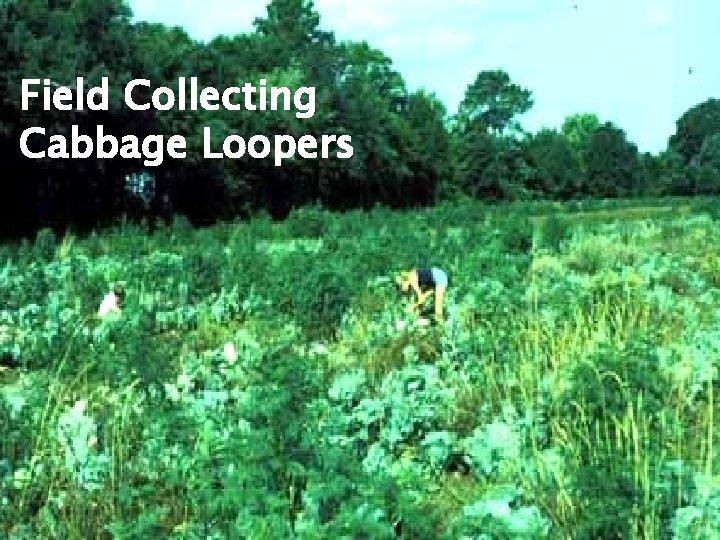

Field Collecting Cabbage Loopers

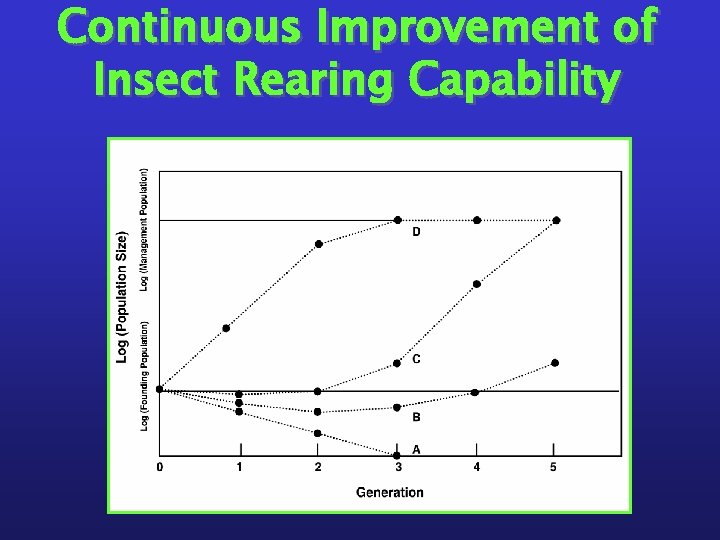

Continuous Improvement of Insect Rearing Capability

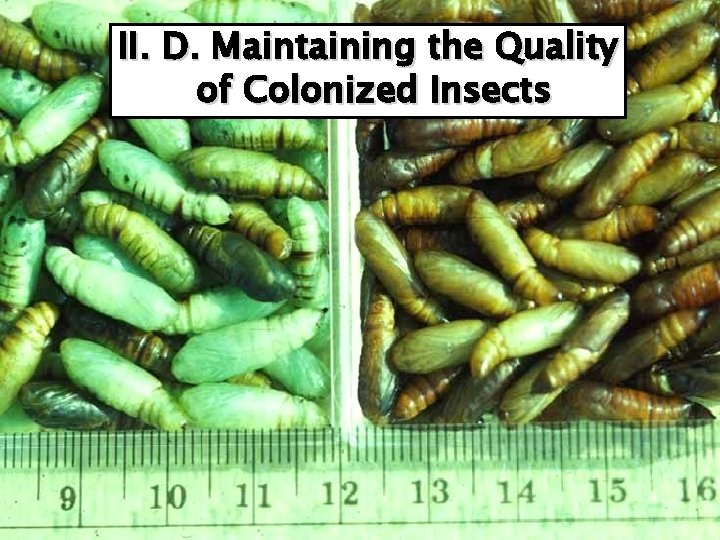

II. D. Maintaining the Quality of Colonized Insects

Specifications- Requirements for a product or service Standards- The level of quality at which a specification is written

Bonus: Learning How to Rear High Quality Insects • Apprentice in an insectary • Network with other professionals • Literature plus trial-and-error • Visit other insectaries • Reviews by experts • Education and Training programs

First Training Program for Insectary Managers • Rearing Theory- Dietetics and nutrition, • • laboratory colonization, production, problems & solutions, quality assessment & performance, future of insect rearing as a scientific discipline Rearing Practical- Biology, colony maintenance, production management Insectary Management- Insect rearing management concept (IRM), planning, staff management

Insect Diet & Rearing Research, LLC • Rearing news • Research • Consultation • Educational programs • Quality control • Custom workshops http: //www. insectdiets. com

III. Monitoring Quality III. A. Quality Control Criteria and Standardized Tests III. B. Sampling for Consistent Quality III. C. Production, Process and Product Control

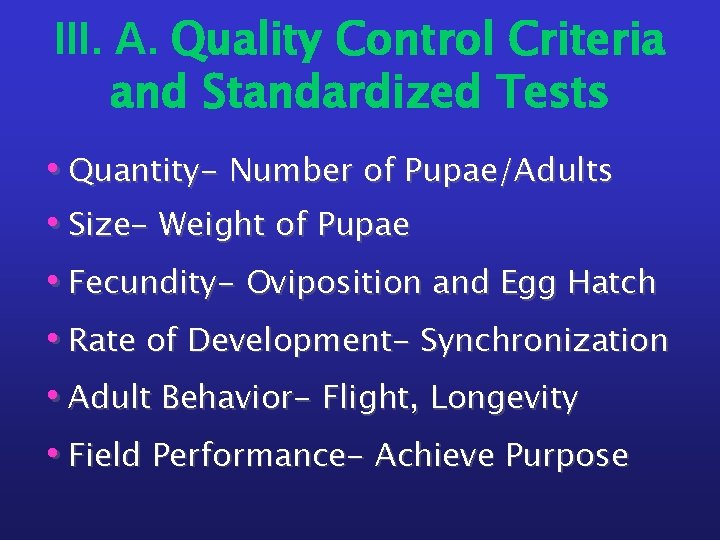

III. A. Quality Control Criteria and Standardized Tests • Quantity- Number of Pupae/Adults • Size- Weight of Pupae • Fecundity- Oviposition and Egg Hatch • Rate of Development- Synchronization • Adult Behavior- Flight, Longevity • Field Performance- Achieve Purpose

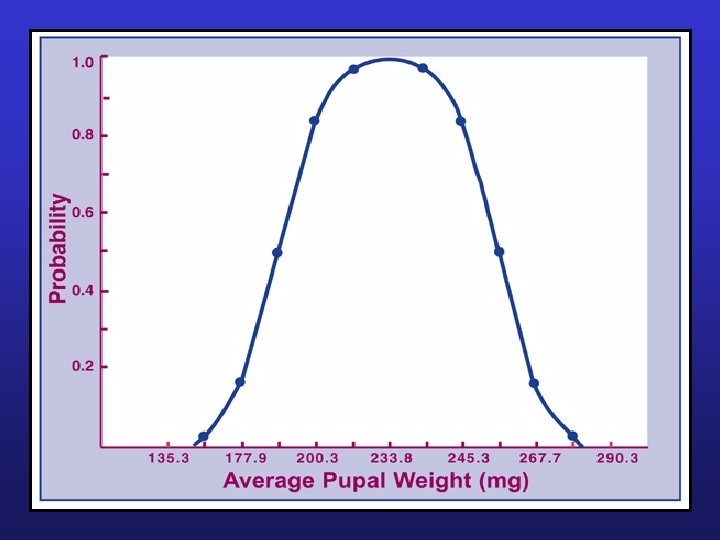

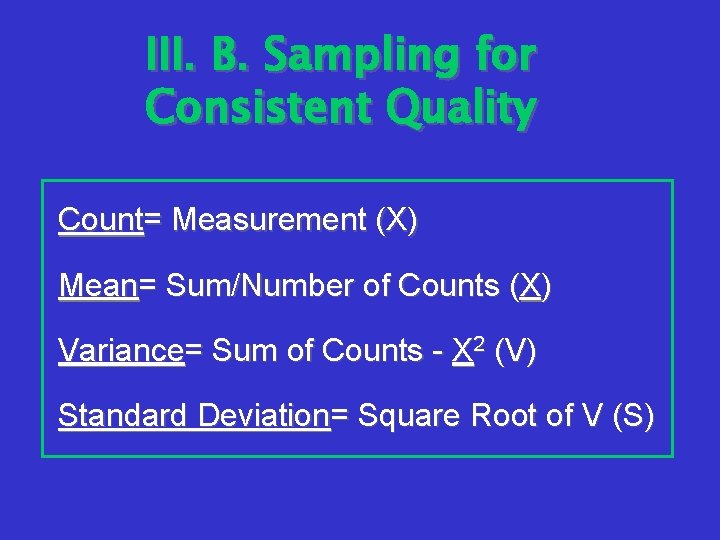

III. B. Sampling for Consistent Quality Count= Measurement (X) Mean= Sum/Number of Counts (X) Variance= Sum of Counts - X 2 (V) Standard Deviation= Square Root of V (S)

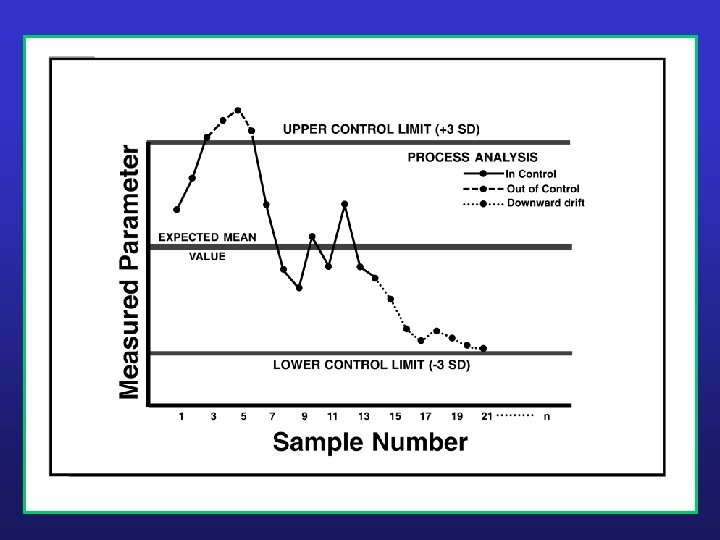

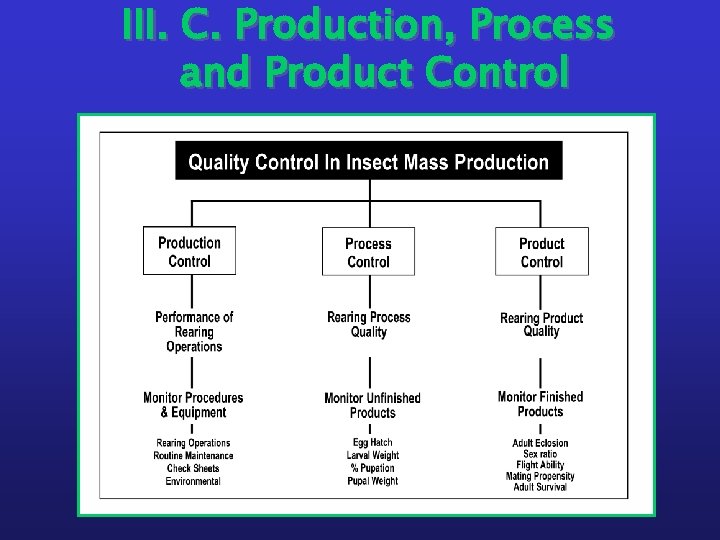

III. C. Production, Process and Product Control

IV. Evaluation and Management IV. A. Structured Diagnostic Procedures IV. B. Quality Control versus Methods Improvement IV. C. Periodic Review versus Crisis Review

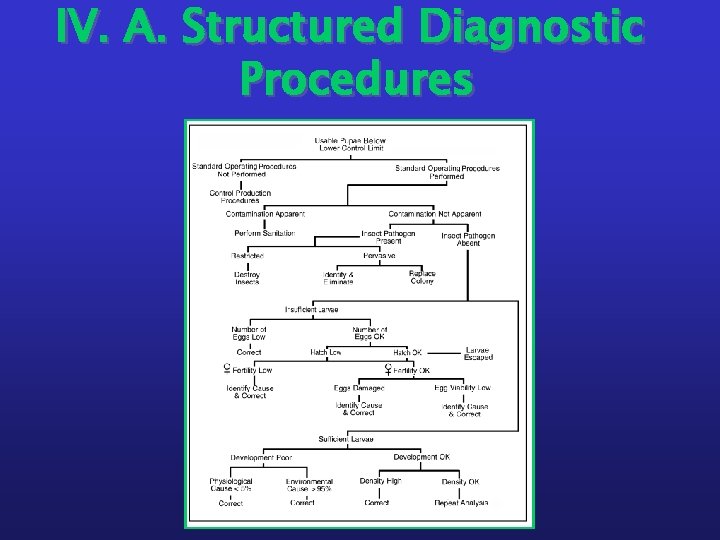

IV. A. Structured Diagnostic Procedures

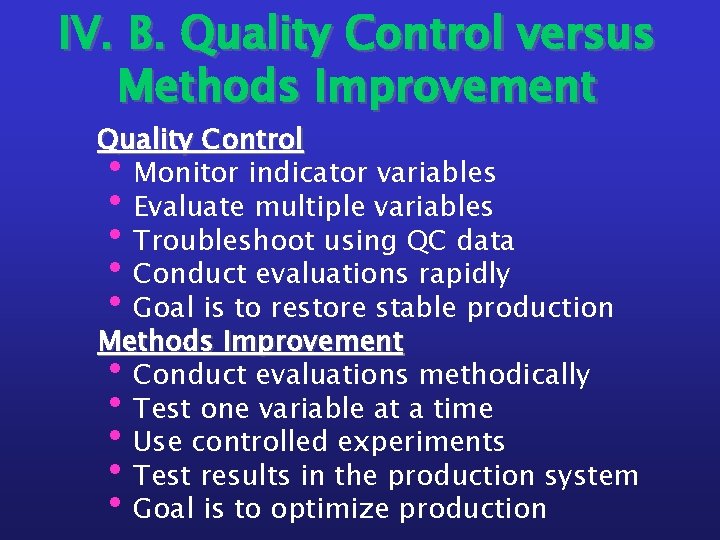

IV. B. Quality Control versus Methods Improvement Quality Control Monitor indicator variables Evaluate multiple variables Troubleshoot using QC data Conduct evaluations rapidly Goal is to restore stable production Methods Improvement Conduct evaluations methodically Test one variable at a time Use controlled experiments Test results in the production system Goal is to optimize production • • •

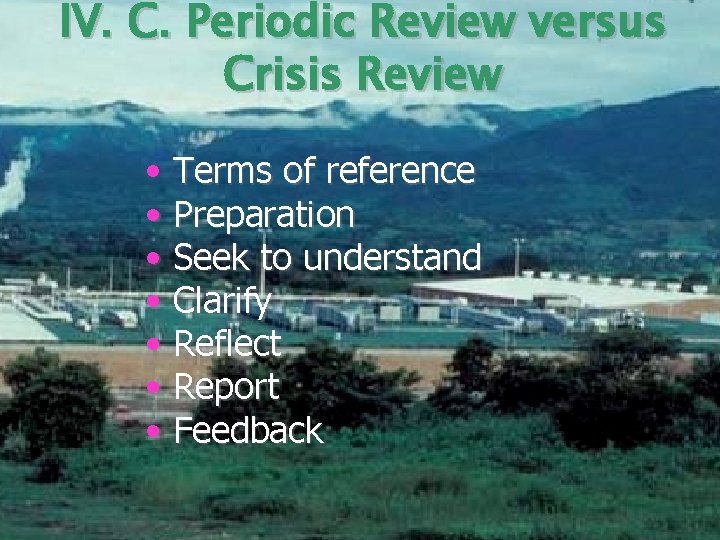

IV. C. Periodic Review versus Crisis Review • Terms of reference • Preparation • Seek to understand • Clarify • Reflect • Report • Feedback

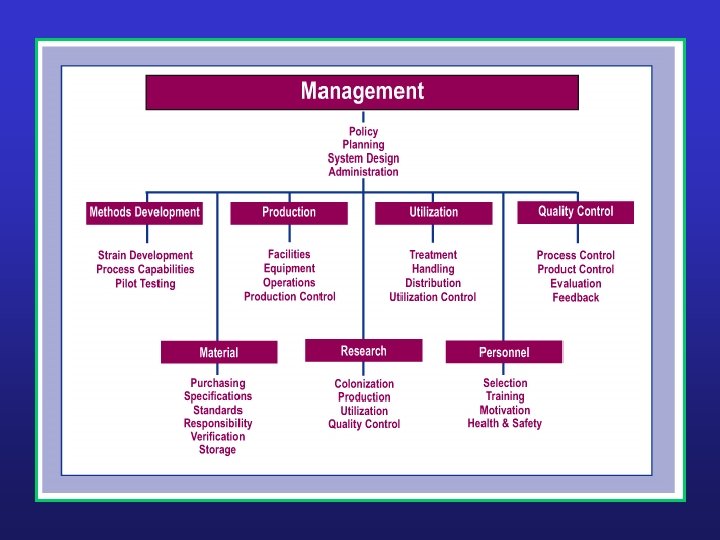

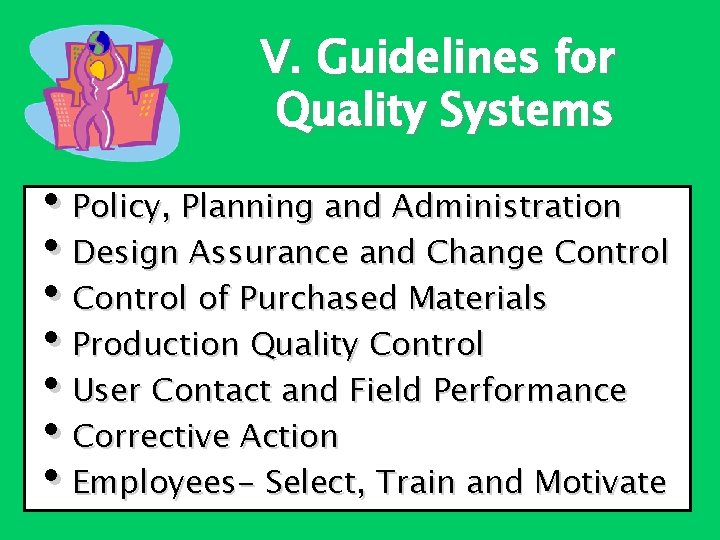

V. Guidelines for Quality Systems • Policy, Planning and Administration • Design Assurance and Change Control • Control of Purchased Materials • Production Quality Control • User Contact and Field Performance • Corrective Action • Employees- Select, Train and Motivate

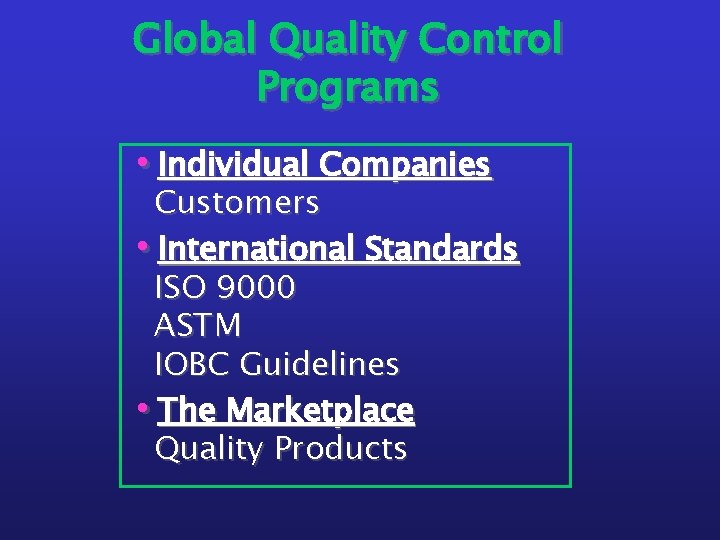

Global Quality Control Programs • Individual Companies Customers • International Standards ISO 9000 ASTM IOBC Guidelines • The Marketplace Quality Products

to facilitate and advance cost-effective rearing of high quality insects and other arthropods in support of biological control and integrated pest management http: //www. amrqc. org

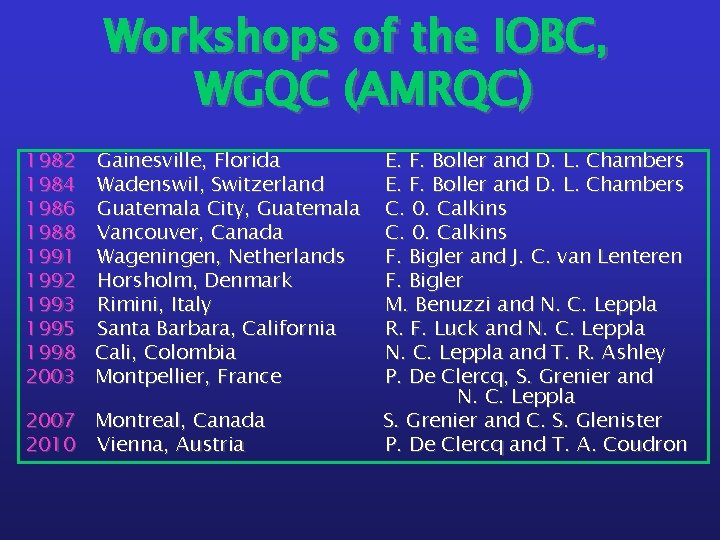

Workshops of the IOBC, WGQC (AMRQC) 1982 1984 1986 1988 1991 1992 1993 1995 1998 2003 Gainesville, Florida Wadenswil, Switzerland Guatemala City, Guatemala Vancouver, Canada Wageningen, Netherlands Horsholm, Denmark Rimini, Italy Santa Barbara, California Cali, Colombia Montpellier, France 2007 Montreal, Canada 2010 Vienna, Austria E. F. Boller and D. L. Chambers C. 0. Calkins F. Bigler and J. C. van Lenteren F. Bigler M. Benuzzi and N. C. Leppla R. F. Luck and N. C. Leppla and T. R. Ashley P. De Clercq, S. Grenier and N. C. Leppla S. Grenier and C. S. Glenister P. De Clercq and T. A. Coudron

Improving Male Fruit Fly Performance Abiotic environment • Holding Conditions • Release methods (knockdown, handling) Biotic environment • Juvenile hormone (Methoprine, fenoxycarb) • Nutrients (sucrose, protein) • Semiochemicals (methyl eugenol, citrus oil) Insect Pest Control (IPC) *Model Business Plan for a Sterile Insect Production Facility http: //www-naweb. iaea. org/nafa/ipc/index.

VI. Total Quality Management

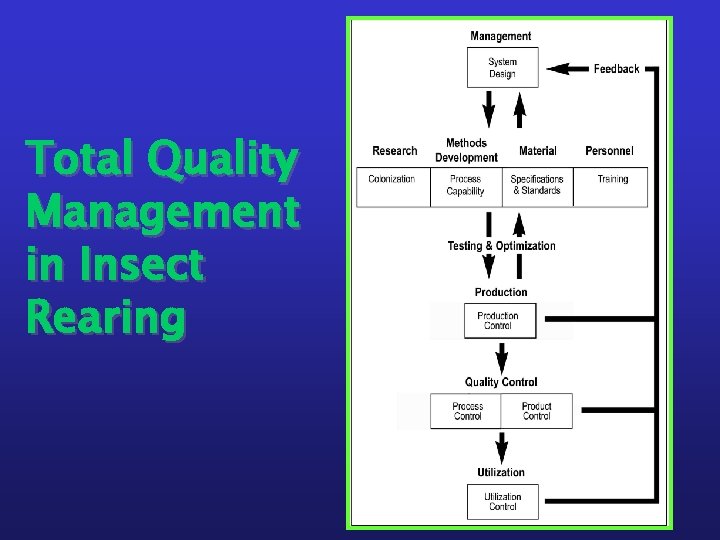

Total Quality Management in Insect Rearing

Leppla’s Insect Rearing Quality Control References • Leppla, N. C. 2008. The basics of quality control for insect rearing. In Principles and Procedures for Rearing Quality Insects. Mississippi State University. Leppla, N. C. 2004. The Basics of Insect Rearing. Encyclopedia of Entomology. Leppla, N. C. 2003. Guidelines for quality control of commercially produced natural enemies. In Quality Control and Production of Biological Control Agents, Theory and Testing Proc. Leppla, N. C. 2002. Rearing of Insects. Encyclopedia of Insects. • • •

For more information or a copy of this presentation please visit: http: //ipm. ifas. ufl. edu Extension Resources, Presentations
