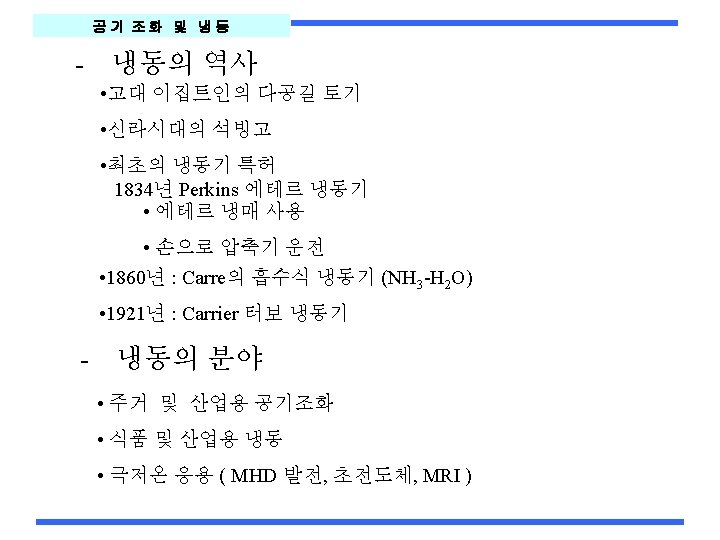

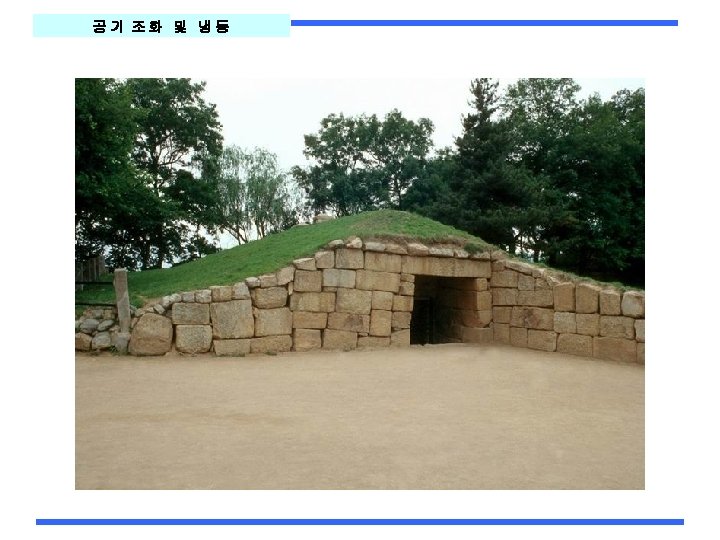

The Barjols Var France ice cellar17 th18 th

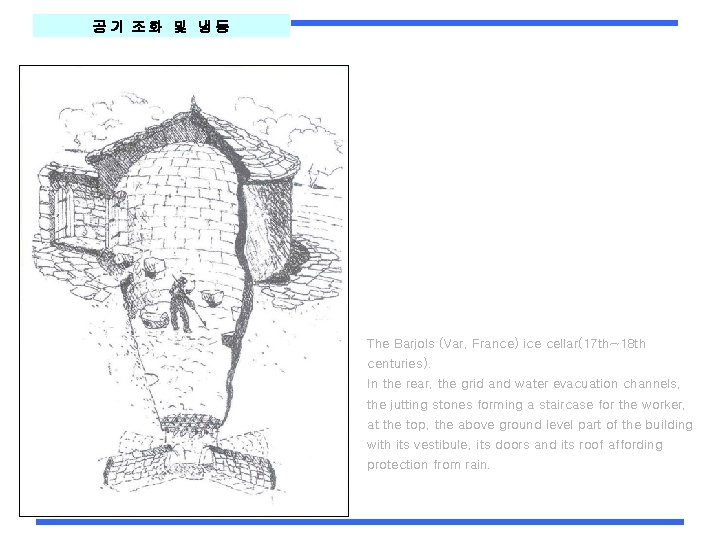

공기 조화 및 냉동 The Barjols (Var, France) ice cellar(17 th~18 th centuries). In the rear, the grid and water evacuation channels, the jutting stones forming a staircase for the worker, at the top, the above ground level part of the building with its vestibule, its doors and its roof affording protection from rain.

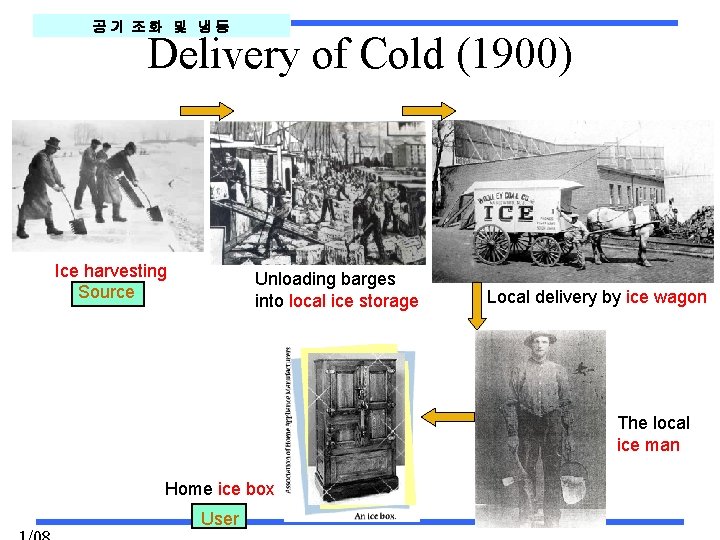

공기 조화 및 냉동 Delivery of Cold (1900) Ice harvesting Source Unloading barges into local ice storage Local delivery by ice wagon The local ice man Home ice box User

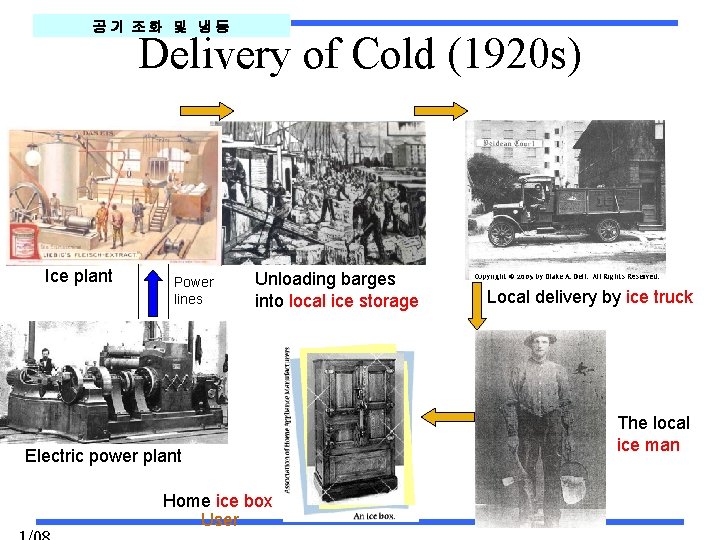

공기 조화 및 냉동 Delivery of Cold (1920 s) Ice plant Power lines Unloading barges into local ice storage Electric power plant Home ice box User Local delivery by ice truck The local ice man

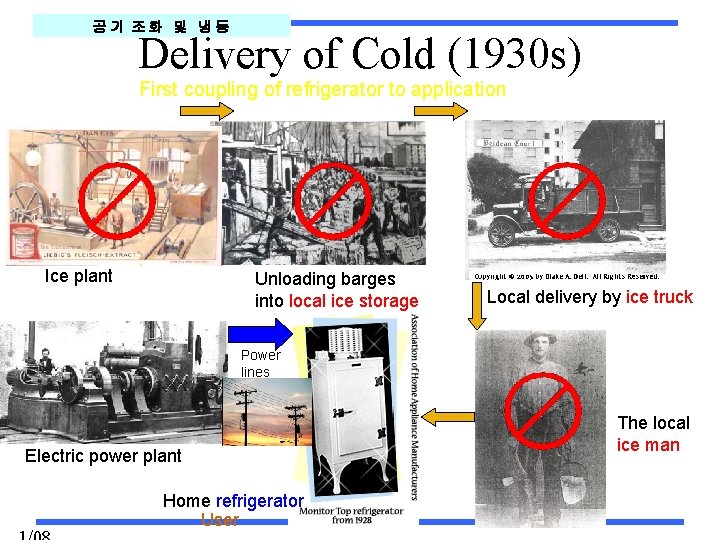

공기 조화 및 냉동 Delivery of Cold (1930 s) First coupling of refrigerator to application Ice plant Unloading barges into local ice storage Local delivery by ice truck Power lines Electric power plant Home refrigerator User The local ice man

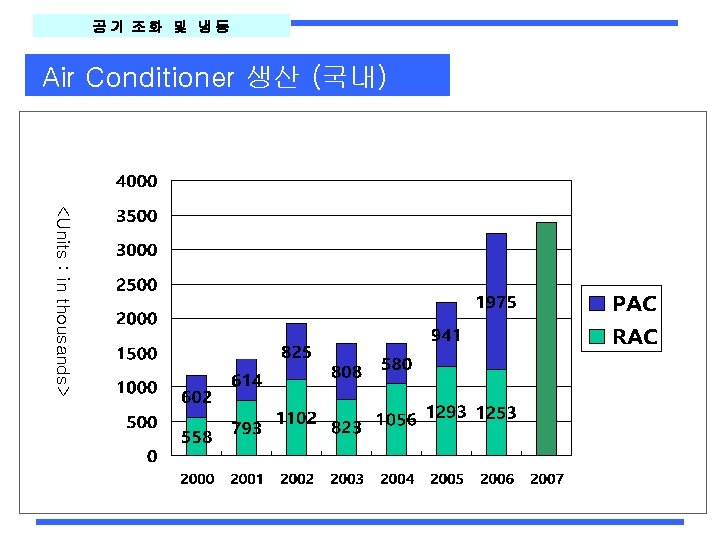

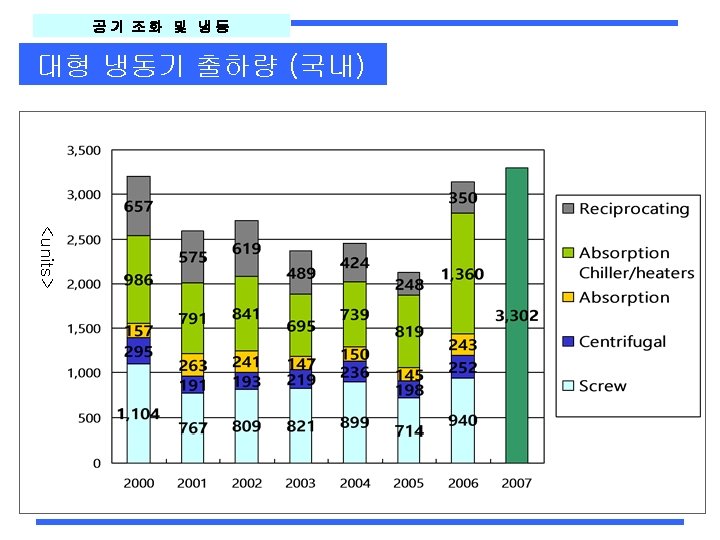

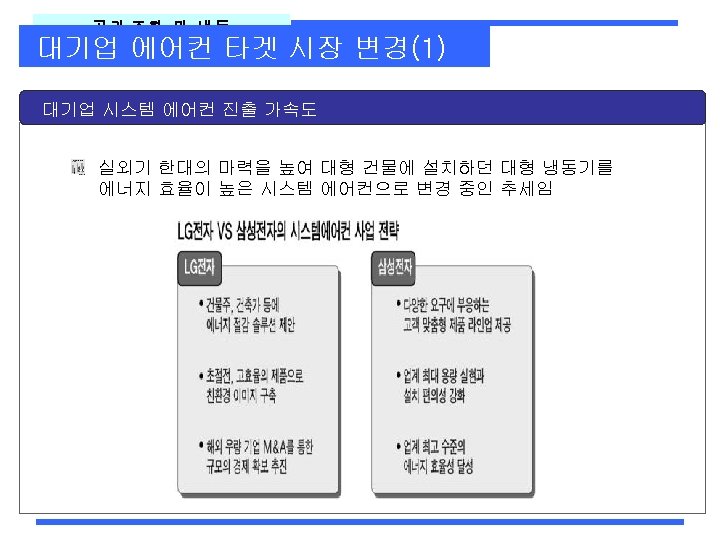

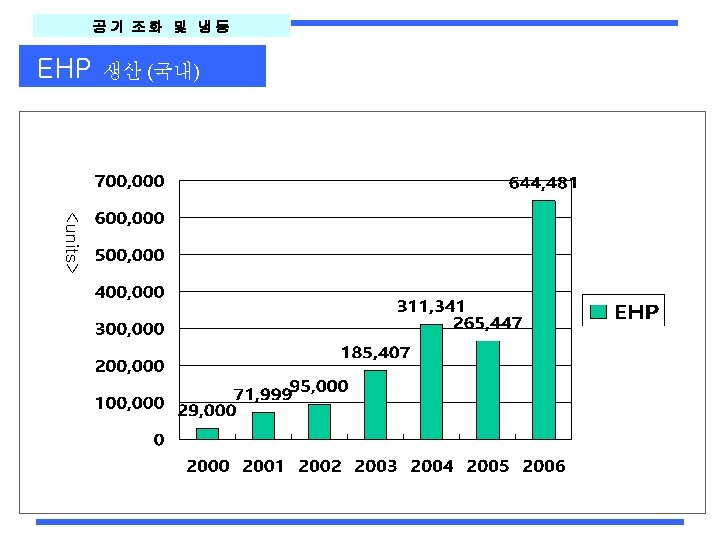

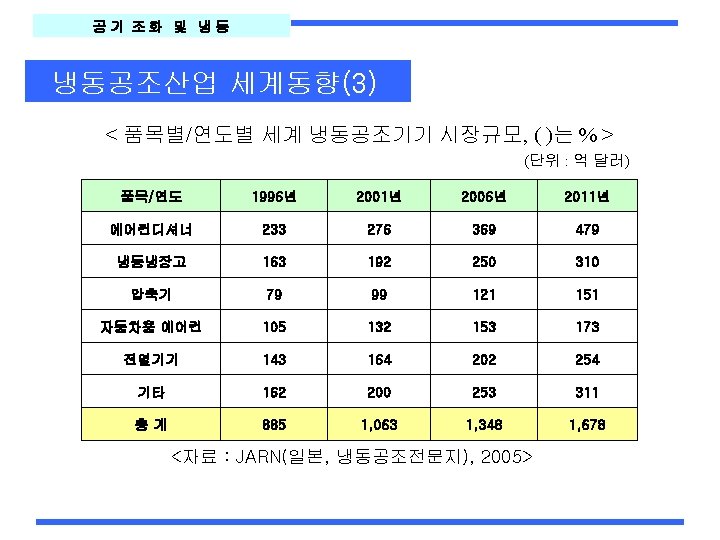

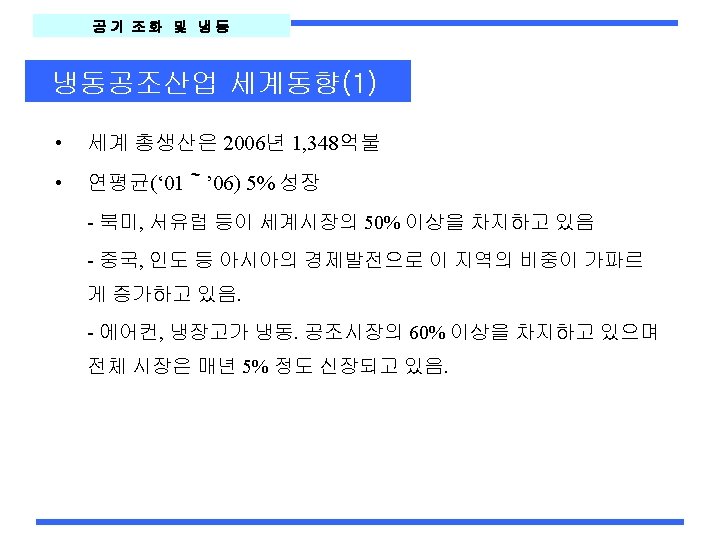

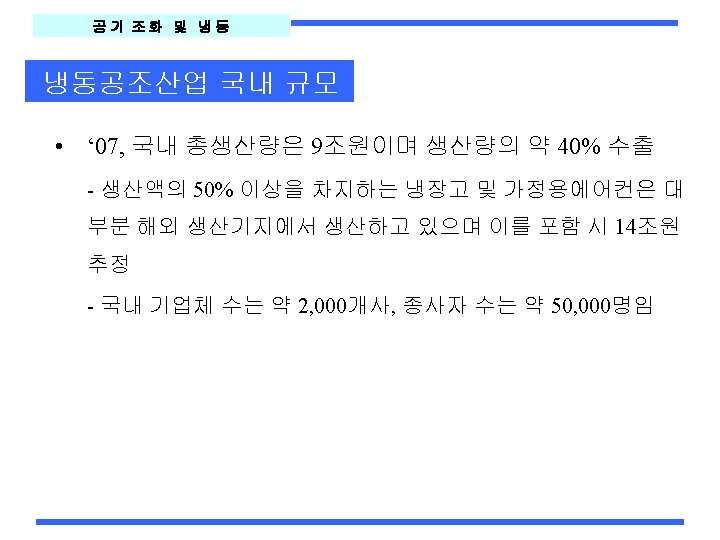

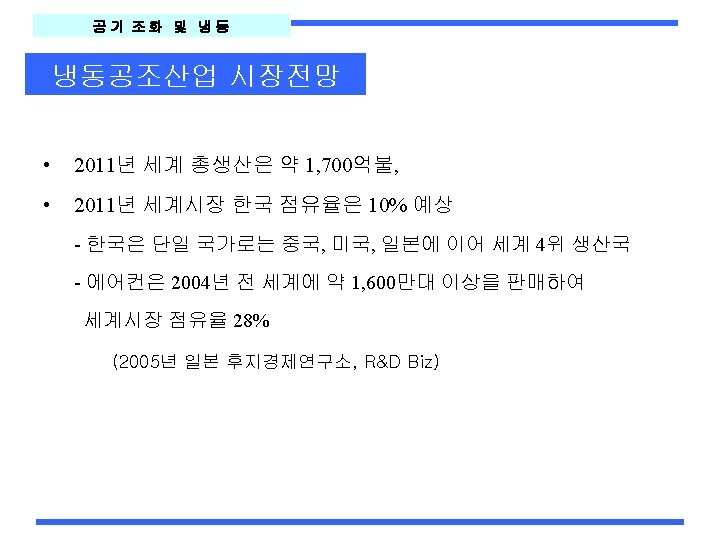

공기 조화 및 냉동 Air Conditioner 생산 (국내) <Units : in thousands>

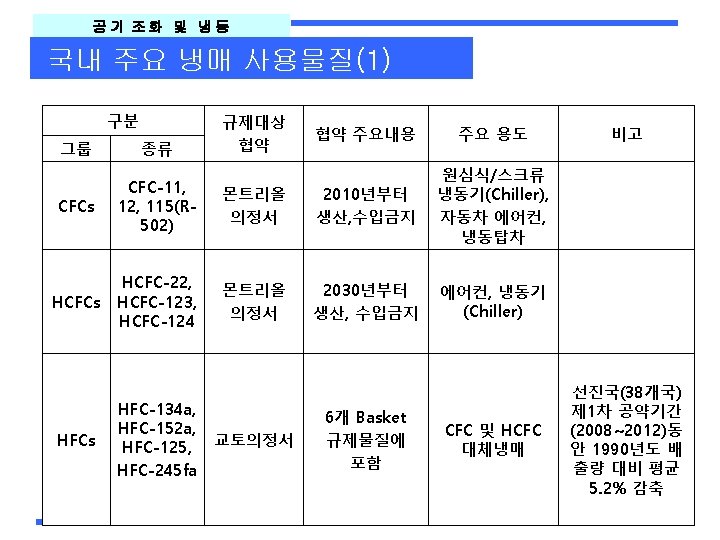

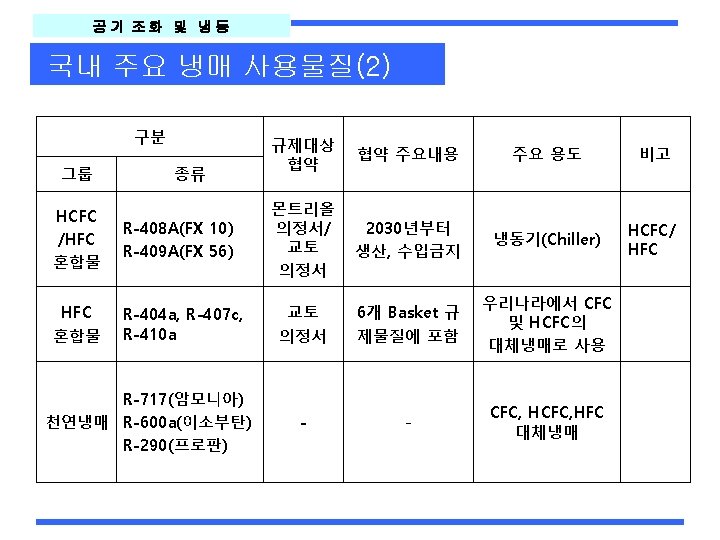

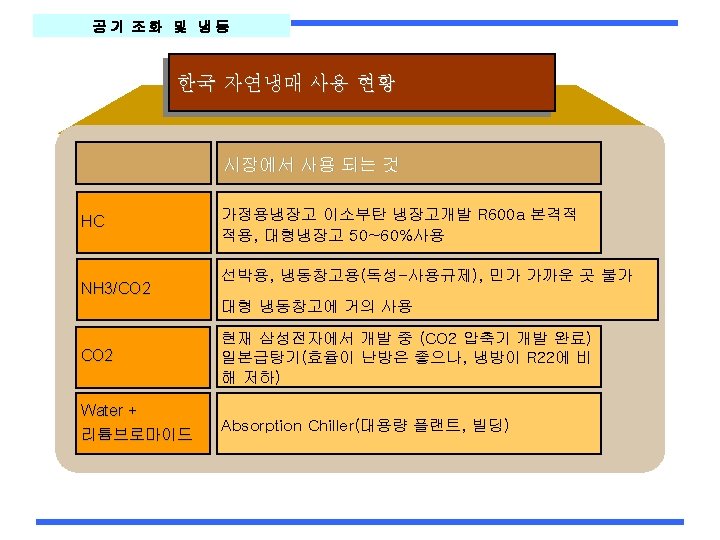

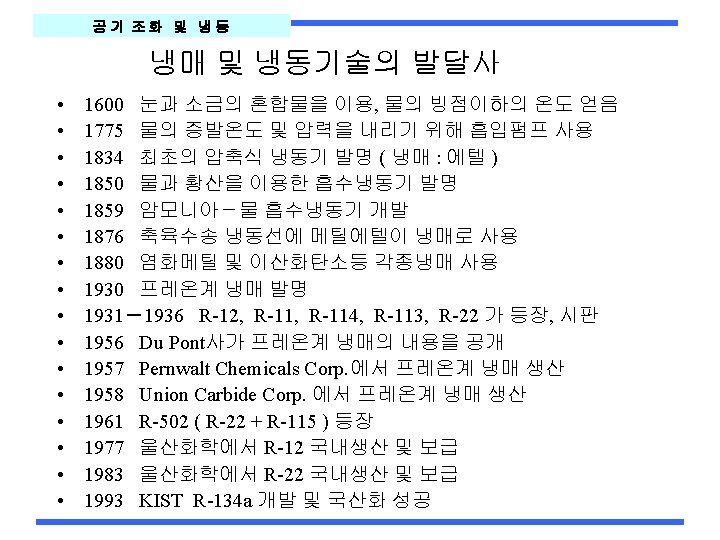

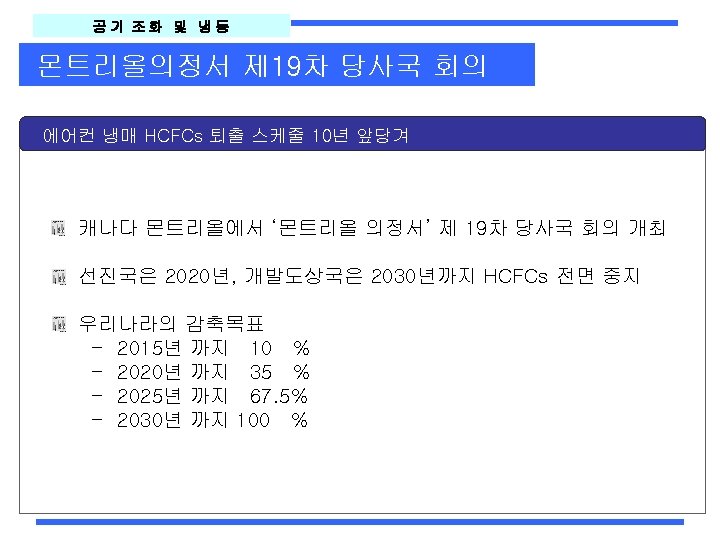

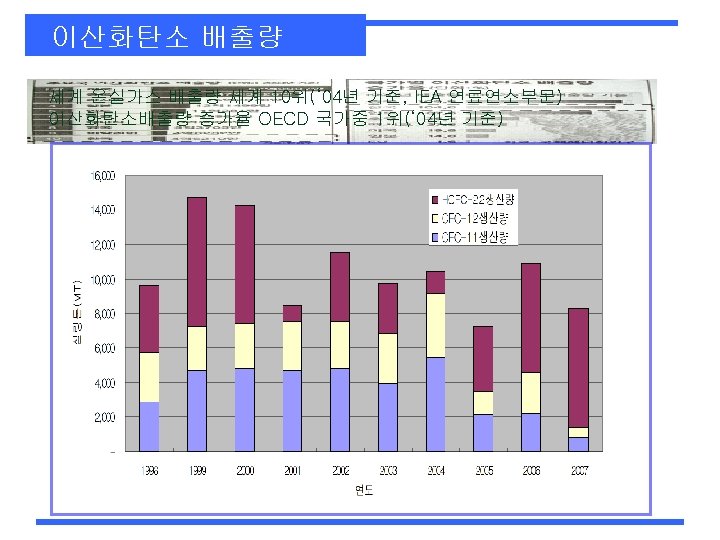

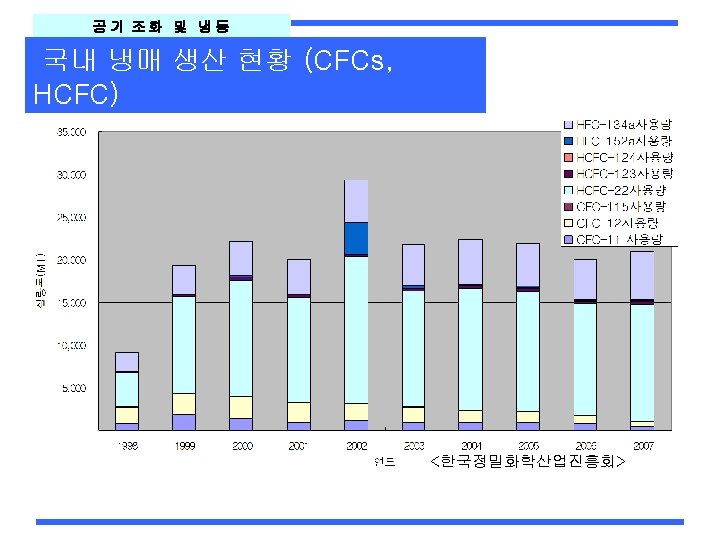

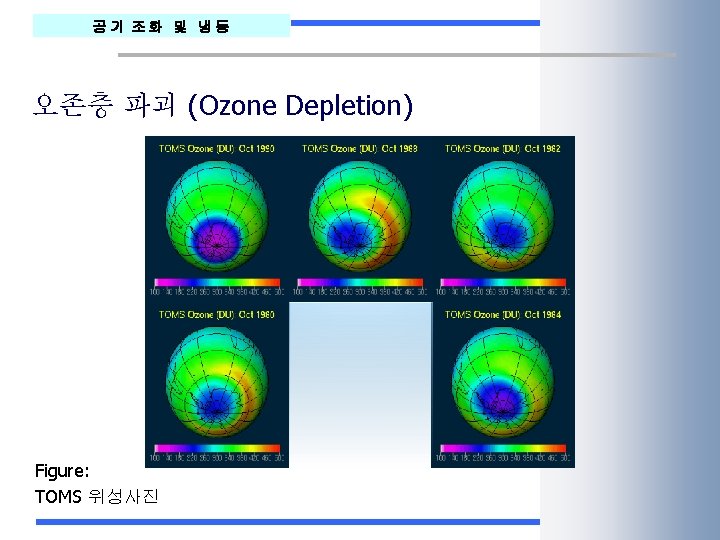

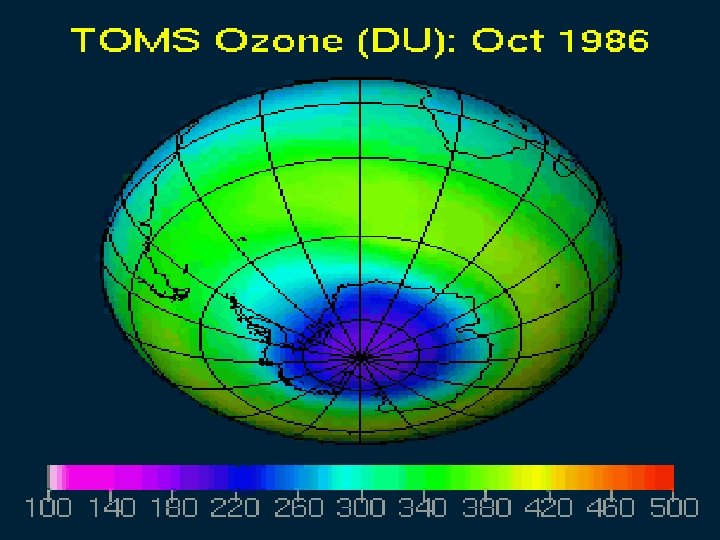

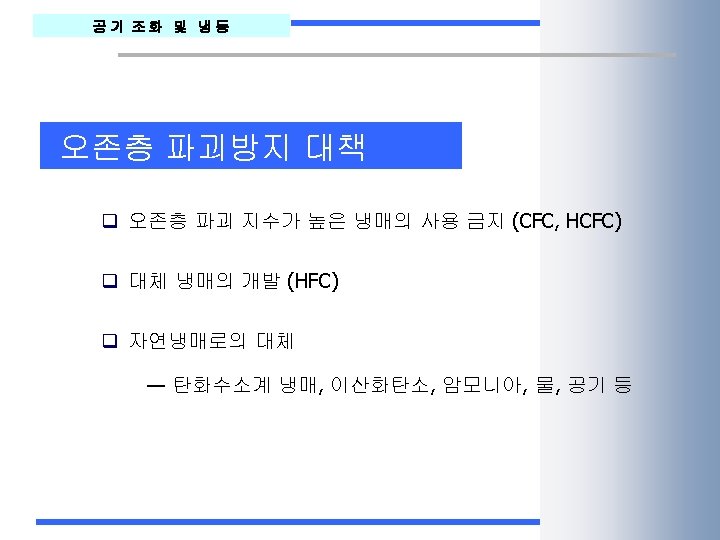

공기 조화 및 냉동 국내 대체 냉매 동향 분야 가정용 냉장고 상업용 냉동기 과거 현재 미래(Indicative) CFC-12 HFC-134 a, R-600 a(Iso-Butane) R 600 a(Iso-Butane) CFC-12, 502 R- HFC-134 a, HCFC-22, HFC-407 C, Ammonia HFC-404 a, R-507 A, HFC-410 A, Ammonia, CO 2, Hydro. Carbon Ammonia 가정용 에어컨 HCFC-22 HFC-410 A 상업용 에어컨 HCFC-22 HFC-410 A, HFC-407 C HCFC-123, HFC-134 a, HCFC 22 HFC-134 a, HFC-245 fa HFC-134 a, HFC-407 C, HFC-407 E CFC-11 원심식 냉동기 CFC-12 HCFC-22 스크류 냉동기 CFC-12 * TEAP Progress report (’ 07. 5)

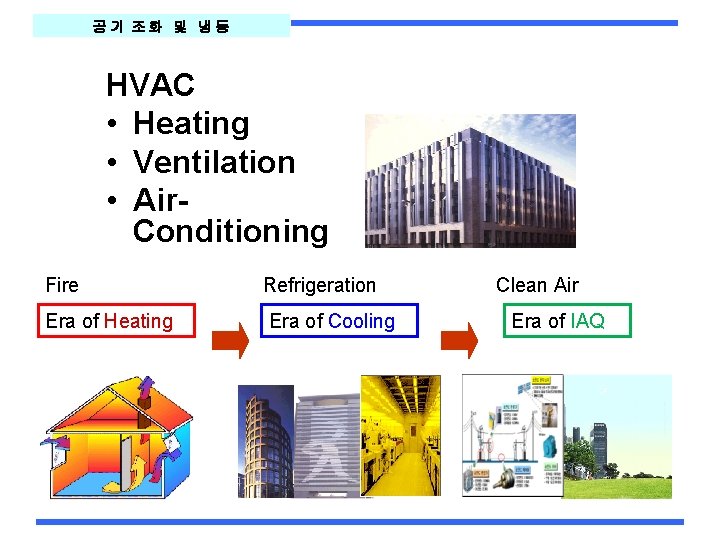

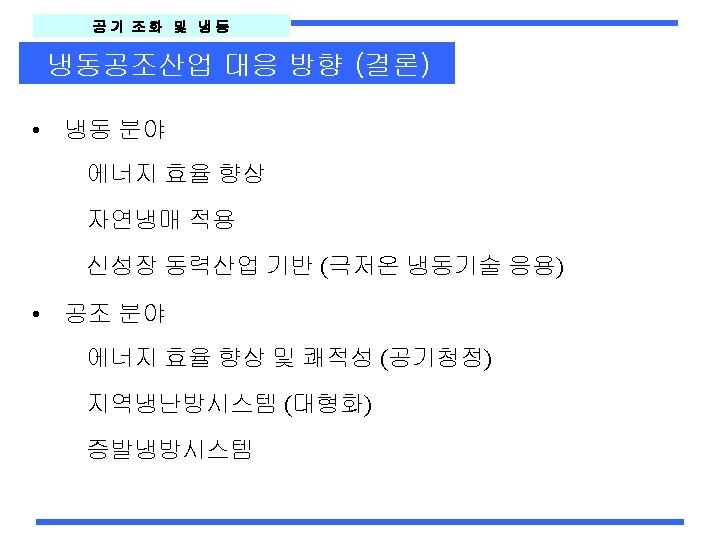

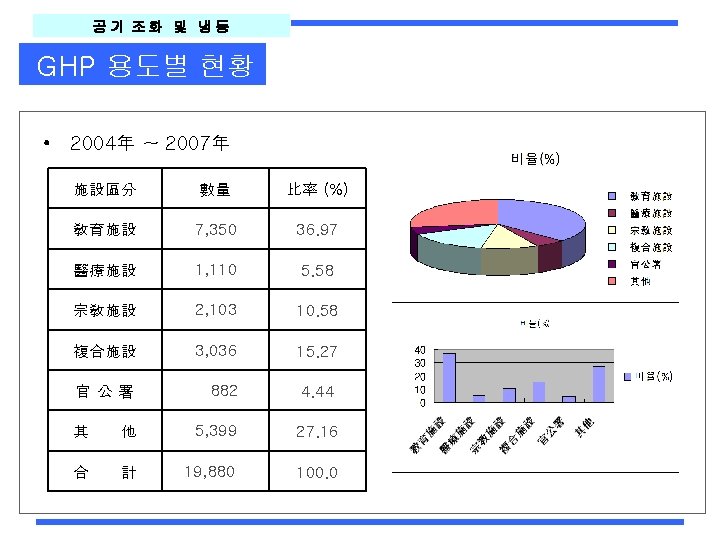

공기 조화 및 냉동 실내환경 제어 HVAC • Heating • Ventilation • Air. Conditioning Fire Refrigeration Era of Heating Era of Cooling Clean Air Era of IAQ

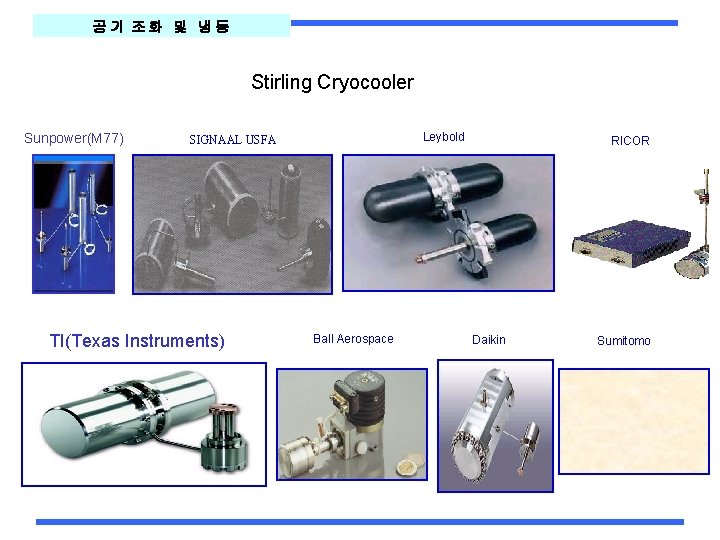

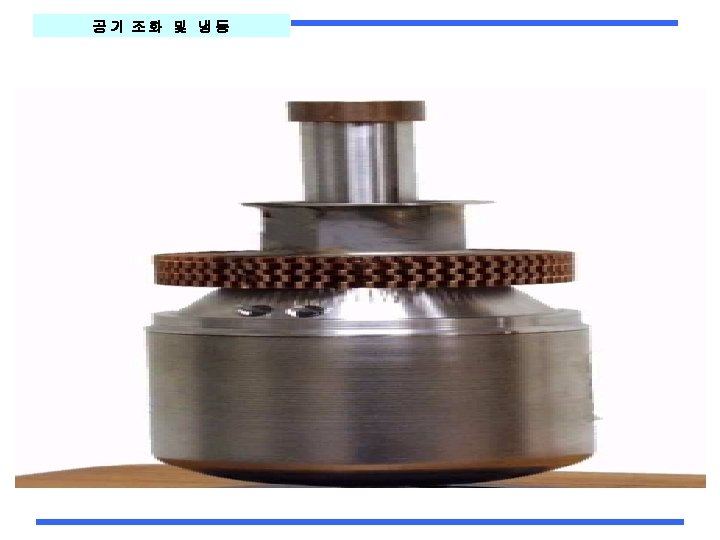

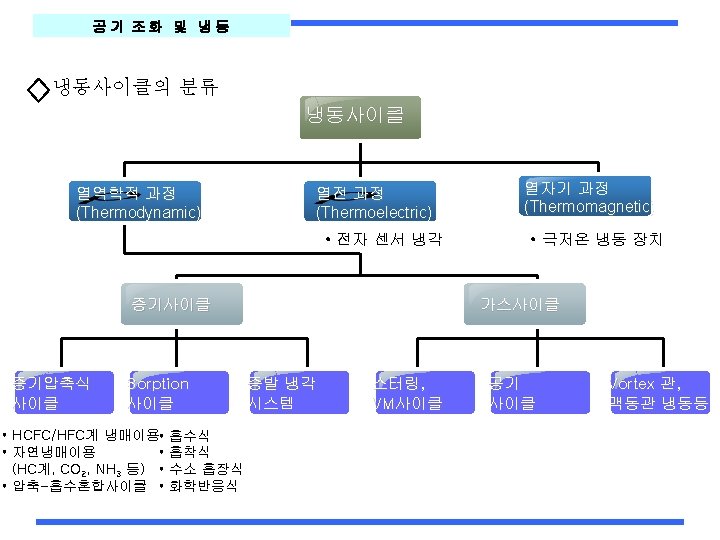

공기 조화 및 냉동 Stirling Cryocooler Sunpower(M 77) Leybold SIGNAAL USFA TI(Texas Instruments) Ball Aerospace RICOR Daikin Sumitomo

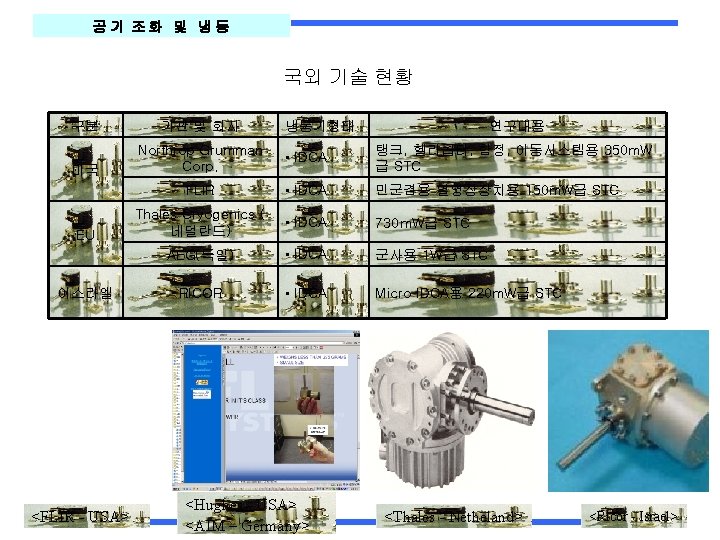

공기 조화 및 냉동 국외 기술 현황 구분 기관 및 회사 미국 Northrop Grumman Corp. • IDCA 탱크, 헬리콥터, 함정, 이동시스템용 350 m. W 급 STC FLIR • IDCA 민군겸용 열영상장치용 150 m. W급 STC Thales Cryogenics ( 네덜란드) • IDCA 730 m. W급 STC AEG(독일) • IDCA 군사용 1 W급 STC RICOR • IDCA Micro IDCA용 220 m. W급 STC EU 이스라엘 <FLIR - USA> 냉동기형태 <Hughes - USA> <AIM – Germany> 연구내용 <Thales - Netheland> <Ricor - Israel>

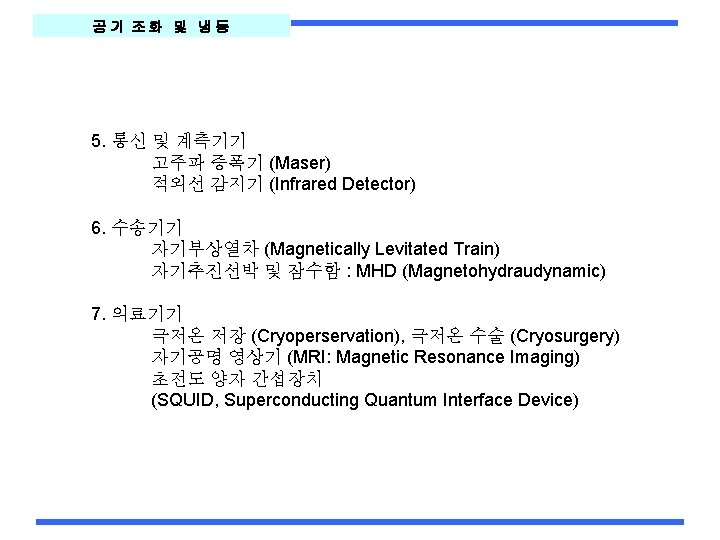

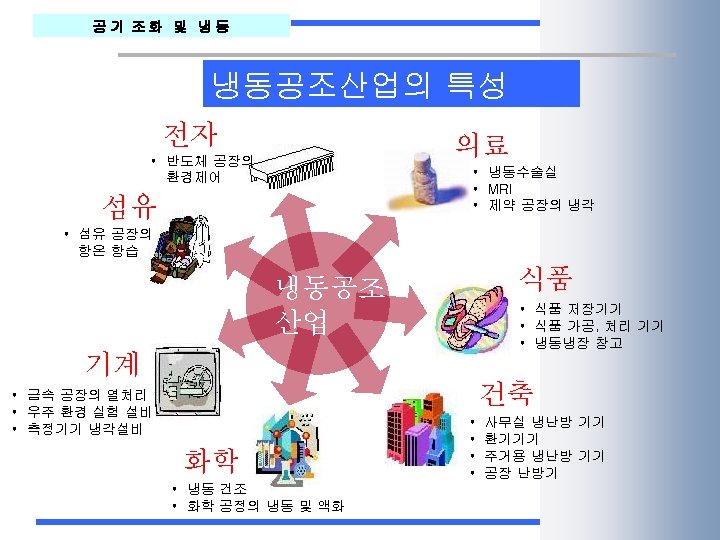

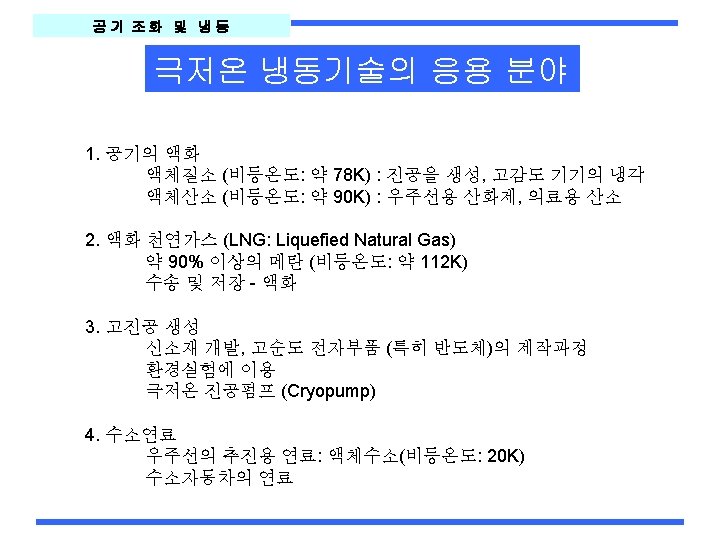

공기 조화 및 냉동 5. 통신 및 계측기기 고주파 증폭기 (Maser) 적외선 감지기 (Infrared Detector) 6. 수송기기 자기부상열차 (Magnetically Levitated Train) 자기추진선박 및 잠수함 : MHD (Magnetohydraudynamic) 7. 의료기기 극저온 저장 (Cryoperservation), 극저온 수술 (Cryosurgery) 자기공명 영상기 (MRI: Magnetic Resonance Imaging) 초전도 양자 간섭장치 (SQUID, Superconducting Quantum Interface Device)

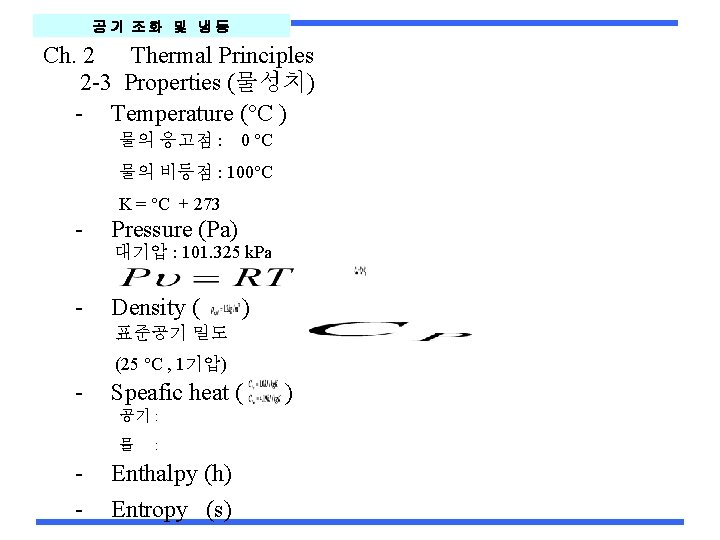

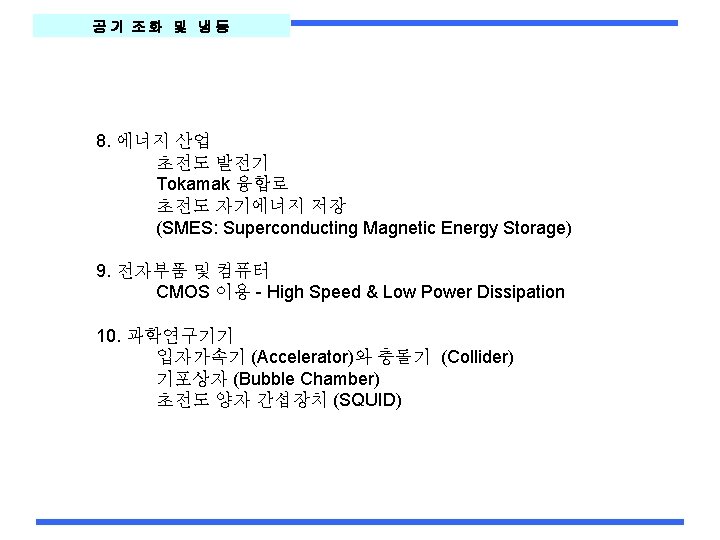

공기 조화 및 냉동 Ch. 2 Thermal Principles 2 -3 Properties (물성치) - Temperature ( C ) 물의 응고점 : 0 C 물의 비등점 : 100 C K = C + 273 - Pressure (Pa) 대기압 : 101. 325 k. Pa - Density ( ) 표준공기 밀도 (25 C , 1기압) - Speafic heat ( ) 공기 : 물 : - Enthalpy (h) Entropy (s)

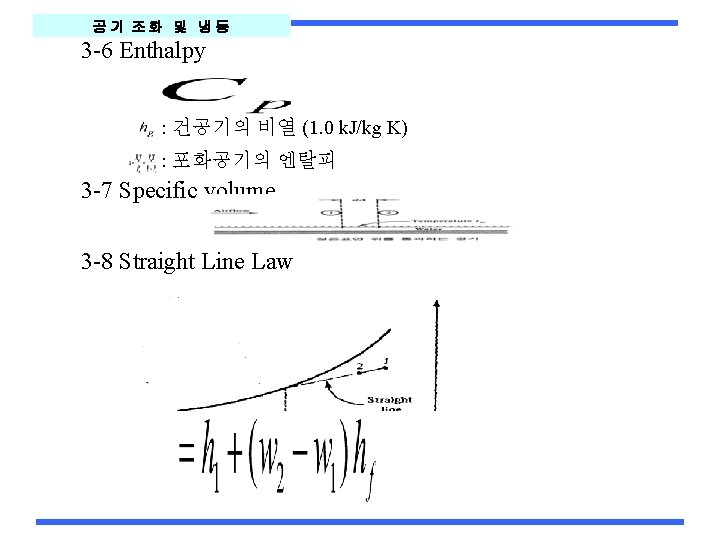

공기 조화 및 냉동 3 -6 Enthalpy : 건공기의 비열 (1. 0 k. J/kg K) : 포화공기의 엔탈피 3 -7 Specific volume 3 -8 Straight Line Law

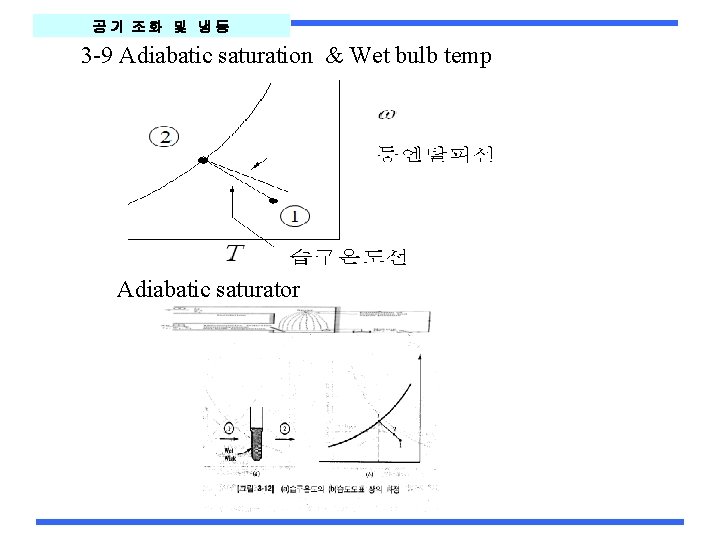

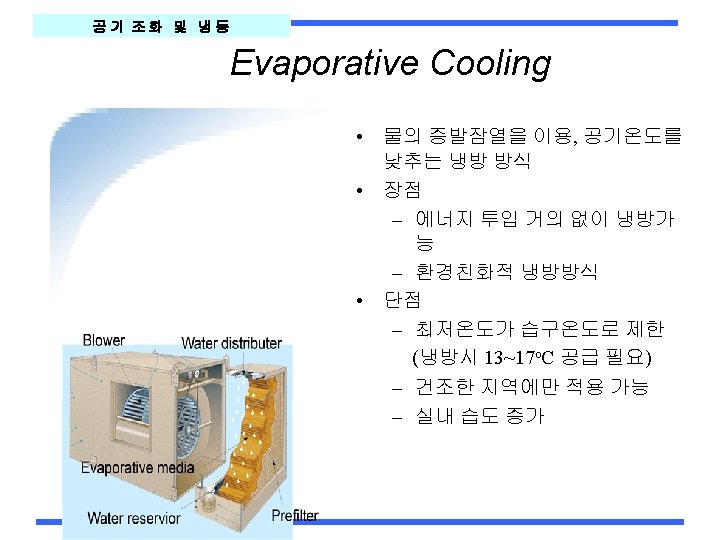

공기 조화 및 냉동 3 -9 Adiabatic saturation & Wet bulb temp Adiabatic saturator

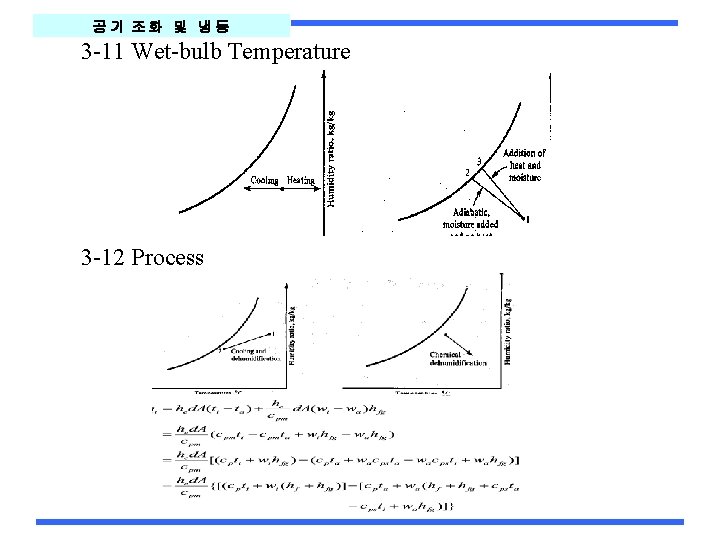

공기 조화 및 냉동 3 -11 Wet-bulb Temperature 3 -12 Process

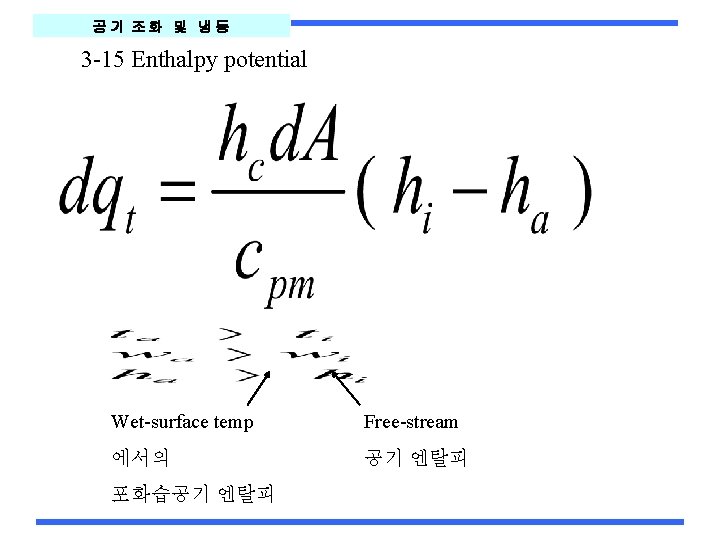

공기 조화 및 냉동 3 -15 Enthalpy potential Wet-surface temp Free-stream 에서의 공기 엔탈피 포화습공기 엔탈피
