The ATOMO Transactional Programming Language Presenters Dennis Gove

The ATOMO∑ Transactional Programming Language Presenters Dennis Gove Matthew Marzilli Department of Computer Science

What is Atomos? § Atomos delivers to Java • • Implicit Transactions Strong Atomicity Programming Language Approach Scalable Multiprocessor Implementation § Constructs help make parallel programming • More intuitive to the programmer • Provide for easier reasoning concerning execution • Exceed the performance of “lock based” systems Department of Computer Science 2

The downside of Locks § Traditional thread programs use Locks for critical sections of code § Typically one or more locks per shared data structure § Heavy locking can lead to serialization § Fine grained locking helps performance, but • increased code complexity • risks of deadlock • priority inversion Department of Computer Science 3

New Parallel Construct - Transactions § Declare a portion of code “atomic” § Allows programmer to focus on where atomicity is necessary § Provides non-blocking synchronization atomic { count = count + 1; } Department of Computer Science Start of transaction End of transaction, changes to count “committed” to other threads 4

Violations § Transactions need to detect Violations of data dependencies to ensure atomicity. § Occur when a transactions “read set” intersects with another’s “write set”. § Causes a transaction to “roll back” and begin again. Department of Computer Science 5

Details of what Atomos Provides § Implicit Transactions • Atomic sections allow programmers to use parallel constructs without specific transactional knowledge. • Explicit transactions require “transactional awareness” of the programmer. § Strong Atomicity • Non transactional code • (non-atomic) does not see the state of uncommitted transactions. • Updates to shared memory still violate transactions • Under weak atomicity isolation is only guaranteed between transactions Department of Computer Science 6

Details of what Atomos Provides § Programming Language • Some transactional systems are libraries. • Language semantics require a compiler that generates safe and efficient code. § Multiprocessor Scalability • Provides an implementation to take advantage of multiprocessor trends. Department of Computer Science 7

Atomos Synchronization Primitives § atomic § Transactions are defined by the atomic statement. Remember “strong atomicity. ” Serialization with non-transactional code as well. • atomic { counter ++; } • Programmers usually mean atomic during lock() or synchronized() Department of Computer Science 8

Atomos Synchronization Primitives § Nested Atomic statements follow “closed-nesting” semantics § Inner atomic statements merge their read and write sets to the parent upon commit. § Violations mean that only a parent and its children must be rolled back. § We’ll revisit Closed vs. Open nesting after some examples. Department of Computer Science 9

Atomos Synchronization Primitives § watch • watch a variable for a change § retry • roll back and restart the atomic block • communicates a “watch set” (set of all watched variables) to the scheduler. • scheduler will now listen for violations within the watch set and upon a violation reschedule this thread § We’ll see an example of these three constructs with Producer. Consumer. Department of Computer Science 10

Producer Consumer Example (using Java Synchronized) public int get () { synchronized (this) { while (!available) wait(); available = false; notify. All(); return contents; } } Department of Computer Science public void put (int value) { synchronized (this) { while (available) wait(); contents = value; available = true; notify. All(); } } 11

Producer Consumer Example (using Atomos Constructs) public int get() { atomic { if (!available) { watch available; retry; } public void put (int value) { atomic { if (available) { watch available; retry; } available = false; return contents; contents = value; available = true; } } Department of Computer Science } } 12

Barrier Example (using Java Synchronized) synchronized (lock) { count++; if (count != thread_count) lock. wait(); else lock. notify. All(); } Department of Computer Science 13

Barrier Example (using Atomos Constructs) atomic { count++; } atomic { if (count != thread_count) { watch count; retry; } } Department of Computer Science 14

Closed vs. Open Nested Transactions § Recall nested Atomic statements used Closed Nesting. § What happens if we need updates from a child transactions available across all threads immediately? § Open Nested Transactions involve commit stages that immediately make their changes global (without waiting for the parent). Department of Computer Science 15

Closed vs. Open Nested Transactions Department of Computer Science 16

Closed vs. Open Nested Transactions public static int generate. ID { atomic { return id++; } } public static void create. Order (. . . ) { atomic { Order order = new Order(); order. set. ID(generate. ID()); orders. put(new Integer(order. get. ID()), order); } } Department of Computer Science 17

Closed vs. Open Nested Transactions public static int generate. ID { open { return id++; } } public static void create. Order (. . . ) { atomic { Order order = new Order(); order. set. ID(generate. ID()); orders. put(new Integer(order. get. ID()), order); } } Department of Computer Science 18

Loop Speculation § Atomos provides a loop construct that quickly allows existing for-loops to take advantage of transactional parallelism. § Also gives the programmer control over ordering of these transactions. § Loops can be ordered or unordered. Department of Computer Science 19

Loop Speculation void histogram(int[] A, int[] bin) { for(int i=0; i<A. length; i++) bin[A[i]]++; } void histogram(int[] A, int[] bin) { Loop. run(false, 20, Arrays. as. List(A), new Loop. Body() { public void run(Object o){ bin[A[((Integer)o). int. Value()]]++; } } } Department of Computer Science 20

Loop Speculation: Ordering Department of Computer Science 21

Evaluation § How does Atomos compare with Java? • Embarrassingly parallel – matches Java performance • High Contention between thread – exceeds performance • 4 major benchmarks used Department of Computer Science 22

Evaluation: SPECjbb 2000 § Server-side Java benchmark • Embarrassingly Parallel! • Only 1% chance of contention between threads § Meant to compare basic Java performance with Atomos § Synchronized statements automatically changed to atomic § Vary thread and warehouses from 1 to 32 Department of Computer Science 23

Evaluation: SPECjbb 2000 Atomos matches Java on “embarrassingly parallel” performance. Department of Computer Science 24

Evaluation: Test. Hashtable § Biggest benefit of Atomos is “optimistic speculation” instead of threads “pessimistic waiting. ” § Micro-benchmark Test. Hashtable compares varying implementations of java. util. Map § Multiple threads contend over a single Map instance with 50% get and 50% put operations Department of Computer Science 25

Evaluation: Test. Hashtable Think back to use of watch and retry statements. watch / retry vs. waiting Assists high-concurrency performance. Department of Computer Science 26

Evaluation: Conditional Waiting with Test. Wait § Focus on performance of the Producer – Consumer problem. Heavy use of Test Waiting semantics. § 32 threads operate on 32 shared queues. Department of Computer Science 27

Evaluation: Conditional Waiting with Test. Wait Department of Computer Science 28

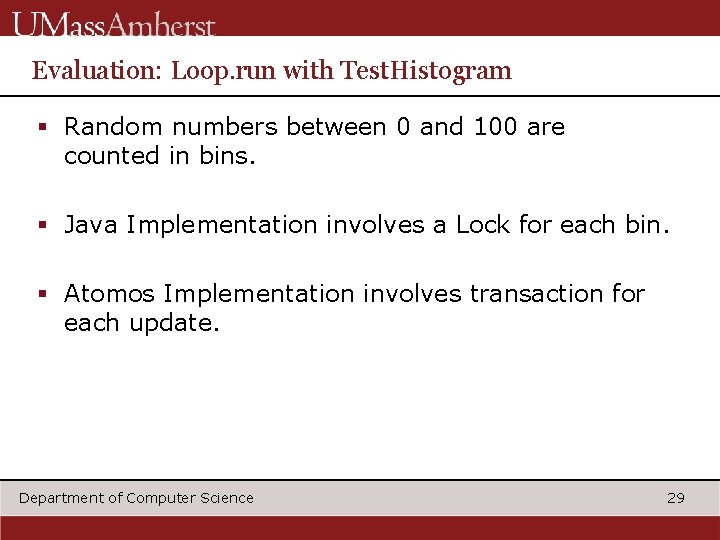

Evaluation: Loop. run with Test. Histogram § Random numbers between 0 and 100 are counted in bins. § Java Implementation involves a Lock for each bin. § Atomos Implementation involves transaction for each update. Department of Computer Science 29

Evaluation: Loop. run with Test. Histogram Department of Computer Science 30

Conclusion § Intuitive model for parallel applications § “optimistic speculation” § Strong performance both for “embarrassingly parallel” high contention between threads Department of Computer Science 31
