The Articular System Joint Connection between two bones

The Articular System

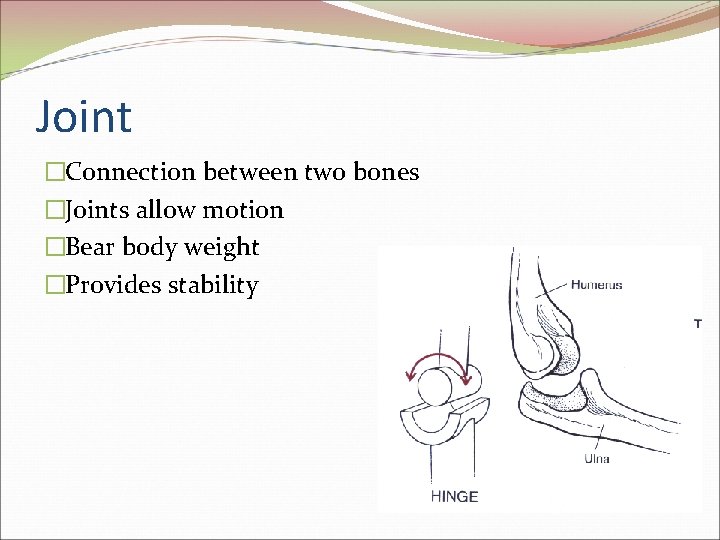

Joint �Connection between two bones �Joints allow motion �Bear body weight �Provides stability

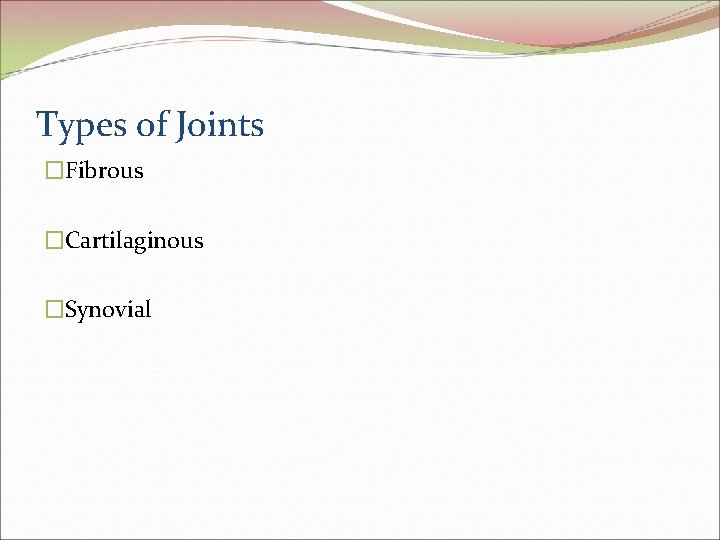

Types of Joints �Fibrous �Cartilaginous �Synovial

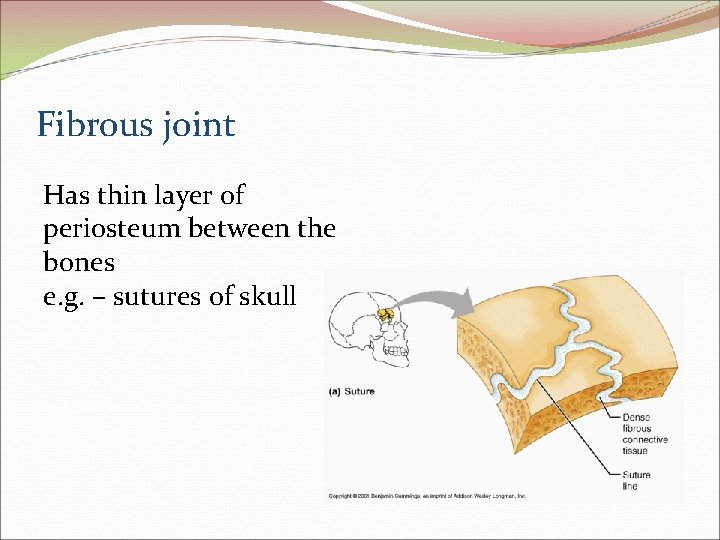

Fibrous joint Has thin layer of periosteum between the bones e. g. – sutures of skull

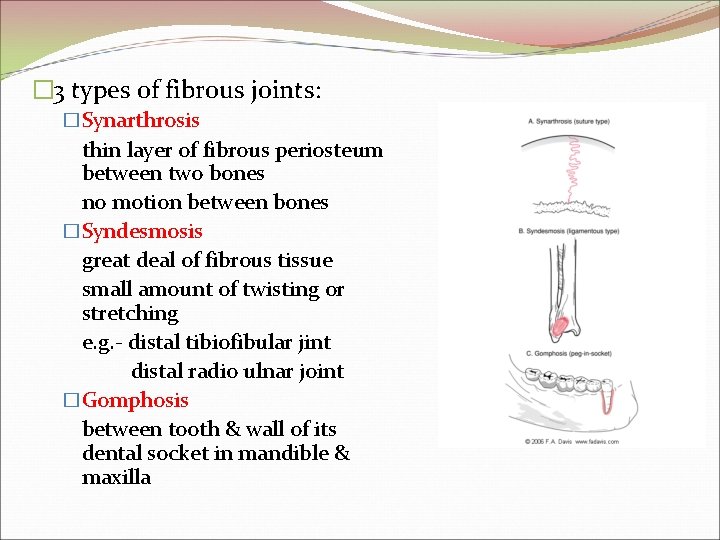

� 3 types of fibrous joints: �Synarthrosis thin layer of fibrous periosteum between two bones no motion between bones �Syndesmosis great deal of fibrous tissue small amount of twisting or stretching e. g. - distal tibiofibular jint distal radio ulnar joint �Gomphosis between tooth & wall of its dental socket in mandible & maxilla

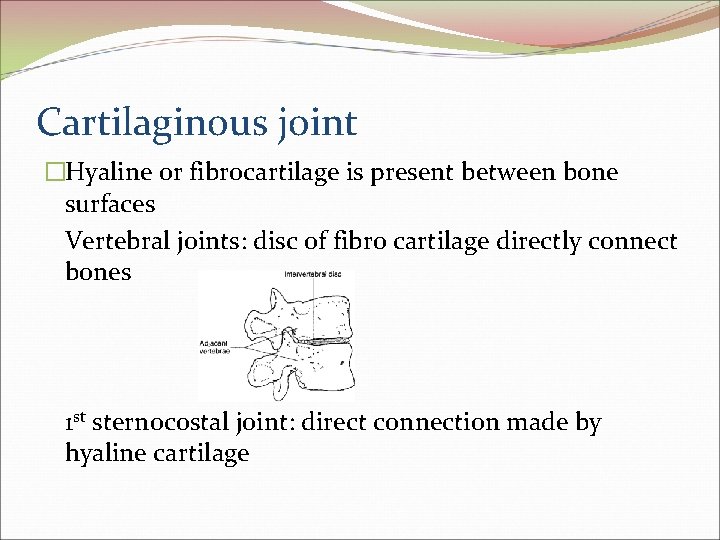

Cartilaginous joint �Hyaline or fibrocartilage is present between bone surfaces Vertebral joints: disc of fibro cartilage directly connect bones 1 st sternocostal joint: direct connection made by hyaline cartilage

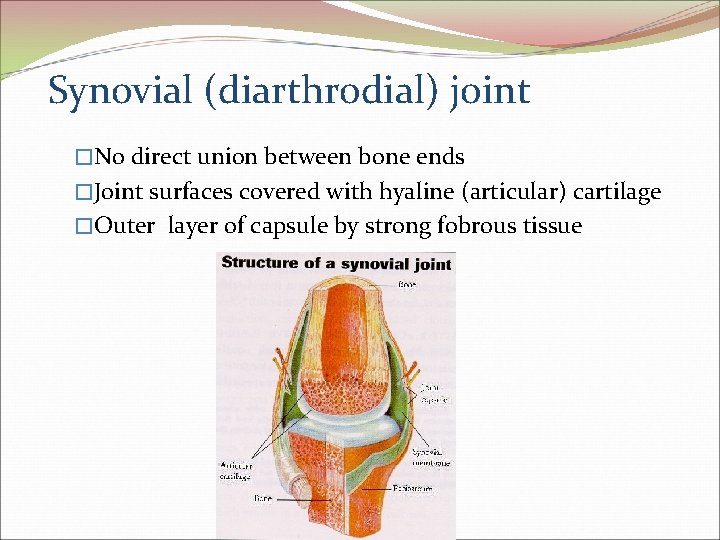

Synovial (diarthrodial) joint �No direct union between bone ends �Joint surfaces covered with hyaline (articular) cartilage �Outer layer of capsule by strong fobrous tissue

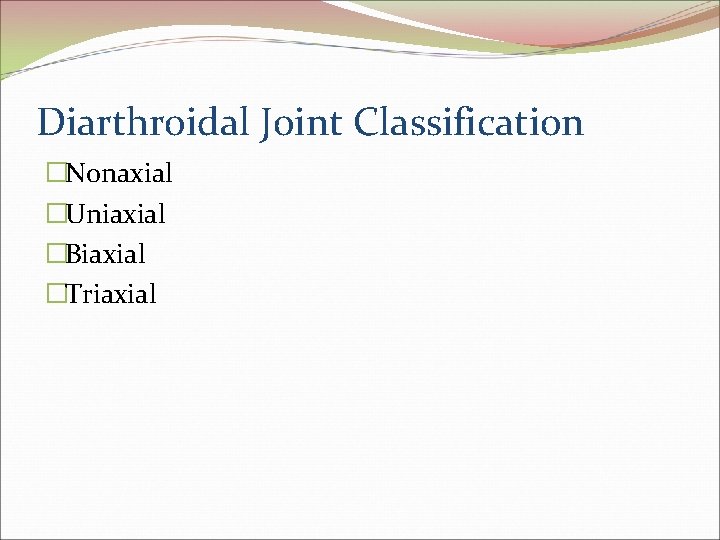

Diarthroidal Joint Classification �Nonaxial �Uniaxial �Biaxial �Triaxial

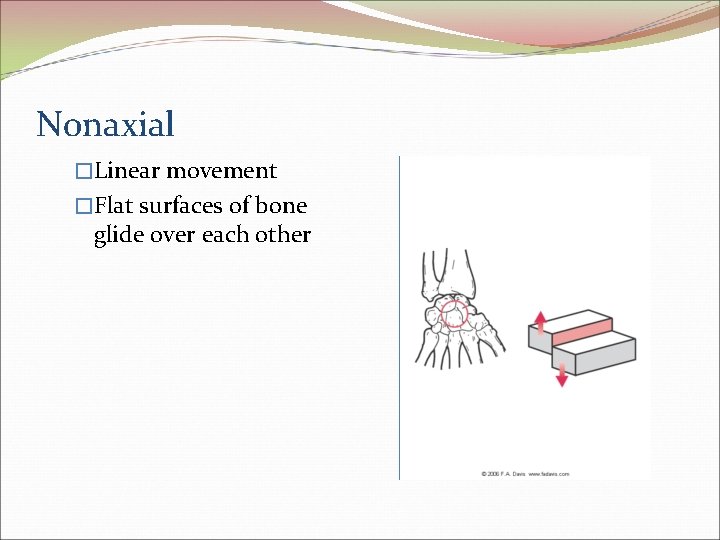

Nonaxial �Linear movement �Flat surfaces of bone glide over each other

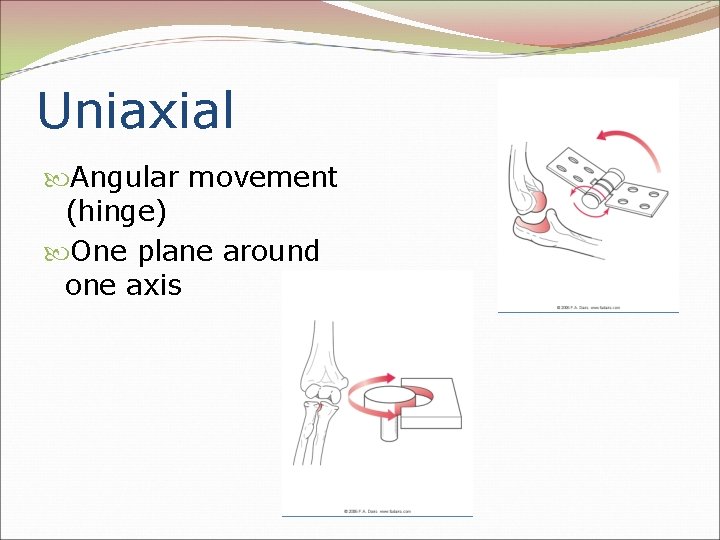

Uniaxial Angular movement (hinge) One plane around one axis

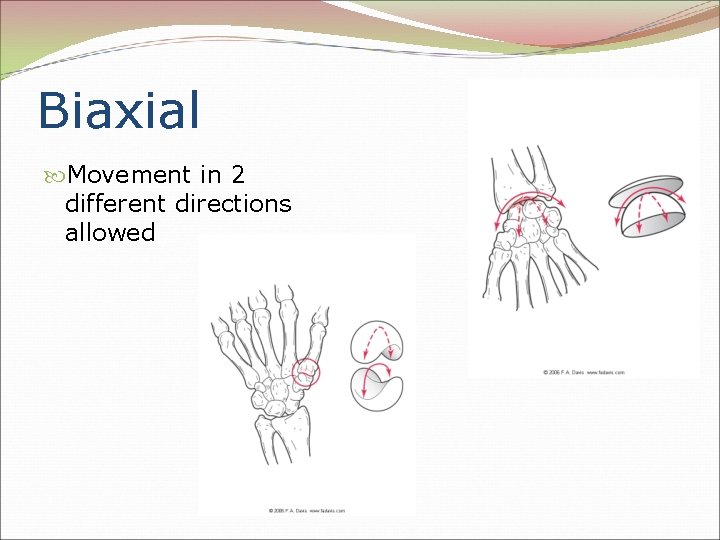

Biaxial Movement in 2 different directions allowed

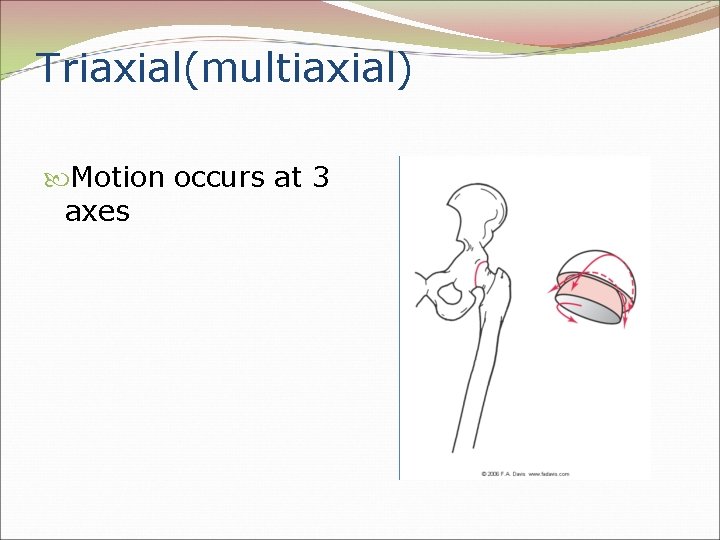

Triaxial(multiaxial) Motion occurs at 3 axes

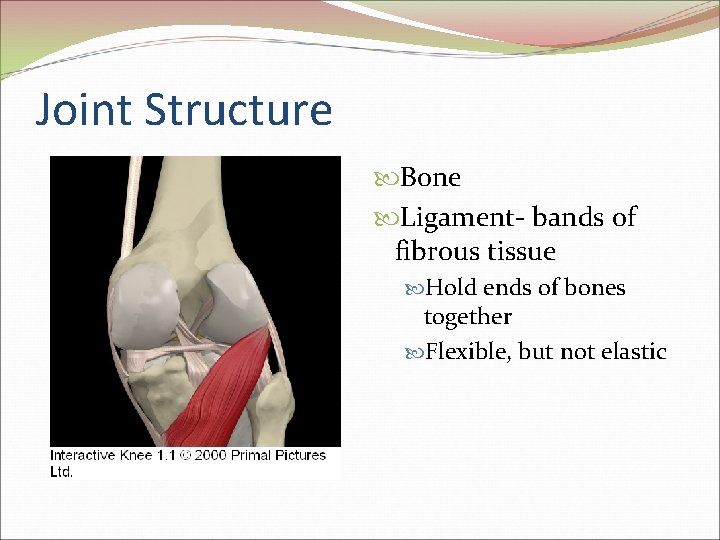

Joint Structure Bone Ligament- bands of fibrous tissue Hold ends of bones together Flexible, but not elastic

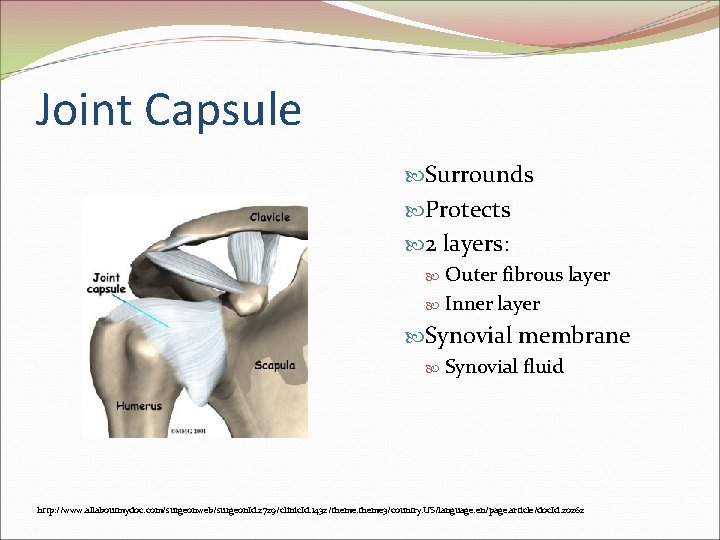

Joint Capsule Surrounds Protects 2 layers: Outer fibrous layer Inner layer Synovial membrane Synovial fluid http: //www. allaboutmydoc. com/surgeonweb/surgeon. Id. 2729/clinic. Id. 1432/theme 3/country. US/language. en/page. article/doc. Id. 20262

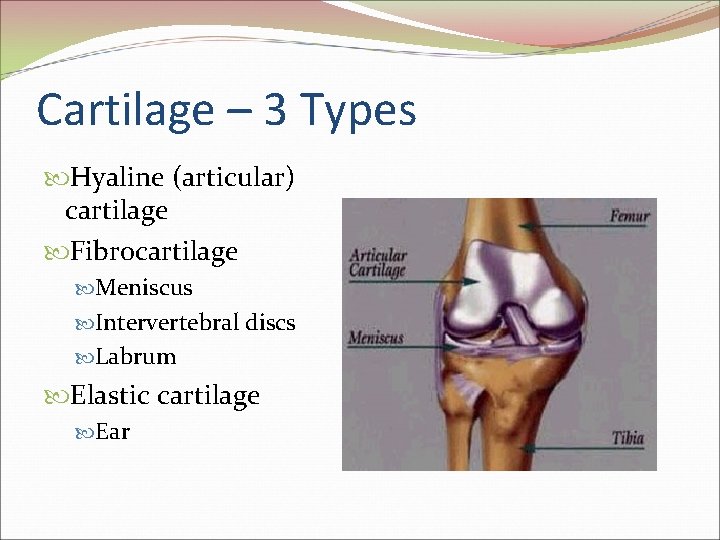

Cartilage – 3 Types Hyaline (articular) cartilage Fibrocartilage Meniscus Intervertebral discs Labrum Elastic cartilage Ear

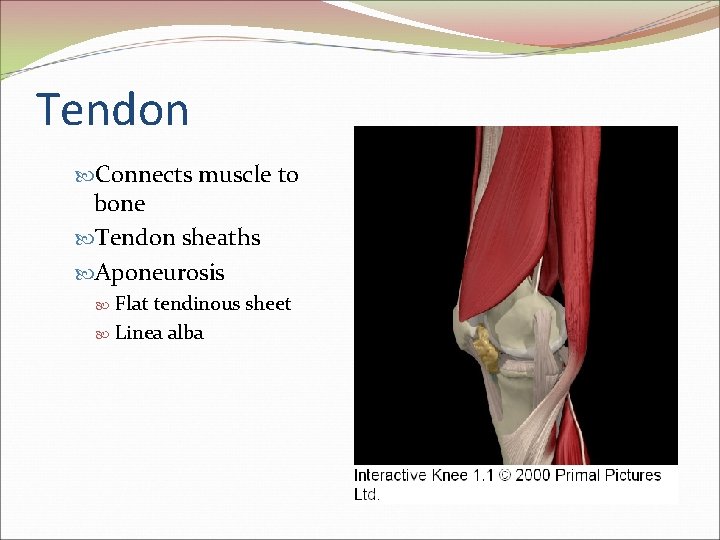

Tendon Connects muscle to bone Tendon sheaths Aponeurosis Flat tendinous sheet Linea alba

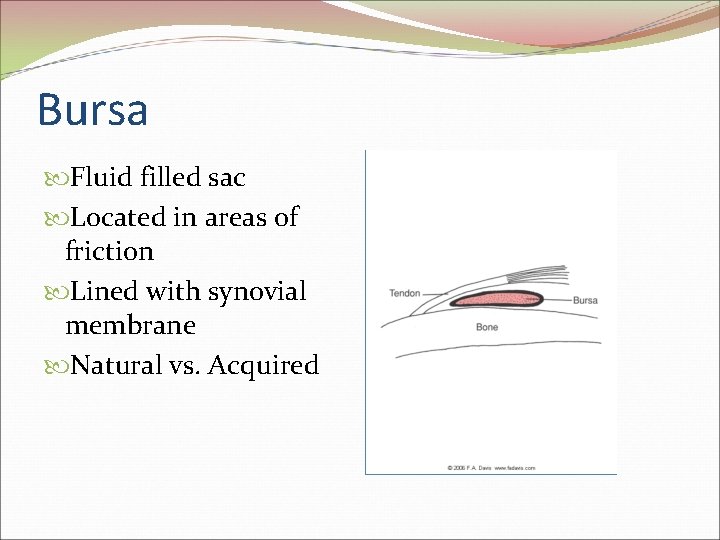

Bursa Fluid filled sac Located in areas of friction Lined with synovial membrane Natural vs. Acquired

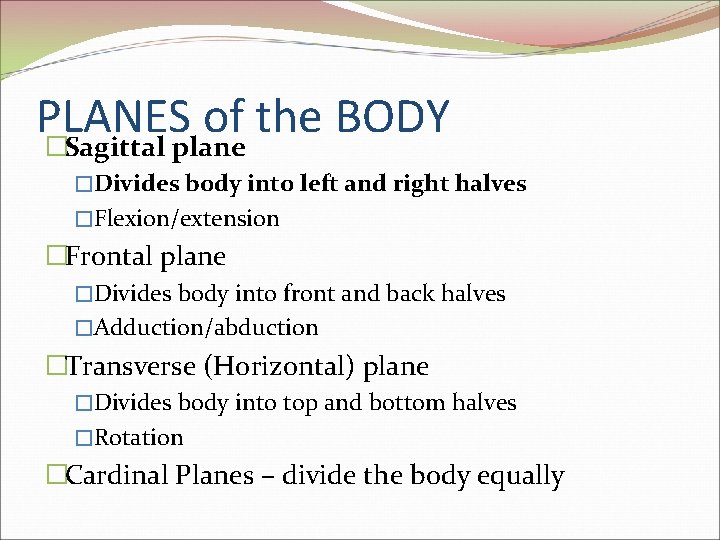

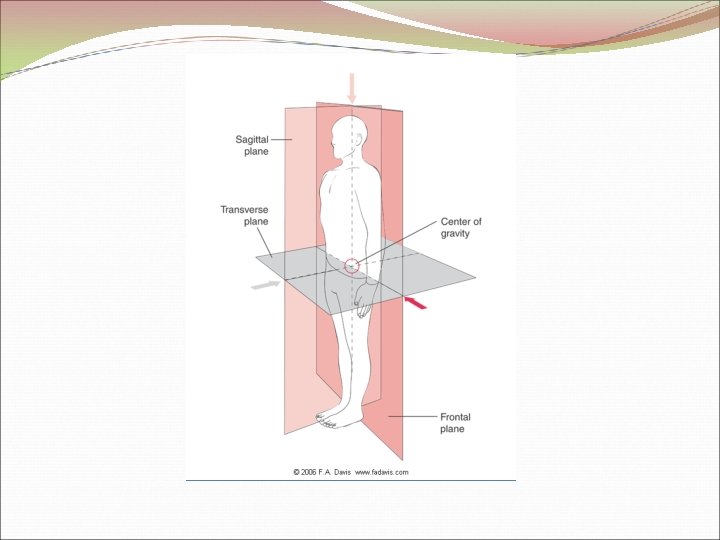

PLANES of the BODY �Sagittal plane �Divides body into left and right halves �Flexion/extension �Frontal plane �Divides body into front and back halves �Adduction/abduction �Transverse (Horizontal) plane �Divides body into top and bottom halves �Rotation �Cardinal Planes – divide the body equally

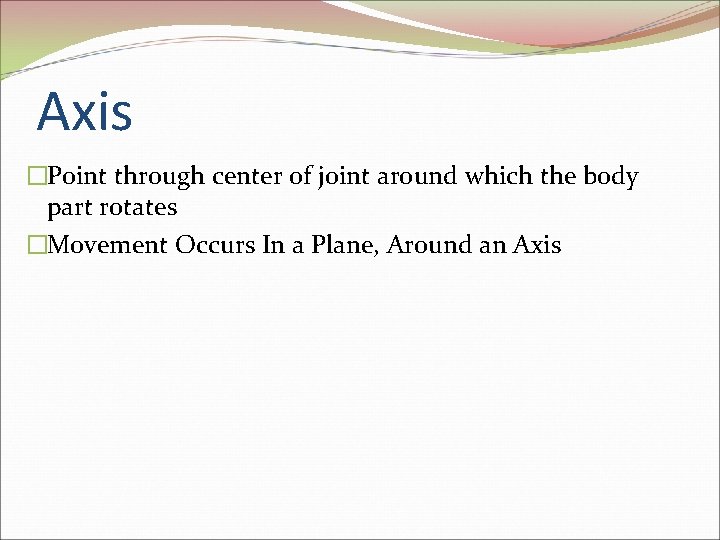

Axis �Point through center of joint around which the body part rotates �Movement Occurs In a Plane, Around an Axis

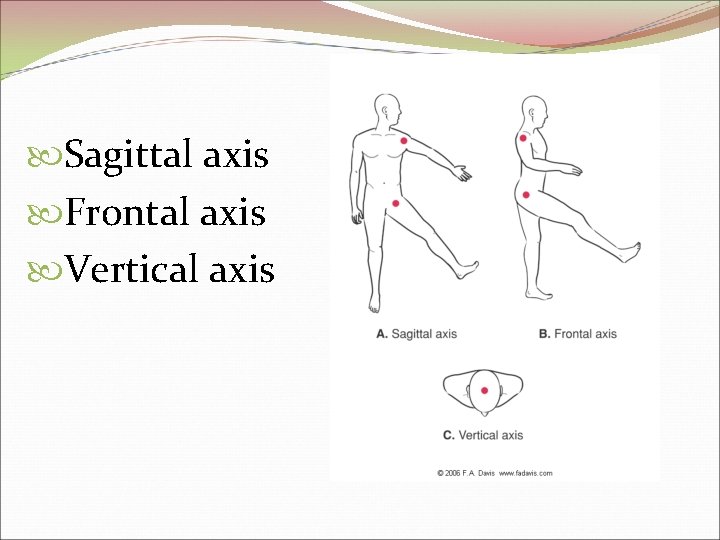

Sagittal axis Frontal axis Vertical axis

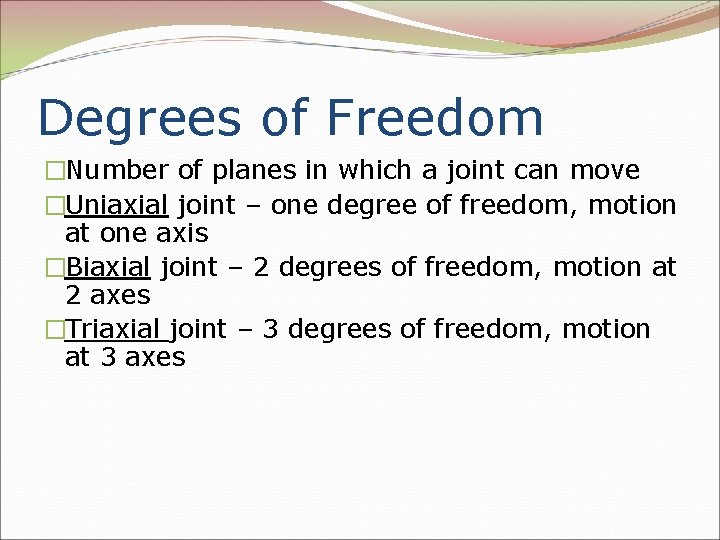

Degrees of Freedom �Number of planes in which a joint can move �Uniaxial joint – one degree of freedom, motion at one axis �Biaxial joint – 2 degrees of freedom, motion at 2 axes �Triaxial joint – 3 degrees of freedom, motion at 3 axes
