The Apache OODT Ecosystem A Birds Eye View

The Apache OODT Ecosystem: A Birds Eye View Chris A. Mattmann Senior Computer Scientist, NASA Jet Propulsion Laboratory Adjunct Assistant Professor, Univ. of Southern California Member, Apache Software Foundation

And you are? • Senior Computer Scientist at NASA JPL in Pasadena, CA USA • Software Architecture/Engineering Prof at Univ. of Southern California • Apache Member involved in – OODT (VP, PMC), Tika (VP, PMC), Nutch (PMC), Incubator (PMC), SIS (Mentor), Lucy (Mentor) and Gora (Champion), MRUnit (Mentor), Airavata (Mentor) 22 -Feb-12 NCAR-SEA-2012 2

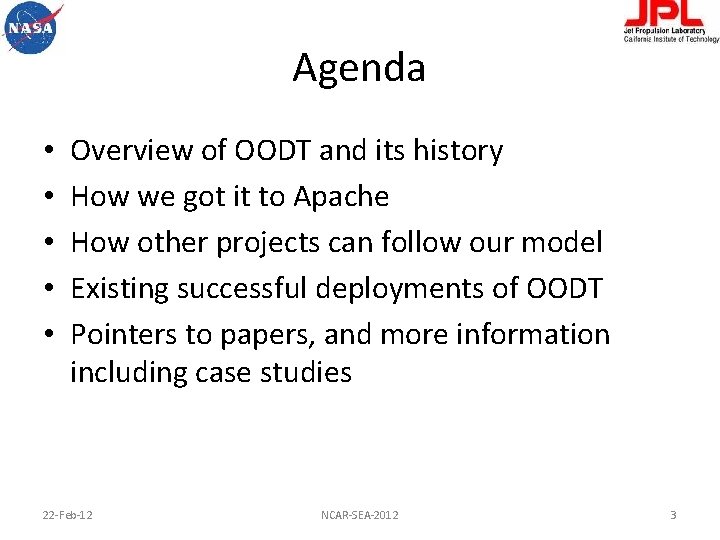

Agenda • • • Overview of OODT and its history How we got it to Apache How other projects can follow our model Existing successful deployments of OODT Pointers to papers, and more information including case studies 22 -Feb-12 NCAR-SEA-2012 3

Lessons from 90’s era missions • Increasing data volumes (exponential growth) • Increasing complexity of instruments and algorithms • Increasing availability of proxy/sim/ancillary data • Increasing rate of technology refresh … all of this while NASA Earth Mission funding was decreasing A data system framework based on a standard architecture and reusable software components for supporting all future missions. 22 -Feb-12 NCAR-SEA-2012 4

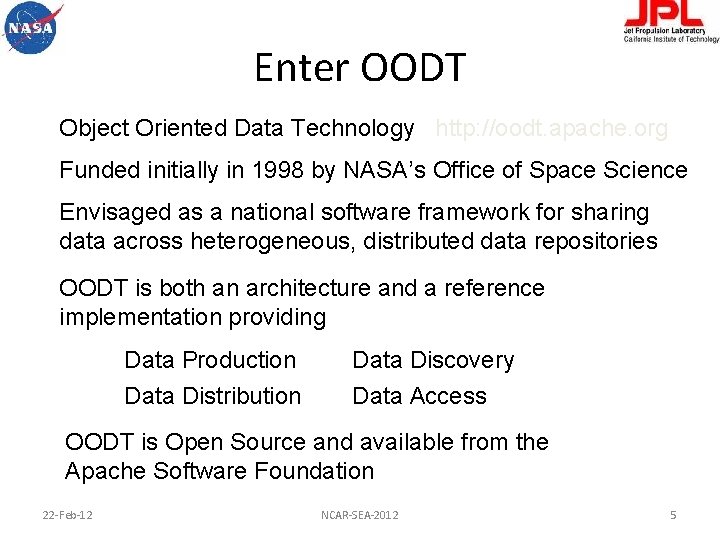

Enter OODT Object Oriented Data Technology http: //oodt. apache. org Funded initially in 1998 by NASA’s Office of Space Science Envisaged as a national software framework for sharing data across heterogeneous, distributed data repositories OODT is both an architecture and a reference implementation providing Data Production Data Distribution Data Discovery Data Access OODT is Open Source and available from the Apache Software Foundation 22 -Feb-12 NCAR-SEA-2012 5

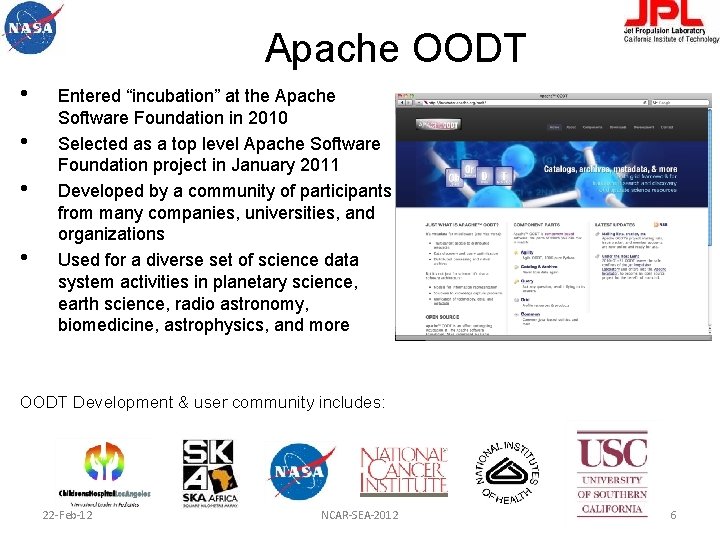

Apache OODT • • Entered “incubation” at the Apache Software Foundation in 2010 Selected as a top level Apache Software Foundation project in January 2011 Developed by a community of participants from many companies, universities, and organizations Used for a diverse set of science data system activities in planetary science, earth science, radio astronomy, biomedicine, astrophysics, and more http: //oodt. apache. org OODT Development & user community includes: 22 -Feb-12 NCAR-SEA-2012 6

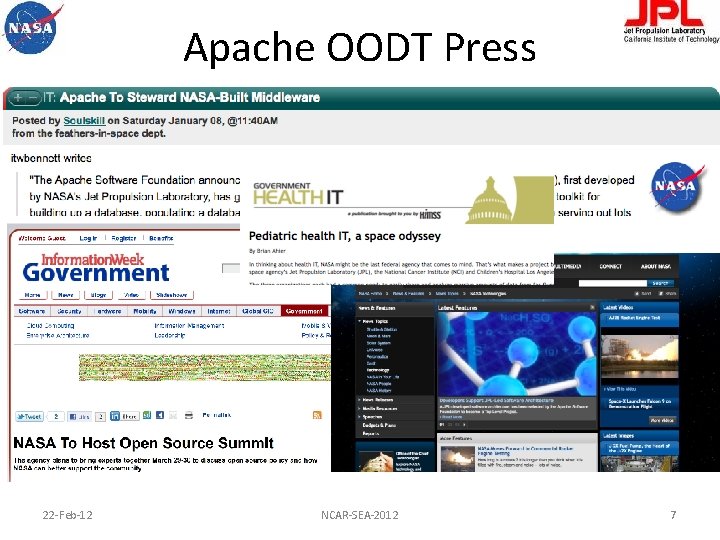

Apache OODT Press 22 -Feb-12 NCAR-SEA-2012 7

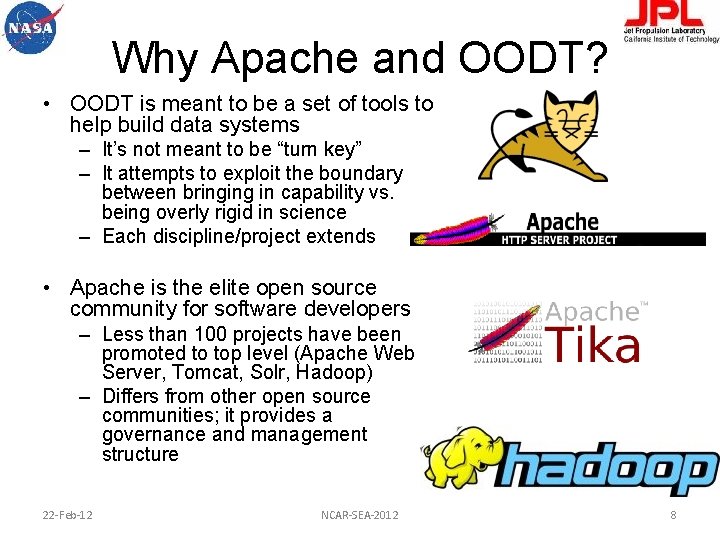

Why Apache and OODT? • OODT is meant to be a set of tools to help build data systems – It’s not meant to be “turn key” – It attempts to exploit the boundary between bringing in capability vs. being overly rigid in science – Each discipline/project extends • Apache is the elite open source community for software developers – Less than 100 projects have been promoted to top level (Apache Web Server, Tomcat, Solr, Hadoop) – Differs from other open source communities; it provides a governance and management structure 22 -Feb-12 NCAR-SEA-2012 8

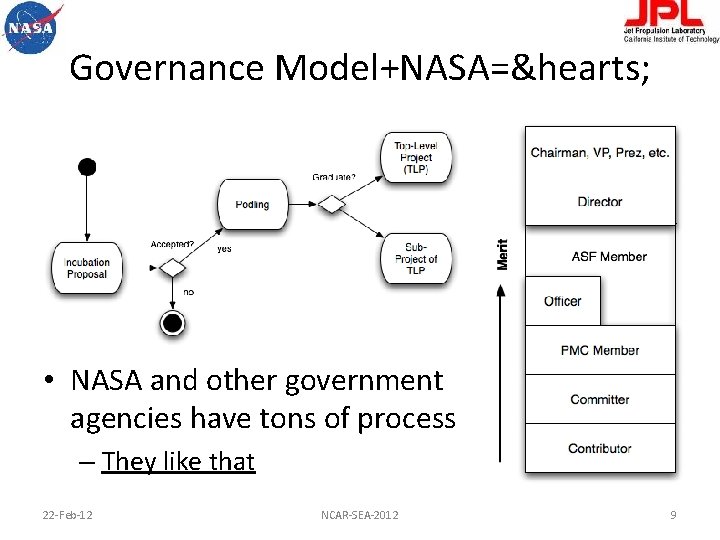

Governance Model+NASA=♥ • NASA and other government agencies have tons of process – They like that 22 -Feb-12 NCAR-SEA-2012 9

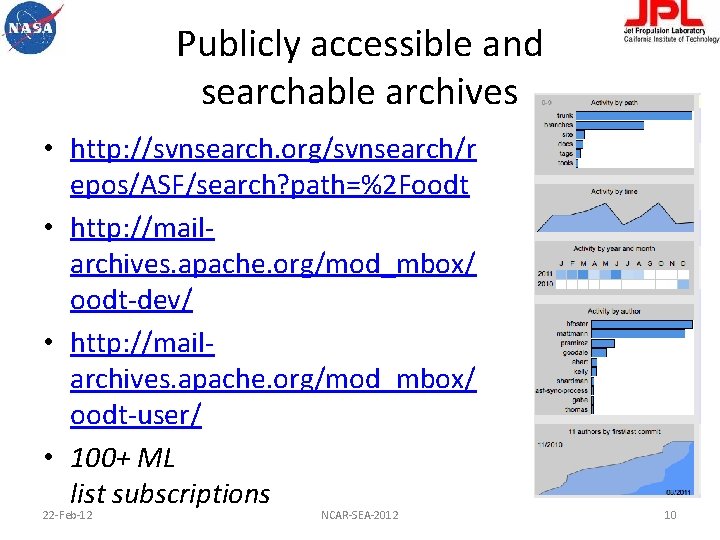

Publicly accessible and searchable archives • http: //svnsearch. org/svnsearch/r epos/ASF/search? path=%2 Foodt • http: //mailarchives. apache. org/mod_mbox/ oodt-dev/ • http: //mailarchives. apache. org/mod_mbox/ oodt-user/ • 100+ ML list subscriptions 22 -Feb-12 NCAR-SEA-2012 10

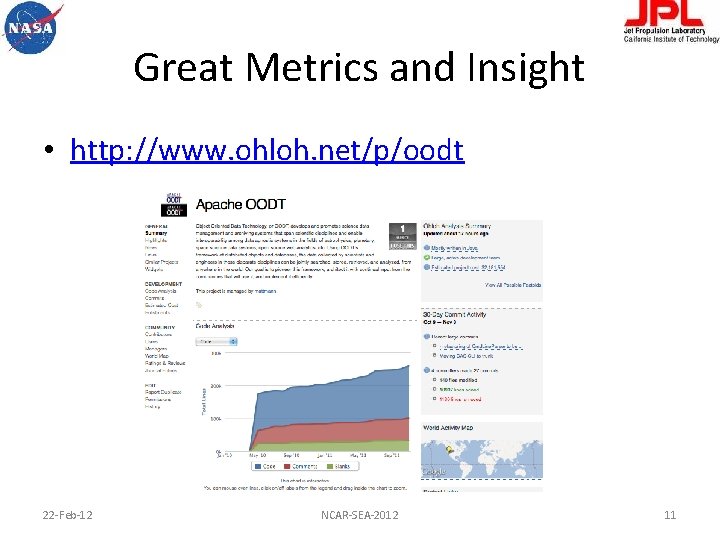

Great Metrics and Insight • http: //www. ohloh. net/p/oodt 22 -Feb-12 NCAR-SEA-2012 11

Movement to the ASF • Meeting held June 15, 2007 at JPL with ASF President Justin Erenkrantz – Develop plan moving forward to bring first NASA project to Apache – Discuss obstacles, sponsorship – Discuss outlook 22 -Feb-12 NCAR-SEA-2012 12

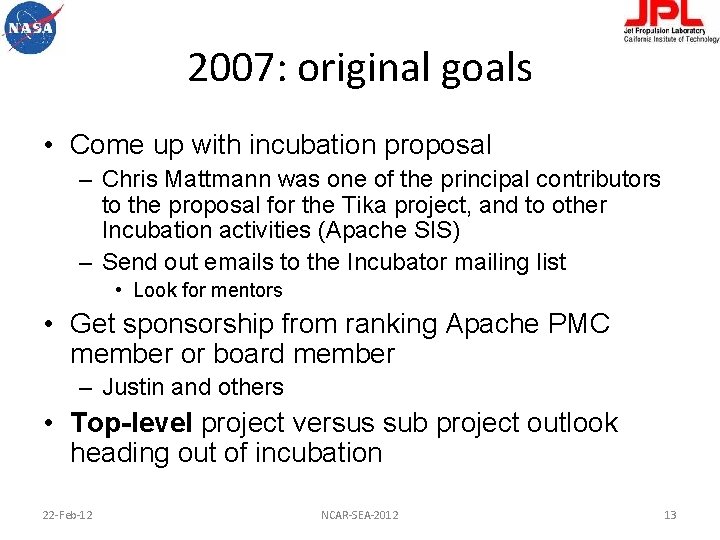

2007: original goals • Come up with incubation proposal – Chris Mattmann was one of the principal contributors to the proposal for the Tika project, and to other Incubation activities (Apache SIS) – Send out emails to the Incubator mailing list • Look for mentors • Get sponsorship from ranking Apache PMC member or board member – Justin and others • Top-level project versus sub project outlook heading out of incubation 22 -Feb-12 NCAR-SEA-2012 13

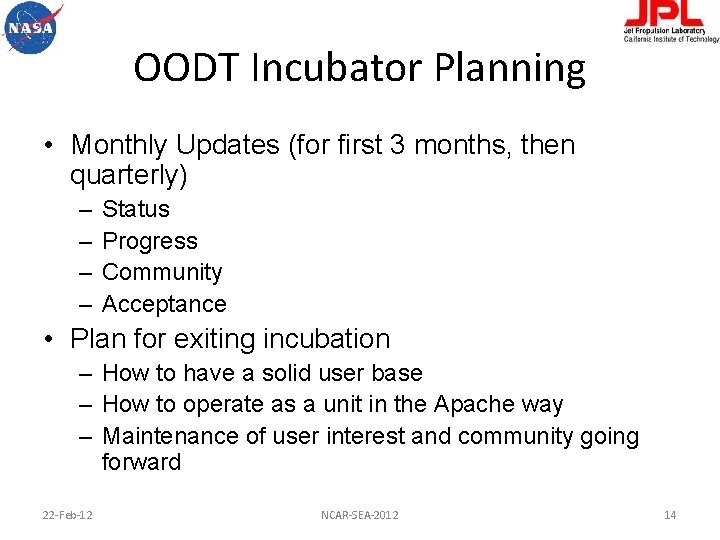

OODT Incubator Planning • Monthly Updates (for first 3 months, then quarterly) – – Status Progress Community Acceptance • Plan for exiting incubation – How to have a solid user base – How to operate as a unit in the Apache way – Maintenance of user interest and community going forward 22 -Feb-12 NCAR-SEA-2012 14

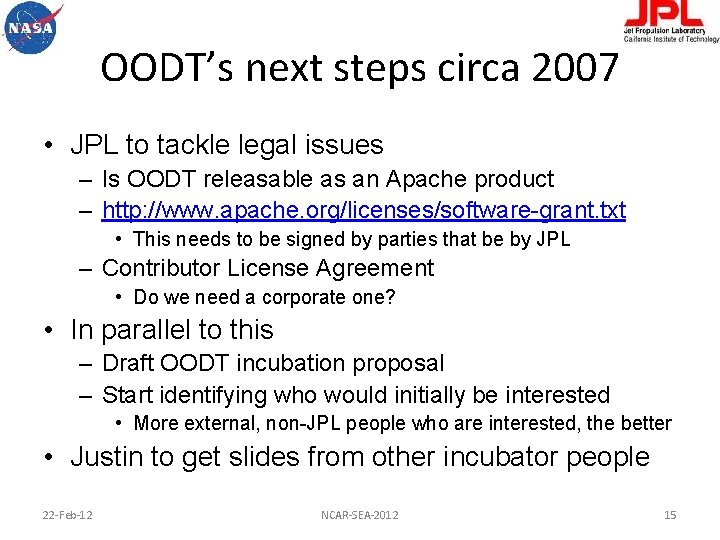

OODT’s next steps circa 2007 • JPL to tackle legal issues – Is OODT releasable as an Apache product – http: //www. apache. org/licenses/software-grant. txt • This needs to be signed by parties that be by JPL – Contributor License Agreement • Do we need a corporate one? • In parallel to this – Draft OODT incubation proposal – Start identifying who would initially be interested • More external, non-JPL people who are interested, the better • Justin to get slides from other incubator people 22 -Feb-12 NCAR-SEA-2012 15

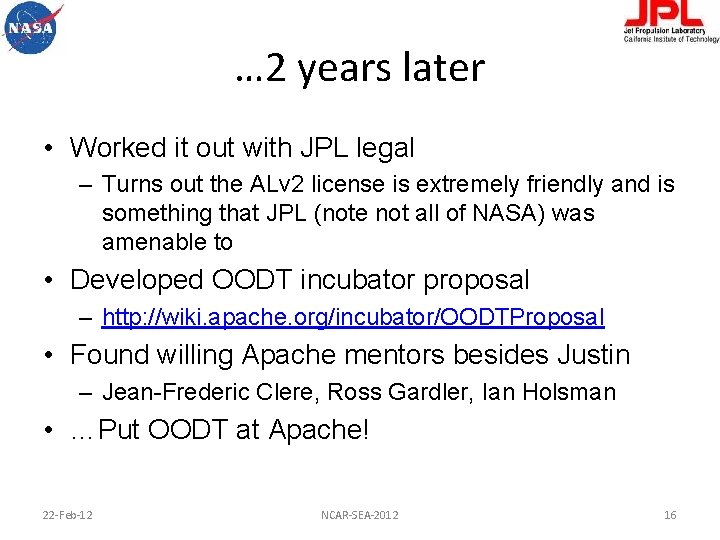

… 2 years later • Worked it out with JPL legal – Turns out the ALv 2 license is extremely friendly and is something that JPL (note not all of NASA) was amenable to • Developed OODT incubator proposal – http: //wiki. apache. org/incubator/OODTProposal • Found willing Apache mentors besides Justin – Jean-Frederic Clere, Ross Gardler, Ian Holsman • …Put OODT at Apache! 22 -Feb-12 NCAR-SEA-2012 16

Apache OODT Community • Includes PMC members from – NASA JPL, Univ. of Southern California, Google, Children’s Hospital Los Angeles (CHLA), Vdio, South African SKA Project • Projects that are deploying it operationally at – Decadal-survey recommended NASA Earth science missions, NIH, and NCI, CHLA, USC, South African SKA project • Use in the classroom – My graduate-level software architecture and seach engines courses 22 -Feb-12 NCAR-SEA-2012 17

OODT Framework and PCS OODT/Science Web Tools Archive Client Navigation Service OBJECT ORIENTED DATA TECHNOLOGY FRAMEWORK Catalog & Archive Service Catalog Archive Process&Control Service System (CAS) (PCS) Profile Service Product Service Query Service Bridge to External Services Other Service 1 Other Service 2 Profile XML Data System 1 Data System 2 CAS has recently become known as Process Control System when applied to mission work. 22 -Feb-12 NCAR-SEA-2012 18

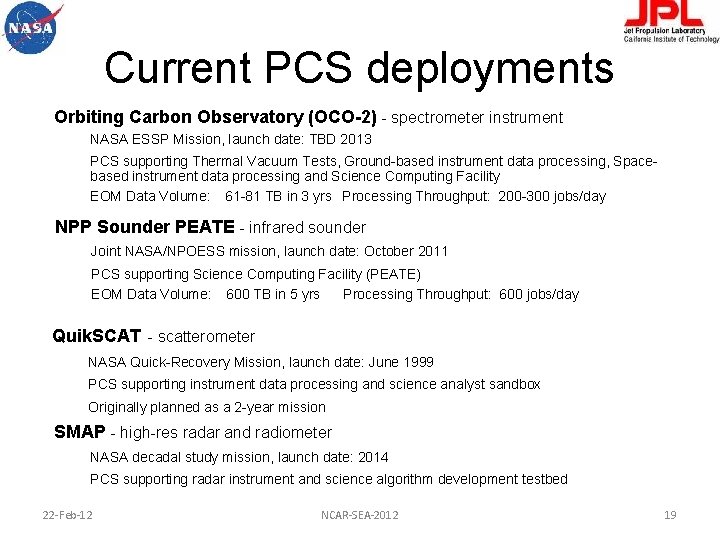

Current PCS deployments Orbiting Carbon Observatory (OCO-2) - spectrometer instrument NASA ESSP Mission, launch date: TBD 2013 PCS supporting Thermal Vacuum Tests, Ground-based instrument data processing, Spacebased instrument data processing and Science Computing Facility EOM Data Volume: 61 -81 TB in 3 yrs Processing Throughput: 200 -300 jobs/day NPP Sounder PEATE - infrared sounder Joint NASA/NPOESS mission, launch date: October 2011 PCS supporting Science Computing Facility (PEATE) EOM Data Volume: 600 TB in 5 yrs Processing Throughput: 600 jobs/day Quik. SCAT - scatterometer NASA Quick-Recovery Mission, launch date: June 1999 PCS supporting instrument data processing and science analyst sandbox Originally planned as a 2 -year mission SMAP - high-res radar and radiometer NASA decadal study mission, launch date: 2014 PCS supporting radar instrument and science algorithm development testbed 22 -Feb-12 NCAR-SEA-2012 19

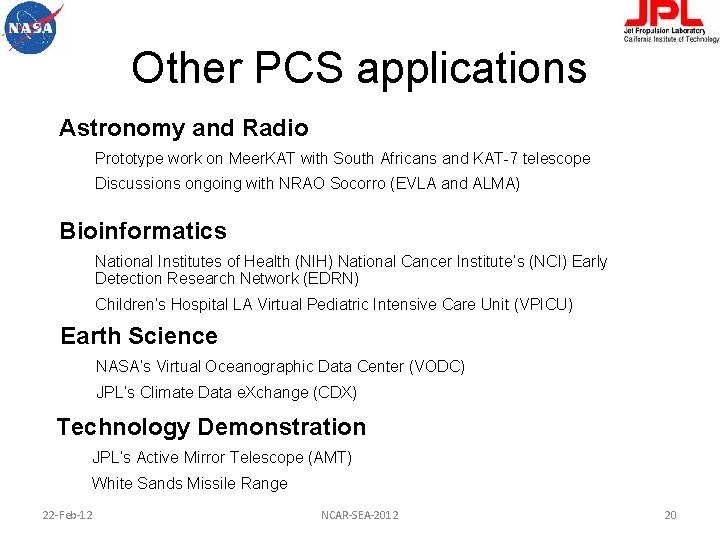

Other PCS applications Astronomy and Radio Prototype work on Meer. KAT with South Africans and KAT-7 telescope Discussions ongoing with NRAO Socorro (EVLA and ALMA) Bioinformatics National Institutes of Health (NIH) National Cancer Institute’s (NCI) Early Detection Research Network (EDRN) Children’s Hospital LA Virtual Pediatric Intensive Care Unit (VPICU) Earth Science NASA’s Virtual Oceanographic Data Center (VODC) JPL’s Climate Data e. Xchange (CDX) Technology Demonstration JPL’s Active Mirror Telescope (AMT) White Sands Missile Range 22 -Feb-12 NCAR-SEA-2012 20

PCS Core Components • All Core components implemented as web services – XML-RPC used to communicate between components – Servers implemented in Java – Clients implemented in Java, scripts, Python, PHP and web-apps – Service configuration implemented in ASCII and XML files 22 -Feb-12 NCAR-SEA-2012 21

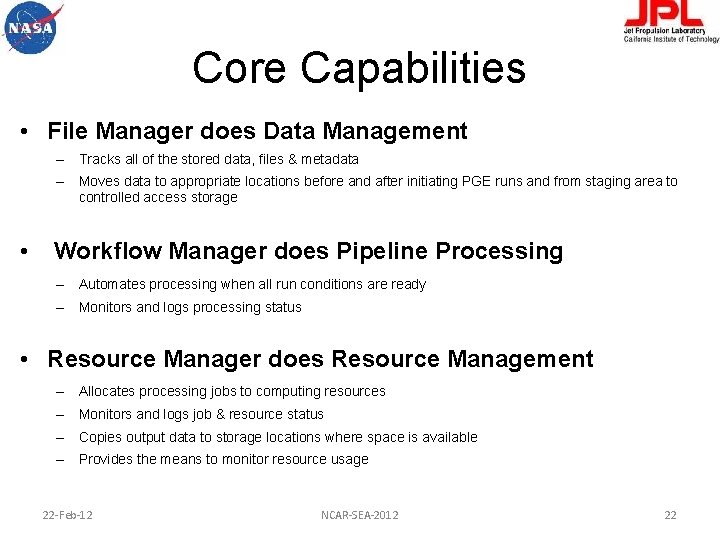

Core Capabilities • File Manager does Data Management – Tracks all of the stored data, files & metadata – Moves data to appropriate locations before and after initiating PGE runs and from staging area to controlled access storage • Workflow Manager does Pipeline Processing – Automates processing when all run conditions are ready – Monitors and logs processing status • Resource Manager does Resource Management – Allocates processing jobs to computing resources – Monitors and logs job & resource status – Copies output data to storage locations where space is available – Provides the means to monitor resource usage 22 -Feb-12 NCAR-SEA-2012 22

PCS Ingestion Use Case 22 -Feb-12 NCAR-SEA-2012 23

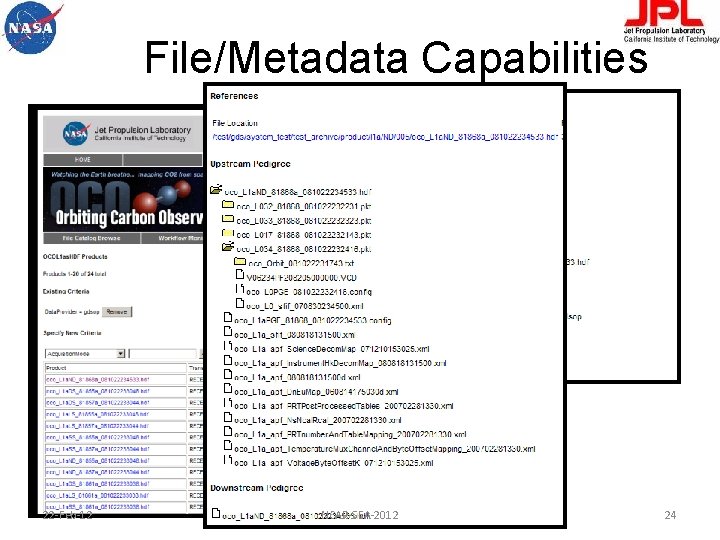

File/Metadata Capabilities 22 -Feb-12 NCAR-SEA-2012 24

PCS Processing Use Case 22 -Feb-12 NCAR-SEA-2012 25

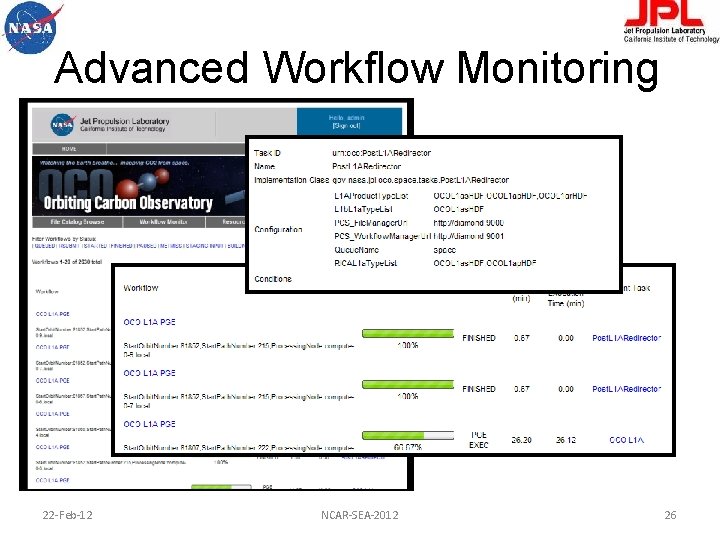

Advanced Workflow Monitoring 22 -Feb-12 NCAR-SEA-2012 26

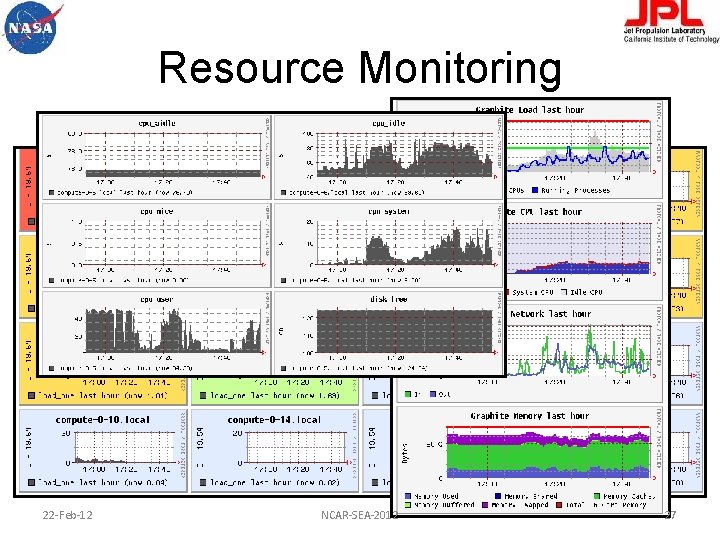

Resource Monitoring 22 -Feb-12 NCAR-SEA-2012 27

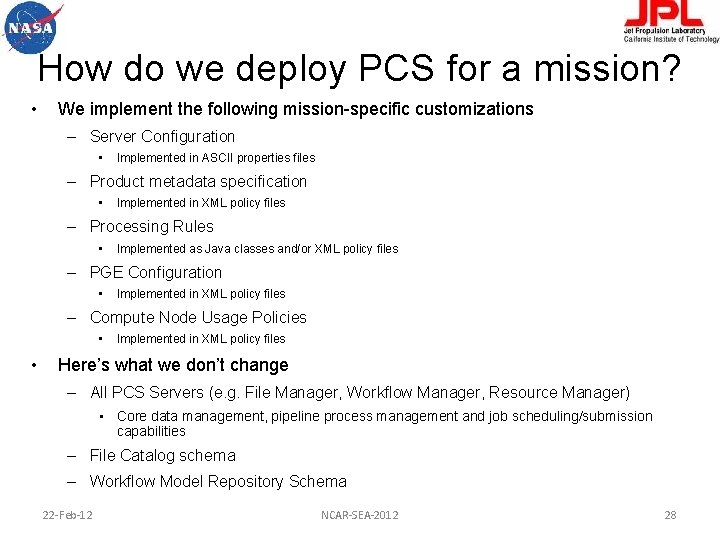

How do we deploy PCS for a mission? • We implement the following mission-specific customizations – Server Configuration • Implemented in ASCII properties files – Product metadata specification • Implemented in XML policy files – Processing Rules • Implemented as Java classes and/or XML policy files – PGE Configuration • Implemented in XML policy files – Compute Node Usage Policies • • Implemented in XML policy files Here’s what we don’t change – All PCS Servers (e. g. File Manager, Workflow Manager, Resource Manager) • Core data management, pipeline process management and job scheduling/submission capabilities – File Catalog schema – Workflow Model Repository Schema 22 -Feb-12 NCAR-SEA-2012 28

Server and PGE Configuration 22 -Feb-12 NCAR-SEA-2012 29

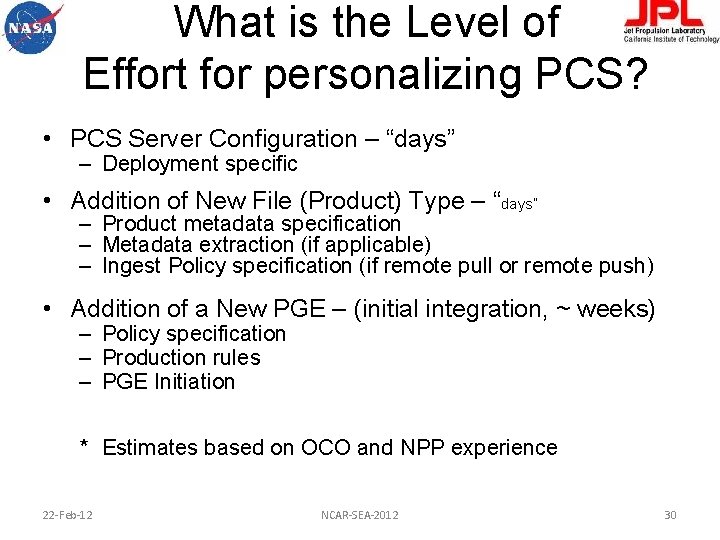

What is the Level of Effort for personalizing PCS? • PCS Server Configuration – “days” – Deployment specific • Addition of New File (Product) Type – “days” – Product metadata specification – Metadata extraction (if applicable) – Ingest Policy specification (if remote pull or remote push) • Addition of a New PGE – (initial integration, ~ weeks) – Policy specification – Production rules – PGE Initiation * Estimates based on OCO and NPP experience 22 -Feb-12 NCAR-SEA-2012 30

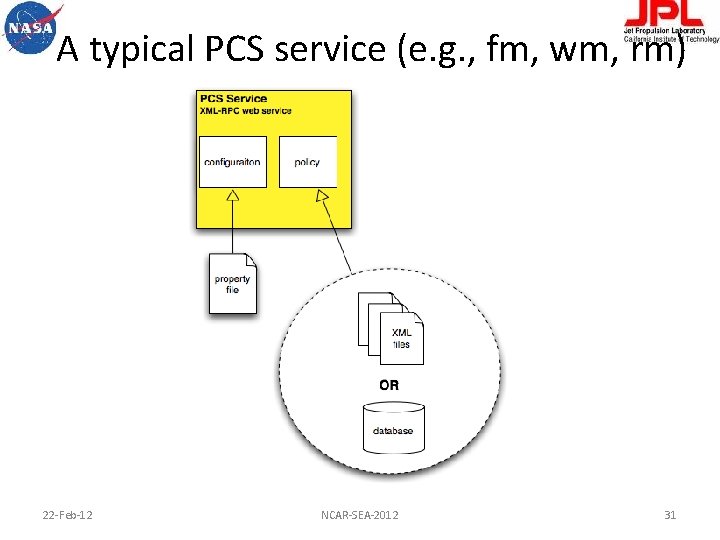

A typical PCS service (e. g. , fm, wm, rm) 22 -Feb-12 NCAR-SEA-2012 31

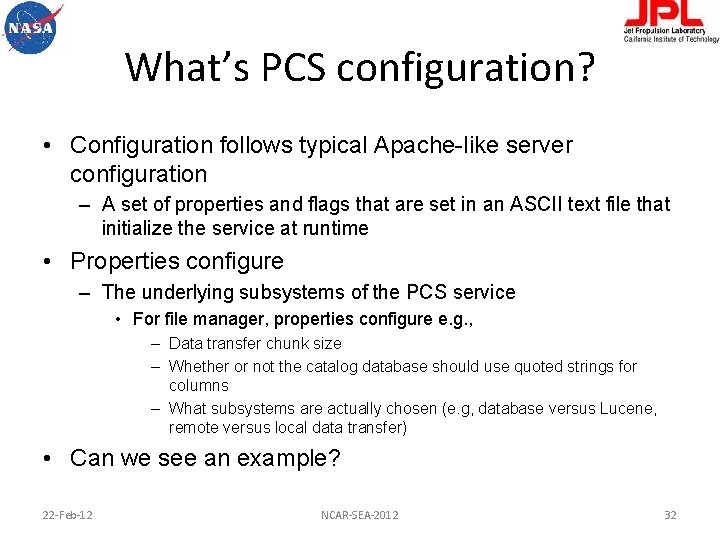

What’s PCS configuration? • Configuration follows typical Apache-like server configuration – A set of properties and flags that are set in an ASCII text file that initialize the service at runtime • Properties configure – The underlying subsystems of the PCS service • For file manager, properties configure e. g. , – Data transfer chunk size – Whether or not the catalog database should use quoted strings for columns – What subsystems are actually chosen (e. g, database versus Lucene, remote versus local data transfer) • Can we see an example? 22 -Feb-12 NCAR-SEA-2012 32

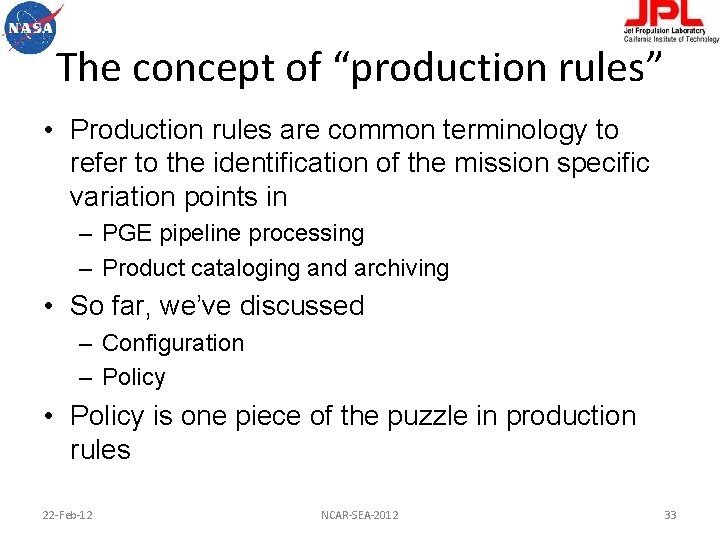

The concept of “production rules” • Production rules are common terminology to refer to the identification of the mission specific variation points in – PGE pipeline processing – Product cataloging and archiving • So far, we’ve discussed – Configuration – Policy • Policy is one piece of the puzzle in production rules 22 -Feb-12 NCAR-SEA-2012 33

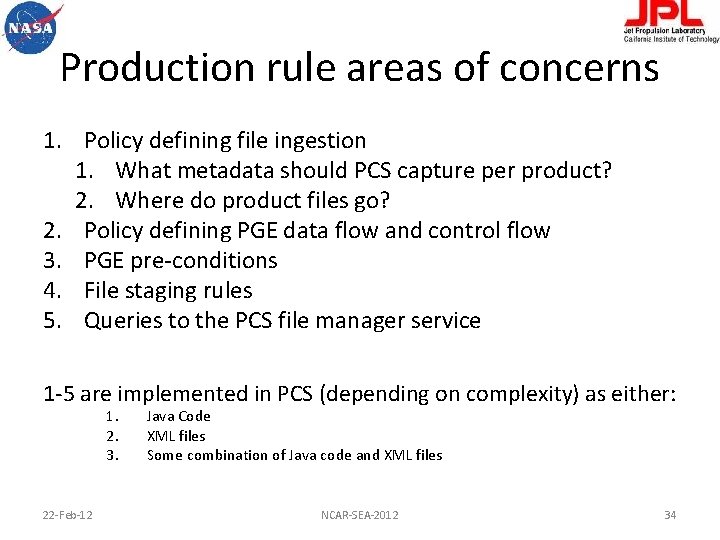

Production rule areas of concerns 1. Policy defining file ingestion 1. What metadata should PCS capture per product? 2. Where do product files go? 2. Policy defining PGE data flow and control flow 3. PGE pre-conditions 4. File staging rules 5. Queries to the PCS file manager service 1 -5 are implemented in PCS (depending on complexity) as either: 1. 2. 3. 22 -Feb-12 Java Code XML files Some combination of Java code and XML files NCAR-SEA-2012 34

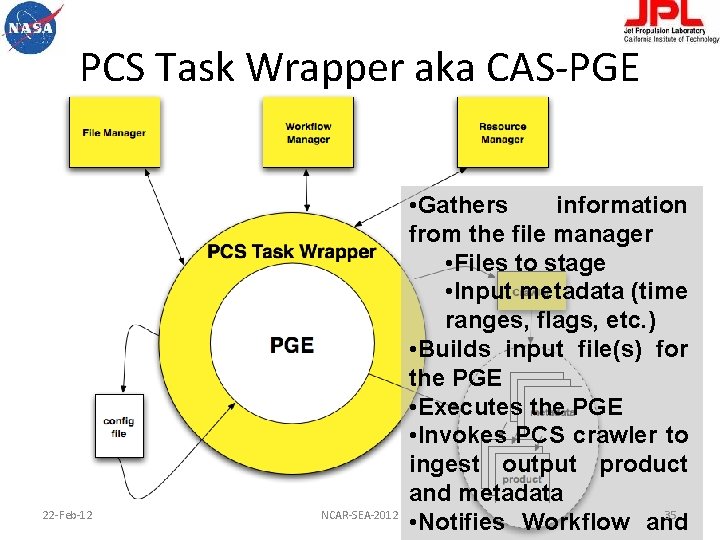

PCS Task Wrapper aka CAS-PGE 22 -Feb-12 NCAR-SEA-2012 • Gathers information from the file manager • Files to stage • Input metadata (time ranges, flags, etc. ) • Builds input file(s) for the PGE • Executes the PGE • Invokes PCS crawler to ingest output product and metadata 35 • Notifies Workflow and

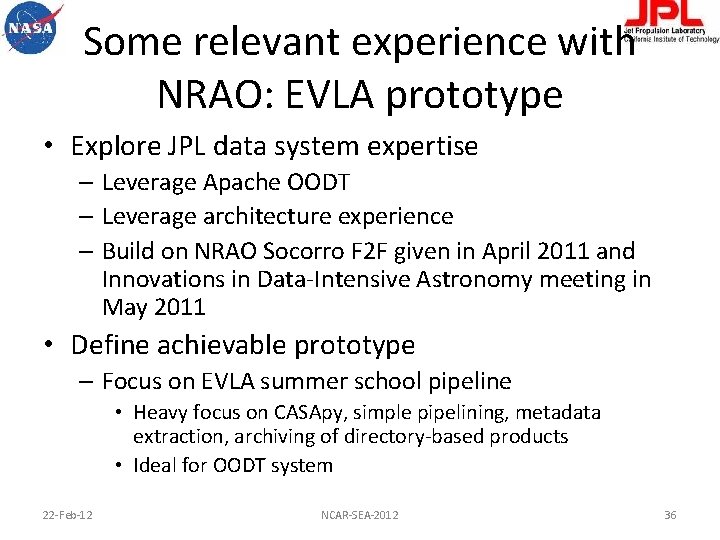

Some relevant experience with NRAO: EVLA prototype • Explore JPL data system expertise – Leverage Apache OODT – Leverage architecture experience – Build on NRAO Socorro F 2 F given in April 2011 and Innovations in Data-Intensive Astronomy meeting in May 2011 • Define achievable prototype – Focus on EVLA summer school pipeline • Heavy focus on CASApy, simple pipelining, metadata extraction, archiving of directory-based products • Ideal for OODT system 22 -Feb-12 NCAR-SEA-2012 36

Architecture 22 -Feb-12 NCAR-SEA-2012 37

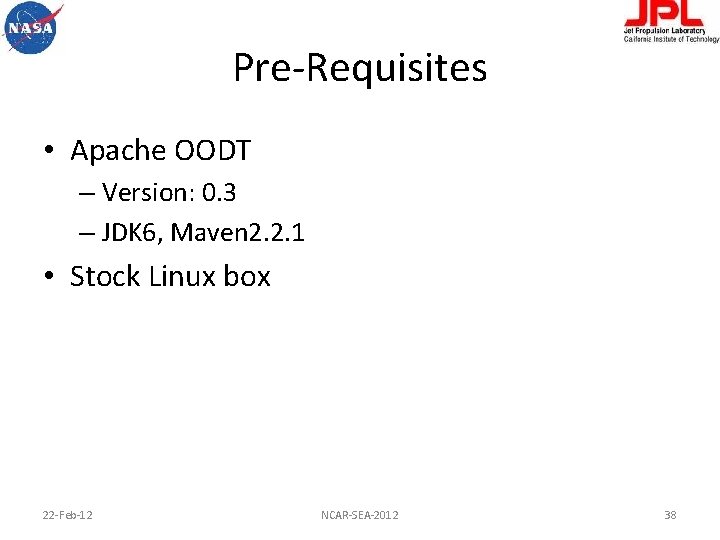

Pre-Requisites • Apache OODT – Version: 0. 3 – JDK 6, Maven 2. 2. 1 • Stock Linux box 22 -Feb-12 NCAR-SEA-2012 38

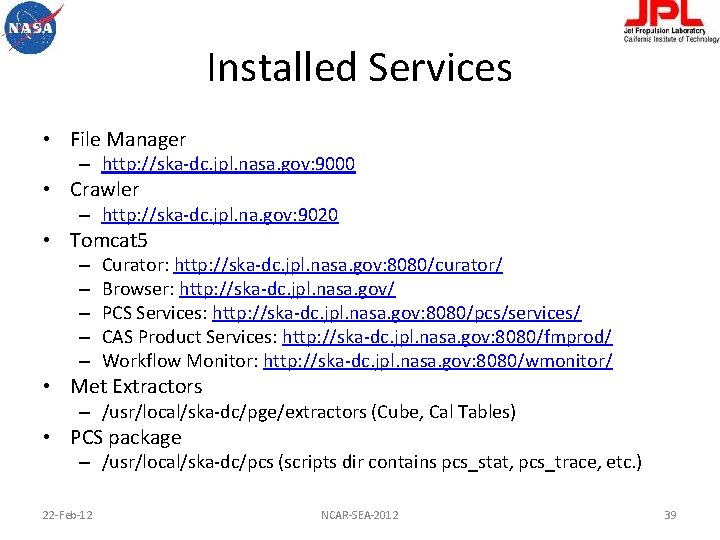

Installed Services • File Manager – http: //ska-dc. jpl. nasa. gov: 9000 • Crawler – http: //ska-dc. jpl. na. gov: 9020 • Tomcat 5 – – – Curator: http: //ska-dc. jpl. nasa. gov: 8080/curator/ Browser: http: //ska-dc. jpl. nasa. gov/ PCS Services: http: //ska-dc. jpl. nasa. gov: 8080/pcs/services/ CAS Product Services: http: //ska-dc. jpl. nasa. gov: 8080/fmprod/ Workflow Monitor: http: //ska-dc. jpl. nasa. gov: 8080/wmonitor/ • Met Extractors – /usr/local/ska-dc/pge/extractors (Cube, Cal Tables) • PCS package – /usr/local/ska-dc/pcs (scripts dir contains pcs_stat, pcs_trace, etc. ) 22 -Feb-12 NCAR-SEA-2012 39

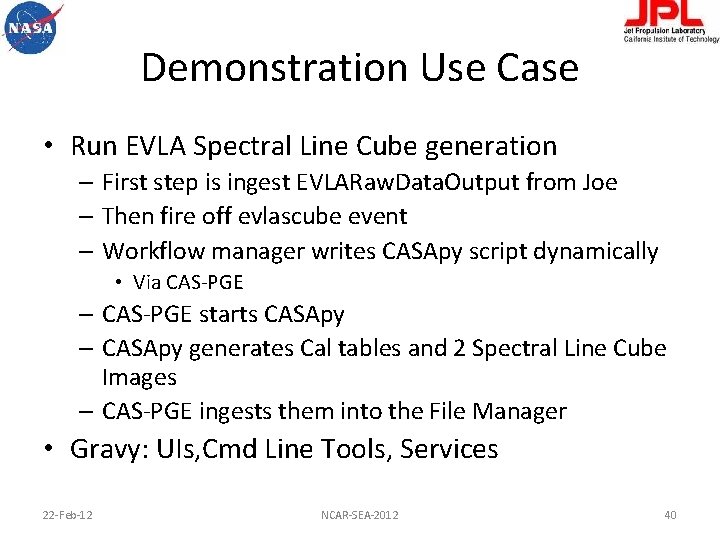

Demonstration Use Case • Run EVLA Spectral Line Cube generation – First step is ingest EVLARaw. Data. Output from Joe – Then fire off evlascube event – Workflow manager writes CASApy script dynamically • Via CAS-PGE – CAS-PGE starts CASApy – CASApy generates Cal tables and 2 Spectral Line Cube Images – CAS-PGE ingests them into the File Manager • Gravy: UIs, Cmd Line Tools, Services 22 -Feb-12 NCAR-SEA-2012 40

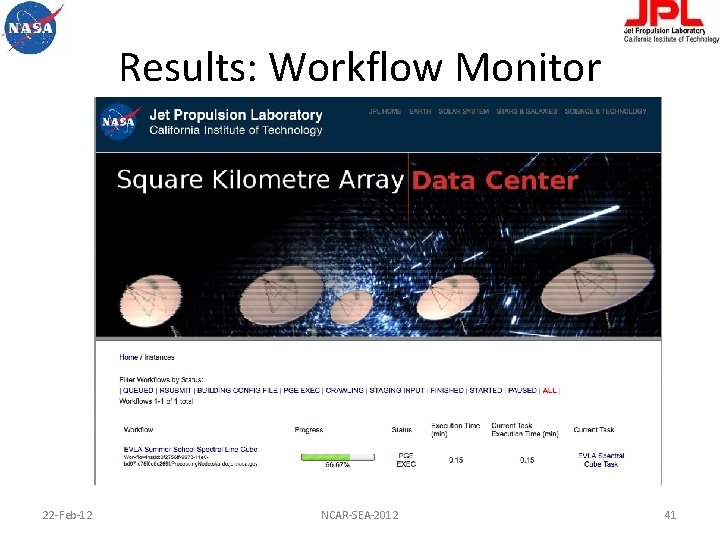

Results: Workflow Monitor 22 -Feb-12 NCAR-SEA-2012 41

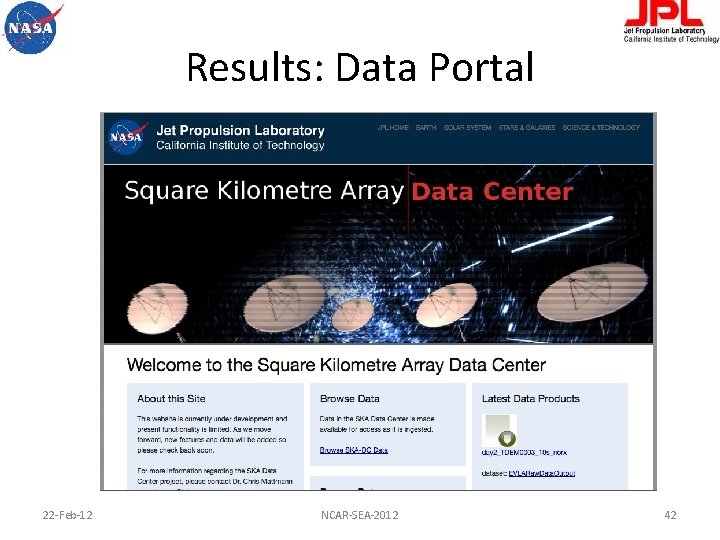

Results: Data Portal 22 -Feb-12 NCAR-SEA-2012 42

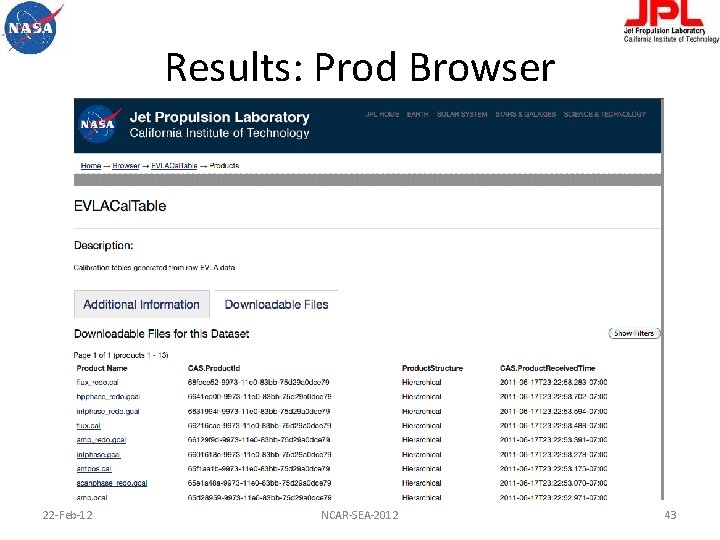

Results: Prod Browser 22 -Feb-12 NCAR-SEA-2012 43

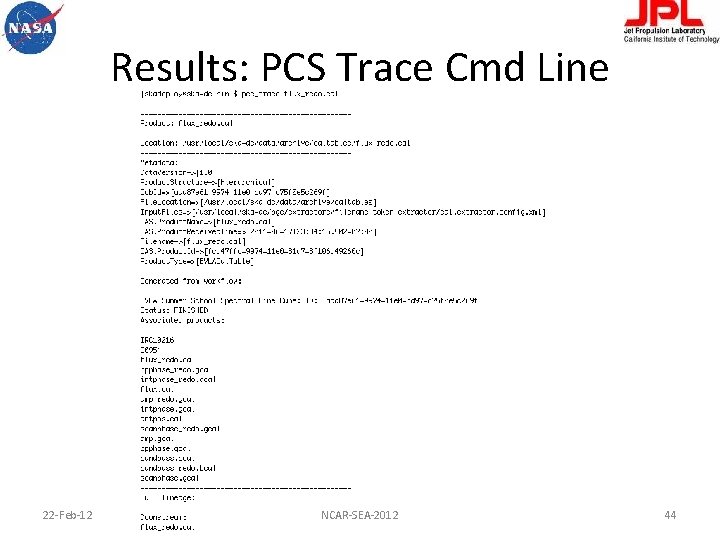

Results: PCS Trace Cmd Line 22 -Feb-12 NCAR-SEA-2012 44

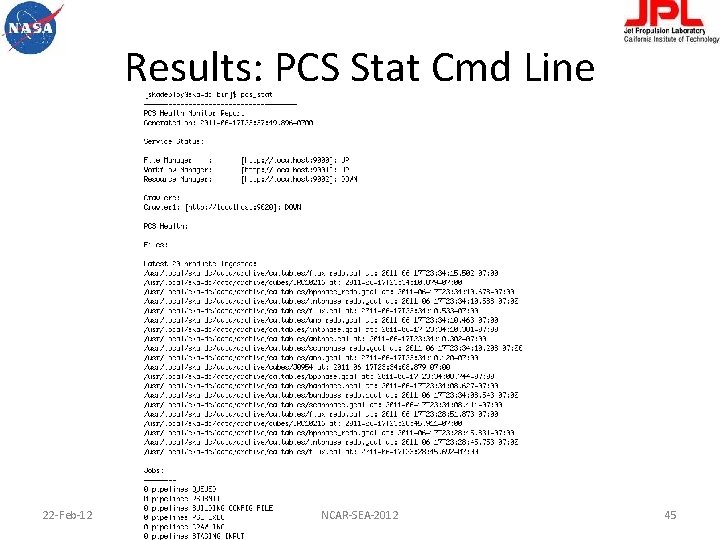

Results: PCS Stat Cmd Line 22 -Feb-12 NCAR-SEA-2012 45

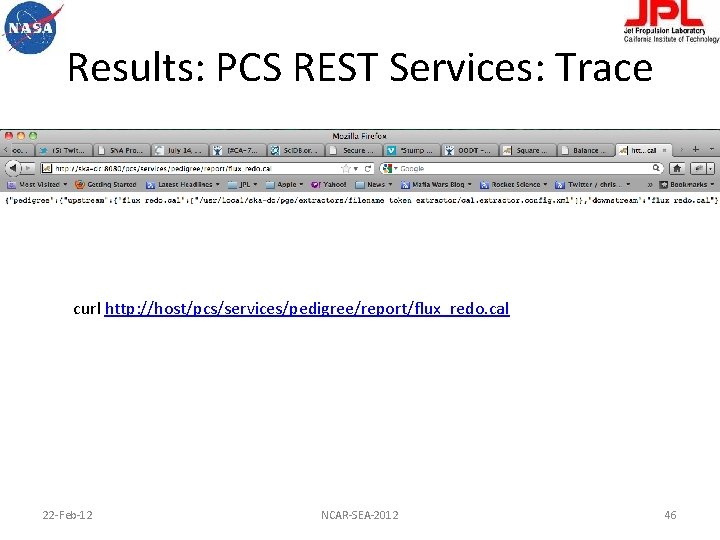

Results: PCS REST Services: Trace curl http: //host/pcs/services/pedigree/report/flux_redo. cal 22 -Feb-12 NCAR-SEA-2012 46

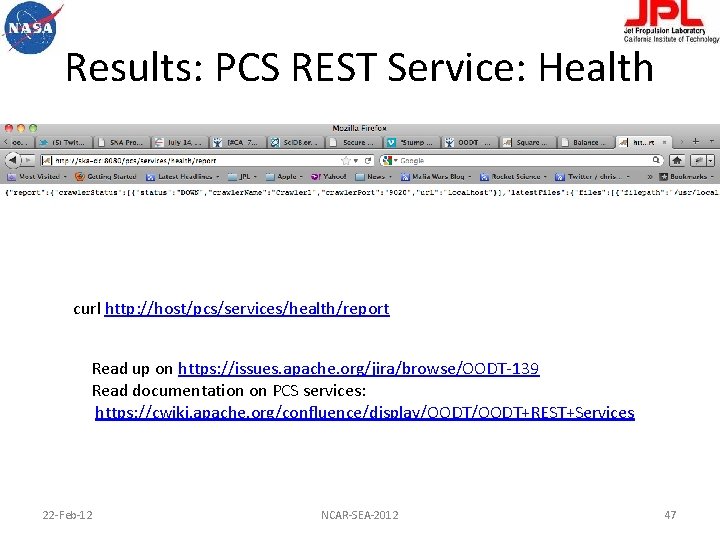

Results: PCS REST Service: Health curl http: //host/pcs/services/health/report Read up on https: //issues. apache. org/jira/browse/OODT-139 Read documentation on PCS services: https: //cwiki. apache. org/confluence/display/OODT+REST+Services 22 -Feb-12 NCAR-SEA-2012 47

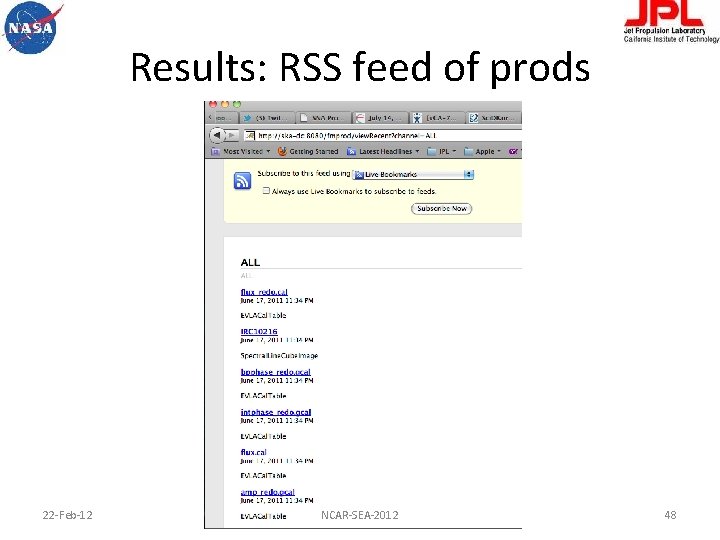

Results: RSS feed of prods 22 -Feb-12 NCAR-SEA-2012 48

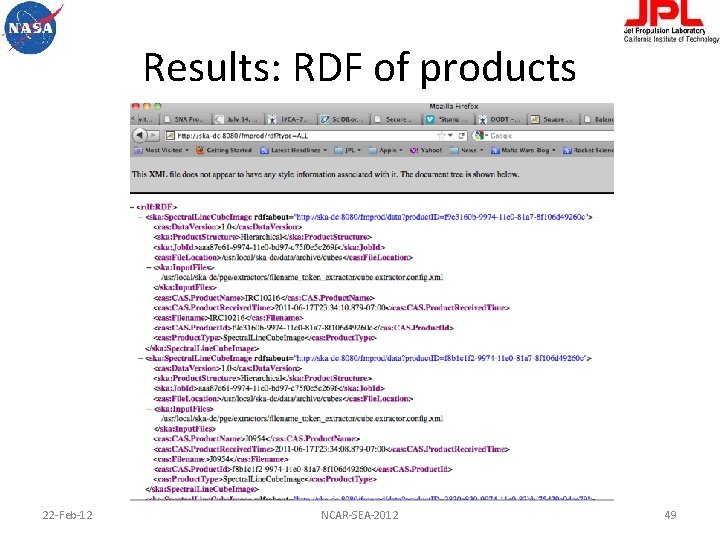

Results: RDF of products 22 -Feb-12 NCAR-SEA-2012 49

Who’s doing what? • Children’s Hospital Los Angeles – Improving upon XMLPS, and CAS (Andrew Hart + Ricky Nguyen will talk about this) – Supporting data analytics • Google – Brian Foster working on command line improvements and data protocol push/pull • SKA South Africa – Deploying file manager and crawler for use in KAT-7 pipeline ingestion • NIH/NCI – Maintaining the XMLPS components, and CAS components – Helping with user interfaces • Various JPL and NASA research projects – OPe. NDAPps, XMLPS • Various NASA missions – Workflow, PCS, services, OPSui, other web apps 22 -Feb-12 NCAR-SEA-2012 50

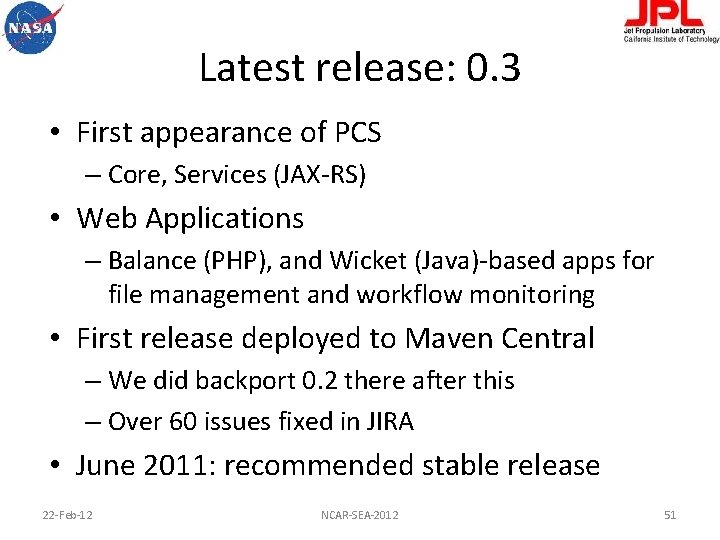

Latest release: 0. 3 • First appearance of PCS – Core, Services (JAX-RS) • Web Applications – Balance (PHP), and Wicket (Java)-based apps for file management and workflow monitoring • First release deployed to Maven Central – We did backport 0. 2 there after this – Over 60 issues fixed in JIRA • June 2011: recommended stable release 22 -Feb-12 NCAR-SEA-2012 51

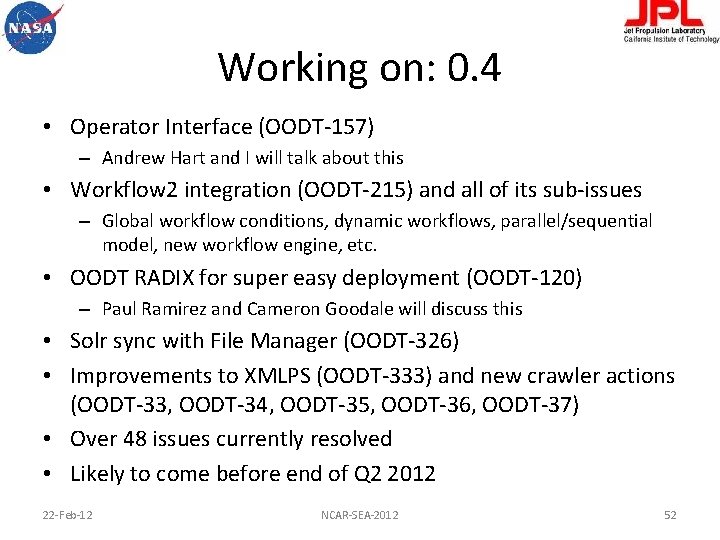

Working on: 0. 4 • Operator Interface (OODT-157) – Andrew Hart and I will talk about this • Workflow 2 integration (OODT-215) and all of its sub-issues – Global workflow conditions, dynamic workflows, parallel/sequential model, new workflow engine, etc. • OODT RADIX for super easy deployment (OODT-120) – Paul Ramirez and Cameron Goodale will discuss this • Solr sync with File Manager (OODT-326) • Improvements to XMLPS (OODT-333) and new crawler actions (OODT-33, OODT-34, OODT-35, OODT-36, OODT-37) • Over 48 issues currently resolved • Likely to come before end of Q 2 2012 22 -Feb-12 NCAR-SEA-2012 52

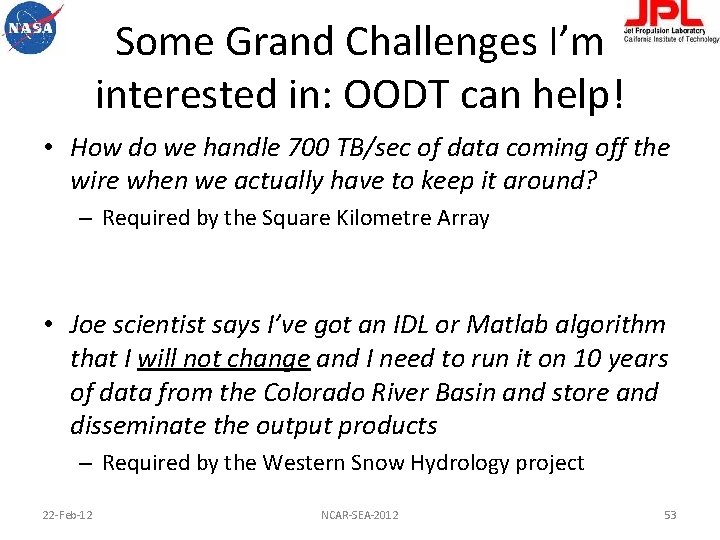

Some Grand Challenges I’m interested in: OODT can help! • How do we handle 700 TB/sec of data coming off the wire when we actually have to keep it around? – Required by the Square Kilometre Array • Joe scientist says I’ve got an IDL or Matlab algorithm that I will not change and I need to run it on 10 years of data from the Colorado River Basin and store and disseminate the output products – Required by the Western Snow Hydrology project 22 -Feb-12 NCAR-SEA-2012 53

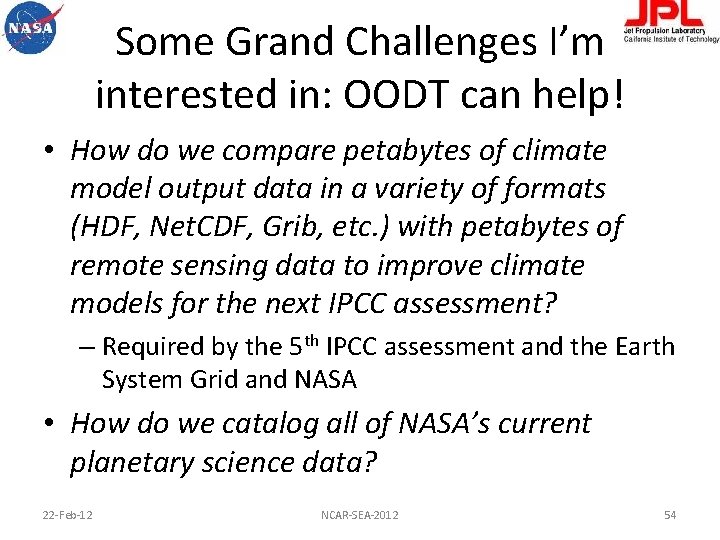

Some Grand Challenges I’m interested in: OODT can help! • How do we compare petabytes of climate model output data in a variety of formats (HDF, Net. CDF, Grib, etc. ) with petabytes of remote sensing data to improve climate models for the next IPCC assessment? – Required by the 5 th IPCC assessment and the Earth System Grid and NASA • How do we catalog all of NASA’s current planetary science data? 22 -Feb-12 NCAR-SEA-2012 54

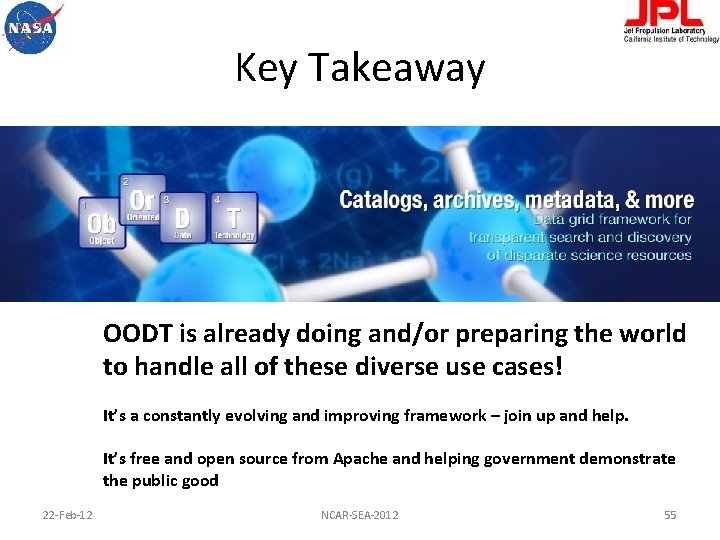

Key Takeaway OODT is already doing and/or preparing the world to handle all of these diverse use cases! It’s a constantly evolving and improving framework – join up and help. It’s free and open source from Apache and helping government demonstrate the public good 22 -Feb-12 NCAR-SEA-2012 55

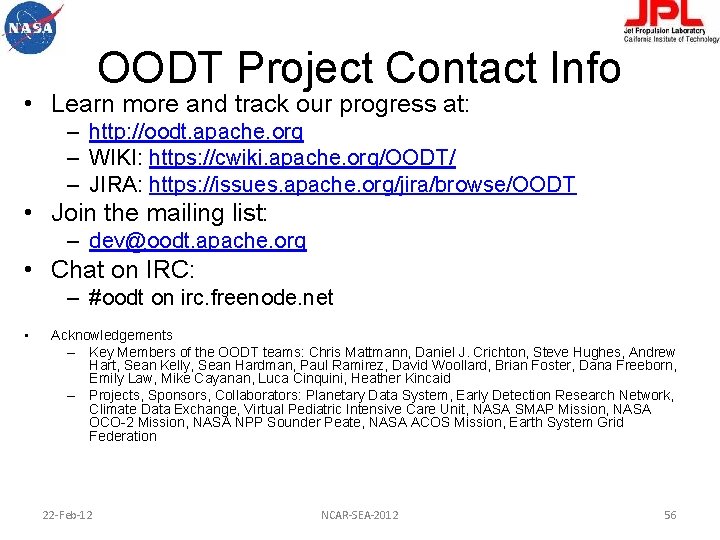

OODT Project Contact Info • Learn more and track our progress at: – http: //oodt. apache. org – WIKI: https: //cwiki. apache. org/OODT/ – JIRA: https: //issues. apache. org/jira/browse/OODT • Join the mailing list: – dev@oodt. apache. org • Chat on IRC: – #oodt on irc. freenode. net • Acknowledgements – Key Members of the OODT teams: Chris Mattmann, Daniel J. Crichton, Steve Hughes, Andrew Hart, Sean Kelly, Sean Hardman, Paul Ramirez, David Woollard, Brian Foster, Dana Freeborn, Emily Law, Mike Cayanan, Luca Cinquini, Heather Kincaid – Projects, Sponsors, Collaborators: Planetary Data System, Early Detection Research Network, Climate Data Exchange, Virtual Pediatric Intensive Care Unit, NASA SMAP Mission, NASA OCO-2 Mission, NASA NPP Sounder Peate, NASA ACOS Mission, Earth System Grid Federation 22 -Feb-12 NCAR-SEA-2012 56

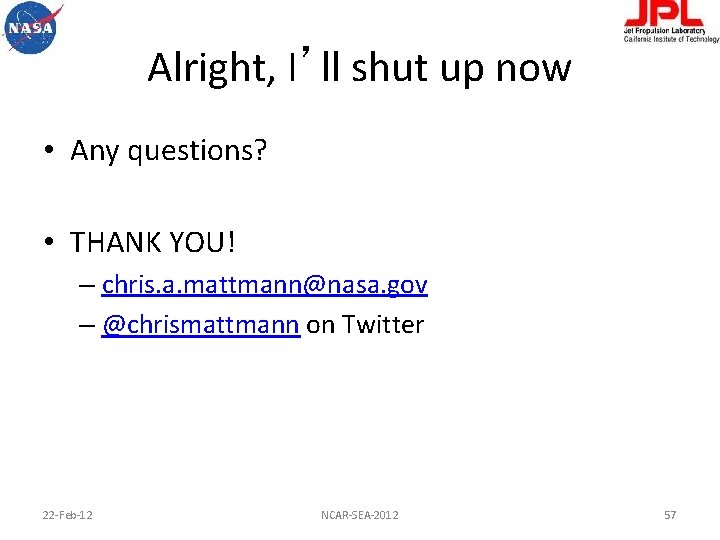

Alright, I’ll shut up now • Any questions? • THANK YOU! – chris. a. mattmann@nasa. gov – @chrismattmann on Twitter 22 -Feb-12 NCAR-SEA-2012 57
