THE ALL NEW ALL-IN-ONE HEADSET APRIL 2011
GAME CHANGER • Half the size, twice the comfort • The next big thing in drive-thru, is also the smallest QSR Magazine Ad, May 2011
THINK SMALL • Smaller size = Greater comfort • Volume: Odyssey = 11. 1 in 3 ION AIO= 4. 65 in 3 57% REDUCTION

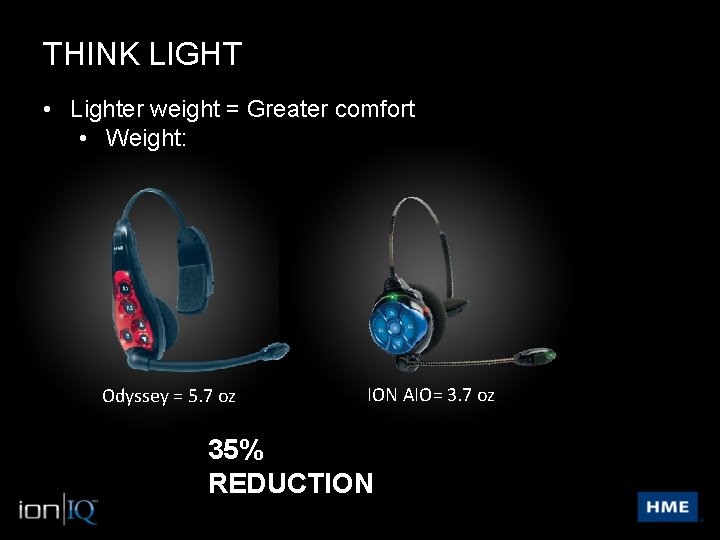

THINK LIGHT • Lighter weight = Greater comfort • Weight: Odyssey = 5. 7 oz ION AIO= 3. 7 oz 35% REDUCTION
THINK TINY Only TRUE ALL-IN-ONE headset on the market • AIO battery & radio design on one side • Miniaturized electronic components • New, more integrated radio design • Miniaturized the hardware and PCB design
THINK TOUGH Significant reduction to moving parts • No moving wires traveling over the top of headset • Integrated headset band adjustment • Integrated AIO battery design
THINK TOUGH Improved boom design • New, super durable spindle design at boom pivot • Cast metal parts for improved reliability and wear reduction • Boom tested to more than many thousands of rotations Odyssey ION AIO
THINK TOUGH Improved button design • Light touch, high reliability design • Buttons tested to many thousands of presses Xylex clamshell design • High-impact resistance • Twice as strong as materials used in competitor products • Resists corrosive materials and contaminates
THINK CLEARLY Perceptible improvement in sound quality • Best results when used with ION Base Station
THINK DISTANCE 10% - 20% improvement in range* *Based on field test information
THINK BACKWARDS • Works with SYS 6000 Base • Works with SYS 6000 A Base • Works with SYS 6100 Base • Mix with existing COM 6000 and Odyssey
THINK POWER Requires new battery (BAT 50) and charger (AC 50) • Battery life: 12 – 14 hours • Charge time: 2. 5 hours
THINK CONFIGURATION COM 6000, ODYSSEY, ION AIO ONLY POWER FUNCTION ACTION OFF Register Hold “B” & Press “PWR” Hold “PWR” for 10 seconds. OFF Status Hold “A 2” + “Vol Dn” & Press “PWR” OFF Language Hold “A 1” + “Vol Dn” & Press “PWR” OFF HF ON Hold “B” + “Vol Up” & Press “PWR” OFF HF OFF Hold “B” + “Vol Dn” & Press “PWR” OFF AHF ON Hold “A 1 or A 2” + “Vol Up” & Press “PWR” ON AHF OFF Press “PWR” to turn unit OFF BHF ON/OFF Hold “B” + “A 2” & Press “PWR”
THINK INDICATOR LIGHTS EVENT BODY LED MIC LED COMMENT Power ON Steady RED Steady Red Link OK/ Standby/ Steady GREEN OFF Lane 2 is RED A 1/A 2 Transmit Blink GREEN Steady Green Lane 2 is RED Hands Free same behavior B Transmit Blink GREEN Alternate RED/GREEN Lane 2 body LED is RED Hands Free same behavior. Low battery Blink GREEN No Change Lane 2 is RED No Link Blink RED Link OK/ Standby/ Steady GREEN OFF Lane 2 is RED A 1/A 2 Transmit Blink GREEN Steady Green Lane 2 is RED Hands Free same behavior
THINK AUDIO PROMPTS ITEM ODYSSEY ION AIO Voice Prompts All Odyssey Voice Prompts are integrated BHF ON N/A B Hands Free ON BHF OFF N/A B Hands Free OFF A 1, A 2, B None Audible Tone confirmation

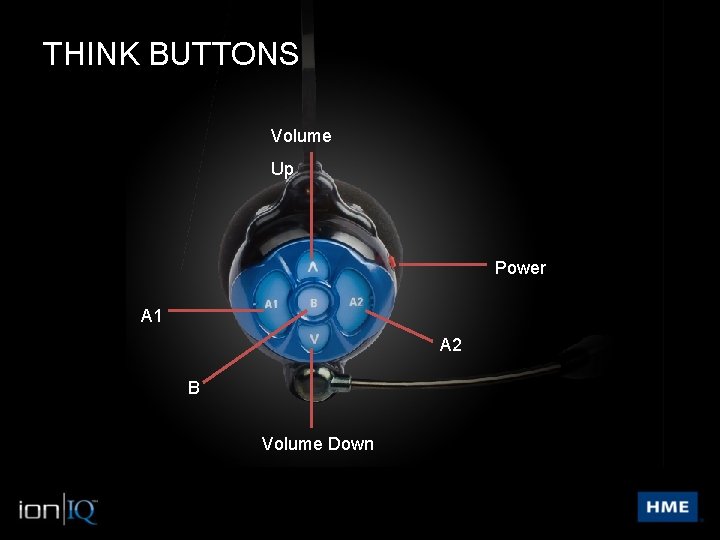

THINK BUTTONS Volume Up Power A 1 A 2 B Volume Down
THINK SIZE ADJUSTMENT Slide the metal headband for size adjustments
THINK BATTERY REMOVAL Battery Removal • Release battery with blue button • Pull down on battery with grip ridge Battery release Grip ridge Battery
THINK AC 50 BATTERY CHARGER Battery Charger • 4 charge ports • 4 storage ports • Same indications as AC 40 Reversible Wedge • Angled desktop viewing • Reverse wedge to mount on wall
THINK BATTERY CHARGER ADAPTER Domestic 5 VDC/15 W Adapters International
THINK PART NUMBERS • English/Spanish – G 28538 -1 Z 1 (Intl’ Gxxxxx-1 Z 1) • English/French – G 28538 -2 Z 1 (Intl’ Gxxxxx-2 Z 1) • Battery Charger – G 28550 -1 • Battery Charger Adapter – 453 G 013 (Intl’ 453 G 014) • Battery – 104 G 036 • ION C #’s with ION AIO headsets have “HS 2” vs. “HS”
THINK PRICING • English/Spanish – G 28538 -1 Z 1 • Corporate Pricing – No change from HS 6000! • English/French – G 28538 -2 Z 1 • Corporate Pricing – No change from HS 6000! • AC 50 Battery Charger – G 28550 -1 • Corporate Pricing – No change from AC 40! • BAT 50 battery – 104 G 036 • Corporate Pricing – No change from BAT 41!
THINK ABOUT IT
