The Advanced Baseline Imager ABI GOESR Tim Schmit
The Advanced Baseline Imager (ABI) GOES-R Tim Schmit NOAA/NESDIS/ORA(STAR) Advanced Satellite Products Team/Branch (ASPT/B) Madison, WI and many, many others GOES-R Algorithm Working Group (AWG) Application Team Workshop Falls Church, Virginia 16 -18 November 2005 UW-Madison
GOES-R Observational Requirements Aerosol Detection Aerosol Particle Size Suspended Matter Volcanic Ash Aircraft Icing Threat Cloud Imagery Cloud & Moisture Imagery Cloud Base Height Cloud Layers / Heights & Thickness Cloud Ice Water Path Cloud Liquid Water Cloud Optical Depth Cloud Particle Size Distribution Cloud Top Phase Cloud Top Height Cloud Top Pressure Cloud Top Temperature Cloud Type Convection Initiation Enhanced "V"/Overshooting Top Detection Hurricane Intensity Imagery: All-Weather / Day - Night Surface Albedo Surface Emissivity Vegetation Fraction Vegetation Index Atmospheric Vertical Moisture Profile Atmospheric Vertical Temperature Profile Capping Inversion Information Currents Ocean Color Ocean Optical Properties Ocean Turbidity Sea & Lake Ice / Displacement & Direction Sea & Lake Ice / Age Sea & Lake Ice / Concentration Sea & Lake Ice / Extent & Characterization Derived Stability Indices Moisture Flux Pressure Profile Total Precipitable Water Total Water Content Clear Sky Masks Radiances Absorbed Shortwave Radiation Downward Longwave Radiation Downward Solar Insolation Reflected Solar Insolation Upward Longwave Radiation CO Concentration Ozone Total SO 2 Detection Derived Motion Winds Lightning Detection Low Cloud & Fog Turbulence Visibility Geomagnetic Field ABI – Advanced Baseline Imager Dust/Aerosol Probability of Rainfall Potential Rainfall Rate Microburst Wind Speed Potential Fire / Hot Spot Imagery Flood / Standing Water Land Surface (Skin) Temperature HES – Hyperspectral Environmental Suite SEISS – Space Env. In-Situ Suite SIS – Solar Instrument Suite Sea & Lake Ice / Extent & Edge Sea & Lake Ice / Surface Temp Sea & Lake Ice / Motion Sea & Lake Ice / Thickness Ice Cover / Landlocked Snow Cover Snow Depth Sea Surface Temps Energetic Heavy Ions Mag Electrons & Protons: Low Energy Mag Electrons & Protons: Med & High Energy Solar & Galactic Protons Solar Flux: EUV Solar Flux: X-Ray Solar Imagery: X-Ray GLM – GOES Lightning Mapper Magnetometer
GOES R Baseline Instruments • Advanced Baseline Imager (ABI) • Hyperspectral Environmental Suite (HES) – Disk Sounding – Severe Weather Mesoscale – Coastal Waters • • Geostationary Lightning Mapper (GLM) Solar Instrument Suite (SIS) Space Environment In Situ Suite (SEISS) Auxiliary Services
The Advanced Baseline Imager: ABI Current 16 bands 5 bands Spectral Coverage Spatial resolution 0. 64 mm Visible 0. 5 km Other Visible/near. IR 1. 0 km Bands (>2 mm) 2 km Approx. 1 km n/a Approx. 4 km Spatial coverage Full disk CONUS Mesoscale 4 per hour 12 per hour Every 30 sec Every 3 hours ~4 per hour - Visible On-orbit calibration Yes No
ABI Visible/Near-IR Bands
ABI IR Bands

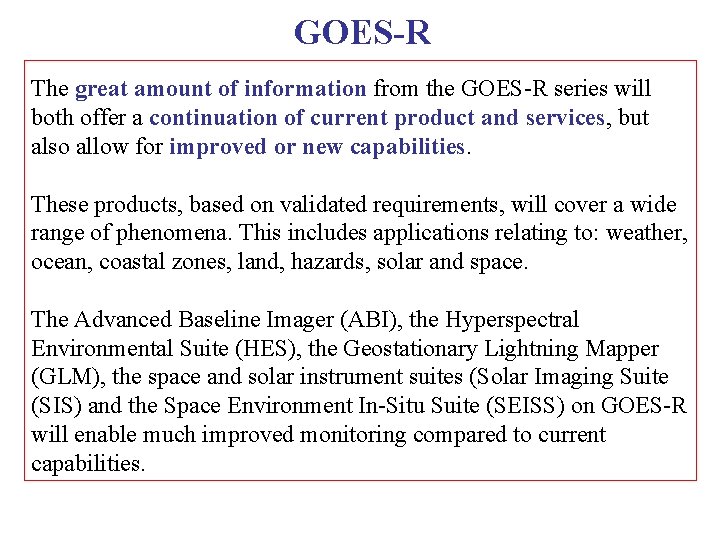

GOES-R The great amount of information from the GOES-R series will both offer a continuation of current product and services, but also allow for improved or new capabilities. These products, based on validated requirements, will cover a wide range of phenomena. This includes applications relating to: weather, ocean, coastal zones, land, hazards, solar and space. The Advanced Baseline Imager (ABI), the Hyperspectral Environmental Suite (HES), the Geostationary Lightning Mapper (GLM), the space and solar instrument suites (Solar Imaging Suite (SIS) and the Space Environment In-Situ Suite (SEISS) on GOES-R will enable much improved monitoring compared to current capabilities.
ABI Summary There has been a good start simulating the ABI bands from aircraft and other satellites. More work needs to be done. Especially in the simulation of the visible bands. When an ABI simulation is referred to, note which attribute (spatial, spectral, temporal, etc. ) is needed/simulated. To allow for quicker comparisons, everyone should use the same “mock” ABI spectral response functions. These are available via ftp and already are in PFAAST or OPTRAN fast models.
More information -- ABI Research Home page (with a link to all these links): • http: //cimss. ssec. wisc. edu/goes/abi/wf/ NOAA GOES-R page: • https: //osd. goes. noaa. gov/ GOES and MODIS Galleries: • http: //cimss. ssec. wisc. edu/goes/misc/interesting_images. html • http: //www. ssec. wisc. edu/~gumley/modis_gallery/ ABI Documentation from NASA: • http: //goespoes. gsfc. nasa. gov/abihome. htm ABI Simulated Spectral Response functions: • ftp: //ftp. ssec. wisc. edu/ABI/SRF
