The Abdomen Surface Anatomy, Vessels, Muscles, and Peritoneum

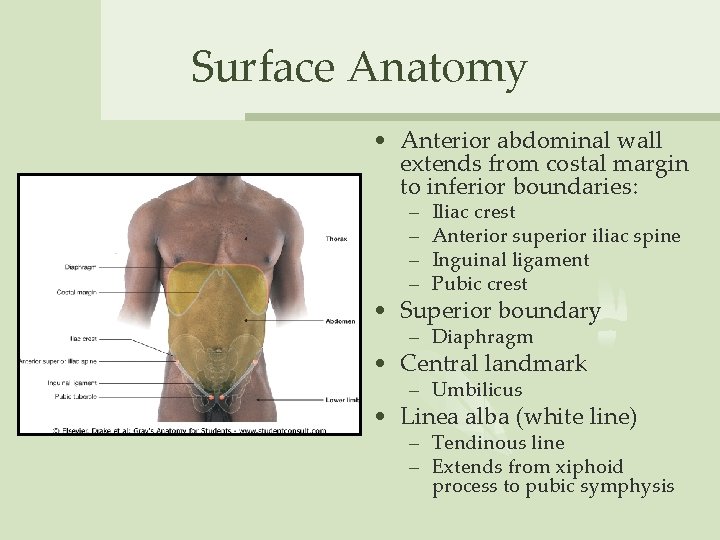

Surface Anatomy • Anterior abdominal wall extends from costal margin to inferior boundaries: – – Iliac crest Anterior superior iliac spine Inguinal ligament Pubic crest • Superior boundary – Diaphragm • Central landmark – Umbilicus • Linea alba (white line) – Tendinous line – Extends from xiphoid process to pubic symphysis

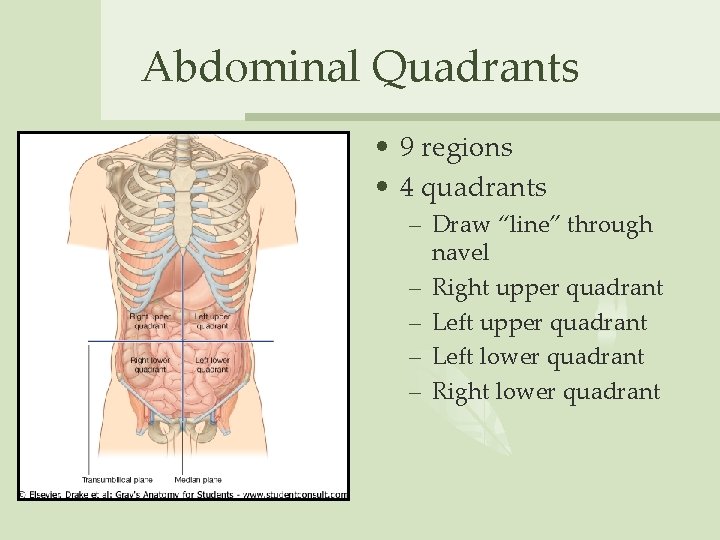

Abdominal Quadrants • 9 regions • 4 quadrants – Draw “line” through navel – Right upper quadrant – Left lower quadrant – Right lower quadrant

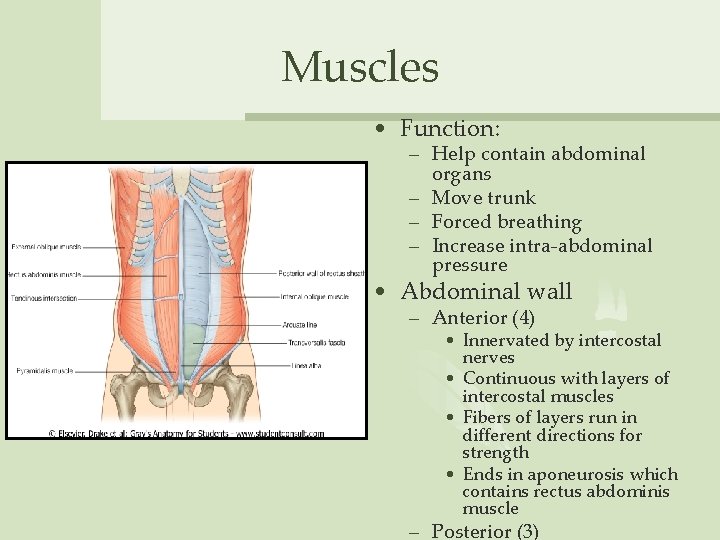

Muscles • Function: – Help contain abdominal organs – Move trunk – Forced breathing – Increase intra-abdominal pressure • Abdominal wall – Anterior (4) • Innervated by intercostal nerves • Continuous with layers of intercostal muscles • Fibers of layers run in different directions for strength • Ends in aponeurosis which contains rectus abdominis muscle – Posterior (3)

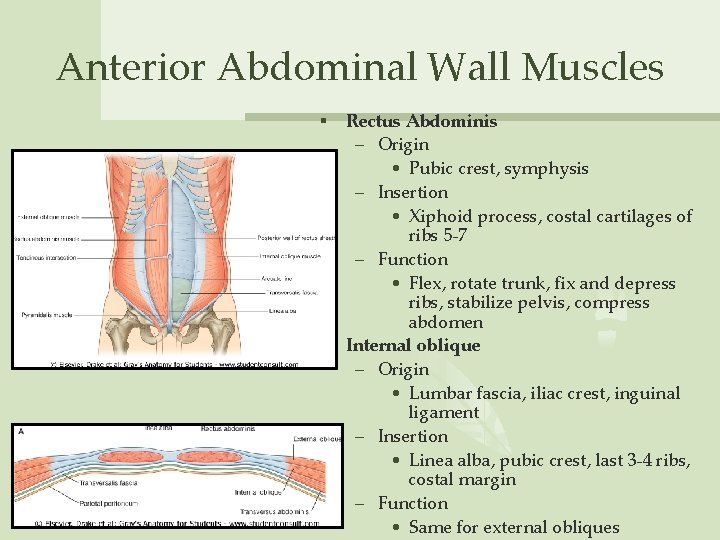

Anterior Abdominal Wall Muscles Rectus Abdominis – Origin • Pubic crest, symphysis – Insertion • Xiphoid process, costal cartilages of ribs 5 -7 – Function • Flex, rotate trunk, fix and depress ribs, stabilize pelvis, compress abdomen • Internal oblique – Origin • Lumbar fascia, iliac crest, inguinal ligament – Insertion • Linea alba, pubic crest, last 3 -4 ribs, costal margin – Function • Same for external obliques §

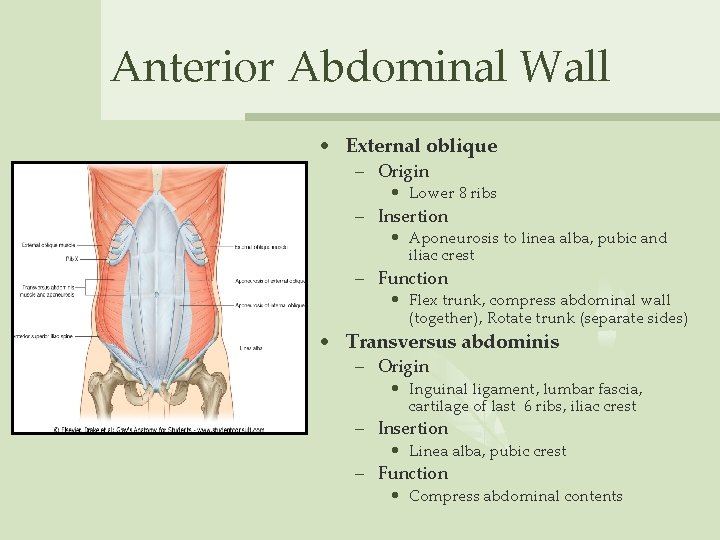

Anterior Abdominal Wall • External oblique – Origin • Lower 8 ribs – Insertion • Aponeurosis to linea alba, pubic and iliac crest – Function • Flex trunk, compress abdominal wall (together), Rotate trunk (separate sides) • Transversus abdominis – Origin • Inguinal ligament, lumbar fascia, cartilage of last 6 ribs, iliac crest – Insertion • Linea alba, pubic crest – Function • Compress abdominal contents

Posterior Abdominal Wall • Iliopsoas – Psoas major • Origin – Lumbar vertebrae, T 12 • Insertion – Lesser trochanter of femur via iliopsoas tendon • Function – Thigh flexion, trunk flexion, lateral flexion • Innervation – Ventral rami L 1 -L 3 – Iliacus • Origin – Iliac fossa, ala of sacrum • Insertion – Lesser trochanter of femur via iliopsoas tendon • Function – Thigh flexion, trunk flexion • Innervation – Femoral nerve (L 2 and L 3) – Psoas minor – variable (40 -60% do not have)

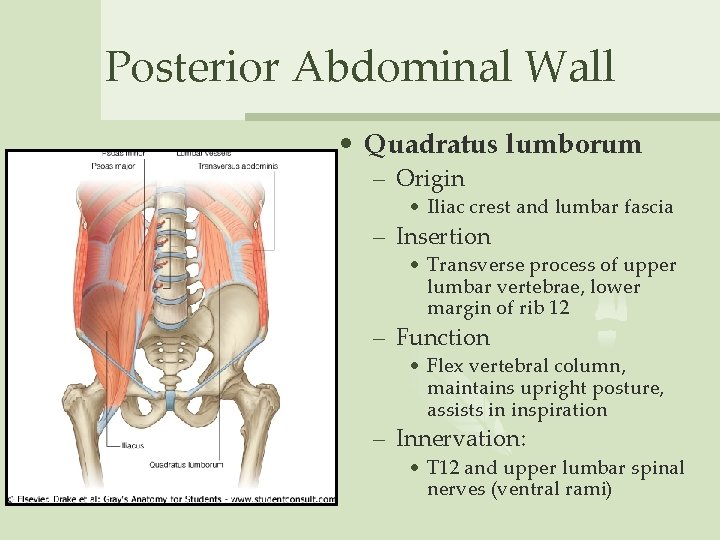

Posterior Abdominal Wall • Quadratus lumborum – Origin • Iliac crest and lumbar fascia – Insertion • Transverse process of upper lumbar vertebrae, lower margin of rib 12 – Function • Flex vertebral column, maintains upright posture, assists in inspiration – Innervation: • T 12 and upper lumbar spinal nerves (ventral rami)

Abdominopelvic Cavity • Ventral body cavity – Thoracic – Abdominopelvic • Abdominopelvic – Abdominal • Liver • Stomach • Kidneys – Pelvic cavity • Bladder • Some reproductive organs • Rectum

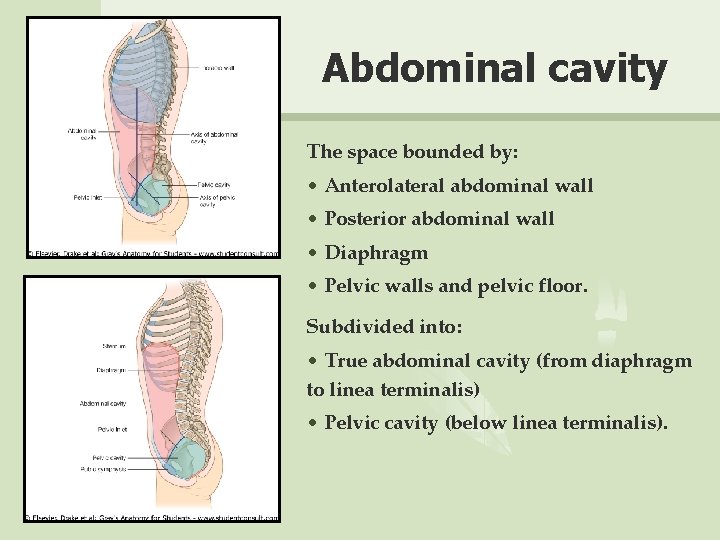

Abdominal cavity The space bounded by: • Anterolateral abdominal wall • Posterior abdominal wall • Diaphragm • Pelvic walls and pelvic floor. Subdivided into: • True abdominal cavity (from diaphragm to linea terminalis) • Pelvic cavity (below linea terminalis).

Peritoneum and peritoneal compartment Peritoneum is a continuous serous membrane, composed of two layers: • Parietal peritoneum, lines abdominal and pelvic wall • Visceral peritoneum, lines abdominal and pelvic organs. Peritoneal compartment is part of the abdominal cavity enclosed within the parietal peritoneum. Contains organs covered with peritoneum and peritoneal structures. Outside the parietal peritoneum is the extraperitoneal compartment of the abdominal cavity.

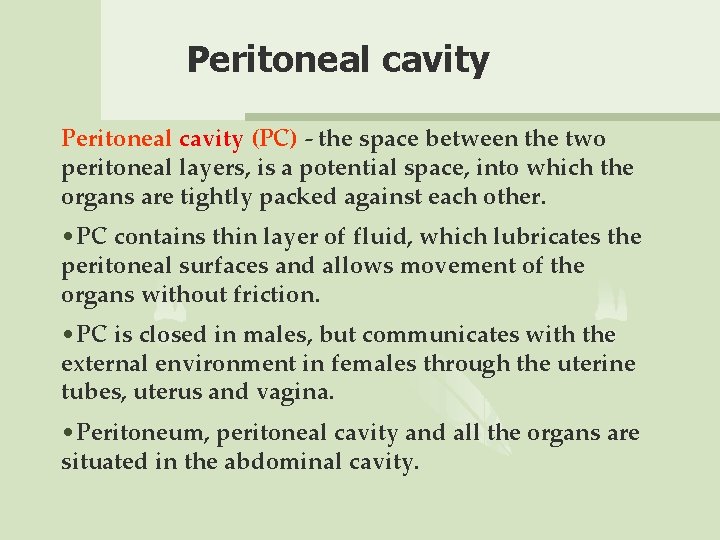

Peritoneal cavity (PC) - the space between the two peritoneal layers, is a potential space, into which the organs are tightly packed against each other. • PC contains thin layer of fluid, which lubricates the peritoneal surfaces and allows movement of the organs without friction. • PC is closed in males, but communicates with the external environment in females through the uterine tubes, uterus and vagina. • Peritoneum, peritoneal cavity and all the organs are situated in the abdominal cavity.

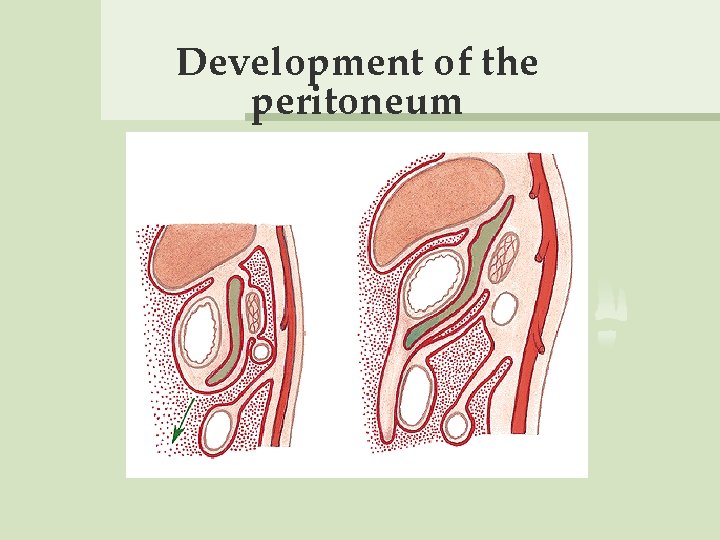

Development of the peritoneum

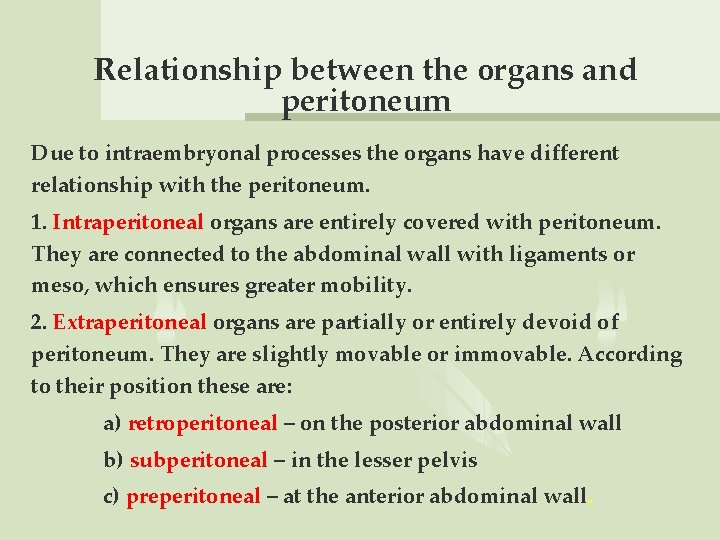

Relationship between the organs and peritoneum Due to intraembryonal processes the organs have different relationship with the peritoneum. 1. Intraperitoneal organs are entirely covered with peritoneum. They are connected to the abdominal wall with ligaments or meso, which ensures greater mobility. 2. Extraperitoneal organs are partially or entirely devoid of peritoneum. They are slightly movable or immovable. According to their position these are: а) retroperitoneal – on the posterior abdominal wall b) subperitoneal – in the lesser pelvis c) preperitoneal – at the anterior abdominal wall.

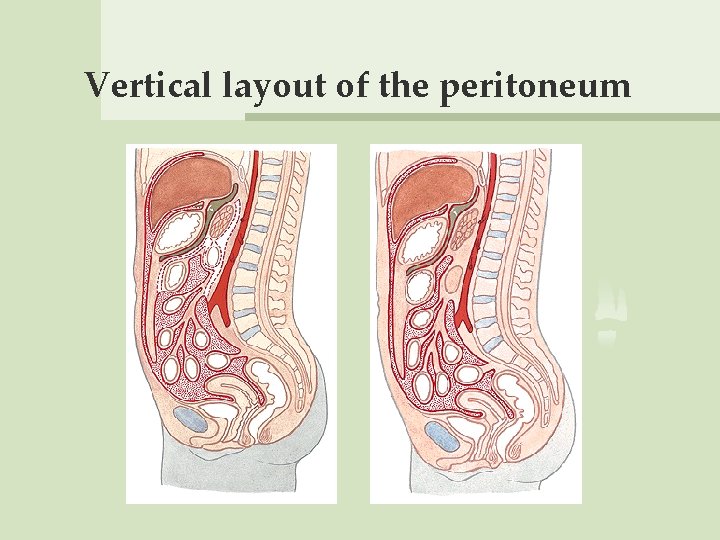

Vertical layout of the peritoneum

Horizontal layout of the peritoneum

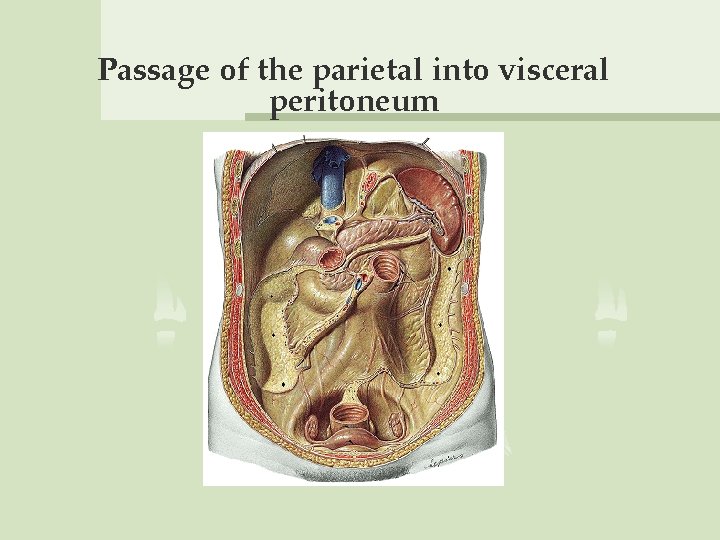

Passage of the parietal into visceral peritoneum

Peritoneal structures 1. Mesentery – double peritoneal layer, representing elongation of the visceral peritoneum. • М. connects the corresponding organ with the abdominal wall (e. g. , mesentery of the small intestine). • М. contains connective tissue in which are embedded blood vessels, nerves and lymph nodes. • М. ensures mobility of the organs.

2. Omentum – double layered structure of visceral peritoneal, extending from the stomach to neighbouring organs. • Lesser omentum (оmentum minus) connects the lesser curvature of the stomach and intitial portion of pars superior duodeni with liver. • Greater omentum (оmentum majus) descends from the greater curvature of the stomach and intitial portion of pars superior duodeni, covers the intestines, and then ascends back to attache to the transverse colon. Contains great amount of fat tissue.

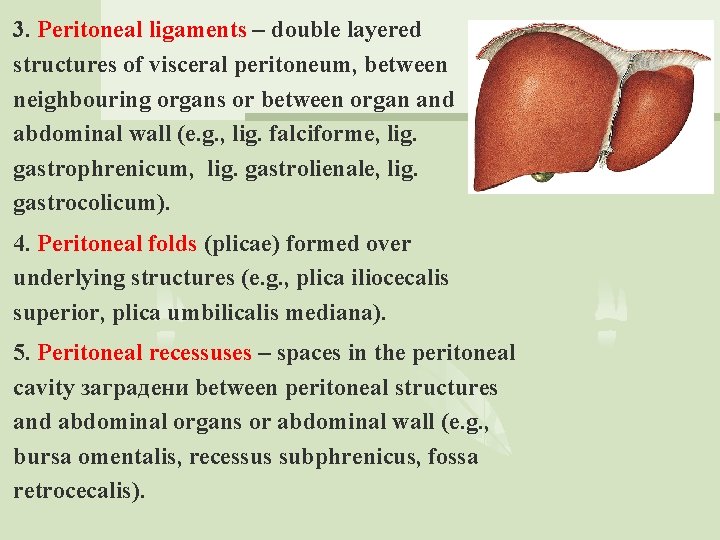

3. Peritoneal ligaments – double layered structures of visceral peritoneum, between neighbouring organs or between organ and abdominal wall (e. g. , lig. falciforme, lig. gastrophrenicum, lig. gastrolienale, lig. gastrocolicum). 4. Peritoneal folds (plicae) formed over underlying structures (e. g. , plica iliocecalis superior, plica umbilicalis mediana). 5. Peritoneal recessuses – spaces in the peritoneal cavity заградени between peritoneal structures and abdominal organs or abdominal wall (e. g. , bursa omentalis, recessus subphrenicus, fossa retrocecalis).

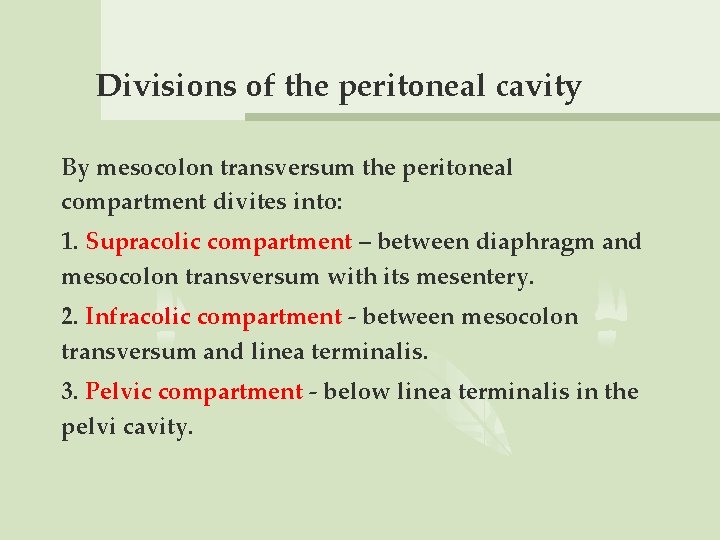

Divisions of the peritoneal cavity By mesocolon transversum the peritoneal compartment divites into: 1. Supracolic compartment – between diaphragm and mesocolon transversum with its mesentery. 2. Infracolic compartment - between mesocolon transversum and linea terminalis. 3. Pelvic compartment - below linea terminalis in the pelvi cavity.

Supracolic compartment Organs: 1. Esophagus, pars abdominalis - intraperitoneal 2. Stomach - intraperitoneal 3. Liver - intraperitoneal 4. Gall bladder - intraperitoneal 5. Spleen - intraperitoneal

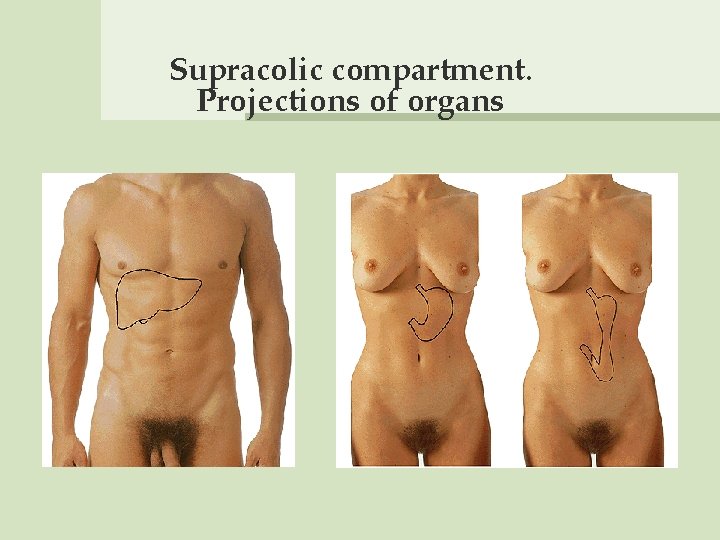

Supracolic compartment. Projections of organs

Supracolic compartment Peritoneal structures: 1. Lig. falciforme hepatis – lig. teres hepatis 2. Lig. coronarium hepatis (dextum et sinistrum) – area nuda 3. Lig. triangulare (dextum et sinistrum)

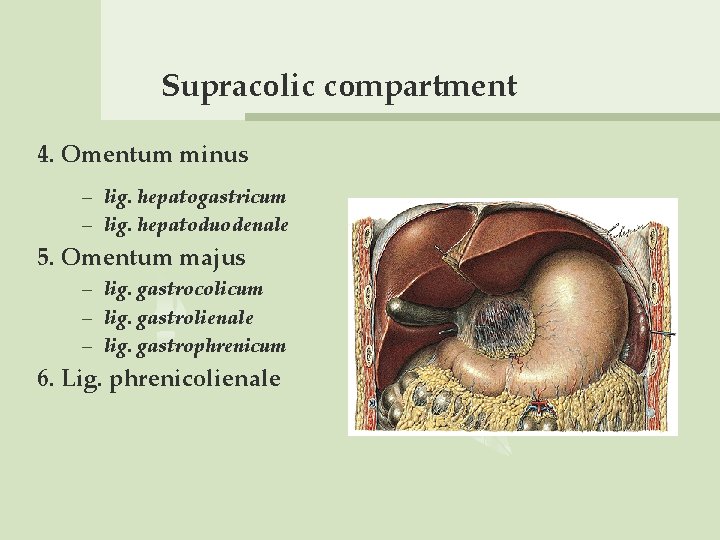

Supracolic compartment 4. Omentum minus – lig. hepatogastricum – lig. hepatoduodenale 5. Omentum majus – lig. gastrocolicum – lig. gastrolienale – lig. gastrophrenicum 6. Lig. phrenicolienale

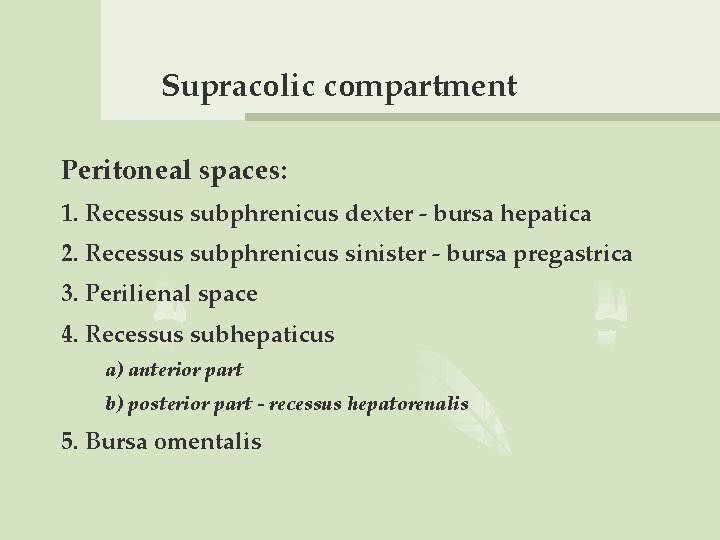

Supracolic compartment Peritoneal spaces: 1. Recessus subphrenicus dexter - bursa hepatica 2. Recessus subphrenicus sinister - bursa pregastrica 3. Perilienal space 4. Recessus subhepaticus а) anterior part b) posterior part - recessus hepatorenalis 5. Bursa omentalis

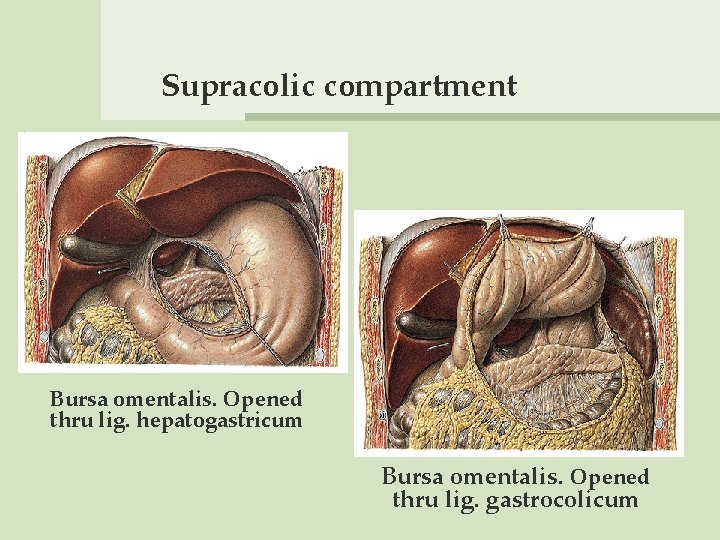

Supracolic compartment Bursa omentalis. Opened thru lig. hepatogastricum Bursa omentalis. Opened thru lig. gastrocolicum

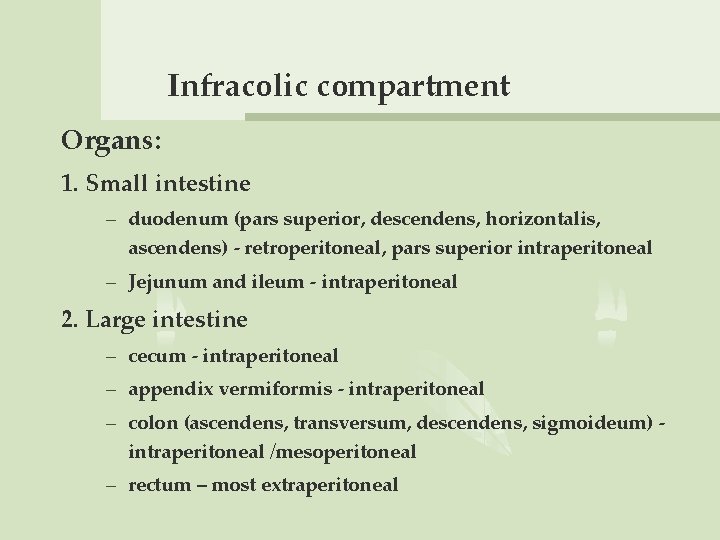

Infracolic compartment Organs: 1. Small intestine – duodenum (pars superior, descendens, horizontalis, ascendens) - retroperitoneal, pars superior intraperitoneal – Jejunum and ileum - intraperitoneal 2. Large intestine – cecum - intraperitoneal – appendix vermiformis - intraperitoneal – colon (ascendens, transversum, descendens, sigmoideum) intraperitoneal /mesoperitoneal – rectum – most extraperitoneal

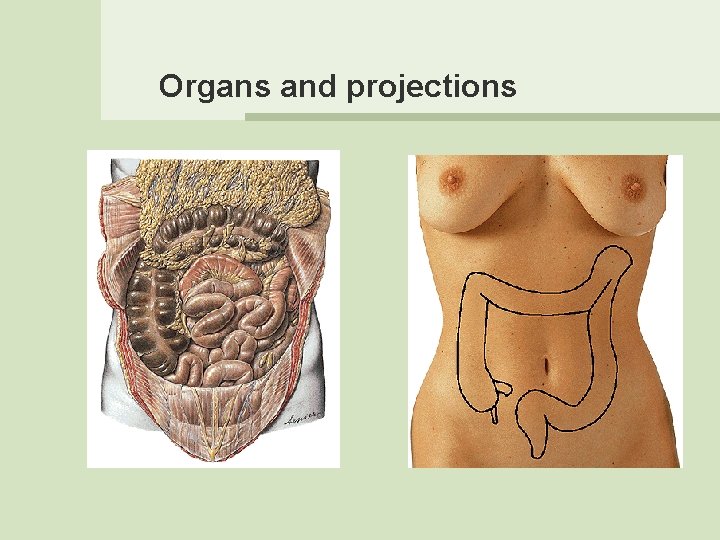

Organs and projections

Peritoneal structures 1. Omentum majus - pars libera 2. Mesenterium 3. Mesocolon transversum 4. Mesocolon sigmoideum 5. Mesoappendix

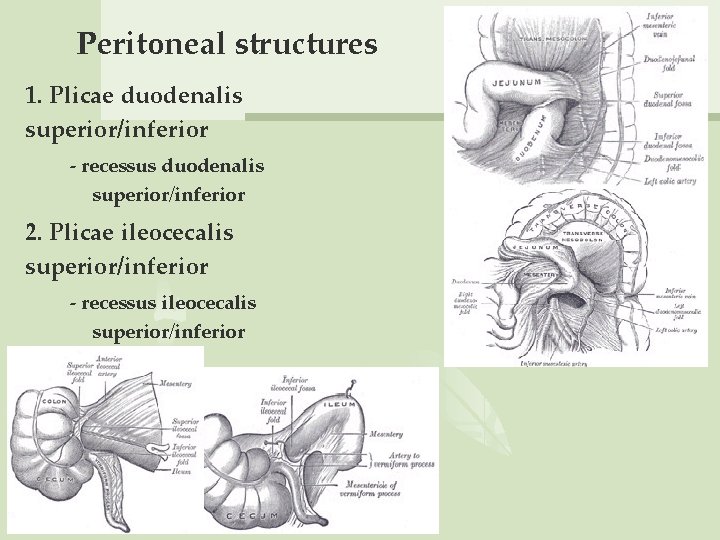

Peritoneal structures 1. Plicae duodenalis superior/inferior - recessus duodenalis superior/inferior 2. Plicae ileocecalis superior/inferior - recessus ileocecalis superior/inferior

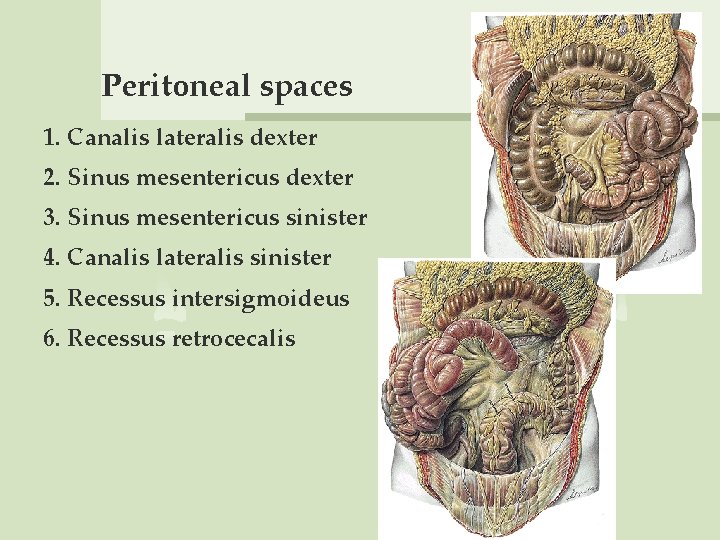

Peritoneal spaces 1. Canalis lateralis dexter 2. Sinus mesentericus dexter 3. Sinus mesentericus sinister 4. Canalis lateralis sinister 5. Recessus intersigmoideus 6. Recessus retrocecalis

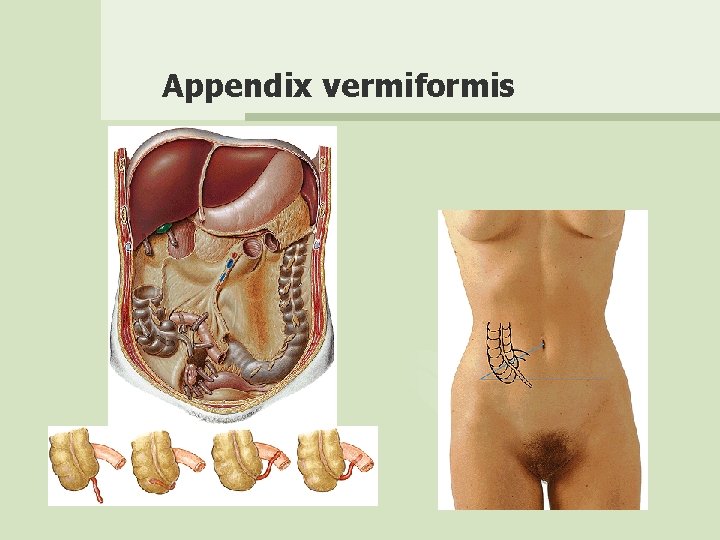

Appendix vermiformis

Supracolic compartment. Blood supply Truncus celiacus 1. A. gastrica sisnistra - r. esophageus 2. A. hepatica communis - a. hepatica propria - a. hepatica dextra/sinistra - a. gastroduodenalis - a. gastroepiploica dextra - aa. pancreaticoduodenales superiores (anterior/posterior) - a. gastrica dextra 3. A. lienalis - aa. gastricae breves - a. gastroepiploica sinistra

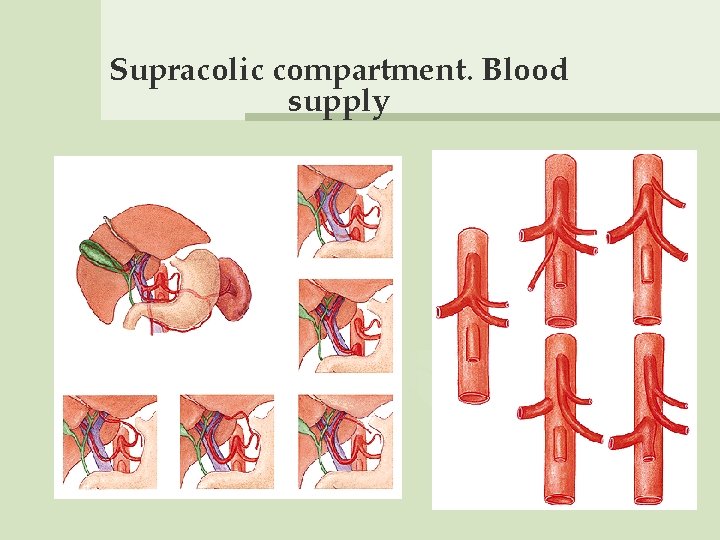

Supracolic compartment. Blood supply

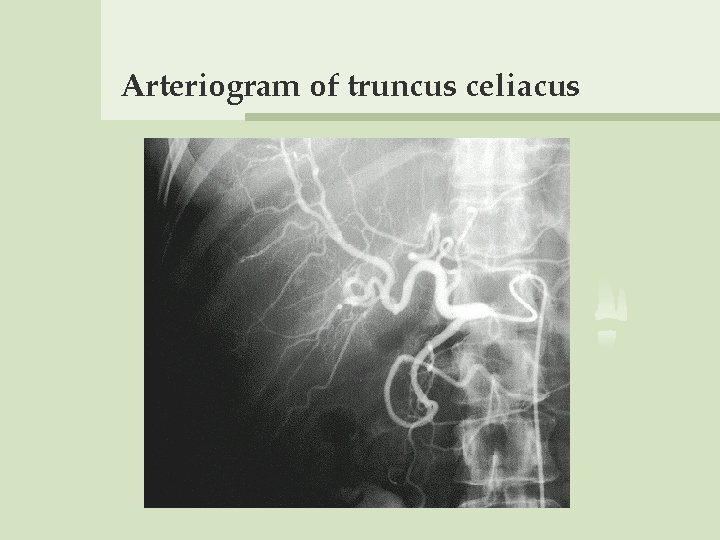

Arteriogram of truncus celiacus

Infracolic compartment. Blood supply A. mesenterica superior 1. A. pancreaticoduodenalis inferior 2. Aa. intestinales (15 -18) 3. A. iliocolica 4. A. colica dextra 5. A. colica media

Infracolic compartment. Blood supply A. mesenterica inferior 1. A. colica sinistra 2. Aa. sigmoideae (3 -4) 3. A. rectalis superior
