The 3 GPP Seminar Module 1 Introduction to the Third Generation Partnership Project © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 2

Introduction Who is this course aimed at? • “Outsiders” wishing to gain an understanding of 3 GPP’s role and working methods • New delegates to technical groups in 3 GPP • Existing delegates considering standing for election as chairmen or vice-chairmen • Newly elected chairmen and vice-chairmen • New (and not so new) Support Team personnel © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 3

What is 3 GPP (and what is it not)? It is … • A loose association of regional and national Standards Development Organizations (SDOs) from around the globe. It is populated by … • Delegates representing member organizations of those SDOs. • Delegates of the SDOs themselves. • Delegates representing organizations considering becoming members © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 4

What is 3 GPP (and what is it not)? It is … • A loose association of regional and national Standards Development Organizations (SDOs) from around the globe. Terminology Organizational Partner One of the Standards Development Organizations which have signed the 3 GPP Agreement, and which set general policy and jointly fund the principle costs of the Project. http: //www. 3 gpp. org/partners © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 5

It is not … • • © 3 GPP 2009 A government agency A regulatory body An arm of the ITU or the United Nations An arm of the EU or of CEPT A certification body A frequency-allocation body A legally constituted entity Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 6

3 GPP’s mission … … is to Prepare, approve and maintain Technical Specifications and Technical Reports for mobile telecommunications systems including the following radio technologies: – UTRA (third generation), FDD and TDD, plus its evolution including HSPA – GSM (second generation) including its enhancements EDGE and GPRS – Further evolution to LTE, LTE-Advanced (fourth generation) and the associated core network and other technologies, including IMS. http: //www. 3 gpp. org/ftp/web. Extensions/3 gpp. Agreement/3 GPP_Scopeando 310807. pdf © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 7

Terminology Frequency Division Duplex (FDD) Protocol Terminology Internet Multimedia core network Terminology Subsystem (IMS) Uplink and downlink use. Speed separate High Packet Access (HSPA) LTE™ Terminology High Speed Download Packet Access (HSDPA) frequencies Packetization of core network protocols, High Speed Upload Packet Access (HSUPA) to terminals, to allow full New radio technology coupled with simplified Terminology Global System for Mobile communications (GSM)extending … is to multimedia traffictoand signalling based on architecture yielding performance approaching 4 G Evolution of UTRA provide http: //www. 3 gpp. org/Keywords-WCDMA-HSPA-LTE-etc Generaldeveloped Packet Radio Service (GPRS) Specifications and Second generation digital approve system ininternet ETSI higher dataprotocols rates Prepare, and maintain Technical http: //www. 3 gpp. org/Keywords-WCDMA-HSPA-LTE-etc and subsequently transferred to 3 GPP Technical Reports telecommunications 2. 5 G for radiomobile technology providing. Terminology packet data systems 3 GPP’s mission … http: //www. 3 gpp. org/article/gprs-edge including the following radio technologies: LTE-Advanced™ – UTRA (third generation), FDD and TDD, plus its evolution Further development of LTE offering true 4 G including HSPA performance – GSM (second generation) including its enhancements EDGE and GPRS – Further evolution to LTE, LTE-Advanced (fourth generation) Terminology and. Terminology the associated core network and other technologies, Time Division Duplex (TDD) Universal Terrestrial Radio Access including IMS. (UTRA) Enhanced Data rates for Global Evolution (EDGE) http: //www. 3 gpp. org/ftp/web. Extensions/3 gpp. Agreement/3 GPP_Scopeando 310807. pdf Uplink and downlink share the same rd The original 3 generation radio frequency 2. 75 G radio technology bitrates to lower technology developed by increasing 3 GPP bounds of 3 G http: //www. 3 gpp. org/partners http: //www. 3 gpp. org/article/gprs-edge © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 8

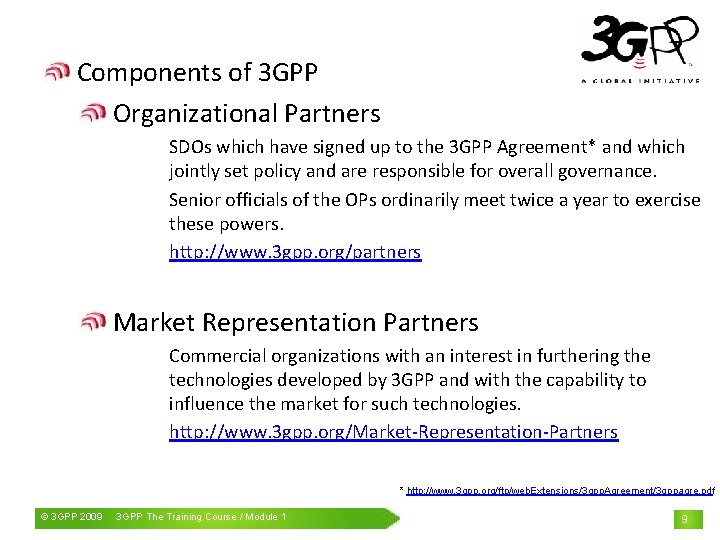

Components of 3 GPP Organizational Partners SDOs which have signed up to the 3 GPP Agreement* and which jointly set policy and are responsible for overall governance. Senior officials of the OPs ordinarily meet twice a year to exercise these powers. http: //www. 3 gpp. org/partners Market Representation Partners Commercial organizations with an interest in furthering the technologies developed by 3 GPP and with the capability to influence the market for such technologies. http: //www. 3 gpp. org/Market-Representation-Partners * http: //www. 3 gpp. org/ftp/web. Extensions/3 gpp. Agreement/3 gppagre. pdf © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 9

PCG TSG GERAN TSG CT WG GERAN 1 WG GERAN 2 WG GERAN 3 WG RAN 4 WG RAN 5 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 TSG SA WG CT 1 WG CT 3 WG CT 4 WG CT 6 WG SA 1 WG SA 2 WG SA 3 WG SA 4 WG SA 5 10

PCG TSG GERAN TSG CT WG GERAN 1 WG GERAN 2 WG GERAN 3 WG RAN 4 WG RAN 5 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 TSG SA WG CT 1 WG CT 3 WG CT 4 WG CT 6 WG SA 1 WG SA 2 WG SA 3 WG SA 4 WG SA 5 11

PCG Project Coordination Group The PCG is responsible for overall governance of 3 GPP. It sets high level policy, formally appoints elected TSG chairmen and vice-chairmen, ensuring regional balance, and – though very rarely called upon to act as arbiter of technical disputes – is the ultimate court of appeal within 3 GPP. http: //www. 3 gpp. org/Project-Coordination-Group-PCG © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 12

Technical Specification Groups To avoid unnecessary delays in the development of 3 GPP’s technical work, four hierarchically equal TSGs exist, each responsible for a reasonably well defined an largely autonomous area of activity. © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 13

TSG GERAN Technical Specification Group GSM/EDGE Radio Access Network Created on the closure of ETSI Technical Committee SMG in 2000, when all the GSM (2 G) Specifications were transferred from ETSI to 3 GPP. Responsible for maintenance and enhancement of GSM/EDGE specifications. GERAN-based systems are still the most wide-spread cellular technology in the world. http: //www. 3 gpp. org/GERAN © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 14

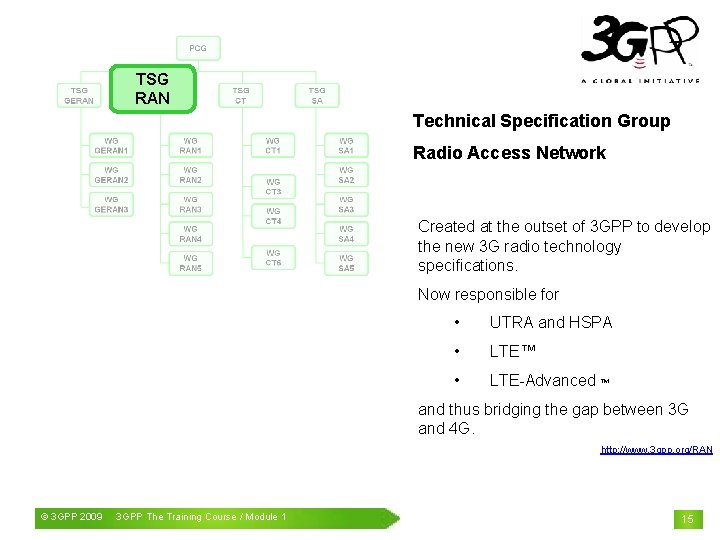

TSG RAN Technical Specification Group Radio Access Network Created at the outset of 3 GPP to develop the new 3 G radio technology specifications. Now responsible for • UTRA and HSPA • LTE™ • LTE-Advanced ™ and thus bridging the gap between 3 G and 4 G. http: //www. 3 gpp. org/RAN © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 15

TSG CT Technical Specification Group Core Network and Terminals Created in 2005 on closure of two original TSGs Core Network (CN) and Terminals (T). Responsible for the development of the fixed (“wired”) network aspects of 3 GPP systems, including the Mobile Application Part (MAP) of ITU-T Signalling System No. 7, CAMEL and related Intelligent Network (IN) aspects and much more. http: //www. 3 gpp. org/rubrique 34 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 16

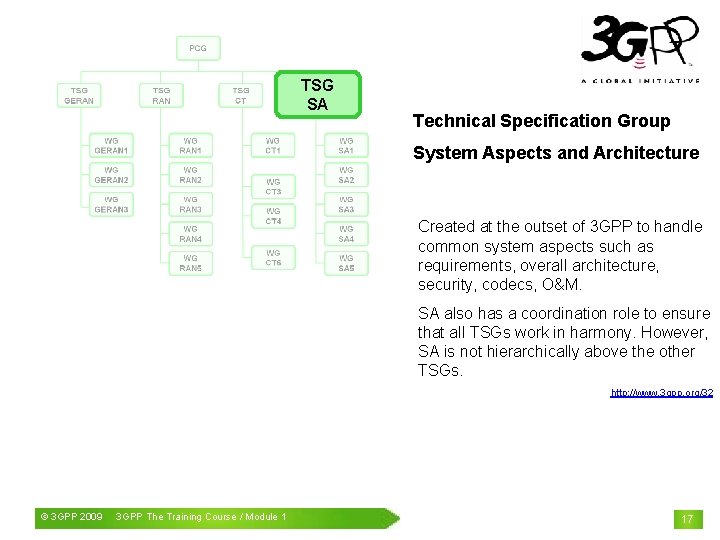

TSG SA Technical Specification Group System Aspects and Architecture Created at the outset of 3 GPP to handle common system aspects such as requirements, overall architecture, security, codecs, O&M. SA also has a coordination role to ensure that all TSGs work in harmony. However, SA is not hierarchically above the other TSGs. http: //www. 3 gpp. org/32 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 17

The Working Groups Each TSG has a number of subtending Working Groups, which are responsible for carrying out the detailed technical work and developing the publishable TSs and TRs. © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 18

GERAN Working Groups G 1 - Radio aspects G 2 - Protocols G 3 – Terminal testing © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 19

RAN Working Groups R 1 - Radio aspects R 2 - Protocols R 3 - O&M R 4 - Radio performance, parameterization, network testing R 5 - Terminal testing © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 20

CT Working Groups C 1 - Terminal to core network protocols C 3 - Interworking with external networks C 4 - Intra-core-network protocols C 6 - Smart-card applications (USIM) © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 21

SA Working Groups S 1 - Services S 2 - Architecture S 3 - Security S 4 - Codecs S 5 - Management © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 22

A bit of history … © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 23

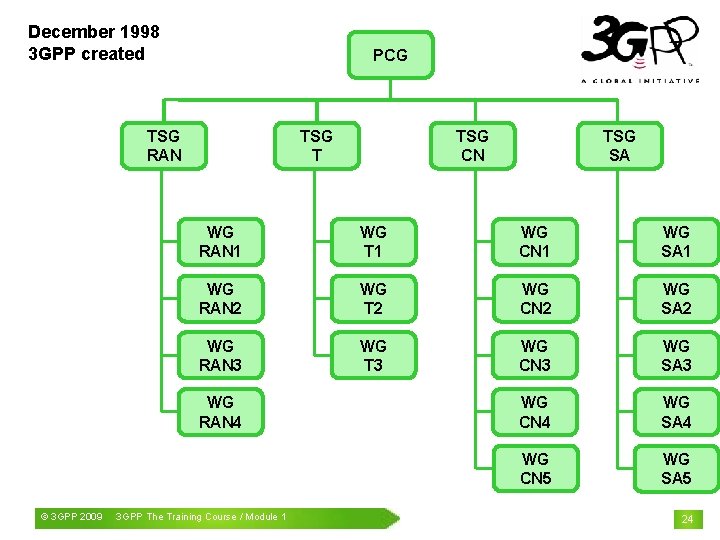

December 1998 3 GPP created PCG TSG RAN TSG T TSG SA WG RAN 1 WG T 1 WG CN 1 WG SA 1 WG RAN 2 WG T 2 WG CN 2 WG SA 2 WG RAN 3 WG T 3 WG CN 3 WG SA 3 WG CN 4 WG SA 4 WG CN 5 WG SA 5 WG RAN 4 © 3 GPP 2009 TSG CN Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 24

June 2000 GERAN created from remaining (non -regulatory) WGs of ETSI SMG TSG RAN TSG GERAN PCG TSG T TSG CN TSG SA WG GERAN 1 WG T 1 WG CN 1 WG SA 1 WG GERAN 2 WG T 2 WG CN 2 WG SA 2 WG GERAN 3 WG T 3 WG CN 3 WG SA 3 WG CN 4 WG SA 4 WG CN 5 WG SA 5 WG RAN 4 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 25

September 2000 GERAN WG 4 created TSG RAN TSG GERAN PCG TSG T TSG CN TSG SA WG GERAN 1 WG T 1 WG CN 1 WG SA 1 WG GERAN 2 WG T 2 WG CN 2 WG SA 2 WG GERAN 3 WG T 3 WG CN 3 WG SA 3 WG GERAN 4 WG CN 4 WG SA 4 WG CN 5 WG SA 5 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 26

October 2001 GERAN WG 5 created TSG RAN TSG GERAN PCG TSG T TSG CN TSG SA WG GERAN 1 WG T 1 WG CN 1 WG SA 1 WG GERAN 2 WG T 2 WG CN 2 WG SA 2 WG GERAN 3 WG T 3 WG CN 3 WG SA 3 WG GERAN 4 WG CN 4 WG SA 4 WG CN 5 WG SA 5 WG GERAN 5 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 27

June 2003 GERAN WGs 4 & 5 merged into WG 3 TSG RAN TSG GERAN PCG TSG T TSG CN TSG SA WG GERAN 1 WG T 1 WG CN 1 WG SA 1 WG GERAN 2 WG T 2 WG CN 2 WG SA 2 WG GERAN 3 WG T 3 WG CN 3 WG SA 3 WG GERAN 4 WG CN 4 WG SA 4 WG CN 5 WG SA 5 WG GERAN 5 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 G 3 new 28

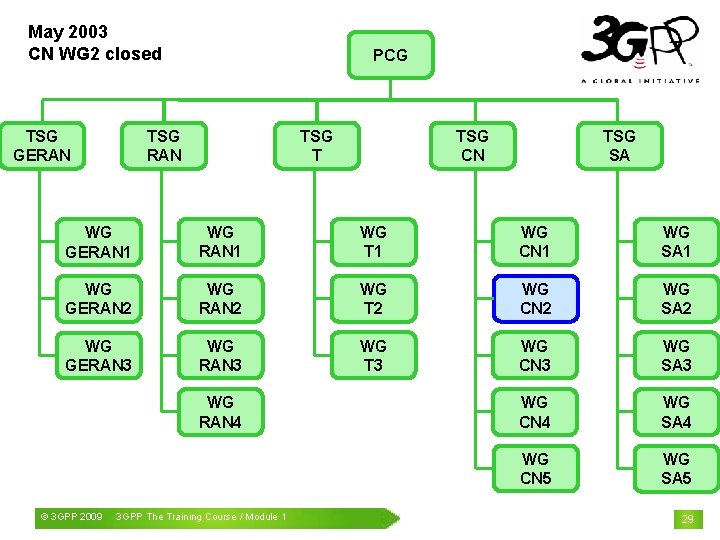

May 2003 CN WG 2 closed PCG TSG RAN TSG GERAN TSG T TSG CN TSG SA WG GERAN 1 WG T 1 WG CN 1 WG SA 1 WG GERAN 2 WG T 2 WG CN 2 WG SA 2 WG GERAN 3 WG T 3 WG CN 3 WG SA 3 WG CN 4 WG SA 4 WG CN 5 WG SA 5 WG RAN 4 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 29

March 2005 TSGs CN and T merge to create TSG CT … TSG RAN TSG GERAN PCG TSG T TSG CN TSG SA WG GERAN 1 WG T 1 WG CN 1 WG SA 1 WG GERAN 2 WG T 2 WG CN 2 WG SA 2 WG GERAN 3 WG T 3 WG CN 3 WG SA 3 WG CN 4 WG SA 4 WG CN 5 WG SA 5 WG RAN 4 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 30

March 2005 … and their WGs re-arranged … PCG TSG RAN TSG CT TSG GERAN TSG SA WG GERAN 1 WG T 1 WG CN 1 WG SA 1 WG GERAN 2 WG T 2 WG CN 2 WG SA 2 WG GERAN 3 WG T 3 WG CN 3 WG SA 3 WG RAN 4 WG CN 4 WG SA 4 WG RAN 5 WG CN 5 WG SA 5 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 31

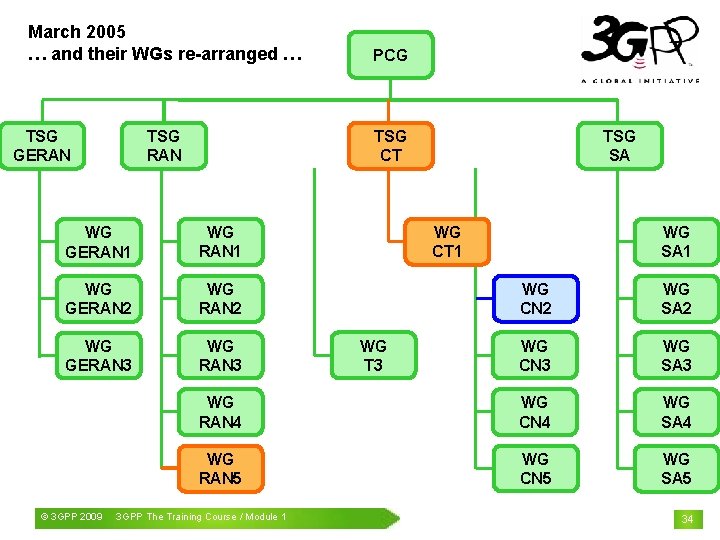

March 2005 … and their WGs re-arranged … PCG TSG RAN TSG CT TSG GERAN WG GERAN 1 WG GERAN 2 WG GERAN 3 WG RAN 3 © 3 GPP 2009 TSG SA WG CN 1 WG SA 1 WG T 2 WG CN 2 WG SA 2 WG T 3 WG CN 3 WG SA 3 WG RAN 4 WG CN 4 WG SA 4 WG RAN 5 WG CN 5 WG SA 5 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 32

March 2005 … and their WGs re-arranged … PCG TSG RAN TSG CT TSG GERAN WG GERAN 1 WG GERAN 2 WG GERAN 3 WG RAN 3 © 3 GPP 2009 TSG SA WG CT 1 WG CN 1 WG SA 1 WG CN 2 WG SA 2 WG CN 3 WG SA 3 WG RAN 4 WG CN 4 WG SA 4 WG RAN 5 WG CN 5 WG SA 5 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 WG T 3 33

March 2005 … and their WGs re-arranged … PCG TSG RAN TSG CT TSG GERAN WG GERAN 1 WG GERAN 2 WG GERAN 3 WG RAN 3 © 3 GPP 2009 TSG SA WG CT 1 WG SA 1 WG CN 2 WG SA 2 WG CN 3 WG SA 3 WG RAN 4 WG CN 4 WG SA 4 WG RAN 5 WG CN 5 WG SA 5 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 WG T 3 34

March 2005 … and their WGs re-arranged … PCG TSG RAN TSG CT TSG GERAN WG GERAN 1 WG GERAN 2 WG GERAN 3 WG RAN 3 © 3 GPP 2009 TSG SA WG CT 1 WG SA 2 WG CT 3 WG CN 3 WG SA 3 WG RAN 4 WG CT 4 WG CN 4 WG SA 4 WG RAN 5 WG CT 5 WG CN 5 WG SA 5 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 WG T 3 35

March 2005 … and their WGs re-arranged … PCG TSG RAN TSG CT TSG GERAN TSG SA WG CT 1 WG GERAN 2 WG GERAN 3 WG CT 3 WG SA 3 WG RAN 4 WG CT 4 WG SA 4 WG RAN 5 WG CT 5 WG SA 5 WG 36 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 WG SA 1 WG SA 2 WG

March 2005 … and their WGs re-arranged … PCG TSG RAN TSG CT TSG GERAN TSG SA WG CT 1 WG GERAN 2 WG GERAN 3 WG CT 3 WG SA 3 WG RAN 4 WG CT 4 WG SA 4 WG RAN 5 WG CT 5 WG SA 5 WG 37 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 WG SA 1 WG SA 2

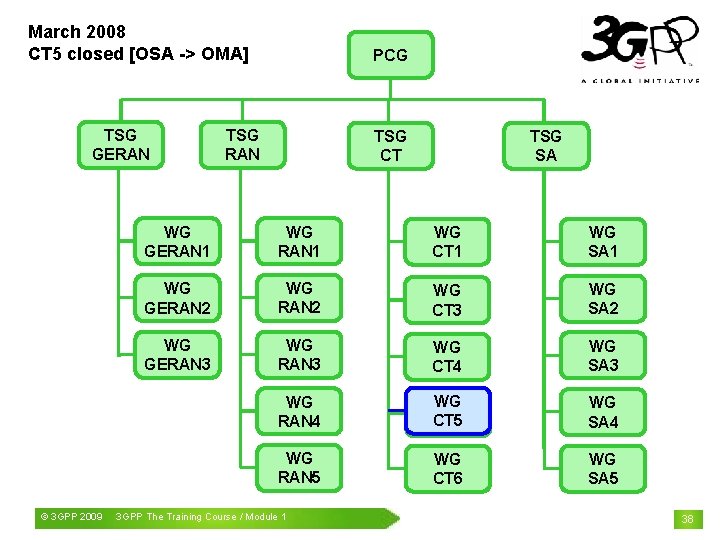

March 2008 CT 5 closed [OSA -> OMA] TSG GERAN © 3 GPP 2009 PCG TSG RAN TSG SA TSG CT WG GERAN 1 WG CT 1 WG SA 1 WG GERAN 2 WG CT 3 WG SA 2 WG GERAN 3 WG CT 4 WG SA 3 WG RAN 4 WG CT 5 WG SA 4 WG RAN 5 WG CT 6 WG SA 5 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 38

PCG TSG GERAN TSG CT WG GERAN 1 WG GERAN 2 WG GERAN 3 WG RAN 4 WG RAN 5 © 3 GPP 2009 Mobile. The 3 GPP World Training Congress, Course Barcelona, / Module 19 1 th February 2009 TSG SA WG CT 1 WG CT 3 WG CT 4 WG CT 6 WG SA 1 WG SA 2 WG SA 3 WG SA 4 WG SA 5 39
