Thailand Water Supply System Ian Burton Amanda Feeley
Thailand Water Supply System Ian Burton Amanda Feeley Jayme Lynch Advisor: Dr. Michael Horst
Introduction • Water supply system • Nong Pit, Thailand • Data Analysis • Design Options • • • Gravity Fed System Turbine/Pump Distribution System
Problem • During Dry Season, Inadequate Water Supply • February - April • 760 People, 216 Households • Water Source Location
Initial Data • Surveying data from assessment trip • Lengths of trails = 1881 meters • Change in elevations = 2. 51 meters • Cross sections of stream • Volume = 64. 56 m 3 • Factor of Safety of 0. 2
Calculations
Calculations • Cross Sectional Area • Determination of Flow at elevations
Stream Cross Section
0, 8 0, 7 0, 6 Elevation (m) 0, 5 0, 4 0, 3 0, 2 0, 1 0 0 2 4 6 8 AR 2/3 10 12 14 16
Calculations Elevation (m) Flow (m 3/s) 0 0. 04 0. 08 0. 2 0. 32 0. 68 0 0. 434559 1. 415444 10. 12553 26. 68081 76. 74351
Design Option: Gravity Fed System
Objective of Design • Fill Storage Tanks during 10 -12 Hour Period • Cheap and Desirable Solution

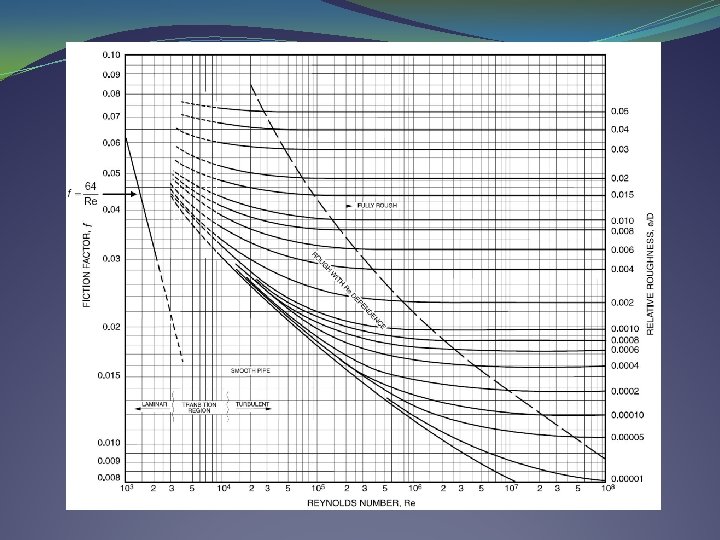

Calculations
Calculations
Calculations Time (hr) 2 6 12 15 Head (m) 573. 419 80. 537 21. 981 14. 462
Future Design • Elevation of Water Source and Storage Tanks • Final Pipe Specifications • Storage Tanks Specifications • Desired Concrete Tanks • • • Diameter = 1. 2 m Height = 1 m Volume = 1. 13 m 3 Volume = 5. 65 m 3 Total Tanks: 12
Design Option: Turbine/Pump
Advantages • Turbine: produce enough energy • Powers Pump Self Sustaining • Allows for no cost for villagers • Pump • Any tank location • Fill tanks faster
Calculations
Calculations Time (hr) 6 8 10 11 12 14 15 Flow (m 3/s) 0. 00299 0. 00224 0. 00179 0. 00163 0. 00149 0. 00128 0. 00120 Energy (m) 78. 027 44. 869 28. 551 23. 405 19. 471 13. 903 11. 952
System Head Curve 300, 00 250, 00 Energy (ft) 200, 00 150, 00 100, 00 50, 00 10 15 20 25 30 Flow (gpm) 35 40 45 50
Future Design • Centrifugal Pumps • Different Horsepower • Pump Head Curves (PHC) • Compare SHC and PHC • Find operating point • • Flow: time to fill tanks Energy: amount added
Future Design • Turbine • Determine energy generated using waterfall • Choose Pump • Turbine energy • Energy needed to power pump • Energy added to the system time to fill tanks
Design Option: Distribution System
Specifications • Water. Sense Lavatory Faucet Based on EPA product industry and ASME • Maximum • • 0. 000095 m 3/s 0. 0853 kg/m 2 Minimum • • 0. 00005 m 3/s 0. 02844 kg/m 2
Future Design
Future Design • Types of Systems • Looped System • • • Lower Velocity, lower Head Loss, greater Capacity More costly Branched System • • Faster Velocity, greater Head Loss, reduced Capacity Lower costs
Future Design • Layout of Village • Assumed • Rough sketch from Thailand • Pipe Sizes • Each outlet meets flow and pressure requirements • Systems must have internally consistent distribution of flows • Flow entering must equal flow exiting
Budget • Fundraising • SBA: $600 • Applebees: $200 • T-Shirt: $400 • Flower Sale: $1, 000+ • Estimated Spending • Pipes • Tanks • Turbine/Pump • Travel
Timeline
Conclusion • Village with Insufficient Water Supply • Analyzed Data for 3 Designs Gravity Fed System • Turbine/Pump • Distribution to Village • • Proposed Implementation Summer 2012
Questions/Comments
