tglied der Helmholtz-Gemeinschaft Capabilities of Central Institute of Technology (ZAT): Examples Dr. Helmut Soltner Workshop EDM Searches at Storage Rings – European Center for Theoretical Studies in Nuclear Physics and Related Areas October 1 -5 - Trento Georgian-German Workshop on Basic Science Tbilisi, 6 th-10 th August 2012 Central Institute of Technology - ZAT Technology for World-Class Research slide 1 Jörg Wolters, Ghaleb Natour

Forschungszentrum Jülich Gmb. H We work towards comprehensive solutions for the grand challenges facing society in the future in the fields of health, energy and environment, and information technology, thus laying the foundation for future key technologies. Workshop EDM Searches at Storage Rings Trento, October 1 -5 Central Institute of Technology - ZAT Technology for World-Class Research slide 2 Jörg Wolters, Ghaleb Natour

Forschungszentrum Jülich Gmb. H Facts and Figures: about 50 institutes total personnel: about 4, 700 scientists: ~1, 700, technical personnel: ~1, 700 One of the institutes: ZAT = Zentralinstitut für Technologie (Central Institute of Technology) employees: 150 Workshop EDM Searches at Storage Rings Trento, October 1 -5 Central Institute of Technology - ZAT Technology for World-Class Research slide 3 Jörg Wolters, Ghaleb Natour

Central Institute of Technology - ZAT who we are – ZAT mission ZAT is a science and technology institute, which supports the research institutes of the research center in Jülich For the institutes and externals we design, develop and build scientific equipment and experiments not available on the market We maintain and modify the setups, deliver technology consultancy and perform feasibility studies We build competences in new areas und adjust permanently our capabilities to the needs of our partners Workshop EDM Searches at Storage Rings Trento, October 1 -5 Central Institute of Technology - ZAT Technology for World-Class Research slide 4 Jörg Wolters, Ghaleb Natour

Central Institute of Technology - ZAT who we are – ZAT competences engineering und new technologies project management (15 engineers) engineering design, numerical simulations and design calculations feasibility studies & experiments, physical measurements automation and control techniques joining technologies & materials research magnetic bearing and drive systems manufacturing technologies & assembly welding technologies high-precision machining and assembling, machine manufacturing rapid prototyping glass, plastics and ceramics machining surface treatment techniques inspection and approval procedures, e. g. : TÜV certification for pressure vessels certifications for welding technologies Workshop EDM Searches at Storage Rings Trento, October 1 -5 Central Institute of Technology - ZAT Technology for World-Class Research slide 5 Jörg Wolters, Ghaleb Natour

Projects at Central Institute of Technology Hadron Physics (IKP: Institute for Nuclear Physics) Accelerator and accelerator components Detector systems for proton– and antiproton beams Neutron Science (JCNS: Jülich Center for Neutron Science) Instruments for advanced Neutron sources Choppers for Neutron scattering (magnetic bearing) European Spallation Source ESS Energy (Institutes for Energy and Climate Research) Instruments for Nuclear Fusion Research Projects for photovoltaics, full cells Environment (Institutes for Energy and Climate Research) Setups for measurement of trace gases in the atmosphere Bio-Geo Science (IBG 3: Institute for Bio- und Geo Science) Equipment for plant and soil investigations Medicine (Institutes for Neuroscience and Medicine) Workshop EDM Searches at Storage Rings Trento, October 1 -5 Work for MRT- und PET- set ups Equipment for production of radio nuclides Central Institute of Technology - ZAT Technology for World-Class Research slide 6 Jörg Wolters, Ghaleb Natour

High-Field Magnets for HESR at http: //www. fz-juelich. de/ikp/DE/Home/home_node. html 28/09/12 Technology for Excellent Science Folie 7

High-Field Magnets for HESR Circumference 575 m 28/09/12 Technology for Excellent Science Folie 8

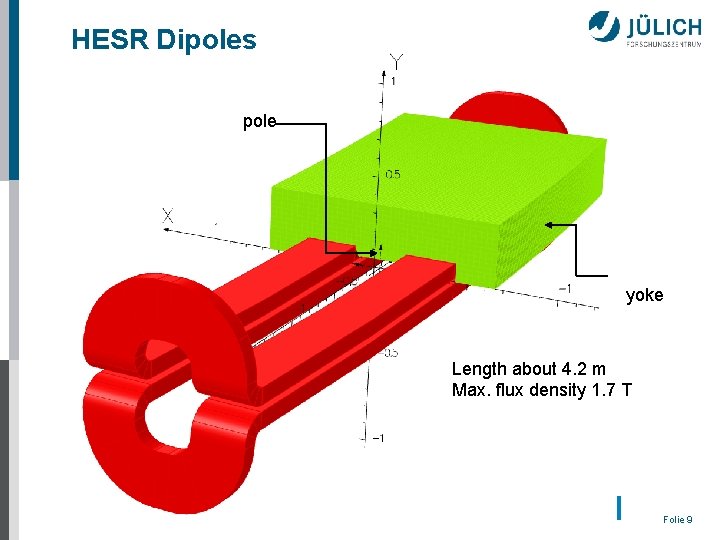

HESR Dipoles Dipole yoke Length about 4. 2 m Max. flux density 1. 7 T 28/09/12 Technology for Excellent Science Folie 9

HESR Quadrupoles bore Length 0. 6 m Gradient 25 T/m shim 1/8 model of quadrupole 28/09/12 Technology for Excellent Science magnet detail Folie 10

HESR Sextupoles Length 0. 3 m Field 45 T/m 2 1/12 model of sextupole 28/09/12 Technology for Excellent Science Folie 11

PAX@COSY PAX – Polarised Antiproton Experiments alignment of concrete elements engineering, design and manufacturing of PAX target chamber support for target chamber, ABS (atomic beam source) and BRP (Breit. Rabi polarimeter) engineering, design and manufacturing of the weak field and compensation coils NEG-pump system with 10 NEGpumps and heat protection jalousie supports for magnets linear guided assembling system design and installation of the entire heating system : Workshop EDM Searches at Storage Rings, Trento, October 1 -5, 2012 Technology for World-Class Research Helmut Soltner in collaboration with: Institut für Kernphysik (IKP)

Electron cooler at COSY Test setup at Budker Institute 28/09/12 Technology for Excellent Science Folie 13

Stochastic Cooling for HESR Pick-up Tank 28/09/12 Test cavity Technology for Excellent Science Folie 14

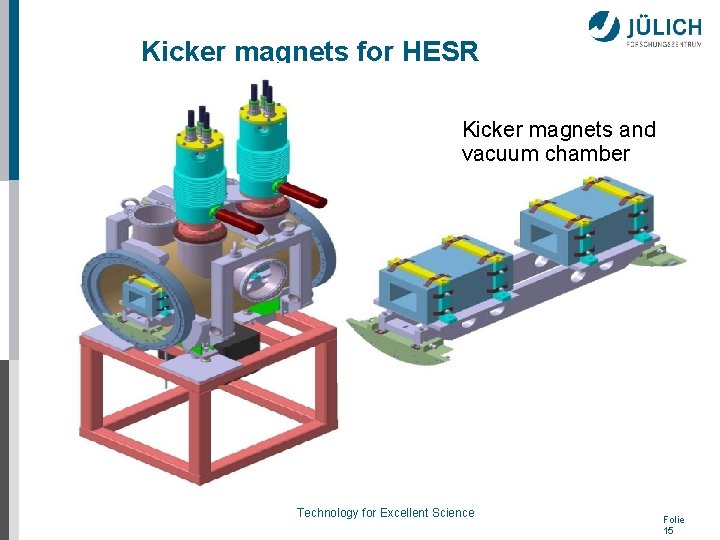

Kicker magnets for HESR Kicker magnets and vacuum chamber Pick-up Tank 28/09/12 Technology for Excellent Science Folie 15

ATRAP- Experiment for Trapping Antihydrogen at CERN http: //gabrielse. physics. harvard. edu/ quadrupole Blow up of components of antihydrogen trap 28/09/12 Technology for Excellent Science Folie 16

Neutron focussing by cooled Mg. F 2 lenses cryoco oler 28/09/12 Technology for Excellent Science Folie 17

TOPAS Thermal Time-of-Flight with Polarization Analysis Spectrometer The scientific scope of the instrument includes the determination of coherent and localized excitations in novel materials. 28/09/12 Technology for Excellent Science Folie 18

Magnets for neutron scattering Neutron spin echo spectrometer (NSE) at SNS, Oak Ridge 28/09/12 Technology for Excellent Science Folie 19

Correction coils for neutron scattering Pythagoras coil for correction of solenoid field. 28/09/12 Technology for Excellent Science Folie 20

Medical application Combined Split Gradient coil for MRI /PET d. Bz/dx gradient coil cancellation Design by M. Poole, INM 28/09/12 Technology for Excellent Science Folie 21

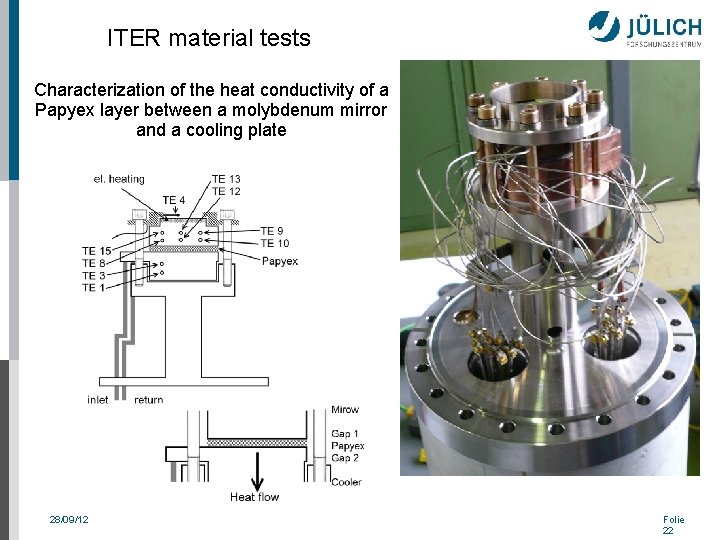

ITER material tests Characterization of the heat conductivity of a Papyex layer between a molybdenum mirror and a cooling plate 28/09/12 Folie 22

Thermal stress tests of mirrors, to be installed at the front part of the ITER CXRSdiagnostic “port plug” Experimental setup at ZAT ITER CXRS-diagnostic 28/09/12 Folie 23

Inlet System for HALO = high altitude and long range research aircraft Inlet system for LIF device (measuring radicals) principle set-up outer deceleration tube inner deceleration tube air with free radicals restrictor nozzle shroud vacuum tube pylon UV-device viewport cap LIF laser-induced fluorescence Workshop EDM Searches at Storage Rings Trento, October 1 -5 Central Institute of Technology - ZAT Technology for World-Class Research slide 25 Jörg Wolters, Ghaleb Natour

Inlet System for HALO The ‘Bird strike’ load case is a critical design issue for the inlet system The inlet system must be robust enough to avoid impact of broken-off parts into the engines or the tail assembly But if the inlet system is too stiff and totally ‘captures’ a bird (this would be the case if the restrictor is fixed to the inlet tubes) the aircraft shell can be seriously damaged Workshop EDM Searches at Storage Rings Trento, October 1 -5 Central Institute of Technology - ZAT Technology for World-Class Research slide 26 Jörg Wolters, Ghaleb Natour

Inlet System for HALO bird strike simulation Workshop EDM Searches at Storage Rings Trento, October 1 -5 Central Institute of Technology - ZAT Technology for World-Class Research slide 27 Jörg Wolters, Ghaleb Natour

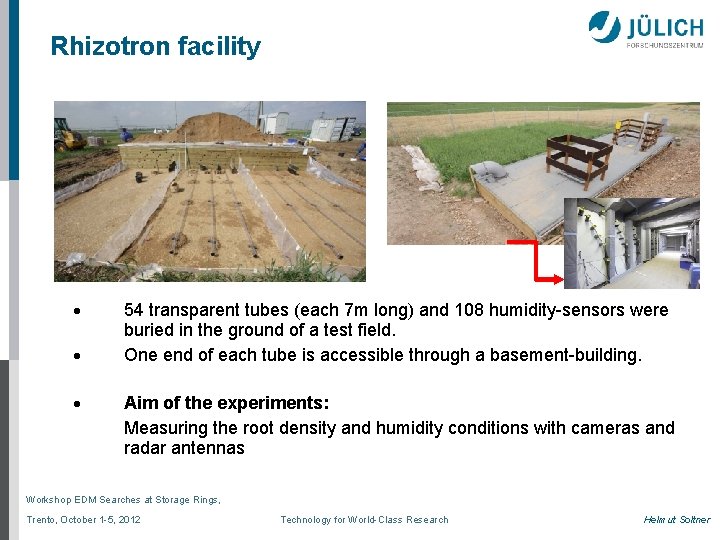

Rhizotron facility 54 transparent tubes (each 7 m long) and 108 humidity-sensors were buried in the ground of a test field. One end of each tube is accessible through a basement-building. Aim of the experiments: Measuring the root density and humidity conditions with cameras and radar antennas Workshop EDM Searches at Storage Rings, Trento, October 1 -5, 2012 Technology for World-Class Research Helmut Soltner

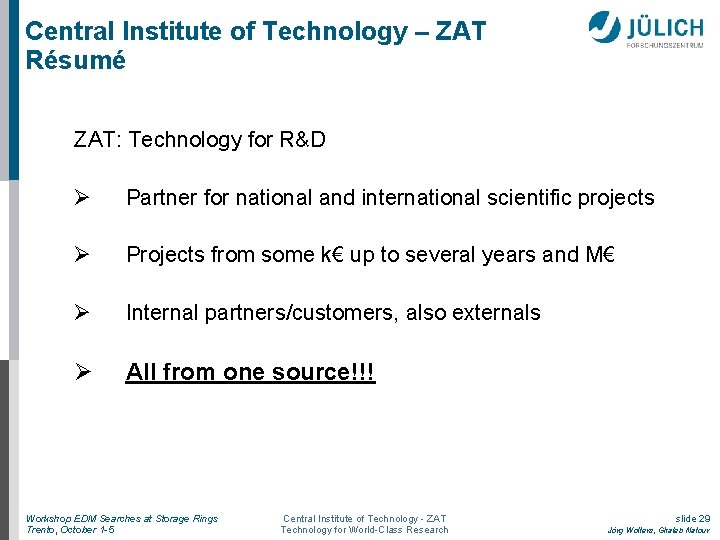

Central Institute of Technology – ZAT Résumé ZAT: Technology for R&D Partner for national and international scientific projects Projects from some k€ up to several years and M€ Internal partners/customers, also externals All from one source!!! Workshop EDM Searches at Storage Rings Trento, October 1 -5 Central Institute of Technology - ZAT Technology for World-Class Research slide 29 Jörg Wolters, Ghaleb Natour
