TGL Series TGL Series TGL15 68OPT chuck TGL20

TGL Series

TGL Series TGL-15 6”/8”(OPT. ) chuck TGL-20 8” chuck TGL-30 12”/10”(OPT. ) chuck

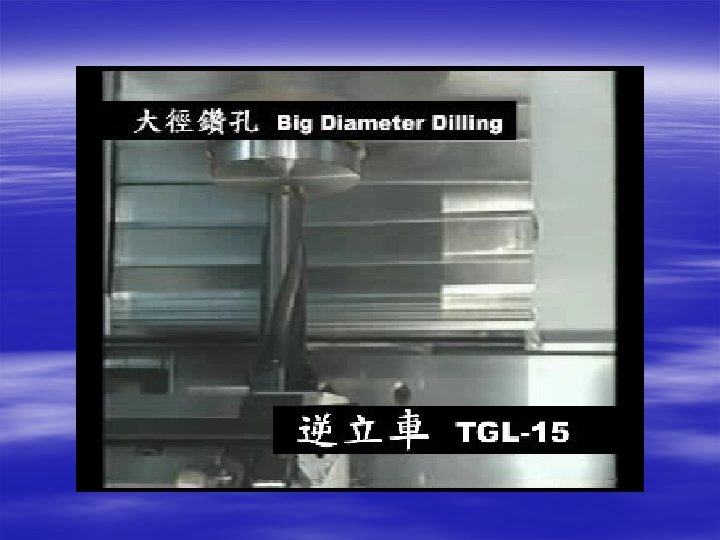

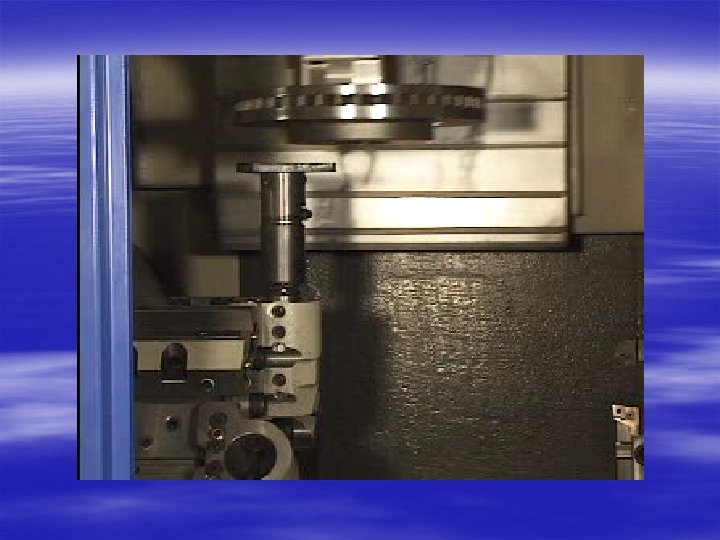

TGL Series Can install various applications for each processing on the right side. Ex: Gang tools Grinding spindle

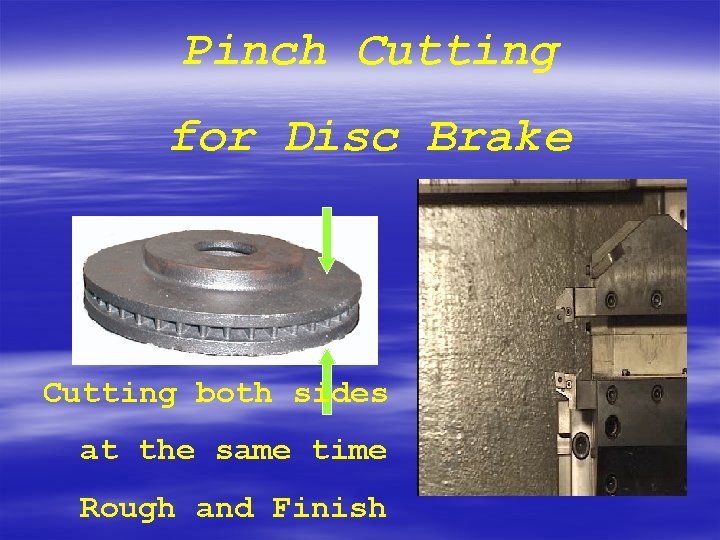

Pinch Cutting for Disc Brake Cutting both sides at the same time Rough and Finish

X-axis Z-axis B-axis Width of cut 0. 4”~1. 5” Rapid traverse 197 ipm

Pinch Cutting

Surface Roughness

NC Controlled Pinch Cutter • Can apply to various size flexibly • Easy correction by tool offset • High reliability • Rough / Finish Shuttling is possible

TGL series work feeder Quick Automation User-friendly Complete machining in one set-up

TGL Specification Item Unit TGL-15 TGL-20 TGL-30 Chuck Size inch 6”/8”(OPT. ) 8” 10”/12” Max. Swing Dia. mm Φ 300 Φ 450 Φ 650 Max. Machining Weight Kg 6 20 70 Spindle speed rpm 6000 4500 3500 Spindle Motor kw 7. 5/5. 5 18. 5/11 30/22 X-Axis cutting travel mm 170+490 190+1120 290+1670 Z-Axis cutting travel mm 295 370 600 X/Y Axis Rapid traverse m/min 30 30 30

TGL Sales Feature § Inverted Spindle self-loading workpiece as a robot § Build-in Spindle: good quality of surface roughness § NC turret § Automation : Stand alone or Multi - connection § High cost performance § Perfect chip disposal

Thank you for your attention. We hope you have enjoyed our Invert Vertical Lathe TGL Series Presentation
