TGFb Superfamily Conserved ligands cellsurface receptors and signaling

TGF-b Superfamily Conserved ligands, cell-surface receptors and signaling co-receptors from C. elegans to humans 3 subfamilies: TGF-b, activin/inhibin/nodal, BMP Ligands are both homodimers or heterodimers with a set of 7 cysteines: 3 intrasubunit disulfide bonds + 1 intersubunit bond Two types cell surface receptors: serine-threonine kinases= type I and type II Receptors All type I receptors have a TTSGSGSG motif, called the GS domain 4 mammalian type II receptors: constitutively active 7 type I receptors= activin receptor like kinases 1 -7 (ALK 1 -7) A TGF ligand signals by binding to and bringing together type I and type II receptors to form a ternary holo-complex. The assembly dynamic differs between ligands In the holo-complex, constitutively active type II kinase transphorylates the GS domain of type I, which then phosphorylates Smads 8 Smads, with 3 functional classes: receptor regulated Smads=R-Smad (1, 5, 8//2, 3), co-mediator Smad= co-Smad (4), inhibitory Smad=I-Smad(6, 7)

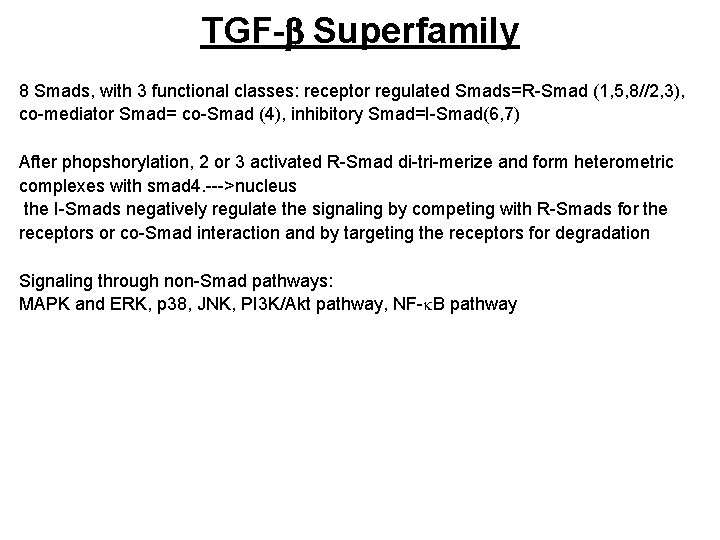

TGF-b Superfamily 8 Smads, with 3 functional classes: receptor regulated Smads=R-Smad (1, 5, 8//2, 3), co-mediator Smad= co-Smad (4), inhibitory Smad=I-Smad(6, 7) After phopshorylation, 2 or 3 activated R-Smad di-tri-merize and form heterometric complexes with smad 4. --->nucleus the I-Smads negatively regulate the signaling by competing with R-Smads for the receptors or co-Smad interaction and by targeting the receptors for degradation Signaling through non-Smad pathways: MAPK and ERK, p 38, JNK, PI 3 K/Akt pathway, NF-k. B pathway

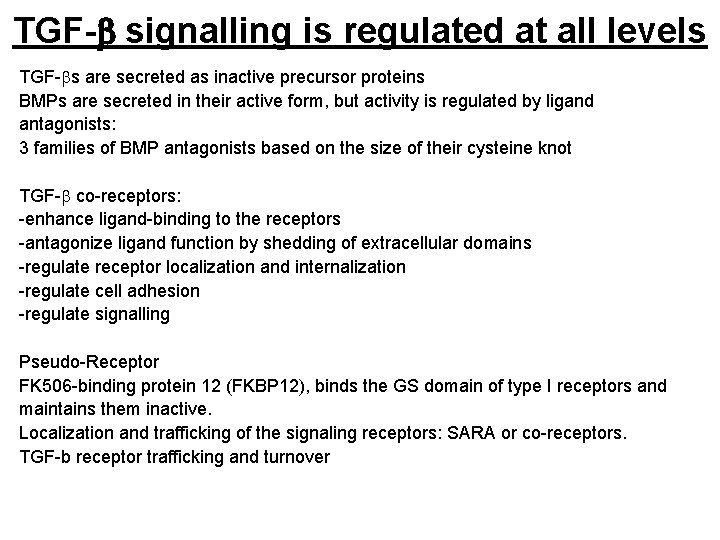

TGF-b signalling is regulated at all levels TGF-bs are secreted as inactive precursor proteins BMPs are secreted in their active form, but activity is regulated by ligand antagonists: 3 families of BMP antagonists based on the size of their cysteine knot TGF-b co-receptors: -enhance ligand-binding to the receptors -antagonize ligand function by shedding of extracellular domains -regulate receptor localization and internalization -regulate cell adhesion -regulate signalling Pseudo-Receptor FK 506 -binding protein 12 (FKBP 12), binds the GS domain of type I receptors and maintains them inactive. Localization and trafficking of the signaling receptors: SARA or co-receptors. TGF-b receptor trafficking and turnover

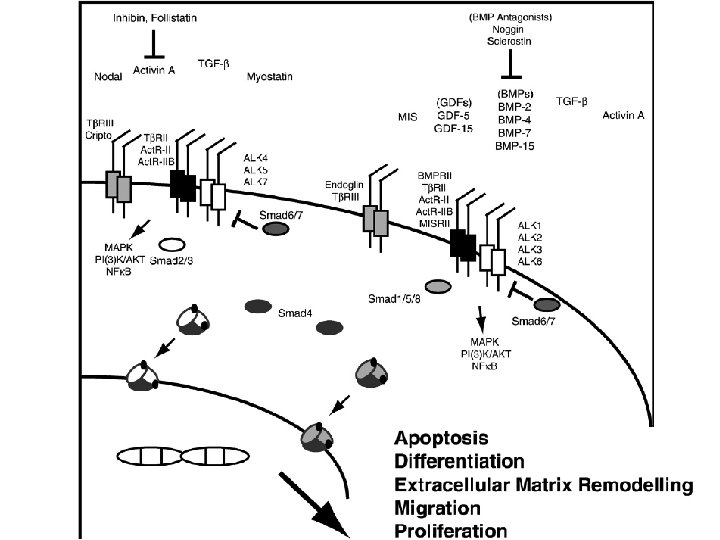

TGF-b Superfamily

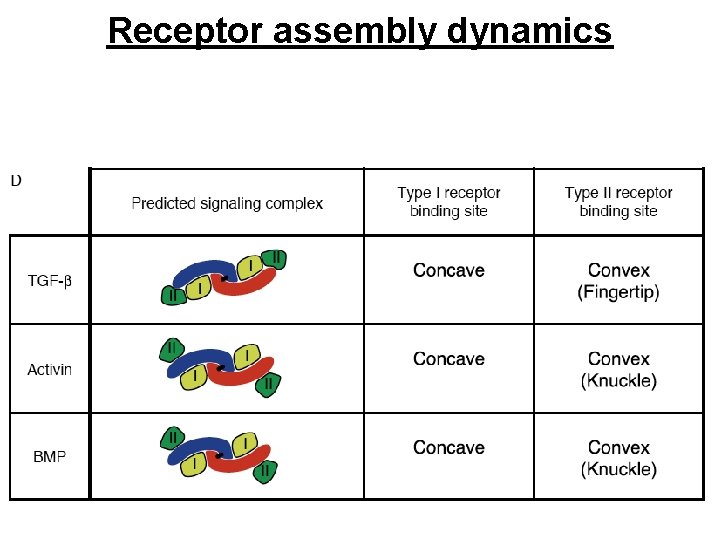

Receptor assembly dynamics

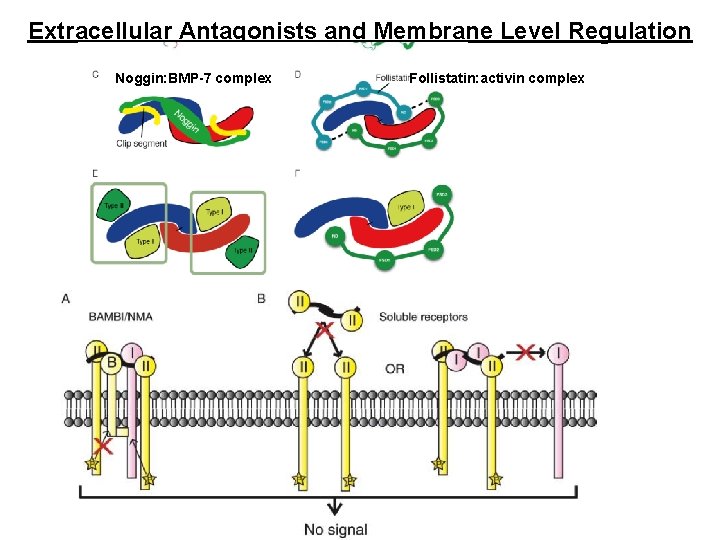

Extracellular Antagonists and Membrane Level Regulation Noggin: BMP-7 complex Follistatin: activin complex

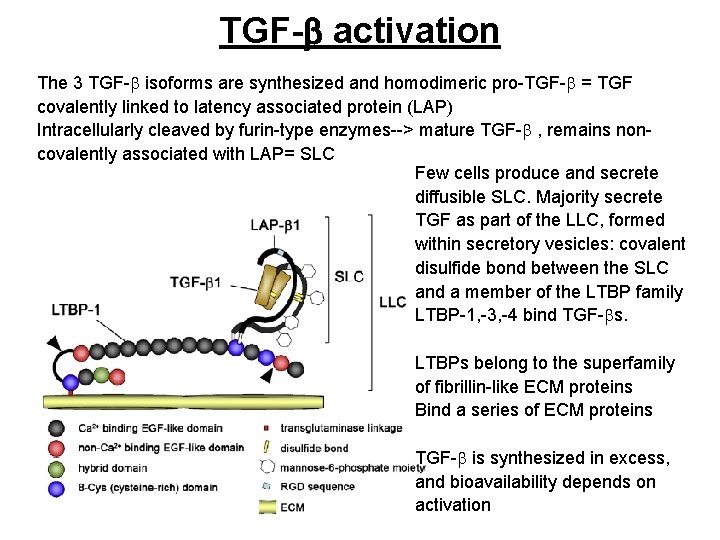

TGF-b activation The 3 TGF-b isoforms are synthesized and homodimeric pro-TGF-b = TGF covalently linked to latency associated protein (LAP) Intracellularly cleaved by furin-type enzymes--> mature TGF-b , remains noncovalently associated with LAP= SLC Few cells produce and secrete diffusible SLC. Majority secrete TGF as part of the LLC, formed within secretory vesicles: covalent disulfide bond between the SLC and a member of the LTBP family LTBP-1, -3, -4 bind TGF-bs. LTBPs belong to the superfamily of fibrillin-like ECM proteins Bind a series of ECM proteins TGF-b is synthesized in excess, and bioavailability depends on activation

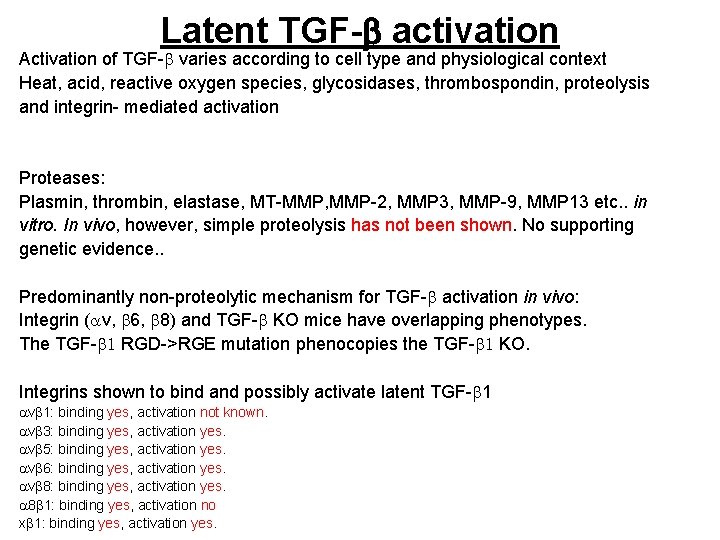

Latent TGF-b activation Activation of TGF-b varies according to cell type and physiological context Heat, acid, reactive oxygen species, glycosidases, thrombospondin, proteolysis and integrin- mediated activation Proteases: Plasmin, thrombin, elastase, MT-MMP, MMP-2, MMP 3, MMP-9, MMP 13 etc. . in vitro. In vivo, however, simple proteolysis has not been shown. No supporting genetic evidence. . Predominantly non-proteolytic mechanism for TGF-b activation in vivo: Integrin (av, b 6, b 8) and TGF-b KO mice have overlapping phenotypes. The TGF-b 1 RGD->RGE mutation phenocopies the TGF-b 1 KO. Integrins shown to bind and possibly activate latent TGF-b 1 avb 1: binding yes, activation not known. avb 3: binding yes, activation yes. avb 5: binding yes, activation yes. avb 6: binding yes, activation yes. avb 8: binding yes, activation yes. a 8 b 1: binding yes, activation no xb 1: binding yes, activation yes.

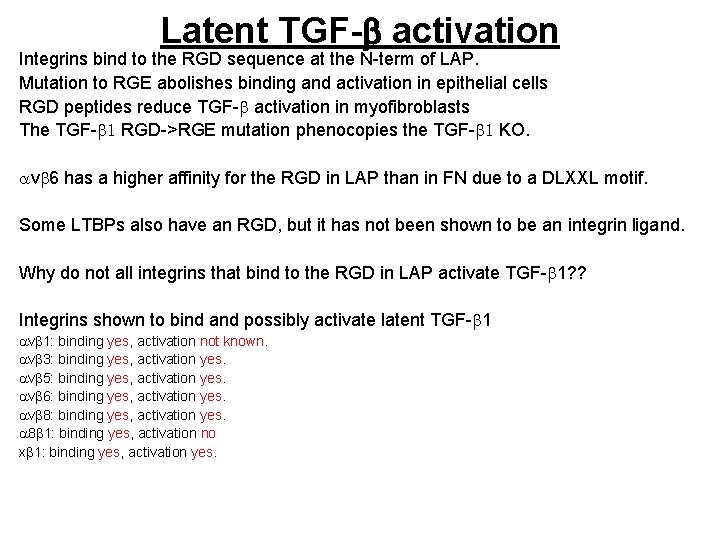

Latent TGF-b activation Integrins bind to the RGD sequence at the N-term of LAP. Mutation to RGE abolishes binding and activation in epithelial cells RGD peptides reduce TGF-b activation in myofibroblasts The TGF-b 1 RGD->RGE mutation phenocopies the TGF-b 1 KO. avb 6 has a higher affinity for the RGD in LAP than in FN due to a DLXXL motif. Some LTBPs also have an RGD, but it has not been shown to be an integrin ligand. Why do not all integrins that bind to the RGD in LAP activate TGF-b 1? ? Integrins shown to bind and possibly activate latent TGF-b 1 avb 1: binding yes, activation not known. avb 3: binding yes, activation yes. avb 5: binding yes, activation yes. avb 6: binding yes, activation yes. avb 8: binding yes, activation yes. a 8 b 1: binding yes, activation no xb 1: binding yes, activation yes.

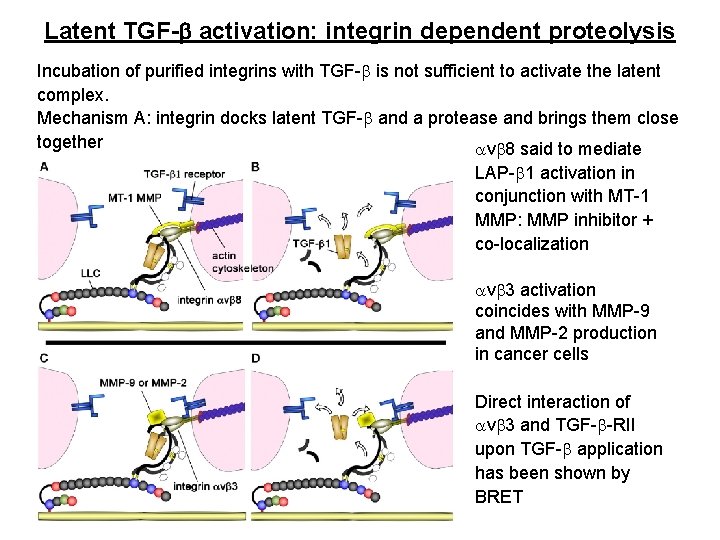

Latent TGF-b activation: integrin dependent proteolysis Incubation of purified integrins with TGF-b is not sufficient to activate the latent complex. Mechanism A: integrin docks latent TGF-b and a protease and brings them close together avb 8 said to mediate LAP-b 1 activation in conjunction with MT-1 MMP: MMP inhibitor + co-localization avb 3 activation coincides with MMP-9 and MMP-2 production in cancer cells Direct interaction of avb 3 and TGF-b-RII upon TGF-b application has been shown by BRET

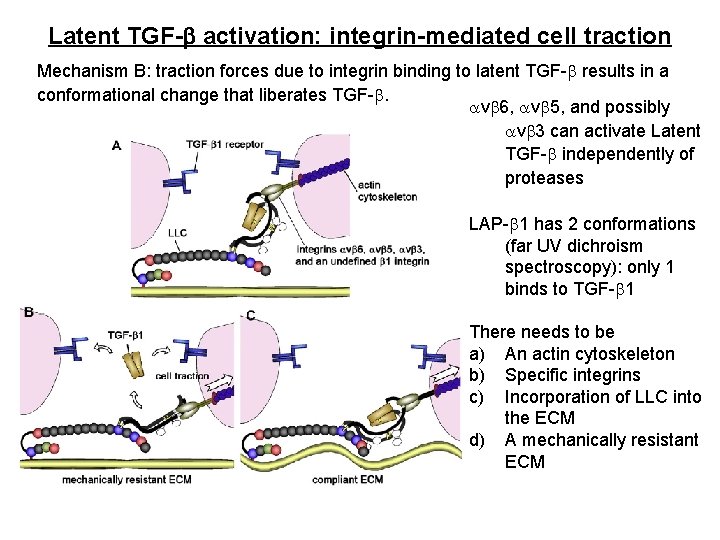

Latent TGF-b activation: integrin-mediated cell traction Mechanism B: traction forces due to integrin binding to latent TGF-b results in a conformational change that liberates TGF-b. avb 6, avb 5, and possibly avb 3 can activate Latent TGF-b independently of proteases LAP-b 1 has 2 conformations (far UV dichroism spectroscopy): only 1 binds to TGF-b 1 There needs to be a) An actin cytoskeleton b) Specific integrins c) Incorporation of LLC into the ECM d) A mechanically resistant ECM

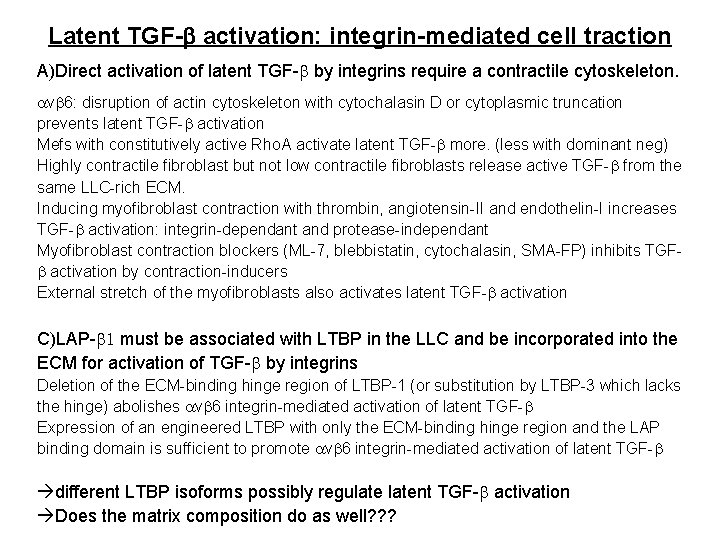

Latent TGF-b activation: integrin-mediated cell traction A)Direct activation of latent TGF-b by integrins require a contractile cytoskeleton. avb 6: disruption of actin cytoskeleton with cytochalasin D or cytoplasmic truncation prevents latent TGF-b activation Mefs with constitutively active Rho. A activate latent TGF-b more. (less with dominant neg) Highly contractile fibroblast but not low contractile fibroblasts release active TGF-b from the same LLC-rich ECM. Inducing myofibroblast contraction with thrombin, angiotensin-II and endothelin-I increases TGF-b activation: integrin-dependant and protease-independant Myofibroblast contraction blockers (ML-7, blebbistatin, cytochalasin, SMA-FP) inhibits TGFb activation by contraction-inducers External stretch of the myofibroblasts also activates latent TGF-b activation C)LAP-b 1 must be associated with LTBP in the LLC and be incorporated into the ECM for activation of TGF-b by integrins Deletion of the ECM-binding hinge region of LTBP-1 (or substitution by LTBP-3 which lacks the hinge) abolishes avb 6 integrin-mediated activation of latent TGF-b Expression of an engineered LTBP with only the ECM-binding hinge region and the LAP binding domain is sufficient to promote avb 6 integrin-mediated activation of latent TGF-b àdifferent LTBP isoforms possibly regulatent TGF-b activation àDoes the matrix composition do as well? ? ?

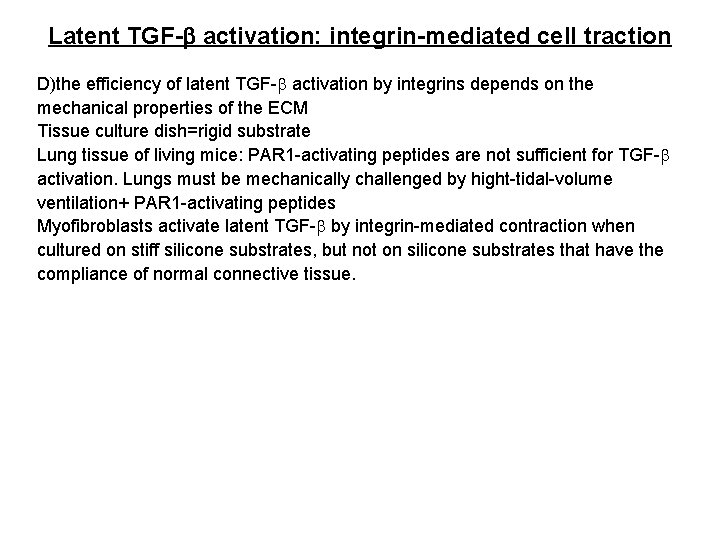

Latent TGF-b activation: integrin-mediated cell traction D)the efficiency of latent TGF-b activation by integrins depends on the mechanical properties of the ECM Tissue culture dish=rigid substrate Lung tissue of living mice: PAR 1 -activating peptides are not sufficient for TGF-b activation. Lungs must be mechanically challenged by hight-tidal-volume ventilation+ PAR 1 -activating peptides Myofibroblasts activate latent TGF-b by integrin-mediated contraction when cultured on stiff silicone substrates, but not on silicone substrates that have the compliance of normal connective tissue.

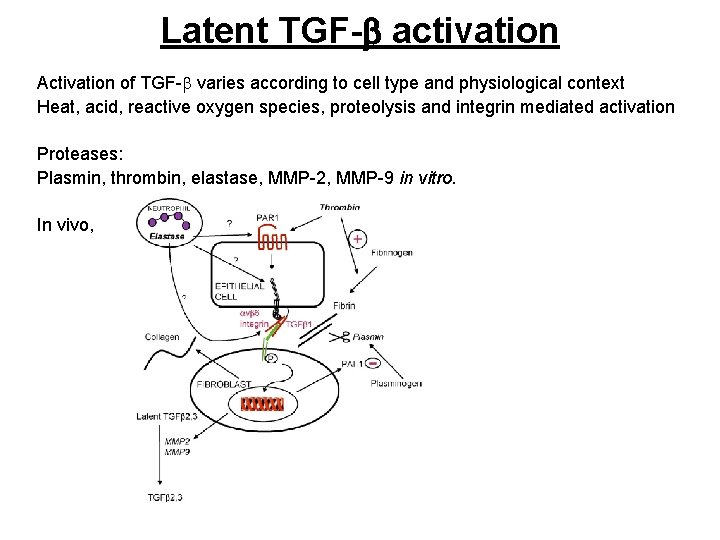

Latent TGF-b activation Activation of TGF-b varies according to cell type and physiological context Heat, acid, reactive oxygen species, proteolysis and integrin mediated activation Proteases: Plasmin, thrombin, elastase, MMP-2, MMP-9 in vitro. In vivo,

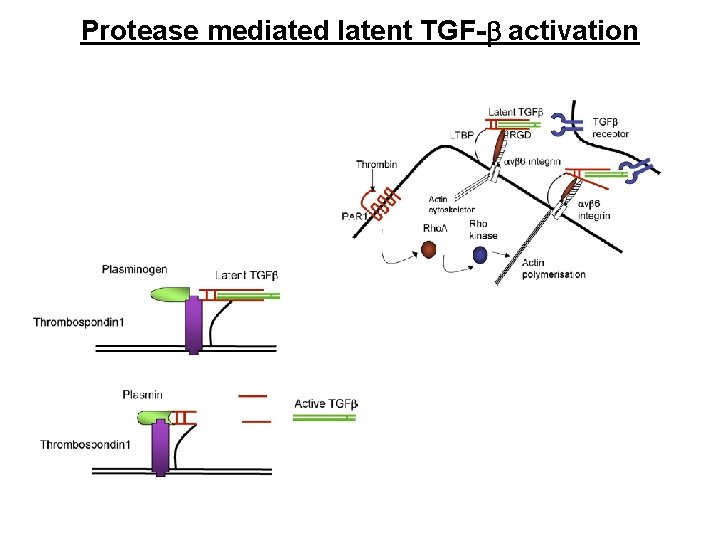

Protease mediated latent TGF-b activation

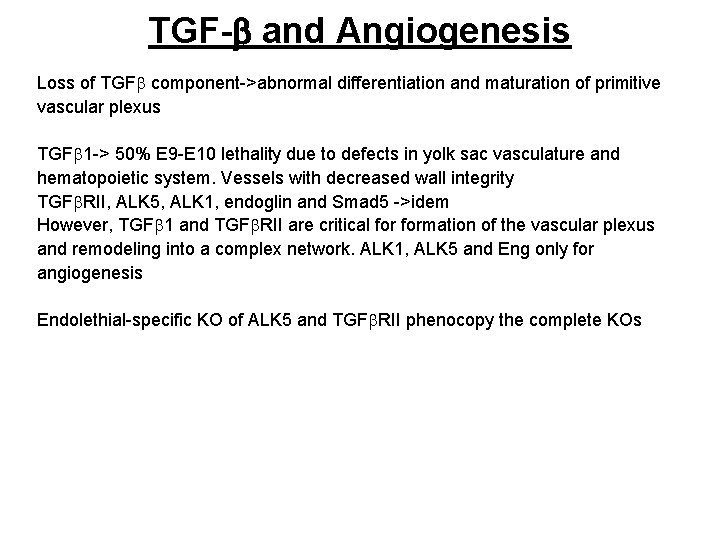

TGF-b and Angiogenesis Loss of TGFb component->abnormal differentiation and maturation of primitive vascular plexus TGFb 1 -> 50% E 9 -E 10 lethality due to defects in yolk sac vasculature and hematopoietic system. Vessels with decreased wall integrity TGFb. RII, ALK 5, ALK 1, endoglin and Smad 5 ->idem However, TGFb 1 and TGFb. RII are critical formation of the vascular plexus and remodeling into a complex network. ALK 1, ALK 5 and Eng only for angiogenesis Endolethial-specific KO of ALK 5 and TGFb. RII phenocopy the complete KOs

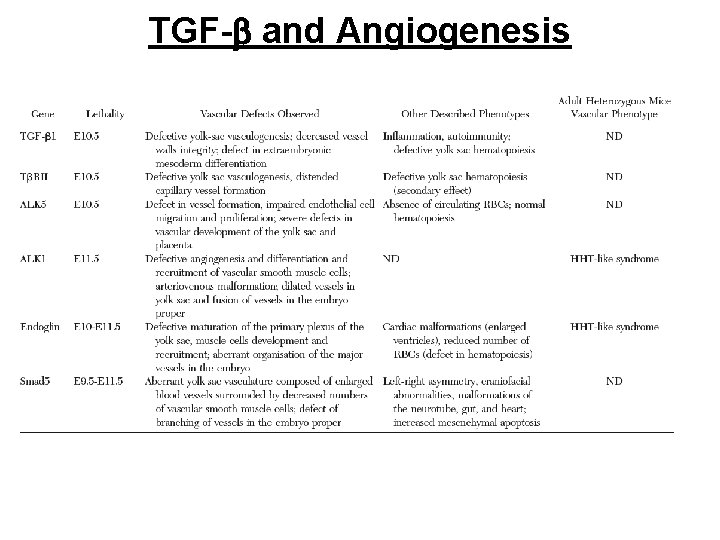

TGF-b and Angiogenesis

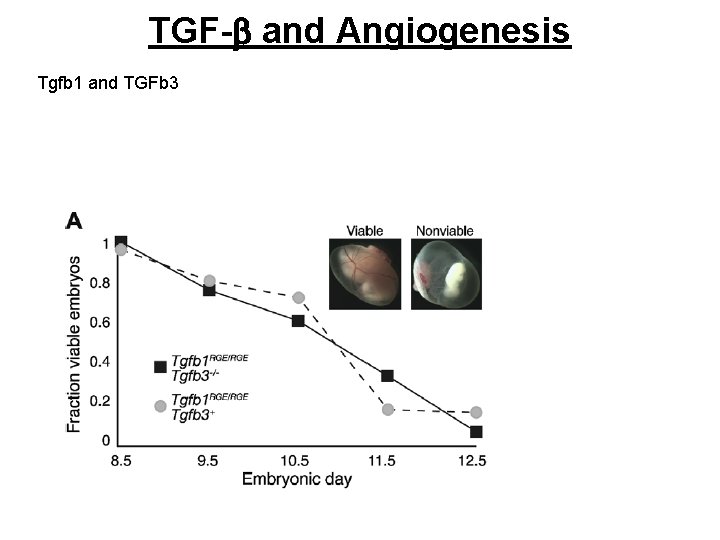

TGF-b and Angiogenesis Tgfb 1 and TGFb 3

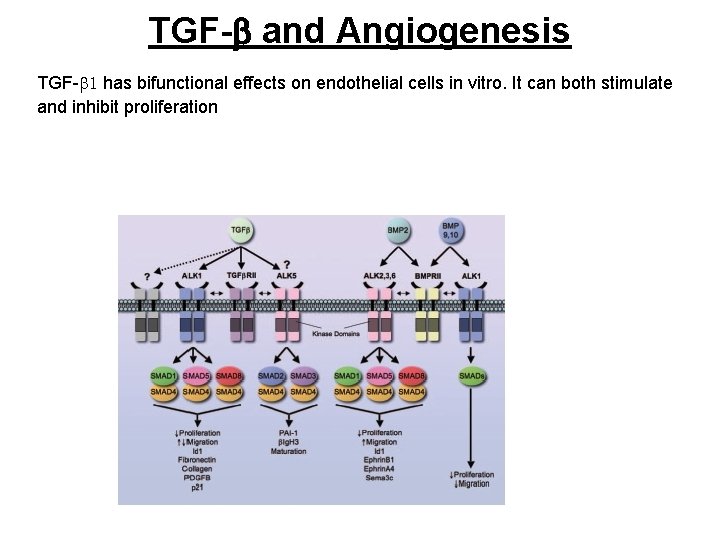

TGF-b and Angiogenesis TGF-b 1 has bifunctional effects on endothelial cells in vitro. It can both stimulate and inhibit proliferation

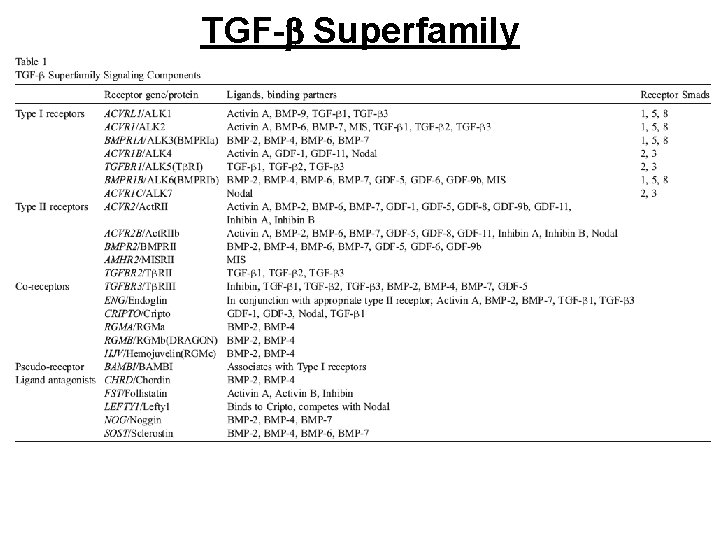

TGF-b Superfamily

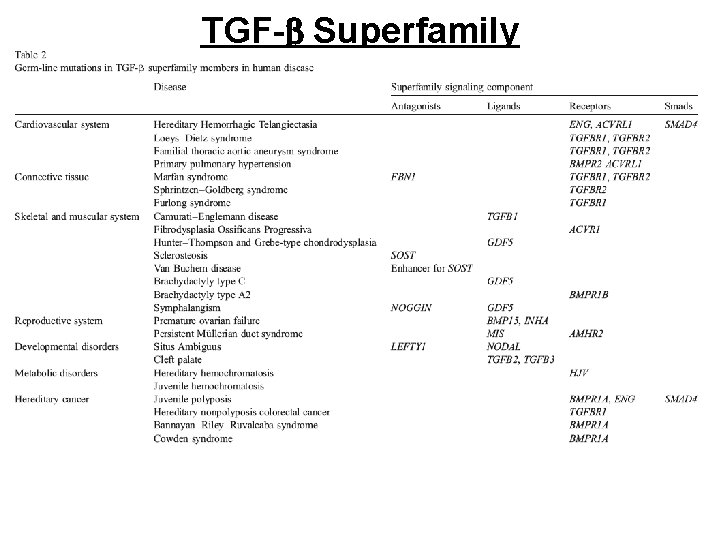

TGF-b Superfamily

TGF-b Superfamily

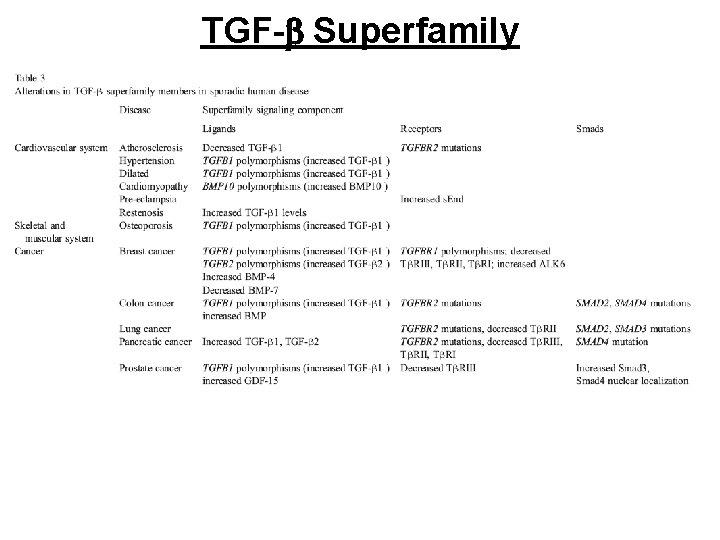

TGF-b Superfamily
