TGC 1 subrack organization 4 V Controller 65
TGC 1 subrack organization +4 V Controller 65 A +4 V -3. 6 V +2. 5 V 25 A 100 A 30 A 100 A +5. 8 V 3 A First 84 HP (19”) subrack Controller: 15 HP 6 HV distributors (54 chs): 36 HP 1 LV distributor (1 ch): 15 HP Free space in subrack: 18 HP 12 x 2 subracks Second 84 HP (19”) subrack Controller: 15 HP 4 LV distributors (5 chs): 60 HP Free space in subrack: 9 HP 12 x 2 subracks
TGC 2 – TGC 3 subrack organization +4 V Controller 65 A +4 V -3. 6 V 25 A 100 A +5. 8 V 3 A First 84 HP (19”) subrack Second 63 HP subrack Controller: 15 HP 5 HV distributors (45 chs): 30 HP 2 LV distributors (3 chs): 30 HP 1 LV distributor (1 ch): 15 HP Free space in subrack: 18 HP Free space in subrack: 28 HP 24 x 2 subracks

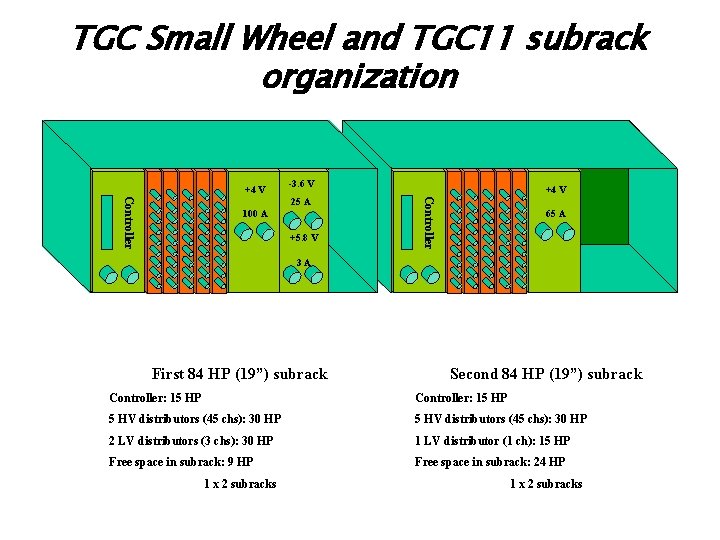

TGC Small Wheel and TGC 11 subrack organization +4 V -3. 6 V 100 A +5. 8 V +4 V Controller 25 A 65 A 3 A First 84 HP (19”) subrack Second 84 HP (19”) subrack Controller: 15 HP 5 HV distributors (45 chs): 30 HP 2 LV distributors (3 chs): 30 HP 1 LV distributor (1 ch): 15 HP Free space in subrack: 9 HP Free space in subrack: 24 HP 1 x 2 subracks
MDT HV and LV subrack organization for Barrel – I solution +6 V Controller 15 A 1 1 +6 V 15 A 1 Second 84 HP (19”) subrack Controller: 15 HP 12 LV distributors (12 chs): 84 HP 11 HV distributors (99 chs): 66 HP 59 subracks Free space in subrack: 3 HP 14 subracks (BIS. 8 -> 1 HV ch) 15 A 1 +6 V 15 A 1 +6 V 15 A First 84 HP (19”) subrack +6 V Barrel 656 – BEE 32 + EIL. 4 16 + EEx 60 = 700
MDT HV and LV subrack organization for Barrel – II solution +6 V 15 A Controller 6 5 4 3 2 1 First 84 HP (19”) subrack +6 V 15 A 6 5 4 3 2 1 Second 84 HP (19”) subrack Controller: 15 HP 11 HV distributors (99 chs): 66 HP 4 LV distributors (24 chs): 60 HP Free space in subrack: 3 HP Free space in crate: 9 HP 14 subracks (BIS. 8 -> 1 HV ch) 30 subracks Barrel 656 – BEE 32 + EIL. 4 16 + EEx 60 = 700
MDT HV and LV subrack organization for Small Wheel and BEE- I solution +6 V Controller 15 A 1 +6 V 15 A First 84 HP (19”) subrack 15 A 1 +6 V 15 A 1 +6 V 1 +6 V 15 A 1 Second 84 HP (19”) subrack Controller: 15 HP 12 LV distributors (12 chs): 84 HP 10 HV distributors (82 chs): 60 HP 5 x 2 subracks (1 x 2 with 1 ch) Free space in subrack: 9 HP 1 x 2 subracks Small Wheel 64 + BEE 32 + EEL. special 2= 98
MDT HV and LV subrack organization for Small Wheel and BEE- II solution Controller First 84 HP (19”) subrack +6 V 15 A 6 5 4 3 2 1 Second 84 HP (19”) subrack Controller: 15 HP 10 HV distributors (82 chs): 60 HP 4 LV distributors (24 chs): 60 HP Free space in subrack: 9 HP Free space in crate: 9 HP 1 x 2 subracks 3 x 2 subracks (1 x 2 with 1 ch) Small Wheel 64 + BEE EEL. special +6 V 15 A 32 + 2= 98
MDT HV and LV subrack organization for Big Wheel - I solution +6 V Controller 15 A 1 1 +6 V 15 A 1 +6 V 15 A 1 First 63 HP subrack Controller: 15 HP 5 HV distributors (40 chs): 30 HP Free space in subrack: 18 HP 4 x 2 subracks (one every two octants) Second 84 HP (19”) subrack 10 LV distributors (10 chs): 84 HP 8 x 2 subracks (one every octant)

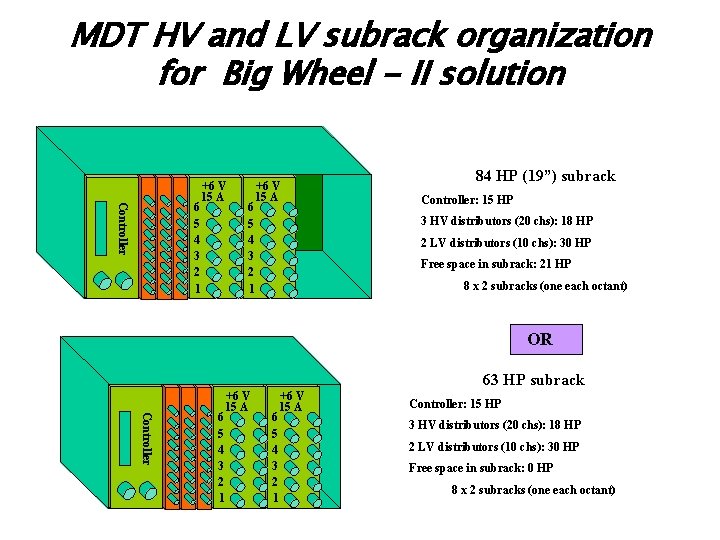

MDT HV and LV subrack organization for Big Wheel - II solution +6 V 15 A Controller 6 5 4 3 2 1 +6 V 15 A 6 5 4 3 2 1 84 HP (19”) subrack Controller: 15 HP 3 HV distributors (20 chs): 18 HP 2 LV distributors (10 chs): 30 HP Free space in subrack: 21 HP 8 x 2 subracks (one each octant) OR 63 HP subrack Controller +6 V 15 A 6 5 4 3 2 1 Controller: 15 HP 3 HV distributors (20 chs): 18 HP 2 LV distributors (10 chs): 30 HP Free space in subrack: 0 HP 8 x 2 subracks (one each octant)
MDT HV and LV subrack organization for EO Wheel - I solution +6 V Controller 15 A 1 1 +6 V 15 A 1 +6 V 15 A 1 +6 V 15 A 1 First 63 HP subrack Controller: 15 HP 6 HV distributors (48 chs): 36 HP Free space in subrack: 12 HP 4 x 2 subracks (one every two octants) Second 84 HP (19”) subrack 12 LV distributors (12 chs): 84 HP 8 x 2 subracks (one every octant)
MDT HV and LV subrack organization for EO Wheel - II solution +6 V 15 A 84 HP (19”) subrack +6 V 15 A Controller 6 5 4 3 2 1 Controller: 15 HP 6 5 4 3 2 1 3 HV distributors (24 chs): 18 HP 2 LV distributors (12 chs): 30 HP Free space in subrack: 21 HP 8 x 2 subracks (one each octant) OR Controller +6 V 15 A 6 5 4 3 2 1 63 HP subrack Controller: 15 HP 3 HV distributors (24 chs): 18 HP 2 LV distributors (12 chs): 30 HP Free space in subrack: 0 HP 8 x 2 subracks (one each octant)
