TFTLCD TFT Thin Film Transistor LCD Liquid Crystal
- Slides: 65

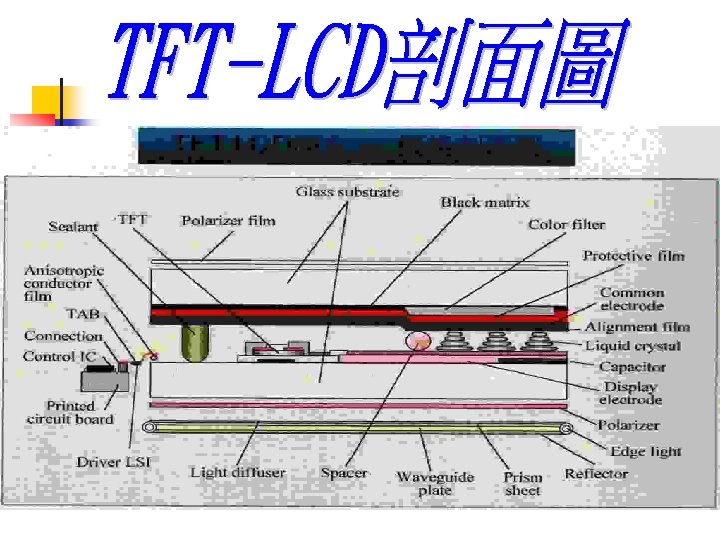

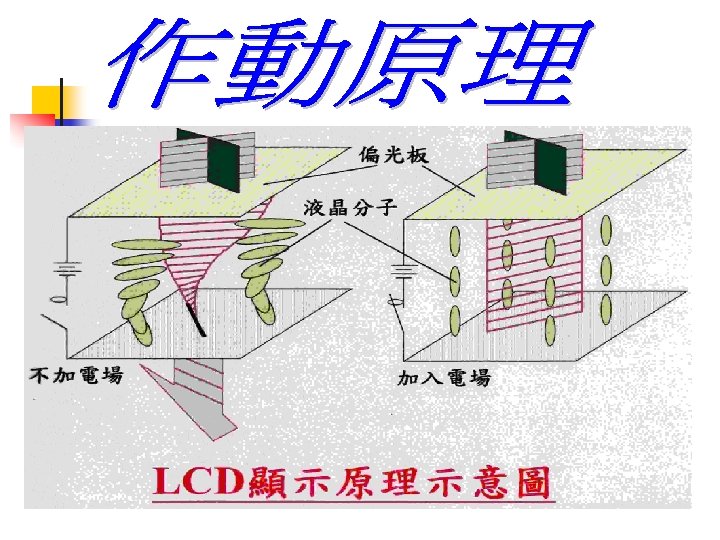

甚麼是TFT-LCD ? TFT----薄膜電晶體 Thin Film Transistor LCD----液晶顯示器 Liquid Crystal Display
Source Driver Gate Driver

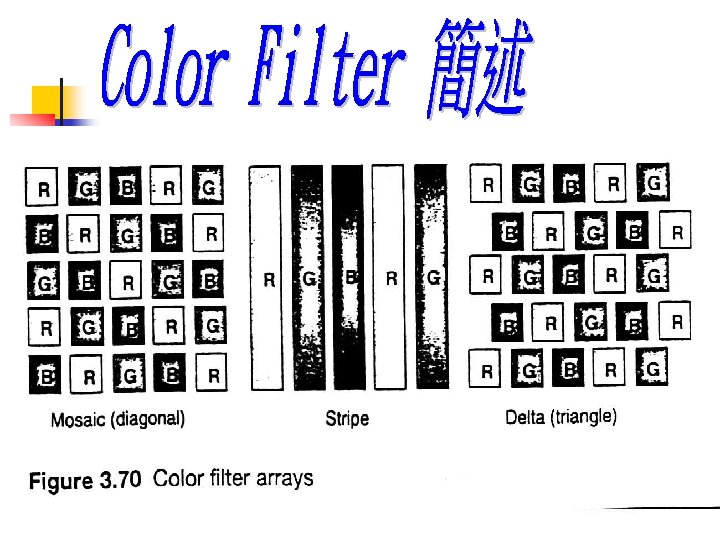

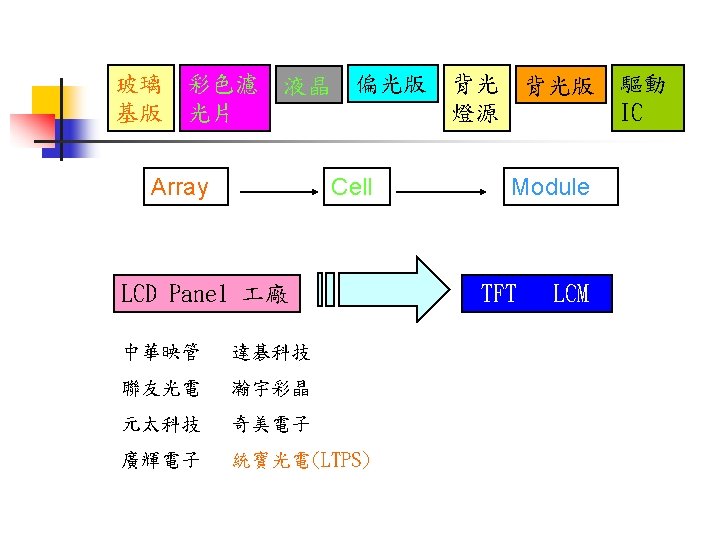

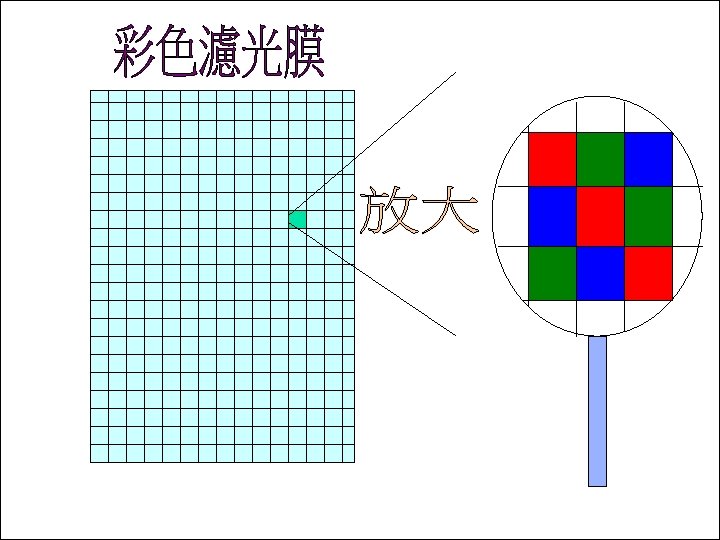

TFT(Array) Thin-Film Transistor LC(Cell) Liquid Crystal LCM Liquid Crystal Module CF 彩色濾光膜 Color Filter

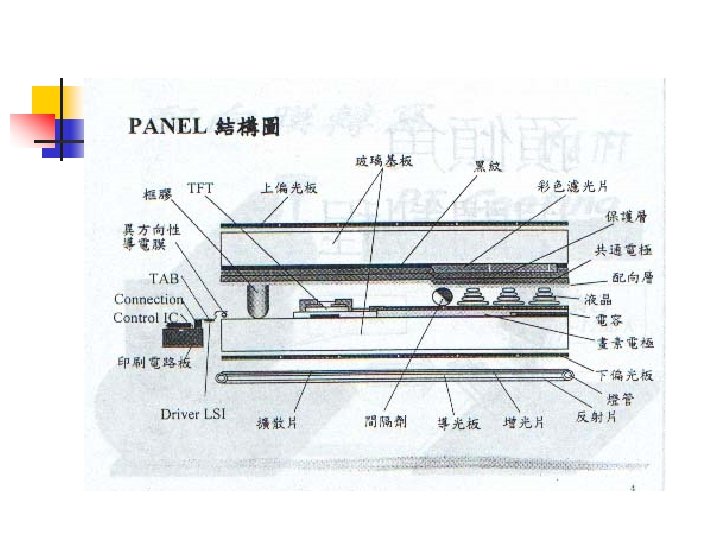

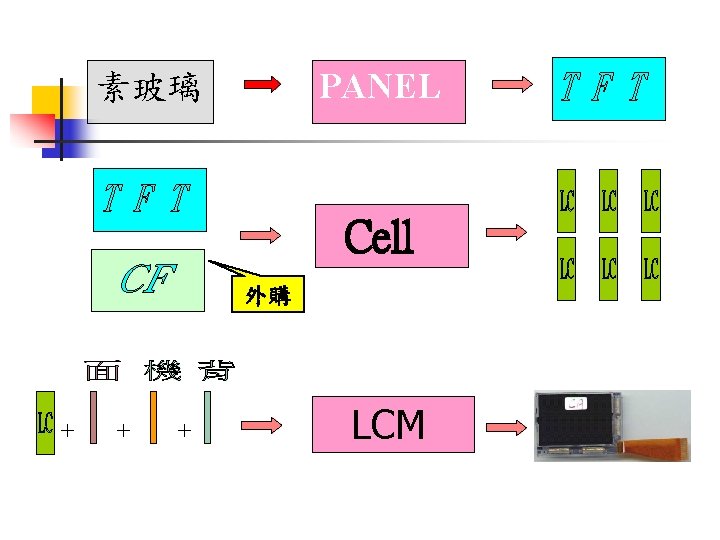

PANEL 素玻璃 Cell 外購 + + + LCM

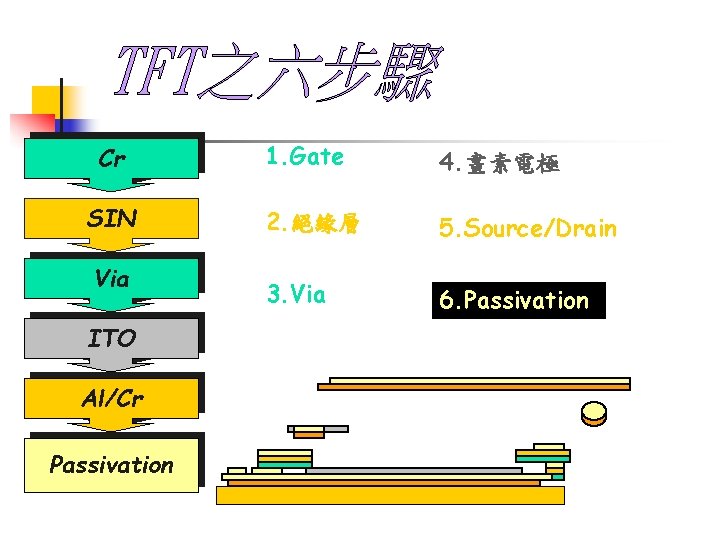

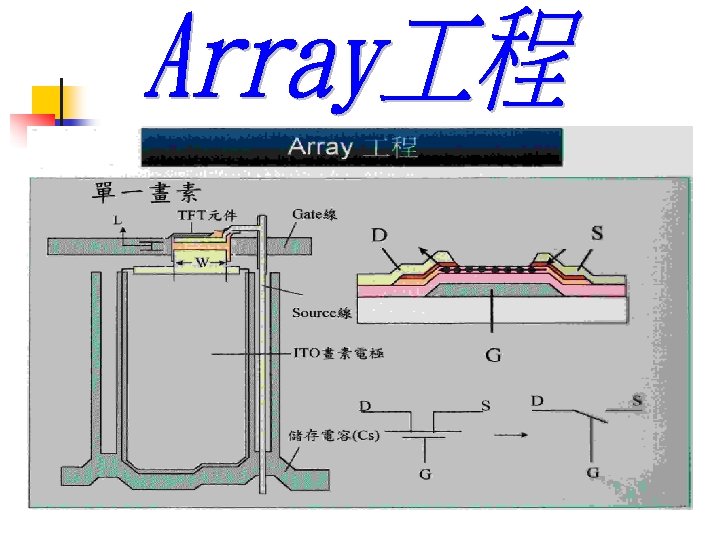

Cr SIN Via ITO Al/Cr Passivation 1. Gate 4. 畫素電極 2. 絕緣層 5. Source/Drain 3. Via 6. Passivation

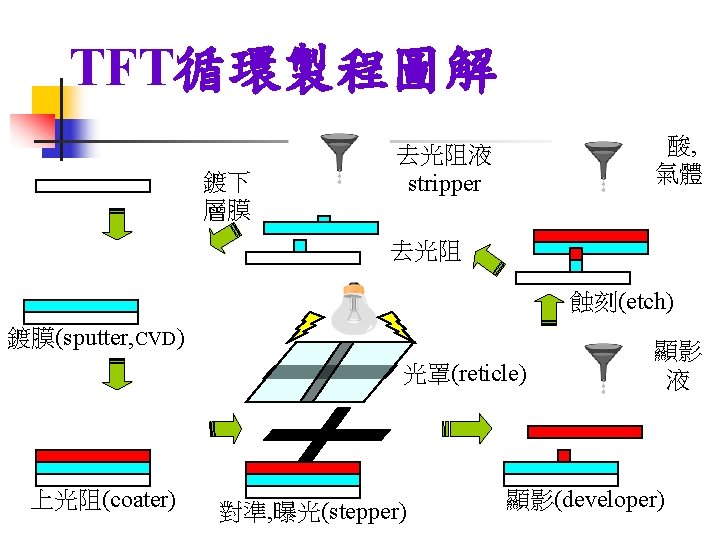

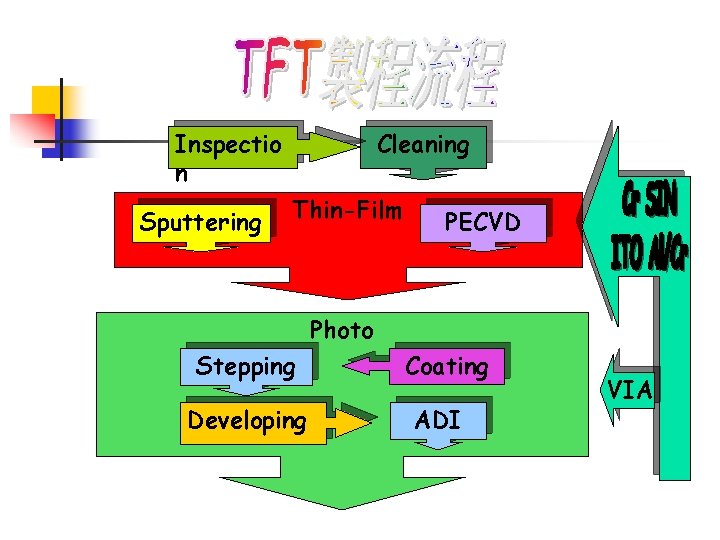

Cleaning Inspectio n Sputtering Thin-Film PECVD Photo Stepping Developing Coating ADI VIA
Etch Wet/Dry Strip 重複循環 AEI Testing Repair Cell
Polyimide塗覆 APR板 淡黃色 800~1200 A
Rubbing Cloth PI膜配向, 基板和 roller成 45度角 TFT和CF基板方向 差 90 度
Seal Paste(框膠點金膠) Au Paste 框膠 SPACER SPRAY ( 灑佈 ) 溶劑含甲醇 , 水 Spacer

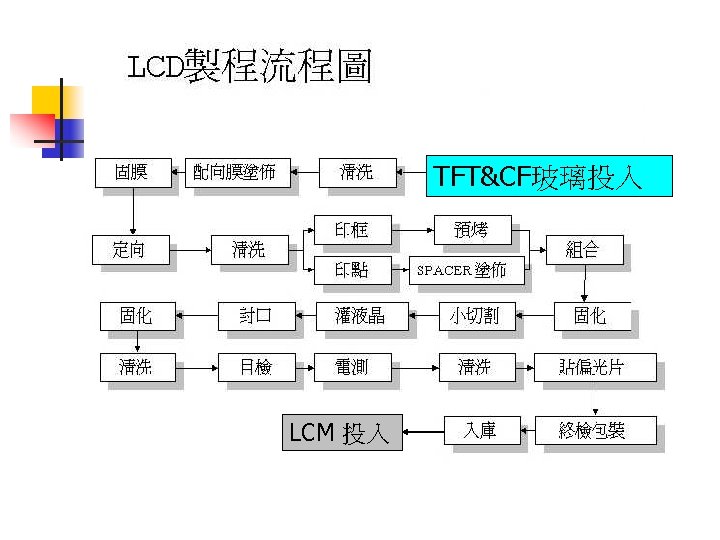

LCD製程管理 TFT Cleaning PI Coating CF Cleaning 分製程 進料檢驗 Pre. Curing Inspection TFT & CF 之配向共製程 PI Curing PI Rubbing

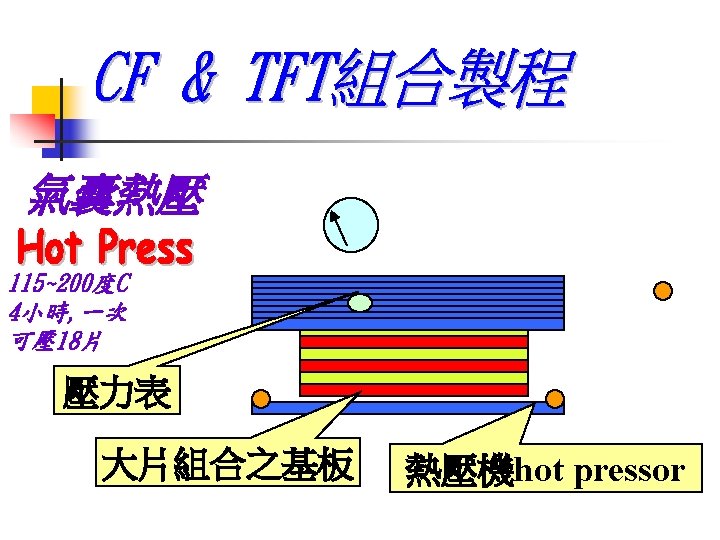

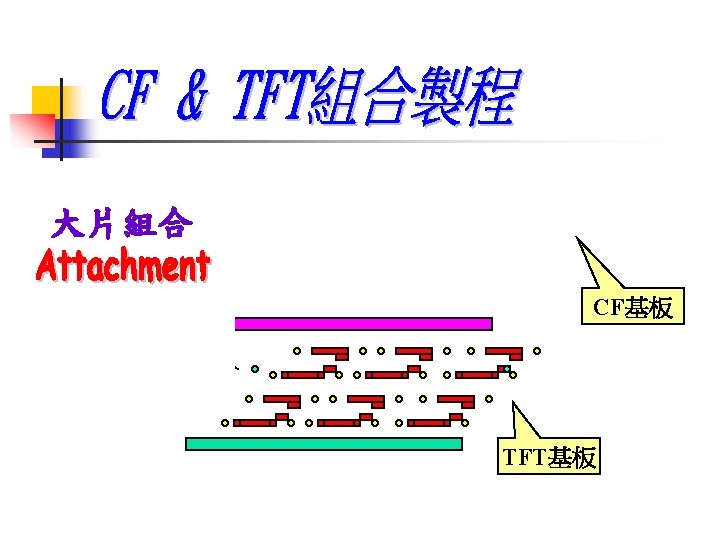

TFT Seal & Au paste CF Spacer Spray TFT bake CF Count 封膠 撒佈 CF/TFT 組合 Hot Press

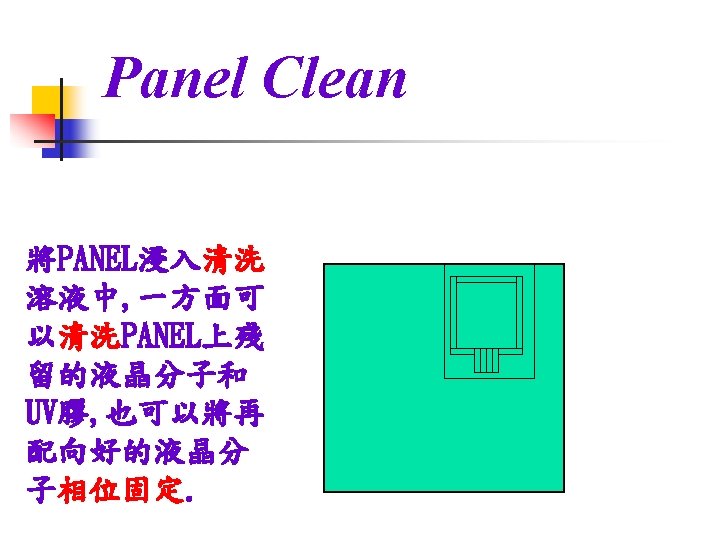

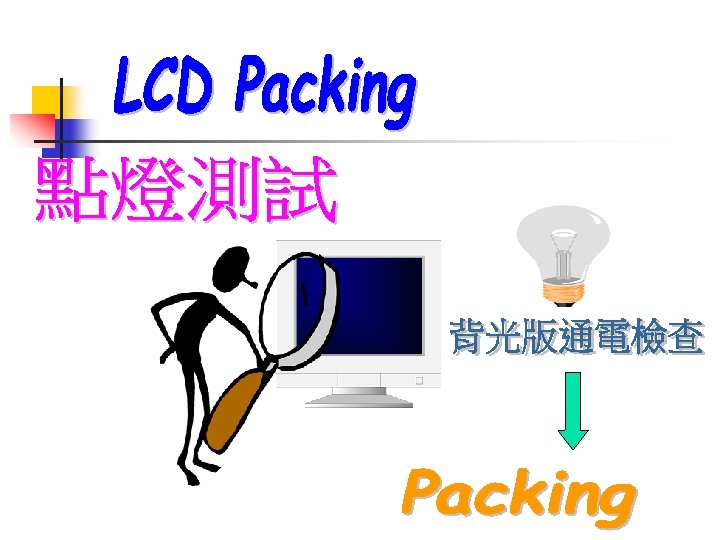

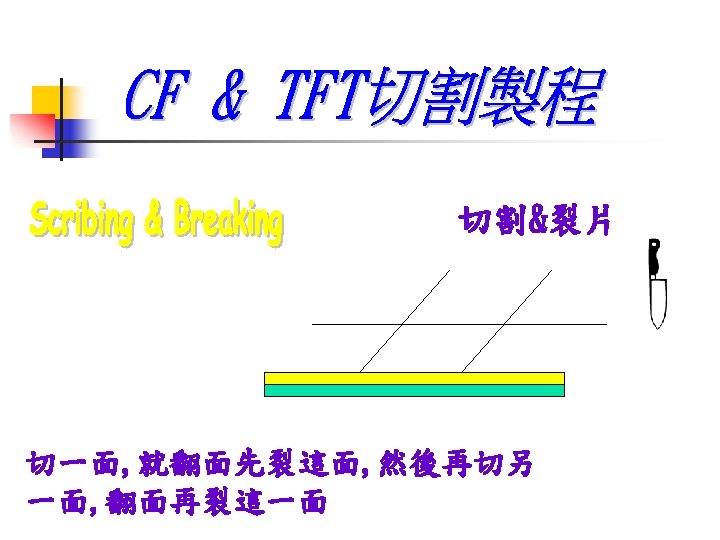

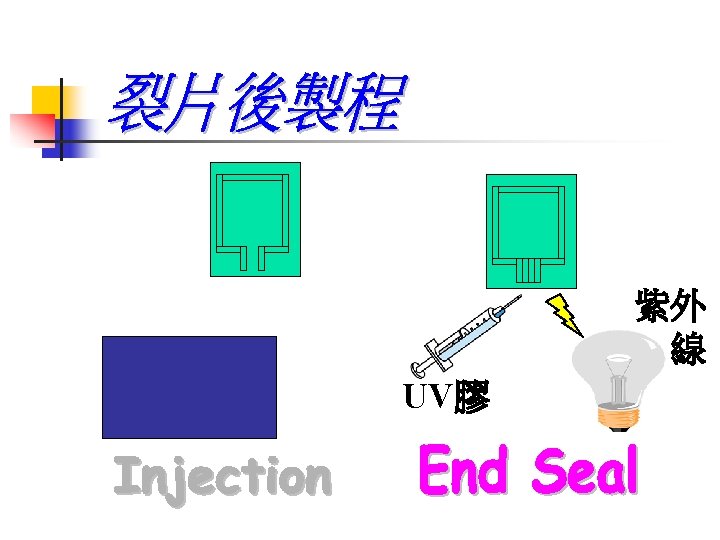

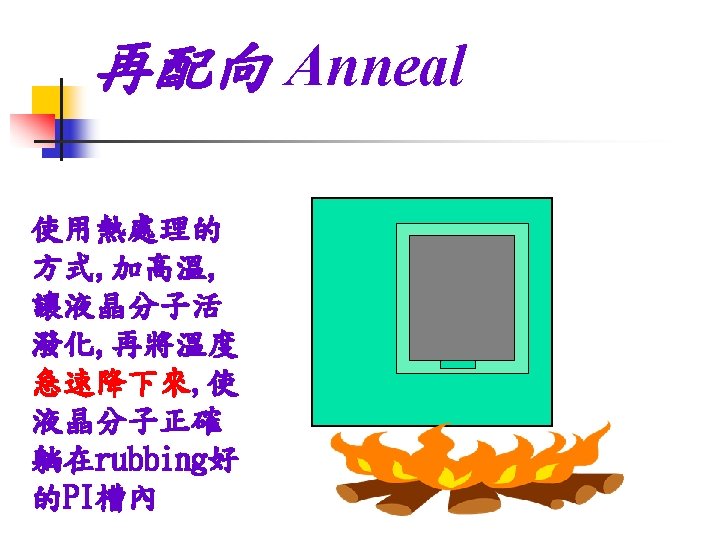

Scribing Breaking Inspection 切裂 Injection End Seal Cleaning 液晶注入 LC再配向 點燈電測 LCM

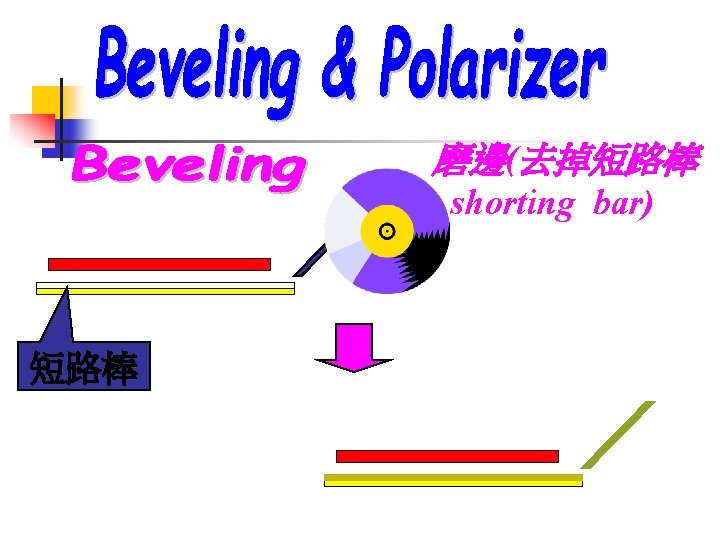

LCD Cell投入 COG 分製程 TAB
Panel ACF Attachment FPC ACF Attachment ACF黏貼 COG Bonding Sampling Inspection FPC Bonding後 電測檢驗

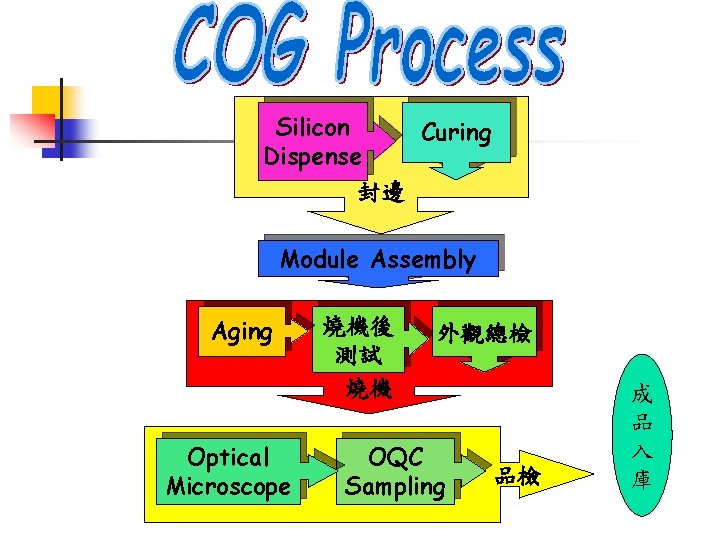

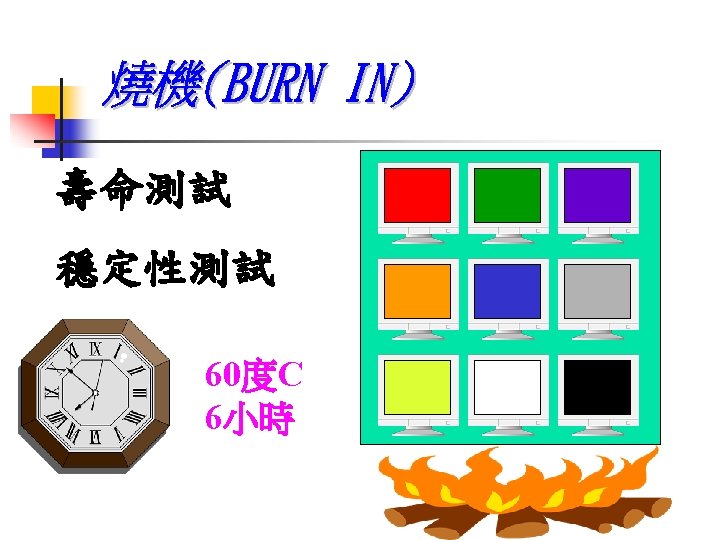

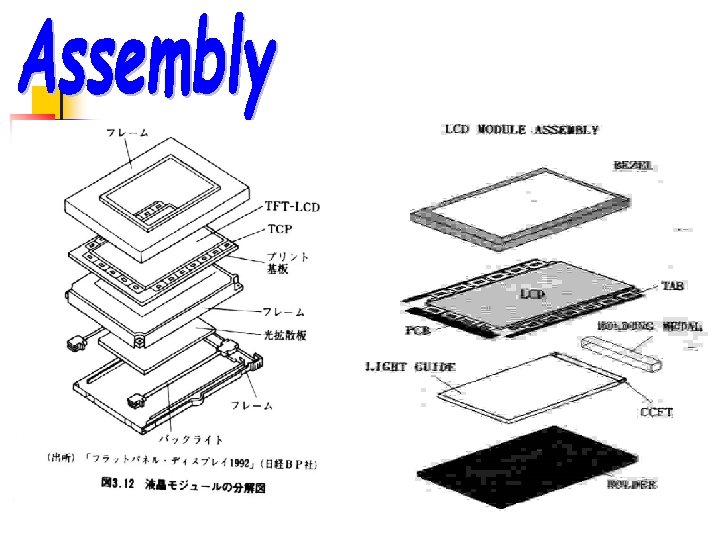

Silicon Curing Dispense 封邊 Module Assembly Aging Optical Microscope 燒機後 測試 燒機 外觀總檢 OQC Sampling 品檢 成 品 入 庫
包括: Chips & FPC ACF CF TFT FPC IC 彈性印刷電路 Bonding後用Silicon膠予以封住

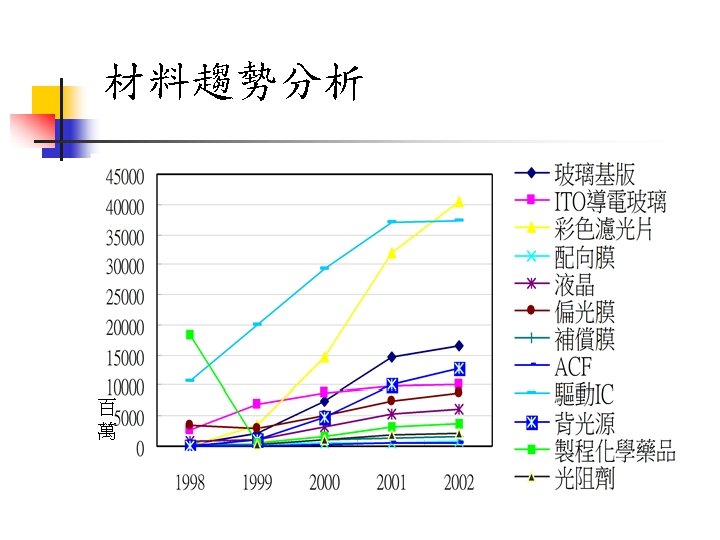

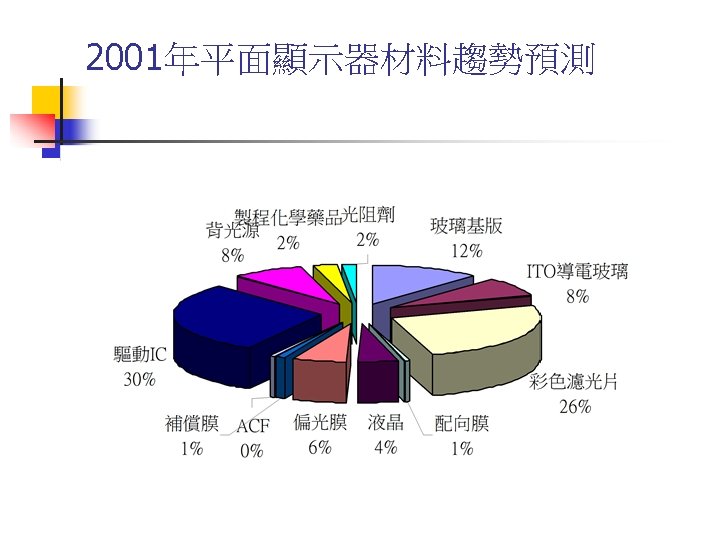

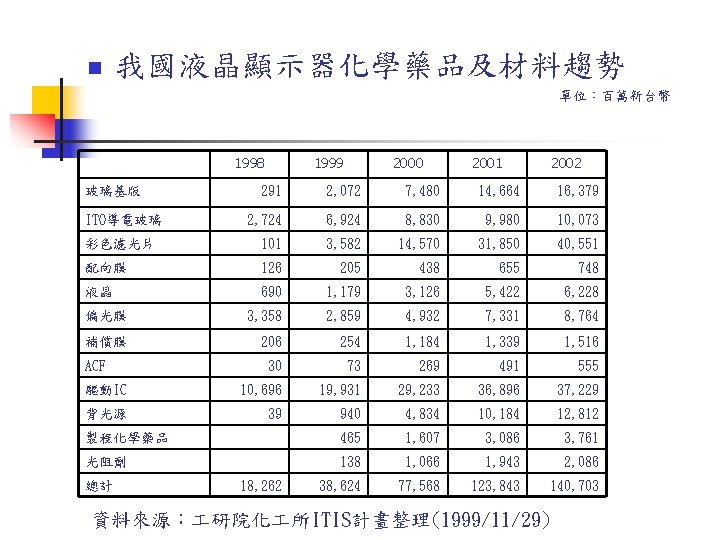

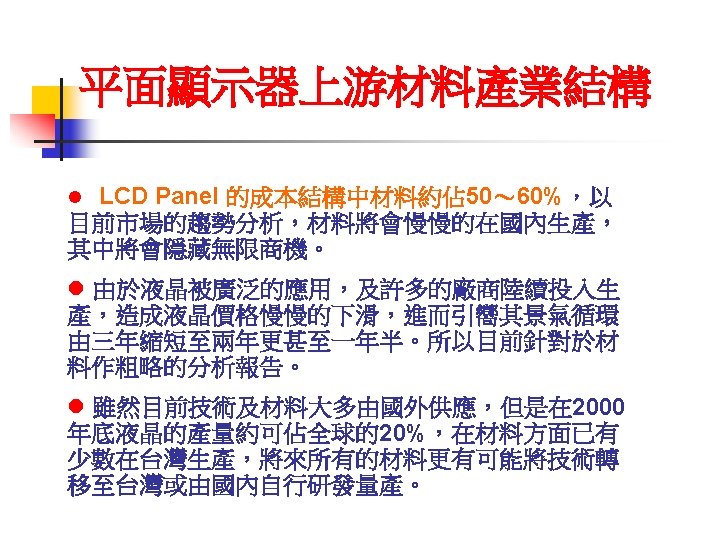

n 我國液晶顯示器化學藥品及材料趨勢 單位:百萬新台幣 1998 玻璃基版 1999 2000 2001 2002 291 2, 072 7, 480 14, 664 16, 379 2, 724 6, 924 8, 830 9, 980 10, 073 彩色濾光片 101 3, 582 14, 570 31, 850 40, 551 配向膜 126 205 438 655 748 液晶 690 1, 179 3, 126 5, 422 6, 228 偏光膜 3, 358 2, 859 4, 932 7, 331 8, 764 補償膜 206 254 1, 184 1, 339 1, 516 30 73 269 491 555 驅動IC 10, 696 19, 931 29, 233 36, 896 37, 229 背光源 39 940 4, 834 10, 184 12, 812 製程化學藥品 465 1, 607 3, 086 3, 761 光阻劑 138 1, 066 1, 943 2, 086 38, 624 77, 568 123, 843 140, 703 ITO導電玻璃 ACF 總計 18, 262 資料來源: 研院化 所ITIS計畫整理(1999/11/29)

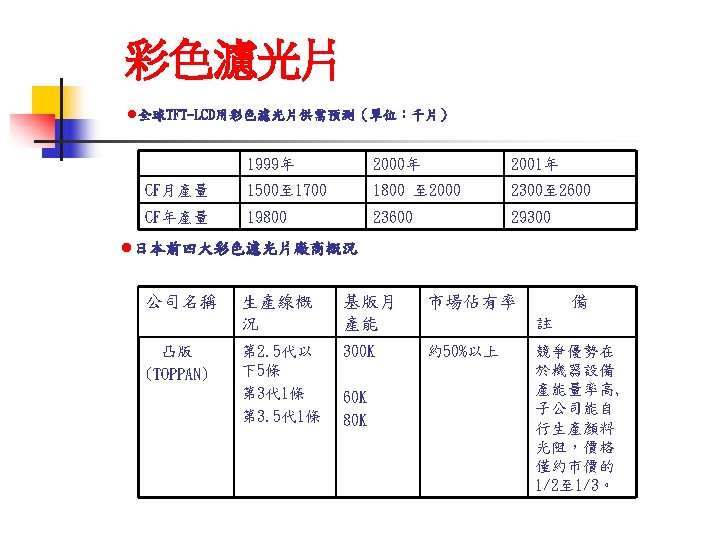

全球三. 五代以上TFT彩色濾光片擴廠計畫 廠商名稱 設廠地點 生產線編號 基版尺寸(mm) 月產能(K) 估計量產時間 凸版印刷 新發田 H 7 650*750 50 1999 Q 2 新發田 H 8 680*880 45 2000 Q 4 埼玉 研究用 960*1100 R&D 1999 Q 3 新發田 H 9 960*1100 25 2000 Q 4 台灣 台南 680*880 45 2001年以後 大利根 301 760*980 45 1999 Q 2 三原 401 750*950 40 2001 Q 1 東麗 滋賀 4 620*750 32~ 60 1999 Q 3 STI 愛媛 E 2 600*750 40 已量產 ACTI 黑崎 1 650*750 40~ 50 1999 Q 2 黑崎 2 730*920 40 2001 Q 2 天安 600*720 48 已量產 天安 750*950 50 2000 Q 3 大日本印刷 三星電管 新竹 1 620*750 40 2001五月 新竹 2 第四代 未定 未定 展茂 新竹 1 650*750 50 2001 Q 3 和鑫 新竹 620*750 60 2001 Q 2 劍度
