TFT-LCD技 術FPD平 面 顯 示 器 市 場 結 構 Area % 2004 Total 13448 Km 2 2006 Total 30776 Km 2 Unit % 2004 Total 603214 K unit 2006 Total 1219419 K unit TFT Note Monitor PC 52 26 LCD TV 11 Mobile Phone 6 Other 42 31 6 4 TFT Note Monitor PC 12 8 LCD TV 2 Mobile Phone 56 Other 9 3 67 15 17 6 5 25 3
Mother Glass Generation Gen 7 1870 X 2200 2100 X 2400 每三年面積增大 1. 8倍 Gen 6 Gen 5 Gen 2 Gen 1 370 X 470 300 X 400 1992 1993 1994 Gen 3 1997 1000 X 1200 730 X 920 1100 X 1250 1100 X 1300 680 X 880 550 X 650 1996 Gen 4. 5 1500 X 1800 1500 X 1850 1998 1999 2000 2001 2002 2003 2004 4
顯示器特性 Display attributes 資訊內涵 Information contents 視覺品質 FOS quality 系統需求 System requirement description Information contents Number of picture elements(display format) Resolution Size Viewing angle Pixel size, pixels per inch (ppi) Brightness/luminance On-axis brightness and angular distribution Response time Time required to establish a new image Contrast ratio Ratio of max. to min. brightness and angular distribution Gray level Color gamut Number of addressable levels of gray Power requirement Thickness Driver circuitry & backlight Weight Cell glass & module parts, important for mobile Cost Environmental Key attribute , application dependent Viewable area(vs. CRT), bezel area. Range of horizonal & vertical angles for acceptable contrast. Area in color space of displayable colors Cell glass & module parts, important for mobile Operational temperature range, x-ray emission, energy saving, recycle, etc. 5

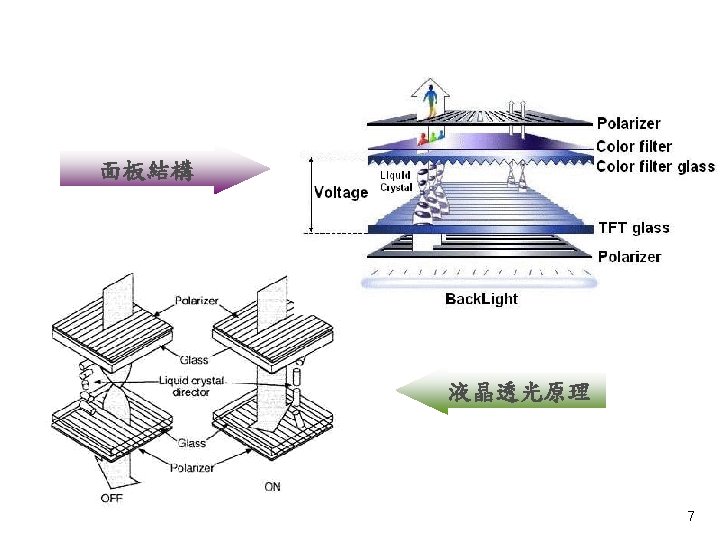

9
製程說明 Array Process Cell Process Module Process Source:SEMI PCS-Forum-FPD 10
TFT Array製程 13
Inverse-Staggered -Si TFT(Channel- Protect)結構圖 14
TFT Array processing 15
TFT Array Process Development 16
