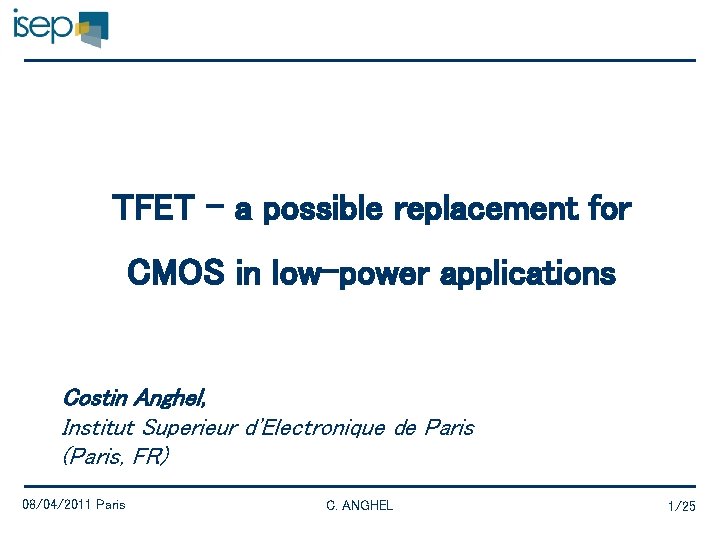

TFET – a possible replacement for CMOS in low-power applications Costin Anghel, Institut Superieur d'Electronique de Paris (Paris, FR) 08/04/2011 Paris C. ANGHEL 1/25

Outline: • Why do we need another new device? - Power Consumption Problem - CMOS vs. TFET • Tunnel FETs - Operation Principle - State-of-the-art • Conclusion 08/04/2011 Paris C. ANGHEL 2/25

Outline: • Why do we need another new device? - Power Consumption Problem - CMOS vs. TFET • Tunnel FETs - Operation Principle - State-of-the-art • Conclusion 08/04/2011 Paris C. ANGHEL 3/25

Power Consumption Problem 1. Leakage power stars to be dominant in advanced technology nodes. 2. The power per chip continues to increase. E. J. Nowak, JRD IBM 2002 08/04/2011 Paris C. ANGHEL 4/25

Drain Current, I DS (A/m m) Scaling limited by the 60 m. V/dec -3 10 Lower V VTt -5 10 -7 10 • The subthreshold slope is limited to a minimum of 60 m. V/dec for CMOS Higher IOFF -9 10 • Scaling involves also the scaling of the threshold voltage (VT). -11 10 0. 3 0. 6 0. 9 Gate Voltage, VGS (V) C. HU - 2009 08/04/2011 Paris “Lowering Vt by 60 m. V increases the leakage current (power) by 10 times. ” C. HU – 2009 C. ANGHEL 5/25

Sources of Static Power - CMOS: 08/04/2011 Paris C. ANGHEL Prof. A. M. IONESCU (EPFL) @ ESSDERC 2009 6/25

Outline: • Why do we need another new device? - Power Consumption Problem - CMOS vs. TFET • Tunnel FETs - Operation Principle - State-of-the-art • Conclusion 08/04/2011 Paris C. ANGHEL 7/25

TFET vs. CMOS TFET n-type Oxide Gate Source n+ i Oxide Drain Source n+ p+ Gate i Drain n+ CMOS: TFET: Pros. : classical device Pros. : Extremely Low IOFF ION within the ITRS targets Cons. : power issue SS below 60 m. V/dec Cons. : Low ION R&D needed 08/04/2011 Paris C. ANGHEL 8/25

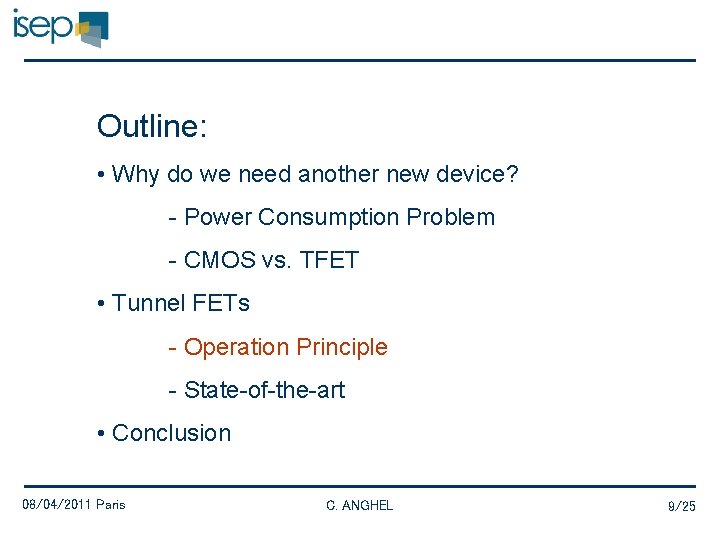

Outline: • Why do we need another new device? - Power Consumption Problem - CMOS vs. TFET • Tunnel FETs - Operation Principle - State-of-the-art • Conclusion 08/04/2011 Paris C. ANGHEL 9/25

TFET – the operation principle Cutline VG=0 V VD=1 V Energy [e. V] EC EV Location [mm] 08/04/2011 Paris C. ANGHEL 10/25

TFET – the operation principle TFET ON state VG=0 V VD=1 V Energy [e. V] TFET OFF state Location [mm] 08/04/2011 Paris VG=1 V VD=1 V e- Location [mm] C. ANGHEL 11/25

Outline: • Why do we need another new device? - Power Consumption Problem - CMOS vs. TFET • Tunnel FETs - Operation Principle - State-of-the-art • Conclusion 08/04/2011 Paris C. ANGHEL 12/25

TFET: State-of-the-art – CNTs J. Appenzeller et al. , Phys. Rev. Lett. 93, (2004). 08/04/2011 Paris C. ANGHEL 13/25

TFET: State-of-the-art – Si Choi et al. Electr. Dev. Lett. 28, pp. 743 (2007). 08/04/2011 Paris C. ANGHEL 14/25

TFET: State-of-the-art – Si Second spacer used to create the gate- drain underlapping IOFF (~30 f. A/μm) ION (~10 -7 A/μm) F. Mayer et al, IEDM 2008. 08/04/2011 Paris C. ANGHEL 15/25

TFET: State-of-the-art – DG or GAA DG TFET with strained Ge heterostructure channel: ION high but IOFF and VD high T. Krishnamohan et al, IEDM 2008. 08/04/2011 Paris C. ANGHEL 16/25

TFET: State-of-the-art – DG or GAA IOFF (~7 p. A/μm) ION (~53 m. A/μm) ION/ IOFF=107 DIBL = 17 m. V/V Chen et al. , IEEE EDL, VOL. 30, p. 754, 2009. 08/04/2011 Paris C. ANGHEL 17/25

TFET: State-of-the-art – source delta doping R. Jhaveri, et. al. TED 01/2011, pp. 80. 08/04/2011 Paris K. Jeon, et. al. VLSI, 2010. C. ANGHEL 18/25

TFET: State-of-the-art – DG or GAA Source heterojunction increases the ION current IOFF current is mantained low. Anne S. Verhulst et al. , IEEE EDL, Vol. 29, pp. 1398, 2008. 08/04/2011 Paris C. ANGHEL 19/25

TFET: State-of-the-art – DG or GAA Strained Si at the Source side – increase of ION current IOFF current is mantained low. Kathy Boucart et al. , IEEE EDL, Vol. 30, p. 656, 2009 08/04/2011 Paris C. ANGHEL 20/25

TFET: State-of-the-art – DG or GAA High k gate dielectrics - ION current in ITRS targets - IOFF current is mantained low. Difficult to integrate high k of 100 or 200 on Si platform… Schlosser et al. IEEE TED, vol. 56, p. 100, 2009. 08/04/2011 Paris C. ANGHEL 21/25

TFET: State-of-the-art – Spacer Influence High-k spacer The low-k spacer does not deplete the source Tunneling at the surface of the device @ highest field Increased ION current Low-k spacer Anghel et al. APL, vol. 96, p. 122104, 2010. 08/04/2011 Paris C. ANGHEL 22/25

TFET: Source Position and Film Thickness t. Si=10 nm Homo-dielectric structures: low ION variation as a function of source position Hetero-dielectric structures: important ION variation as a function of t. Si Anghel et al. accepted for publication IEEE TED, 2011. 08/04/2011 Paris C. ANGHEL 23/25

Conclusion: - TFET presents LOW IOFF and LOW ION and SS below 60 m. V/dec. - TFET can replace in the future the CMOS for low power applications Open Question: - ITRS LSTP roadmap was built on CMOS, should we rethink this roadmap from another perspective (i. e. the TFET one)? 08/04/2011 Paris C. ANGHEL 24/25

Many Thanks to: - Hraziia, Anju Gupta, Prathyusha Chilagani - Prof. Andrei Vladimirescu, Prof. Amara Thank you for your attention! 08/04/2011 Paris C. ANGHEL 25/25
