TFAWS Cryothermal Paper Session Boiling Channel Modeling in Generalized Fluid System Simulation Program (GFSSP) Michael Baldwin and Dr. S. M. Ghiaasiaan, Georgia Institute of Technology Presented By Michael Baldwin Thermal & Fluids Analysis Workshop TFAWS 2020 August 18 -20, 2020 Virtual Conference

Presentation Outline Objective: Develop and implement a flow boiling model into GFSSP, with emphasis on fluids LH 2, LCH 4, and LO 2. • Part I: The current state of cryogenic flow boiling – Brief review of flow boiling – Available test data and developed correlations for cryogens • Part II: Flow boiling implementation into GFSSP – Brief overview of the GFSSP structure and capability – GFSSP predictions with example test data TFAWS 2020 – August 18 -20, 2020 2

Part I: The current state of cryogenic flow boiling LO 2 LCH 4 LH 2 [1] TFAWS 2020 – August 18 -20, 2020 3

Low heat flux regimes Dispersed Flow Boiling Dryout Subcooled and Saturated Nucleate Boiling Onset of Nucleate Boiling (ONB) Twall TFAWS 2020 – August 18 -20, 2020 4

High heat flux regimes Dispersed Flow Boiling Quality/Void fraction threshold Film Boiling Departure from Nucleate Boiling (DNB) Subcooled and Saturated Nucleate Boiling Onset of Nucleate Boiling (ONB) Twall TFAWS 2020 – August 18 -20, 2020 5

Available test data LH 2 7 useful experiments: 3 include nucleate boiling 5 include film boiling 1 includes CHF LCH 4 5 useful experiments: 5 include nucleate boiling 1 includes film boiling 1 includes CHF LO 2 1 useful experiment*: 0 include nucleate boiling 0 include film boiling 1 includes CHF *two supercritical experiments were found but not included TFAWS 2020 – August 18 -20, 2020 6

Available cryogenic boiling correlations The following correlations used cryogenic experimental data in their development: • Klimenko (1982) [2] – Nucleate boiling – 312 data points (77. 4% N 2, 20. 0% Ne, 2. 6% H 2) • Steiner and Taborek (1992) [3] – Nucleate boiling – Over 13, 000 data points [water, refrigerants, hydrocarbons, and cryogens (including CH 4, H 2, and O 2)] • Some of the experimental studies contain correlations that fit their own data TFAWS 2020 – August 18 -20, 2020 7

Part I Summary • To appropriately model flow boiling, the following general heat transfer regimes need to be considered: – Subcooled and saturated nucleate boiling – Film boiling – Dispersed flow boiling • Models for the transition between these regimes are also required: – Onset of nucleate boiling (ONB) – Departure from nucleate boiling (DNB) – Dryout • Flow boiling test data and heat transfer correlations specific to cryogens are severely lacking TFAWS 2020 – August 18 -20, 2020 8

Part II: Flow boiling implementation into GFSSP TFAWS 2020 – August 18 -20, 2020 9

Generalized Fluid System Simulation Program (GFSSP) System level CFD code developed at NASA in the early 90 s Fluid Nodes: mass and energy equations are solved for pressures and enthalpies Fluid Branches: momentum equation is solved for flowrates Fluid Boundary Nodes Fluid-to-Solid Conductors: conjugate heat transfer Solid Nodes: heat source supplied TFAWS 2020 – August 18 -20, 2020 Solid-to-Solid Conductors 10

Flow boiling model in progress START NO NO ONB? NO YES NO OSV? Liquid forced Subcooled nucleate convection boiling* EXIT *Partial boiling α > 0. 999 YES NO EXIT YES NO DNB? DNB/ Dryout YES Vapor forced convection YES Subcooled nucleate boiling Film/ Dispersed flow boiling Saturated nucleate boiling Film/ Dispersed flow boiling EXIT EXIT 11

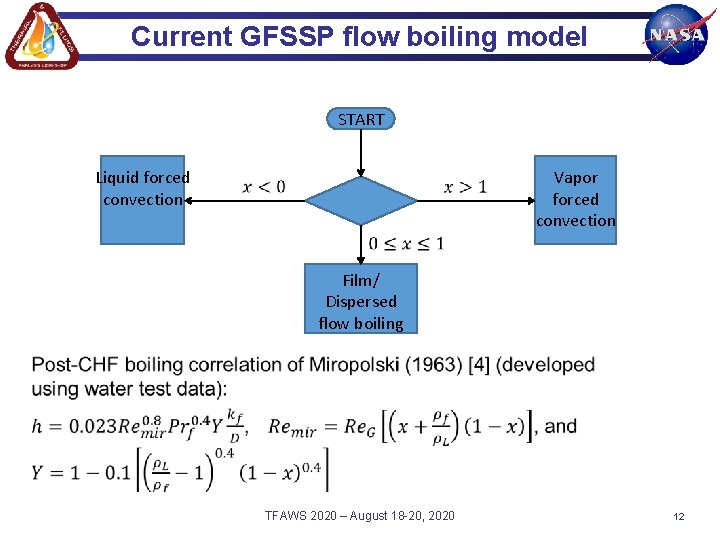

Current GFSSP flow boiling model START Vapor forced convection Liquid forced convection Film/ Dispersed flow boiling • TFAWS 2020 – August 18 -20, 2020 12

Correlations with good agreement • TFAWS 2020 – August 18 -20, 2020 13

Preliminary Results: LCH 4 nucleate boiling • Test Data: Wang et al. (2014) [6] TFAWS 2020 – August 18 -20, 2020 14

Preliminary Results: LCH 4 nucleate boiling 12000 Steiner average difference: -23. 33% Chen average difference: -21. 93% 10000 h [W/m 2 K] 8000 Wang test data 6000 GFSSP prediction (Steiner) GFSSP prediction (Chen) GFSSP prediction (Miropolski) 4000 2000 0 0, 02 0, 04 0, 06 0, 08 0, 10 0, 12 x [-] 0, 14 0, 16 0, 18 0, 20 TFAWS 2020 – August 18 -20, 2020 15

Preliminary Results: LCH 4 nucleate boiling 20000 Steiner average difference: -9. 87% Chen average difference: -16. 73% 18000 16000 14000 h [W/m 2 K] 12000 Wang test data 10000 GFSSP prediction (Steiner) GFSSP prediction (Chen) 8000 GFSSP prediction (Miropolski) 6000 4000 2000 0 0, 00 10, 00 20, 00 30, 00 40, 00 q'' [W/m 2] 50, 00 60, 00 70, 00 TFAWS 2020 – August 18 -20, 2020 16

Preliminary Results: LCH 4 nucleate boiling 14000 12000 Steiner average difference: -24. 55% Chen average difference: -24. 27% h [W/m 2 K] 10000 8000 Wang test data GFSSP prediction (Steiner) 6000 GFSSP prediction (Chen) GFSSP prediction (Miropolski) 4000 2000 0 100, 00 120, 00 140, 00 160, 00 180, 00 200, 00 220, 00 240, 00 260, 00 280, 00 G [kg/m 2 s] TFAWS 2020 – August 18 -20, 2020 17

Preliminary Results: LCH 4 nucleate boiling 14000 Steiner average difference: -22. 32% Chen average difference: -25. 34% 12000 h [W/m 2 K] 10000 8000 Wang test data GFSSP prediction (Steiner) 6000 GFSSP prediction (Chen) GFSSP prediction (Miropolski) 4000 2000 0 2, 50 3, 00 3, 50 4, 00 4, 50 P [bar] 5, 00 5, 50 6, 00 TFAWS 2020 – August 18 -20, 2020 18

Preliminary Results: LH 2 film boiling • Test Data: Hendricks et al. (1961) [7] TFAWS 2020 – August 18 -20, 2020 19

Preliminary Results: LH 2 film boiling 6, 00 E+03 5, 00 E+03 HTC [W/(m^2 K)] 4, 00 E+03 3, 00 E+03 2, 00 E+03 1, 00 E+03 0, 00 E+00 0, 05 0, 10 0, 15 0, 20 0, 25 0, 30 z [m] GFSSP Hendricks Miropolski Groeneveld correlation TFAWS 2020 – August 18 -20, 2020 20

Conclusion and Next Steps • Conclusion – Steiner and Chen correlations are in good agreement and predict select methane test data within ~25% – Miropolski correlation is not bad for film boiling of hydrogen, but fails in the nucleate boiling regime • Next Steps – Determine best correlations for each regime for each cryogenic fluid of interest – Implement the full boiling model into GFSSP – Develop regime-specific boiling correlations (if possible) – Suggest future experiments to begin to fill cryogenic boiling data gaps TFAWS 2020 – August 18 -20, 2020 21

References [1] Nuclear Power for Everybody. 2020. Nuclear Power: Boiling-Boiling Characteristics. Retrieved from https: //www. nuclear-power. net/nuclear-engineering/heat-transfer/boilingand-condensation/flow-boiling-forced-convection-boiling/ [2] V. Klimenko, "Heat transfer intensity at forced flow boiling of cryogenic liquids in tubes, " Cryogenics, vol. 22, no. 11, pp. 569 -576, 1982. [3] D. Steiner and J. Taborek, "Flow boiling heat transfer in vertical tubes correlated by an asymptotic model, " Heat transfer engineering, vol. 13, no. 2, pp. 43 -69, 1992. [4] D. Groeneveld and C. Snoek, "A comprehensive examination of heat transfer correlations suitable for reactor safety analysis, " Multiphase Science and Technology, vol. 2, no. 1 -4, 1986. [5] J. C. Chen, "Correlation for boiling heat transfer to saturated fluids in convective flow, " Industrial & engineering chemistry process design and development, vol. 5, no. 3, pp. 322 -329, 1966. [6] S. Wang, M. Gong, G. Chen, Z. Sun, and J. Wu, "Flow boiling heat transfer characteristics of methane in a horizontal tube, " in AIP Conference Proceedings, 2014, vol. 1573, no. 1: AIP, pp. 1512 -1518. [7] R. C. Hendricks, R. Graham, Y. HAU, and R. Friedman, "Experimental heat transfer and pressure drop of liquid hydrogen flowing through a heated tube, " NATIONAL AERONAUTICS AND SPACE ADMINISTRATION WASHINGTON DC, 1961. TFAWS 2020 – August 18 -20, 2020 22
