TEXT AND ILLUSTRATOR
OBJECTIVES • Generate “fake latin” to experiment with text in Illustrator • Explain serif and sans serif fonts • Define and perform kerning, tracking, and leading • Create text that flows between regions, text on a path, and text in a shape
PREPARATION • Start Illustrator, Create a new document • Set Units to Inches • Set Orientation to Landscape • Set Color Mode to CMYK
BACKGROUND INFO • There are multiple categories we use to describe text • Monospaced or Not • • Every character occupies same size space • Hill. S (this is monospaced, Courier New) • Hills (this is not monospaced, Calibri) • See the difference in the space consumed by the I’s and L’s? Serif vs Sans Serif • Serif has “tails” on letters, Sans serif does not • Print is traditionally serif but web is general sans serif for main content, serif for headings • This is Sans Serif, This is Serif • Common Web Sans Serif: Verdana, Trebuchet, Arial • Common Web Heading or Print Serif: Georgia, Times New Roman Decorative Script
GRAB SOME IPSUM • When working with text, you sometimes need some filler text • Good website, http: //lipsum. com/ • Form to generate certain amounts of blank text • Copy the generated text into a notepad or word document for later, but we might not use
STARTING WITH TEXT TOOL • Find the text tool… note it’s sub-tools • Before you start typing, find your character settings. • There's a character pane – should show automatically when you select text tool, but can also go to menu->Window->Type->Character • Or Menu->Type->Font
STARTING WITH TEXT TOOL 2 • Next to character pane is Paragraph • Can also go to menu->Window->Type>Paragraph • Change Indentation, left/right border, Alignment, hyphenation • Practice text: Now is the time for all good men to come to their country • Select it • Paste as point text , Ariel, 36 point into an Illustrator document
TYPE IN A BOX • DRAG A TEXT BOX • LOOK FOR NEW CURSOR SHAPE • PASTE THE TEXT INSIDE THE BOX • WATCH FOR OVERFLOW
PREPARATION • Start Illustrator, Create a new document • Set Units to Inches • Set Orientation to Landscape • Set Color Mode to CMYK
PREPARATION • Start Illustrator, Create a new document • Set Units to Inches • Set Orientation to Landscape • Set Color Mode to CMYK
FIRST TEXT • Find the Type tool… note it’s sub-tools • Click where you want text to go – this is called point type • Paste in the Lorem text • It might extend beyond the artboard
SIZING A BOX FOR TEXT, AND OVERFLOW • Another way to enter text is to click and drag with the text tool – creates a text box • This text box can be resized, but text that doesn’t fit within will “overflow” • The red + at the corner is the overflow indicator • If you click it, cursor changes – you are now prepared to draw another text box where the overflow text should resume, known as threading • Once you’ve deselected the text, you need to use the text tool (T icon) and click back into the box again to edit
TERMS: KERNING • Kerning: Changing the distance between two adjacent letters • Make a new text box, enter Ipsum text • Click between any two characters • In the character box, find the Kerning spinner (V/A icon, lower left) • Set to something like -200 • See the results? (Between U and M for me)
TERMS: TRACKING • Tracking: Spacing between all characters in selection • Make a new text box, enter Ipsum lorem • Top box is normal tracking (14) • Highlight two or three words text, find, change tracking to -200
TERMS: LEADING • Leading: Space between lines. (Name from old type- used to separate lines with actual lead) • Actually between the baseline, or where the characters sit (and where characters with tails drop below, like p or q) • Top image is normal leading, set to 21. 6 • Change the leading in the character box… • Bottom is result, with leading set to 40
ILLUSTRATOR TEXT EFFECTS • Text on a path • Find the Pencil tool (under the Shaper tool) • Draw a path (this won’t have a stroke) • Find the Type On a Path Tool (under the Text tool, with the T icon) • With this tool active, click on the path and start typing • If you run out of space, you get the red + icon – select this with the selection tool to Thread text to a new box • This technique also works with shapes you drew with the Rectangle/Ellipse/Star tool, etc
ILLUSTRATOR TEXT EFFECTS 2 • Text in an area • Draw a star, rectangle, or some closed shape with the Pen tool • Choose the Area Type Tool • With this tool active, click on the path and start typing • If you run out of space, you get the red + icon – select this with the selection tool to Thread text to a new box • This technique also works with shapes you drew with the Rectangle/Ellipse/Star tool, etc • Note the overflow again!
VERTICAL TEXT TOOL • Types vertically, easily • Good for side text/labelling
GLYPHS • Window->Type->Glyphs for more complicated characters
CHARACTER FUN • We can turn text from character into vector shapes, that can then have any normal illustrator styles, effects etc • To do this, we will type some text (type 123) • Then Select the text with the Selection tool • Choose Effects, 3 D or warp lower… Use Touch type tool to rotate a single character • T?
EFFECTS AND TYPE USE 36 POINT TEXT ARIAL FONT AND TYPE “ 123” • SELECT THE TYPE USING THE SELECTION TOOL • THE SELECTED TYPE SHOULD LOOK LIKE THIS: • CHOOSE MENU>EFFECTS>3 D, OR WARP • CHOOSING ARC LOWER, FOR EXAMPLE WOULD RESULT LIKE THIS”

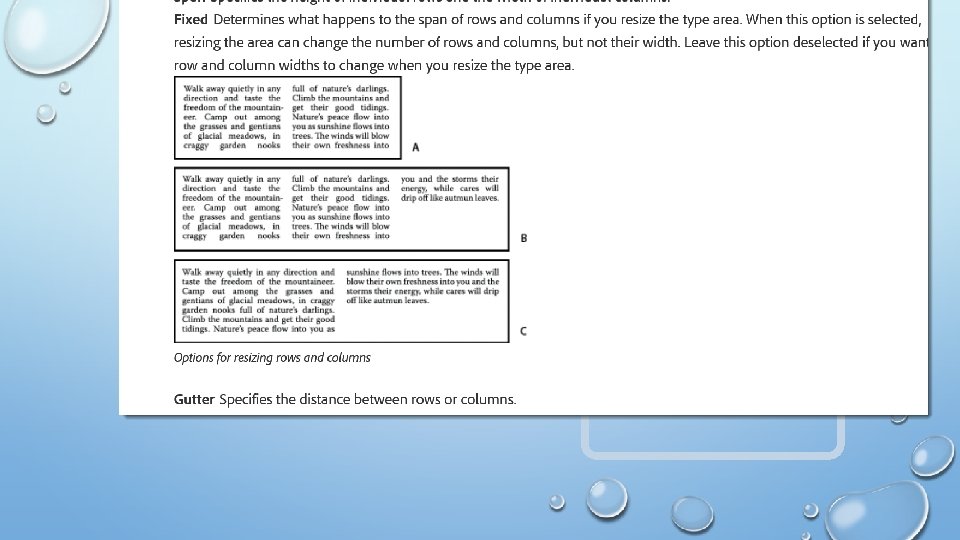

Specifies the distance between rows or columns. • Gutter rows or columns. the distance between Options Specifies section of the dialog box, a Text Specifies the distance between rowsselect or columns. • In the Flow • In the Options section of the dialog box, select a Text Flow COLUMNS • Gutter Specifies the distance between rows or columns. • In thesection of the dialog box, select a Text Flow
CHARACTER TO VECTOR 2 • Now the letters are vector shapes with control points (no longer editable as text) • With the shapes selected, try Effect->3 d>Extrude & Bevel • I changed extrude depth to 10 point
WARPING TEXT USE POINT OR AREA TEXT SELECT THE TEXT TRY WARP>ARC LOWER
