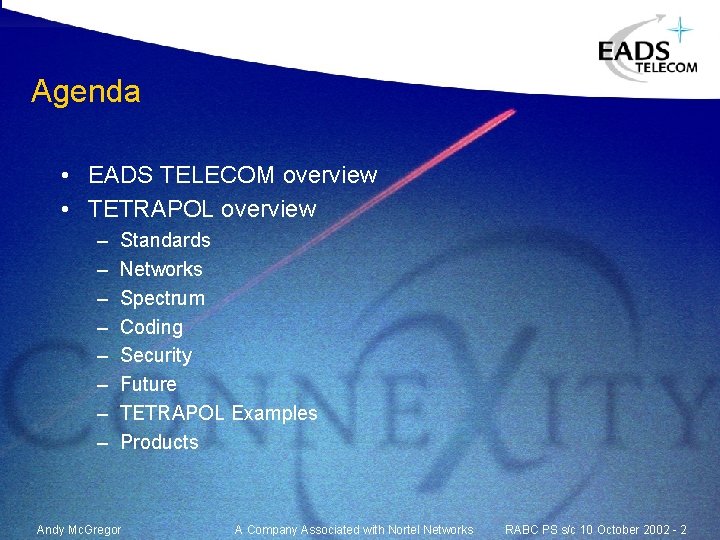

Agenda • EADS TELECOM overview • TETRAPOL overview – – – – Standards Networks Spectrum Coding Security Future TETRAPOL Examples Products Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 2

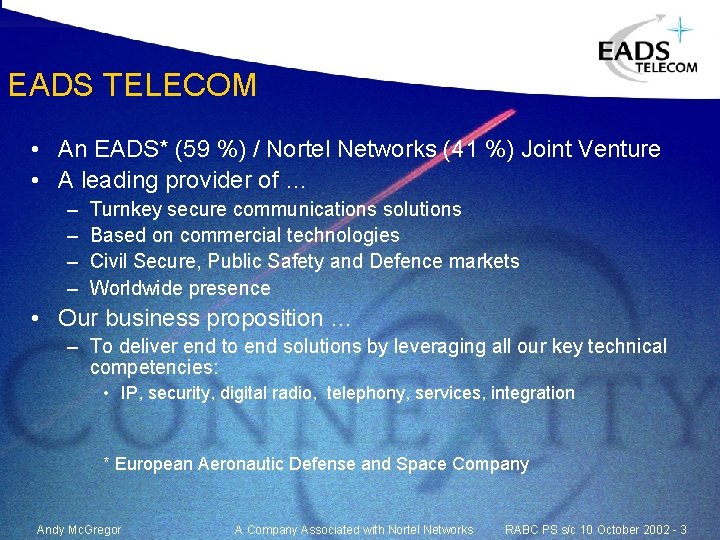

EADS TELECOM • An EADS* (59 %) / Nortel Networks (41 %) Joint Venture • A leading provider of … – – Turnkey secure communications solutions Based on commercial technologies Civil Secure, Public Safety and Defence markets Worldwide presence • Our business proposition … – To deliver end to end solutions by leveraging all our key technical competencies: • IP, security, digital radio, telephony, services, integration * European Aeronautic Defense and Space Company Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 3

Worldwide leader Andy Mc. Gregor AIRBUS n° 2 EUROCOPTER n° 1 COMMERCIAL LAUNCHERS n° 1 MISSILE SYSTEMS n° 2 MILITARY TRANSPORT AIRCRAFT n° 3 SATELLITES n° 3 MILITARY AIRCRAFT n° 4 SECURED COMMUNICATIONS n° 1 A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 4

EADS TELECOM globally EADS TELECOM DENMARK EADS TELECOM UK COGENT EADS TELECOM BENELUX EADS TELECOM DEUTSCHLAND EADS TELECOM HQ & EADS-DSN FRANCE EADS TELECOM SLOVAKIA EADS TELECOM ROMANIA EADS TELECOM ESPANA EADS TELECOM SINGAPORE EADS TELECOM ITALIA EADS TELECOM NORTH AMERICA EADS TELECOM MEXICO Andy Mc. Gregor 3500 employees in 12 countries A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 5

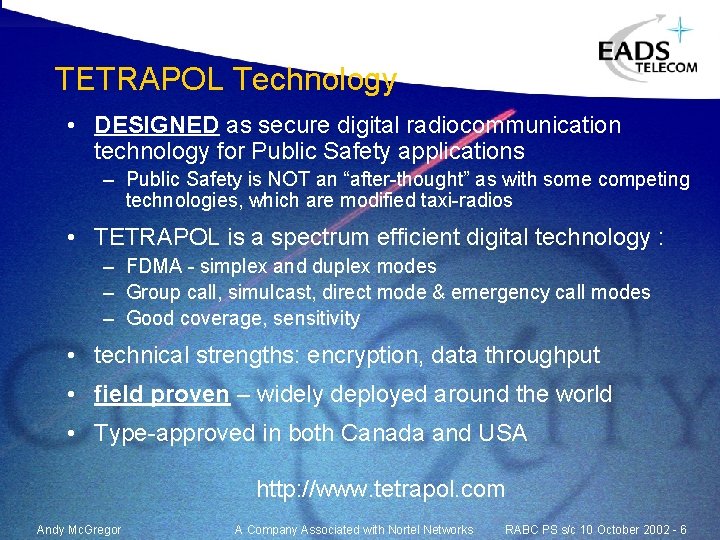

TETRAPOL Technology • DESIGNED as secure digital radiocommunication technology for Public Safety applications – Public Safety is NOT an “after-thought” as with some competing technologies, which are modified taxi-radios • TETRAPOL is a spectrum efficient digital technology : – FDMA - simplex and duplex modes – Group call, simulcast, direct mode & emergency call modes – Good coverage, sensitivity • technical strengths: encryption, data throughput • field proven – widely deployed around the world • Type-approved in both Canada and USA http: //www. tetrapol. com Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 6

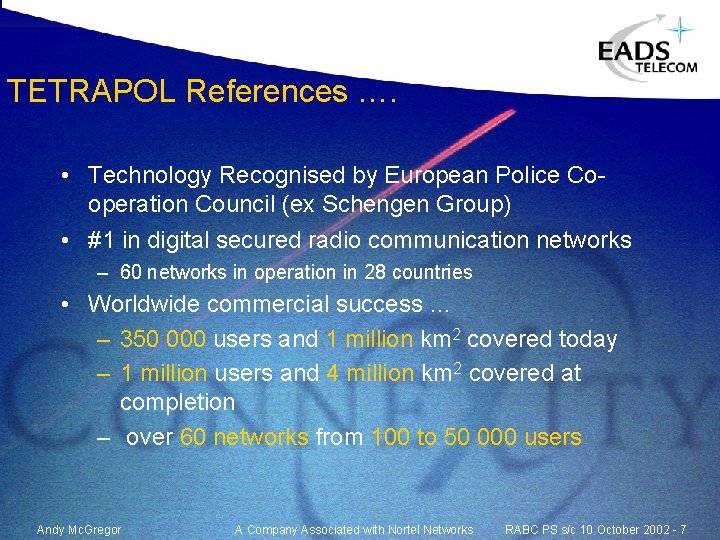

TETRAPOL References …. • Technology Recognised by European Police Cooperation Council (ex Schengen Group) • #1 in digital secured radio communication networks – 60 networks in operation in 28 countries • Worldwide commercial success … – 350 000 users and 1 million km 2 covered today – 1 million users and 4 million km 2 covered at completion – over 60 networks from 100 to 50 000 users Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 7

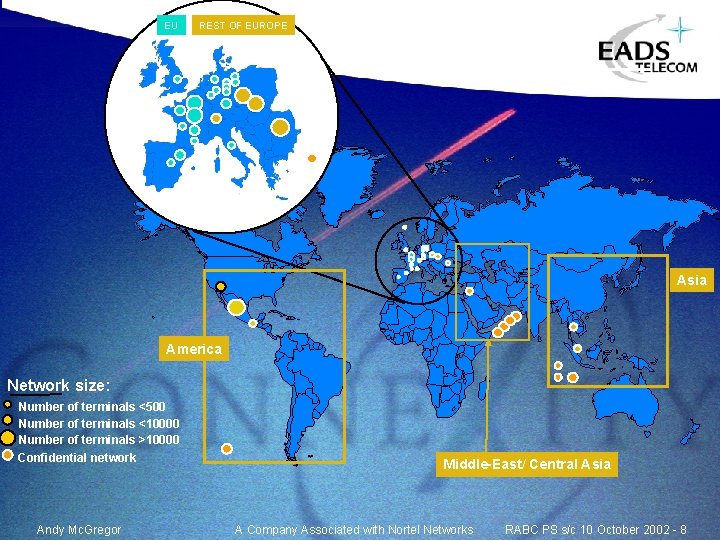

EU REST OF EUROPE TETRAPOL WORLDWIDE Asia America Network size: Number of terminals <500 Number of terminals <10000 Number of terminals >10000 Confidential network Andy Mc. Gregor Middle-East/ Central Asia A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 8

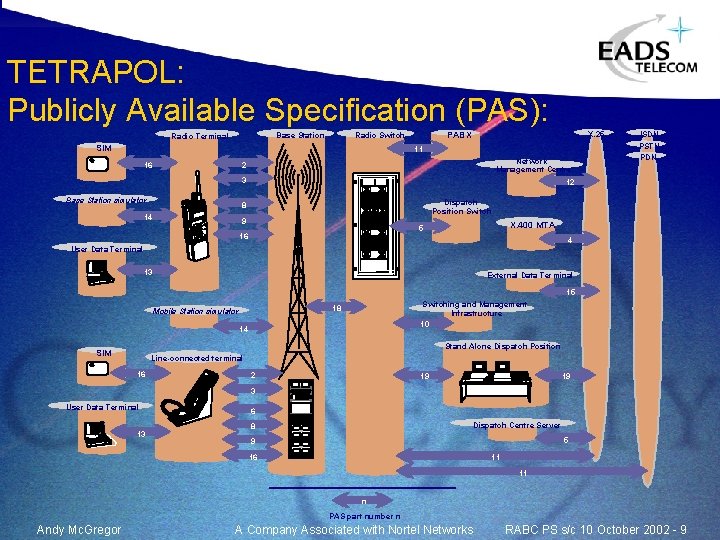

TETRAPOL: Publicly Available Specification (PAS): Base Station Radio Terminal PABX Radio Switch SIM X. 25 11 16 Network Management Centre 2 3 Base Station simulator 12 Dispatch Position Switch 8 14 DIR 9 CONF 3 2 6 5 7 EXT F 4 16 9 8 VAL 0 CLR X. 400 MTA 5 MENU 1 ISDN PSTN PDN 4 User Data Terminal 13 External Data Terminal 15 Switching and Management Infrastructure 10 18 Mobile Station simulator 14 Stand Alone Dispatch Position SIM Line-connected terminal 16 2 19 19 3 User Data Terminal 13 6 Dispatch Centre Server 8 5 9 16 11 11 n PAS part number n Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 9

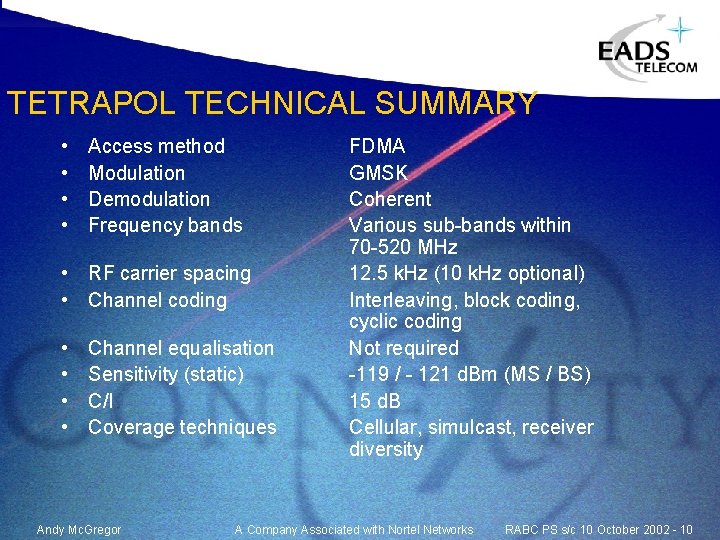

TETRAPOL TECHNICAL SUMMARY • • Access method Modulation Demodulation Frequency bands • RF carrier spacing • Channel coding • • Channel equalisation Sensitivity (static) C/I Coverage techniques Andy Mc. Gregor FDMA GMSK Coherent Various sub-bands within 70 -520 MHz 12. 5 k. Hz (10 k. Hz optional) Interleaving, block coding, cyclic coding Not required -119 / - 121 d. Bm (MS / BS) 15 d. B Cellular, simulcast, receiver diversity A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 10

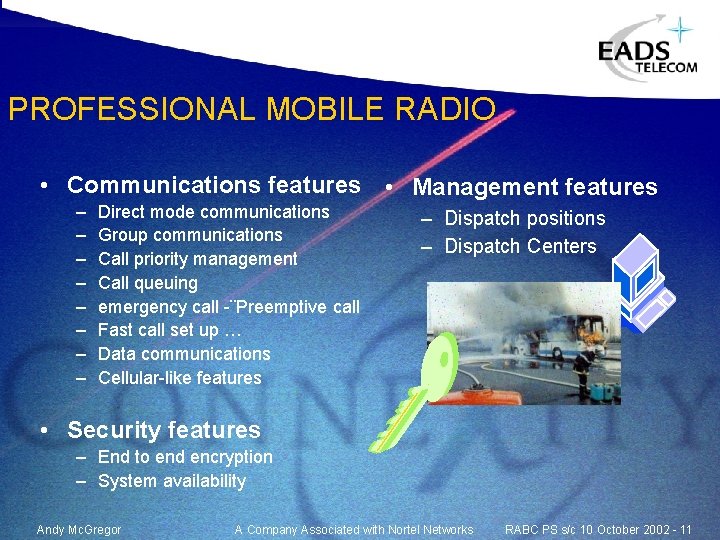

PROFESSIONAL MOBILE RADIO • Communications features • Management features – – – – Direct mode communications Group communications Call priority management Call queuing emergency call -¨Preemptive call Fast call set up … Data communications Cellular-like features – Dispatch positions – Dispatch Centers • Security features – End to end encryption – System availability Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 11

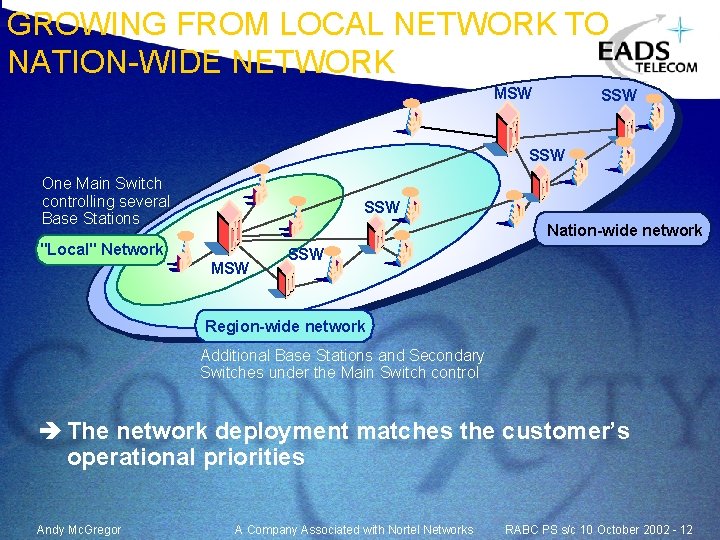

GROWING FROM LOCAL NETWORK TO NATION-WIDE NETWORK MSW SSW One Main Switch controlling several Base Stations SSW Nation-wide network "Local" Network MSW SSW Region-wide network Additional Base Stations and Secondary Switches under the Main Switch control è The network deployment matches the customer’s operational priorities Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 12

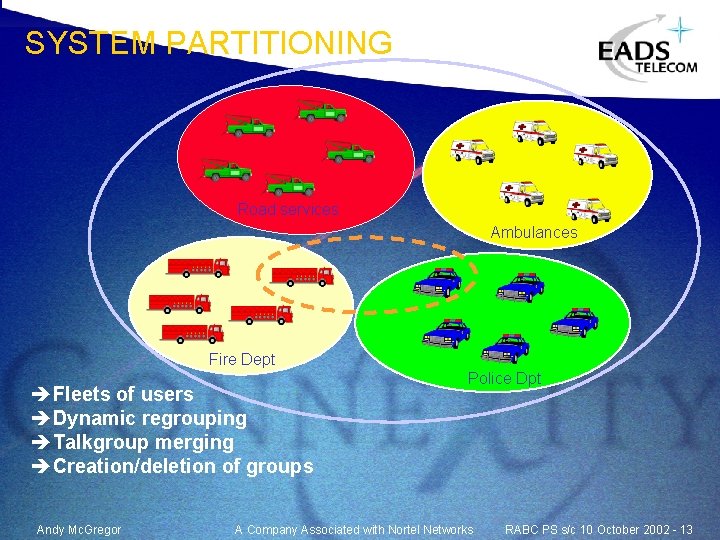

SYSTEM PARTITIONING Road services Ambulances Fire Dept èFleets of users èDynamic regrouping èTalkgroup merging èCreation/deletion of groups Andy Mc. Gregor Police Dpt A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 13

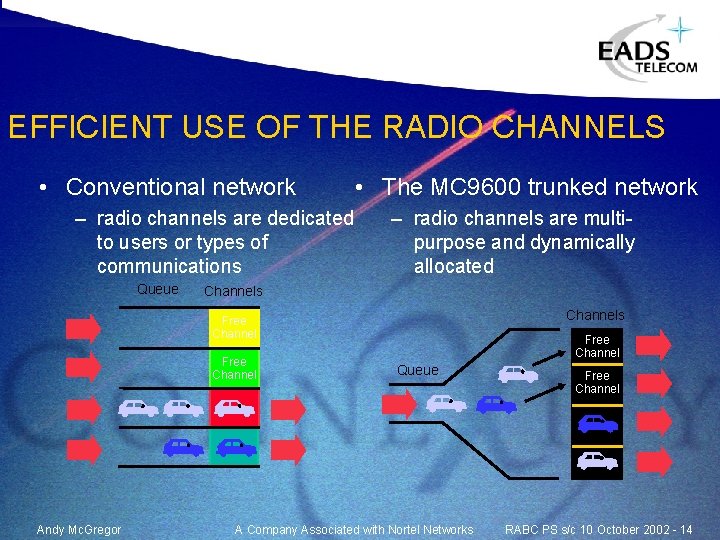

EFFICIENT USE OF THE RADIO CHANNELS • Conventional network – radio channels are dedicated to users or types of communications Queue • The MC 9600 trunked network – radio channels are multipurpose and dynamically allocated Channels Free Channel Andy Mc. Gregor Free Channel Queue A Company Associated with Nortel Networks Free Channel RABC PS s/c 10 October 2002 - 14

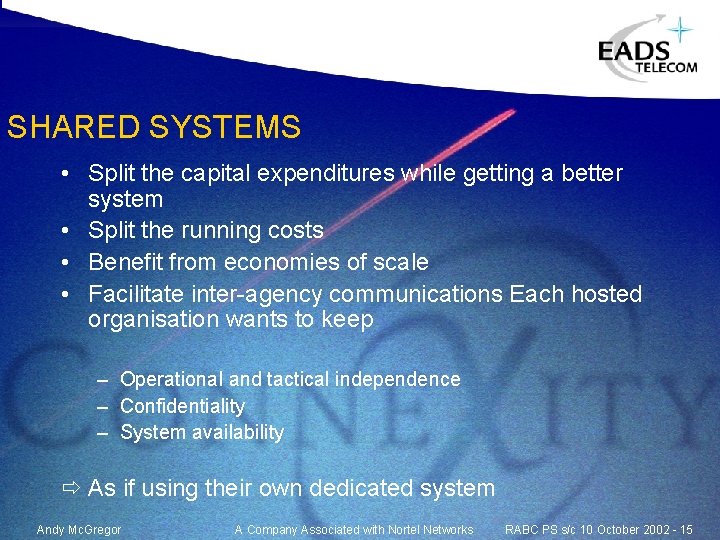

SHARED SYSTEMS • Split the capital expenditures while getting a better system • Split the running costs • Benefit from economies of scale • Facilitate inter-agency communications Each hosted organisation wants to keep – Operational and tactical independence – Confidentiality – System availability ð As if using their own dedicated system Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 15

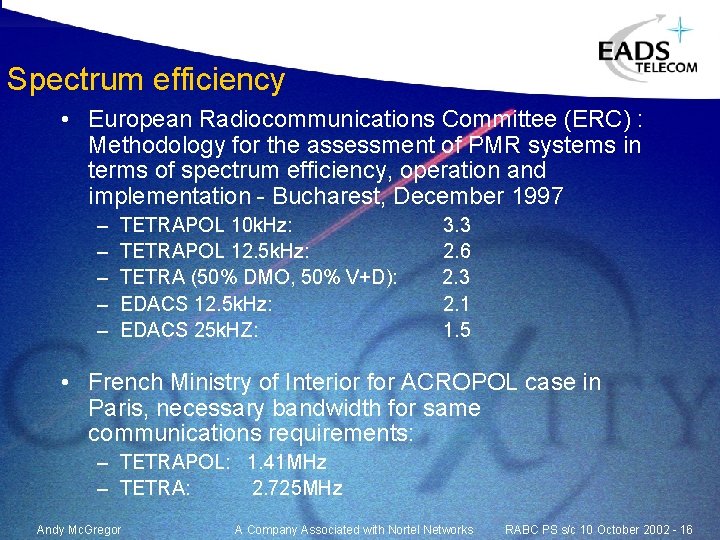

Spectrum efficiency • European Radiocommunications Committee (ERC) : Methodology for the assessment of PMR systems in terms of spectrum efficiency, operation and implementation - Bucharest, December 1997 – – – TETRAPOL 10 k. Hz: TETRAPOL 12. 5 k. Hz: TETRA (50% DMO, 50% V+D): EDACS 12. 5 k. Hz: EDACS 25 k. HZ: 3. 3 2. 6 2. 3 2. 1 1. 5 • French Ministry of Interior for ACROPOL case in Paris, necessary bandwidth for same communications requirements: – TETRAPOL: 1. 41 MHz – TETRA: 2. 725 MHz Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 16

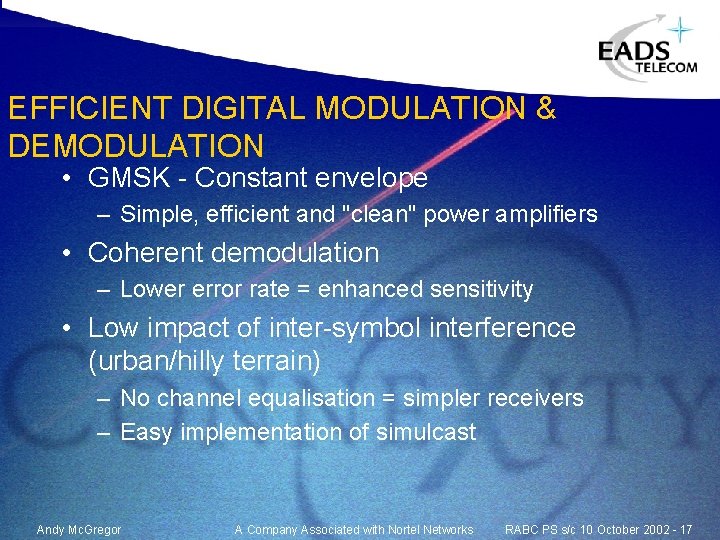

EFFICIENT DIGITAL MODULATION & DEMODULATION • GMSK - Constant envelope – Simple, efficient and "clean" power amplifiers • Coherent demodulation – Lower error rate = enhanced sensitivity • Low impact of inter-symbol interference (urban/hilly terrain) – No channel equalisation = simpler receivers – Easy implementation of simulcast Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 17

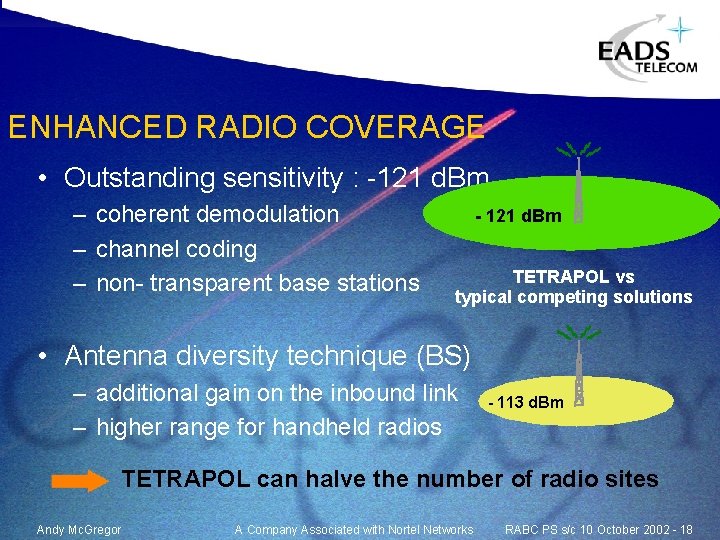

ENHANCED RADIO COVERAGE • Outstanding sensitivity : -121 d. Bm – coherent demodulation – channel coding – non- transparent base stations - 121 d. Bm TETRAPOL vs typical competing solutions • Antenna diversity technique (BS) – additional gain on the inbound link – higher range for handheld radios - 113 d. Bm TETRAPOL can halve the number of radio sites Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 18

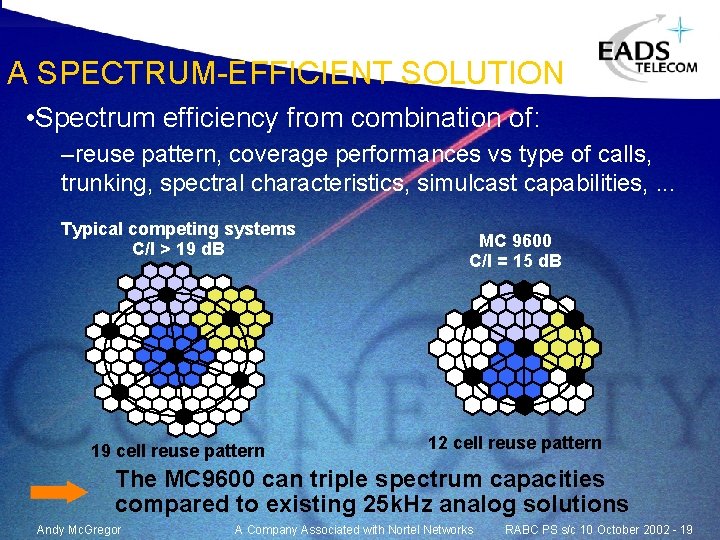

A SPECTRUM-EFFICIENT SOLUTION • Spectrum efficiency from combination of: –reuse pattern, coverage performances vs type of calls, trunking, spectral characteristics, simulcast capabilities, . . . Typical competing systems C/I > 19 d. B 19 cell reuse pattern MC 9600 C/I = 15 d. B 12 cell reuse pattern The MC 9600 can triple spectrum capacities compared to existing 25 k. Hz analog solutions Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 19

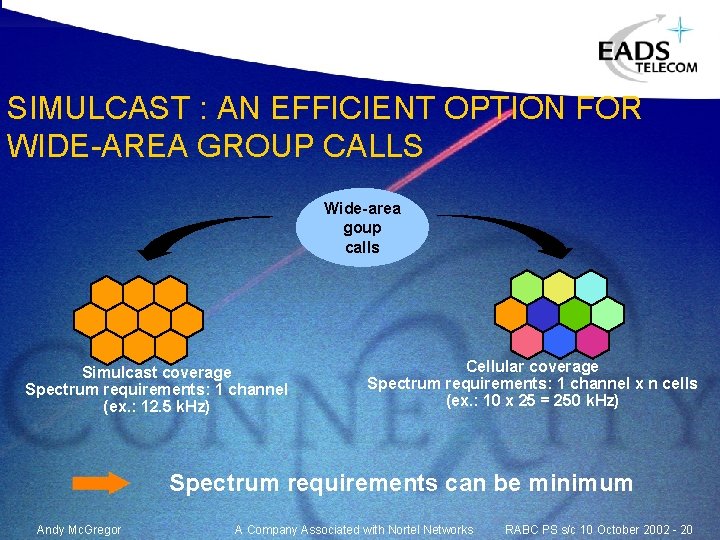

SIMULCAST : AN EFFICIENT OPTION FOR WIDE-AREA GROUP CALLS Wide-area goup calls Simulcast coverage Spectrum requirements: 1 channel (ex. : 12. 5 k. Hz) Cellular coverage Spectrum requirements: 1 channel x n cells (ex. : 10 x 25 = 250 k. Hz) Spectrum requirements can be minimum Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 20

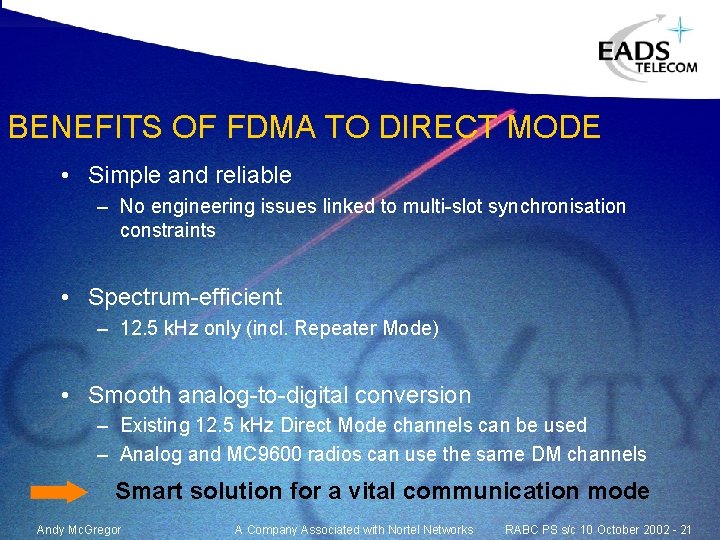

BENEFITS OF FDMA TO DIRECT MODE • Simple and reliable – No engineering issues linked to multi-slot synchronisation constraints • Spectrum-efficient – 12. 5 k. Hz only (incl. Repeater Mode) • Smooth analog-to-digital conversion – Existing 12. 5 k. Hz Direct Mode channels can be used – Analog and MC 9600 radios can use the same DM channels Smart solution for a vital communication mode Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 21

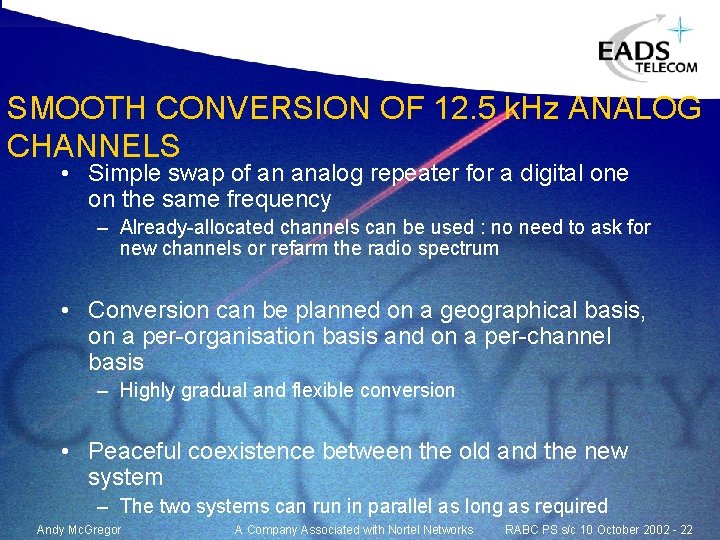

SMOOTH CONVERSION OF 12. 5 k. Hz ANALOG CHANNELS • Simple swap of an analog repeater for a digital one on the same frequency – Already-allocated channels can be used : no need to ask for new channels or refarm the radio spectrum • Conversion can be planned on a geographical basis, on a per-organisation basis and on a per-channel basis – Highly gradual and flexible conversion • Peaceful coexistence between the old and the new system – The two systems can run in parallel as long as required Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 22

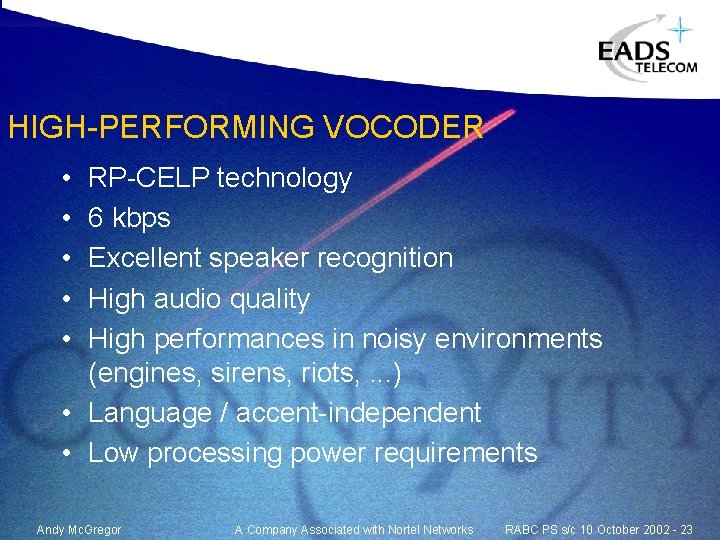

HIGH-PERFORMING VOCODER • • • RP-CELP technology 6 kbps Excellent speaker recognition High audio quality High performances in noisy environments (engines, sirens, riots, . . . ) • Language / accent-independent • Low processing power requirements Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 23

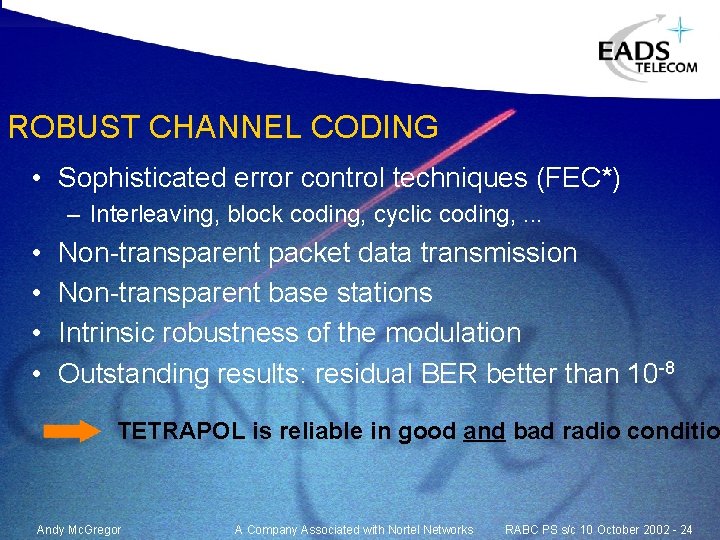

ROBUST CHANNEL CODING • Sophisticated error control techniques (FEC*) – Interleaving, block coding, cyclic coding, . . . • • Non-transparent packet data transmission Non-transparent base stations Intrinsic robustness of the modulation Outstanding results: residual BER better than 10 -8 TETRAPOL is reliable in good and bad radio conditio Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 24

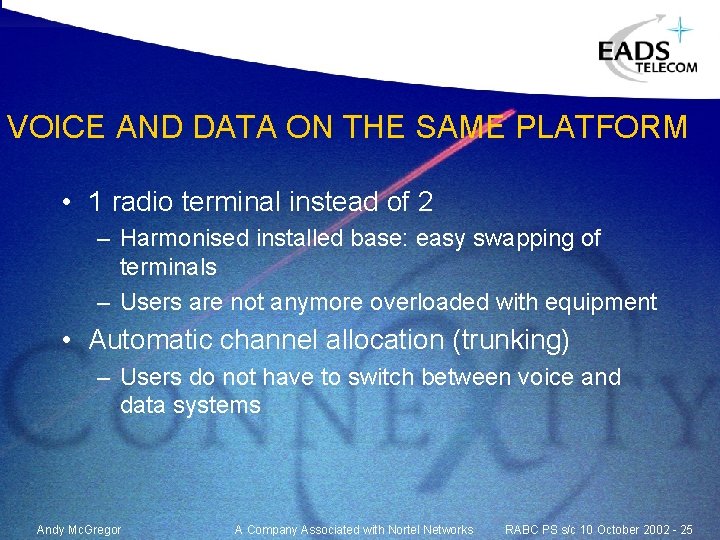

VOICE AND DATA ON THE SAME PLATFORM • 1 radio terminal instead of 2 – Harmonised installed base: easy swapping of terminals – Users are not anymore overloaded with equipment • Automatic channel allocation (trunking) – Users do not have to switch between voice and data systems Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 25

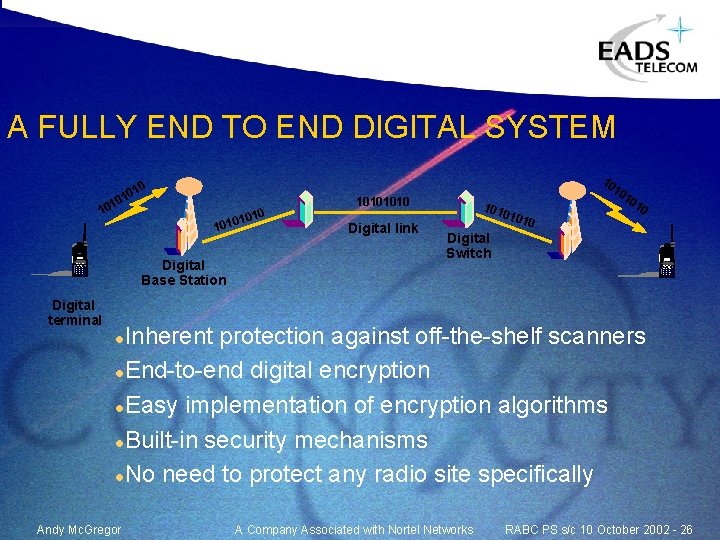

A FULLY END TO END DIGITAL SYSTEM 10 0 1 10 1010 Digital Base Station Digital terminal 1010 Digital link 101 10 1 010 10 01 0 Digital Switch Inherent protection against off-the-shelf scanners l. End-to-end digital encryption l. Easy implementation of encryption algorithms l. Built-in security mechanisms l. No need to protect any radio site specifically l Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 26

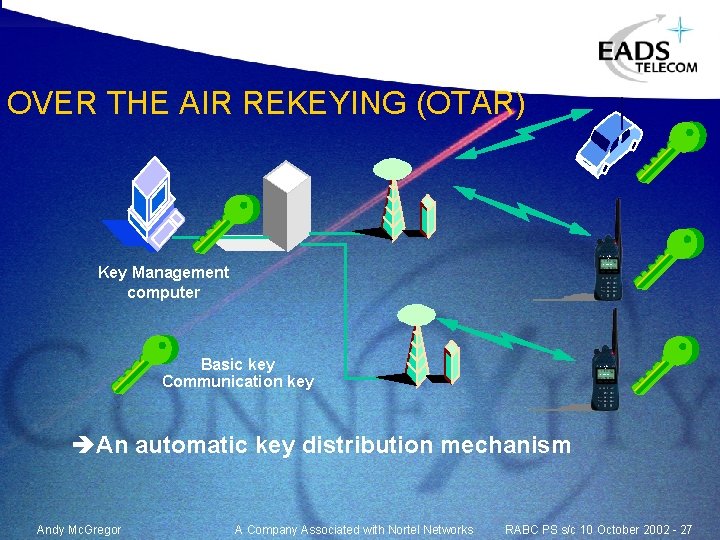

OVER THE AIR REKEYING (OTAR) TETRAPOL Key Management computer Basic key Communication key TETRAPOL èAn automatic key distribution mechanism Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 27

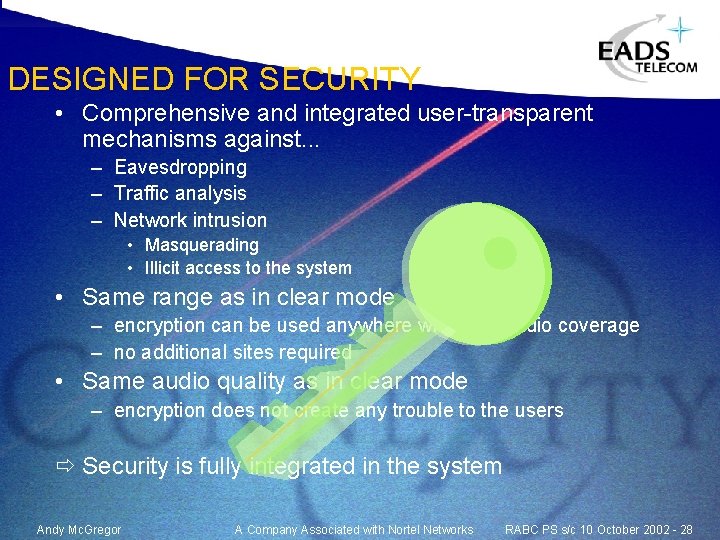

DESIGNED FOR SECURITY • Comprehensive and integrated user-transparent mechanisms against. . . – Eavesdropping – Traffic analysis – Network intrusion • Masquerading • Illicit access to the system • Same range as in clear mode – encryption can be used anywhere within the radio coverage – no additional sites required • Same audio quality as in clear mode – encryption does not create any trouble to the users ð Security is fully integrated in the system Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 28

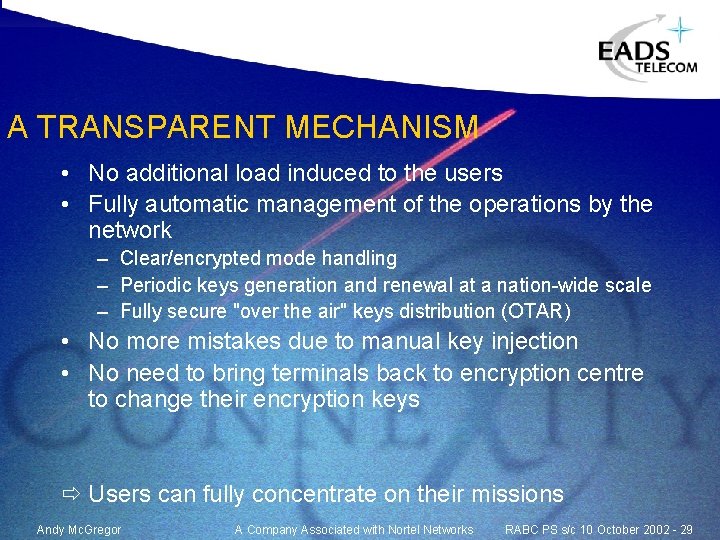

A TRANSPARENT MECHANISM • No additional load induced to the users • Fully automatic management of the operations by the network – Clear/encrypted mode handling – Periodic keys generation and renewal at a nation-wide scale – Fully secure "over the air" keys distribution (OTAR) • No more mistakes due to manual key injection • No need to bring terminals back to encryption centre to change their encryption keys ð Users can fully concentrate on their missions Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 29

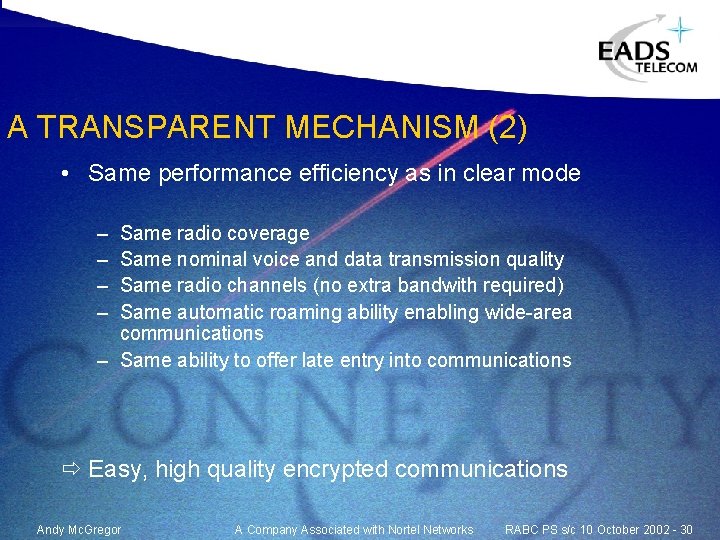

A TRANSPARENT MECHANISM (2) • Same performance efficiency as in clear mode – – Same radio coverage Same nominal voice and data transmission quality Same radio channels (no extra bandwith required) Same automatic roaming ability enabling wide-area communications – Same ability to offer late entry into communications ð Easy, high quality encrypted communications Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 30

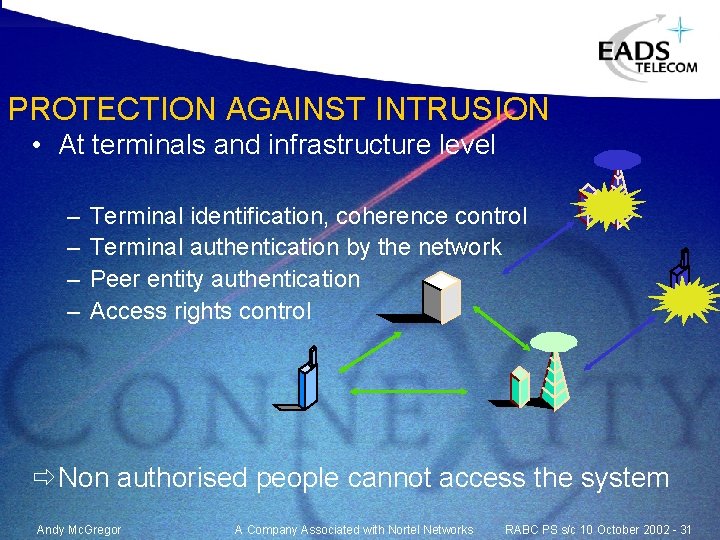

PROTECTION AGAINST INTRUSION • At terminals and infrastructure level – – Terminal identification, coherence control Terminal authentication by the network Peer entity authentication Access rights control ð Non authorised people cannot access the system Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 31

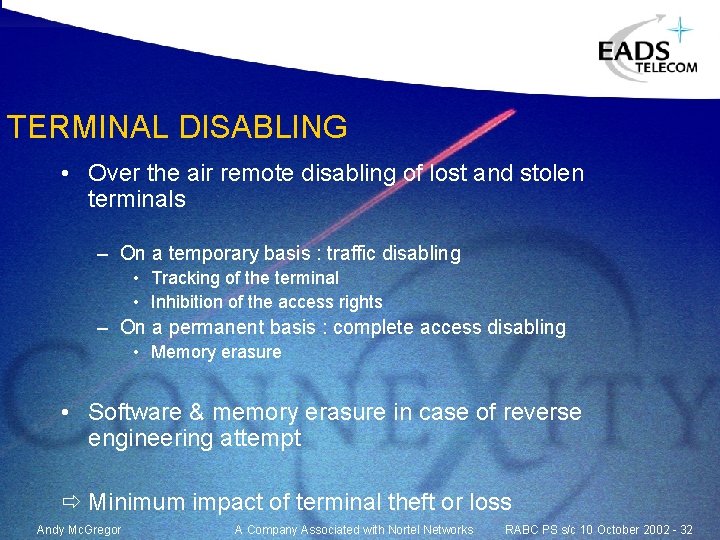

TERMINAL DISABLING • Over the air remote disabling of lost and stolen terminals – On a temporary basis : traffic disabling • Tracking of the terminal • Inhibition of the access rights – On a permanent basis : complete access disabling • Memory erasure • Software & memory erasure in case of reverse engineering attempt ð Minimum impact of terminal theft or loss Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 32

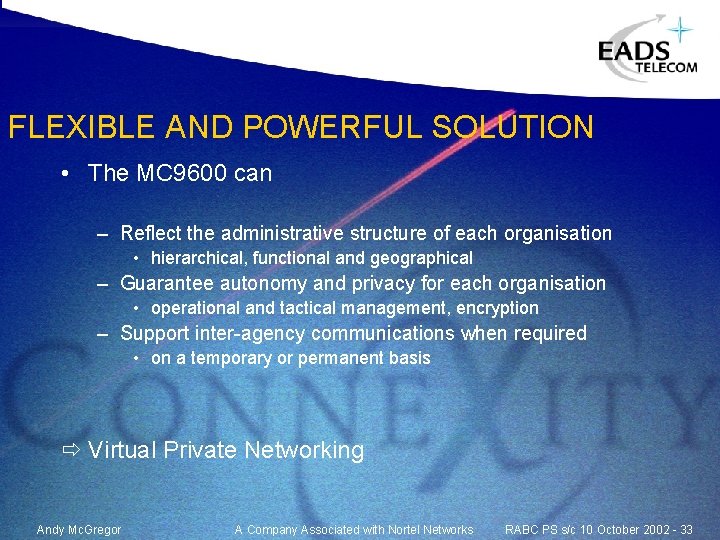

FLEXIBLE AND POWERFUL SOLUTION • The MC 9600 can – Reflect the administrative structure of each organisation • hierarchical, functional and geographical – Guarantee autonomy and privacy for each organisation • operational and tactical management, encryption – Support inter-agency communications when required • on a temporary or permanent basis ð Virtual Private Networking Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 33

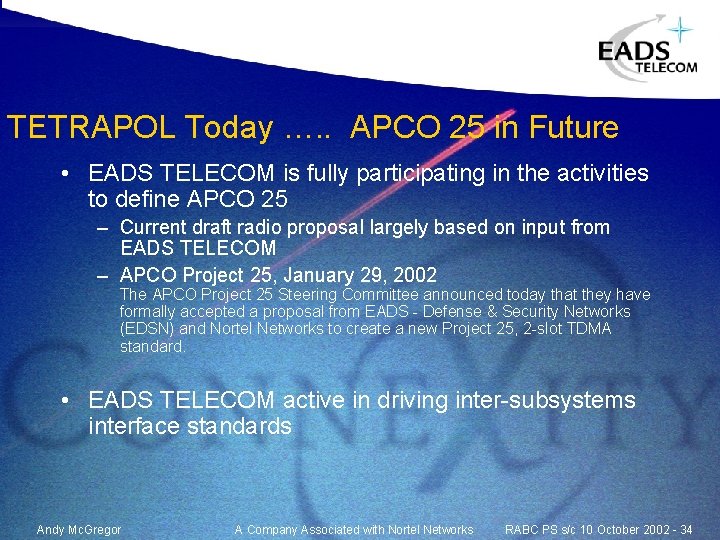

TETRAPOL Today …. . APCO 25 in Future • EADS TELECOM is fully participating in the activities to define APCO 25 – Current draft radio proposal largely based on input from EADS TELECOM – APCO Project 25, January 29, 2002 The APCO Project 25 Steering Committee announced today that they have formally accepted a proposal from EADS - Defense & Security Networks (EDSN) and Nortel Networks to create a new Project 25, 2 -slot TDMA standard. • EADS TELECOM active in driving inter-subsystems interface standards Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 34

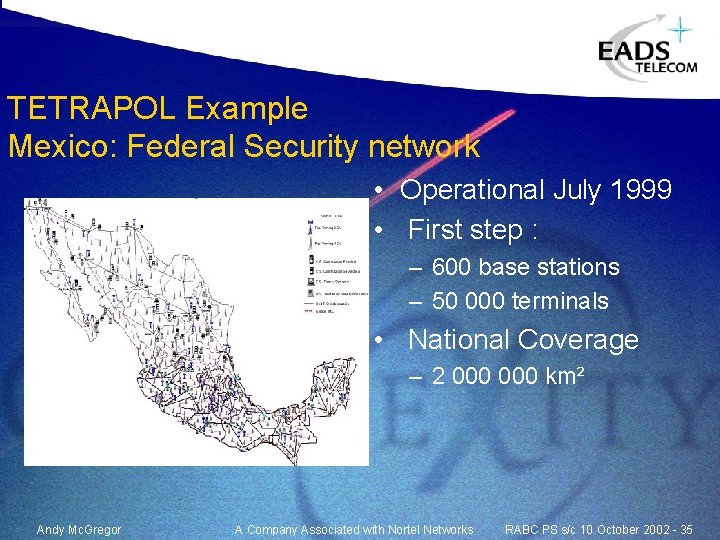

TETRAPOL Example Mexico: Federal Security network • Operational July 1999 • First step : – 600 base stations – 50 000 terminals • National Coverage – 2 000 km² Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 35

TETRAPOL Example USA: Stricom Project • Data and voice communications for US Army National Training Center • Used for instrumentation and control of training exercises • High data requirements addressed using unique polling scheme • TETRAPOL chosen for its proven capabilities and ruggedness Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 36

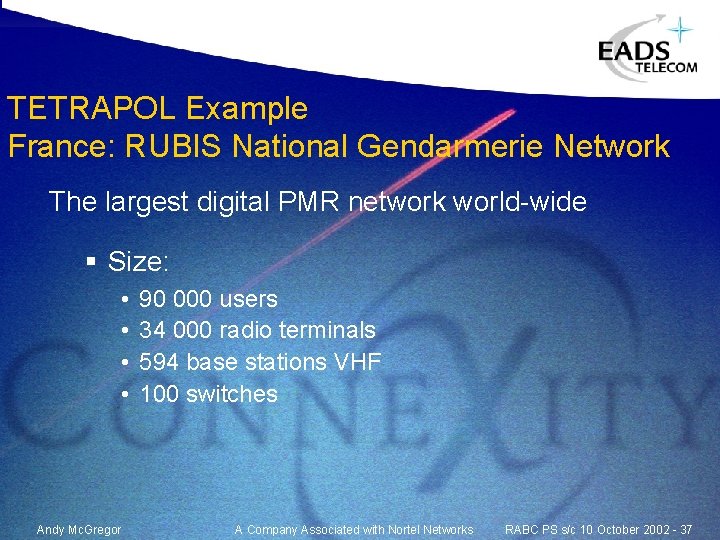

TETRAPOL Example France: RUBIS National Gendarmerie Network The largest digital PMR network world-wide § Size: • • Andy Mc. Gregor 90 000 users 34 000 radio terminals 594 base stations VHF 100 switches A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 37

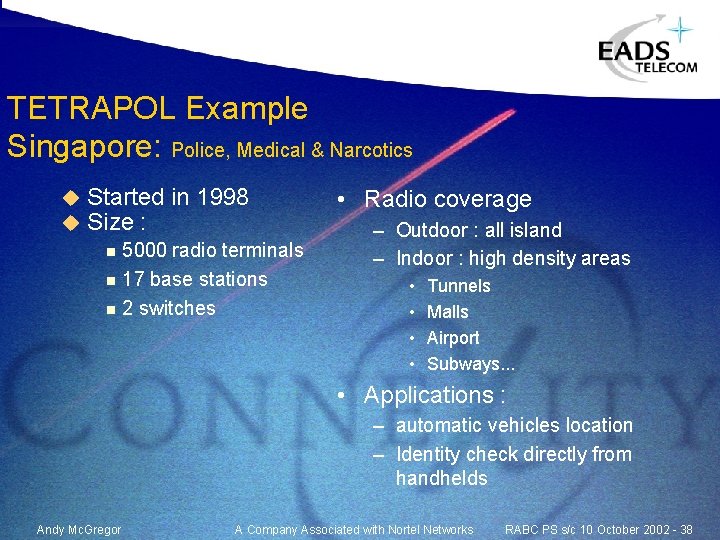

TETRAPOL Example Singapore: Police, Medical & Narcotics u u Started in 1998 Size : 5000 radio terminals n 17 base stations n 2 switches n • Radio coverage – Outdoor : all island – Indoor : high density areas • • Tunnels Malls Airport Subways. . . • Applications : – automatic vehicles location – Identity check directly from handhelds Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 38

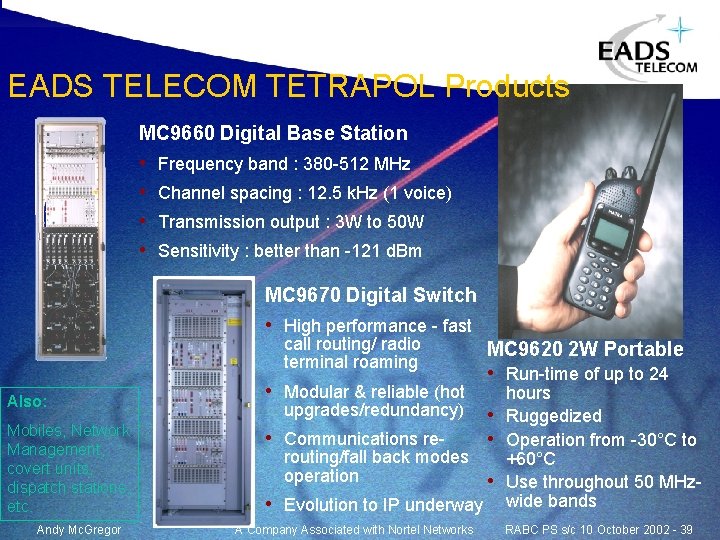

EADS TELECOM TETRAPOL Products MC 9660 Digital Base Station • Frequency band : 380 -512 MHz • Channel spacing : 12. 5 k. Hz (1 voice) • Transmission output : 3 W to 50 W • Sensitivity : better than -121 d. Bm MC 9670 Digital Switch • High performance - fast call routing/ radio terminal roaming Also: Mobiles, Network Management, covert units, dispatch stations, etc. Andy Mc. Gregor • Modular & reliable (hot MC 9620 2 W Portable • Run-time of up to 24 hours upgrades/redundancy) • Ruggedized • Communications re • Operation from -30°C to routing/fall back modes +60°C operation • Use throughout 50 MHz • Evolution to IP underway wide bands A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 39

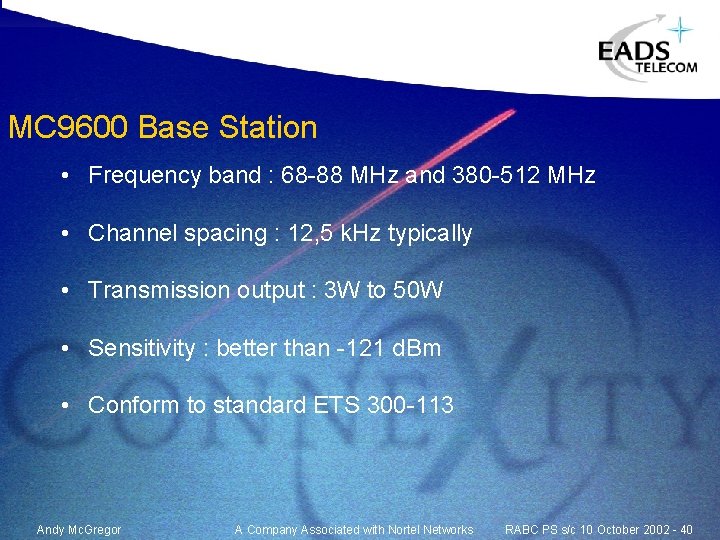

MC 9600 Base Station • Frequency band : 68 -88 MHz and 380 -512 MHz • Channel spacing : 12, 5 k. Hz typically • Transmission output : 3 W to 50 W • Sensitivity : better than -121 d. Bm • Conform to standard ETS 300 -113 Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 40

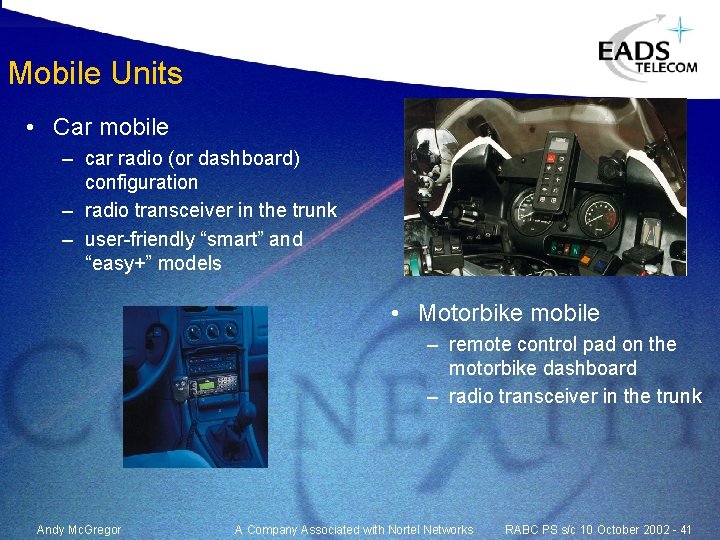

Mobile Units • Car mobile – car radio (or dashboard) configuration – radio transceiver in the trunk – user-friendly “smart” and “easy+” models • Motorbike mobile – remote control pad on the motorbike dashboard – radio transceiver in the trunk Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 41

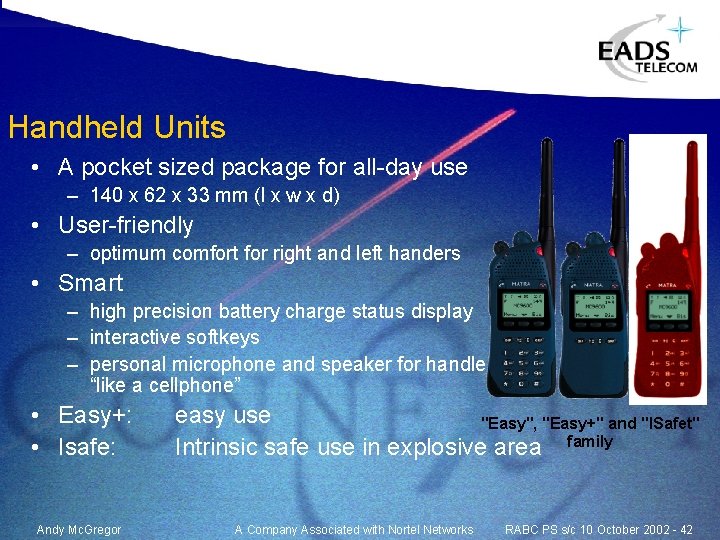

Handheld Units • A pocket sized package for all-day use – 140 x 62 x 33 mm (l x w x d) • User-friendly – optimum comfort for right and left handers • Smart – high precision battery charge status display – interactive softkeys – personal microphone and speaker for handle “like a cellphone” • Easy+: • Isafe: Andy Mc. Gregor easy use "Easy", "Easy+" and "ISafet" Intrinsic safe use in explosive area family A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 42

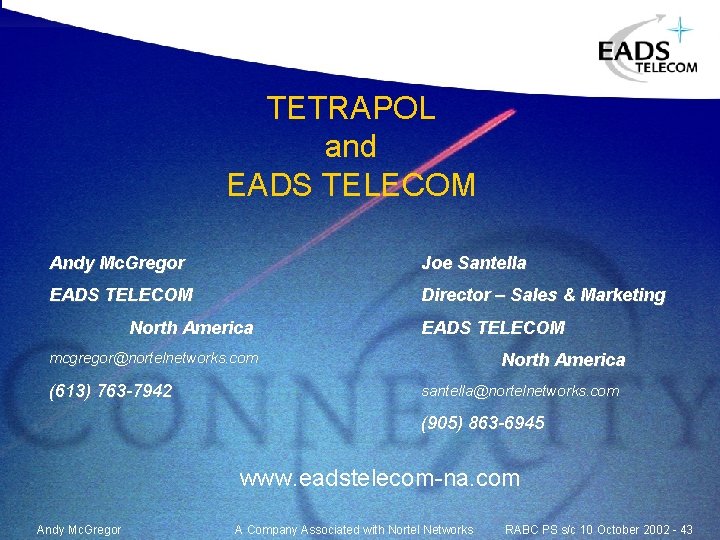

TETRAPOL and EADS TELECOM Andy Mc. Gregor Joe Santella EADS TELECOM Director – Sales & Marketing North America EADS TELECOM mcgregor@nortelnetworks. com (613) 763 -7942 North America santella@nortelnetworks. com (905) 863 -6945 www. eadstelecom-na. com Andy Mc. Gregor A Company Associated with Nortel Networks RABC PS s/c 10 October 2002 - 43
