TETRA Modem TMO-100 Change and Upgrade Information for Version V 3 May 2015 Funk-Electronic Piciorgros Gmb. H

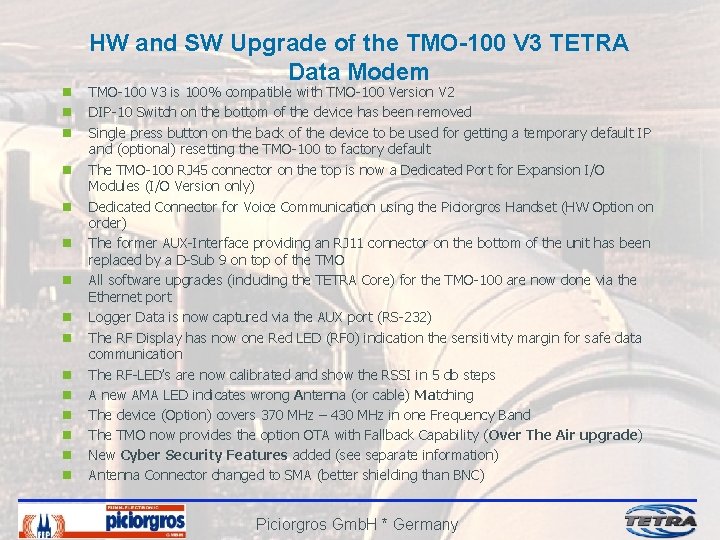

n n n n HW and SW Upgrade of the TMO-100 V 3 TETRA Data Modem TMO-100 V 3 is 100% compatible with TMO-100 Version V 2 DIP-10 Switch on the bottom of the device has been removed Single press button on the back of the device to be used for getting a temporary default IP and (optional) resetting the TMO-100 to factory default The TMO-100 RJ 45 connector on the top is now a Dedicated Port for Expansion I/O Modules (I/O Version only) Dedicated Connector for Voice Communication using the Piciorgros Handset (HW Option on order) The former AUX-Interface providing an RJ 11 connector on the bottom of the unit has been replaced by a D-Sub 9 on top of the TMO All software upgrades (including the TETRA Core) for the TMO-100 are now done via the Ethernet port Logger Data is now captured via the AUX port (RS-232) The RF Display has now one Red LED (RF 0) indication the sensitivity margin for safe data communication The RF-LED’s are now calibrated and show the RSSI in 5 db steps A new AMA LED indicates wrong Antenna (or cable) Matching The device (Option) covers 370 MHz – 430 MHz in one Frequency Band The TMO now provides the option OTA with Fallback Capability (Over The Air upgrade) New Cyber Security Features added (see separate information) Antenna Connector changed to SMA (better shielding than BNC) Piciorgros Gmb. H * Germany

Piciorgros Gmb. H * Germany

Funk - Electronic Piciorgros Gmb. H Claudiastr. 5 51145 Köln-Porz Germany www. piciorgros. com www. tetramodem. com Piciorgros Gmb. H * Germany
