Testing power quality in backup power systems Never miss capturing a disturbance 1

Our automated world • Data centers, banks, hospitals, industrial sites and other facilities all rely on electrical power • Many have mission-critical systems/processes • Inter-related systems add more complexity • The 24/7 economy demands ‘always-on’ so… • Growing dependence on UPS systems & diesel-powered emergency generators 2

The hidden challenge Even with regular testing of your backup systems: • Undetected power quality problems elsewhere in the facility can still cause backup systems to malfunction • Leading to higher energy costs… • …or catastrophic failure – and downtime! 3

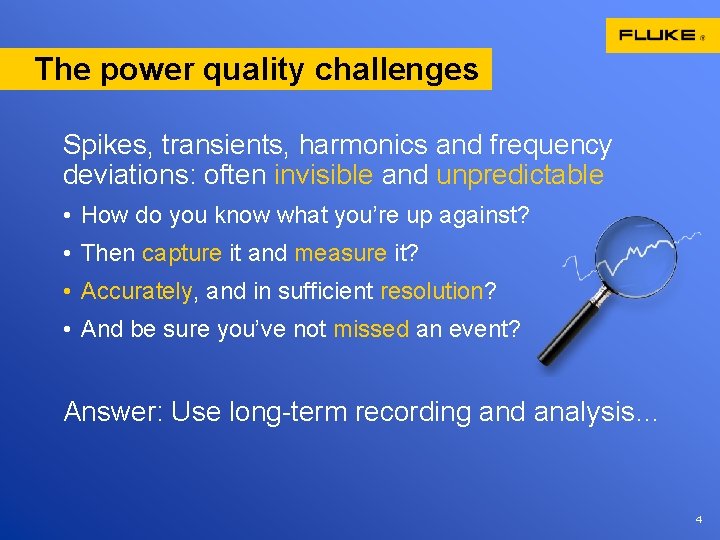

The power quality challenges Spikes, transients, harmonics and frequency deviations: often invisible and unpredictable • How do you know what you’re up against? • Then capture it and measure it? • Accurately, and in sufficient resolution? • And be sure you’ve not missed an event? Answer: Use long-term recording and analysis… 4

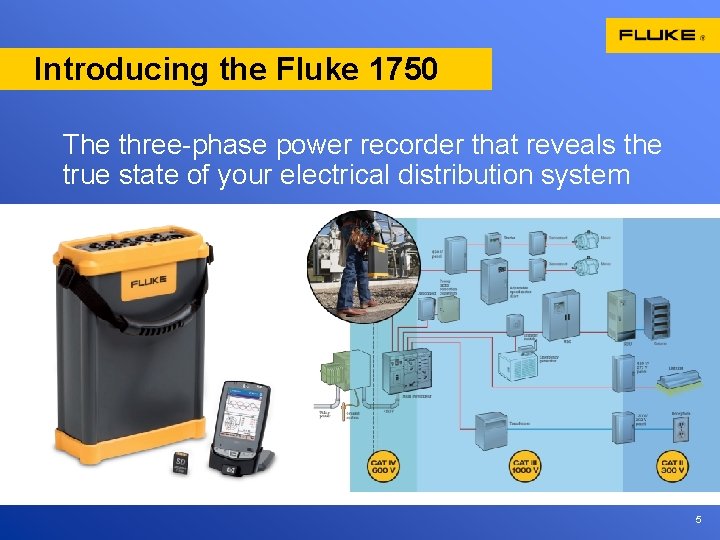

Introducing the Fluke 1750 The three-phase power recorder that reveals the true state of your electrical distribution system 5

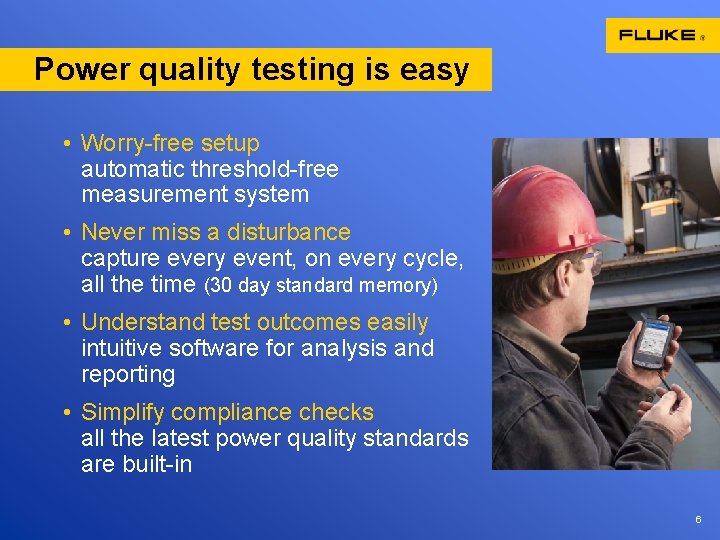

Power quality testing is easy • Worry-free setup automatic threshold-free measurement system • Never miss a disturbance capture every event, on every cycle, all the time (30 day standard memory) • Understand test outcomes easily intuitive software for analysis and reporting • Simplify compliance checks all the latest power quality standards are built-in 6

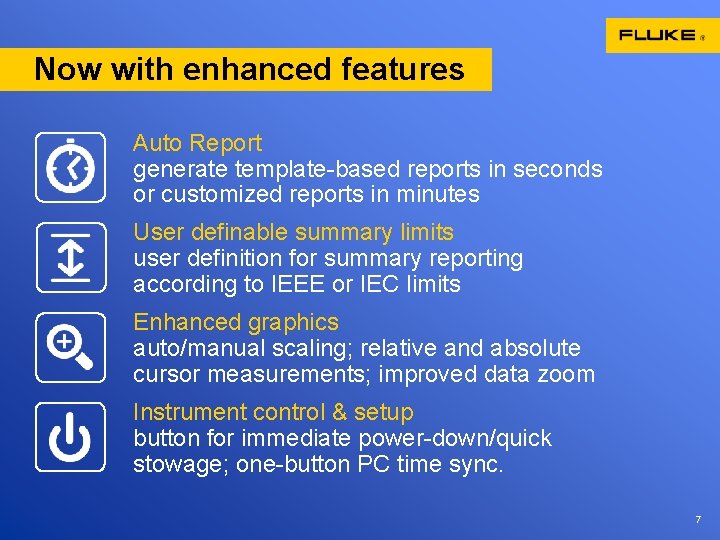

Now with enhanced features Auto Report generate template-based reports in seconds or customized reports in minutes User definable summary limits user definition for summary reporting according to IEEE or IEC limits Enhanced graphics auto/manual scaling; relative and absolute cursor measurements; improved data zoom Instrument control & setup button for immediate power-down/quick stowage; one-button PC time sync. 7
