TESTING OF PERSONAL PROTECTIVE EQUIPMENT PPE TESTING SERVICES
- Slides: 34
TESTING OF PERSONAL PROTECTIVE EQUIPMENT (PPE) TESTING SERVICES DEPARTMENT SIRIM QAS INTERNATIONAL SDN BHD MUHAMMAD TASHRIFF SHAH BIN HELMY SYAMZA MECHANICAL & AUTOMOTIVE SECTION (MAST) 25 November 2020
50 acres site SIRIM QAS : y a w 12 buildings Fe al r de gh i H Block 9, 11, 12, 13, 14, 16, 21, 22 Testing Labs Block 4, 8, 24 B & 25

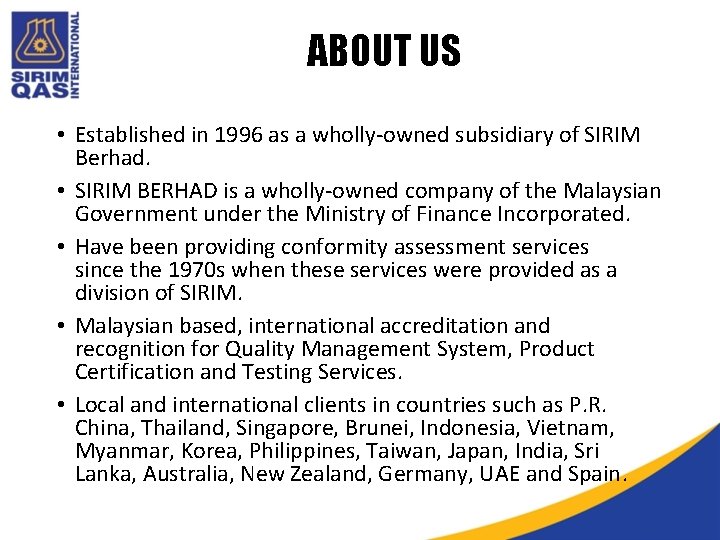

ABOUT US • Established in 1996 as a wholly-owned subsidiary of SIRIM Berhad. • SIRIM BERHAD is a wholly-owned company of the Malaysian Government under the Ministry of Finance Incorporated. • Have been providing conformity assessment services since the 1970 s when these services were provided as a division of SIRIM. • Malaysian based, international accreditation and recognition for Quality Management System, Product Certification and Testing Services. • Local and international clients in countries such as P. R. China, Thailand, Singapore, Brunei, Indonesia, Vietnam, Myanmar, Korea, Philippines, Taiwan, Japan, India, Sri Lanka, Australia, New Zealand, Germany, UAE and Spain.
OUR SERVICES CERTIFICATION TESTING INSPECTION • Management System Certification • Product Certification • Personnel Certification • Product compliance testing to standards, regulatory requirements and specifications • Engineering Inspection • Inspection on behalf of other CBs • Other 3 rd party inspections
PRODUCT TESTING SERVICES DEPARTMENT
TESTING SERVICES DEPARTMENT Civil & Construction Mechanical & Automotive Chemical & Consumer Products Material Integrity Electrical & Electronics Radio Frequency & EMC Plastics & Composite Materials Fire Protection

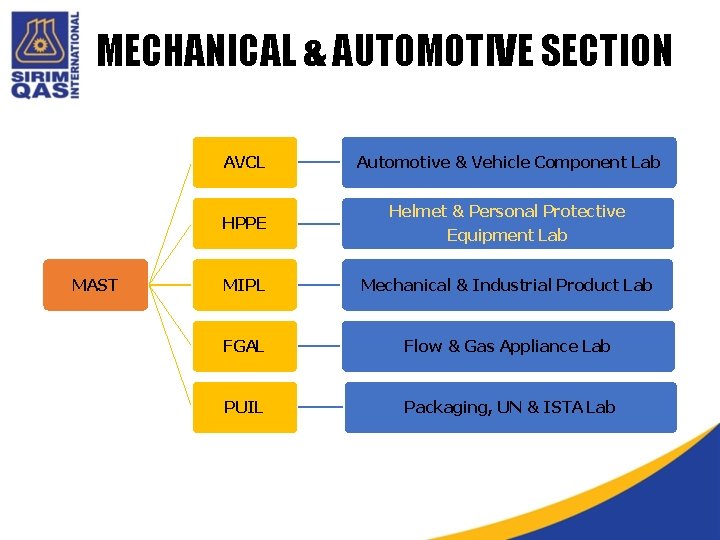

MECHANICAL & AUTOMOTIVE SECTION MAST AVCL Automotive & Vehicle Component Lab HPPE Helmet & Personal Protective Equipment Lab MIPL Mechanical & Industrial Product Lab FGAL Flow & Gas Appliance Lab PUIL Packaging, UN & ISTA Lab
HELMET & PPE HELMET & PERSONAL PROTECTIVE EQUIPMENT LABORATORY

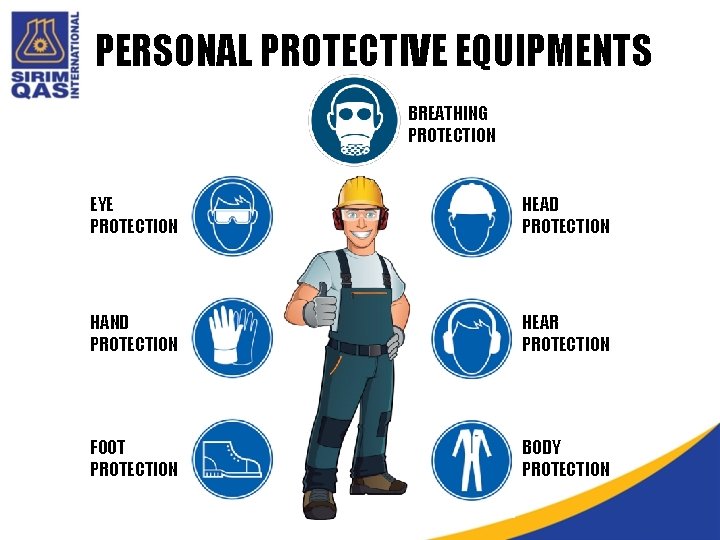

PERSONAL PROTECTIVE EQUIPMENTS BREATHING PROTECTION EYE PROTECTION HEAD PROTECTION HAND PROTECTION HEAR PROTECTION FOOT PROTECTION BODY PROTECTION

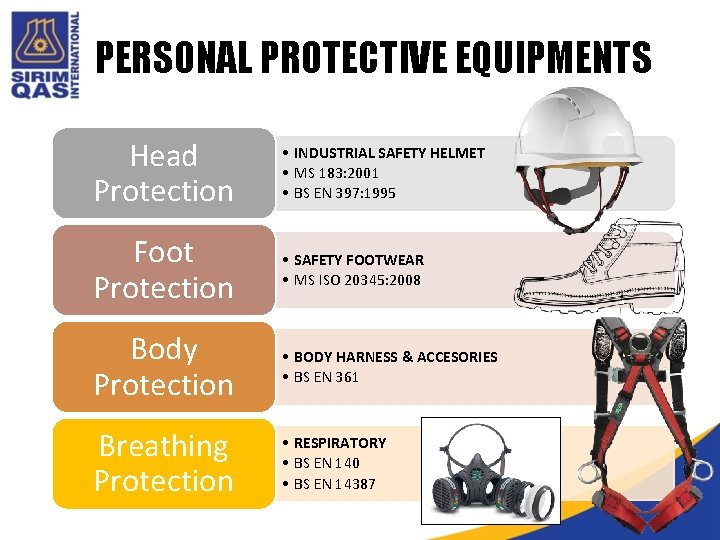

PERSONAL PROTECTIVE EQUIPMENTS Head Protection • INDUSTRIAL SAFETY HELMET • MS 183: 2001 • BS EN 397: 1995 Foot Protection • SAFETY FOOTWEAR • MS ISO 20345: 2008 Body Protection • BODY HARNESS & ACCESORIES • BS EN 361 Breathing Protection • RESPIRATORY • BS EN 140 • BS EN 14387
PERSONAL PROTECTIVE EQUIPMENTS Eye Protection • MS 1953 • MS 2050 • EN 166 Hand Protection • BS EN 374 • BS EN 388 • BS EN 420 Hearing Protection • BS EN 352

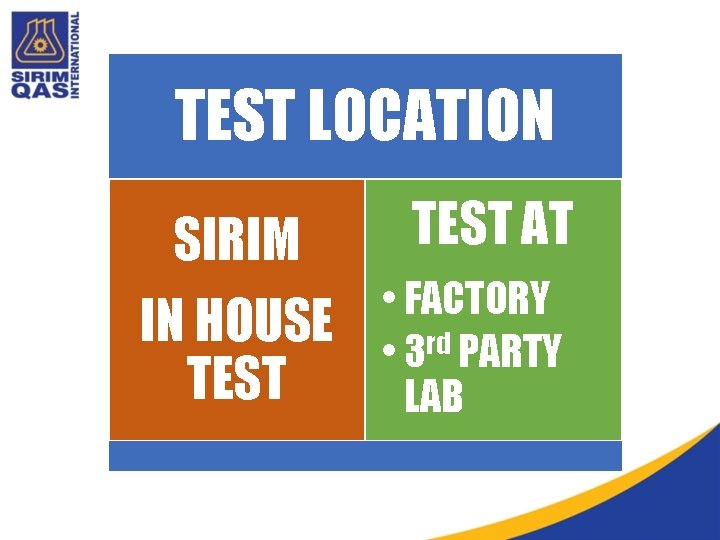

TEST LOCATION SIRIM IN HOUSE TEST AT • FACTORY • 3 rd PARTY LAB
SIRIM IN HOUSE TEST SAFETY FOOTWEAR • MS ISO 20345: 2008 INDUSTRIAL SAFETY HELMET • MS 183: 2001 • EN 397: 1995
TEST AT FACTORY FALL PROTECTION DEVICES • BS EN 353 -2, BS EN 354, BS EN 355, BS EN 358, BS EN 360, BS EN 361, BS EN 362, BS EN 795 and BS EN 813 RESPIRATORY PROTECTIVE DEVICES • BS EN 140 and BS EN 14387

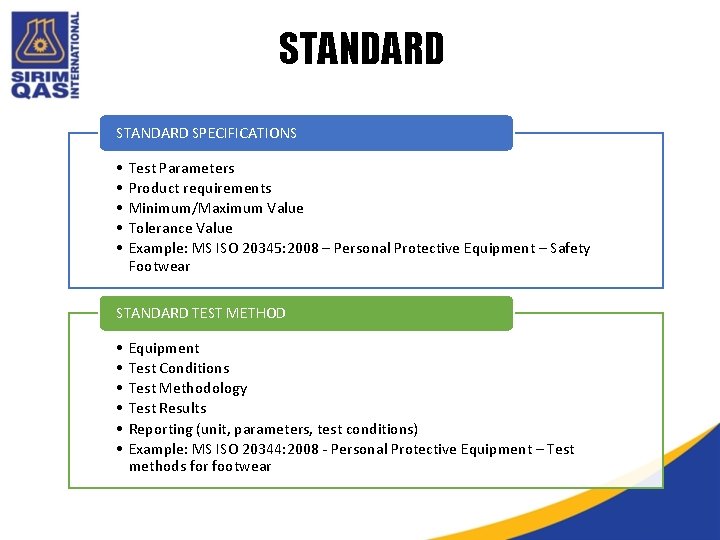

STANDARD SPECIFICATIONS • • • Test Parameters Product requirements Minimum/Maximum Value Tolerance Value Example: MS ISO 20345: 2008 – Personal Protective Equipment – Safety Footwear STANDARD TEST METHOD • • • Equipment Test Conditions Test Methodology Test Results Reporting (unit, parameters, test conditions) Example: MS ISO 20344: 2008 - Personal Protective Equipment – Test methods for footwear
INDUSTRIAL SAFETY HELMET MS 183: 2001 & EN 395: 1995 • Clause 5 Performance Requirements • Clause 5. 1. 1 Shock absorption • Clause 5. 1. 2 Resistance to penetration • Clause 5. 1. 3 Flame resistance • Clause 5. 1. 4 Chin strap anchorages • Clause 5. 1. 5 Stiffness test

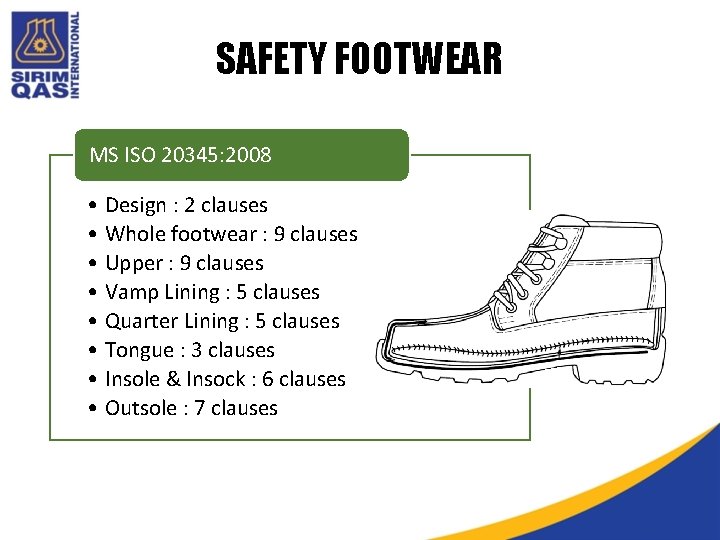

SAFETY FOOTWEAR MS ISO 20345: 2008 • Design : 2 clauses • Whole footwear : 9 clauses • Upper : 9 clauses • Vamp Lining : 5 clauses • Quarter Lining : 5 clauses • Tongue : 3 clauses • Insole & Insock : 6 clauses • Outsole : 7 clauses

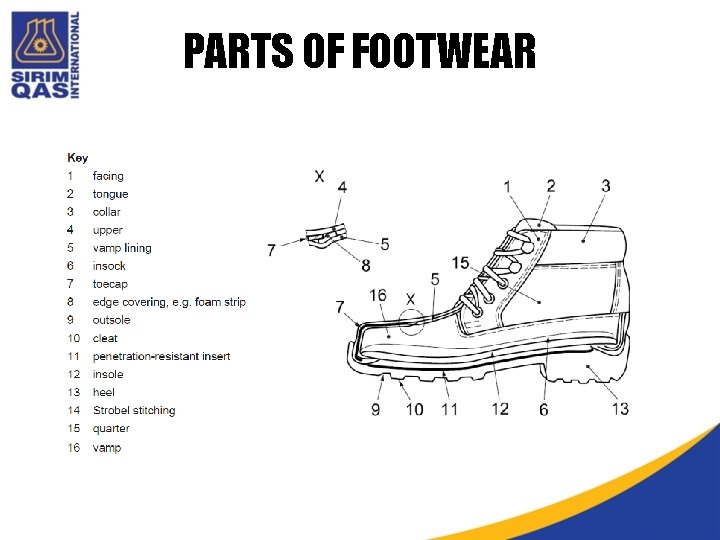

PARTS OF FOOTWEAR
DESIGN

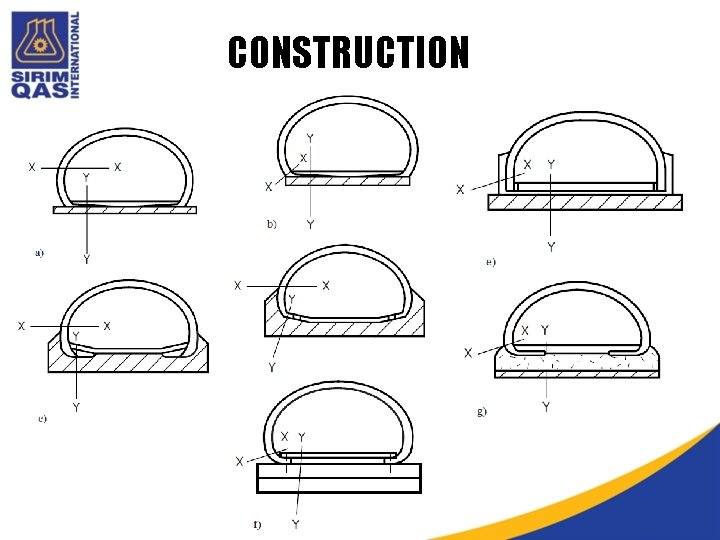

CONSTRUCTION

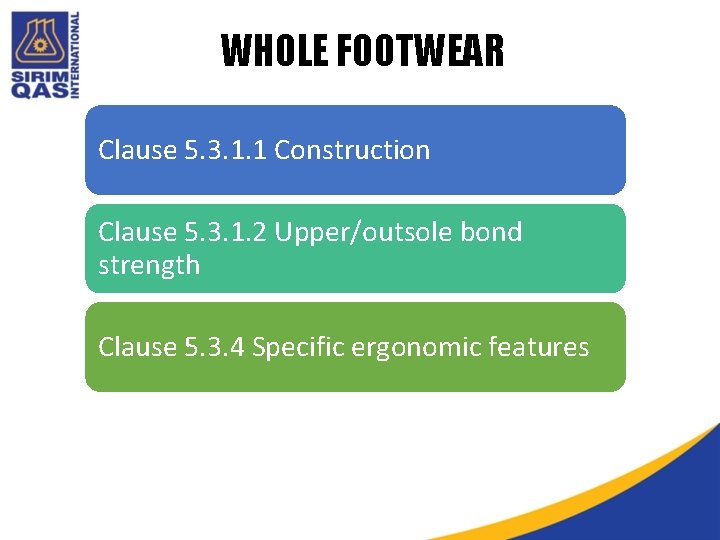

WHOLE FOOTWEAR Clause 5. 3. 1. 1 Construction Clause 5. 3. 1. 2 Upper/outsole bond strength Clause 5. 3. 4 Specific ergonomic features

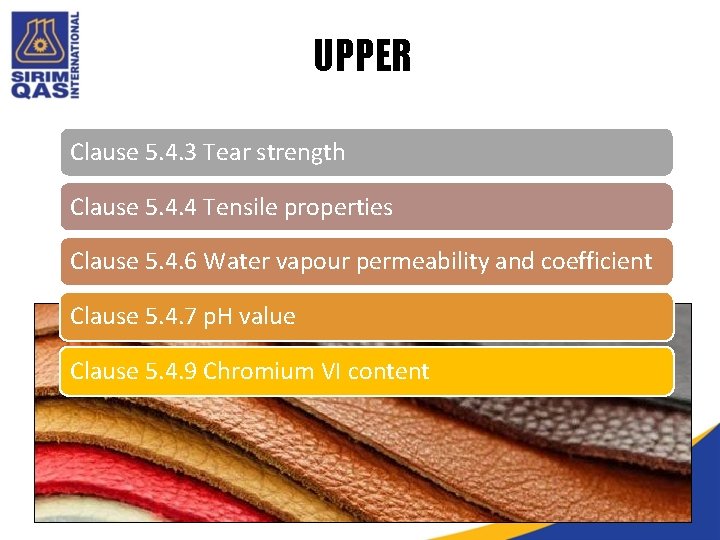

UPPER Clause 5. 4. 3 Tear strength Clause 5. 4. 4 Tensile properties Clause 5. 4. 6 Water vapour permeability and coefficient Clause 5. 4. 7 p. H value Clause 5. 4. 9 Chromium VI content

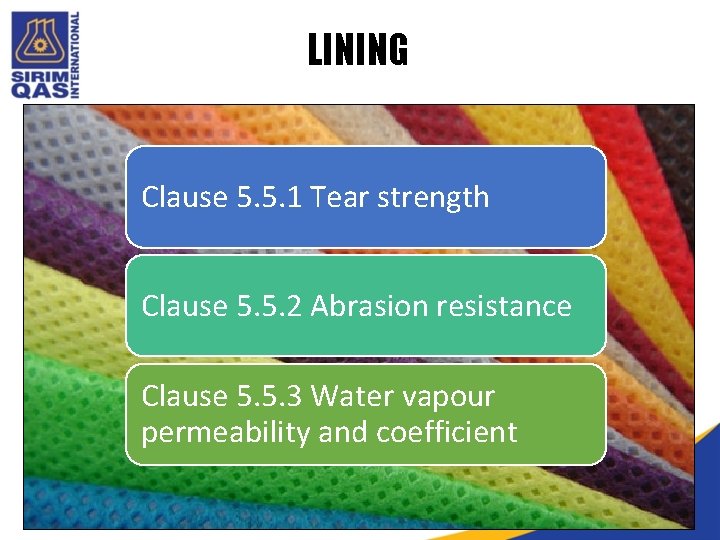

LINING Clause 5. 5. 1 Tear strength Clause 5. 5. 2 Abrasion resistance Clause 5. 5. 3 Water vapour permeability and coefficient

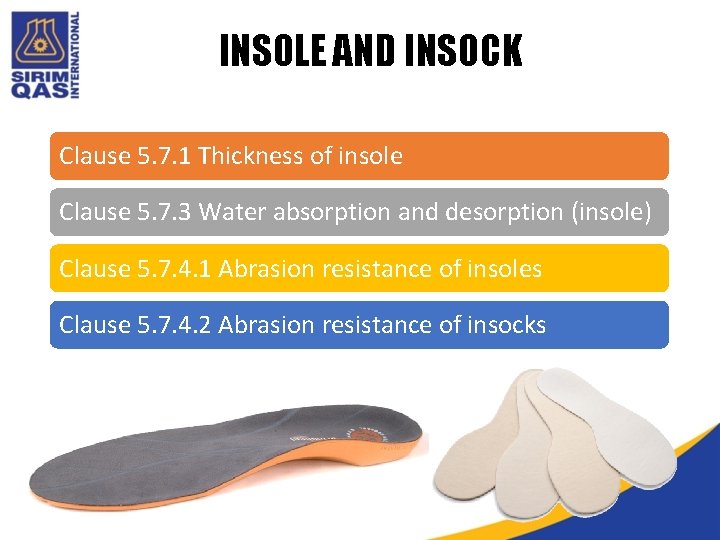

INSOLE AND INSOCK Clause 5. 7. 1 Thickness of insole Clause 5. 7. 3 Water absorption and desorption (insole) Clause 5. 7. 4. 1 Abrasion resistance of insoles Clause 5. 7. 4. 2 Abrasion resistance of insocks
OUTSOLE Clause 5. 8. 1 Thickness of non-cleated outsoles Clause 5. 8. 2 Tear strength Clause 5. 8. 3 Abrasion resistance Clause 5. 8. 4 Flexing resistance Clause 5. 8. 5 Hydrolysis Clause 5. 8. 6 Interlayer bond strength Clause 5. 8. 7 Resistance to fuel oil
TEST EQUIPMENTS • Stiffness Test • Temperature & Humidity • Compression Test Chamber • Tensile Test • Abrasion Test • Tear Strength Test • Upper/outsole Bond Strength • Flexing Test • Water Absorption & Desorption • Interlayer Bond Strength Test • Retention System Strength Test • Flame Resistance Test • Impact Test for Toe Cap of Safety Footwear • Corrosion Test • Impact Test for Safety Helmet • Artificial Ageing Test • Penetration Test • p. H Test • Universal Tensile Machine (UTM)
MOTORCYCLE HELMET & VISOR MOTORCYCLE HELMET • MS 1: 1996 • MS 1 -1: 2011 • UN ECE Regulation 22 VISOR • MS 1065: 2001 • MS 1 -2: 2011 • UN ECE Regulation 22
OCCUPATIONAL FOOTWEAR BS EN ISO 20347: 2008 • Design : 2 clauses • Whole footwear : 3 clauses • Upper : 9 clauses • Vamp Lining : 5 clauses • Quarter Lining : 5 clauses • Tongue : 3 clauses • Insole & Insock : 6 clauses • Outsole : 7 clauses
OTHER PRODUCT TESTING BS EN ISO 20347 Occupational Footwear Sports Footwear Anti Riot Shield Combat Boot Anti Riot Helmet

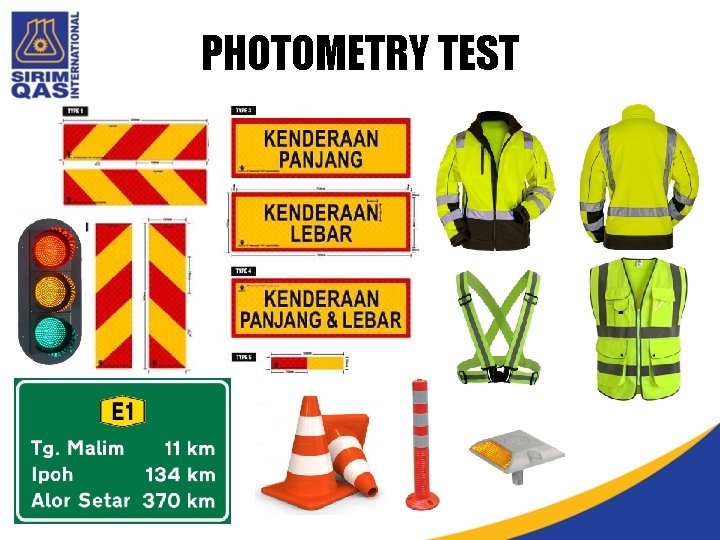

PHOTOMETRY TEST
OTHER TEST • Vibration Test • Photometry • Retro reflective • Acceleration Weathering Test • Mechanical Reliability Test • Impact Test • Environmental Test • Energy Attenuation Test • Packaging Test • Dust & IP Test • Gas product • Salt spray Test • Flow product • Vehicle Component Test
ACCREDITATION AND RECOGNITION BY THE AUTHORITIES MOTORCYLCE HELMET, ELECTRIC BIKE, ELECTRIC MOTORCYCLE, HEAD LAMP HPPE & AVCL LAB, MAST PERSONAL PROTECTIVE EQUIPMENT (PPE), HPPE LAB, MAST AVIATION LIGHT AVC LAB, MAST GAS REGULATOR & WATER PRODUCT FGA LAB, MAST PACKAGING PUI LAB, MAST MECHANICAL & AUTOMOTIVE SECTION, MAST

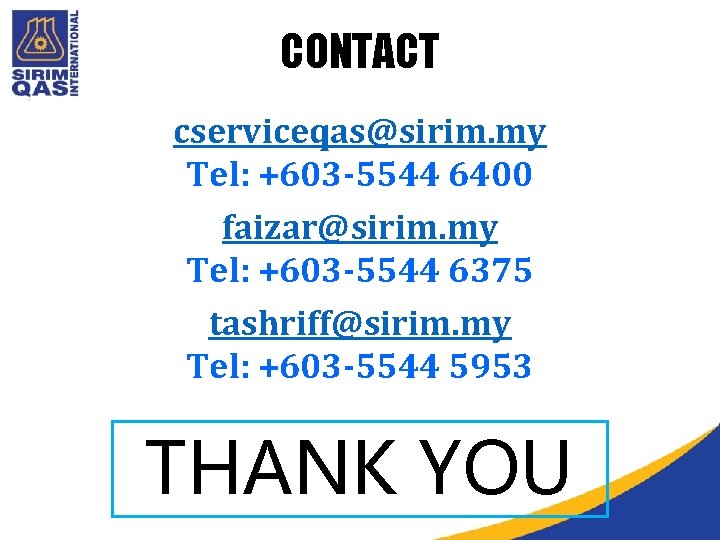

CONTACT cserviceqas@sirim. my Tel: +603 -5544 6400 faizar@sirim. my Tel: +603 -5544 6375 tashriff@sirim. my Tel: +603 -5544 5953 THANK YOU
