Testing Implementasi Sistem Pertemuan 3 Black Box Testing

Testing Implementasi Sistem Pertemuan 3 Black Box Testing Oleh : Rifiana Arief, SKom, MMSI

Outline • Black Testing Definition • Advantages and Disadvantages Black Box testing • Black Box Testing Type • Test case Design methods 2

What is Black-Box testing ? ● Testing without having an insight into the details of underlying code input ● Unit output Testing based on specification 3

What is Black-Box testing ? ● Advantages ● ● ● Disadvantages ● ● no need for source code can be used for unit as well as system-level testing don't test hidden functions Approaches: ● ● ● Error guessing Equivalence Partitioning Boundary Value Analysis Decision tables Cause-Effect Graphing Tests derived from functional requirements (e. g. use cases) 4

Type of Black-Box testing ? ● ● Security Testing ●Networks ●Access right ●Type of Users Performance Testing ●Load testing ●Stress |Testing 5

Type of Black-Box testing ? ● Usability Testing ● ● User interface testing Manual support Testing Spell Checking Functionality Testing ● ● ● Configuration Testing Compatibility Testing Functional Testing ● What Client wants Installation Testing Input domain Testing ● Boundary Values ● Equivalence Class partition 6

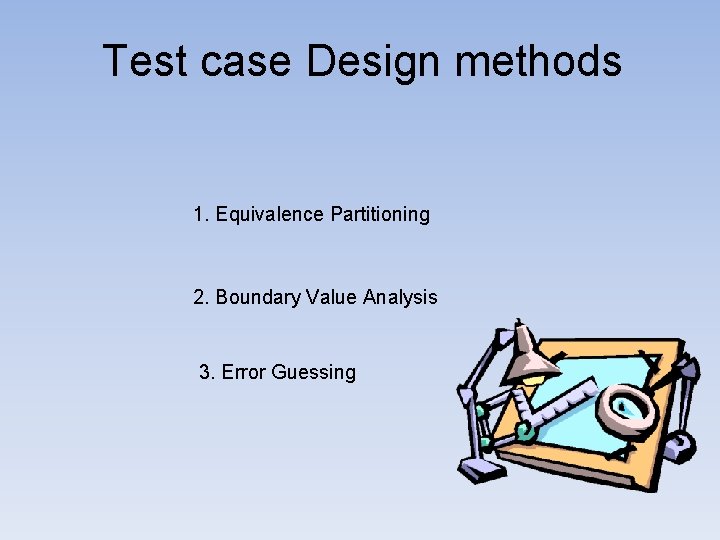

Test case Design methods 1. Equivalence Partitioning 2. Boundary Value Analysis 3. Error Guessing

Equivalence partitioning Input Domain • Equivalence class is a subset of data that is representative of a larger class • Divide input domain into equivalence classes • Attempt to cover classes of errors • One test case per equivalence class, to reduce total number of test cases needed

Example A program which accepts credit limits with a given range Say, $10, 000 – $15, 000 This would have three equivalence classes: 1. Less than $10, 000 (Invalid) 2. Between $10, 000 and $15, 000 (Valid) 3. Greater than $15, 000 (Invalid)

Equivalence Partitions 9800 12500 Less than 10, 000 Between 10 and 15 18000 More than 15, 000

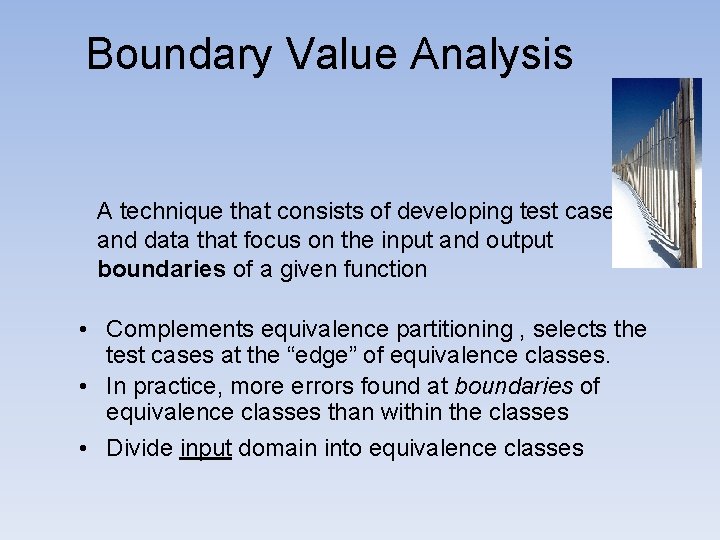

Boundary Value Analysis A technique that consists of developing test cases and data that focus on the input and output boundaries of a given function • Complements equivalence partitioning , selects the test cases at the “edge” of equivalence classes. • In practice, more errors found at boundaries of equivalence classes than within the classes • Divide input domain into equivalence classes

Example In the same credit limit example: the boundary analysis would test 1. low boundary plus or minus one ($ 9, 999 and $10, 001) 2. On the boundary ($10, 000 and $15000) 3. Upper boundary plus or minus one ($14999 and $15001)

Range of Boundary Values 1. 2. 3. 4. 5. Value immediately below range First value of range Second value of range Value immediately below last value of range Last value of range 6. Value immediately above range

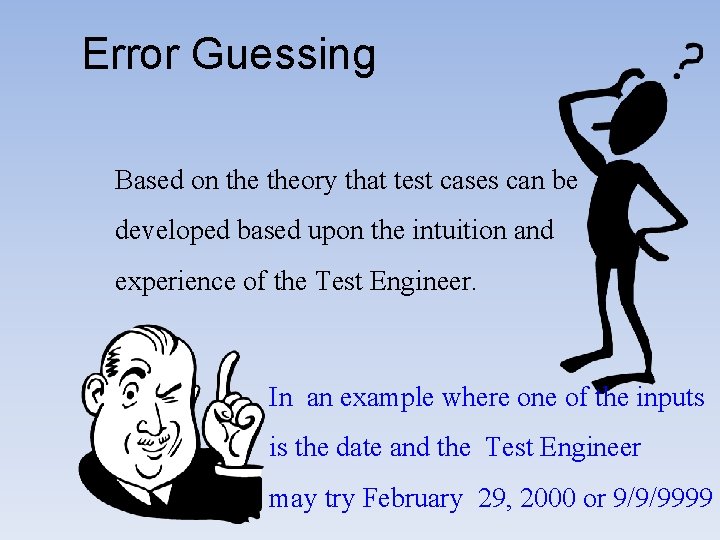

Error Guessing Based on theory that test cases can be developed based upon the intuition and experience of the Test Engineer. In an example where one of the inputs is the date and the Test Engineer may try February 29, 2000 or 9/9/9999

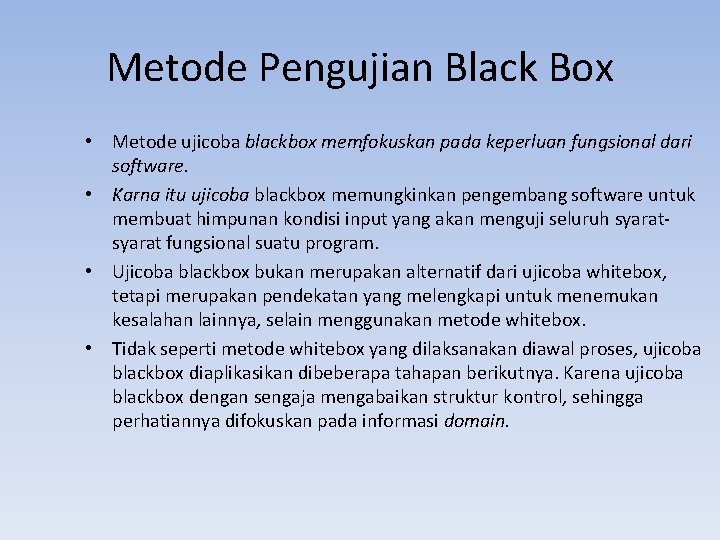

Metode Pengujian Black Box • Metode ujicoba blackbox memfokuskan pada keperluan fungsional dari software. • Karna itu ujicoba blackbox memungkinkan pengembang software untuk membuat himpunan kondisi input yang akan menguji seluruh syarat fungsional suatu program. • Ujicoba blackbox bukan merupakan alternatif dari ujicoba whitebox, tetapi merupakan pendekatan yang melengkapi untuk menemukan kesalahan lainnya, selain menggunakan metode whitebox. • Tidak seperti metode whitebox yang dilaksanakan diawal proses, ujicoba blackbox diaplikasikan dibeberapa tahapan berikutnya. Karena ujicoba blackbox dengan sengaja mengabaikan struktur kontrol, sehingga perhatiannya difokuskan pada informasi domain.

Ujicoba blackbox berusaha untuk menemukan kategori kesalahan : • Fungsi-fungsi yang salah atau hilang • Kesalahan interface • Kesalahan dalam struktur data atau akses database eksternal • Kesalahan performa • Kesalahan inisialisasi dan terminasi
