ALFASPID BIG RAK • Double worm drive – High accuracy pointing - 1 Degree ( 0. 5 ) • Antenna on top of Rotator – Able to take large antenna on top without extra support bearing • Will handle Monst. IR by Stepp. IR Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

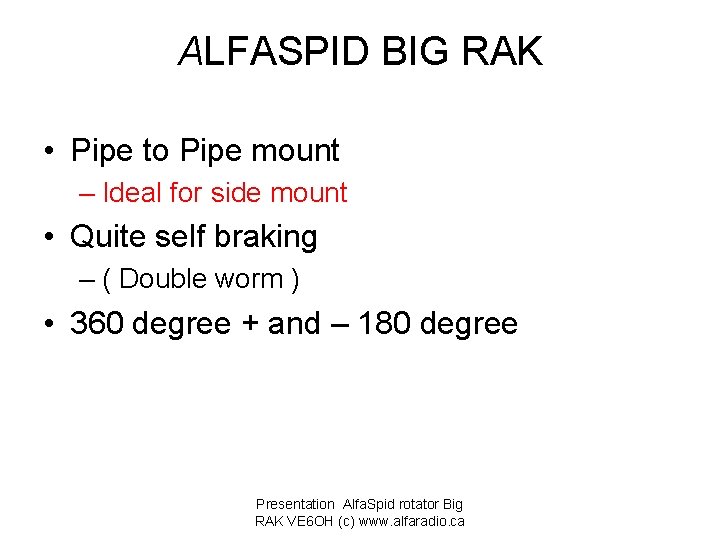

ALFASPID BIG RAK • Pipe to Pipe mount – Ideal for side mount • Quite self braking – ( Double worm ) • 360 degree + and – 180 degree Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

Normal 360 - 180 or +540 from North 0 for total of 720 Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

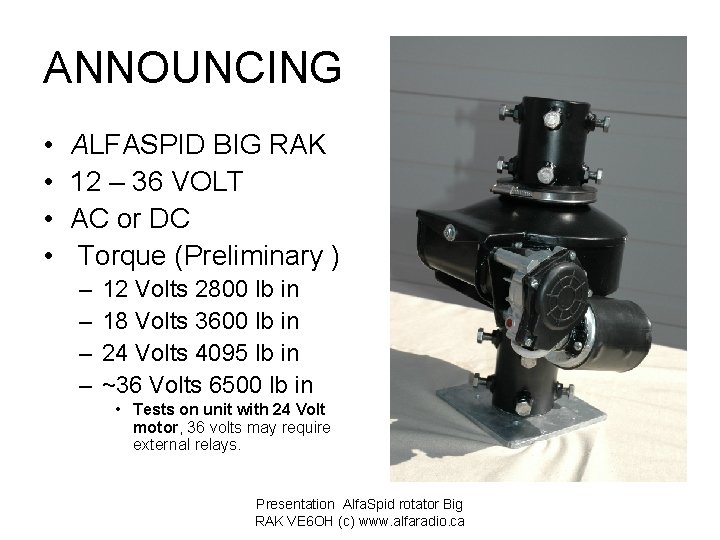

ANNOUNCING • • ALFASPID BIG RAK 12 – 36 VOLT AC or DC Torque (Preliminary ) – – 12 Volts 2800 lb in 18 Volts 3600 lb in 24 Volts 4095 lb in ~36 Volts 6500 lb in • Tests on unit with 24 Volt motor, 36 volts may require external relays. Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

ALFASPID BIG RAK • Able to pass coax thru the centre of rotator • Non clam shell mount • Up to 2. 6 inch OD Pipe – Top and bottom Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

ALFASPID BIG RAK • • Low D. C. Voltage to rotator No special wiring Easy to remote power Long cable runs OK – i. e. 1900 Feet of # 22 for sense • No fixed mount direction – Settable North or South Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

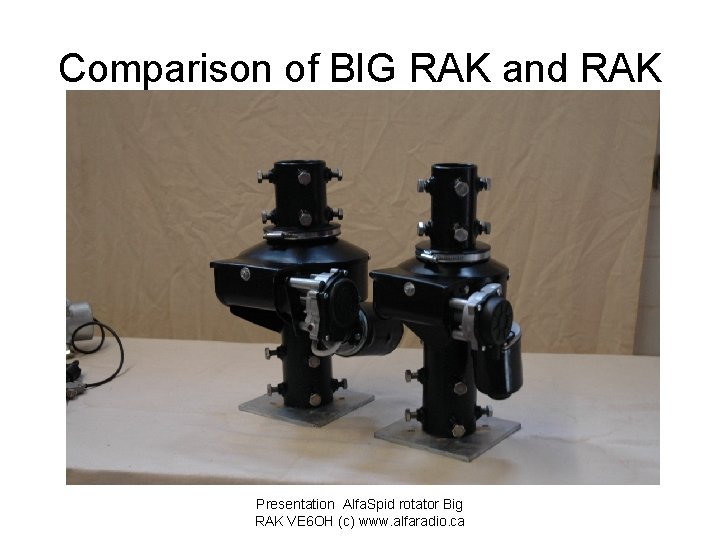

Comparison of BIG RAK and RAK Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

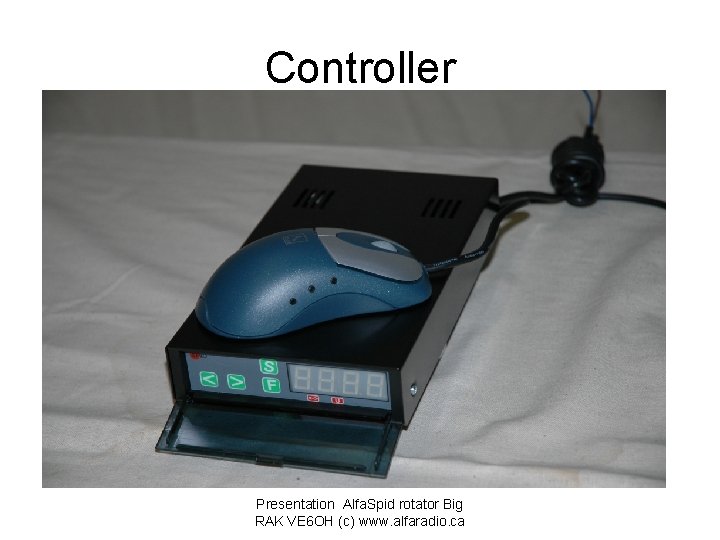

Controller Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

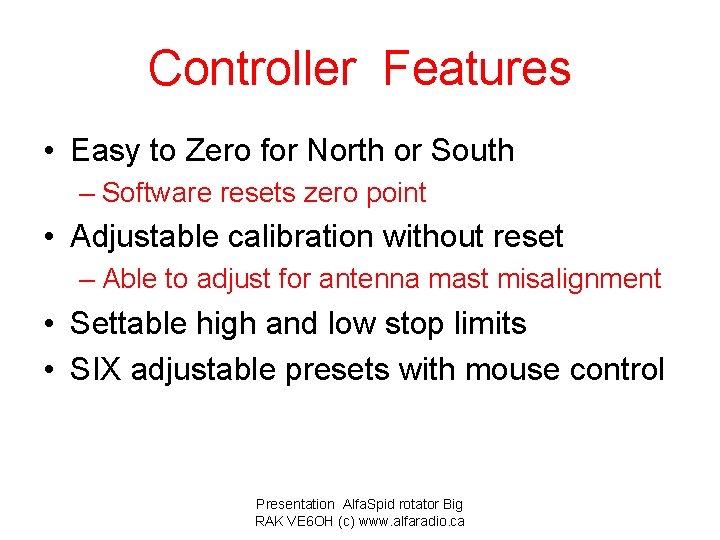

Controller Features • Easy to Zero for North or South – Software resets zero point • Adjustable calibration without reset – Able to adjust for antenna mast misalignment • Settable high and low stop limits • SIX adjustable presets with mouse control Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

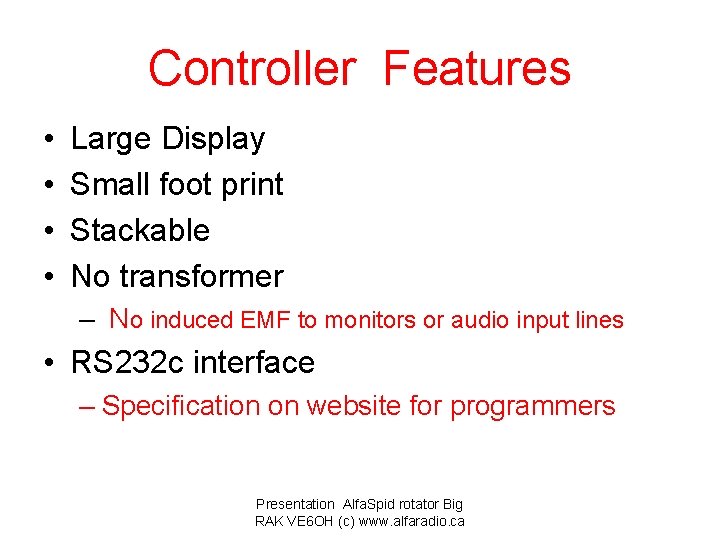

Controller Features • • Large Display Small foot print Stackable No transformer – No induced EMF to monitors or audio input lines • RS 232 c interface – Specification on website for programmers Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

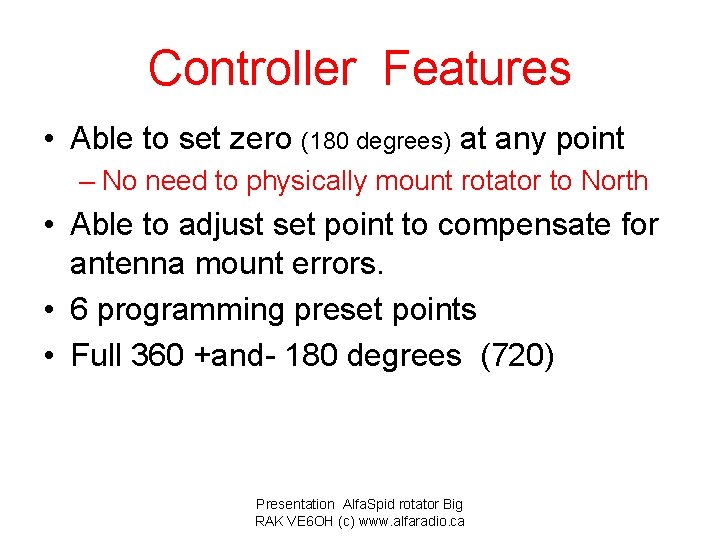

Controller Features • Able to set zero (180 degrees) at any point – No need to physically mount rotator to North • Able to adjust set point to compensate for antenna mount errors. • 6 programming preset points • Full 360 +and- 180 degrees (720) Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

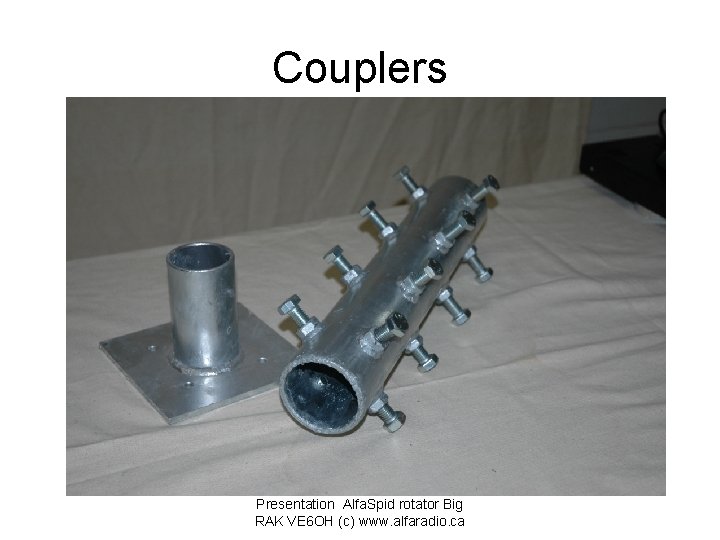

Couplers Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca

• Price –Alfa. Spid Big RAK – ~$1485. 00 USD –FOB Edmonton, AB –Delivery ~ 4 weeks • www. alfaradio. ca Presentation Alfa. Spid rotator Big RAK VE 6 OH (c) www. alfaradio. ca
