TEST METER OPERATION

TEST METER OPERATION

Electrical Test Instruments Analog Or Digital • Voltmeters – Measuring Potential Difference • Ammeters

Electrical Test Instruments Analog Or Digital • Voltmeters – Measuring Potential Difference • Ammeters – Measuring Current Flow – Clamp On • Ohmmeters – Measuring Resistance And Checking Continuity • Capacitance – Check Capacitors • Multimeters – VOM/DMM - All The Above

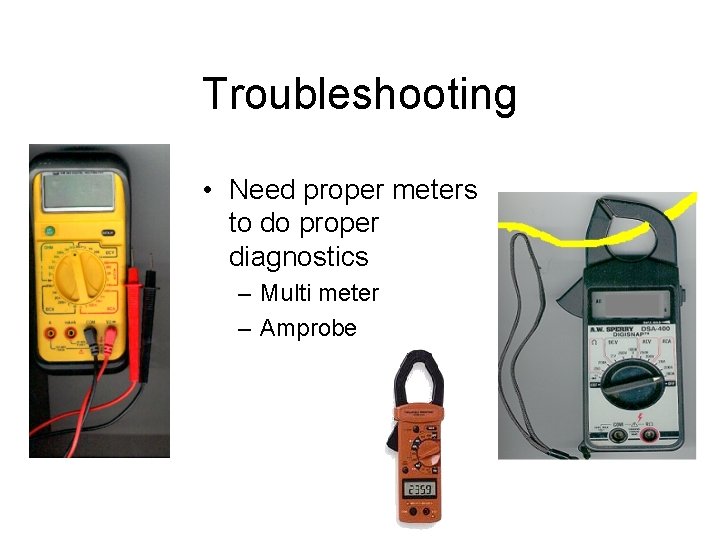

Troubleshooting • Need proper meters to do proper diagnostics – Multi meter – Amprobe

Troubleshooting • Need proper meters to do proper diagnostics – Multi meter – Amprobe

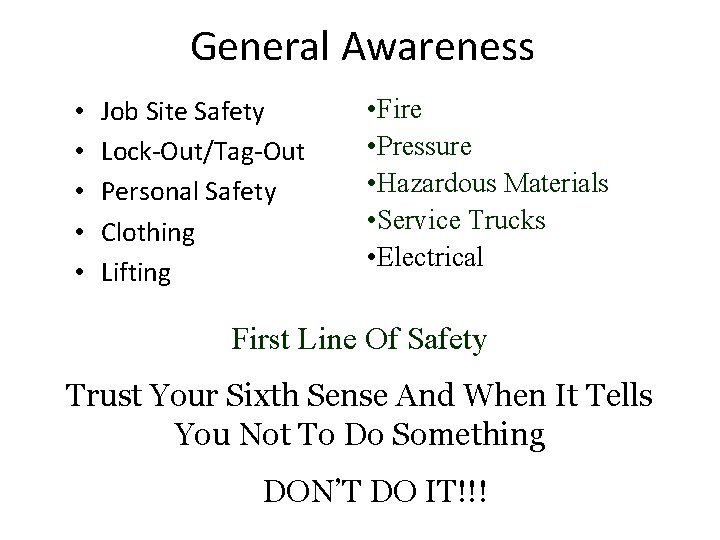

General Awareness • • • Job Site Safety Lock-Out/Tag-Out Personal Safety Clothing Lifting •

General Awareness • • • Job Site Safety Lock-Out/Tag-Out Personal Safety Clothing Lifting • Fire • Pressure • Hazardous Materials • Service Trucks • Electrical First Line Of Safety Trust Your Sixth Sense And When It Tells You Not To Do Something DON’T DO IT!!!

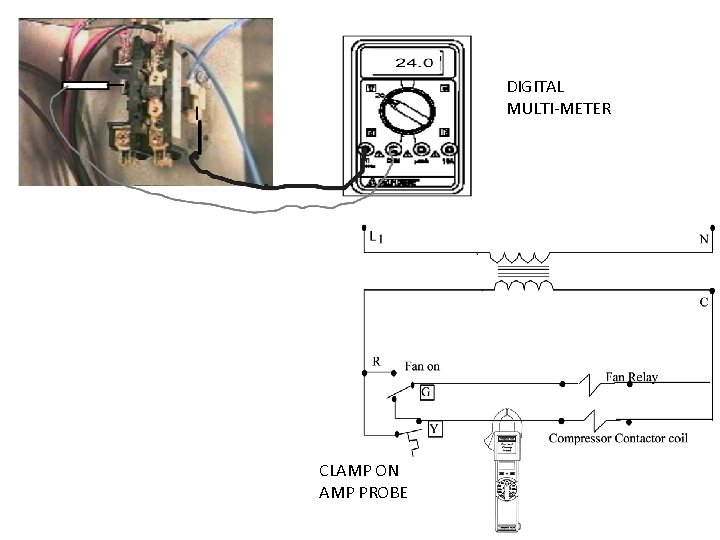

DIGITAL MULTI-METER CLAMP ON AMP PROBE

DIGITAL MULTI-METER CLAMP ON AMP PROBE

VOLT/OHM METER OPERATION

VOLT/OHM METER OPERATION

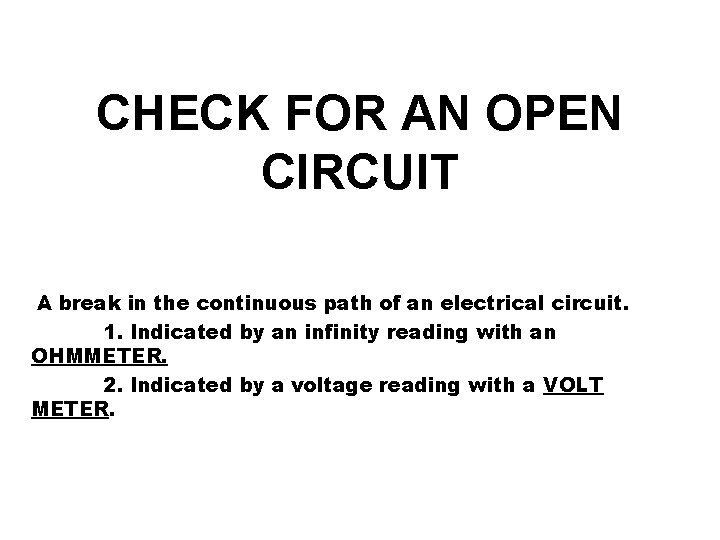

CHECK FOR AN OPEN CIRCUIT A break in the continuous path of an electrical

CHECK FOR AN OPEN CIRCUIT A break in the continuous path of an electrical circuit. 1. Indicated by an infinity reading with an OHMMETER. 2. Indicated by a voltage reading with a VOLT METER.

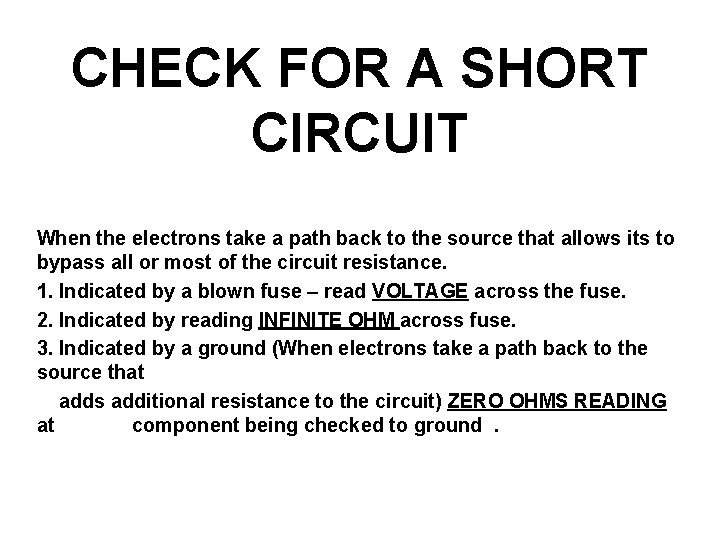

CHECK FOR A SHORT CIRCUIT When the electrons take a path back to the

CHECK FOR A SHORT CIRCUIT When the electrons take a path back to the source that allows its to bypass all or most of the circuit resistance. 1. Indicated by a blown fuse – read VOLTAGE across the fuse. 2. Indicated by reading INFINITE OHM across fuse. 3. Indicated by a ground (When electrons take a path back to the source that adds additional resistance to the circuit) ZERO OHMS READING at component being checked to ground.

VOLT METER CHECK FOR ELECTROMOTIVE FORCE – EMF (POWER)

VOLT METER CHECK FOR ELECTROMOTIVE FORCE – EMF (POWER)

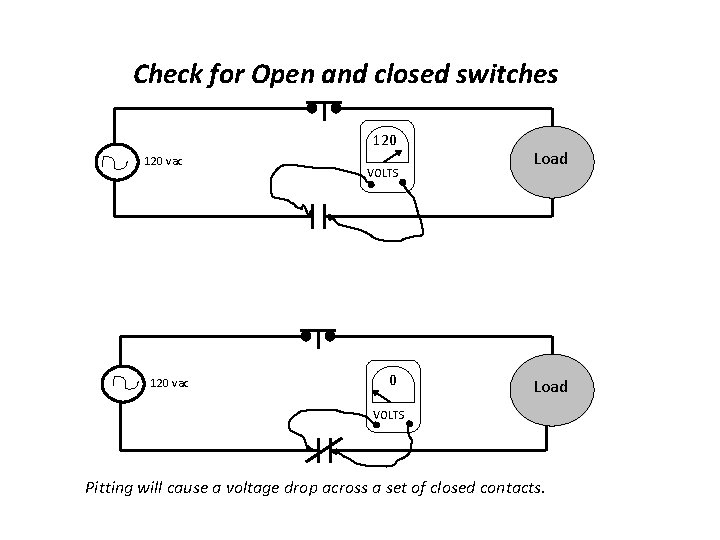

Check for Open and closed switches 120 vac VOLTS 0 Load VOLTS Pitting will

Check for Open and closed switches 120 vac VOLTS 0 Load VOLTS Pitting will cause a voltage drop across a set of closed contacts.

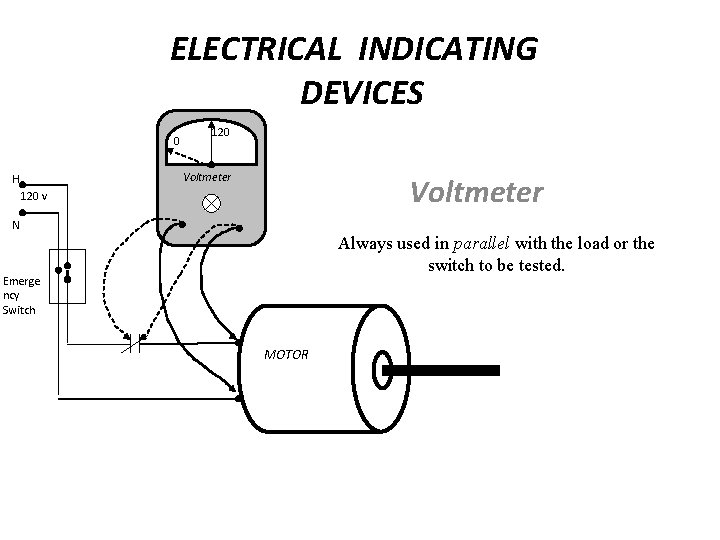

ELECTRICAL INDICATING DEVICES 0 120 Voltmeter H Voltmeter 120 v N Always used in

ELECTRICAL INDICATING DEVICES 0 120 Voltmeter H Voltmeter 120 v N Always used in parallel with the load or the switch to be tested. Emerge ncy Switch MOTOR

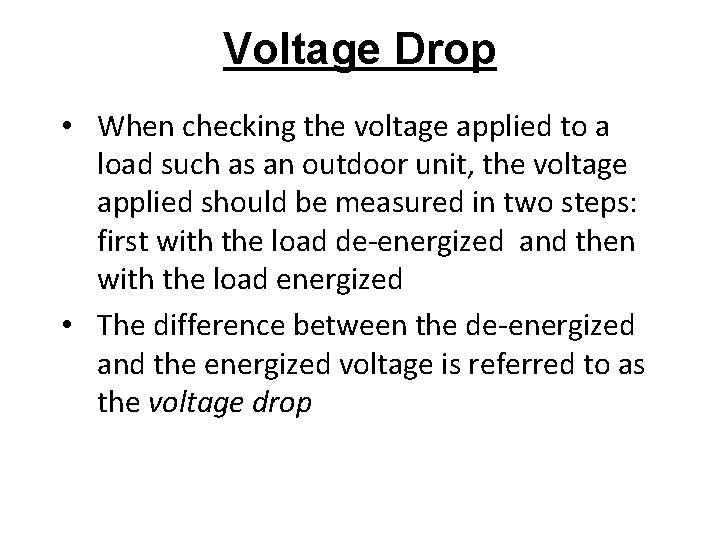

Voltage Drop • When checking the voltage applied to a load such as an

Voltage Drop • When checking the voltage applied to a load such as an outdoor unit, the voltage applied should be measured in two steps: first with the load de-energized and then with the load energized • The difference between the de-energized and the energized voltage is referred to as the voltage drop

Voltage Drop • The voltage should not drop more than 3% of the de-energized

Voltage Drop • The voltage should not drop more than 3% of the de-energized applied voltage • A voltage drop higher than 3% usually indicates that the gauge of the wire leading to the load is too small • For example, if 223 volts were measured at the contactor of the outdoor unit de-energized…

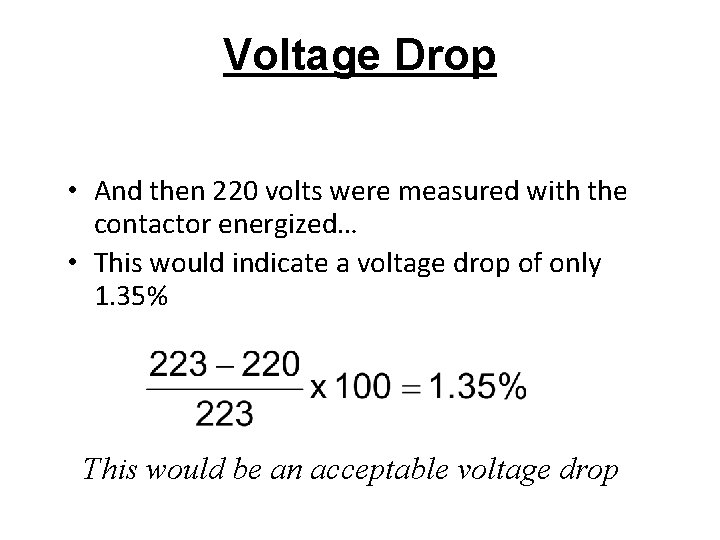

Voltage Drop • And then 220 volts were measured with the contactor energized… •

Voltage Drop • And then 220 volts were measured with the contactor energized… • This would indicate a voltage drop of only 1. 35% This would be an acceptable voltage drop

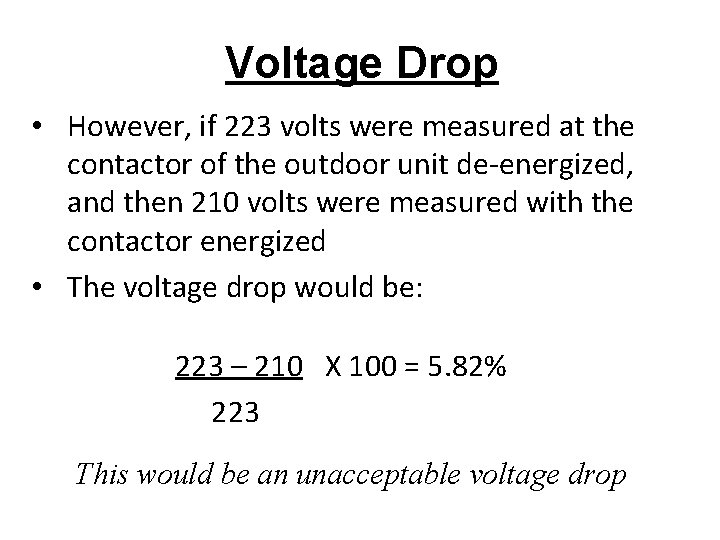

Voltage Drop • However, if 223 volts were measured at the contactor of the

Voltage Drop • However, if 223 volts were measured at the contactor of the outdoor unit de-energized, and then 210 volts were measured with the contactor energized • The voltage drop would be: 223 – 210 X 100 = 5. 82% 223 This would be an unacceptable voltage drop

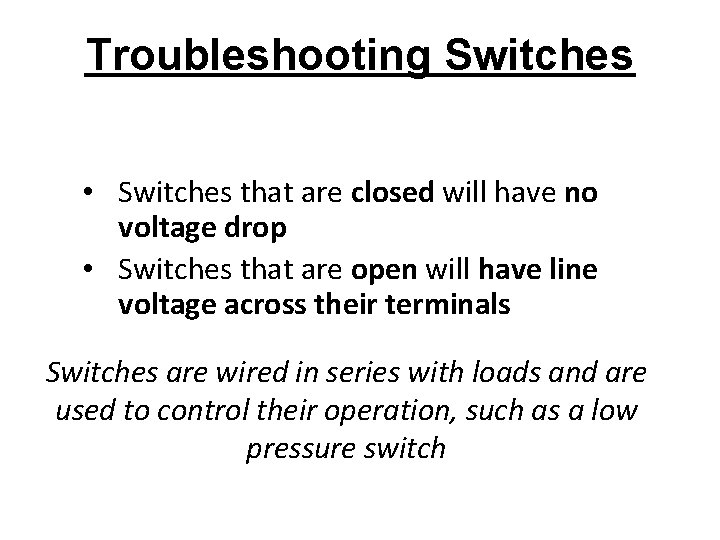

Troubleshooting Switches • Switches that are closed will have no voltage drop • Switches

Troubleshooting Switches • Switches that are closed will have no voltage drop • Switches that are open will have line voltage across their terminals Switches are wired in series with loads and are used to control their operation, such as a low pressure switch

Ohm Meter Measures Ohms or Resistance

Ohm Meter Measures Ohms or Resistance

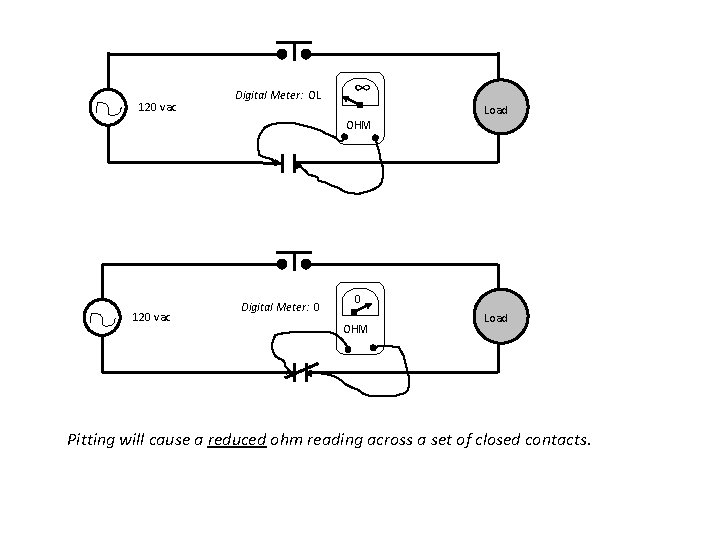

120 vac Digital Meter: OL ∞ Load OHM 120 vac Digital Meter: 0 0

120 vac Digital Meter: OL ∞ Load OHM 120 vac Digital Meter: 0 0 OHM Load Pitting will cause a reduced ohm reading across a set of closed contacts.

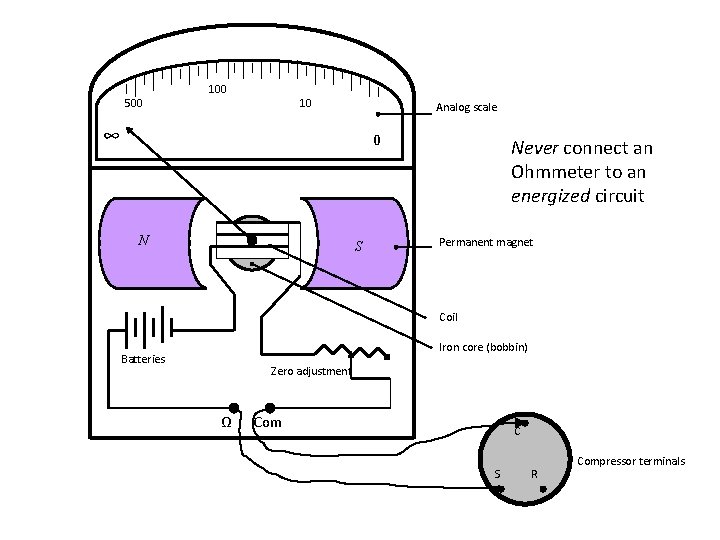

500 10 Analog scale ∞ 0 N S Never connect an Ohmmeter to an

500 10 Analog scale ∞ 0 N S Never connect an Ohmmeter to an energized circuit Permanent magnet Coil Iron core (bobbin) Batteries Zero adjustment Ω Com C S R Compressor terminals

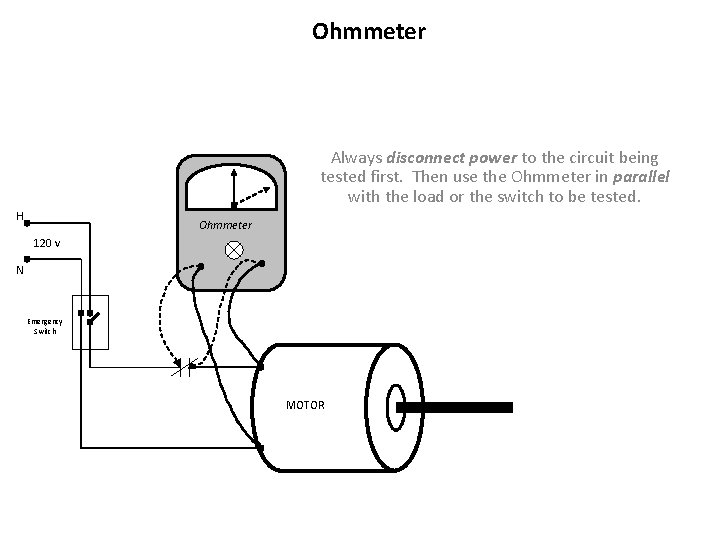

Ohmmeter Always disconnect power to the circuit being tested first. Then use the Ohmmeter

Ohmmeter Always disconnect power to the circuit being tested first. Then use the Ohmmeter in parallel with the load or the switch to be tested. H Ohmmeter 120 v N Emergency Switch MOTOR

Ammeter Measures Amps or Current Flow

Ammeter Measures Amps or Current Flow

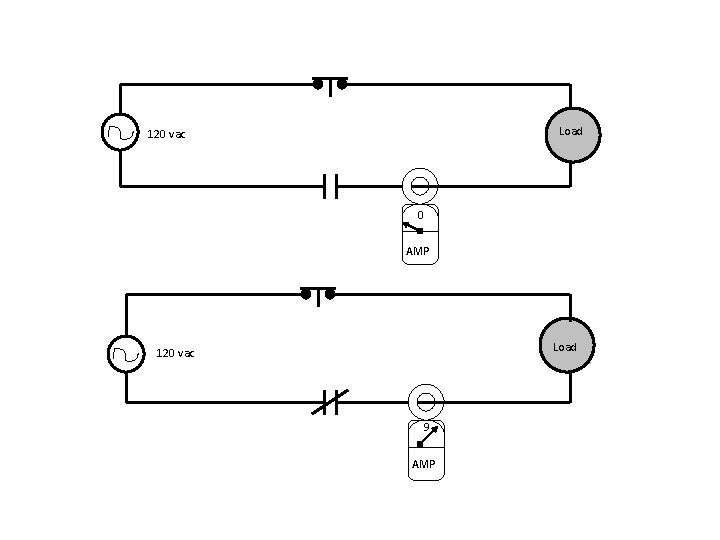

Load 120 vac 0 AMP Load 120 vac 6 AMP

Load 120 vac 0 AMP Load 120 vac 6 AMP

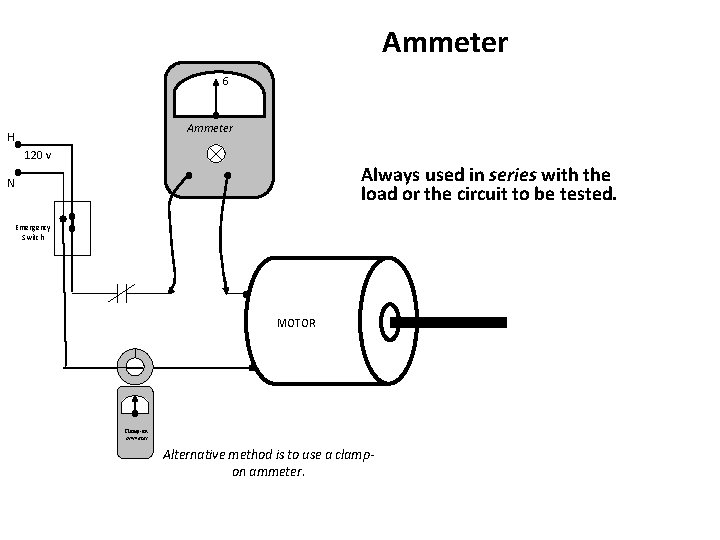

Ammeter 6 Ammeter H 120 v Always used in series with the load or

Ammeter 6 Ammeter H 120 v Always used in series with the load or the circuit to be tested. N Emergency Switch MOTOR Clamp-on ammeter Alternative method is to use a clampon ammeter.
