TEST DE MANUTENTION DUN MODULE CLIC T 0
- Slides: 27
TEST DE MANUTENTION D’UN MODULE CLIC “T 0” PRESENTATION DU 22 FEVRIER 2012 14/10/2021 FREDERIC. DELSAUX@CERN. CH 1
MANUTENTION A EFFECTUER 700 mm 1400 mm 14/10/2021 FREDERIC. DELSAUX@CERN. CH 2
ENVELOPPE “T 0” AVEC CADRE DE TRANSPORT NUMERO SMT : ST 0367760_01 14/10/2021 ENVELOPPE VOLUMIQUE DU MODULE CLIC FREDERIC. DELSAUX@CERN. CH MODULE “T 0” AVEC CADRE DE TRANSPORT NUMERO SMT : ST 0339770_01 3
EPAISSEUR PALONNIER 100 mm JEU ENVIRON 100 mm 4 ELINGUES LG 800 CENTRE DE GRAVITE DU PALONNIER ALIGNE AVEC LE CENTRE DE GRAVITE DU MODULE NUMERO SMT : ST 0362479_01 PRINCIPE DE PRISE EN CHARGE DU MODULE PALONNIER AVEC ELINGUES NUMERO SMT : ST 0367766_01 14/10/2021 FREDERIC. DELSAUX@CERN. CH 4
14/10/2021 FREDERIC. DELSAUX@CERN. CH 5
14/10/2021 FREDERIC. DELSAUX@CERN. CH 6
14/10/2021 FREDERIC. DELSAUX@CERN. CH 7
14/10/2021 FREDERIC. DELSAUX@CERN. CH 8
14/10/2021 FREDERIC. DELSAUX@CERN. CH 9
14/10/2021 FREDERIC. DELSAUX@CERN. CH 10
14/10/2021 FREDERIC. DELSAUX@CERN. CH 11
14/10/2021 FREDERIC. DELSAUX@CERN. CH 12
14/10/2021 FREDERIC. DELSAUX@CERN. CH 13
14/10/2021 FREDERIC. DELSAUX@CERN. CH 14
14/10/2021 FREDERIC. DELSAUX@CERN. CH 15

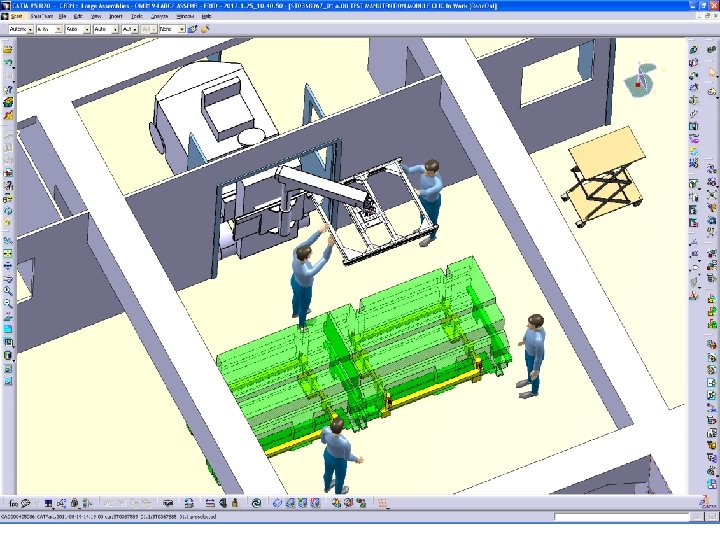

14/10/2021 FREDERIC. DELSAUX@CERN. CH 16

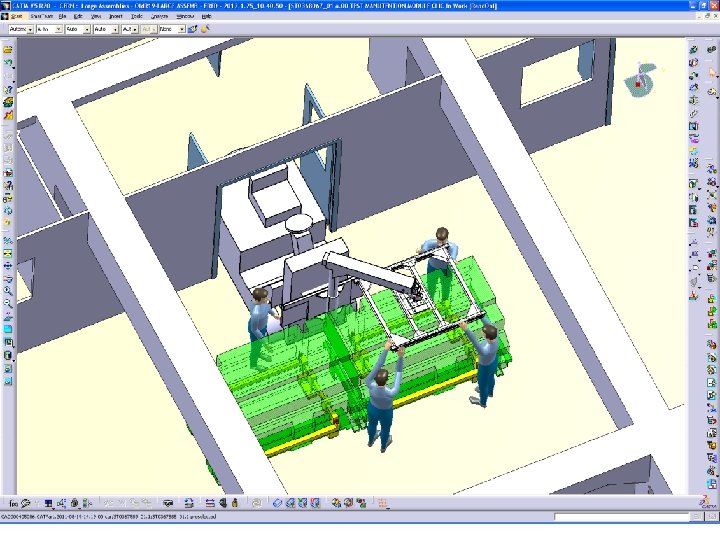

14/10/2021 FREDERIC. DELSAUX@CERN. CH 17
14/10/2021 FREDERIC. DELSAUX@CERN. CH 18
14/10/2021 FREDERIC. DELSAUX@CERN. CH 19
14/10/2021 FREDERIC. DELSAUX@CERN. CH 20
14/10/2021 FREDERIC. DELSAUX@CERN. CH 21

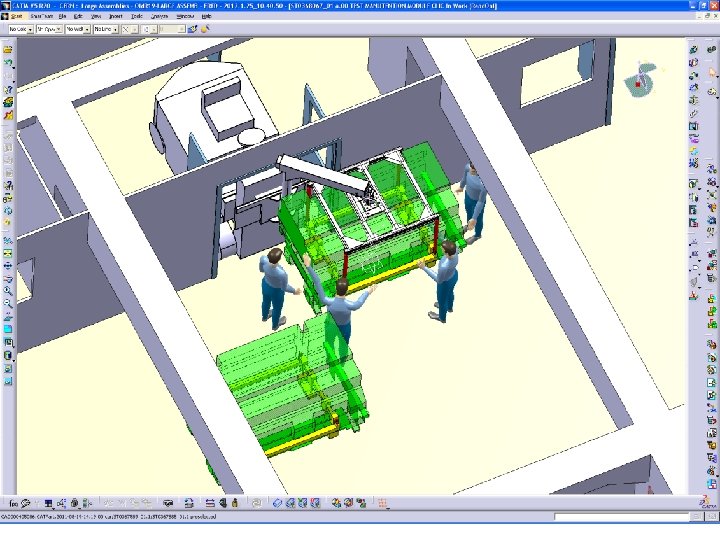

14/10/2021 FREDERIC. DELSAUX@CERN. CH 22
14/10/2021 FREDERIC. DELSAUX@CERN. CH 23
14/10/2021 FREDERIC. DELSAUX@CERN. CH 24
14/10/2021 FREDERIC. DELSAUX@CERN. CH 25
Conclusions Good news: • Access with a lift truck is possible • Lifting the module out with the fork lift and special spreader (interfacing with proposed lifting support frame) is feasible. (four people guiding) • EN-HE can design and build a special spreader beam for this test But: • The clearance of ~3 mm is very tight • This raises questions: – What will happen when adjacent modules touch during the lifting process? – Level of confidence in centre of gravity position? – Will it be possible to see the parts that are at risk of touching?
Recommendations • For installation in the tunnel EN-HE proposes the use of pre-adjusted spreaders for different module types. • Given the rate of installation needed and small clearances EN-HE recommends mechanical guides on adjacent modules to guide installation (automated precise transfer à la LHC cryomagnet transfer table installation would give transfer times too long for CLIC required installation rates) • An automated spreader will not be a long term solution for tunnel installation – (Note: adjustable spreaders are normally adjusted when unloaded)
