Test 3 Symbology Process Diagrams Part 1 Agenda

Test #3; Symbology ; Process Diagrams – Part 1 - Agenda Activity Est. Time 1. Agenda 5 2. Test #3 50 BREAK 10 3. Learning Objectives 5 4. Introduction to Diagrams 30 5. Introduction to Symbology 20 BREAK 10 6. Instrumentation Symbols 40 7. Summary and Wrap-up 10 BREAK 10 8. Additional Activities 50 BREAK 10 9. Lab Activity 50 Instrumentation I - Session 12

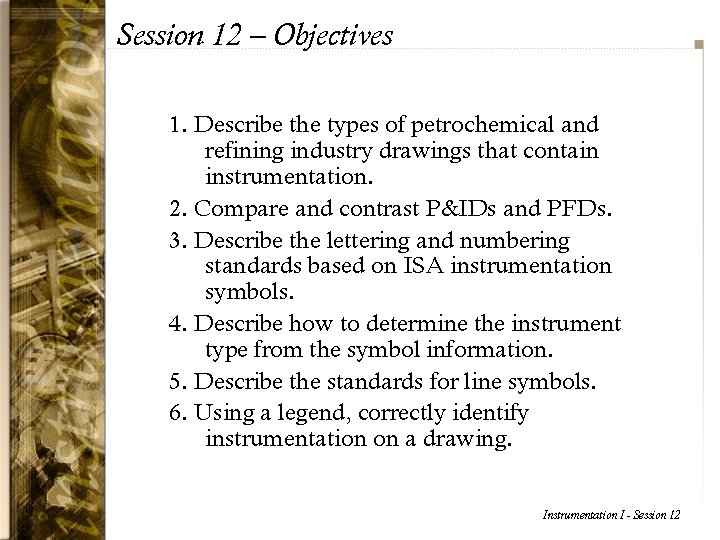

Session 12 – Objectives 1. Describe the types of petrochemical and refining industry drawings that contain instrumentation. 2. Compare and contrast P&IDs and PFDs. 3. Describe the lettering and numbering standards based on ISA instrumentation symbols. 4. Describe how to determine the instrument type from the symbol information. 5. Describe the standards for line symbols. 6. Using a legend, correctly identify instrumentation on a drawing. Instrumentation I - Session 12

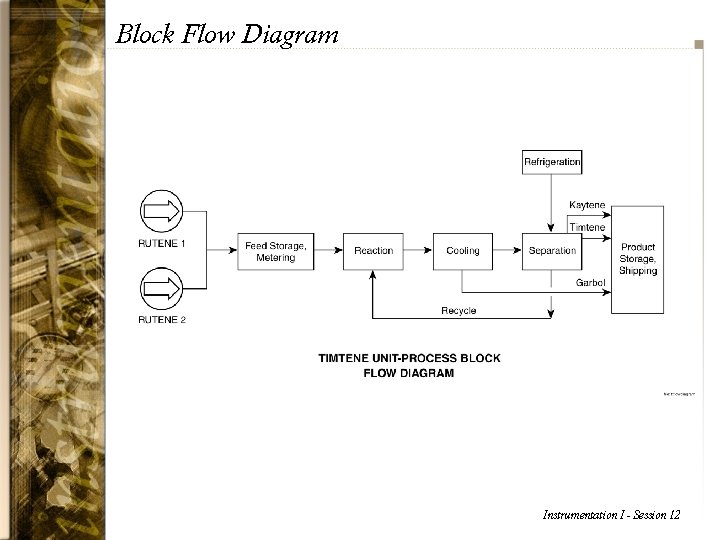

Block Flow Diagram Instrumentation I - Session 12

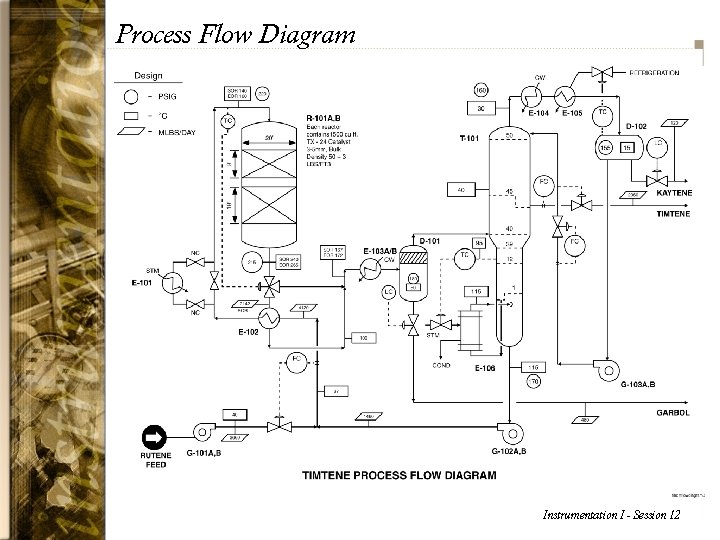

Process Flow Diagram Instrumentation I - Session 12

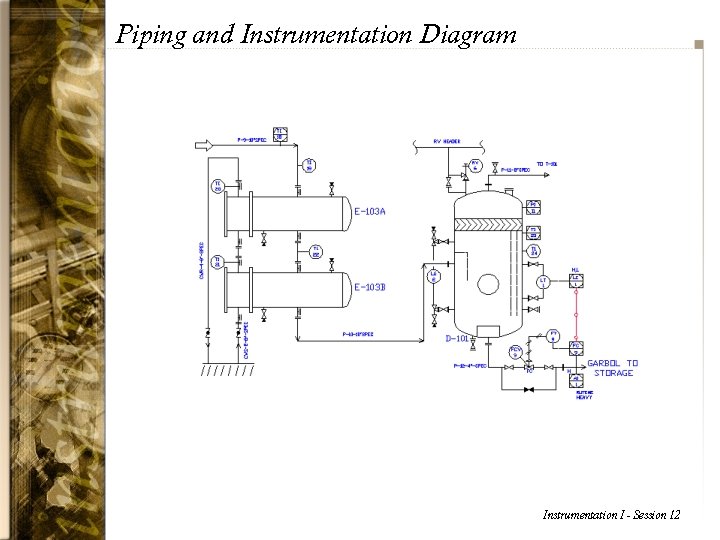

Piping and Instrumentation Diagram Instrumentation I - Session 12

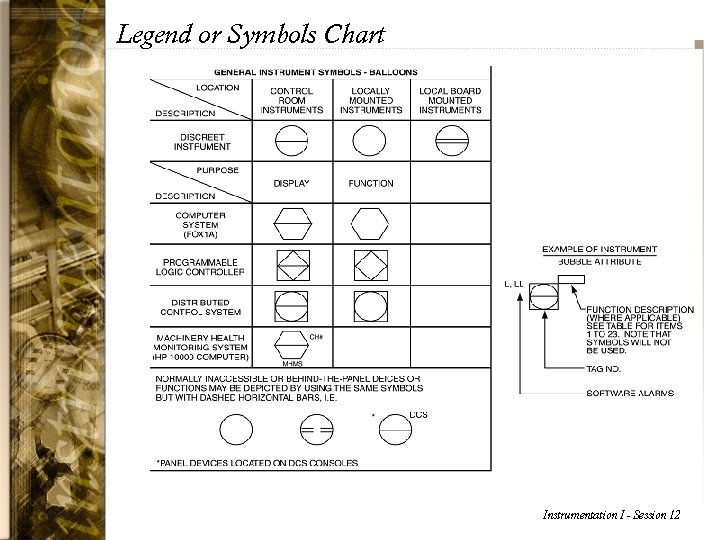

Legend or Symbols Chart Instrumentation I - Session 12

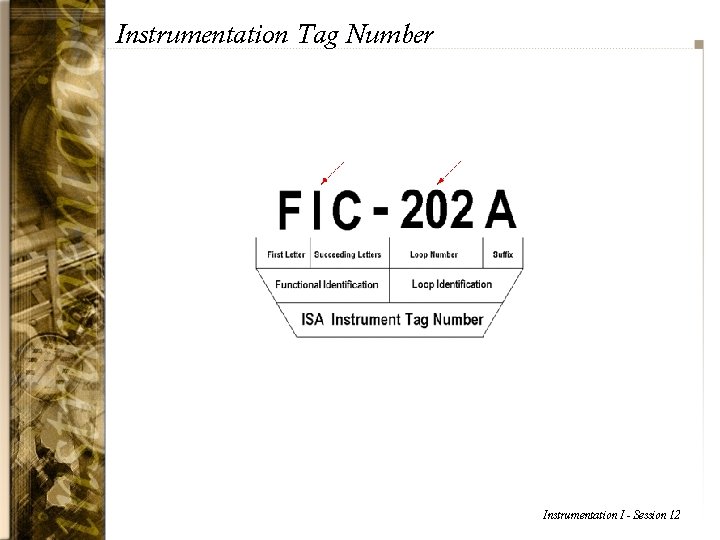

Instrumentation Tag Number Instrumentation I - Session 12

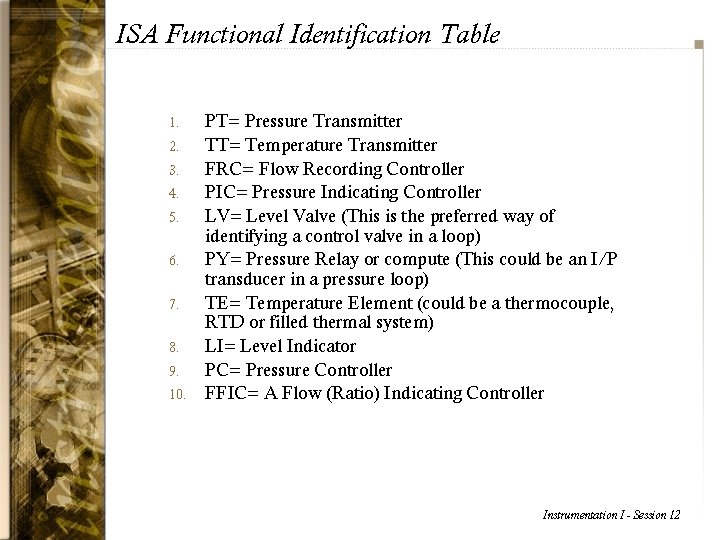

ISA Functional Identification Table 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. PT= Pressure Transmitter TT= Temperature Transmitter FRC= Flow Recording Controller PIC= Pressure Indicating Controller LV= Level Valve (This is the preferred way of identifying a control valve in a loop) PY= Pressure Relay or compute (This could be an I/P transducer in a pressure loop) TE= Temperature Element (could be a thermocouple, RTD or filled thermal system) LI= Level Indicator PC= Pressure Controller FFIC= A Flow (Ratio) Indicating Controller Instrumentation I - Session 12

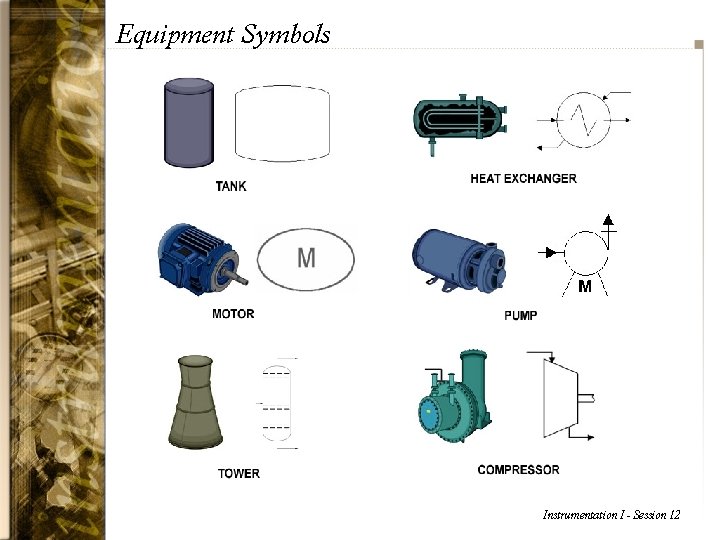

Equipment Symbols Instrumentation I - Session 12

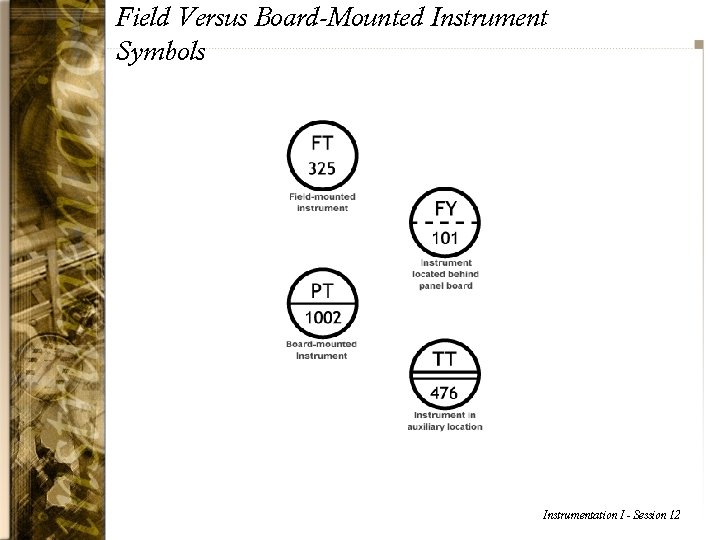

Field Versus Board-Mounted Instrument Symbols Instrumentation I - Session 12

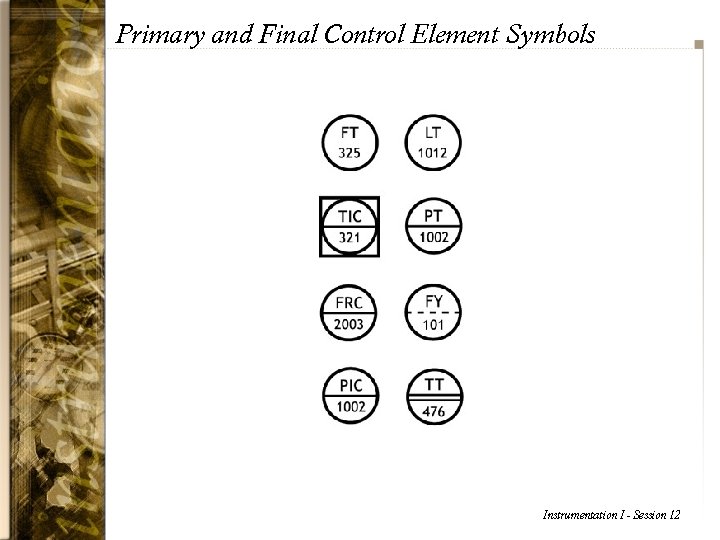

Primary and Final Control Element Symbols Instrumentation I - Session 12

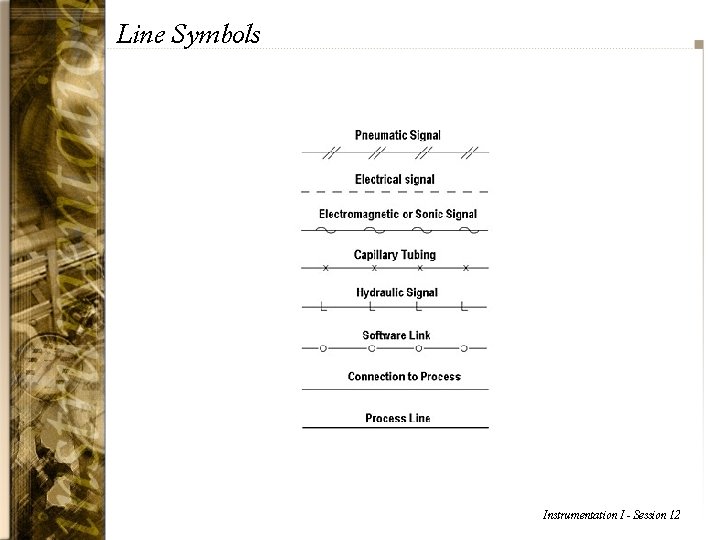

Line Symbols Instrumentation I - Session 12
