TESCOM 010N UPS SERIES MODEL 1000 KVA 2000

TESCOM -010(N) UPS SERIES

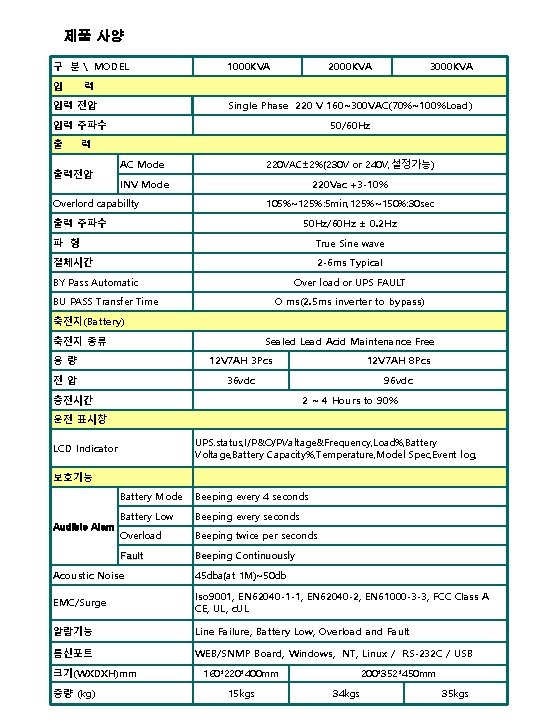

제품 사양 구 분＼ MODEL 입 1000 KVA 2000 KVA 력 입력 전압 Single Phase 220 V 160~300 VAC(70%~100%Load) 입력 주파수 출 3000 KVA 50/60 Hz 력 출력전압 AC Mode 220 VAC± 2%(230 V or 240 V, 설정가능) INV Mode 220 Vac +3 -10% Overlord capabillty 105%~125%: 5 min, 125%~150%: 30 sec 출력 주파수 50 Hz/60 Hz ± 0. 2 Hz 파 형 True Sine wave 절체시간 2 -6 ms Typical BY Pass Automatic Over load or UPS FAULT BU PASS Transfer Time O ms(2. 5 ms inverter to bypass) 축전지(Battery) 축전지 종류 Sealed Lead Acid Maintenance Free 용량 12 V 7 AH 3 Pcs 12 V 7 AH 8 Pcs 전압 36 vdc 96 vdc 충전시간 2 ∼ 4 Hours to 90% 운전 표시창 UPS. status, I/P&O/PValtage&Frequency, Load%, Battery Voltage, Battery Capacity%, Temperature, Model Spec, Event log, LCD Indicator 보호기능 Audible Alam Battery Mode Beeping every 4 seconds Battery Low Beeping every seconds Overload Beeping twice per seconds Fault Beeping Continuously Acoustic Noise 45 dba(at 1 M)~50 db EMC/Surge Iso 9001, EN 62040 -1 -1, EN 62040 -2, EN 61000 -3 -3, FCC Class A CE, UL, c. UL 알람기능 Line Failure, Battery Low, Overload and Fault 통신포트 WEB/SNMP Board, Windows, NT, Linux / RS-232 C / USB 크기(WXDXH)mm 중량 (kg) 160*220*400 mm 15 kgs 200*352*450 mm 34 kgs 35 kgs
