Terrestrial Worlds 1 Mercury Mercury 1974 Mariner 10
- Slides: 73
Terrestrial Worlds 1 Mercury
Mercury • 1974 -Mariner 10 flyby • 2008 -Current -MESSENGER
Mercury’s Surface What is the most common process on mercury?
Mercury’s Surface • A mixture of heavily cratered and smooth regions like the Moon • Smoother regions are likely ancient lava flows
Caloris basin Multi-ring impact basin (Only half visible from Mariner 10)
Caloris basin MESSENGER 2009 -1550 km
Volcanism on Mercury • ancient lava flows, no large floods
Tectonics on Mercury Cooling causes shrinkage causing fault scarps (cliffs)
Mercury Atmosphere – 10 -14 bars of pressure (negligible) • Gas comes from impacts that eject surface atoms Mercury – Temperatures: 800 o. F in day (second hottest) -300 o. F at night
Terrestrial Worlds 2 Venus,
Venus basics • • • 2 nd planet from Sun (0. 7 AU), 6 th largest world. Orbit -224 Earth days Sidereal rotation -243 Earth days (solar day-117 Eds) Surface gravity-8. 8 m/s 2 (90% of Earth) Intense cloud cover - highly reflective in visible light, surface unseen except by radar • Spacecraft- Pioneer, Magellan (USA) Venera 9 -16 (Russia)

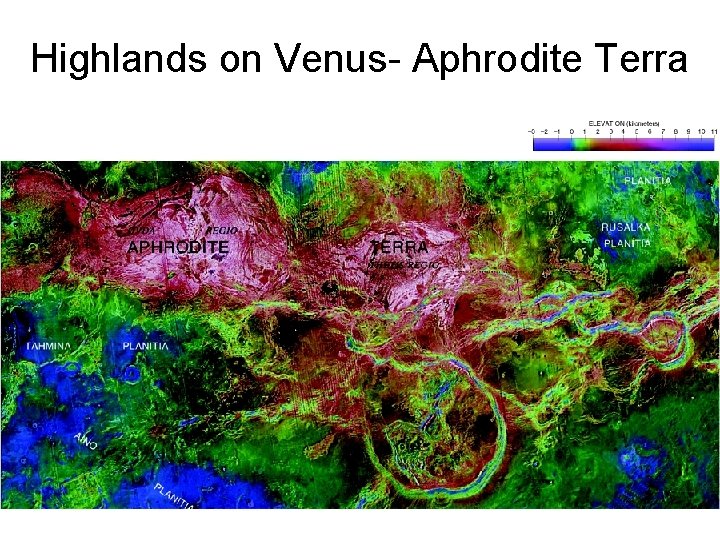

Highlands on Venus- Aphrodite Terra
Venus - Chasma Vast mountain and canyon systems. -3 km high and 3 km deep running for thousands of miles
Venus. Regios Regions Where canyon systems join at a high volcano
Tectonics • Downwelling -Highlands and faulted regions called tessera • Upwelling -Extension rifts at hot spots = chasmas and regios Crust too strong to break all the way through. No plate tectonics
Volcanism on Venus • 80% of Venus is resurfaced by volcanism • Volcanic shapes controlled by height and location. • Hot spots -large shield volcanoes. • Lowlands - volcanic floods. • Middling heights- fields of cinder cones. • High areas - lava too hard to rise - coronae
Venus Surface Processes - Wind streak showing wind direction
Venus Cratering • Lots of small to middle-sized craters, few large ones • Even distribution -Most of Venus’ surface has a similar age • Most of Venus resurfaced by catastrophic lava flooding < 1 billion yrs ago. • Current activity? ?
Venus Atmosphere • 90 bars of pressure (90 x Earth) • 96% CO 2 3. 5% N 2 < 1% others • Massive greenhouse warming. – Venus is the hottest planet. 870 o. F • Clouds- sulfuric acid! • Slow rotation - almost no coriolis effect.
Terrestrial Worlds 3 Earth - The most unique of all

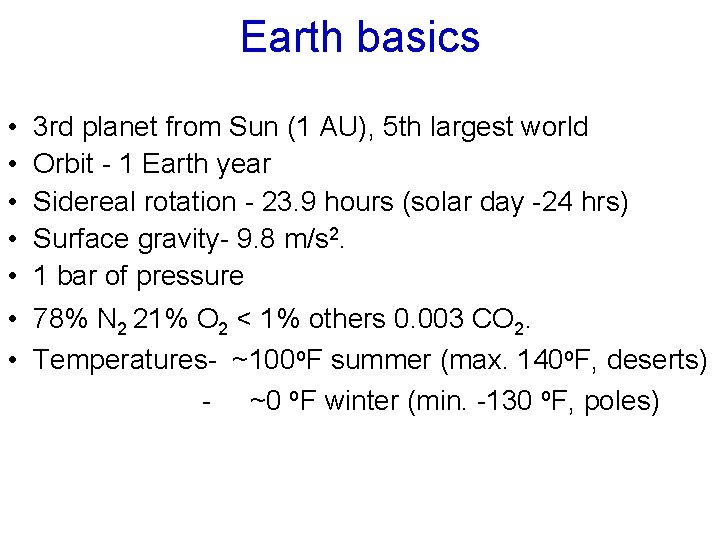

Earth basics • • 3 rd planet from Sun (1 AU), 5 th largest world Orbit - 1 Earth year Sidereal rotation - 23. 9 hours (solar day -24 hrs) Surface gravity- 9. 8 m/s 2. 1 bar of pressure 78% N 2 21% O 2 < 1% others 0. 003 CO 2. Temperatures- ~100 o. F summer (max. 140 o. F, deserts) - ~0 o. F winter (min. -130 o. F, poles)
Unique Features • • oceans, Plate tectonics oxygen atm. Life!
Earthquakes Detected earthquakes form lines
Earth’s crust broken into pieces ~8 large and 10 small plates
Crust follows Convection Currents • Rising current (hot) • Plate dragged aside • Breaks at weakest point (where it is hottest) • New lava wells into gap. – DIVERGENT boundary • Falling current drags plate after it. • 1 plate hits another and sinks. – CONVERGENT boundary
Earth -tectonics • All a consequence of internal convection: – Extension faults occur at upwelling of mid-ocean ridges (divergent boundary) – Compression faults occur at downwelling of subduction zones (convergent boundary) – Strike-slip faults occur as plates jostle around,
Earth -Volcanism • All a consequence of internal convection: – Low viscosity lavas occur at upwelling of mid-ocean ridges -shield volcanoes – High viscosity lavas occur at subduction zones as crust is remelted - tall, explosive, stratovolcanoes Result: Earth is the ONLY world to have stratovolcanoes, because it’s the only world to have plate tectonics
Lava erupted at the mid ocean ridge
Stratovolcano on continent side of subduction zone
Earth - Erosion & Surface processes • • Mass wasting Wind -deserts Biological (unique) Water -main process River Channels erode at head, deposit at mouth Materials move along beaches Glaciers grind material down
Earth -Cratering Earth has about 200 craters at the surface.
Earth’s Volatiles (atmosphere and hydrosphere) Earth is unique in that: • the majority of it’s volatiles are liquid. • Atmospheric composition is not all CO 2 (78% N 2 , 21% O 2 , <1% others, 0. 003 CO 2 ) • Life affects the atmospheric balance.
Earth Oceans and Temperature Why does Earth have oceans while Venus and Mars do not? • Earth is the right temperature to have liquid water due to distance from the Sun. • Temperatures are maintained by moderate greenhouse warming • CO 2 balance maintained by oceans and life – (they act as a sink for all the CO 2 that would otherwise be in the atm. making extra warming) • Magnetic field prevents H 2 O breakup.

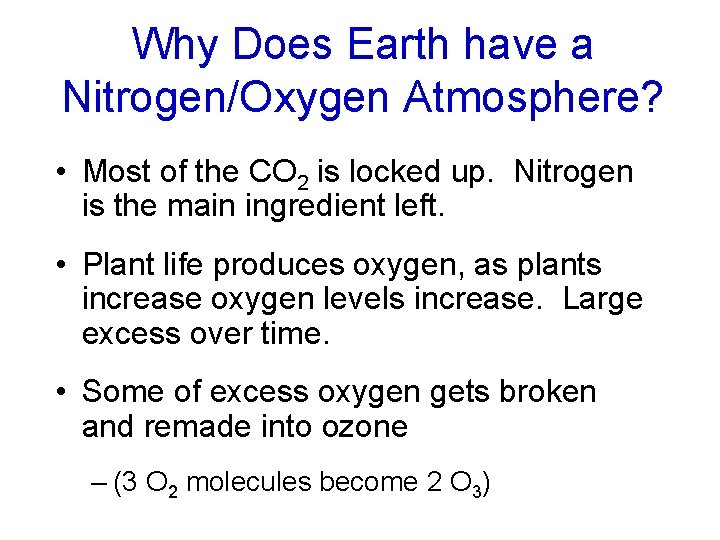

Why Does Earth have a Nitrogen/Oxygen Atmosphere? • Most of the CO 2 is locked up. Nitrogen is the main ingredient left. • Plant life produces oxygen, as plants increase oxygen levels increase. Large excess over time. • Some of excess oxygen gets broken and remade into ozone – (3 O 2 molecules become 2 O 3)
Terrestrial Worlds 4 Our Moon
Moon basics • • • Earth’s nearest neighbor , 14 th largest world Orbit -27. 3 Earth days Sidereal day -27. 3 Earth days Surface gravity -1. 61 m/s 2 (16% of Earth) No global magnetic field Only world visited by humans
Compare and contrast the 2 sides of the Moon Near Side Far Side
Maria make up 16% of the Moon’s surface and almost all of them are on the Near side
Main lunar materials • White highlands – Anorthosite (a rock full of white feldspar) • Dark maria – Basalt (black from iron content)

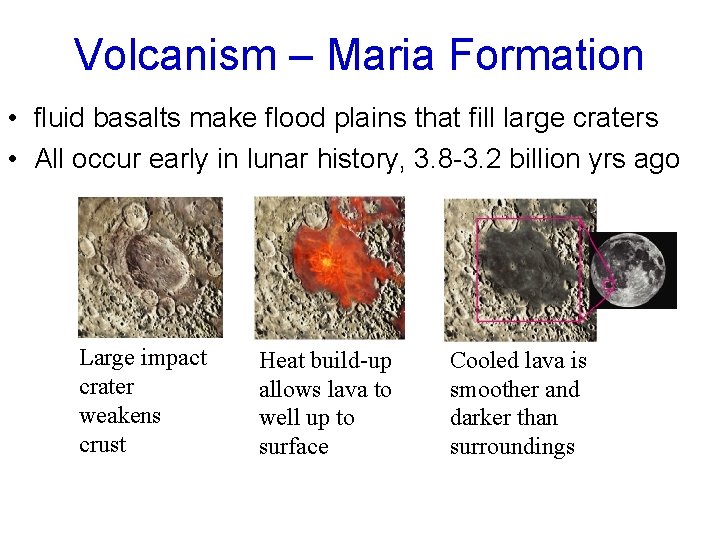

Volcanism – Maria Formation • fluid basalts make flood plains that fill large craters • All occur early in lunar history, 3. 8 -3. 2 billion yrs ago Large impact crater weakens crust Heat build-up allows lava to well up to surface Cooled lava is smoother and darker than surroundings
Impact cratering is dominant process

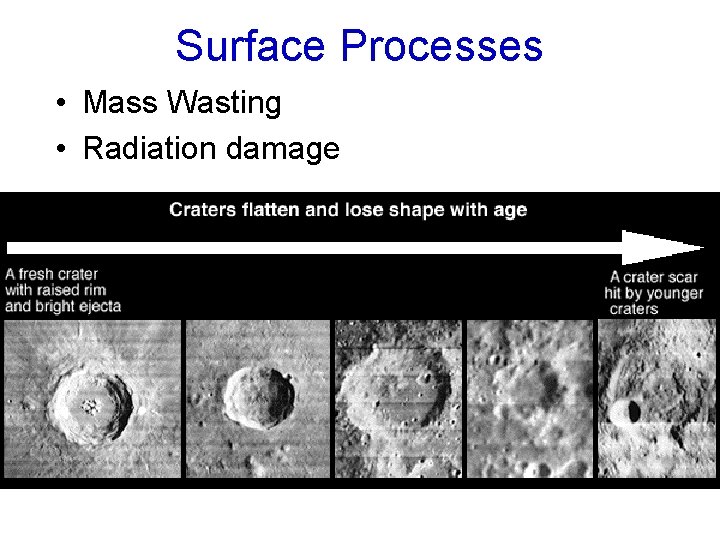

Surface Processes • Mass Wasting • Radiation damage
Moon vs. Mercury What do you think is similar about them? What is different?
• What processes shaped our Moon? – Early cratering still present – Maria resulted from early volcanic floods – no shrinkage scarps • What processes shaped Mercury? – Cratering similar to Moon, – some volcanism, but no large floods – Shrinkage scarps
Moon Formation • Early Theories: Capture, Co-formation(twin), broken off from Earth (fission). • Chemistry of Moon rocks show Moon is both like and unlike Earth • Result: Impactor Theory – Moon formed by a giant asteroid striking a glancing blow on the Earth

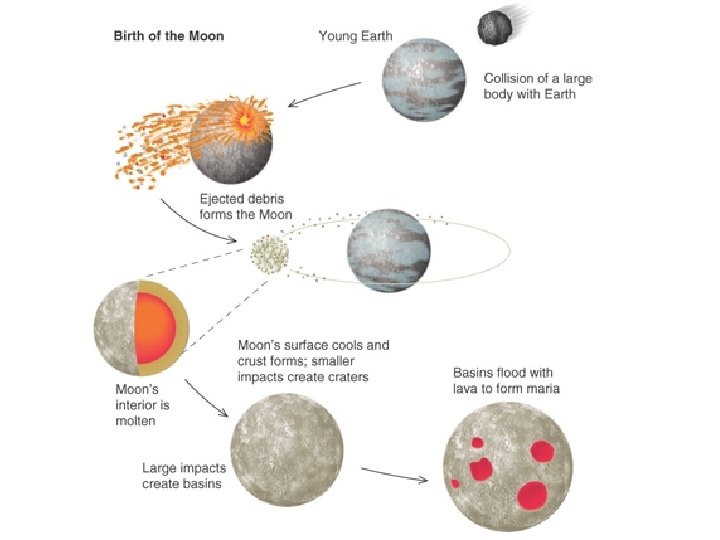

Impactor Theory Giant impact stripped matter from Earth’s crust Stripped matter began to orbit Then accreted into Moon
Lunar Atmosphere – 10 -14 bars of pressure (negligible) • Gas comes from impacts that eject surface atoms Moon – Temperatures 225 o. F in day -243 o. F at night
Why are smaller terrestrial bodies such as Mercury or the Moon "geologically dead"? A. They don't have volcanoes. B. They cooled off faster than Earth did. C. They don't have erosion. D. They were hit by fewer meteorites than Earth.
Terrestrial Worlds 5 Mars
Mars basics • • 4 th planet from Sun (1. 5 AU), 7 th largest world Orbit - 1. 88 Earth years Sidereal rotation - 25 hours Surface gravity- 3. 71 m/s 2 (39% of Earth) • Too cold for liquid water (only ice or gas) • Spacecraft- Russian program mostly unsuccessful - USA- Vikings 1& 2 in 1970 s - “Follow the Water” program 1990 s-now
Map of Mars
Mars Polar Caps -Solid CO 2 North South
Color height map of Mars (Red-high, Blue-low)

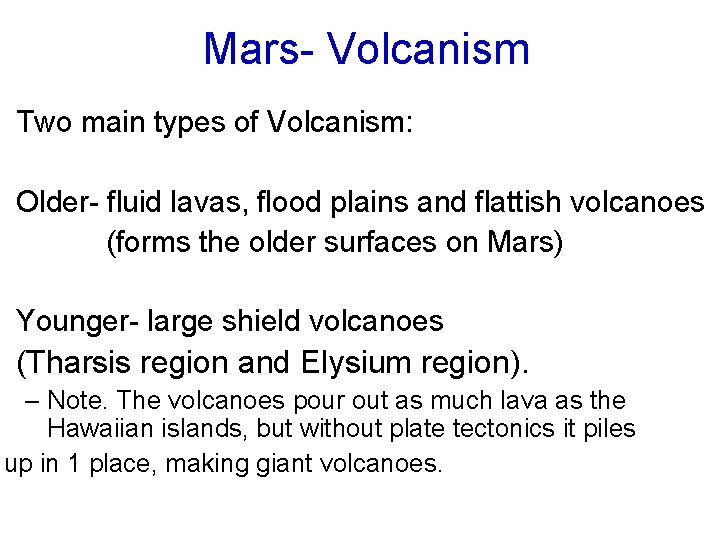

Mars- Volcanism Two main types of Volcanism: Older- fluid lavas, flood plains and flattish volcanoes (forms the older surfaces on Mars) Younger- large shield volcanoes (Tharsis region and Elysium region). – Note. The volcanoes pour out as much lava as the Hawaiian islands, but without plate tectonics it piles up in 1 place, making giant volcanoes.
Tharsis Bulge Volcanic region
Olympus Mons Largest Volcano in the Solar System
Mars tectonics Tharsis extension faulting
Tharsis extension faulting Noctis Labyrinthus and Valles Marineris
Valles Marineris 3000 miles long, 7 miles deep
Mars Cratering • Surfaces old in southern highlands • ‘Middle aged’ in the Northern lowlands • Largest craters are in south, from age of Heavy Bombardment: – Argyre basin ~1120 miles across – Hellas ~1430 miles across
Mars Cratering - Hellas basin
Mars Cratering - Hellas is over 9 km deep
Mars Surface Processes (Dominant) 1) Wind Fields of sand dunes
Mars Surface Processes – 2) Water channels seen across the surface
Mars Surface Processes – 2) Water channels seen across the surface
Opportunity at Sinus Meridiani - A dried up lake?
Evidence of Running Water at Sinus Meridiani • Jarosite a mineral made in water. • High sulfur & chlorine levels- salt pan from dried lake. • Vugs -holes left after water dissolves away minerals. • “Blueberries” -spheres of hematite made in water. • Cross-bedding -rock forms made from water ripples.
The Missing Water -Underground Ice?
The Martian Atmosphere • 0. 007 bars of pressure (1/100 x Earth) • 96% CO 2 3. 5% N 2 < 1% others • Temperatures 13 o. F in day (max. recorded 63 o. F) -135 o. F at night (min. -200 o. F at poles) • Current pressure/temperature conditions are too low for stable liquid water. Water found as gas or ice.
Climate Change on Mars • Mars has not had widespread surface water for 3 billion years • Greenhouse effect probably kept surface warmer before that • Somehow Mars lost most of its atmosphere
• Traces of magnetic field only found on oldest rocks. • Younger rocks no field. • Mars once had magnetic field early on, but not today.
• Magnetic field may have protected early Martian atmosphere from the solar wind. • Solar wind may have stripped atmosphere away after field decreased because of interior cooling. • If much water and carbon dioxide was lost, the Martian greenhouse effect would decrease and the temperatures would be too low for liquid water.
