Tera. Paths: Configuring End-to-End Virtual Tera. Paths Network Paths With Qo. S Guarantees Presented

Tera. Paths: Configuring End-to-End Virtual Tera. Paths Network Paths With Qo. S Guarantees Presented by Dimitrios Katramatos, BNL

Introduction T The problem: support efficient/reliable/predictable peta-scale data movement in modern high-speed networks q

Introduction T The problem: support efficient/reliable/predictable peta-scale data movement in modern high-speed networks q Multiple data flows with varying priority q Default “best effort” network behavior can cause performance and service disruption problems T Solution: enhance network functionality with Qo. S features to allow prioritization and protection of data flows q Treat network as a valuable resource q Schedule network usage (how much bandwidth and when) 2

The. Tera. Paths Service: Reserve End-to. End Paths with Guaranteed Bandwidth Tera. Paths WAN

The. Tera. Paths Service: Reserve End-to. End Paths with Guaranteed Bandwidth Tera. Paths WAN web services WAN 3

Prioritized vs. Best Effort Traffic 4

Prioritized vs. Best Effort Traffic 4

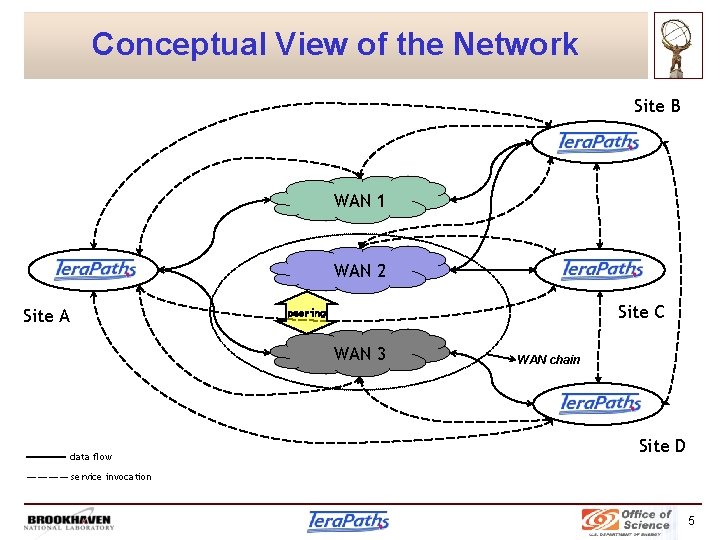

Conceptual View of the Network Site B Tera. Paths WAN 1 WAN 2 Tera.

Conceptual View of the Network Site B Tera. Paths WAN 1 WAN 2 Tera. Paths Site A Tera. Paths Site C peering WAN 3 WAN chain Tera. Paths data flow Site D service invocation 5

Tera. Paths Web Services Architecture remote local API proxy • • • Web Interface

Tera. Paths Web Services Architecture remote local API proxy • • • Web Interface Public Services Internal Services proxy Admin Module • • • WAN Services protected network Database NDC • • • 6

Tera. Paths Web Interface 7

Tera. Paths Web Interface 7

Current Tera. Paths Testbed (end-to-end) 1 st end-to-end fully automated route setup BNL-ESnet-Umich on

Current Tera. Paths Testbed (end-to-end) 1 st end-to-end fully automated route setup BNL-ESnet-Umich on 8/17/06 @ 1: 41 pm EST ESnet Ultra. Light peerin g at Chicag o BNL border router OSCARS test host BNL testbed (virtual) border router Ultra. Light router at UMich Tera. Paths NDC BNL testbed edge router Tera. Paths test host 8

Testbed Expansion Plans T Candidate Tier 2 sites for 2007 expansion: q University of

Testbed Expansion Plans T Candidate Tier 2 sites for 2007 expansion: q University of Michigan / Michigan State University q University of Chicago / Indiana University q University of Oklahoma / University of Texas at Arlington q Boston University / Harvard University q SLAC (? ) q More? T Further expand to more Tier 2 and lower tier sites T Web Page: www. racf. bnl. gov/terapaths 9
