Temple University – CIS Dept. CIS 616– Principles of Data Management V. Megalooikonomou Concurrency control (based on slides by C. Faloutsos at CMU and on notes by Silberchatz, Korth, and Sudarshan)
Transactions - dfn = unit of work, e. g. , move $10 from savings to checking Atomicity (all or none) Consistency Isolation (as if alone) Durability recovery concurrency control

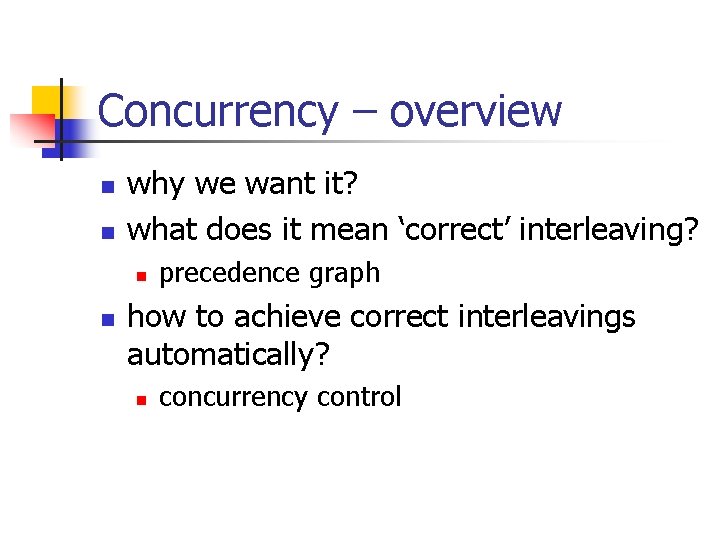

Concurrency – overview n n why we want it? what does it mean ‘correct’ interleaving? n n precedence graph how to achieve correct interleavings automatically? n concurrency control
Problem n n concurrent access to data (consider ‘lost update’ problem) how to solve it?
Lost update problem – no locks Read(N) time
Solution – part 1 n n locks! (most popular solution) lock manager: grants/denies lock requests
Lost update problem – with locks T 1 T 2 grants lock(N) time lock manager denies lock Read(N) N=N-1 T 2: waits Write(N) Unlock(N) Read(N). . . grants lock to T 2
Locks n but, what if we all just want to read ‘N’?
Solution – part 1 n Locks and their flavors n n X-locks: exclusive (or write-) locks T 2 wants S T 1 has S-locks: S T shared (or read-) locks <and more. . . > X F compatibility matrix X F F

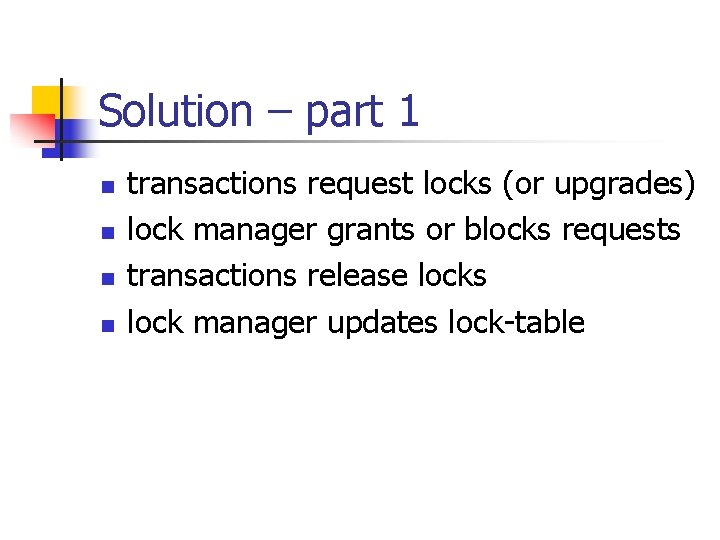

Solution – part 1 n n transactions request locks (or upgrades) lock manager grants or blocks requests transactions release locks lock manager updates lock-table

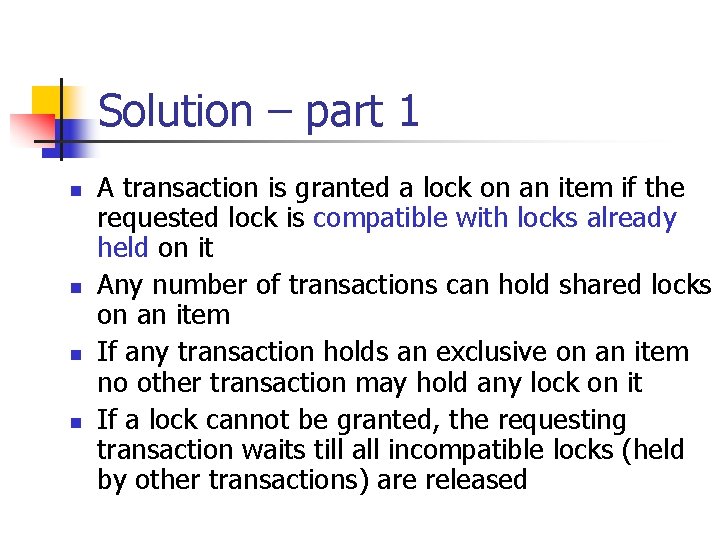

Solution – part 1 n n A transaction is granted a lock on an item if the requested lock is compatible with locks already held on it Any number of transactions can hold shared locks on an item If any transaction holds an exclusive on an item no other transaction may hold any lock on it If a lock cannot be granted, the requesting transaction waits till all incompatible locks (held by other transactions) are released
Solution – part 2 locks are not enough – e. g. , ‘inconsistent analysis’
‘Inconsistent analysis’ time Precedence graph?
‘Inconsistent analysis’ – w/ locks time T 1 T 2 L(A) Read(A) the problem remains! . . . U(A) L(A). . L(B). . Solution? ?

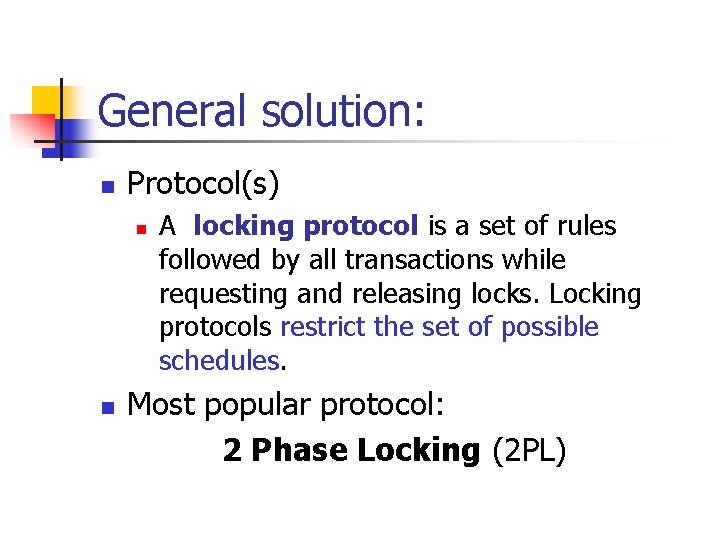

General solution: n Protocol(s) n n A locking protocol is a set of rules followed by all transactions while requesting and releasing locks. Locking protocols restrict the set of possible schedules. Most popular protocol: 2 Phase Locking (2 PL)
2 PL (2 Phase Locking ) n Phase 1: Growing Phase n n n Phase 2: Shrinking Phase n n n transaction may obtain locks transaction may not release locks transaction may not obtain locks The protocol assures serializability n Transactions can be serialized in the order of their lock points (i. e. , the point where it acquired its final lock)
2 PL X-lock version: transactions issue no lock requests, after the first ‘unlock’ THEOREM: if all transactions obey 2 PL all schedules are serializable

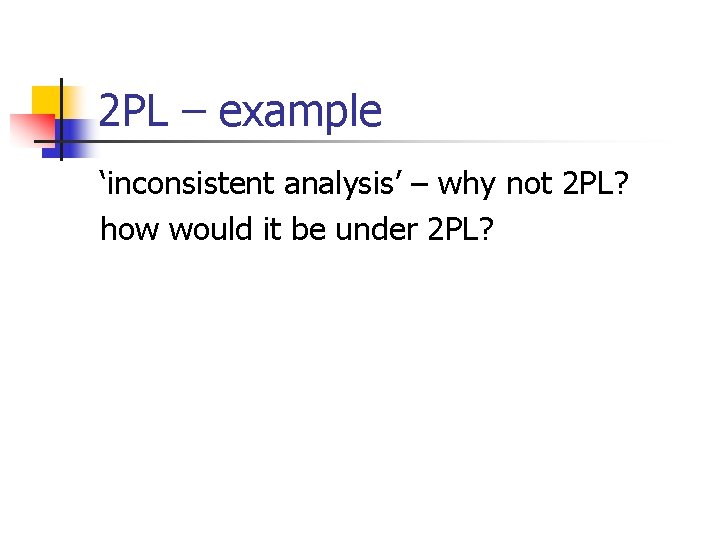

2 PL – example ‘inconsistent analysis’ – why not 2 PL? how would it be under 2 PL?

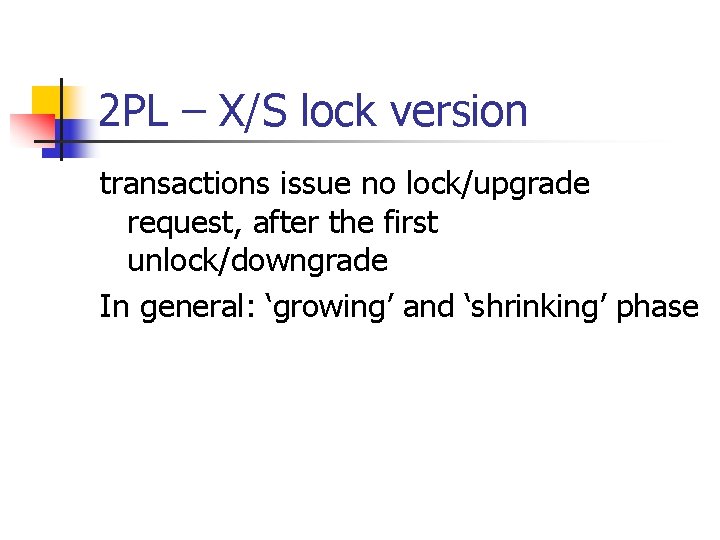

2 PL – X/S lock version transactions issue no lock/upgrade request, after the first unlock/downgrade In general: ‘growing’ and ‘shrinking’ phase
2 PL – observations - limits concurrency may lead to deadlocks 2 PLC (keep locks until ‘commit’) n n strict two-phase locking. A transaction must hold all its exclusive locks till it commits/aborts. Rigorous two-phase locking is even stricter: here all locks are held till commit/abort.
Concurrency – overview n what does it mean ‘correct’ interleaving? n n precedence graph how to achieve correct interleavings automatically? concurrency control n locks + protocols n n 2 PL, 2 PLC graph protocols multiple granularity locks <cc without locks: optimistic cc>
Protocols other than 2 -PL – Graph-based - - Assumption: we have prior knowledge about the order in which data items will be accessed (Hierarchical) ordering on the data items, like, e. g. , pages of a B-tree A B C
Protocols other than 2 -PL – Graph-based n n Graph-based protocols are an alternative to 2 PL Impose a partial ordering on the set D = {d 1, d 2 , . . . , dh} of all data items n n n If di dj , then any transaction accessing both di and dj must access di before accessing dj. Implies that the set D may now be viewed as a directed acyclic graph, called a database graph. Tree-protocol : a simple kind of graph protocol

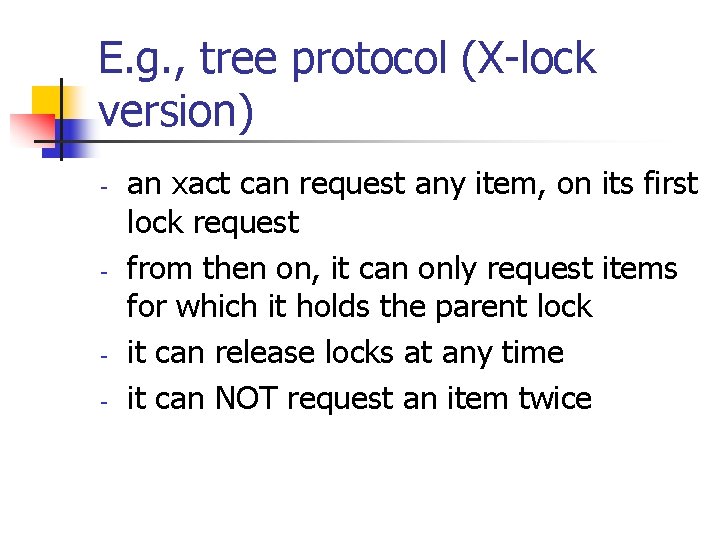

E. g. , tree protocol (X-lock version) - - - an xact can request any item, on its first lock request from then on, it can only request items for which it holds the parent lock it can release locks at any time it can NOT request an item twice
Tree protocol - example T 1 L(B) L(E) U(E) L(D) U(B) L(G) U(D) U(G) T 2 -2 PL? A -follows tree protocol? L(D) L(H) U(D) B -‘correct’? C D E F U(H) G H I

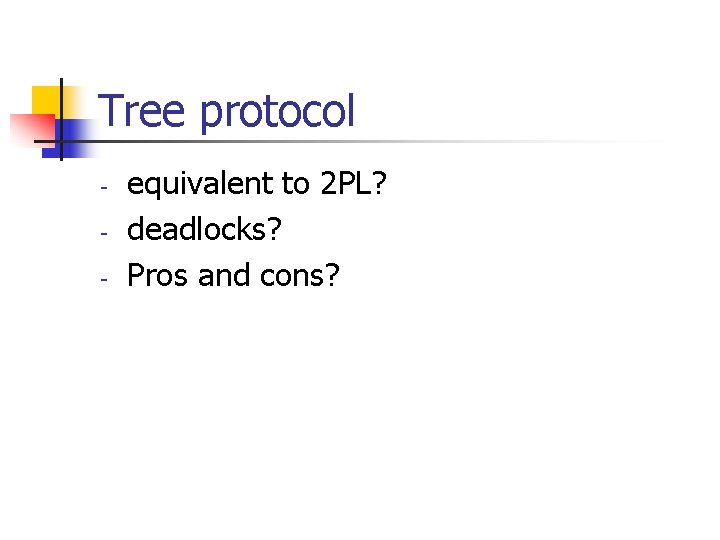

Tree protocol - equivalent to 2 PL? deadlocks? Pros and cons?
Tree protocol n n Ensures conflict serializability and no deadlocks Unlocking may occur earlier in the tree-locking protocol than in the two-phase locking protocol n n However, a transaction may have to lock data items that it does not access n n n shorter waiting times, increase in concurrency protocol is deadlock-free -- no rollbacks are required the abort of a transaction can still lead to cascading rollbacks increased locking overhead, and additional waiting time potential decrease in concurrency Schedules not possible under two-phase locking are possible under tree protocol, and vice versa

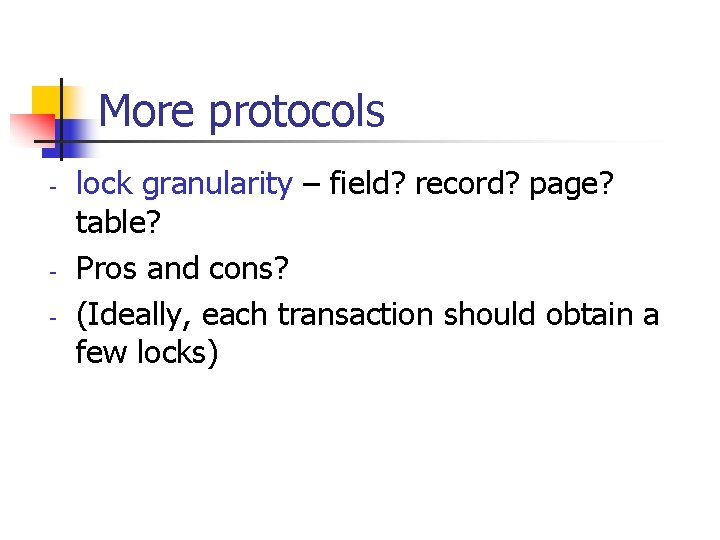

More protocols - - lock granularity – field? record? page? table? Pros and cons? (Ideally, each transaction should obtain a few locks)
Multiple granularity n Example: DB Table 1 record 1 attr 1 Table 2 record 2 attr 2 record-n attr 1
Multiple granularity n n n Allows data items to be of various sizes Defines a hierarchy of data granularities Can be represented graphically as a tree (…don't confuse with tree-locking protocol) When a transaction locks a node in the tree explicitly, it implicitly locks all the node's descendents in the same mode Locking granularity (level in tree where locking is done): n fine granularity (lower in tree) n n high concurrency, high locking overhead coarse granularity (higher in tree) n low locking overhead, low concurrency
What types of locks? n n n n X/S locks for leaf level + ‘intent’ locks, for higher levels IS: intent to obtain S-lock underneath IX: intent to obtain X-lock underneath S: shared lock for this level X: ex- lock for this level SIX: shared lock here; + IX
Protocol - - each xact obtains appropriate lock at highest level proceeds to desirable lower levels intention locks allow a higher level node to be locked in S or X mode without having to check all descendent nodes.
Protocol n Transaction Ti can lock a node Q, using the following rules: 1. The lock compatibility matrix must be observed 2. The root of the tree must be locked first, and may be locked in any mode 3. A node Q can be locked by Ti in S or IS mode only if the parent of Q is currently locked by Ti in either IX or IS mode 4. A node Q can be locked by Ti in X, SIX, or IX mode only if the parent of Q is currently locked by Ti in either IX or SIX mode 5. Ti can lock a node only if it has not previously unlocked any node (that is, Ti is two-phase) 6. Ti can unlock a node Q only if none of the children of Q are currently locked by Ti n Locks are acquired in root-to-leaf order, whereas they are released in leaf-to-root order

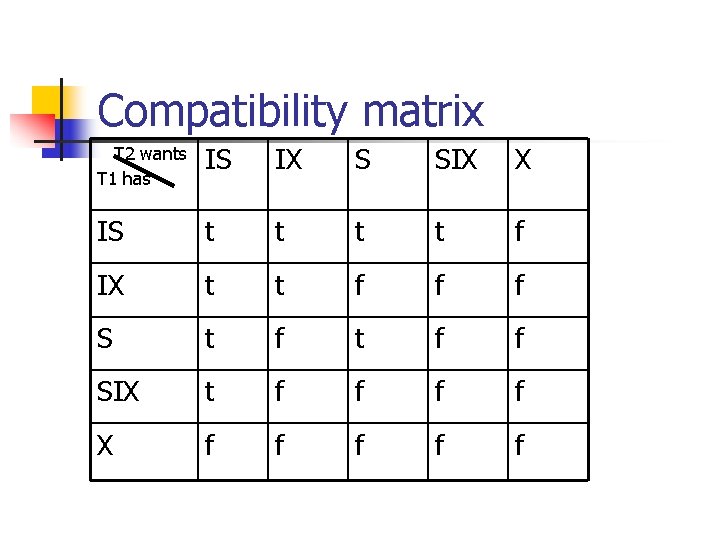

Compatibility matrix T 2 wants T 1 has IS IX S SIX X IS t t f IX t t f f f S t f f SIX t f f X f f f
Summary - ‘ACID’ for transactions concurrency: - serializability (precedence graph) one (popular) solution: locks + 2 PL(C) protocol graph protocols; multiple granularity
