Template Barricade, APO and TAS plan

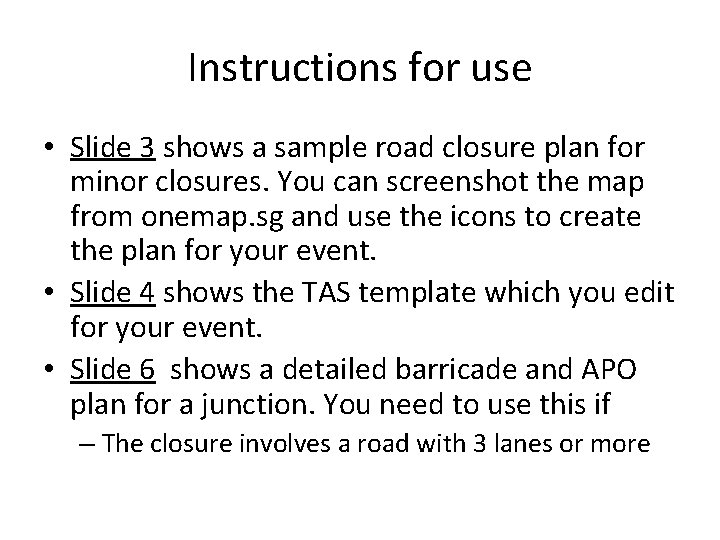

Instructions for use • Slide 3 shows a sample road closure plan for minor closures. You can screenshot the map from onemap. sg and use the icons to create the plan for your event. • Slide 4 shows the TAS template which you edit for your event. • Slide 6 shows a detailed barricade and APO plan for a junction. You need to use this if – The closure involves a road with 3 lanes or more

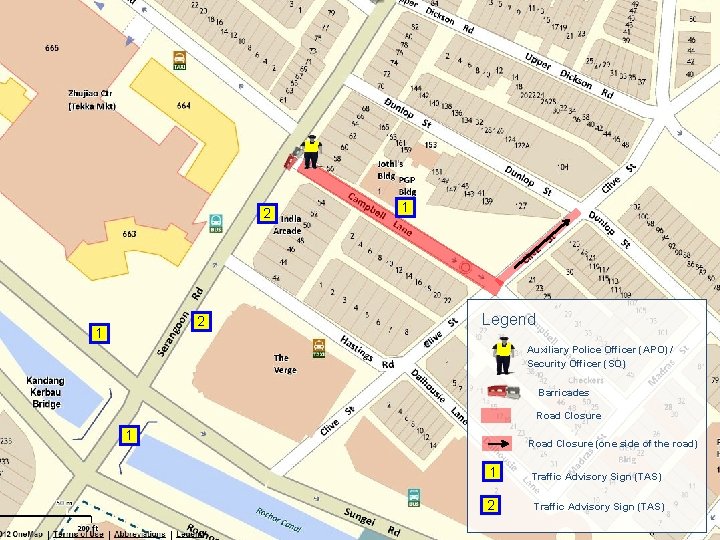

2 2 1 1 Legend Auxiliary Police Officer (APO) / Security Officer (SO) Barricades Road Closure 1 Road Closure (one side of the road) 1 Traffic Advisory Sign (TAS) 2 Traffic Advisory Sign (TAS)

Traffic Advisory Sign - Specifications 1 20 cm 15 cm 20 cm 15 cm Lettering Sample: 2 cm 20 cm H ROAD CLOSURE Campbell Lane (Btw Serangoon Rd & Clive St) 10 Jan 12, 8 am to 17 Jan 12, 10 pm 3 cm thick 2400 mm 3 cm thick 1200 mm 3 cm thick Specifications Board Size minimum: 2400 mm x 1200 mm To Clive St, above Font Height: 20 cm and Font thickness: 2 cm and above Rd Use Sungei Rd / Hasting For alternate road, event name & hotline number, font height is 15 cm and above. Colours Event name 3 M™ Diamond Grade™ VIP Fluorescent Yellow Green Sheeting, 3983 (background) Hotline: 6 XXX XXXX 3 M™ Diamond Grade™ VIP Reflective Sheeting Series - Blue, 3995 (letterings & borders) 3 M™ Diamond Grade™ VIP Reflective Sheeting Series - Red, 3992 (letterings)

Traffic Advisory Sign - Specifications 2 20 cm For more samples, please see slide no. 7 onwards. 20 cm 15 cm 20 cm 15 cm Lettering Sample: 2 cm 20 cm H ROAD CLOSURE Clive Street 3 cm thick (between Campbell Lane and Dunlop St, towards Dunlop St) 10 Jan 12, 8 am to 17 Jan 12, 10 pm 2400 mm 3 cm thick Use Madras 1200 St mm as alternative 3 cm thick Specifications Board Size minimum: 2400 mm x 1200 mm Event name Font Height: 20 cm and above Font thickness: 2 cm and. XXXX above Hotline: 6 XXX For alternate road, event name & hotline number, font height is 15 cm and above. Colours 3 M™ Diamond Grade™ VIP Fluorescent Yellow Green Sheeting, 3983 (background) 3 M™ Diamond Grade™ VIP Reflective Sheeting Series - Blue, 3995 (letterings & borders) 3 M™ Diamond Grade™ VIP Reflective Sheeting Series - Red, 3992 (letterings)

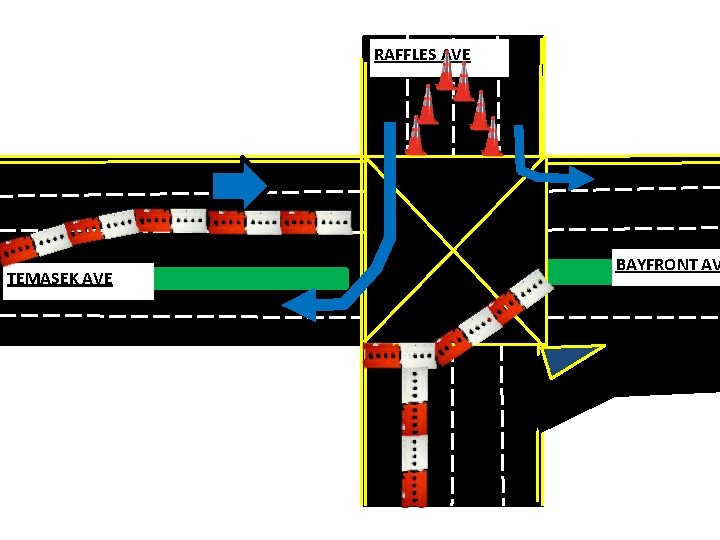

RAFFLES AVE TEMASEK AVE BAYFRONT AV

TAS/ VMS TEMPLATE Version 2

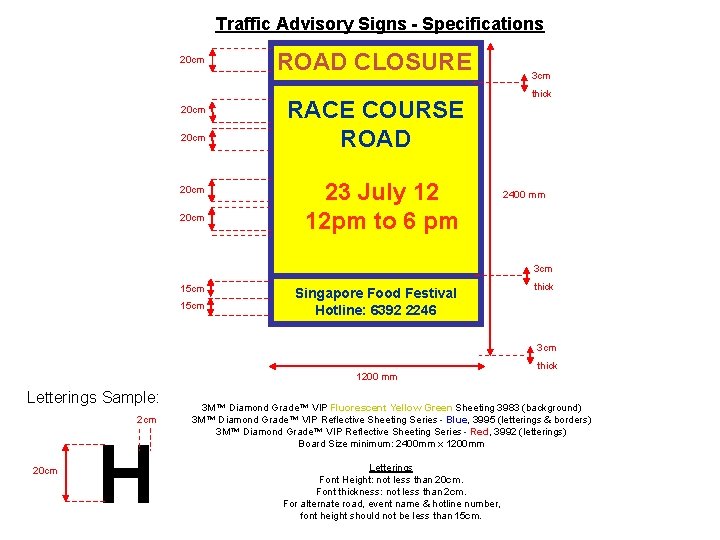

Traffic Advisory Signs - Specifications 20 cm 20 cm ROAD CLOSURE RACE COURSE ROAD 23 July 12 12 pm to 6 pm 3 cm thick 2400 mm 3 cm 15 cm Singapore Food Festival Hotline: 6392 2246 thick 3 cm 1200 mm Letterings Sample: 2 cm 20 cm H thick 3 M™ Diamond Grade™ VIP Fluorescent Yellow Green Sheeting 3983 (background) 3 M™ Diamond Grade™ VIP Reflective Sheeting Series - Blue, 3995 (letterings & borders) 3 M™ Diamond Grade™ VIP Reflective Sheeting Series - Red, 3992 (letterings) Board Size minimum: 2400 mm x 1200 mm Letterings Font Height: not less than 20 cm. Font thickness: not less than 2 cm. For alternate road, event name & hotline number, font height should not be less than 15 cm.

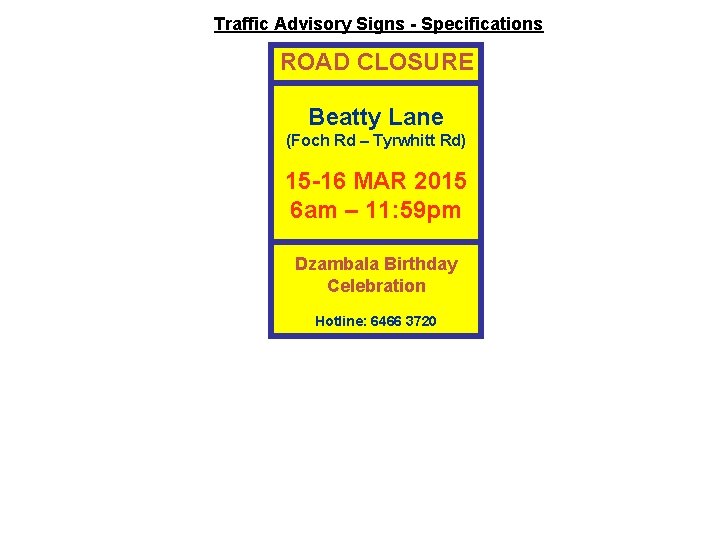

Traffic Advisory Signs - Specifications ROAD CLOSURE Beatty Lane (Foch Rd – Tyrwhitt Rd) 15 -16 MAR 2015 6 am – 11: 59 pm Dzambala Birthday Celebration Hotline: 6466 3720

ROAD CLOSURE CROSS STREET Sun, 31 Aug 3 am – 10 am Back to Cross St Use Cecil St Hotline: 86485539 SSBR / AHM 2014

LANE MARINA BLVD CLOSURE Sun, 31 Aug 3 am – 6: 30 am To Marina Gardens Dr Use Sheares Ave Hotline: 86485539 SSBR / AHM 2014

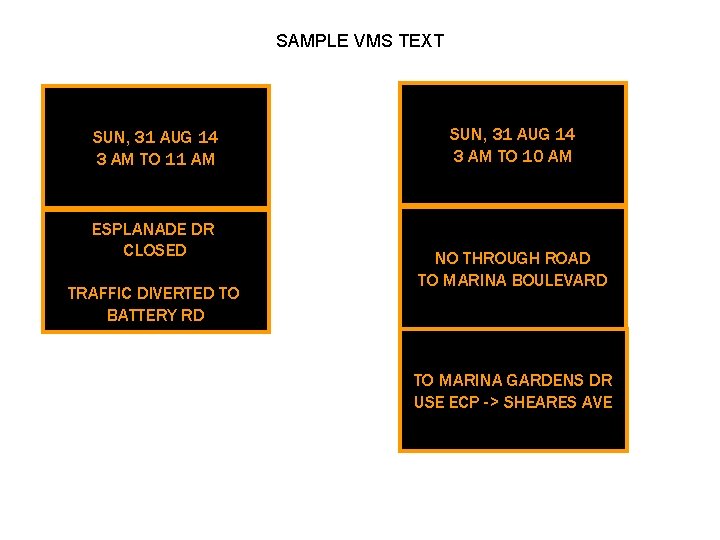

SAMPLE VMS TEXT SUN, 31 AUG 14 3 AM TO 11 AM ESPLANADE DR CLOSED TRAFFIC DIVERTED TO BATTERY RD SUN, 31 AUG 14 3 AM TO 10 AM NO THROUGH ROAD TO MARINA BOULEVARD TO MARINA GARDENS DR USE ECP -> SHEARES AVE
