Temperature, Pulse, Respirations Abbreviated: TPR

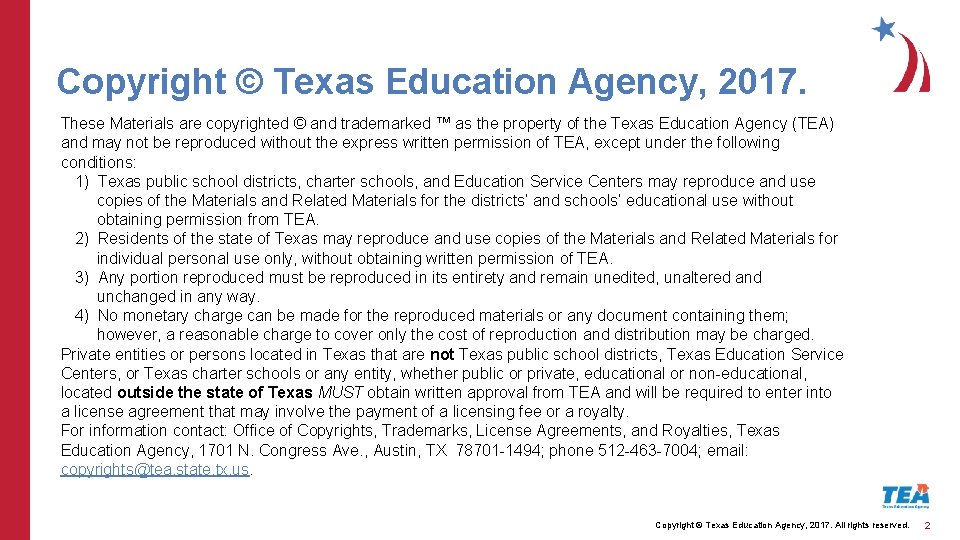

Copyright © Texas Education Agency, 2017. These Materials are copyrighted © and trademarked ™ as the property of the Texas Education Agency (TEA) and may not be reproduced without the express written permission of TEA, except under the following conditions: 1) Texas public school districts, charter schools, and Education Service Centers may reproduce and use copies of the Materials and Related Materials for the districts’ and schools’ educational use without obtaining permission from TEA. 2) Residents of the state of Texas may reproduce and use copies of the Materials and Related Materials for individual personal use only, without obtaining written permission of TEA. 3) Any portion reproduced must be reproduced in its entirety and remain unedited, unaltered and unchanged in any way. 4) No monetary charge can be made for the reproduced materials or any document containing them; however, a reasonable charge to cover only the cost of reproduction and distribution may be charged. Private entities or persons located in Texas that are not Texas public school districts, Texas Education Service Centers, or Texas charter schools or any entity, whether public or private, educational or non-educational, located outside the state of Texas MUST obtain written approval from TEA and will be required to enter into a license agreement that may involve the payment of a licensing fee or a royalty. For information contact: Office of Copyrights, Trademarks, License Agreements, and Royalties, Texas Education Agency, 1701 N. Congress Ave. , Austin, TX 78701 -1494; phone 512 -463 -7004; email: copyrights@tea. state. tx. us. Copyright © Texas Education Agency, 2017. All rights reserved. 2
Temperature > The process involving the measurement of core body heat. > Routes to Measure Temperature: • Oral: By mouth • Rectally: By rectum • Axillary: Under the arm in the armpit • Tympanic: In the ear Copyright © Texas Education Agency, 2017. All rights reserved. 3

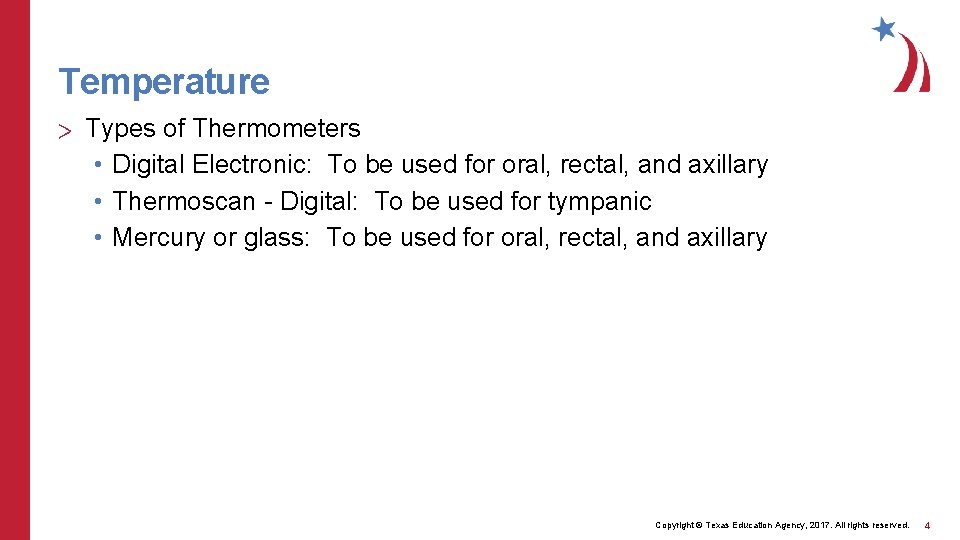

Temperature > Types of Thermometers • Digital Electronic: To be used for oral, rectal, and axillary • Thermoscan - Digital: To be used for tympanic • Mercury or glass: To be used for oral, rectal, and axillary Copyright © Texas Education Agency, 2017. All rights reserved. 4
Temperature > Type of thermometer to be used • Tympanic: Special device with plastic covers. • Electronic: All routes. Probes that are red in color for rectal temperatures; blue in color for oral and axillary. • Mercury: All routes. Red ends are rectal; blue ends oral and axillary. Copyright © Texas Education Agency, 2017. All rights reserved. 5
Temperature > Duration for taking temperatures • Tympanic: As long as it takes to push a button • Electronic: Until thermometer beeps • Mercury Oral: Three minutes • Mercury Rectal: Three minutes • Mercury Axillary: Ten minutes Copyright © Texas Education Agency, 2017. All rights reserved. 6

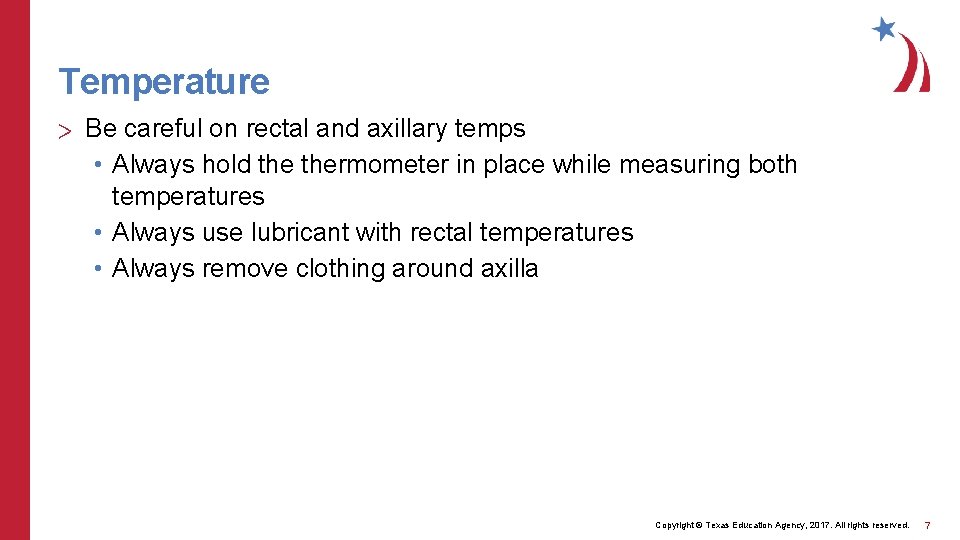

Temperature > Be careful on rectal and axillary temps • Always hold thermometer in place while measuring both temperatures • Always use lubricant with rectal temperatures • Always remove clothing around axilla Copyright © Texas Education Agency, 2017. All rights reserved. 7
Temperature > Reading thermometer • Mercury Fahrenheit thermometers are read by degree and 0. 2 of a degree • Long lines indicate degrees • Short lines indicate 0. 2 of a degree • Four short lines between each long line (0. 2, 0. 4, 0. 6, 0. 8) Copyright © Texas Education Agency, 2017. All rights reserved. 8

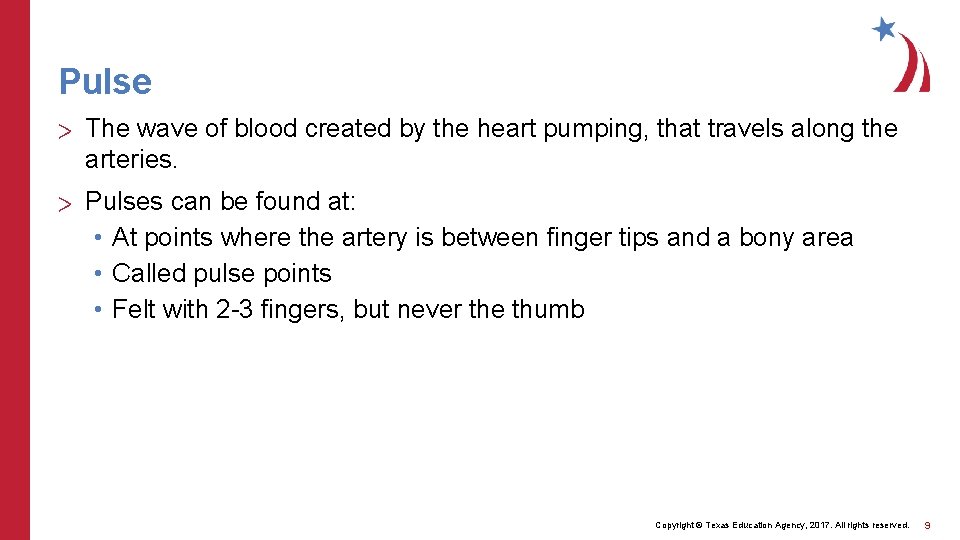

Pulse > The wave of blood created by the heart pumping, that travels along the arteries. > Pulses can be found at: • At points where the artery is between finger tips and a bony area • Called pulse points • Felt with 2 -3 fingers, but never the thumb Copyright © Texas Education Agency, 2017. All rights reserved. 9

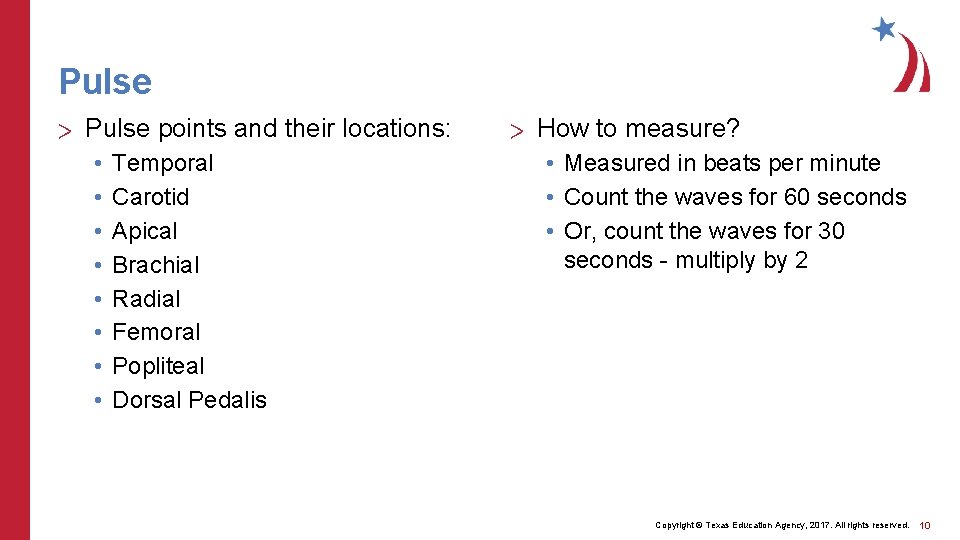

Pulse > Pulse points and their locations: • • Temporal Carotid Apical Brachial Radial Femoral Popliteal Dorsal Pedalis > How to measure? • Measured in beats per minute • Count the waves for 60 seconds • Or, count the waves for 30 seconds - multiply by 2 Copyright © Texas Education Agency, 2017. All rights reserved. 10
Pulse > Norms: • Pulse norms are 60 - 100 beats per minute • Pulses between 90 - 100 are in a gray area - high normal • Faster than 100 - tachycardia • Slower than 60 - bradycardia > Quality of pulse: • Rhythm: regular or irregular • Rate: Within the normal limits • Strength: Strong, bounding, thready > Rates and quality of pulse are affected by: • • Body Temperature Emotions Activity Level Health of the Heart Copyright © Texas Education Agency, 2017. All rights reserved. 11

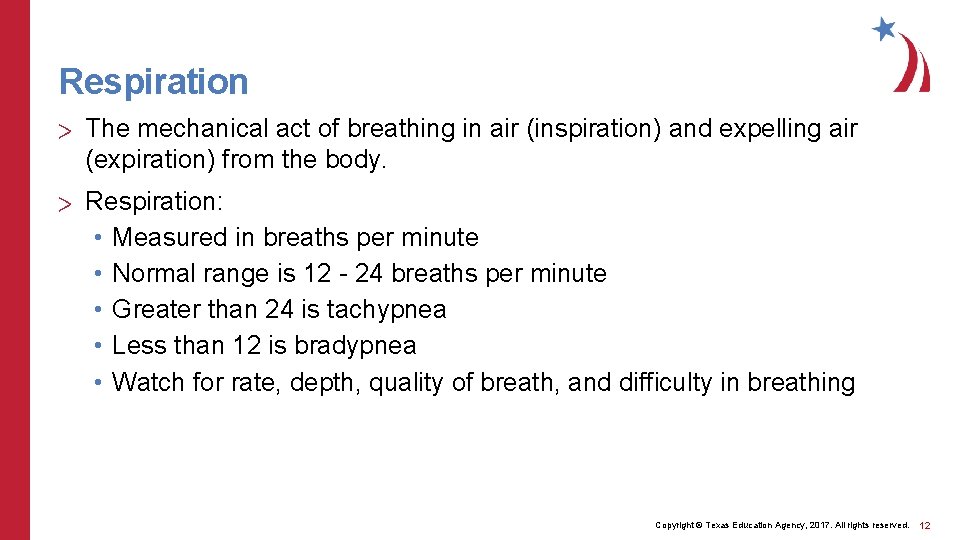

Respiration > The mechanical act of breathing in air (inspiration) and expelling air (expiration) from the body. > Respiration: • Measured in breaths per minute • Normal range is 12 - 24 breaths per minute • Greater than 24 is tachypnea • Less than 12 is bradypnea • Watch for rate, depth, quality of breath, and difficulty in breathing Copyright © Texas Education Agency, 2017. All rights reserved. 12
Method of Measuring TPR > If using a mercury thermometer, measure the pulse and respiration while waiting for the temperature > If using another method of measuring the temperature, complete the temperature - then measure the pulse and respiration > Keep you fingers on the pulse while measuring the respiration Copyright © Texas Education Agency, 2017. All rights reserved. 13

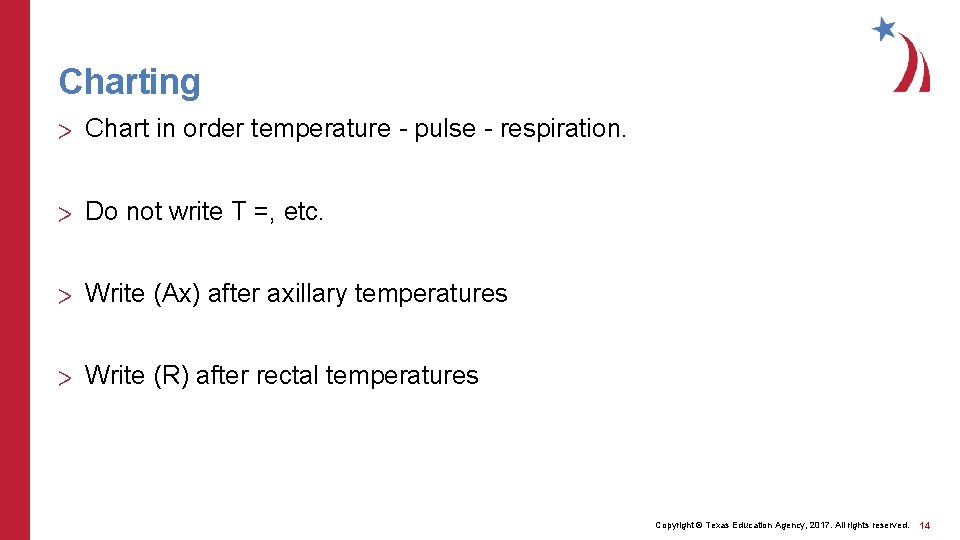

Charting > Chart in order temperature - pulse - respiration. > Do not write T =, etc. > Write (Ax) after axillary temperatures > Write (R) after rectal temperatures Copyright © Texas Education Agency, 2017. All rights reserved. 14

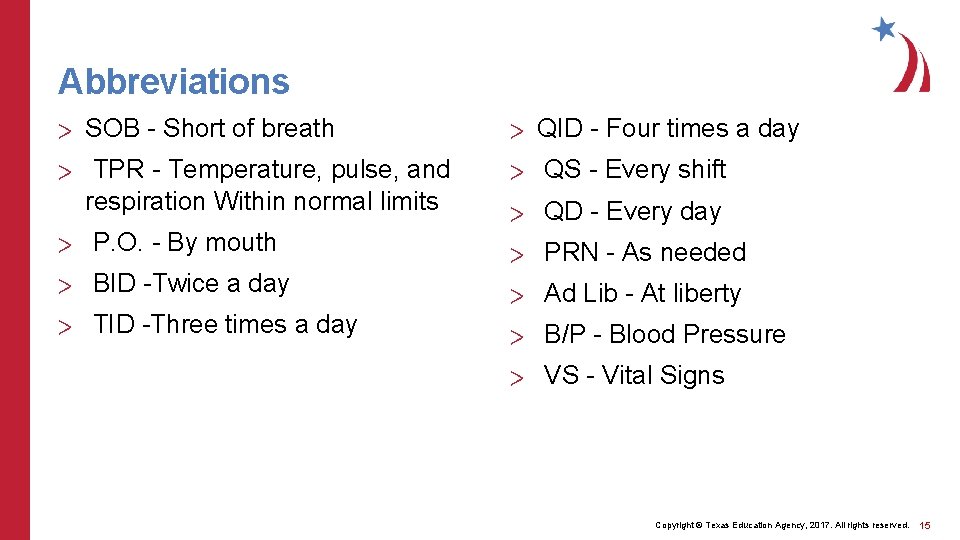

Abbreviations > SOB - Short of breath > QID - Four times a day > TPR - Temperature, pulse, and respiration Within normal limits > QS - Every shift > P. O. - By mouth > PRN - As needed > BID -Twice a day > Ad Lib - At liberty > TID -Three times a day > B/P - Blood Pressure > QD - Every day > VS - Vital Signs Copyright © Texas Education Agency, 2017. All rights reserved. 15
Abbreviations > SOB > QID > TPR > QS > WNL > QD > PO > PRN > BID > Ad Lib > TID > B/P > VS Copyright © Texas Education Agency, 2017. All rights reserved. 16

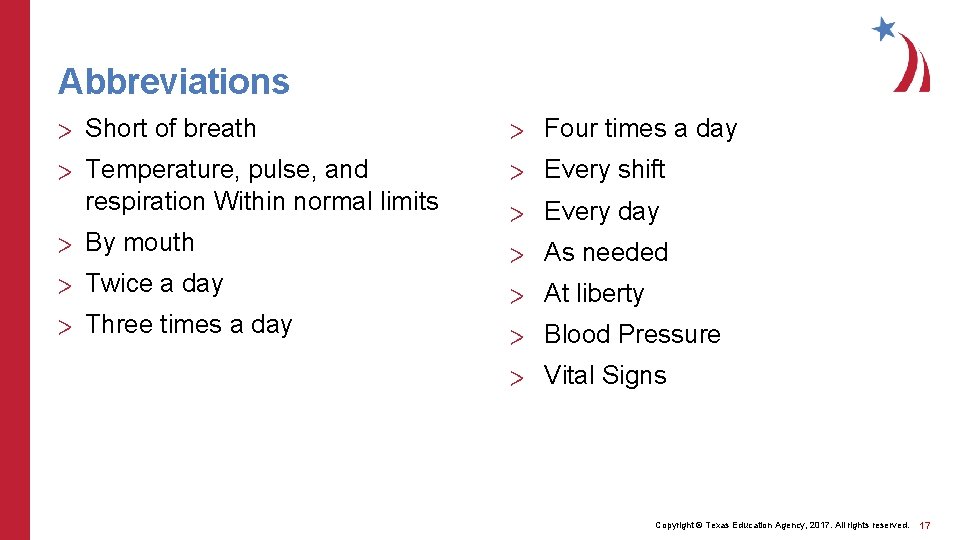

Abbreviations > Short of breath > Four times a day > Temperature, pulse, and respiration Within normal limits > Every shift > By mouth > As needed > Twice a day > At liberty > Three times a day > Blood Pressure > Every day > Vital Signs Copyright © Texas Education Agency, 2017. All rights reserved. 17

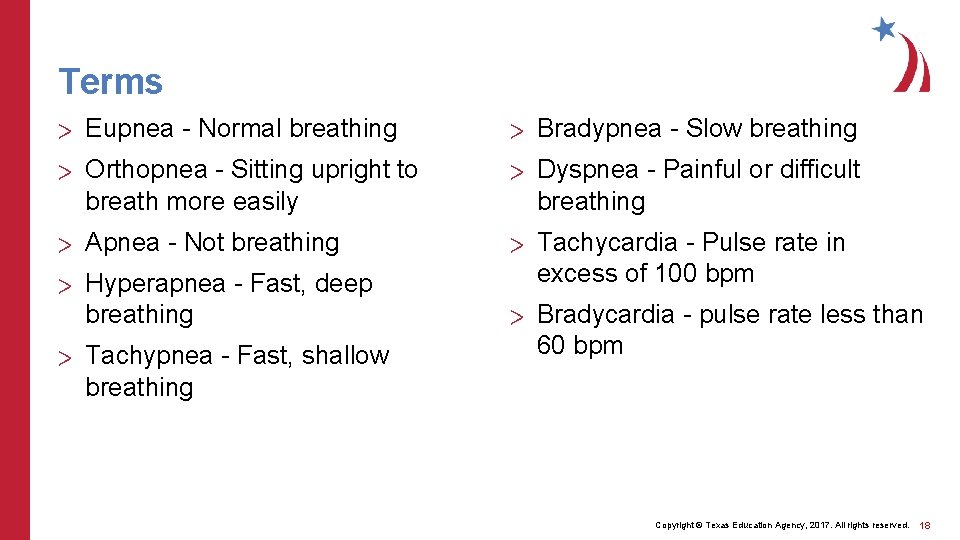

Terms > Eupnea - Normal breathing > Bradypnea - Slow breathing > Orthopnea - Sitting upright to breath more easily > Dyspnea - Painful or difficult breathing > Apnea - Not breathing > Tachycardia - Pulse rate in excess of 100 bpm > Hyperapnea - Fast, deep breathing > Tachypnea - Fast, shallow breathing > Bradycardia - pulse rate less than 60 bpm Copyright © Texas Education Agency, 2017. All rights reserved. 18

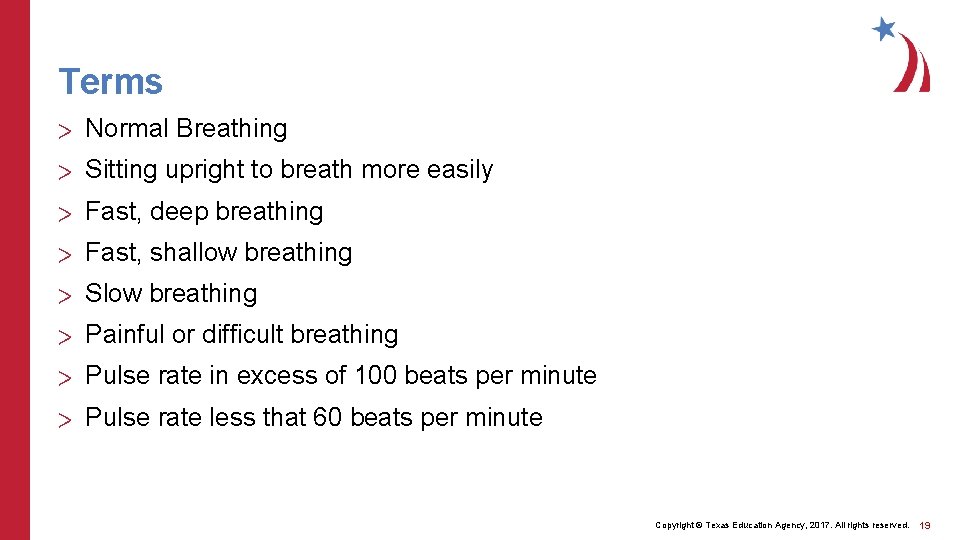

Terms > Normal Breathing > Sitting upright to breath more easily > Fast, deep breathing > Fast, shallow breathing > Slow breathing > Painful or difficult breathing > Pulse rate in excess of 100 beats per minute > Pulse rate less that 60 beats per minute Copyright © Texas Education Agency, 2017. All rights reserved. 19
Terms > Bounding pulse - excessively strong pulse > Thready pulse - Pulse rate difficult to palpate because the heart is not beating hard enough to produce a strong wave of blood. Feels as though there is a piece of thread running under the fingertips. Copyright © Texas Education Agency, 2017. All rights reserved. 20

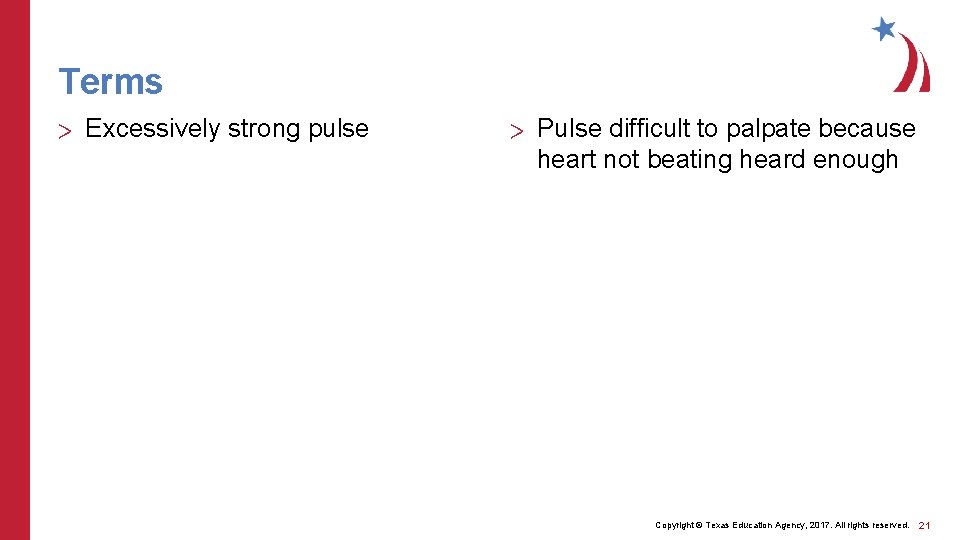

Terms > Excessively strong pulse > Pulse difficult to palpate because heart not beating heard enough Copyright © Texas Education Agency, 2017. All rights reserved. 21
