TEMPERATURE Logging Systems SYSTEM OVERVIEW KOOLTRAK systems log

TEMPERATURE Logging Systems

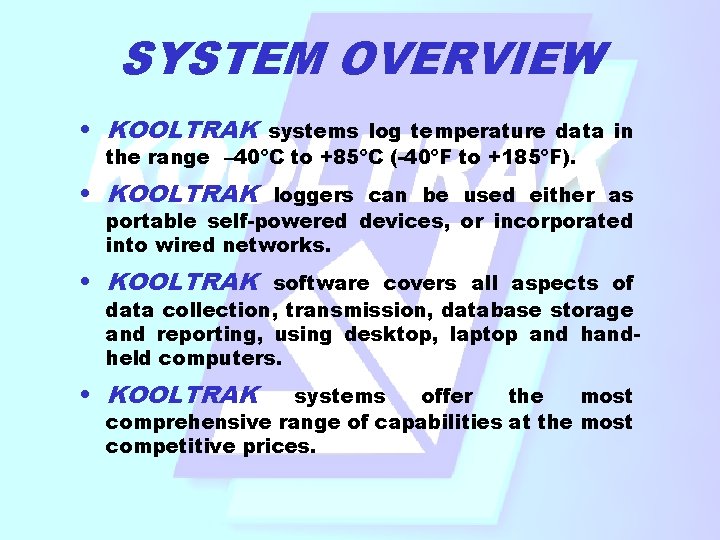

SYSTEM OVERVIEW • KOOLTRAK systems log temperature data in the range – 40ºC to +85ºC (-40ºF to +185ºF). • KOOLTRAK loggers can be used either as portable self-powered devices, or incorporated into wired networks. • KOOLTRAK software covers all aspects of data collection, transmission, database storage and reporting, using desktop, laptop and handheld computers. • KOOLTRAK systems offer the most comprehensive range of capabilities at the most competitive prices.

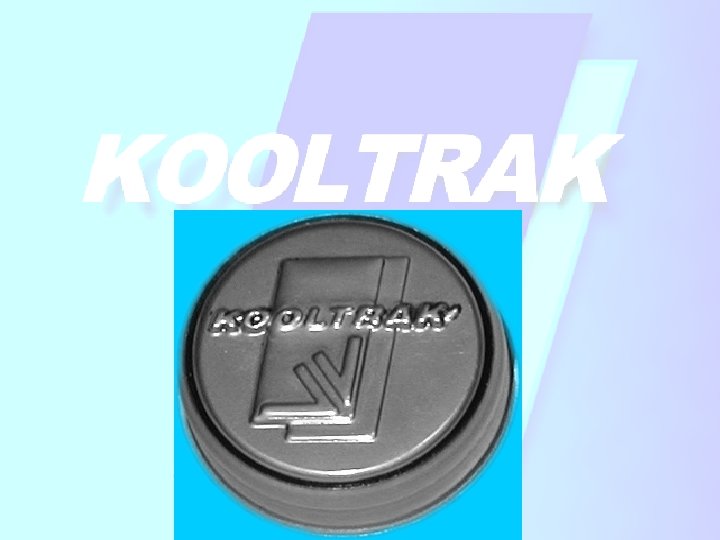

HARDWARE OVERVIEW • Loggers in stainless steel housing – 20ºC to +85ºC • Loggers in mounting box – 40ºC to +85ºC • Water and pressure proof loggers • Logger interfaces and cables • Network loggers in mounting box • Network hardware and cables • Network long-line drivers and receivers • Alarm interface and watchdog timer

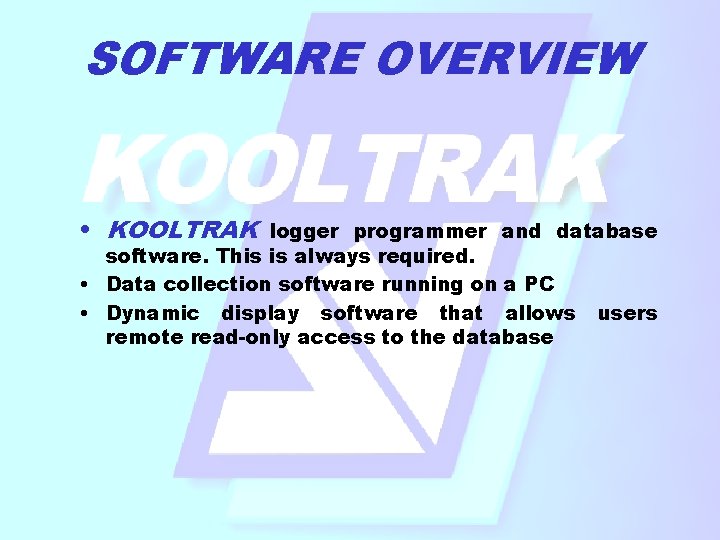

SOFTWARE OVERVIEW • KOOLTRAK logger programmer and database software. This is always required. • Data collection software running on a PC • Dynamic display software that allows remote read-only access to the database users

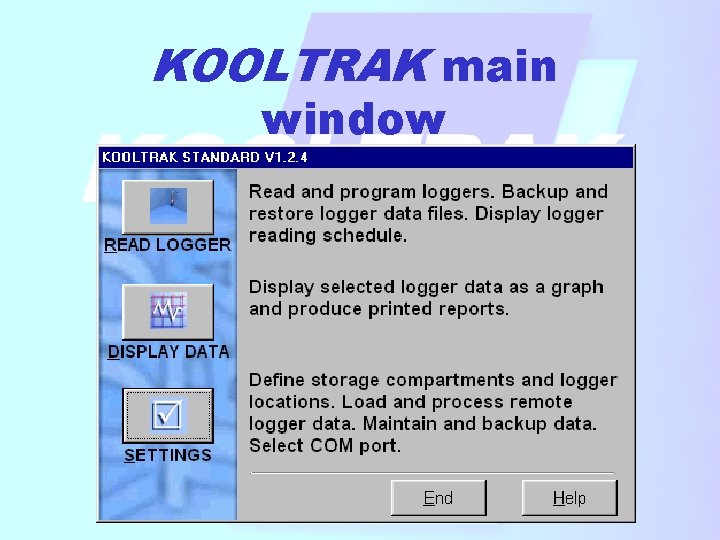

KOOLTRAK main window

- displays compartments, locations and loggers

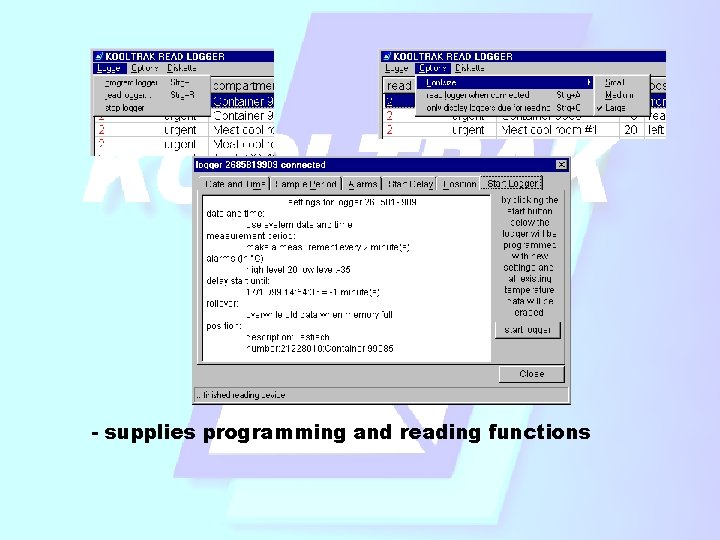

- supplies programming and reading functions

- displays logger status and advises when reading due

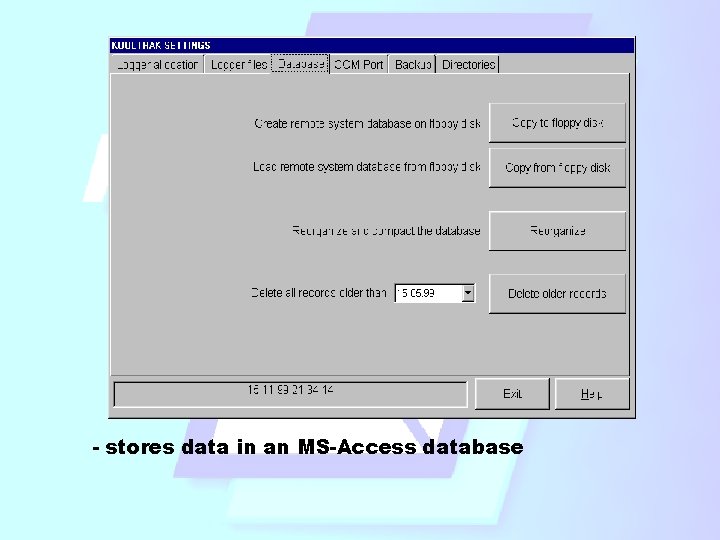

- stores data in an MS-Access database

- provides backup tools for the user

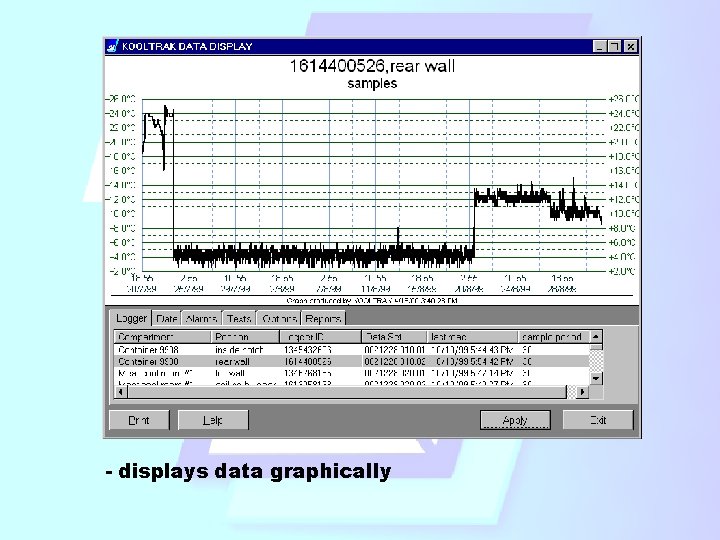

- displays data graphically

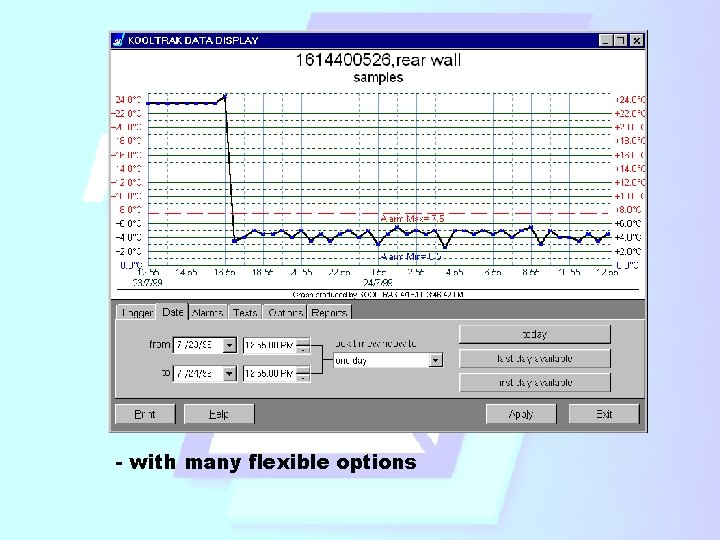

- with many flexible options

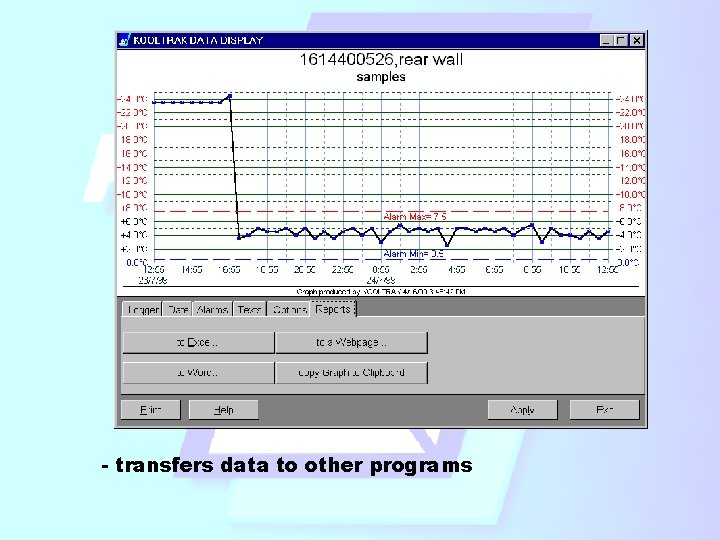

- transfers data to other programs

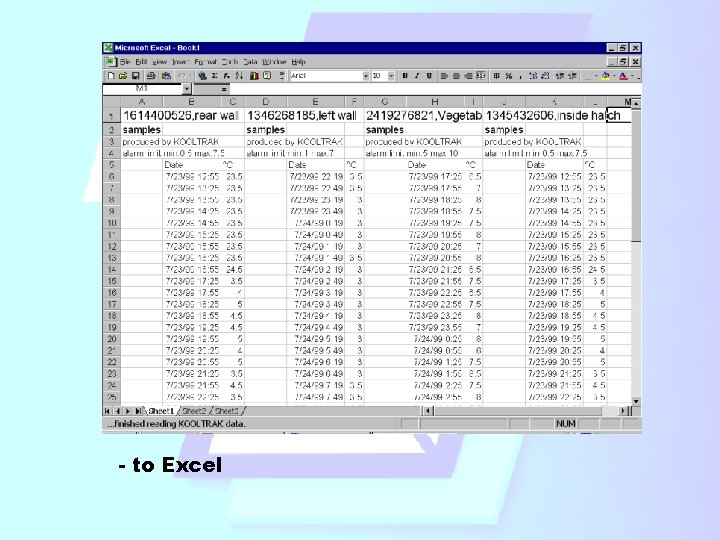

- to Excel

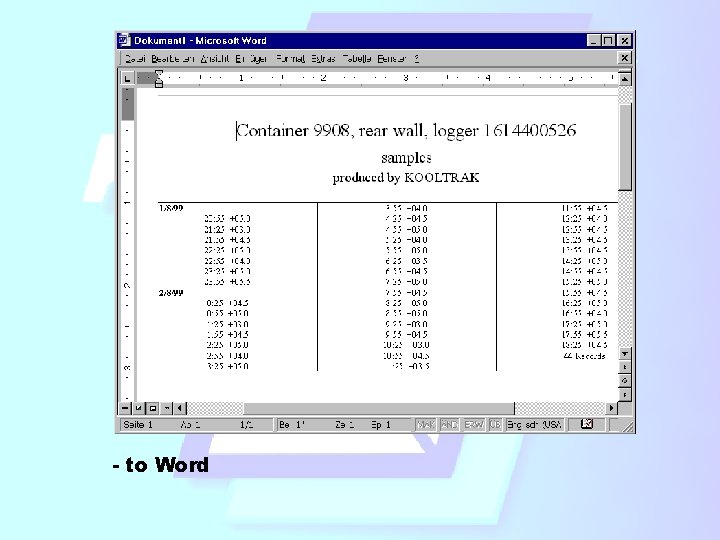

- to Word

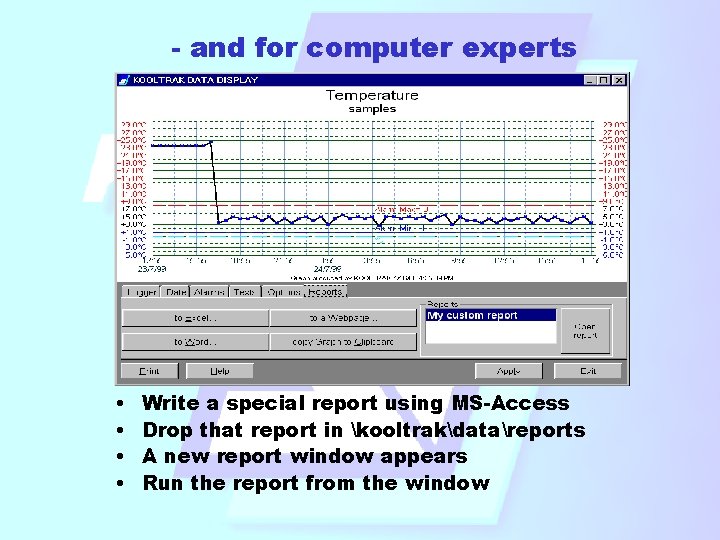

- and for computer experts • • Write a special report using MS-Access Drop that report in kooltrakdatareports A new report window appears Run the report from the window

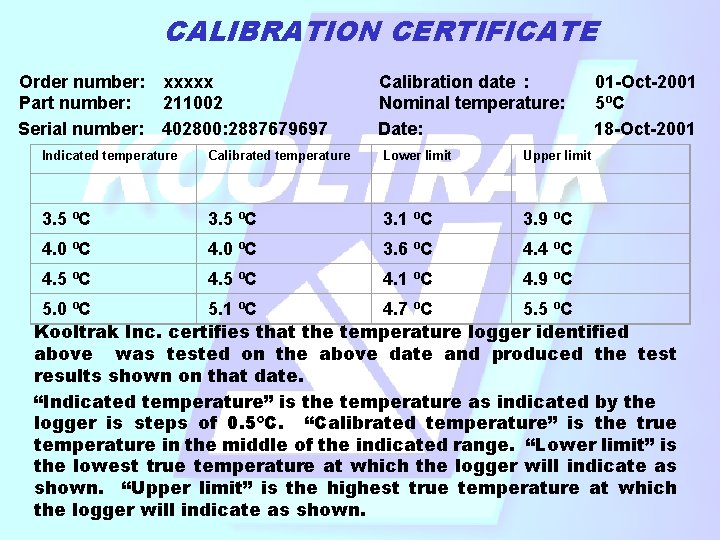

CALIBRATION CERTIFICATE Order number: xxxxx Part number: 211002 Serial number: 402800: 2887679697 Calibration date : Nominal temperature: Date: Indicated temperature Calibrated temperature Lower limit Upper limit 3. 5 ºC 3. 1 ºC 3. 9 ºC 4. 0 ºC 3. 6 ºC 4. 4 ºC 4. 5 ºC 4. 1 ºC 4. 9 ºC 01 -Oct-2001 5ºC 18 -Oct-2001 5. 0 ºC 5. 1 ºC 4. 7 ºC 5. 5 ºC Kooltrak Inc. certifies that the temperature logger identified above was tested on the above date and produced the test results shown on that date. “Indicated temperature” is the temperature as indicated by the logger is steps of 0. 5ºC. “Calibrated temperature” is the true temperature in the middle of the indicated range. “Lower limit” is the lowest true temperature at which the logger will indicate as shown. “Upper limit” is the highest true temperature at which the logger will indicate as shown.

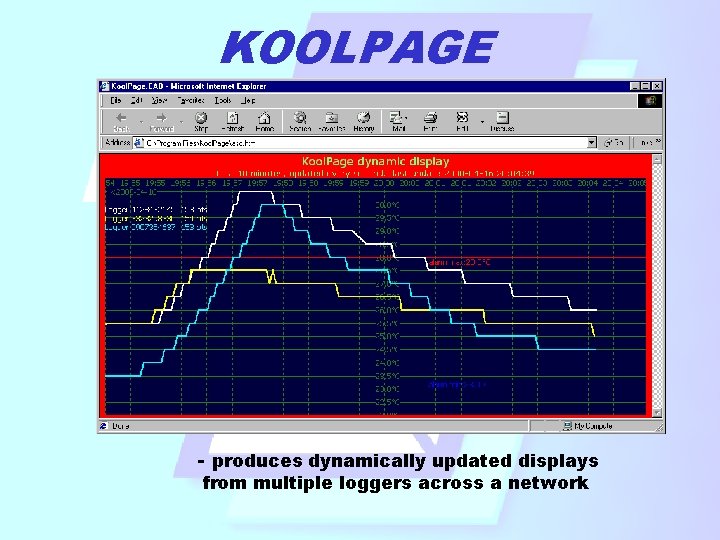

KOOLPAGE - produces dynamically updated displays from multiple loggers across a network

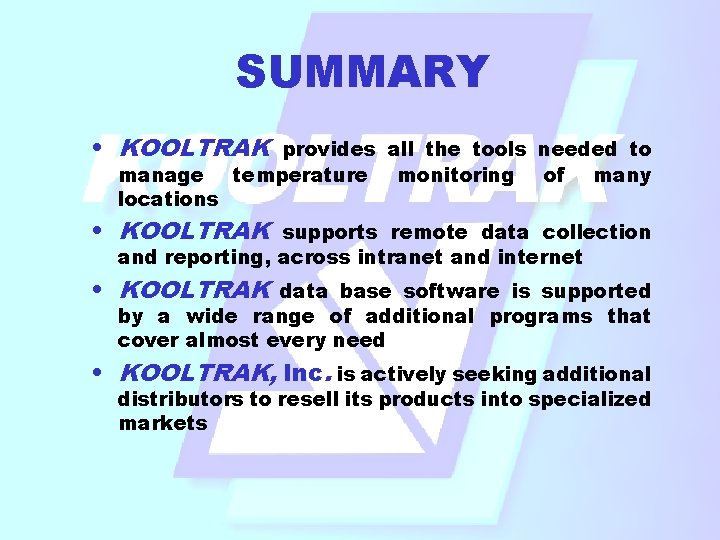

SUMMARY • KOOLTRAK provides all the tools needed to manage temperature locations monitoring of many • KOOLTRAK supports remote data collection and reporting, across intranet and internet • KOOLTRAK data base software is supported by a wide range of additional programs that cover almost every need • KOOLTRAK, Inc. is actively seeking additional distributors to resell its products into specialized markets
