Temperature Logging System TLS from Task Aerospace Autonomous

Temperature Logging System (TLS) from Task Aerospace Autonomous Environmental Sensing, Recording and Reporting as it applies to Aircraft, Missiles and Subsystems Information contained in this presentation is confidential and proprietary information. The information included here is proprietary to Task Aerospace. 1

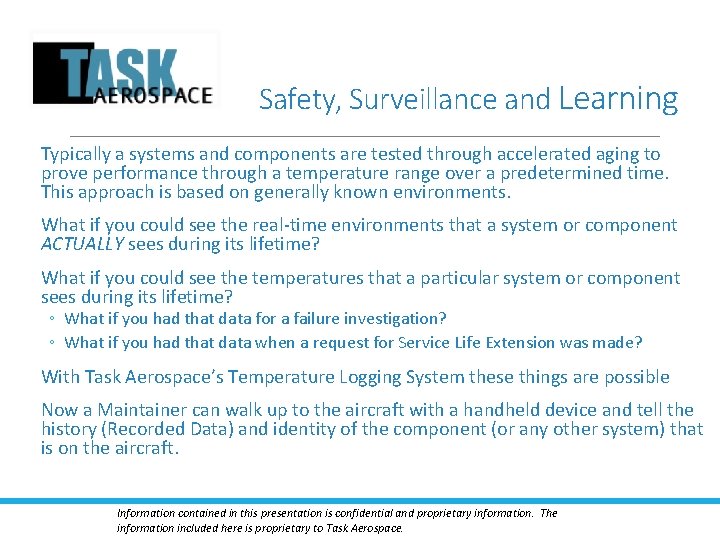

Safety, Surveillance and Learning Typically a systems and components are tested through accelerated aging to prove performance through a temperature range over a predetermined time. This approach is based on generally known environments. What if you could see the real-time environments that a system or component ACTUALLY sees during its lifetime? What if you could see the temperatures that a particular system or component sees during its lifetime? ◦ What if you had that data for a failure investigation? ◦ What if you had that data when a request for Service Life Extension was made? With Task Aerospace’s Temperature Logging System these things are possible Now a Maintainer can walk up to the aircraft with a handheld device and tell the history (Recorded Data) and identity of the component (or any other system) that is on the aircraft. Information contained in this presentation is confidential and proprietary information. The information included here is proprietary to Task Aerospace. 2

TLS Capabilities (1/2) ◦ ◦ ◦ Autonomously collect and record environment data Date/time-stamped for each temperature recording incident Each downloaded report is logged Ability to report-out through no-contact handheld device Adjustable recording interval/ mission-adaptive logging interval Wireless readable on PC based Blue Tooth device ◦ Download recorded data into a manageable format (i. e. MS Excel readable) ◦ Maintains Data Integrity without power being applied to the TLS ◦ Service life up to 5 years (depends on recording interval and data-read intervals) ◦ FCC Compliant and meets the requirements of an Aircraft Cockpit environment Information contained in this presentation is confidential and proprietary information. The information included here is proprietary to Task Aerospace. 3

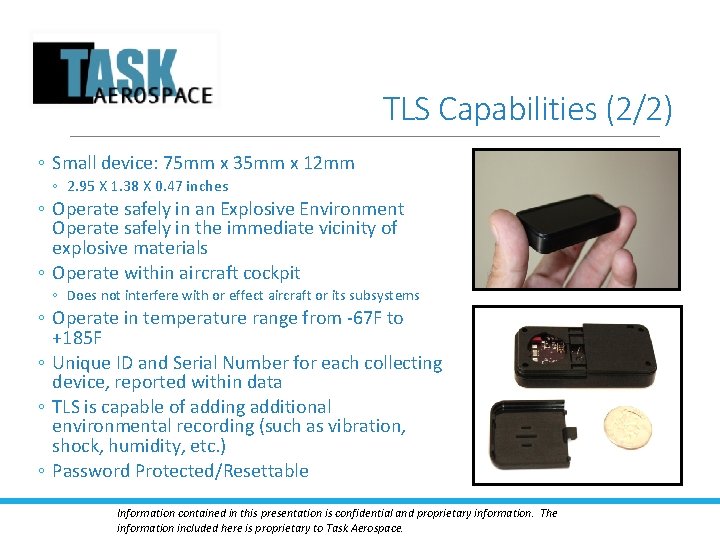

TLS Capabilities (2/2) ◦ Small device: 75 mm x 35 mm x 12 mm ◦ 2. 95 X 1. 38 X 0. 47 inches ◦ Operate safely in an Explosive Environment Operate safely in the immediate vicinity of explosive materials ◦ Operate within aircraft cockpit ◦ Does not interfere with or effect aircraft or its subsystems ◦ Operate in temperature range from -67 F to +185 F ◦ Unique ID and Serial Number for each collecting device, reported within data ◦ TLS is capable of adding additional environmental recording (such as vibration, shock, humidity, etc. ) ◦ Password Protected/Resettable Information contained in this presentation is confidential and proprietary information. The information included here is proprietary to Task Aerospace.

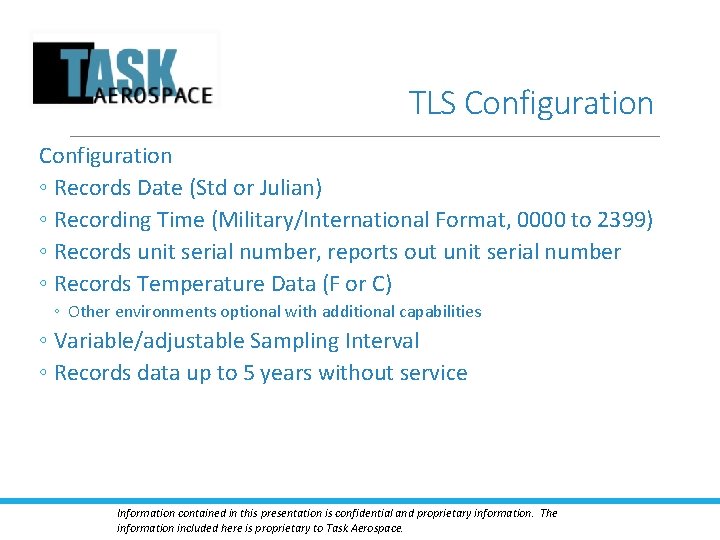

TLS Configuration ◦ Records Date (Std or Julian) ◦ Recording Time (Military/International Format, 0000 to 2399) ◦ Records unit serial number, reports out unit serial number ◦ Records Temperature Data (F or C) ◦ Other environments optional with additional capabilities ◦ Variable/adjustable Sampling Interval ◦ Records data up to 5 years without service Information contained in this presentation is confidential and proprietary information. The information included here is proprietary to Task Aerospace. 5

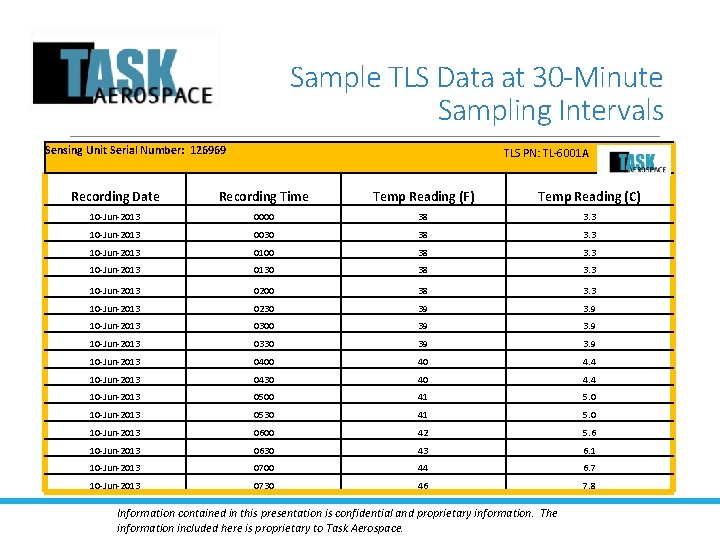

Sample TLS Data at 30 -Minute Sampling Intervals Sensing Unit Serial Number: 126969 TLS PN: TL-6001 A Recording Date Recording Time Temp Reading (F) Temp Reading (C) 10 -Jun-2013 0000 38 3. 3 10 -Jun-2013 0030 38 3. 3 10 -Jun-2013 0100 38 3. 3 10 -Jun-2013 0130 38 3. 3 10 -Jun-2013 0200 38 3. 3 10 -Jun-2013 0230 39 3. 9 10 -Jun-2013 0300 39 3. 9 10 -Jun-2013 0330 39 3. 9 10 -Jun-2013 0400 40 4. 4 10 -Jun-2013 0430 40 4. 4 10 -Jun-2013 0500 41 5. 0 10 -Jun-2013 0530 41 5. 0 10 -Jun-2013 0600 42 5. 6 10 -Jun-2013 0630 43 6. 1 10 -Jun-2013 0700 44 6. 7 10 -Jun-2013 0730 46 7. 8 Information contained in this presentation is confidential and proprietary information. The information included here is proprietary to Task Aerospace.

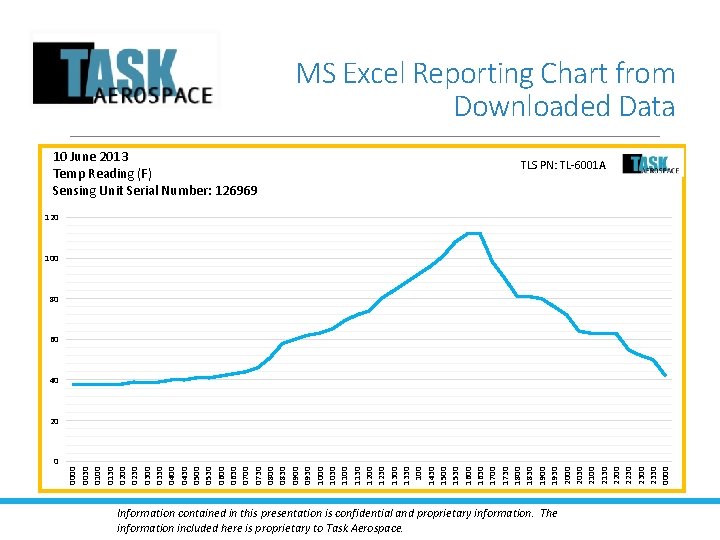

MS Excel Reporting Chart from Downloaded Data 10 June 2013 Temp Reading (F) Sensing Unit Serial Number: 126969 TLS PN: TL-6001 A 120 100 80 60 40 0 0000 0030 0100 0130 0200 0230 0300 0330 0400 0430 0500 0530 0600 0630 0700 0730 0800 0830 0900 0930 1000 1030 1100 1130 1200 1230 1300 1330 100 1430 1500 1530 1600 1630 1700 1730 1800 1830 1900 1930 2000 2030 2100 2130 2200 2230 2300 2330 0000 20 Information contained in this presentation is confidential and proprietary information. The information included here is proprietary to Task Aerospace.

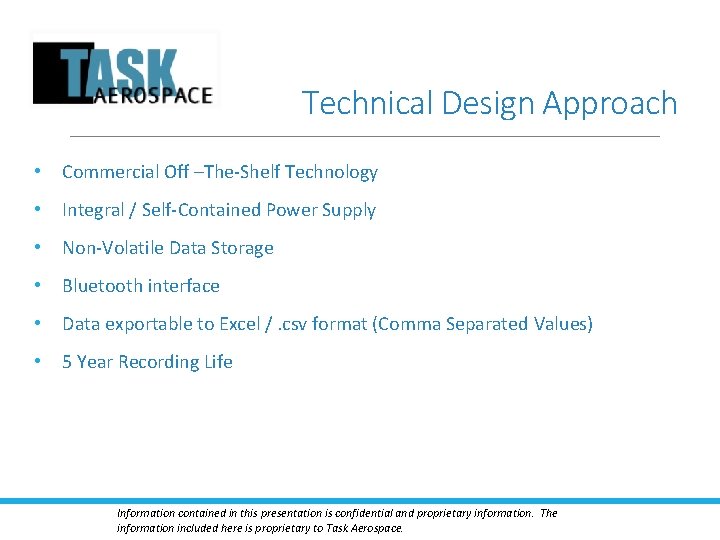

Technical Design Approach • Commercial Off –The-Shelf Technology • Integral / Self-Contained Power Supply • Non-Volatile Data Storage • Bluetooth interface • Data exportable to Excel /. csv format (Comma Separated Values) • 5 Year Recording Life Information contained in this presentation is confidential and proprietary information. The information included here is proprietary to Task Aerospace. 8
