Temperature Detect Automatic Arduino UNO Temperature Sensor Relay

  • Slides: 7
Download presentation
Temperature Detect करन Automatic पख च ल कस करण र ?

Temperature Detect करन Automatic पख च ल कस करण र ?

स ह तय Arduino UNO Temperature Sensor Relay 5 V Adapter 9 V Jmper

स ह तय Arduino UNO Temperature Sensor Relay 5 V Adapter 9 V Jmper Wires Fan

Circuit Diagram Vcc Data NC GND DHT 22 Arduino Uno 5 V GND Vcc

Circuit Diagram Vcc Data NC GND DHT 22 Arduino Uno 5 V GND Vcc GND IN 7 Relay GND NO COM Temp Sensor NC 2 Fan 9 V Adapter

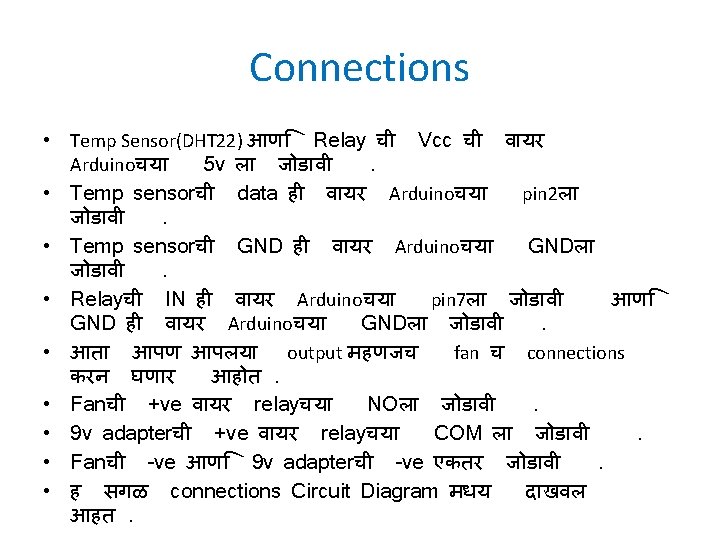

Connections Vcc of DHT 22 5 v Arduino Vcc of Relay 5 v Arduino

Connections Vcc of DHT 22 5 v Arduino Vcc of Relay 5 v Arduino Data of DHT 22 Pin 2 Arduino GND of DHT 22 GND Arduino GND of Relay GND Arduino IN of Relay Pin 7 Arduino +ve of 9 v Adapter COM of Relay +ve of fan(output) NO of Relay
