Telia Home. Run WLAN services Tore Björklund System specialist Telia Home. Run Telia. Sonera Sweden Tore Björklund TREFpunkt Göteborg, 20 -21 oktober 2004

Home. Run in a nutshell • A service concept for the traveller that offers nomadic broadband wireless IP access based on Wi-Fi (IEEE 802. 11 b+g) • It enables the users to flexibly migrate their place of work maintaining broadband connectivity • It enables travel intensive locations such as hotels, airports, train-stations, conference centres etc. to improve their competitive offer towards their guests Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Telia Home. Run History • 1998 Telia Research launches the idea • 1999 Launch of ”Telia Home. Run” 6 sites • 2000 Change of technology to 802. 11 b • 2000 Number of sites exceeds 100 • 2001 Number of sites exceeds 300 • 2002 Number of sites exceeds 500 • 2002 Telia Launch international roaming • 2003 Merger and Roaming with Sonera • 2003 Publication of ir 61 inter-operator handbook by GSMA Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Telia. Sonera’s view on WLAN l WLAN is an important complement in our product portfolio l Empowers the mobile professional l Is a key technology for mobile access l GPRS/CDMA/UMTS is the missing link when Internet in motion and in far-flung places l WLAN will not take away the 3 G benefits…. . outdoors! Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Basic mobility questions • The need for speech. . is it equal whether I am still or moving …? . • Is the need for “data” ubiquitous … or am I prepared to search for a hotspot in order to communicate? • Is “data” consumed in motion or more in a sedentary mode? • Voip is turning some beliefs upsidedown!! Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

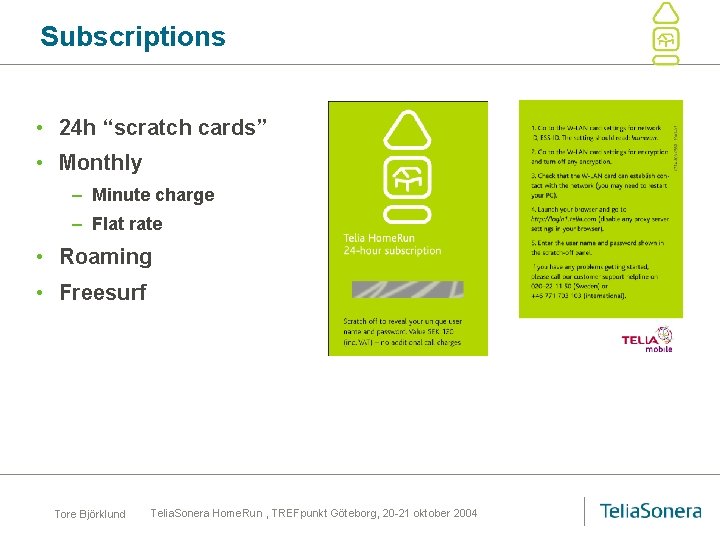

Subscriptions • 24 h “scratch cards” • Monthly – Minute charge – Flat rate • Roaming • Freesurf Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Login page Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Home. Run Footprint Approx. 850 Hotspots SAS lounges l 15 World-wide Norway l 25 Hotspots Finland l 300 Denmark l 7 Hotspots Sweden l 500 hotspots l. Http: //www. homerun. telia. com Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004 Hotspots

Roaming (In total 10. 500 hotspots) • Bilateral operator roaming • Current roaming partners – Megabeam, Italy – BT Openzone, UK – Sweetspot, Åland – *Sonera Home. Run, Finland – T-Mobile (Metronet) Austria – Swisscom Mobile – Swisscom Eurospot – Kubiwireless, Spain – Orange, France – PT Wireless, Portugal – Who’s next? Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Telia Home. Run authenticering The ISP adds a customer OPCA RADIUS authentication Server Customer and access-account data OPS OSC Server OAS The Access-account data is replicated to all OSCs OAG Web based login request Product and function (LDAP) Server Internet / Services Accounting data to OAS Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

SIM Authenticering WLAN Hotspot SIM OAG RADIUS Home PLMN OSC RADIUS 3 GPP- WLAN User Equipment Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004 AAA HLR/ Au. C # 7 Map

EAP/SIM Roaming Mobile Operator Home Network WISP User Equipment 802. 1 x Tore Björklund AP OAG OSC RADIUS Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004 HLR 3 gpp-AAA MAP

Home. Run Intranet roaming Radius MS IAS Home. Run user Access controller Radius proxy DNS DHCP WWW @ Outside Firewall Telia Home. Run Core Network Inside Access point with 802. 1 x Radius MS IAS Radius Proxy Roaming Radius Proxy Tore Björklund DMZ MS Cert server Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004 MS AD

Managering och övervakning Access controller Site Home. Run core Cisco Works Tore Björklund Cisco WLSE Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004 SNMP Övervakning

SNMP Web gränssnitt Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Hotell Visby Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Inmätning av site Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004

Inmätning av siter Tore Björklund Telia. Sonera Home. Run , TREFpunkt Göteborg, 20 -21 oktober 2004
