Who Are We? • Founded in 1994 • City. U of HK and fellow researchers • Leading supplier of advanced CCTV solution • Listed on HK Stock Exchange on May 2001 • Obtained ISO 9001: 2000 on Jan 2004 • Overseas offices: United Kingdom, Croatia, China, Singapore, Philippines, Mauritius and South Africa
Applications on IP & Mobile Solutions Unmanned Premises Banking Logistics Retail Property Management Factory
Retail Manufacturing
Government & Public Utilities Education
Banks
RVRCs
What factor determines the performance of IP & mobile video surveillance solutions? Answer: Compression Technology !
Traditional Video Coders e. g. M-JPEG, MPEG 1, MPEG-4, etc. Composite Video Traditional Video Coder Recording/ LAN/ ADSL Single data stream for recording & transmission Performance affected by each other
MPEG-4 : Motion Predictive Coding Group of Pictures I-frame P-frame I-frame …. . . Quality Non-uniform quality in successive frames …. . .
MPEG-4 : Error Handling In bursty Internet channel: Affected by transmission delay and/or error
What is the Tele. Eye’s solution?
SMAC-M : Multi-Rate Video Coder Composite Video Recording SMAC-M LAN ADSL Dial-up Mobile Separate data streams for recording & transmission optimum performance on both aspects
SMAC-M : Conditional Frame Replenishment …. . . Quality Consistent quality in successive frames Good for retrieving single picture for evidential purpose …. . .
SMAC-M : Error Handling In bursty Internet channel: Adaptive to bursty Internet channel Uniform video quality
Transmission Comparison Transmission Via: LAN ADSL (128 kbps) Compression Resolution: 720 x 576 Rate: 25 fps Resolution: 720 x 576 Data rate: 128 kbps MPEG-4 5. 5 Mbps 3 fps H. 264 3. 3 Mbps 5 fps SMAC-M 2. 5 Mbps 9 fps SMAC-M: 80% faster than H. 264 on ADSL

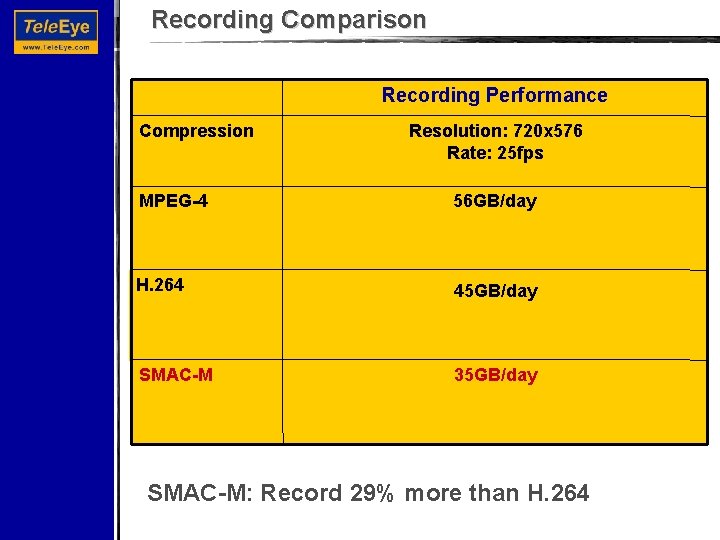

Recording Comparison Recording Performance Compression Resolution: 720 x 576 Rate: 25 fps MPEG-4 56 GB/day H. 264 45 GB/day SMAC-M 35 GB/day SMAC-M: Record 29% more than H. 264

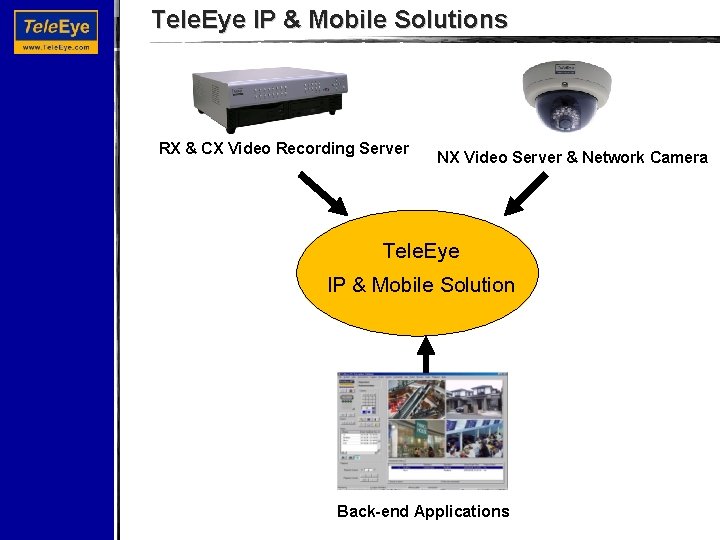

Tele. Eye IP & Mobile Solutions RX & CX Video Recording Server NX Video Server & Network Camera Tele. Eye IP & Mobile Solution Back-end Applications
Major Breakthroughs • SMAC-M: multi-stream video coding technology no compromise on video transmission & recording • RX 360/320: BS 8418: 2003: Compliant to British Standard on video alarm verification • Professional alarm management arm/disarm, tamper detection, entry/exit zone, power failure detection, . . . • Dual connectivity: fixed with mobile network as a failover alternative • M-303: monitoring in mobile phone
RX & CX Families • RX 364, RX 368 & RX 3616 • • • Removable HDD Built-in DVD writer Recording @ 200 fps • CX 784, CX 788 & CX 7816 • • • Built-in VGA IR remote control Recording @ 100 fps • RX 324, RX 328 & RX 3216 • • • Internal HDD USB footage extraction Recording @ 200 fps • RX 504 • • • Supports mobile HDD Live monitoring via HSDPA, UMTS, EDGE and GPRS Fast detachment and shock protection design
NX Family • NX 301: converting analogue cameras into mobile & IP based surveillance • NX 288: IP surveillance in absolute darkness • NX 173: Outdoor vandal resistant IP surveillance • NX 599: IP-based 36 x high speed dome

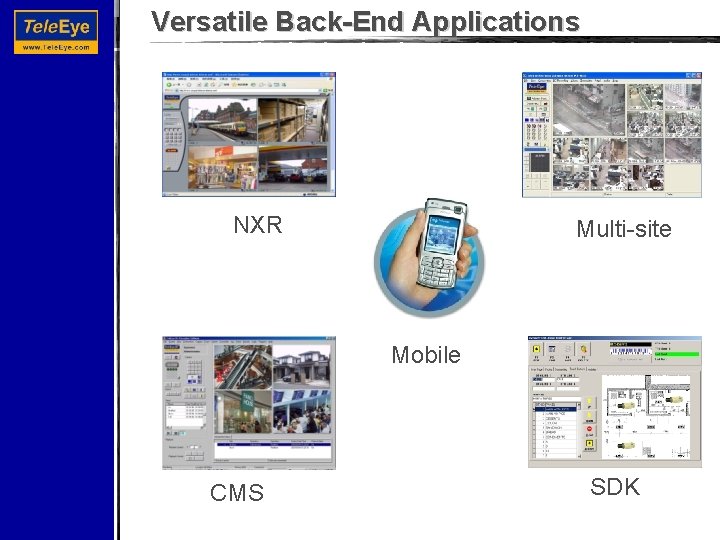

Versatile Back-End Applications NXR Multi-site Mobile CMS SDK

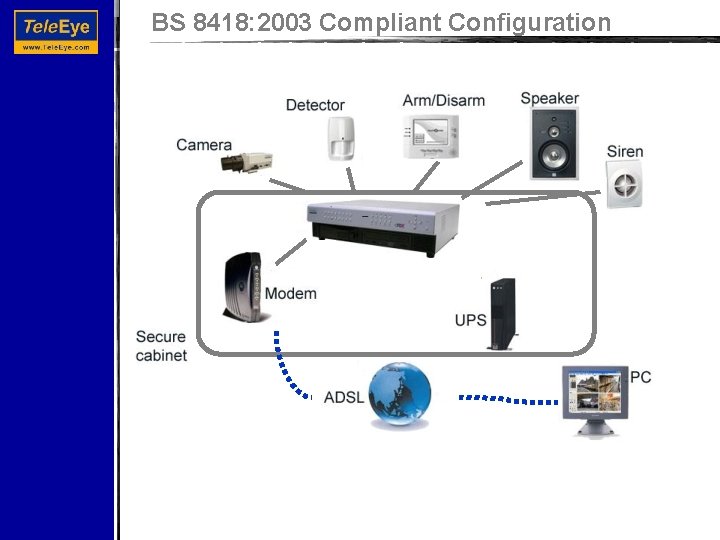

BS 8418: 2003 Compliant Configuration RX Video Recording Server
Sophisticated Event Management Event Manager
CX Highlights • SMAC-M multi-stream video coding • 3 G failover • Versatile back-end options: • Web browser, multi-site, CMS & mobile phone monitoring, etc. • Recording: 100 fps@CIF; 25 fps@D 1 • Initiating connection upon alarm event • Video: 4, 8 & 16; Audio: 2 • Alarm: 4; Relay: 1 • Composite + VGA • IR remote control
CMS Key Benefits • BS 8418 compliance • Robust & reliable for 24 x 7 operations • Purposely built for RVRC operations • Visual alarm verification • Modular & highly scalable design • Fully compatible with entire RX, CX & NX ranges • Full traceability • Comprehensive site map function

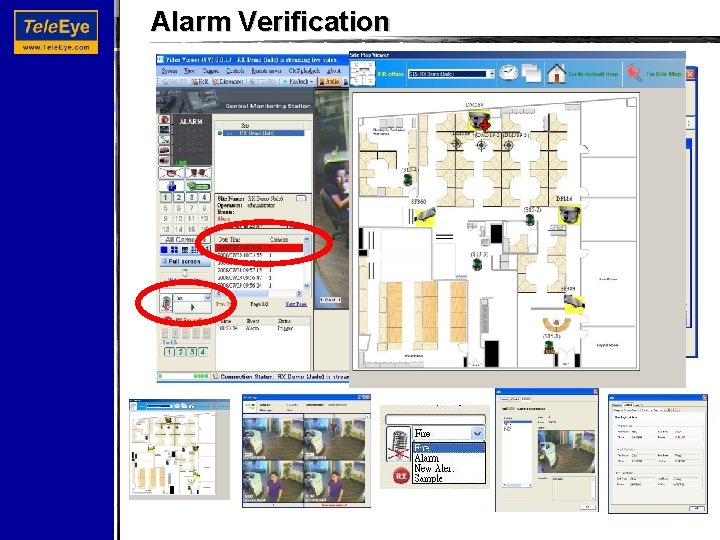

Alarm Verification
Alarm Verification
Conclusions Tele. Eye IP & Mobile Surveillance Solutions = Standalone Digital Video Recorder + Network Video Server + Alarm Management ****** Strong Mobile Connectivity
