Teknologi Warung Internet Onno W Purbo Onnoindo net

Teknologi Warung Internet Onno W. Purbo Onno@indo. net. id

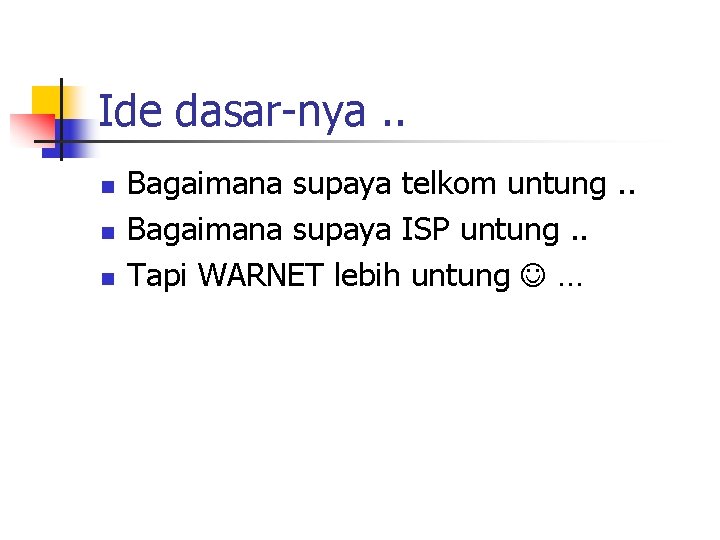

Ide dasar-nya. . n n n Bagaimana supaya telkom untung. . Bagaimana supaya ISP untung. . Tapi WARNET lebih untung …

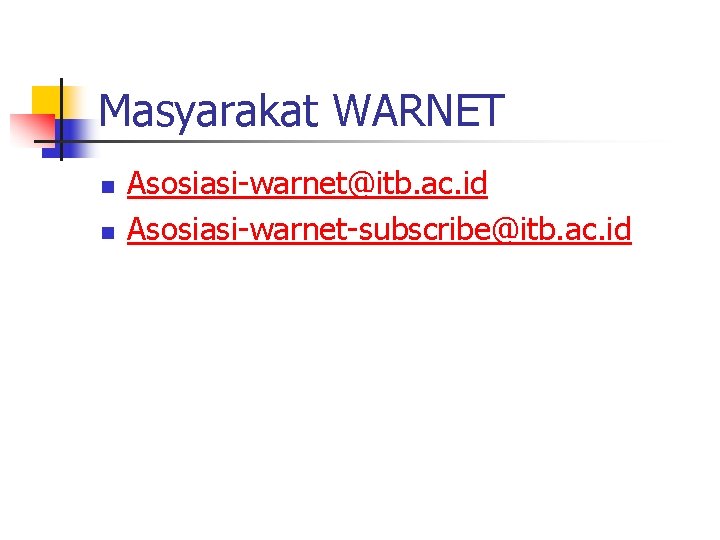

Masyarakat WARNET n n Asosiasi-warnet@itb. ac. id Asosiasi-warnet-subscribe@itb. ac. id

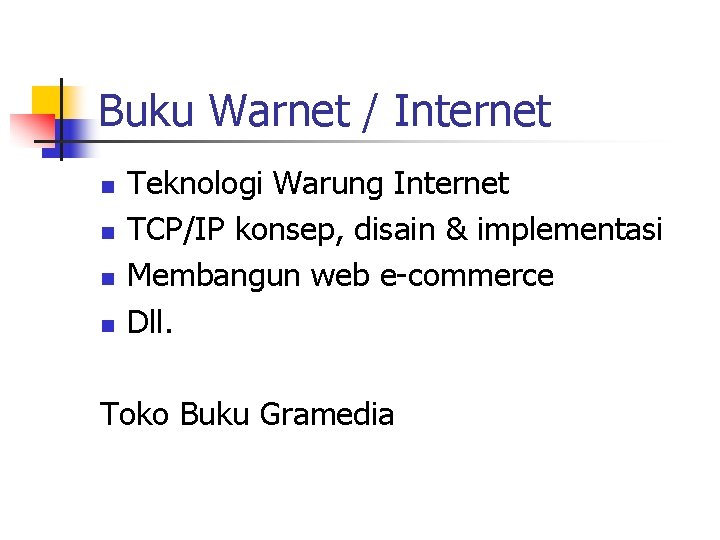

Buku Warnet / Internet n n Teknologi Warung Internet TCP/IP konsep, disain & implementasi Membangun web e-commerce Dll. Toko Buku Gramedia

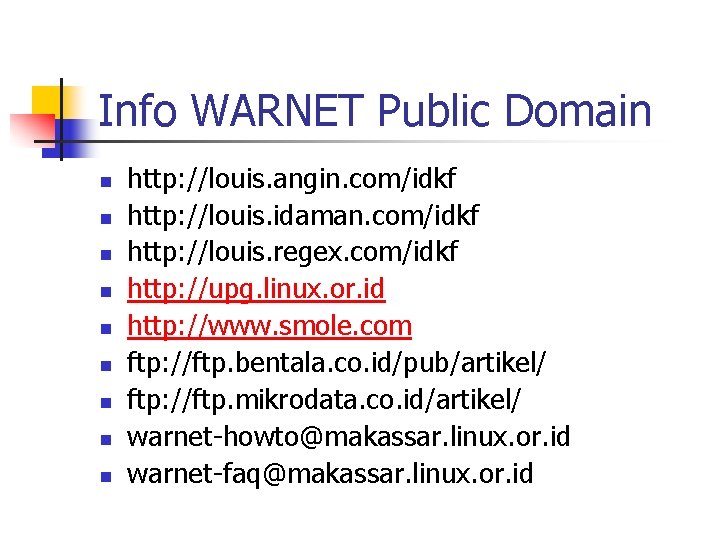

Info WARNET Public Domain n n n n http: //louis. angin. com/idkf http: //louis. idaman. com/idkf http: //louis. regex. com/idkf http: //upg. linux. or. id http: //www. smole. com ftp: //ftp. bentala. co. id/pub/artikel/ ftp: //ftp. mikrodata. co. id/artikel/ warnet-howto@makassar. linux. or. id warnet-faq@makassar. linux. or. id

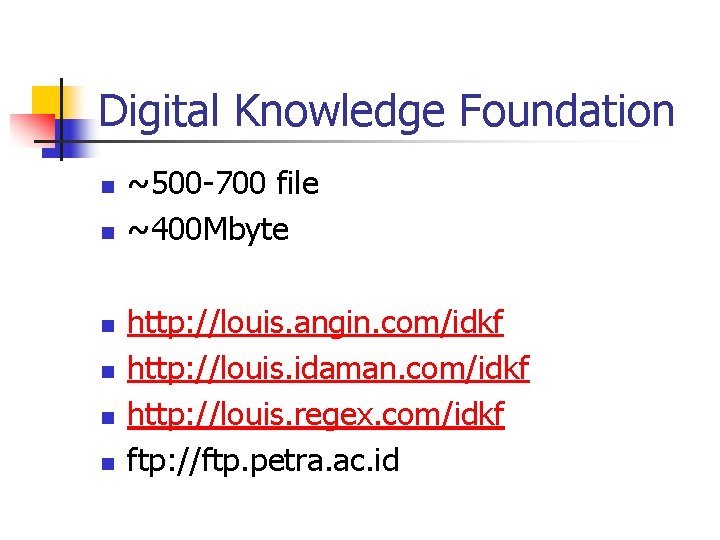

Digital Knowledge Foundation n n n ~500 -700 file ~400 Mbyte http: //louis. angin. com/idkf http: //louis. idaman. com/idkf http: //louis. regex. com/idkf ftp: //ftp. petra. ac. id

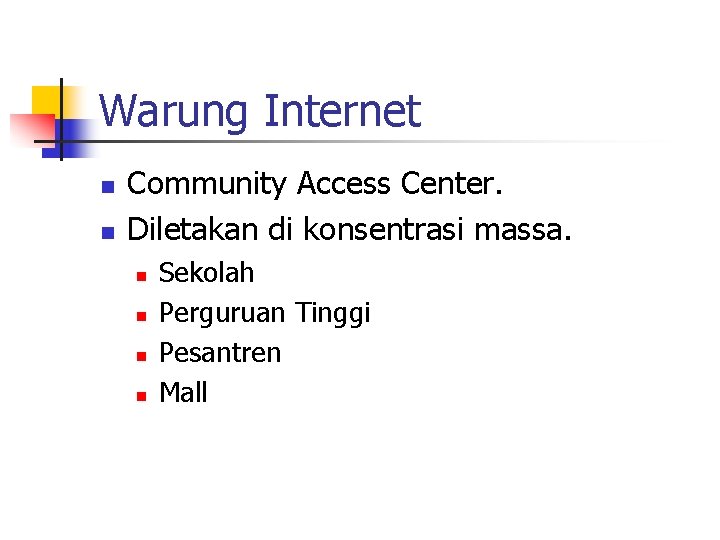

Warung Internet n n Community Access Center. Diletakan di konsentrasi massa. n n Sekolah Perguruan Tinggi Pesantren Mall

Overview Peralatan

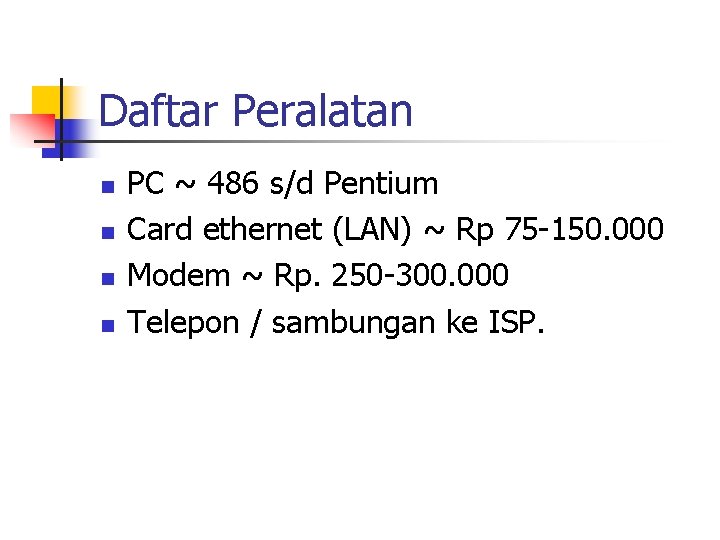

Daftar Peralatan n n PC ~ 486 s/d Pentium Card ethernet (LAN) ~ Rp 75 -150. 000 Modem ~ Rp. 250 -300. 000 Telepon / sambungan ke ISP.

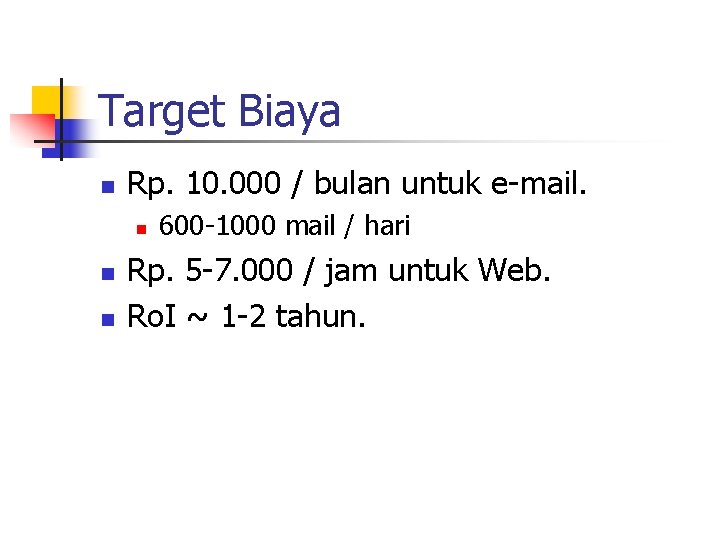

Target Biaya n Rp. 10. 000 / bulan untuk e-mail. n n n 600 -1000 mail / hari Rp. 5 -7. 000 / jam untuk Web. Ro. I ~ 1 -2 tahun.

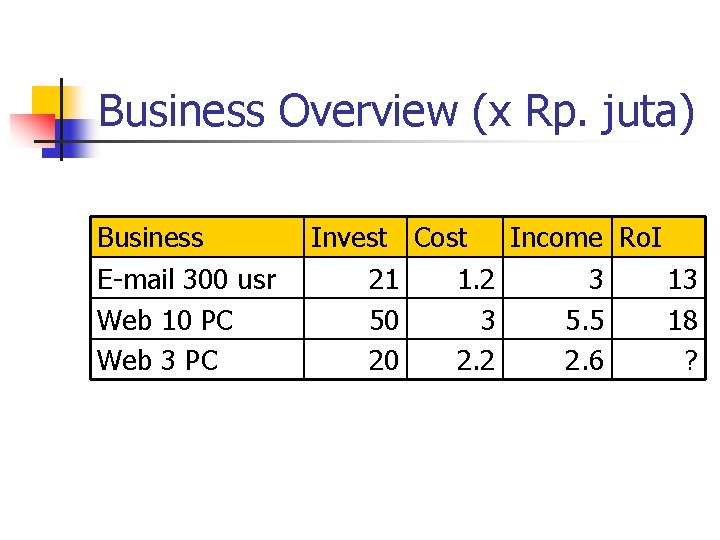

Business Overview (x Rp. juta) Business E-mail 300 usr Web 10 PC Web 3 PC Invest Cost Income Ro. I 21 1. 2 3 13 50 3 5. 5 18 20 2. 2 2. 6 ?

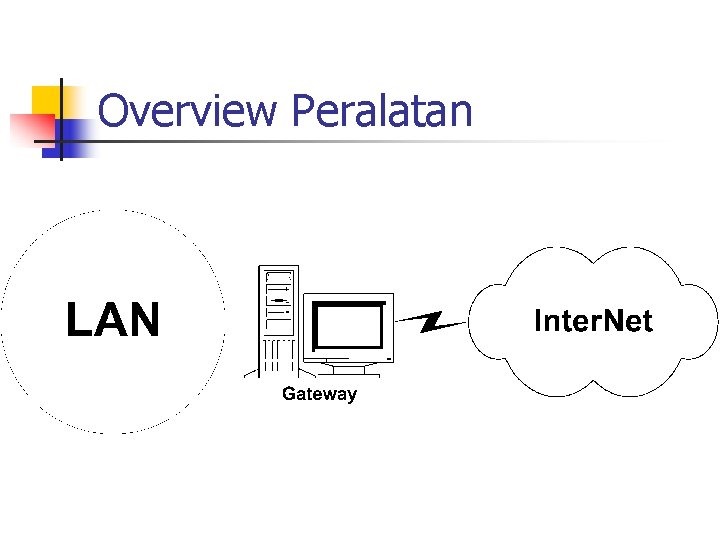

Overview Peralatan

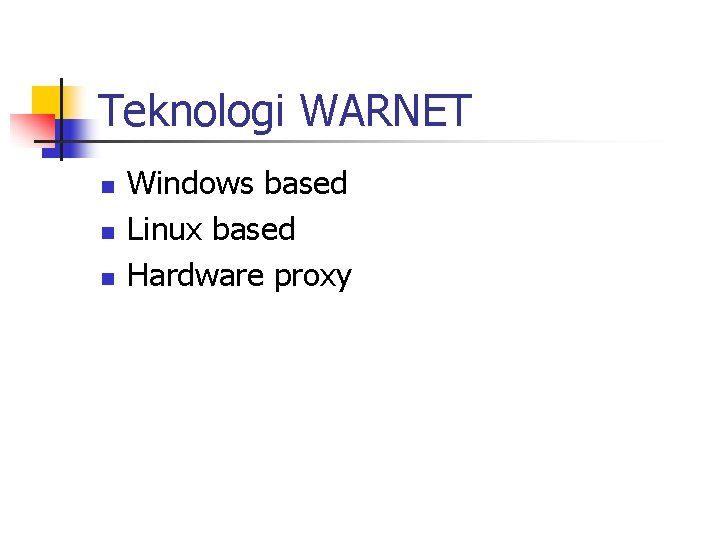

Teknologi WARNET n n n Windows based Linux based Hardware proxy

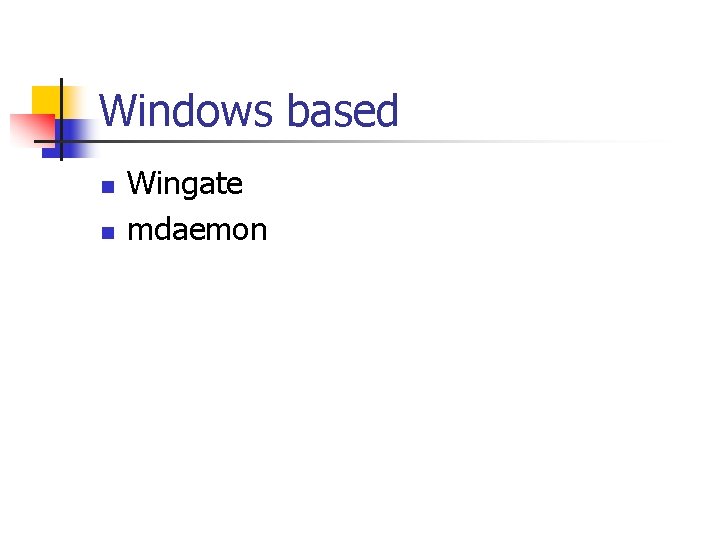

Windows based n n Wingate mdaemon

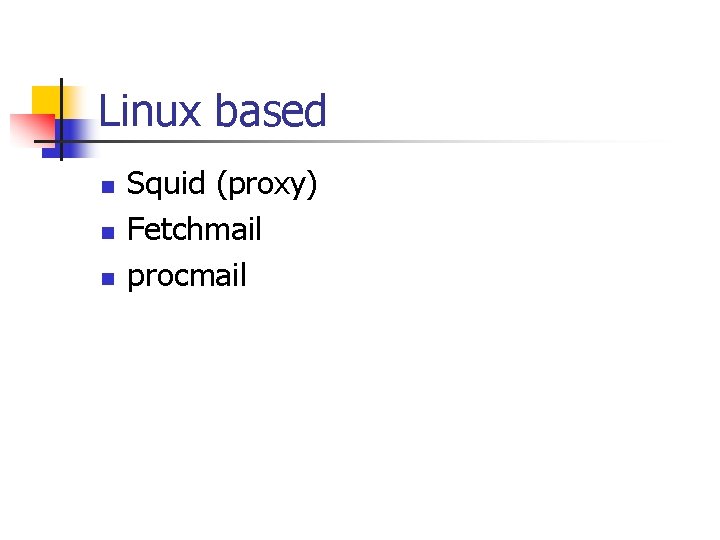

Linux based n n n Squid (proxy) Fetchmail procmail

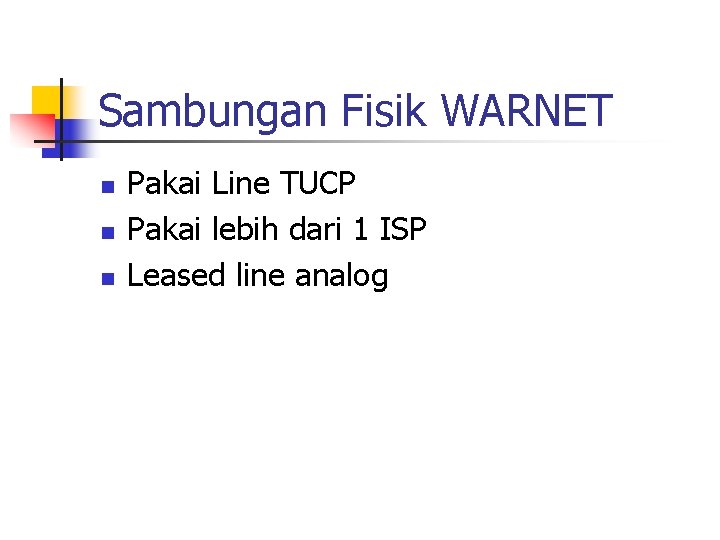

Sambungan Fisik WARNET n n n Pakai Line TUCP Pakai lebih dari 1 ISP Leased line analog

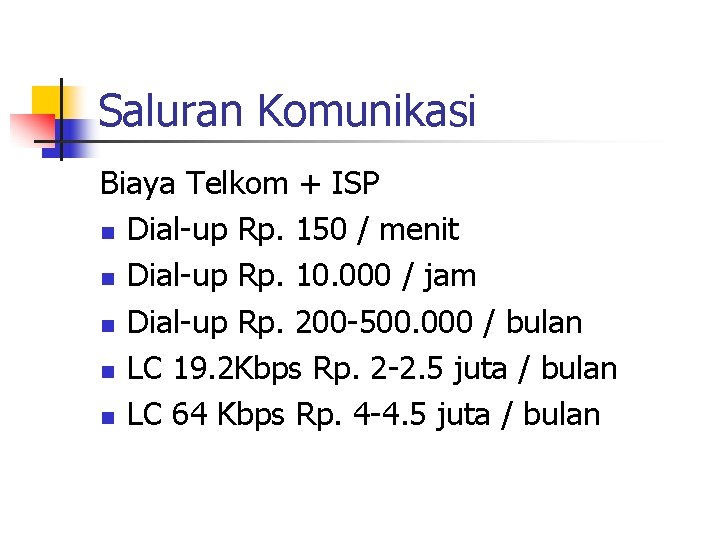

Saluran Komunikasi Biaya Telkom + ISP n Dial-up Rp. 150 / menit n Dial-up Rp. 10. 000 / jam n Dial-up Rp. 200 -500. 000 / bulan n LC 19. 2 Kbps Rp. 2 -2. 5 juta / bulan n LC 64 Kbps Rp. 4 -4. 5 juta / bulan

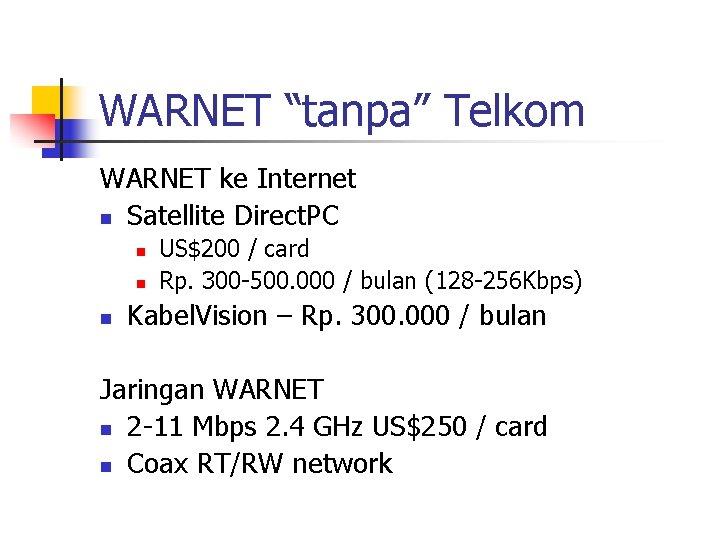

WARNET “tanpa” Telkom WARNET ke Internet n Satellite Direct. PC n n n US$200 / card Rp. 300 -500. 000 / bulan (128 -256 Kbps) Kabel. Vision – Rp. 300. 000 / bulan Jaringan WARNET n 2 -11 Mbps 2. 4 GHz US$250 / card n Coax RT/RW network

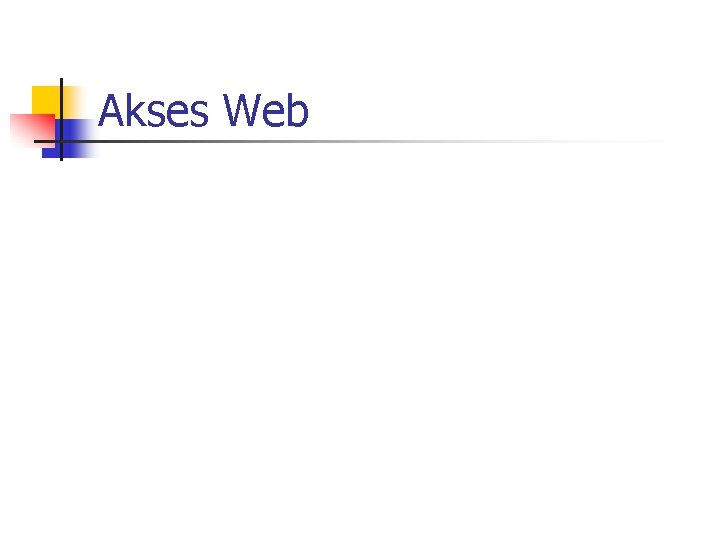

Akses Web

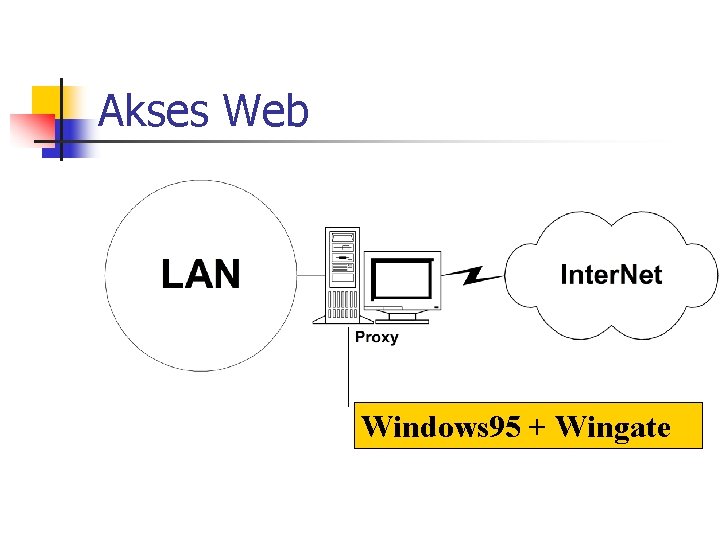

Akses Web Windows 95 + Wingate

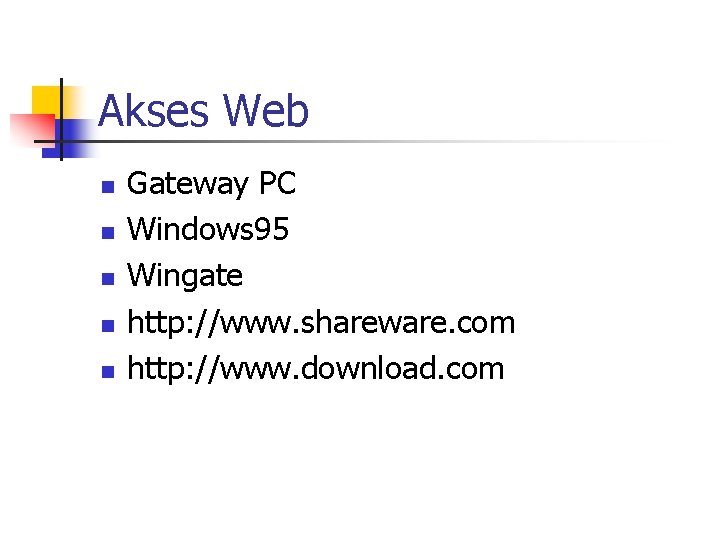

Akses Web n n n Gateway PC Windows 95 Wingate http: //www. shareware. com http: //www. download. com

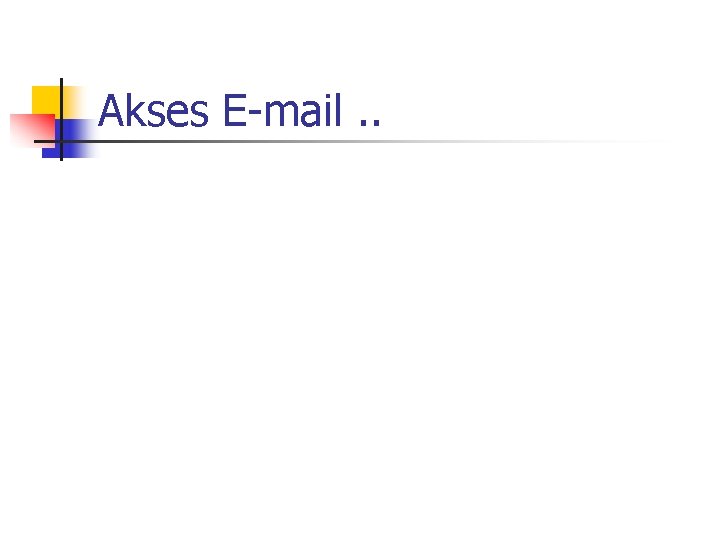

Akses E-mail. .

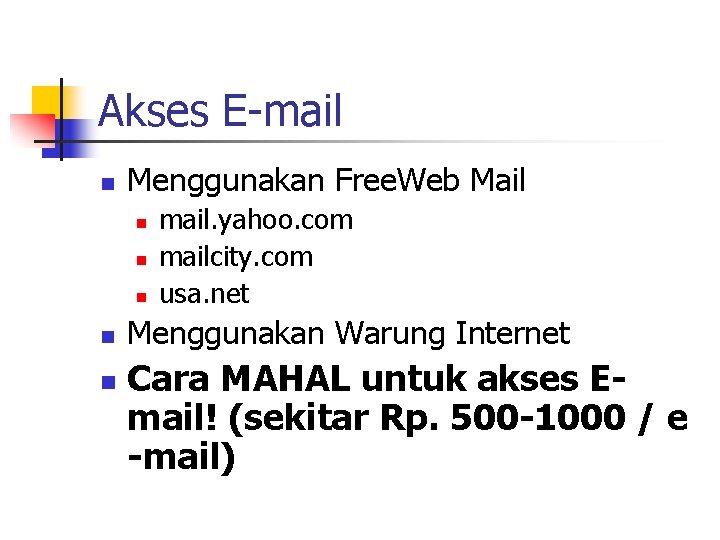

Akses E-mail n Menggunakan Free. Web Mail n n n mail. yahoo. com mailcity. com usa. net Menggunakan Warung Internet Cara MAHAL untuk akses Email! (sekitar Rp. 500 -1000 / e -mail)

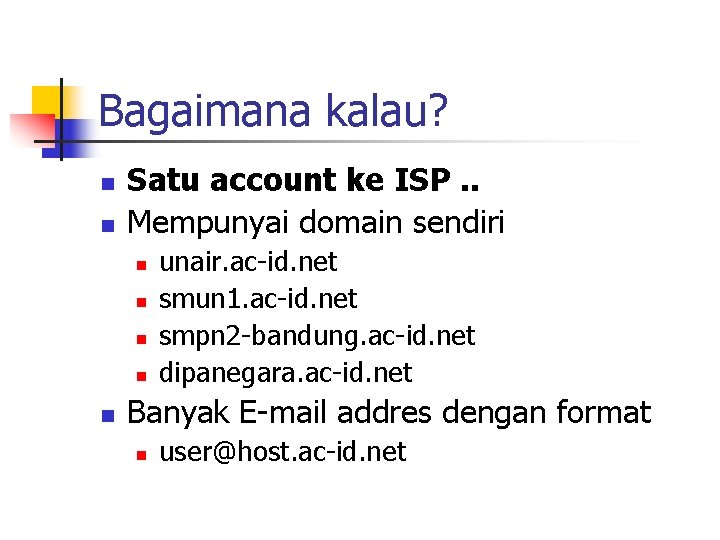

Bagaimana kalau? n n Satu account ke ISP. . Mempunyai domain sendiri n n n unair. ac-id. net smun 1. ac-id. net smpn 2 -bandung. ac-id. net dipanegara. ac-id. net Banyak E-mail addres dengan format n user@host. ac-id. net

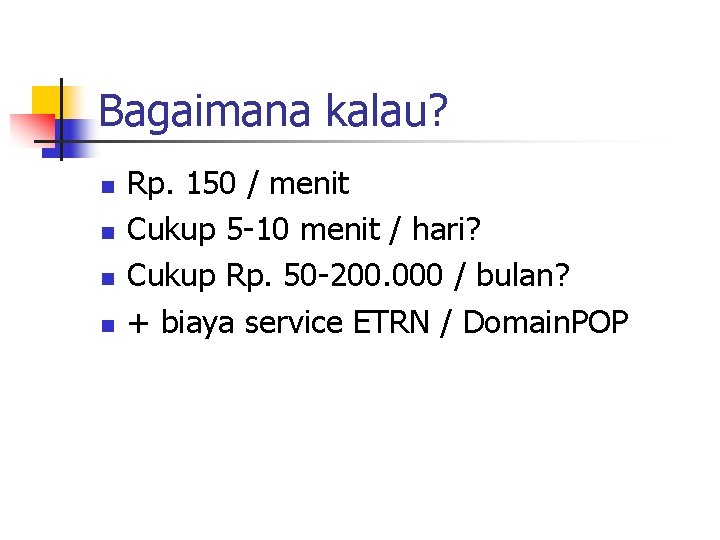

Bagaimana kalau? n n Rp. 150 / menit Cukup 5 -10 menit / hari? Cukup Rp. 50 -200. 000 / bulan? + biaya service ETRN / Domain. POP

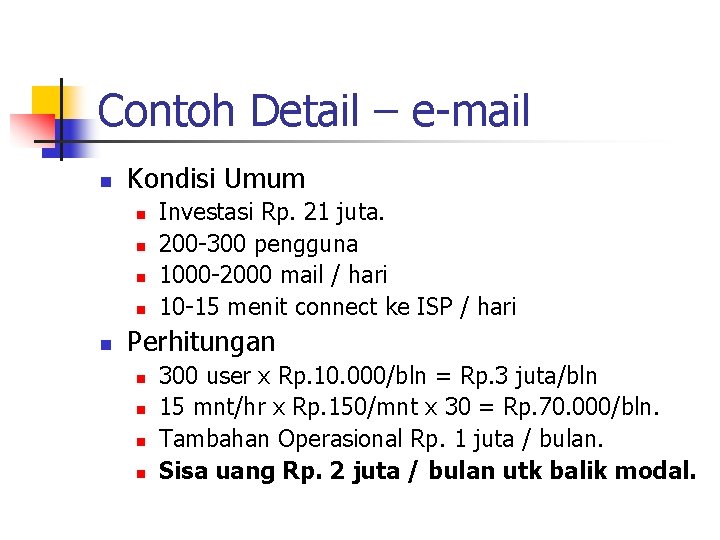

Contoh Detail – e-mail n Kondisi Umum n n n Investasi Rp. 21 juta. 200 -300 pengguna 1000 -2000 mail / hari 10 -15 menit connect ke ISP / hari Perhitungan n n 300 user x Rp. 10. 000/bln = Rp. 3 juta/bln 15 mnt/hr x Rp. 150/mnt x 30 = Rp. 70. 000/bln. Tambahan Operasional Rp. 1 juta / bulan. Sisa uang Rp. 2 juta / bulan utk balik modal.

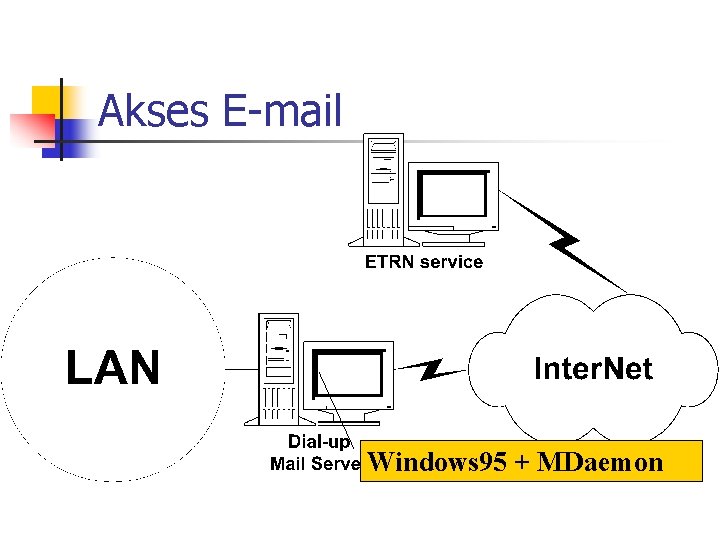

Akses E-mail Windows 95 + MDaemon

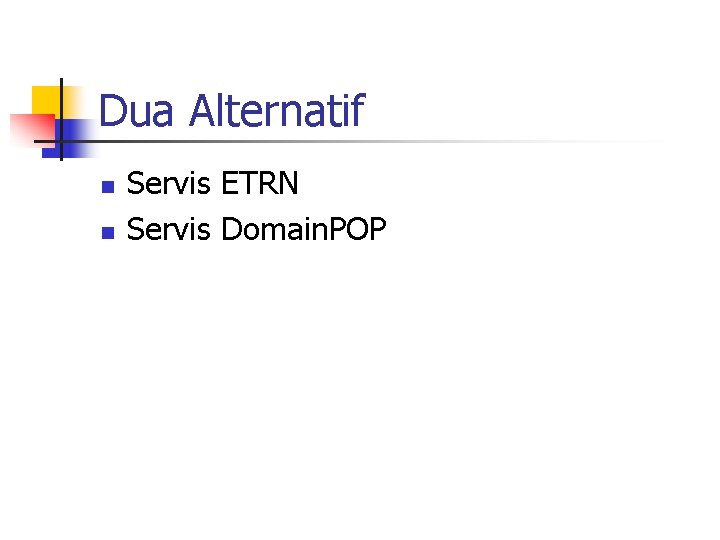

Dua Alternatif n n Servis ETRN Servis Domain. POP

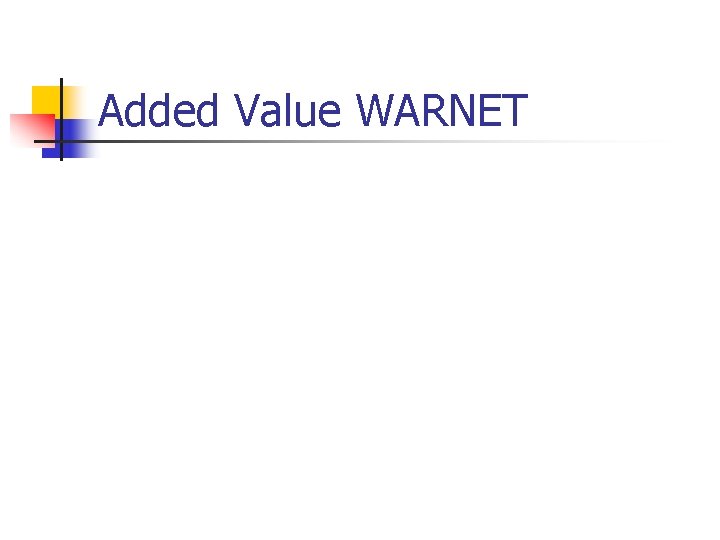

Added Value WARNET

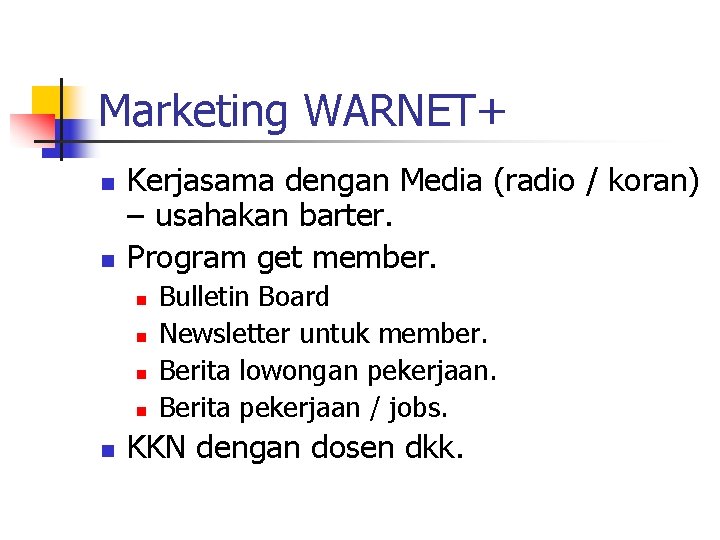

Marketing WARNET+ n n Kerjasama dengan Media (radio / koran) – usahakan barter. Program get member. n n n Bulletin Board Newsletter untuk member. Berita lowongan pekerjaan. Berita pekerjaan / jobs. KKN dengan dosen dkk.

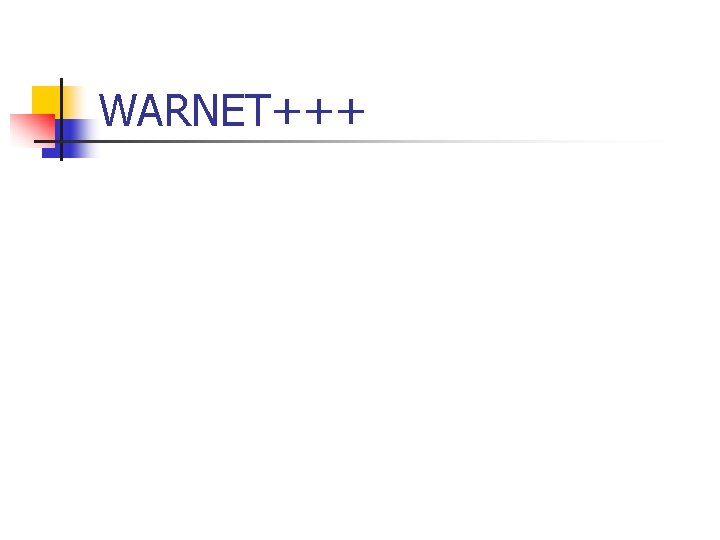

WARNET+++

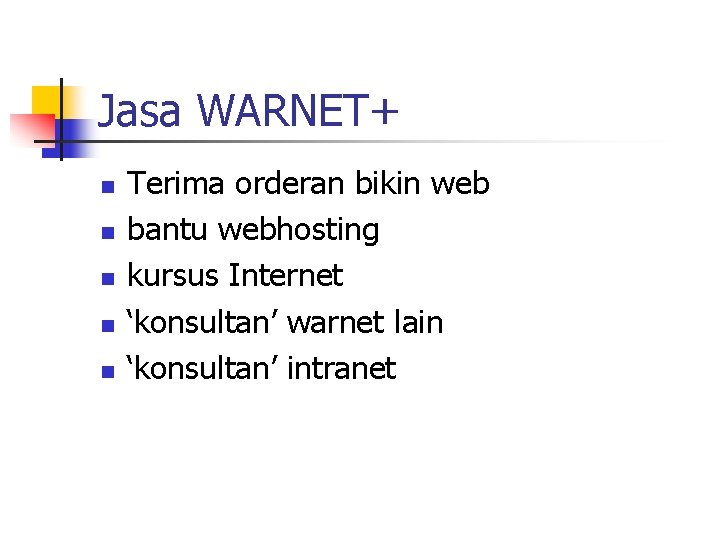

Jasa WARNET+ n n n Terima orderan bikin web bantu webhosting kursus Internet ‘konsultan’ warnet lain ‘konsultan’ intranet

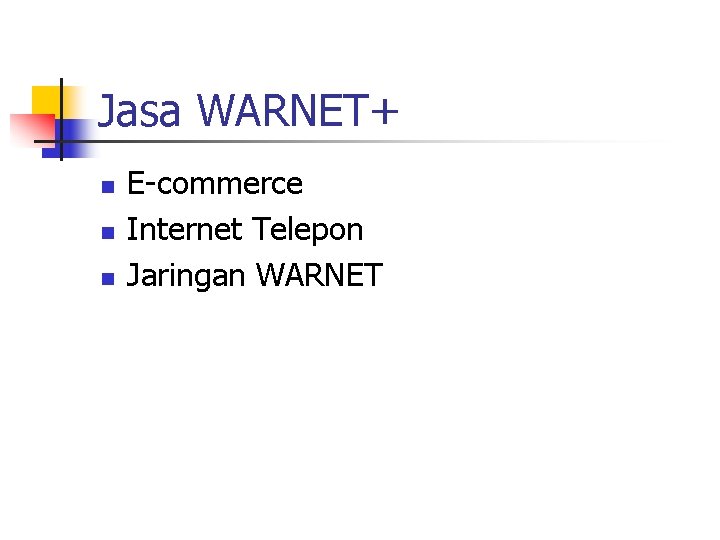

Jasa WARNET+ n n n E-commerce Internet Telepon Jaringan WARNET

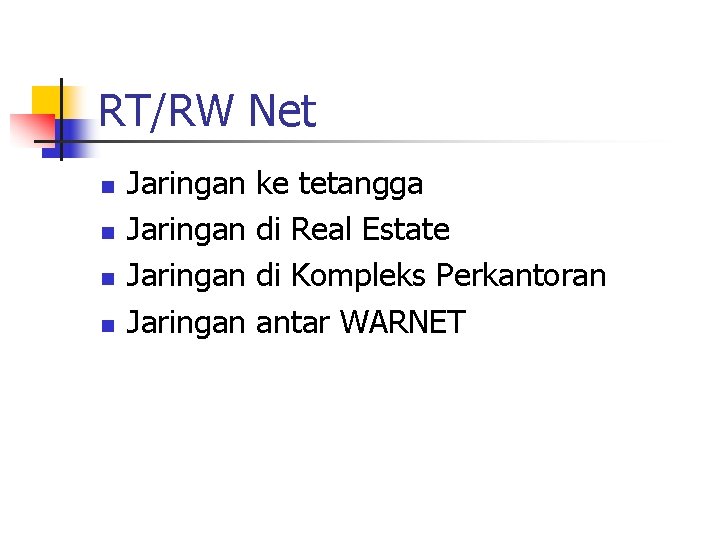

RT/RW Net n n Jaringan ke tetangga di Real Estate di Kompleks Perkantoran antar WARNET

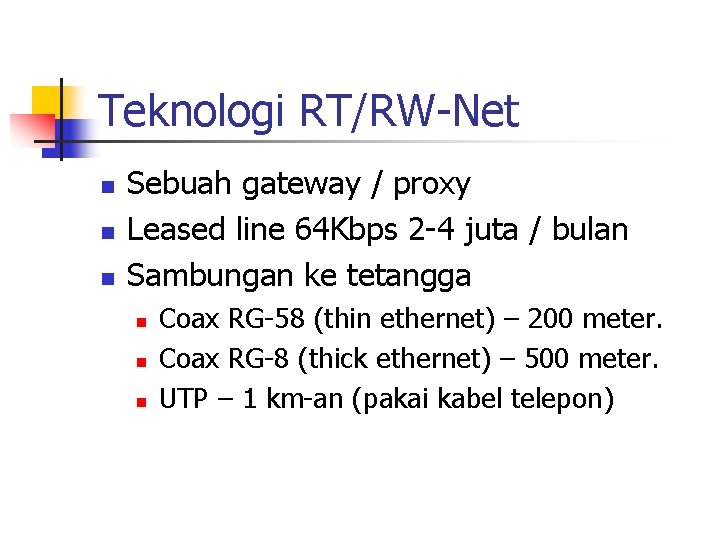

Teknologi RT/RW-Net n n n Sebuah gateway / proxy Leased line 64 Kbps 2 -4 juta / bulan Sambungan ke tetangga n n n Coax RG-58 (thin ethernet) – 200 meter. Coax RG-8 (thick ethernet) – 500 meter. UTP – 1 km-an (pakai kabel telepon)

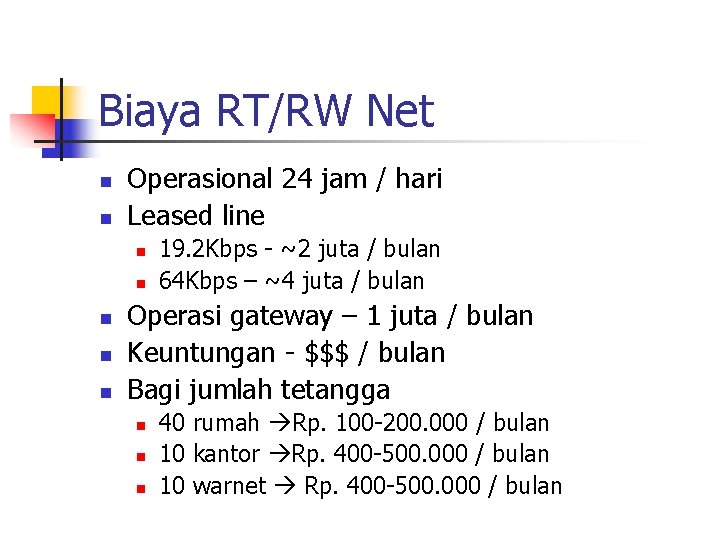

Biaya RT/RW Net n n Operasional 24 jam / hari Leased line n n n 19. 2 Kbps - ~2 juta / bulan 64 Kbps – ~4 juta / bulan Operasi gateway – 1 juta / bulan Keuntungan - $$$ / bulan Bagi jumlah tetangga n n n 40 rumah Rp. 100 -200. 000 / bulan 10 kantor Rp. 400 -500. 000 / bulan 10 warnet Rp. 400 -500. 000 / bulan

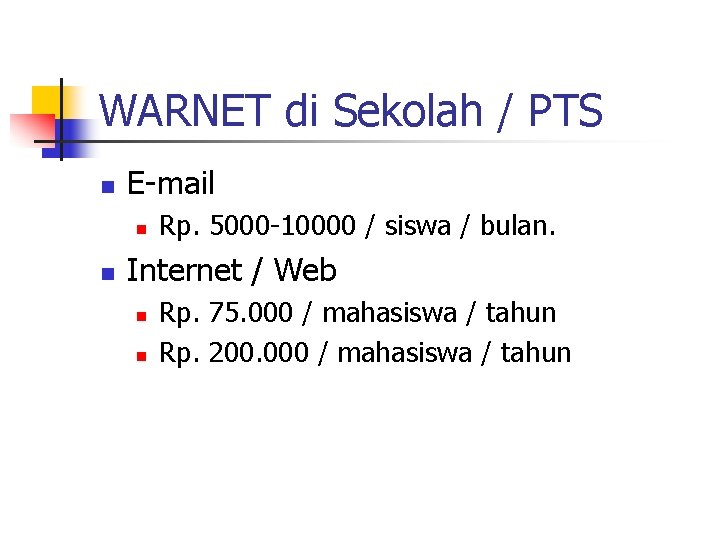

WARNET di Sekolah / PTS n E-mail n n Rp. 5000 -10000 / siswa / bulan. Internet / Web n n Rp. 75. 000 / mahasiswa / tahun Rp. 200. 000 / mahasiswa / tahun

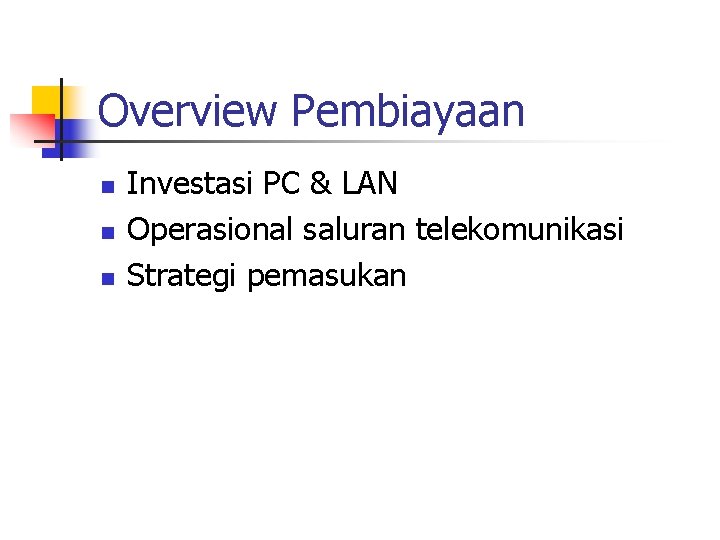

Overview Pembiayaan n Investasi PC & LAN Operasional saluran telekomunikasi Strategi pemasukan

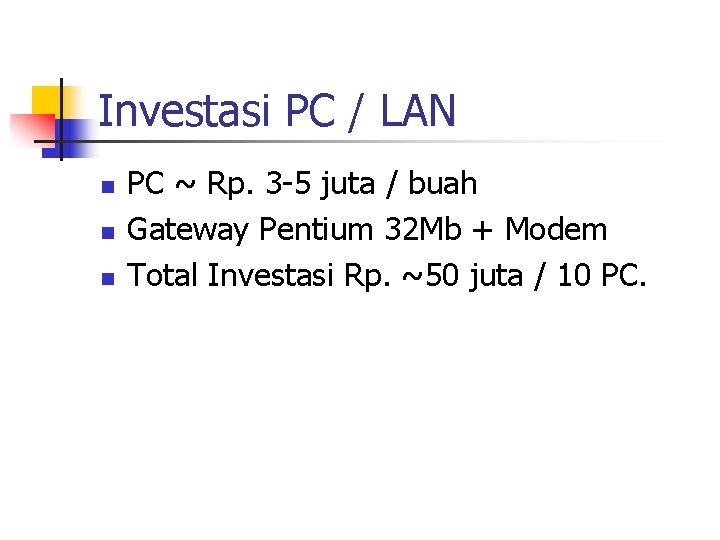

Investasi PC / LAN n n n PC ~ Rp. 3 -5 juta / buah Gateway Pentium 32 Mb + Modem Total Investasi Rp. ~50 juta / 10 PC.

Pemasukan n Iuran Bulanan (e-mail) n n n Rp. 5 -20. 000 / bulan Fasilitas akses e-mail Akses per Jam (Web) n Rp. 4 -7. 000 / jam

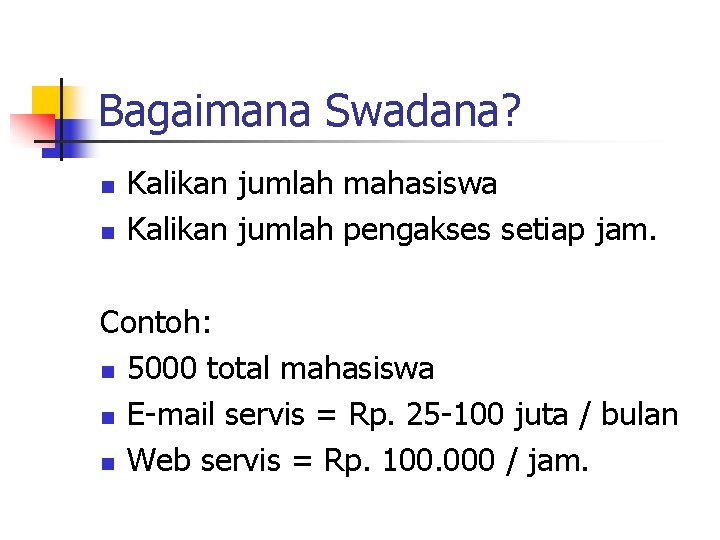

Bagaimana Swadana? n n Kalikan jumlah mahasiswa Kalikan jumlah pengakses setiap jam. Contoh: n 5000 total mahasiswa n E-mail servis = Rp. 25 -100 juta / bulan n Web servis = Rp. 100. 000 / jam.

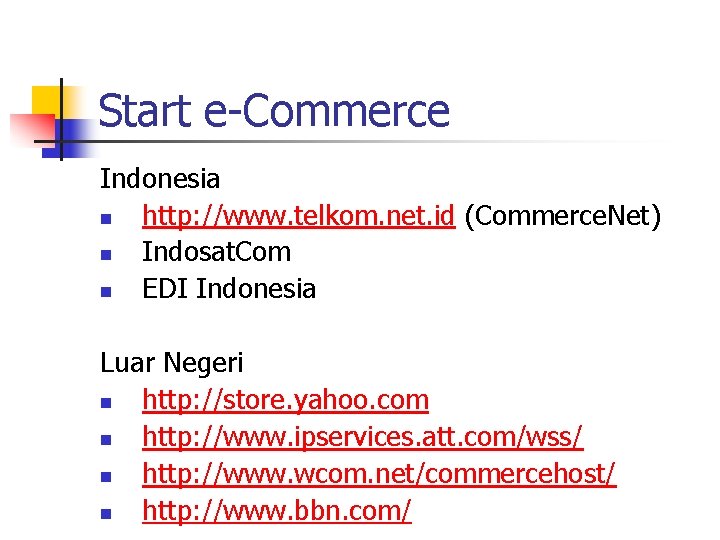

Start e-Commerce Indonesia n http: //www. telkom. net. id (Commerce. Net) n Indosat. Com n EDI Indonesia Luar Negeri n http: //store. yahoo. com n http: //www. ipservices. att. com/wss/ n http: //www. wcom. net/commercehost/ n http: //www. bbn. com/
