Teknologi Jaringan Komputer Onno W Purbo Institut Teknologi
Teknologi Jaringan Komputer. . . Onno W. Purbo Institut Teknologi Bandung onno@itb. ac. id http: //xxx. itb. ac. id/~yc 1 dav/
Alamat Penting. . . z. Ai 3@itb. ac. id zsysop-l@itb. ac. id zcnrg@itb. ac. id zhttp: //ai 3. itb. ac. id/ zhttp: //virtual-university. itb. ac. id/ zhttp: //xxx. itb. ac. id/~yc 1 dav/
Fokus. . Pengalaman 5 tahun terakhir membangun jaringan pendidikan. .
Visi Memandaikan bangsa Indonesia. . .
Kunci Keberhasilan z. Self-finance z. Community based z. Libatkan Mahasiswa
Outline z. Internet sebagai alat bantu z. Paradigma pendidikan z. Jaringan AI 3 Indonesia z. Teknologi Pendukung
Paradigma Pendidikan z. Distributed Knowledge z. Collective Wisdom z. Society Audit / Accredited z. Generation Lap zdasar pergeseran paradigma: ykecepatan transfer informasi
Internet Alat Bantu z. Komputer x. PC based z. Software x. Free. BSD, Linux, Windows z. Peralatan komunikasi xmodem, telepon, radio & satelit. z. Peralatan LAN x. Ethernet, coax, UTP
Experience in Internet building z. January 1993 - Suryono (Texas) install a packet radio 1200 bps to LAPAN. z. LAPAN 1200 bps to BPPT & Internet 64 Kbps. z 286 PC as gateway! to connect the whole ITB campus. z. Software NOS (running on DOS) as gateway.
Indonesia Topology Jan. 1993
ITB in 1995 z. Telkom Leased Line at 14. 4 Kbps z. RISTI-Telkom to BPPT 64 Kbps. z. ITB uses Free. BSD (UNIX) as Router & Server. z. For the first time ITB sees Web in Internet. z. ITB learns to build a campus network (how to handle the lightning).
ITB Today. . z. T 1 Satelite link to Japan. z 2 Mbps link to Indonesia IX. z. VSAT TDMA & SCPC to various universities. z 4 Mbps Uwave Jakarta-Bandung. z 128 Kbps to Jakarta, Surabaya & Malang. z. Wave. LAN 2 Mbps for Metropolitan Area Network (MAN).

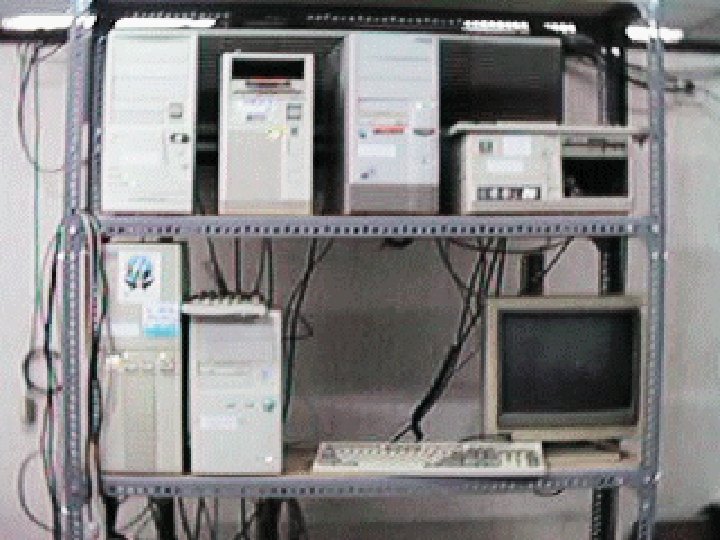

ITB Network Operation Center
AI 3 Indonesia - N 21 z. Homepage yhttp: //n 21. ac-id. net/ z. AI 3 Indonesia = contoh taktis N 21 ybertumpu pada swadaya masyarakat. y. Empowerment dari masyarakat. z. AI 3 Indonesia belum 100% berhasil yparadigma administrative universitas masih mengacu pada paradigma lama.
Status AI 3 Indonesia z 25+ lembaga pendidikan. y. Jaringan pendidikan terbesar di Indonesia. y. Akhir Oktober - Pertemuan UNILA. z. Bagian dari y. Asia Pacific Advanced Network (APAN). y. Asia Pacific Networking Group (APNG). y. CA*net 3 - Singa. REN - AI 3 Indonesia z. Akses 35 Mbps ke v. BNS (10 Gbps) via STARTAP.
AI 3 Indonesia WIDE APAN AI 3 Indonesia CA*net 3 Trans. PAC STARTAP S-One / Singa. REN IIX v. BNS
Kunci Keberhasilan z. Self-finance z. Community based z. Empower Students
Teknologi Pendukung z. Physical Layer. z. Computer Network Layer. z. Application Layer.

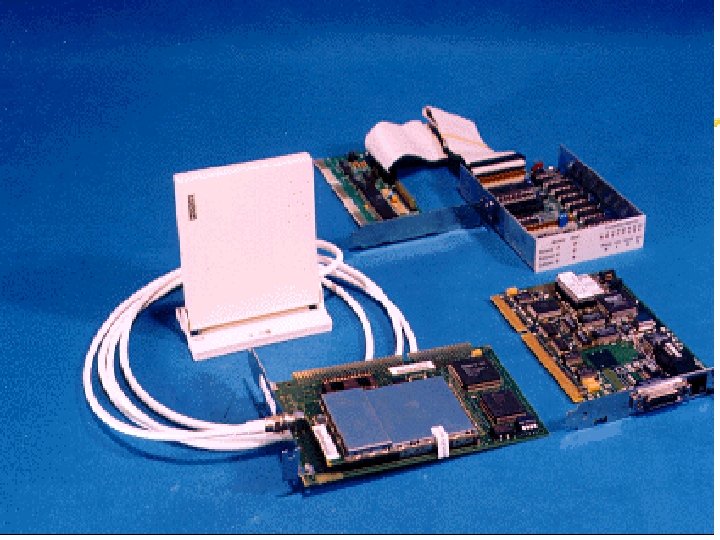

Physical Layer Technology z. VSAT x. SCPC & TDMA z. JAMUS & Telkom. Net z. Wave. LAN CDMA 2 Mbps z. AX 25 CSMA 64 -256 Kbps x. Linux based z. AX 25 CSMA 9600 bps x. Linux & Sound Blaster
Homebrew 64 -200 Kbps Modem
TX & RX Board VHF CB Frequency
Sound. Card Connection z Computer z Radio / Rig / HT z Mic PC z Speaker HT z Mic HT z PTT
PTT Flex. Net via Serial

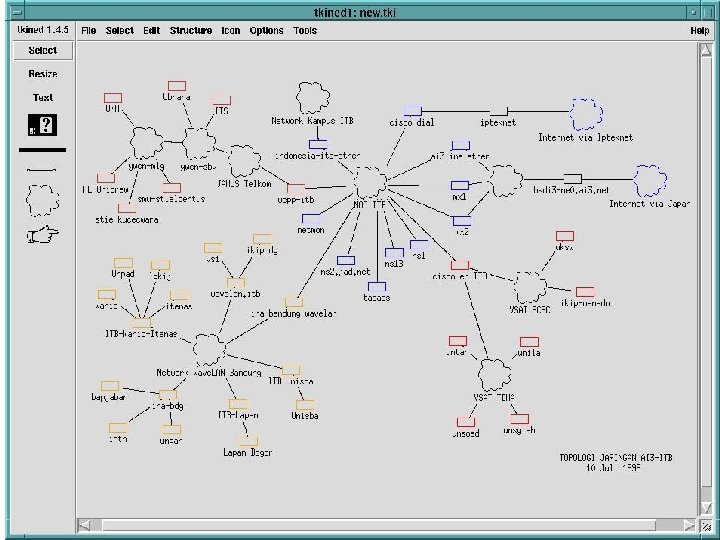

Network Layer Technology z. Network Monitoring xhttp: //netmon. itb. ac. id z. Multicast x. MBONE z. IPv 6 (128 bit address) x 6 BONE
Application Layer Tech. z. Distance Learning xweb based course x. Java based interactive classroom x. Knowledge Management z. Library Network x. CDS/ISIS & WAIS z. Forum & Society Empowerment xcitn-ctn@itb. ac. id xwong-cilik@isnet. itb. ac. id xsysop-l@itb. ac. id
Mailing Lists z. Uses majordomo on Free. BSD z. Run on Dual Pentium 166 MHz 32 Mb RAM. z. More than 220 mailing lists at ITB. (more than 75% Indonesian mailing lists). z. More than 10. 000 subscribers. z. We are trying to build the community in Indonesia.
Collaborative Learning

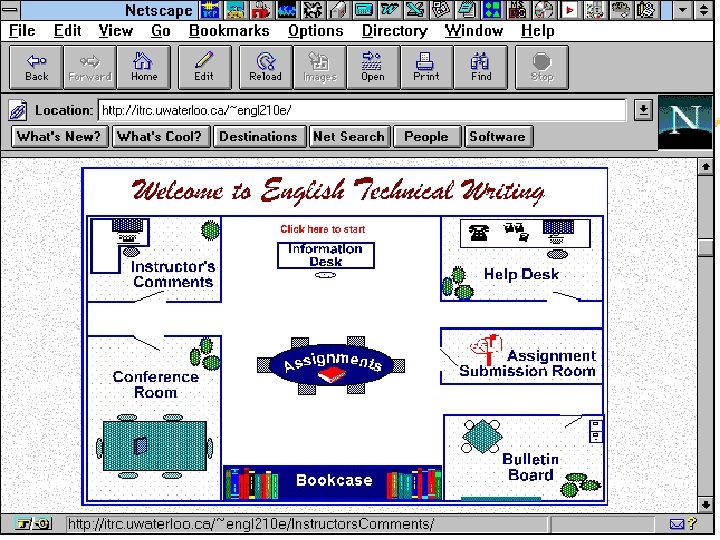

Virtual Rooms
Shared White Board
Virtual Projector
Sistem Digital Library Koleksi Catalog Abstract Teks Audio Video Digital Library Inter Library Network Pemakai CDS/ ISIS Team Pustakawan Metadata Full text & resources CD-ROM Institusi (Intern) INTERNET/ INTRANET Digital Library server Layanan: • Katalog; searching. . . Database • Informasi; searching. . . Administrasi • Pendidikan; self learning, editing. . . • Communication; email, bulletin. . . • Transaksi; pemesanan, peminjaman. . . Koleksi Transaksi Anggota Pemakaian
Catalog Map (Phase I)
Contoh Catalog Searching Databases collection Librarian response Select database Ordering Search result Catalog view
Summary z. Internet adalah alat bantu. z. Ubiquitous Technology z. Bisnis Plan & Self Finance. z. Community Based & User Empowerment.
Alamat Penting. . . z. Ai 3@itb. ac. id zsysop-l@itb. ac. id zcnrg@itb. ac. id zhttp: //ai 3. itb. ac. id/ zhttp: //virtual-university. itb. ac. id/ zhttp: //xxx. itb. ac. id/~yc 1 dav/
