TEKNOLOGI ELEKTRONIK INDUSTRI PNEUMATIC SYSTEM PENYAMBUNGAN LITAR HASLINAWATI

TEKNOLOGI ELEKTRONIK INDUSTRI PNEUMATIC SYSTEM PENYAMBUNGAN LITAR HASLINAWATI BINTI JAMALUDDIN

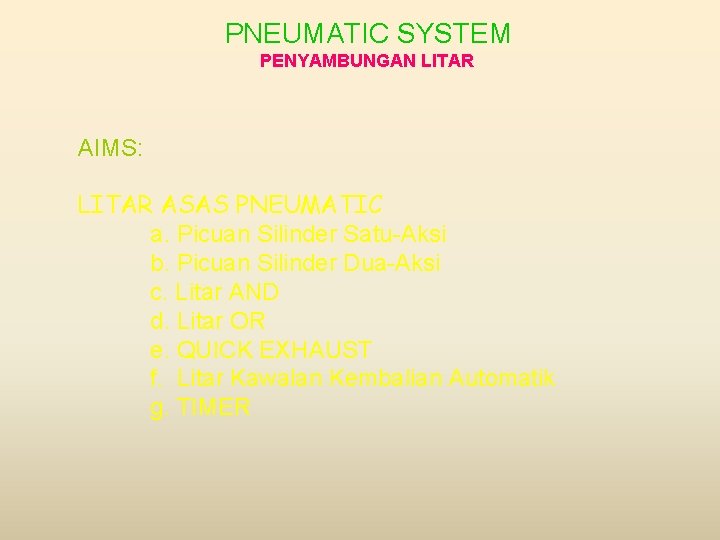

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR AIMS: LITAR ASAS PNEUMATIC a. Picuan Silinder Satu-Aksi b. Picuan Silinder Dua-Aksi c. Litar AND d. Litar OR e. QUICK EXHAUST f. Litar Kawalan Kembalian Automatik g. TIMER

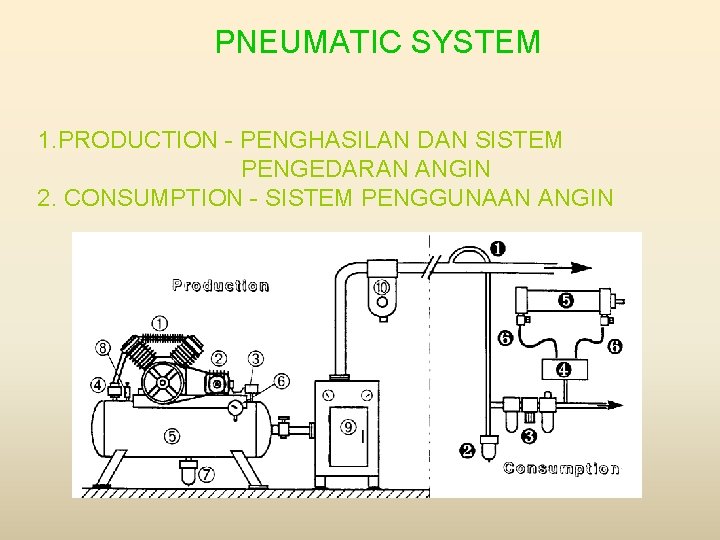

PNEUMATIC SYSTEM 1. PRODUCTION - PENGHASILAN DAN SISTEM PENGEDARAN ANGIN 2. CONSUMPTION - SISTEM PENGGUNAAN ANGIN

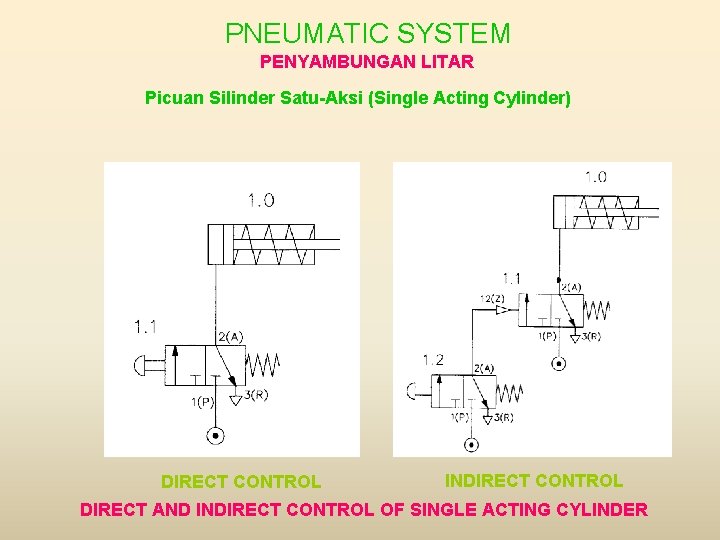

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR Picuan Silinder Satu-Aksi (Single Acting Cylinder) DIRECT CONTROL INDIRECT CONTROL DIRECT AND INDIRECT CONTROL OF SINGLE ACTING CYLINDER

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR Picuan Silinder Dua-Aksi (Double Acting Cylinder) DIRECT CONTROL INDIRECT CONTROL DIRECT AND INDIRECT CONTROL OF DOUBLE ACTING CYLINDER

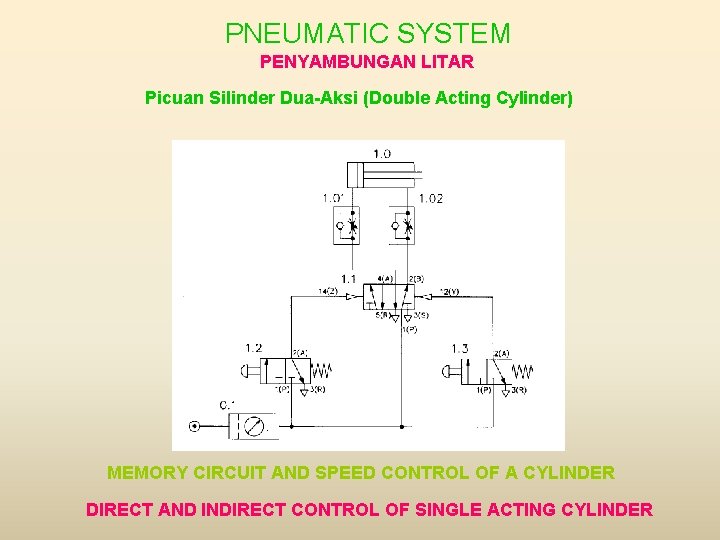

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR Picuan Silinder Dua-Aksi (Double Acting Cylinder) MEMORY CIRCUIT AND SPEED CONTROL OF A CYLINDER DIRECT AND INDIRECT CONTROL OF SINGLE ACTING CYLINDER

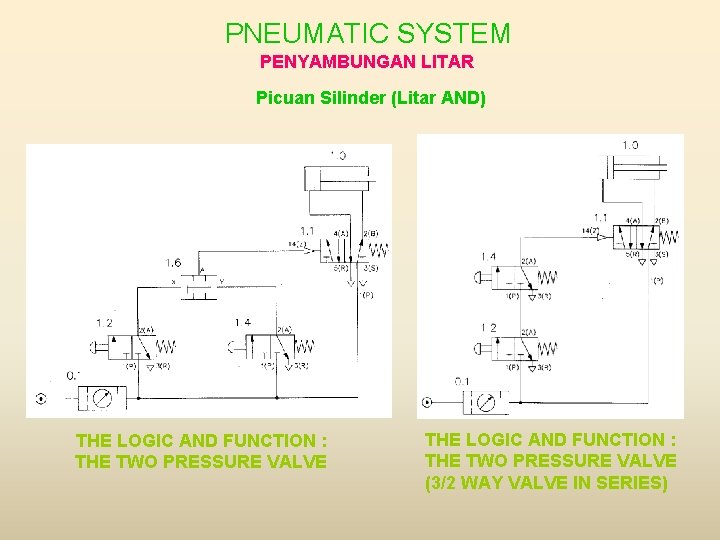

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR Picuan Silinder (Litar AND) THE LOGIC AND FUNCTION : THE TWO PRESSURE VALVE (3/2 WAY VALVE IN SERIES)

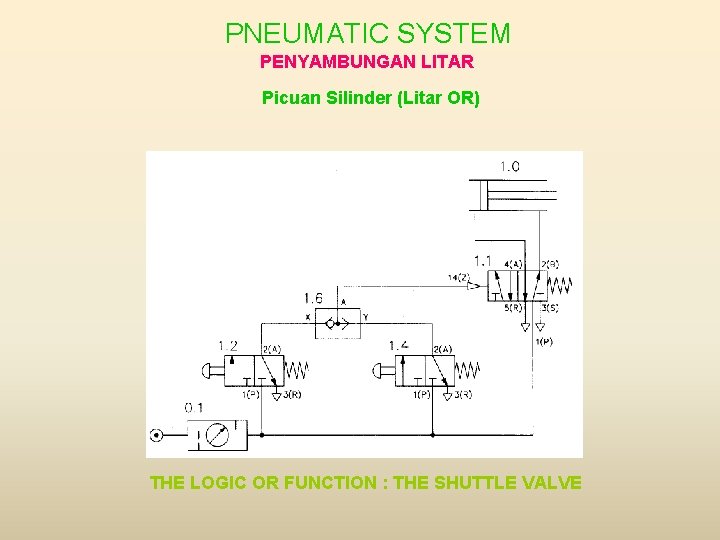

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR Picuan Silinder (Litar OR) THE LOGIC OR FUNCTION : THE SHUTTLE VALVE

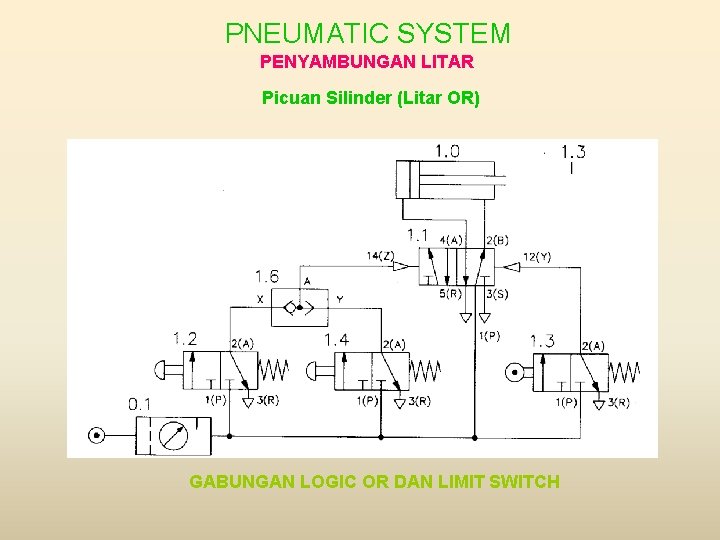

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR Picuan Silinder (Litar OR) GABUNGAN LOGIC OR DAN LIMIT SWITCH

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR Picuan Silinder (Litar OR) GABUNGAN LOGIC OR, AND DAN LIMIT SWITCH

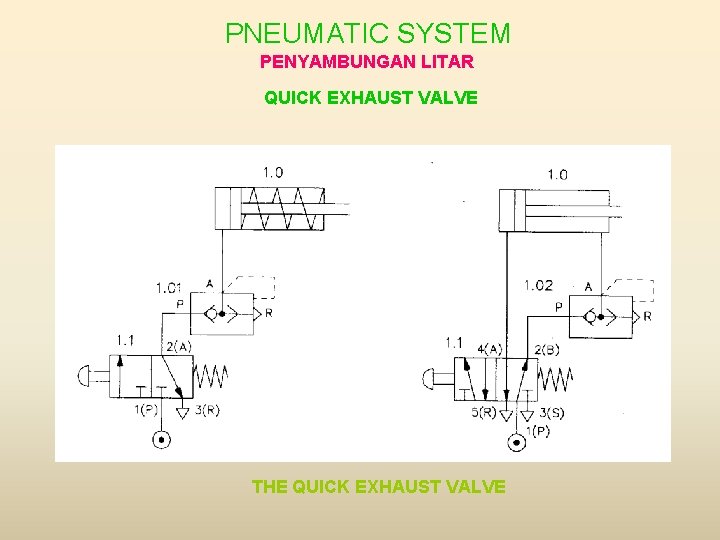

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR QUICK EXHAUST VALVE THE QUICK EXHAUST VALVE

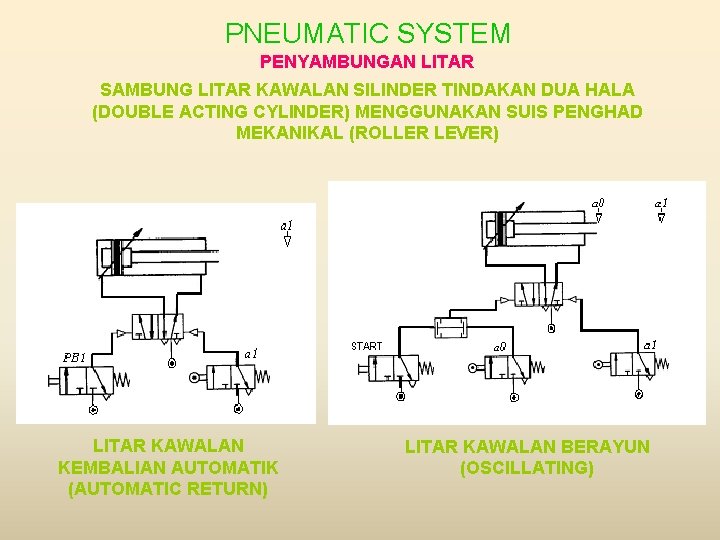

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR SAMBUNG LITAR KAWALAN SILINDER TINDAKAN DUA HALA (DOUBLE ACTING CYLINDER) MENGGUNAKAN SUIS PENGHAD MEKANIKAL (ROLLER LEVER) LITAR KAWALAN KEMBALIAN AUTOMATIK (AUTOMATIC RETURN) LITAR KAWALAN BERAYUN (OSCILLATING)

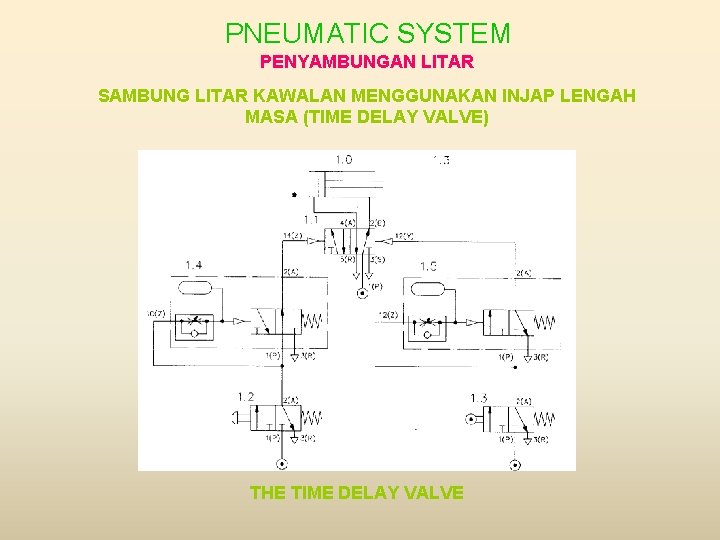

PNEUMATIC SYSTEM PENYAMBUNGAN LITAR SAMBUNG LITAR KAWALAN MENGGUNAKAN INJAP LENGAH MASA (TIME DELAY VALVE) THE TIME DELAY VALVE
