TEI and neighbouring standards: CIDOC-CRM Øyvind Eide Universität Passau http: //www. oeide. no/ (with thanks to Christian-Emil Ore and the rest of the CIDOC-CRM SIG) Digital Humanities Dr. Øyvind Eide
Interconnected cultural heritage Digital Humanities Dr. Øyvind Eide
Text and ontology Henry III Fine Rolls Project (Ciula, Viera: “Complementing and extending TEI documents with an ontology”. TEI Members Meeting 2008) TEI XML • Physical and logical structure • Semantic content RDF/OWL ontology • Network of associations • Additional statements and interpretative layers <pers. Name key="ashford_de_william">William de <place. Name key="ashford 1">Ashford</place. Name> </pers. Name> <rs key="abjuration" type="subject">on the day he abjured the kingdom<pers. Name key="rumberue_de_thomas">Thomas de <place. Namekey="rumberue">Rumberue</place. Name></pers. Name></rs> Digital Humanities Dr. Øyvind Eide

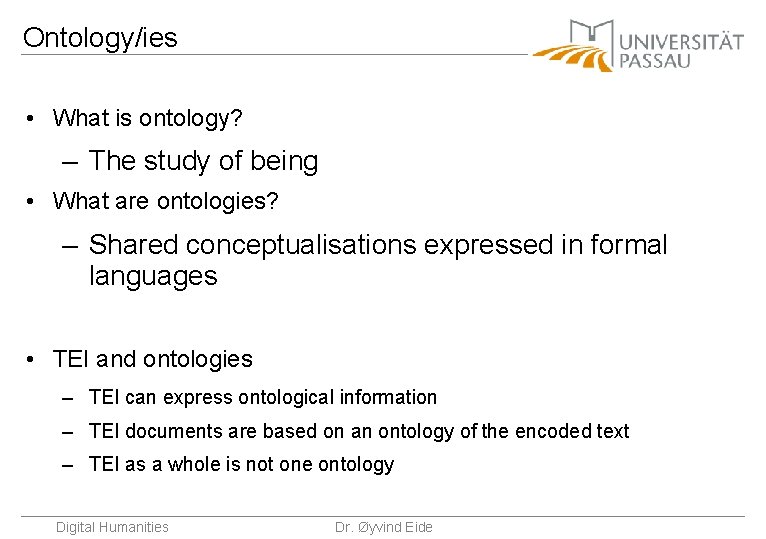

Ontology/ies • What is ontology? – The study of being • What are ontologies? – Shared conceptualisations expressed in formal languages • TEI and ontologies – TEI can express ontological information – TEI documents are based on an ontology of the encoded text – TEI as a whole is not one ontology Digital Humanities Dr. Øyvind Eide
Connecting TEI to ontologies • P 4: names could be connected to external resources • P 4: feature structures • P 5: names can be connected as in P 4 • P 5: names can be connected via a representation of the named object, typically in the header • Where is the link (to an external ontology) in the markup of the text? • Where does it point – which document? – which formalism? Digital Humanities Dr. Øyvind Eide

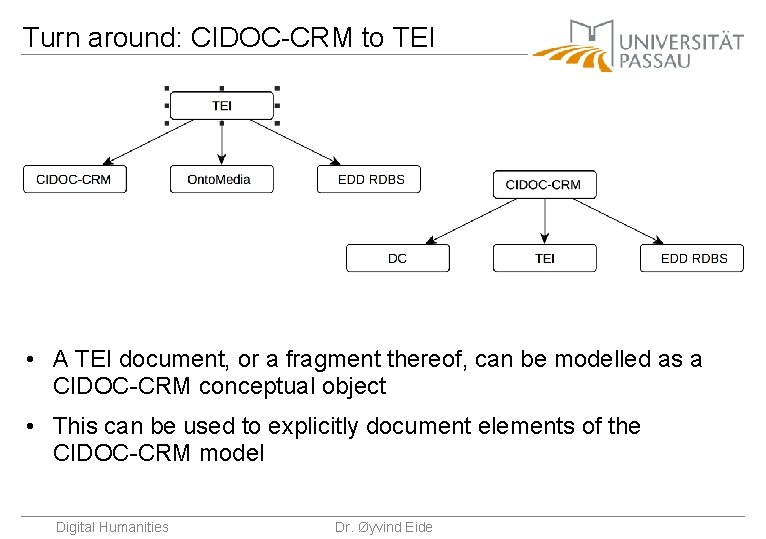

Turn around: CIDOC-CRM to TEI • A TEI document, or a fragment thereof, can be modelled as a CIDOC-CRM conceptual object • This can be used to explicitly document elements of the CIDOC-CRM model Digital Humanities Dr. Øyvind Eide
TEI as part of CIDOC-CRM Digital Humanities Dr. Øyvind Eide

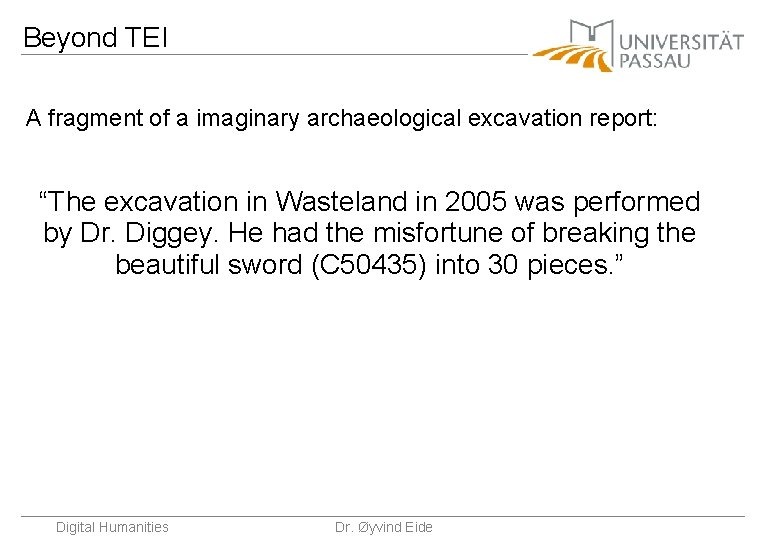

Beyond TEI A fragment of a imaginary archaeological excavation report: “The excavation in Wasteland in 2005 was performed by Dr. Diggey. He had the misfortune of breaking the beautiful sword (C 50435) into 30 pieces. ” Digital Humanities Dr. Øyvind Eide
Information extraction Actor: Dr. Diggey Relation: performed Event: E 1 Type excavation Place: Wastland Time- span 2005 Actor: Dr. Diggey Relation: performed Event: E 2 Type: Modification Descr: Breaking the sword into 30 pieces Relation: part of E 1 Relation: in presence of Object: Sword Relation: identified by Identifier: C 50435 Digital Humanities <TEI> <tei. Header> … </tei. Header> <text>… <p xml: id="p 1"> <rs xml: id="e 1">The excavation in <name type="place" xml: id="n 1">Wasteland </name> in <date xml: id="d 1">2005</date></rs> was performed by <name type="person" xml: id="n 2">Dr. Diggey </name>. He had the misfortune of <rs xml: id="e 2"> breaking <rs xml: id="o 1">the beautiful sword <rs xml: id=“o_id 1”>(C 50435)</rs> into 30 pieces</rs>. </p> … </text></TEI> Dr. Øyvind Eide
CIDOC-CRM E 55 Types refer to / identifie E 41 Appellations refer to / refine E 39 Actors (persons, inst. ) E 28 Conceptual Objects participate in affect or refer to E 18 Physical Things E 2 Temporal Entities (Events) at within E 52 Time-Spans Digital Humanities Dr. Øyvind Eide E 53 Places have location
Example from museum catalogue A long chinese pipe of bone. Donated 12 th May 1853 by Kildal-Lund. Object(man made): A pipe Object attributes material: bone shape: long Relation: was produced Event: Production Place: China Event: Donated Time-span: 12 th May 1853 Relation: by Actor: Kildal-Lund. Digital Humanities Dr. Øyvind Eide
Mapping to CRM Object(man made): A pipe Object attributes material: bone shape: long Relation: was produced Event: Production Place: China Event: Donated Time-span: 12 th May 1853 Relation: by Actor: Kildal-Lund. Digital Humanities E 21 Actors Kildal-Lund E 39 E 22 A Man pipe. Made object by Wasorproduced / refer to participate in affect E 12 Production event E 12 Temporal E 2 Production entity event E 8 Donation within E 52 Time-Spans E 52 12 th May 1853 Dr. Øyvind Eide location in E 53 Places China
The content of the text in CIDOC-CRM P 2 has type E 31 Document E 55 Type ”Archaeological report” P 70 documents E 7 Activity P 12 was present at E 22 Man–Made object ”Archaeological excavation” P 9 forms part of P 4 has time-span E 11 Modification ”Breaking of the sword” “Sword” E 52 Time span P 14 carried out by P 1 is identified by E 82 Object identifier E 82 Actor appellaton Digital Humanities P 7 took place at E 53 Place E 21 Person (actor) ” C 50435” E 55 Type P 2 has type P 87 is identified by ”Dr. Diggey” E 44 Place appellaton ”Wasteland” Dr. Øyvind Eide P 78 is identified by E 50 Date ” 2005”
