TEGO Sorb The Most Effective Malodour Absorber Consumer
TEGO® Sorb The Most Effective Malodour Absorber Consumer Specialties – Household Care February 2009
Our TEGO® Sorb Product Range is the fastest longest lasting only non- reversible malodour absorber technology in the market! 2
TEGO® Sorb Additional Benefits TEGO® Sorb products remove odours like ü Cigarette smoke ü Sweat ü Garbage ü Pet smell ü Onions and garlic TEGO® Sorb is compatible with most types of perfumes ´Consumer Specialties | Business Line Household Care 3
TEGO® Sorb Mode of Action TEGO® Sorb products remove malodours by permanent chemical bonding TEGO® Sorb : Active malodour absorber ´Consumer Specialties | Business Line Household Care 4
Applications of TEGO® Sorb Household, Industrial & Institutional TEGO® Sorb products are successful in a huge variety of products in our daily life: Laundry Care § Fabric refresher § Detergents § Special detergents for sports-wear § Spot and Stain Remover § Fabric softeners ´Consumer Specialties | Business Line Household Care § Toilet § Kitchen § Sponge, Wipe, etc § Waste bag § Vacuum Cleaner § Fridge § Dishwashing Machine § Shoes § Carpet Cleaner Hobby Care § Car Air-Refresher § Upholstery Cleaner § Refresher for Air Conditions § Pet Care 5

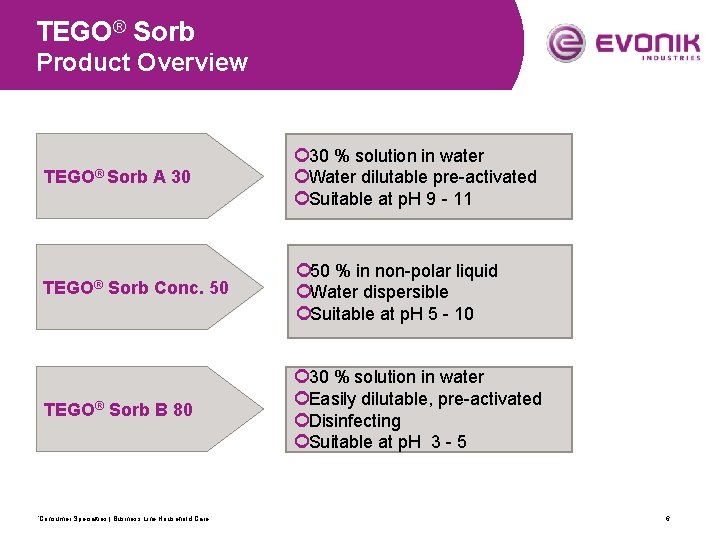

TEGO® Sorb Product Overview TEGO® Sorb A 30 ¢ 30 % solution in water ¢Water dilutable pre-activated ¢Suitable at p. H 9 - 11 TEGO® ¢ 50 % in non-polar liquid ¢Water dispersible ¢Suitable at p. H 5 - 10 Sorb Conc. 50 TEGO® Sorb B 80 ´Consumer Specialties | Business Line Household Care ¢ 30 % solution in water ¢Easily dilutable, pre-activated ¢Disinfecting ¢Suitable at p. H 3 - 5 6
TEGO® Sorb Product Use Guidelines TEGO® Sorb A 30 Specially made for non-risk formulations for household and I&I applications, like alkaline kitchen cleaners. TEGO® Sorb Conc. 50 Suitable for the use in textile refreshers, carpet, and upholstery cleaners. TEGO® Sorb B 80 Suitable for the use in bins, toilet sanitizers, pet care, and cat litter. ´Consumer Specialties | Business Line Household Care 7
Determination of Malodors Methods Reduction of • Ammonia • Isovaleric acid • Dimethylsulfide Test Malodor Analytical Method Ammonia Olfactory Panel Test Isovaleric acid Gas. Chromatography Dimethylsulfide ´Consumer Specialties | Business Line Household Care Solid. Phase. Micro. Extraction Simulation of Waste Air Threshold of Smell: <55000 ppb Body Odor Threshold of Smell : <25 ppb Kitchen Odor Threshold of Smell : <200 ppb 8
Efficiency of the Zinc Ricinoleate Elimination of Isovaleric Acid Isovaleric acid (µl ) 1. 000 eliminated 800 600 400 200 0 Available conc: 200µl 250µl 300µl 350µl 800µl Exhausted teflon flask (1 L) with 2 g zinc ricinoleate powder, sealed with a septum. Heating up to 60 °C. Addition of Isovaleric acid with a syringe. Measurement of the concentration of isovaleric acid in vapour phase by GC 24 hours after addition. Finish of the test run: Detection of traces of isovaleric acid after 24 hours (“break through”). ´Consumer Specialties | Business Line Household Care 9

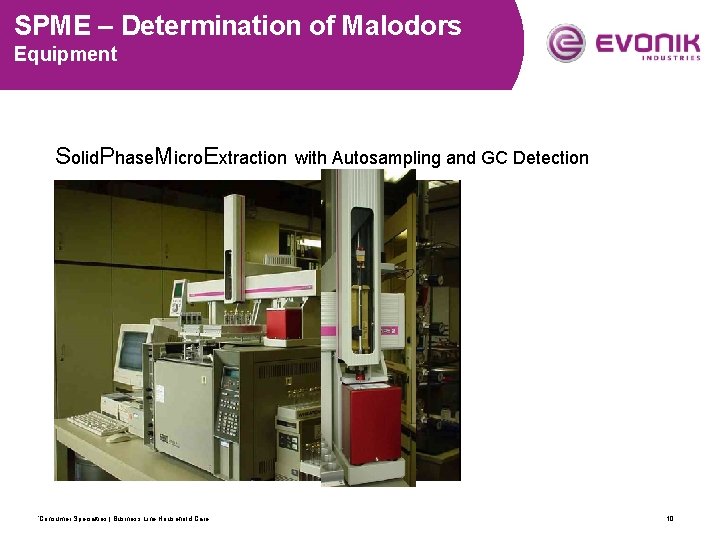

SPME – Determination of Malodors Equipment Solid. Phase. Micro. Extraction ´Consumer Specialties | Business Line Household Care with Autosampling and GC Detection 10
SPME - Determination of Malodors Method Ø Volume of 1 ml sample added into test flask Ø Close the test flask with septum on top Ø Addition of 1 µl of DMF containing 0, 2 to 40 µg DMS Ø Shake the test flask for 10 Min. Ø Sample proceeding with special modified fibre Ø Addition into GC-Detection Ø Detect and compare the DMS-Peaks Adsorption - Sampling ´Consumer Specialties | Business Line Household Care Desorption - Detektion 11
Comparison SPME-Efficiency of Various TEGO® Sorb Preparations Levels of DMS concentrations absorbed by different absorber systems Uptake of Malodor compared to water TEGO Sorb Conc. 50 TEGO Sorb A 30 TEGO Sorb B 80 Cyclodextrine Water (control) 0 2 µg ´Consumer Specialties | Business Line Household Care 4 µg 6 µg 8 µg 10 µg 12 µg 14 µg 16 µg 18 µg 20 µg DMS 12
TEGO® Sorb Hints for Use Ø Zinc ricinoleates are sensitive to water hardness and may precipitate Ø The use of a sequesting agent like phosphonates (HEDP, DTPMP etc. ) or Iminodisuccinate is highly recommended to stabilize the formulation. Ø Not recommended are chelators like EDTA, Polyphosphates, etc. because they inactivate the active side of the zinc in TEGO® Sorb. Ø TEGO® Sorb Products mainly remove malodour components containing either nitrogen and/ or sulfur: Ø Preservatives like Isothiazolinones contain sulfur and will partly inactivate the odour absorber. Isothiazolinones should not be used as a preservative ´Consumer Specialties | Business Line Household Care 13
TEGO® Sorb Aqueous Odour Absorber Formulation Aqueous Odour Absorber Water, demin % 89. 3 Sodium salt of DTPMP, 32% 2. 5 Triethanol amine 0. 6 REWOPOL® SB FA 30 6. 0 TEGO® Sorb Conc. 50 1. 0 Lactic acid 0. 6 Preservative/Perfume q. s. Manufacturing: Add water then add all ingredients in the order listed with continuous mixing. If preserved, don't use Isothiazolinones ´Consumer Specialties | Business Line Household Care 14
TEGO® Sorb Microbicidal Odor Absorber Formulation Microbicidal Odour Absorber Spray Water, demin TEGO® Sorb B 80 % 92. 5 7. 5 Manufacturing: Blend the ingredients while stirring Adjust the p. H with Triethanolamine to 5 -6 ´Consumer Specialties | Business Line Household Care 15
Formulations Comparison of Ingredients Aqueous Odour Absorber Water, demin % 95. 8 Na 3 MGDA 1. 0 TEGO® Sorb A 30 3. 2 Manufacturing: Blend the ingredients in the given order while stirring Adjust the p. H to 9 -11; p. H values below 8 lead to precipitation under cold storage conditions. If preserved, don't use Isothiazolinones ´Consumer Specialties | Business Line Household Care 16
Formulations Comparison of Ingredients Odour Absorber, fast drying % TEGO® Sorb A 30 6. 7 Ethanol 7. 0 Iminodisuccinate, Na-salt 2. 0 Water, demin 84. 3 Manufacturing: Blend the ingredients in the given order while stirring. If preserved, don't use Isothiazolinones ´Consumer Specialties | Business Line Household Care 17
TEGO® Sorb Summary of Benefits ü TEGO® Sorb Zinc ricinoleate gives superior malodour removal by permanent chemical bonding. ü TEGO® Sorb Zinc ricinoleate stand out due to its - fast action and - long lasting effect ü The TEGO® Sorb product range is designed for a wide variety of applications. ´Consumer Specialties | Business Line Household Care 18
TEGO® Sorb Avoids Pain and Clothes-pins It's your choice TEGO® Sorb or clothes pins! ´Consumer Specialties | Business Line Household Care 19
